Storage Tank Hire:
80,000 Litre Vertical Silo Tanks

Get a quote Get expert advice today

Tank Specification

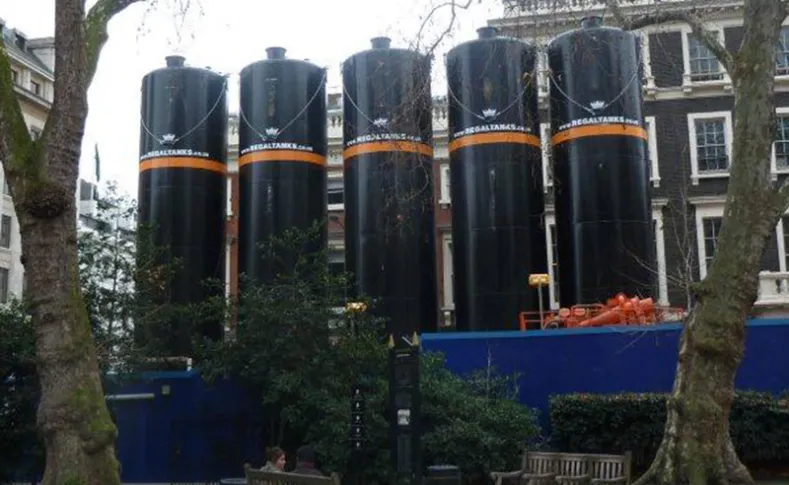

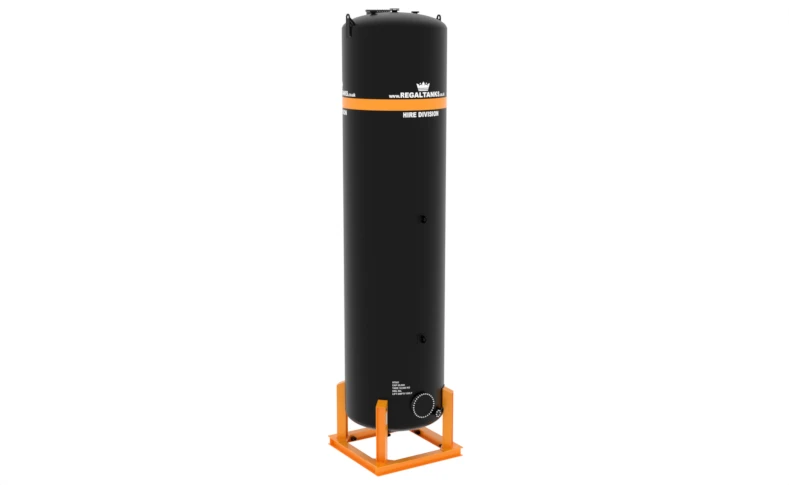

At Regal Tanks, we provide 80,000-litre vertical silo tanks designed for efficient, space-saving storage. These robust mild steel tanks feature a compact 3m diameter, making them ideal for tight sites. Standard fittings include 6" ANSI flanged outlets, a 600mm bolted manway with davit arm, and a hydrostatic gauge, all certified to LOLER 98 standards. Perfect for industries requiring reliable, temporary storage of non-corrosive liquids.

Maximum Capacity

80,000 Litres

Material

Mild Steel

Footprint

D: 3,000 mm, H: 13,500 mm

Weight

10,500kg

Standard Fittings

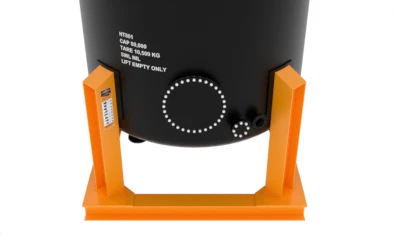

Bottom

1 no. 6" 150# ANSI central outlet with 90 degree flanged elbow
1 no. 6" 150# ANSI flanged internal overflow
Dish bottom, fully self draining

Side

1 x 4" 150# ANSI internal fill line
1 x 4" 150# ANSI inlet/outlet (blinded)
1 no. 600mm bolted manway with davit arm
Hydrostatic percentage reading gauge

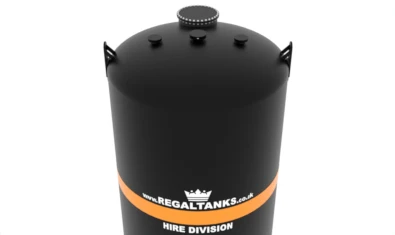

Roof

2 no. 4" 150# ANSI spare nozzles (blinded)
1 no. 8" 150# ANSI flanged vent with spaced cover plate

Lifting

Side - 2 leg wire rope sling complete with master link to off load in horizontal position
Top - 2 leg wire rope sling complete with pick up leg and master link to be used to stand to vertical
3rd party certified to LOLER 98
