Storage Tank Hire:

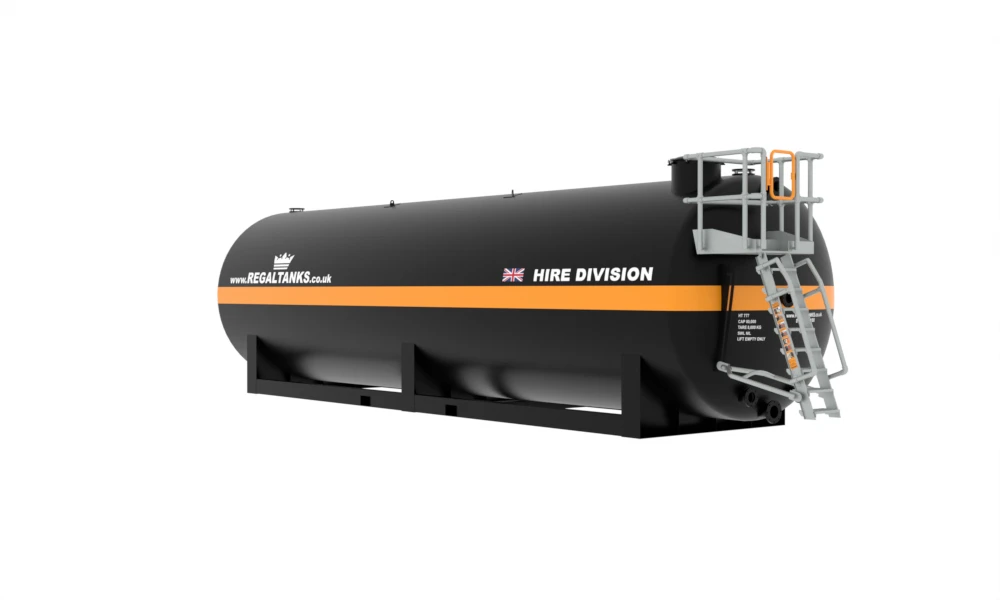

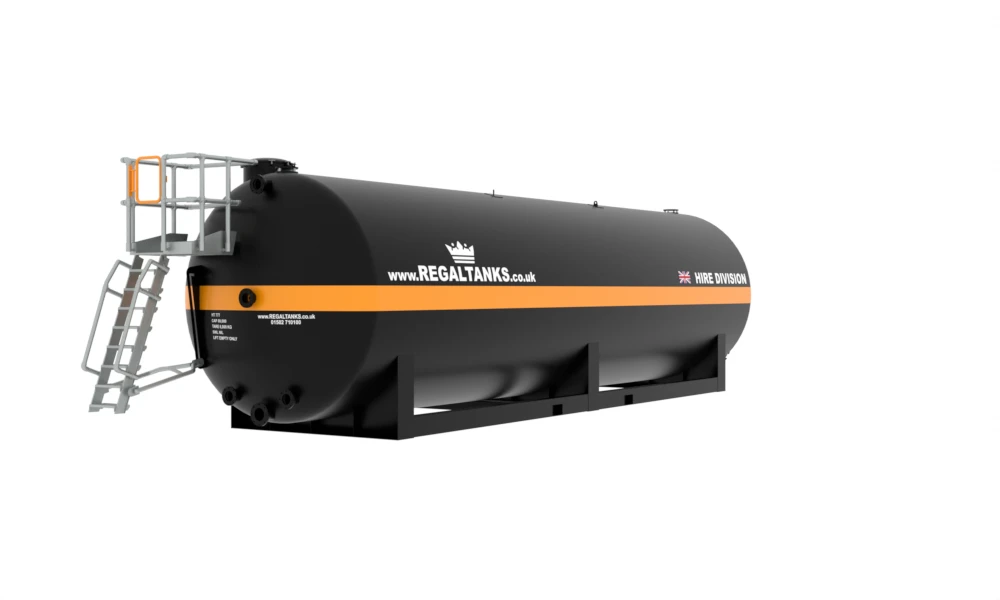

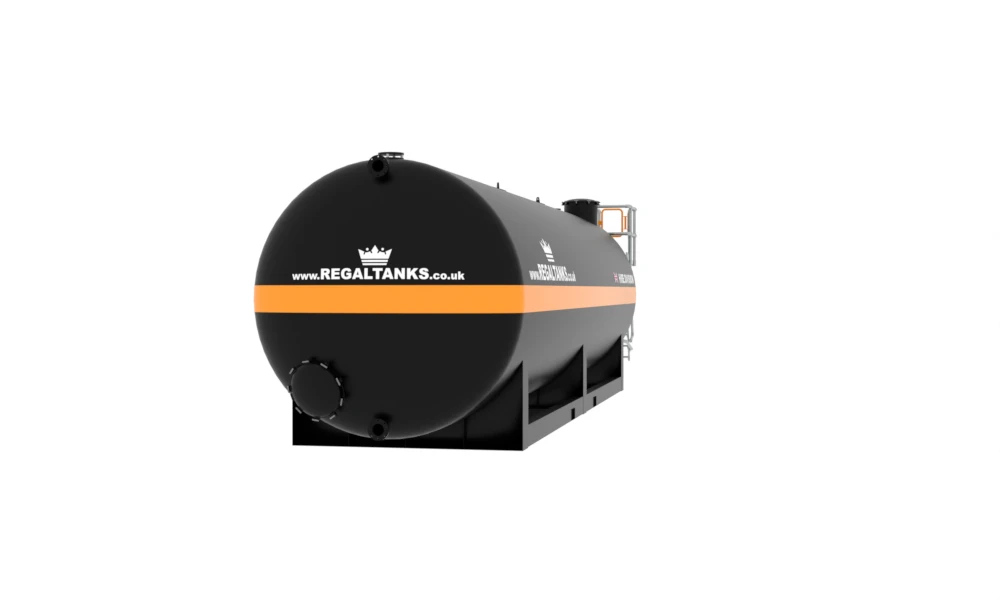

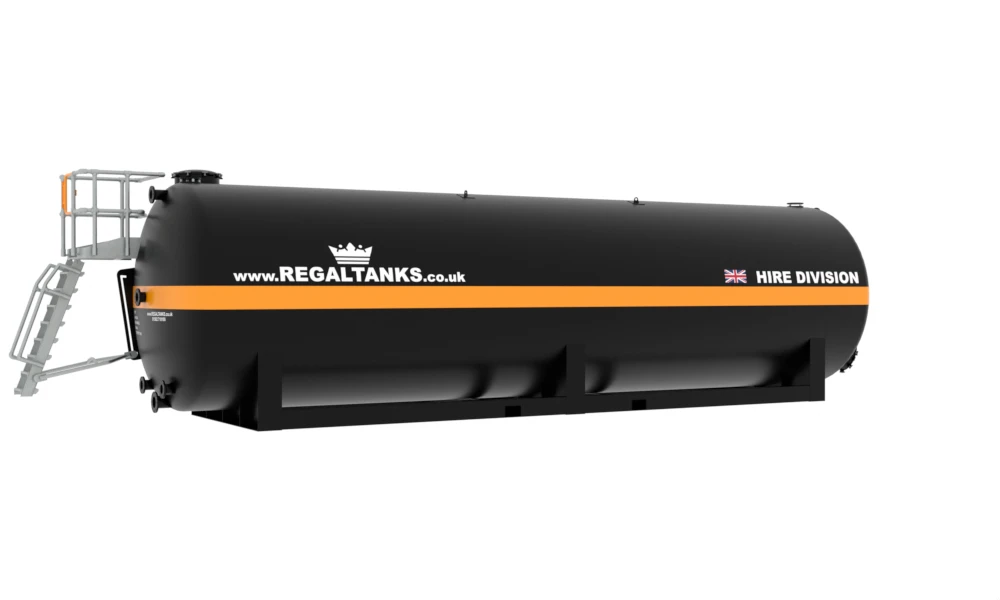

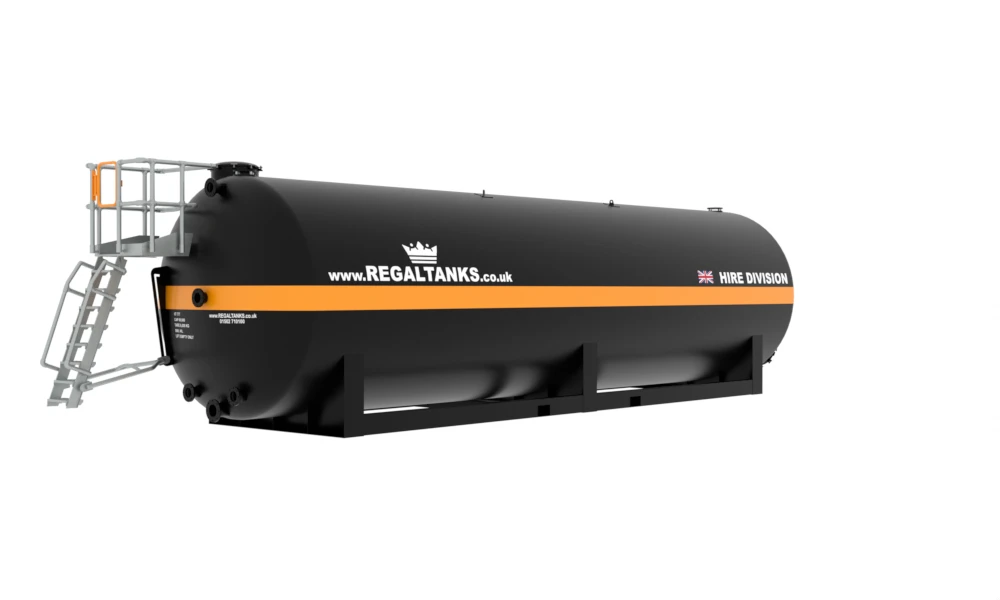

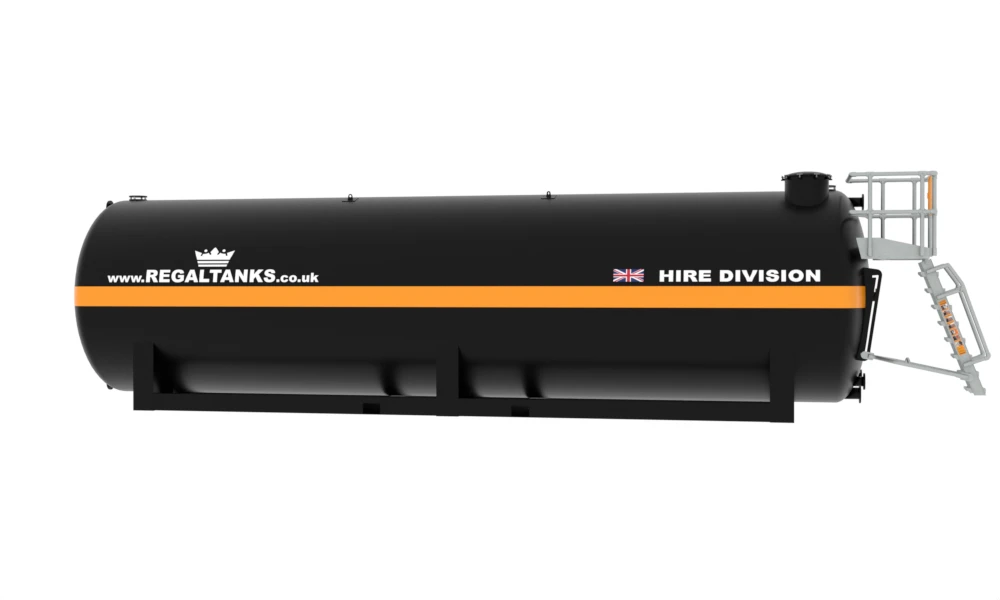

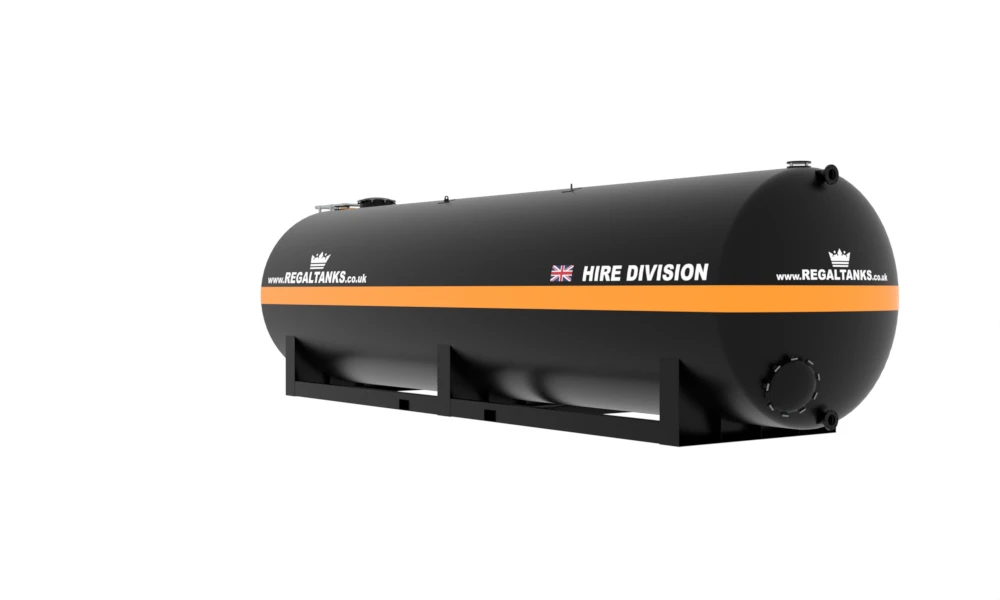

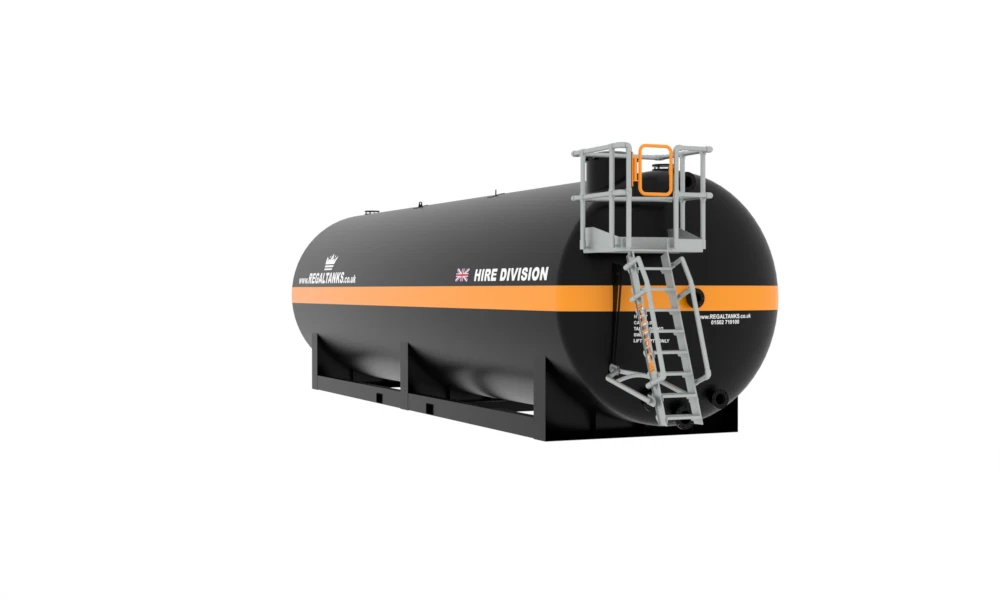

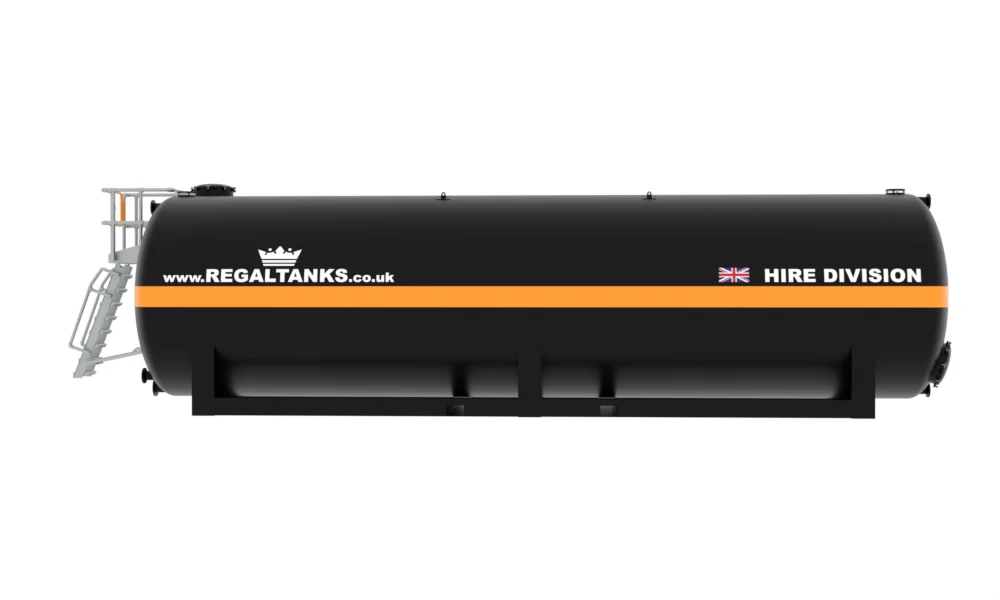

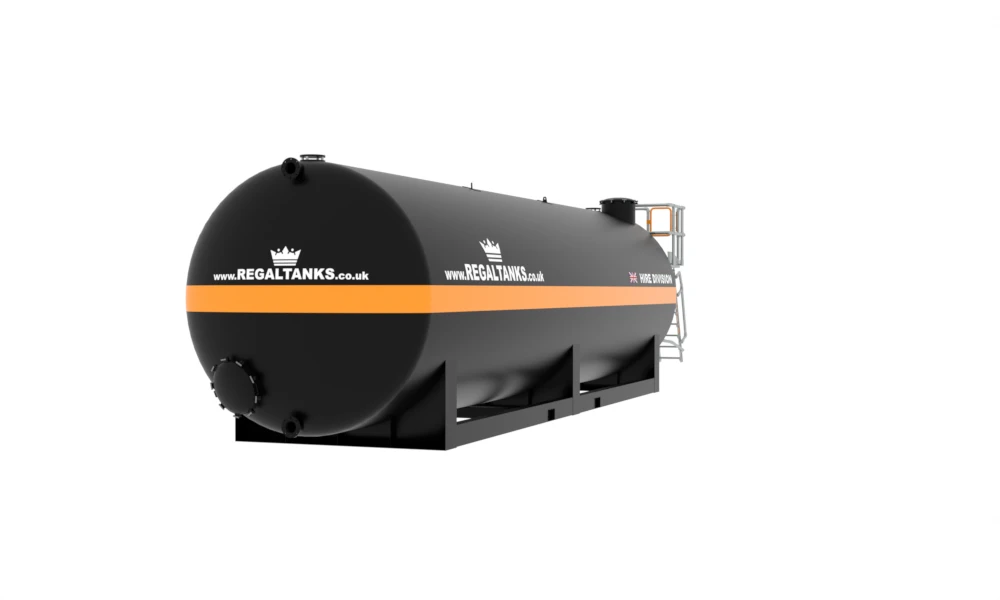

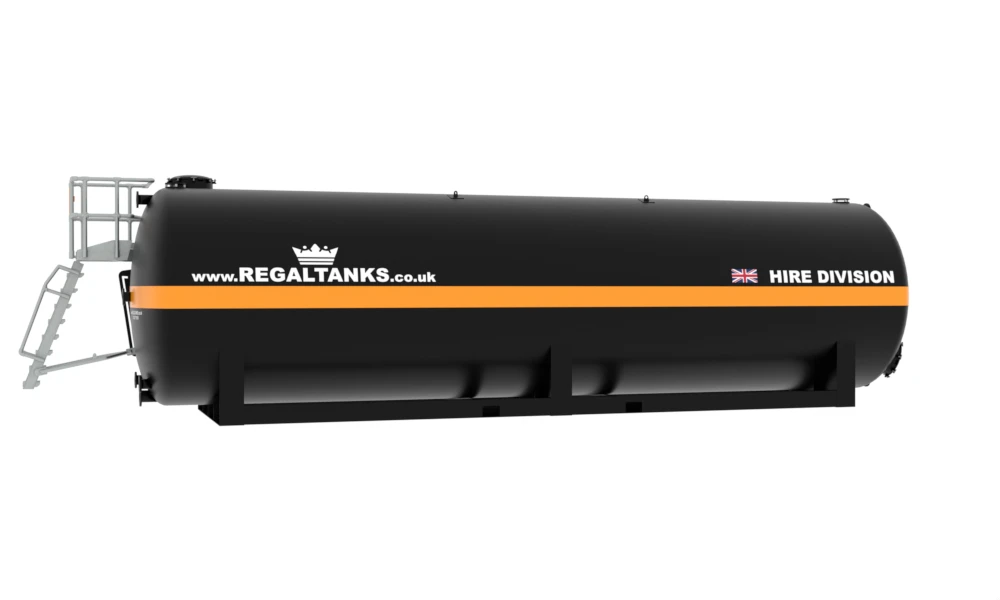

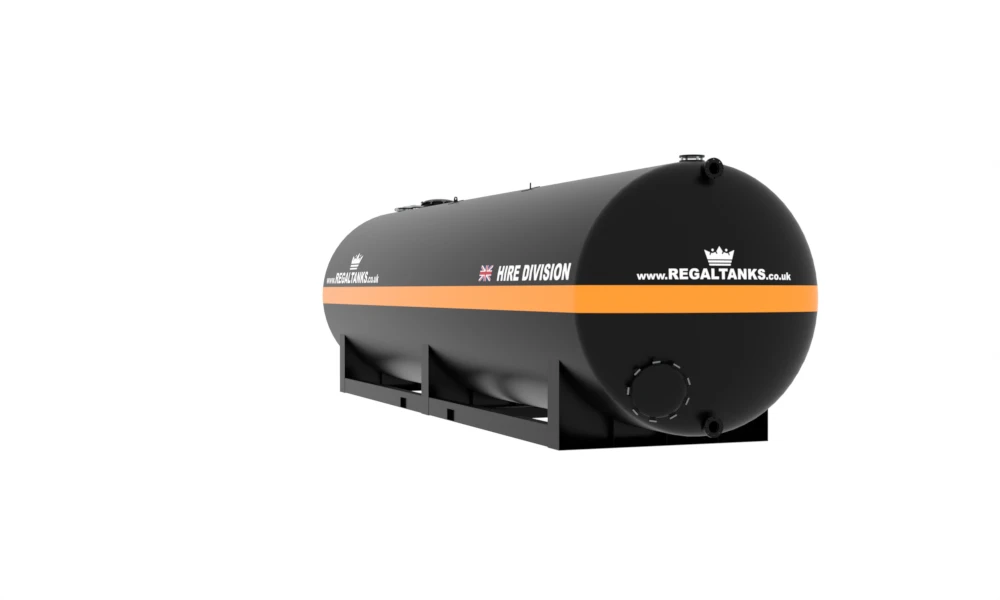

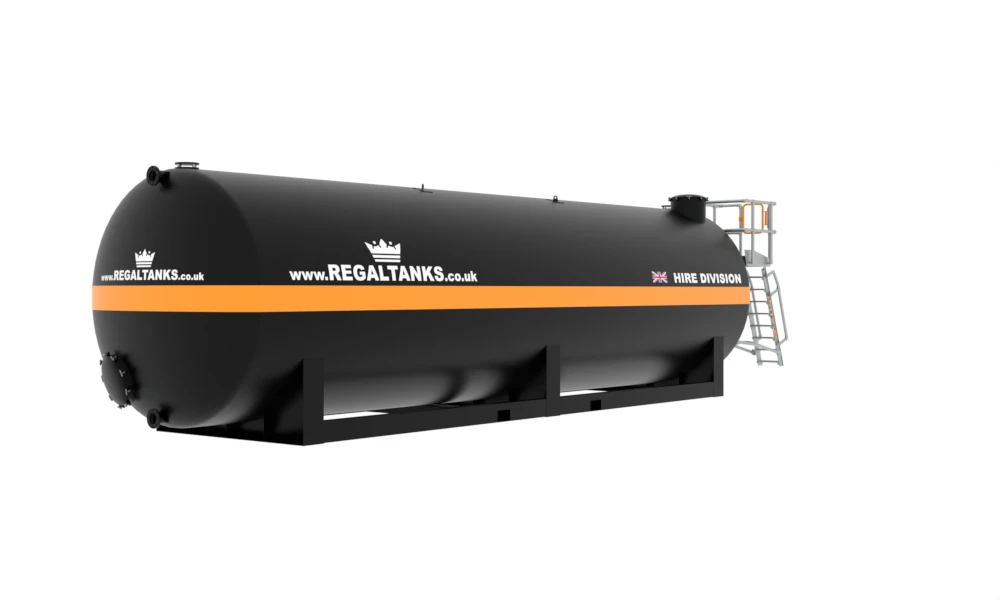

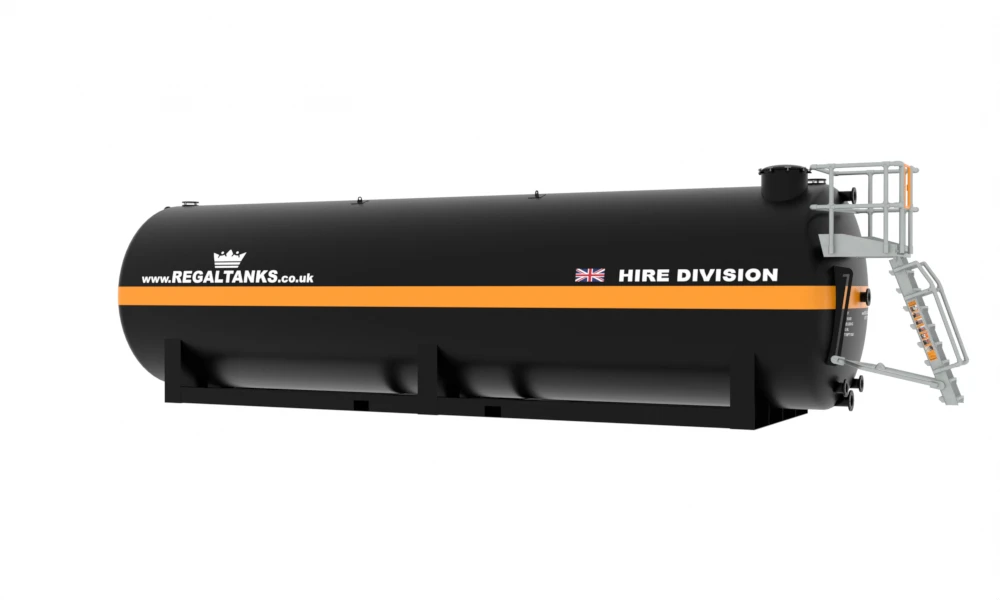

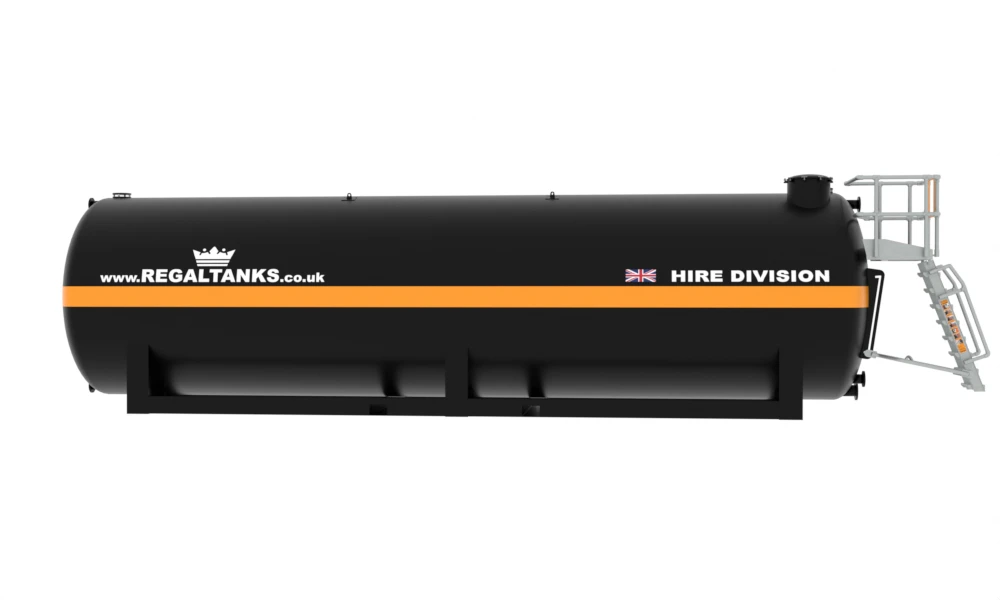

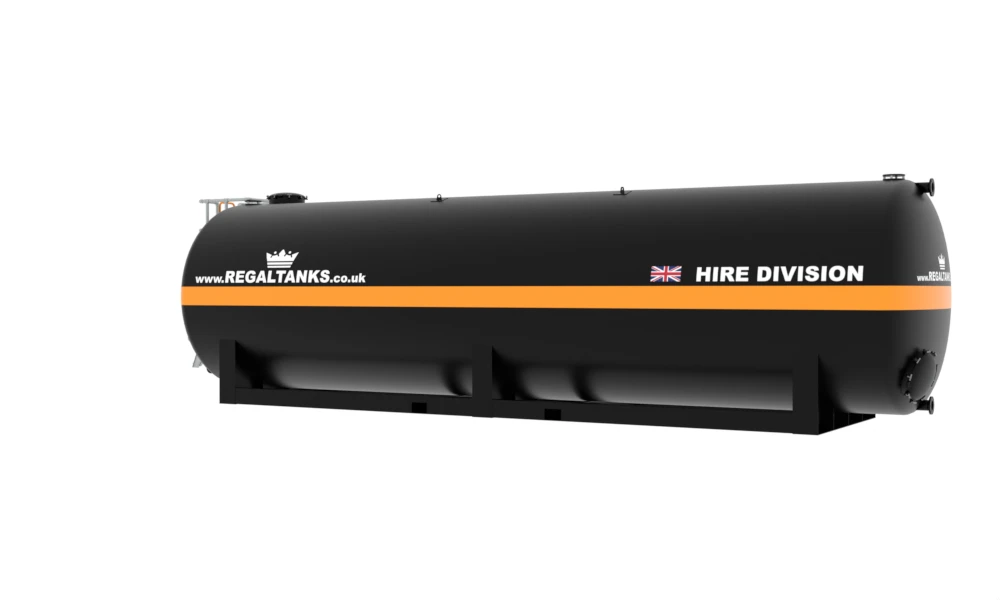

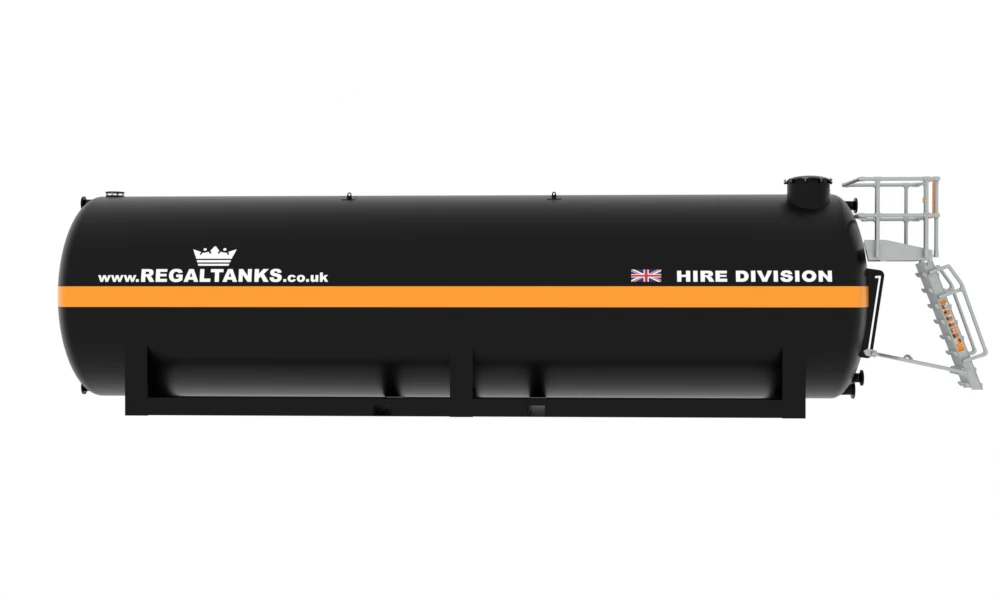

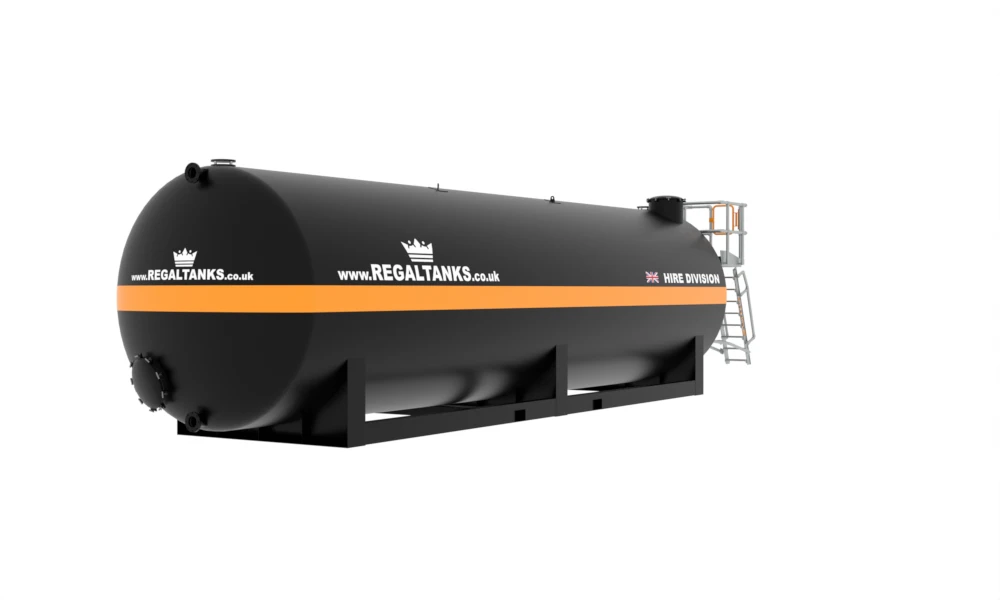

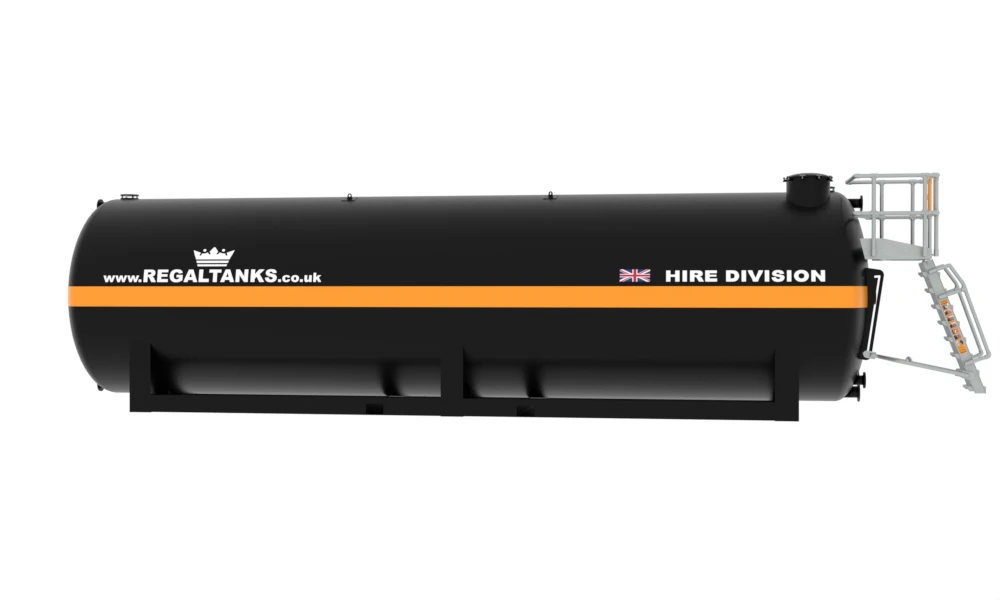

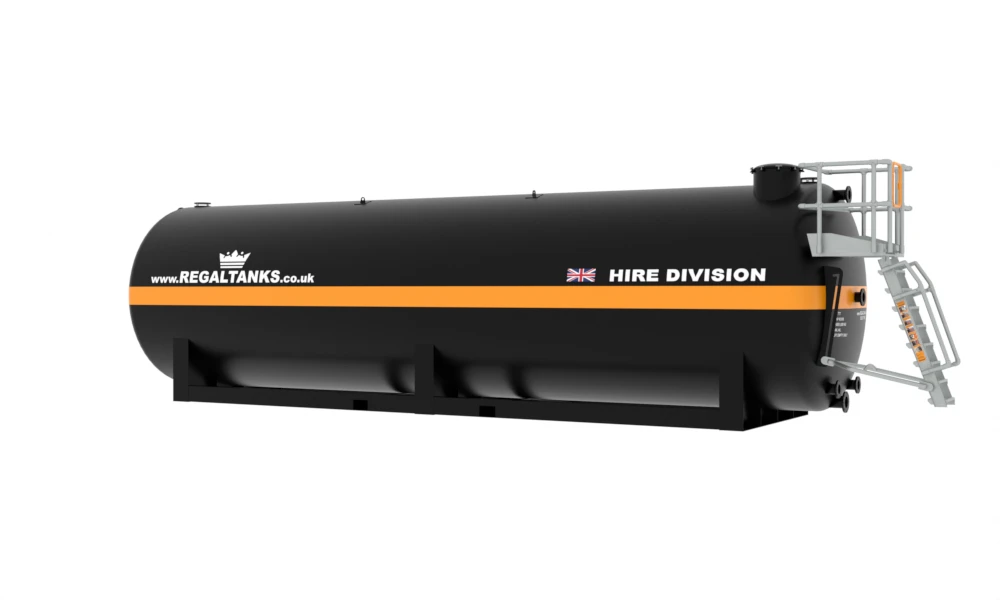

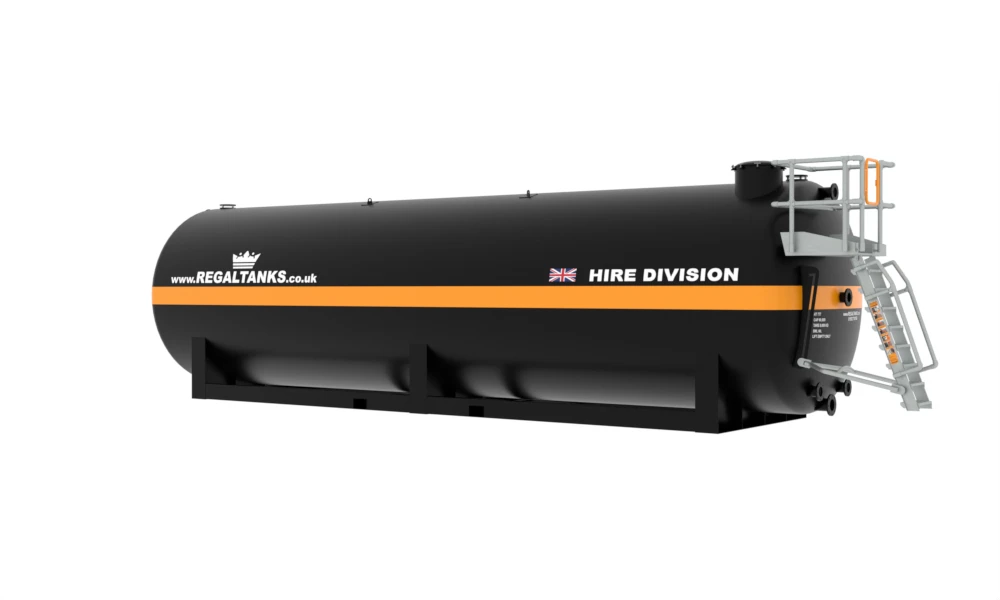

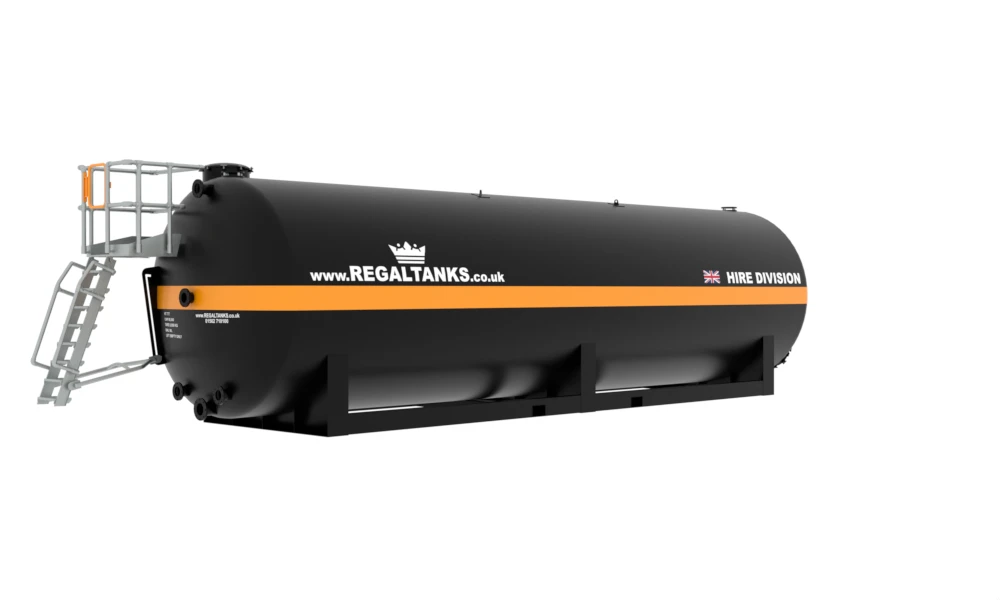

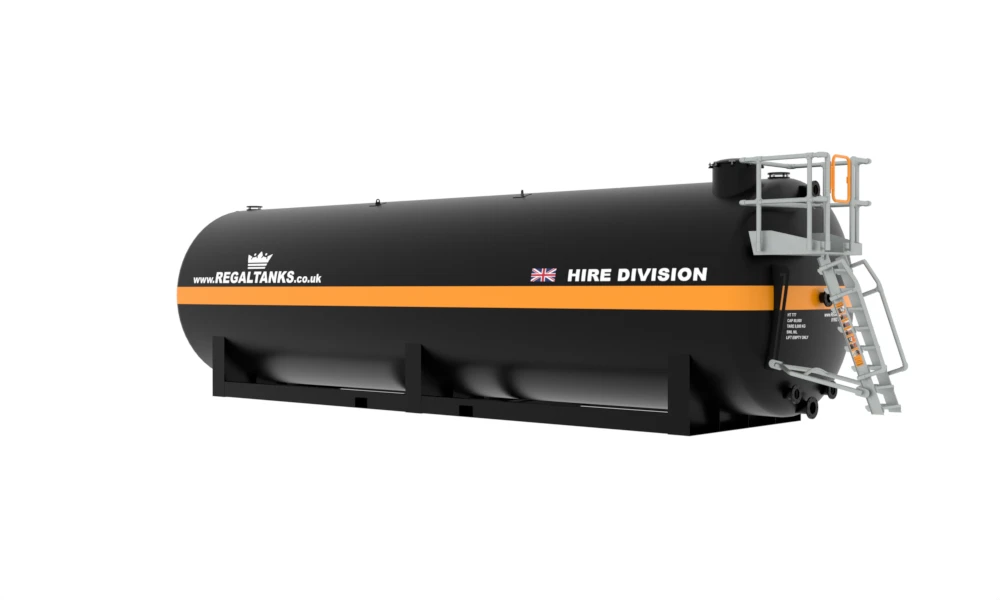

80,000 Litre Horizontal Tanks

Get a quote Get expert advice today

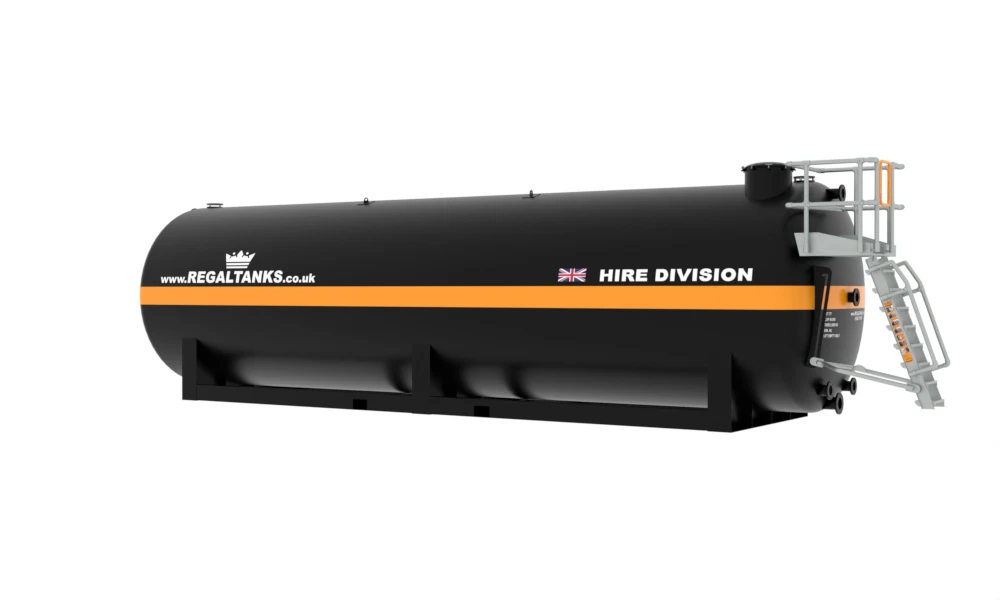

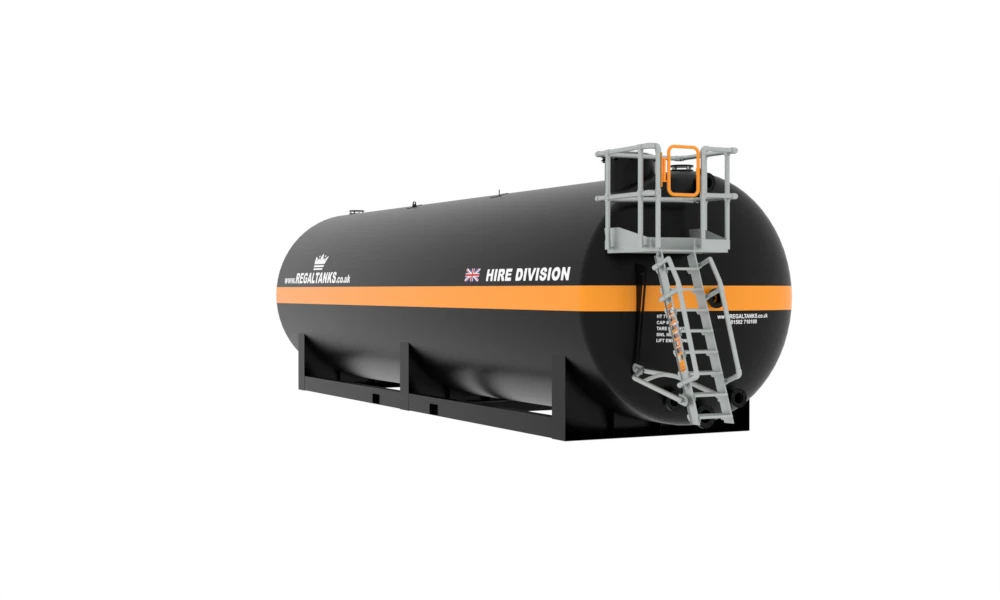

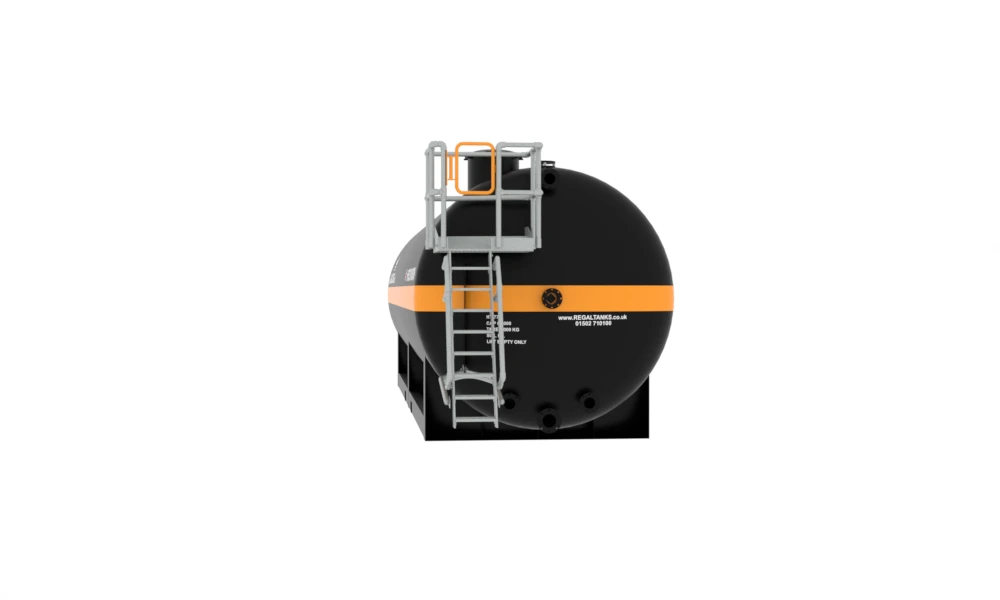

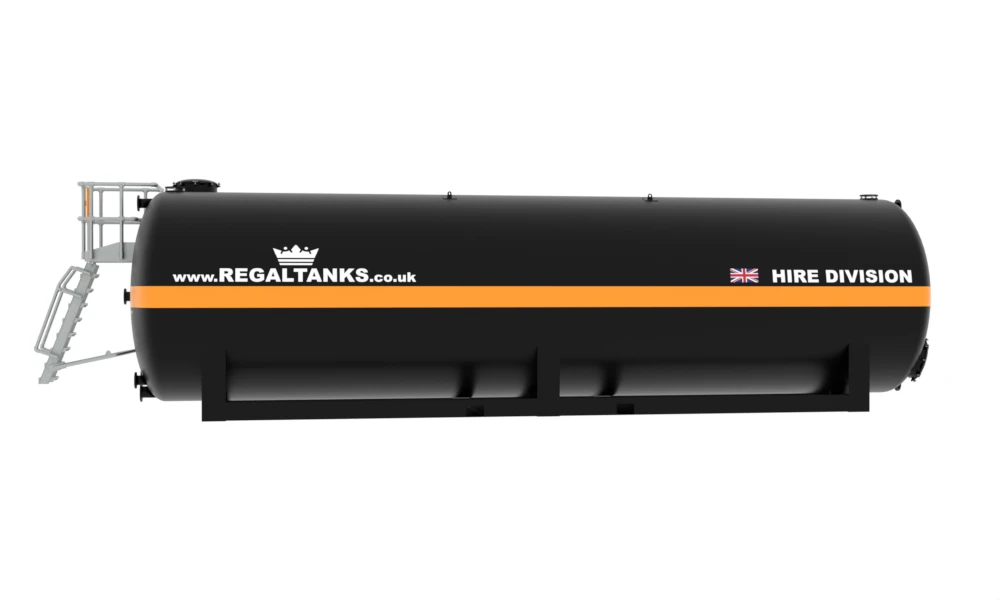

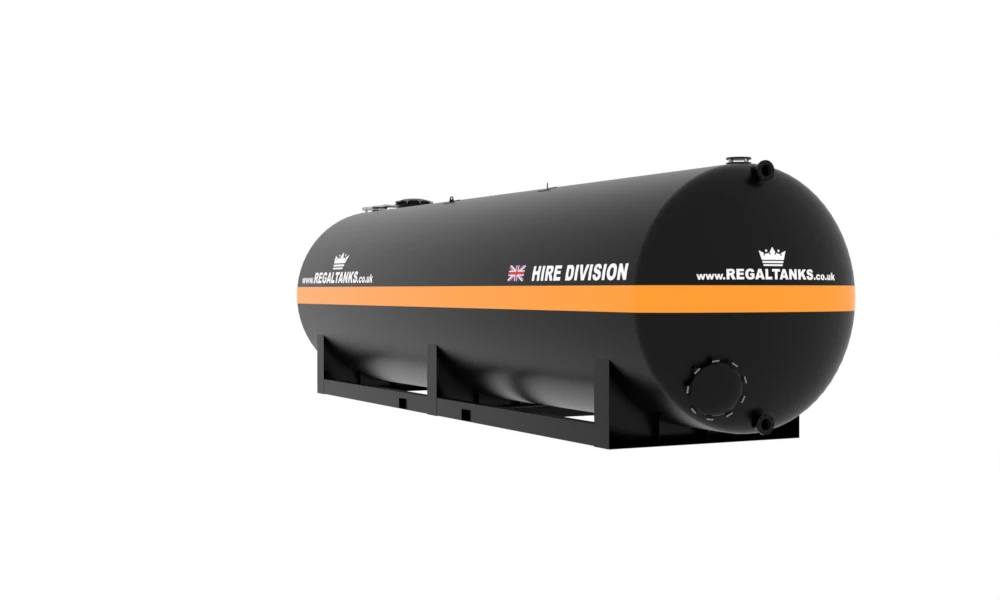

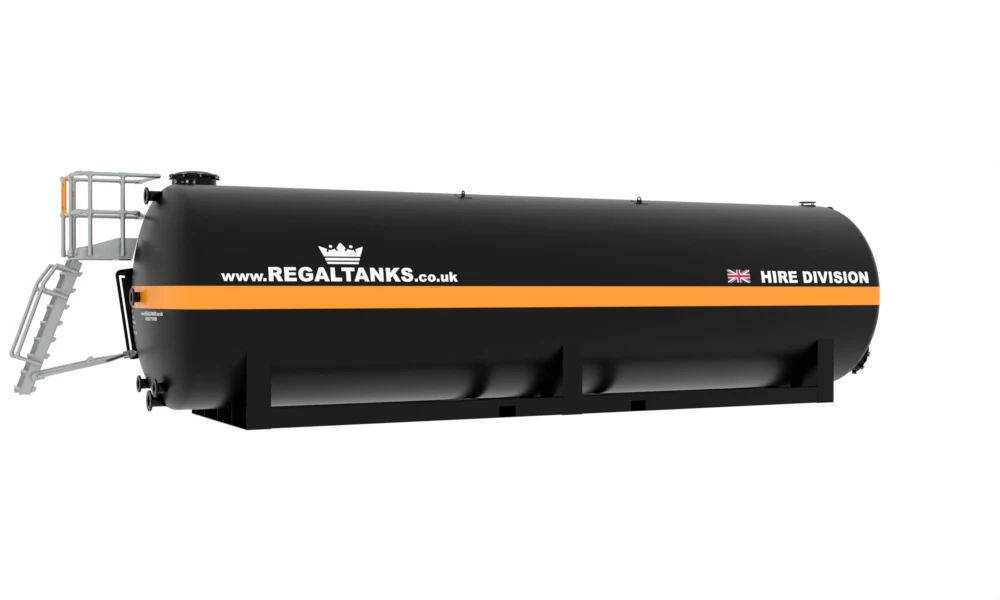

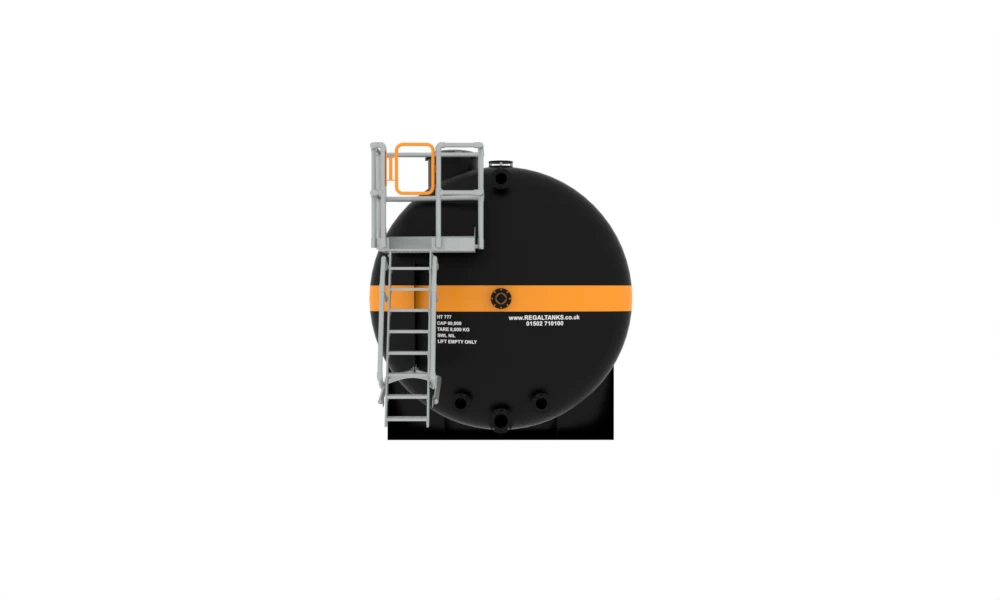

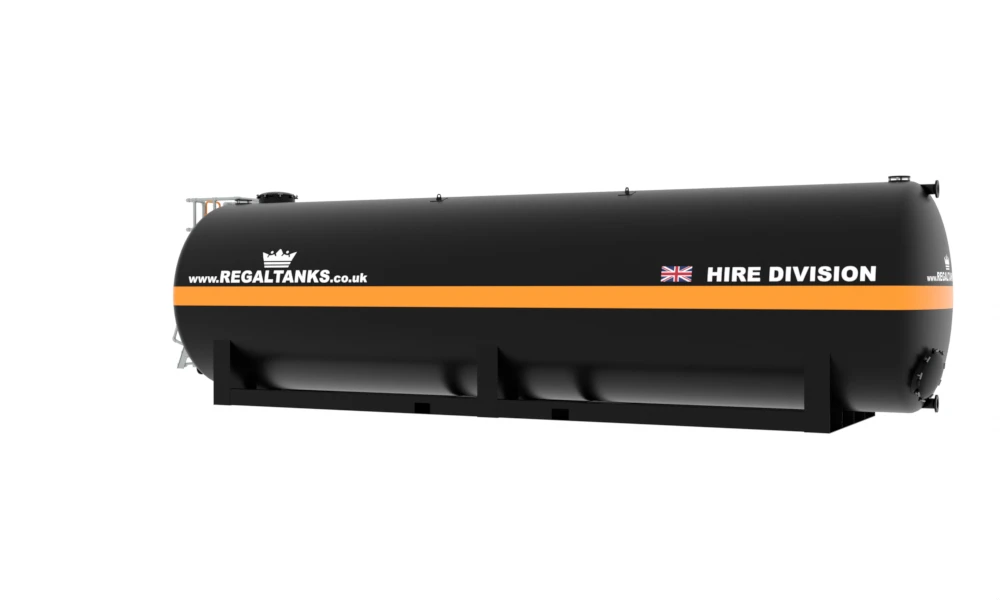

Tank Specification

Lined and unlined liquid storage solutions from a single tank to 1 million litres or more.

Our 80m3 tanks are a cost effective option. Need a different capacity storage tank? We can supply you with 40m3, 60m3, 80m3 and 100m3 storage tanks. Designed to be delivered on standard transport and available for next day delivery - you will save time and money.

Features vary slightly depending on the size of the tank, but all include front, rear and top 6" ANSI flanges, 2 x 600mm quick release manways and are supplied with 3rd party certified LOLER 98 lifting strops.

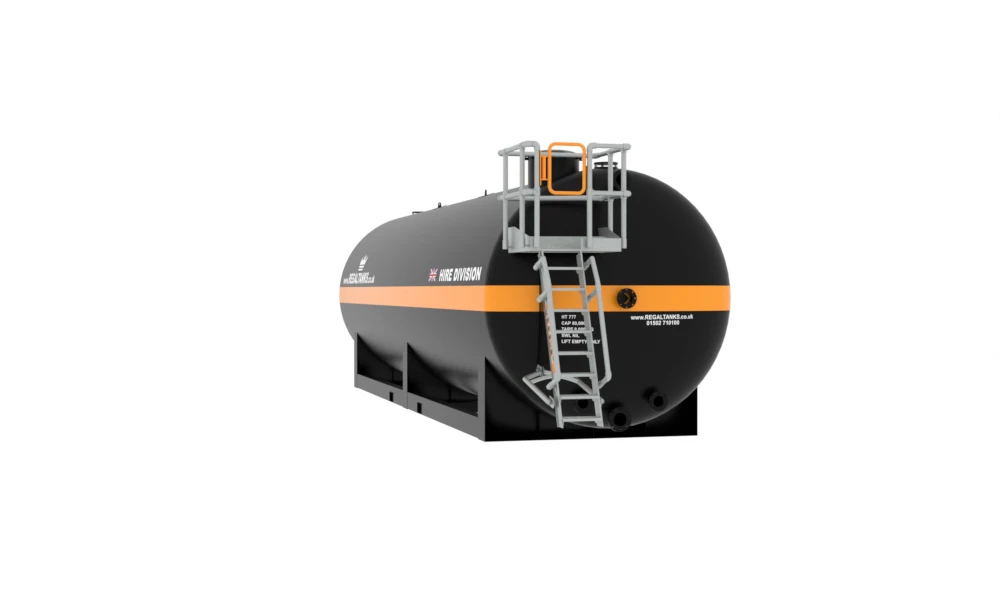

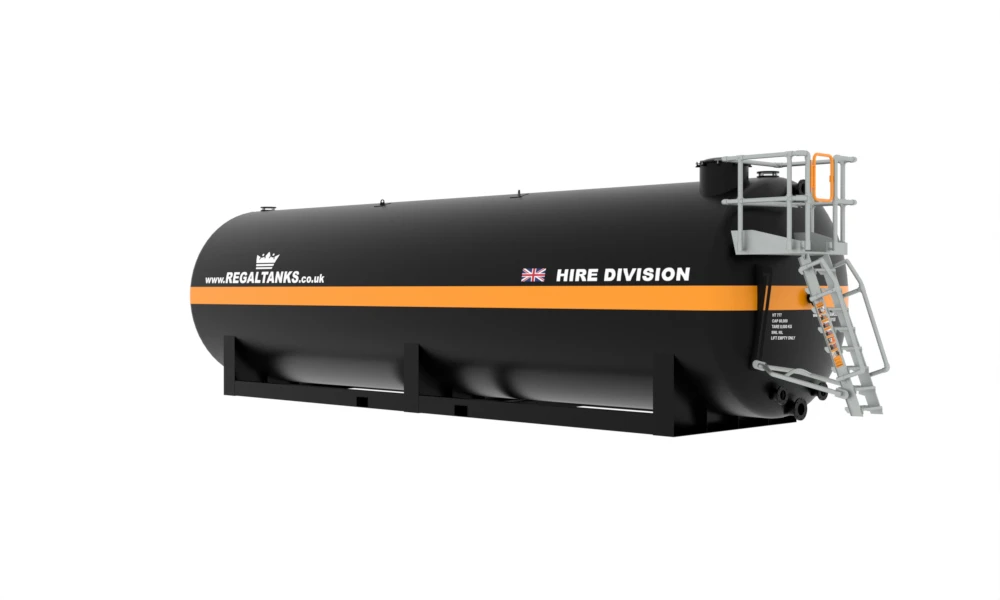

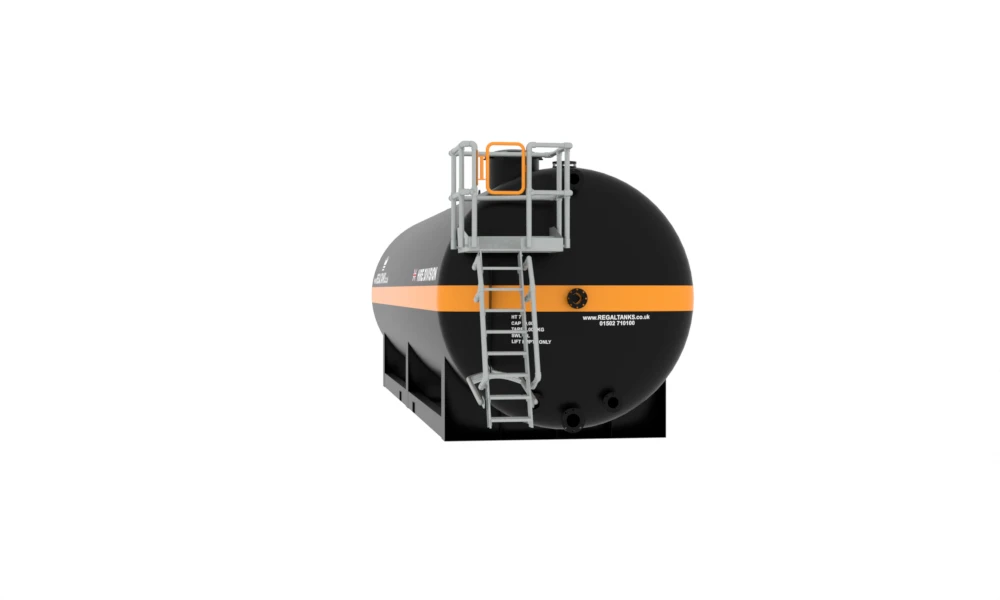

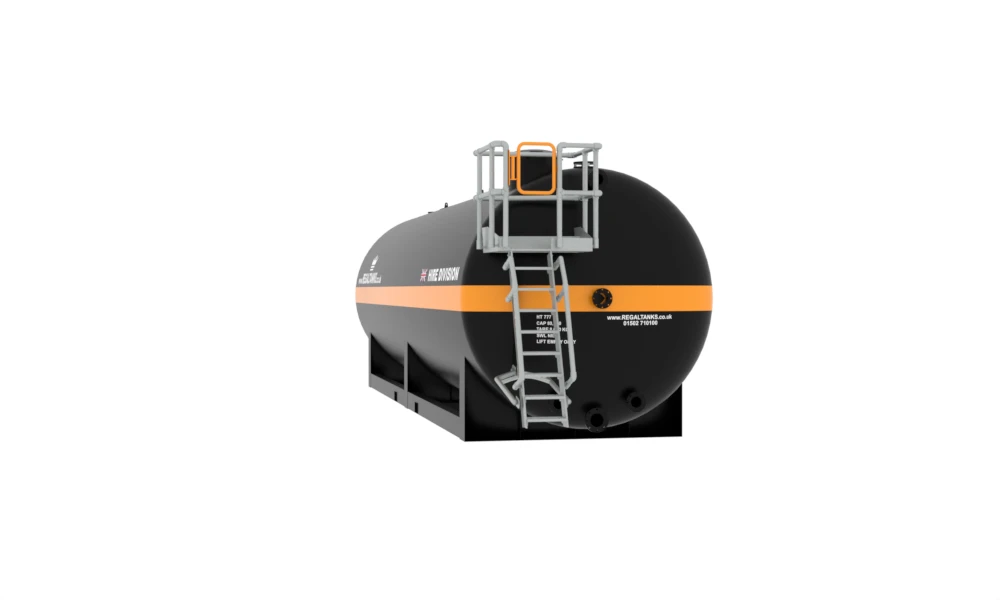

With safety in mind, our storage tanks are fitted with stairs and access platforms.

Maximum Capacity

80,000 Litres

Material

Mild Steel

Footprint

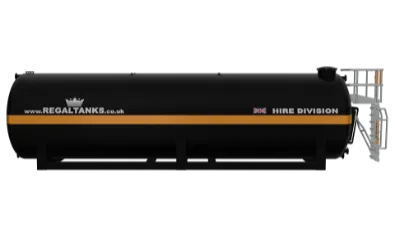

L: 11,500 mm, W: 3,044 mm, H: 3,400 mm

Weight

12,500kg

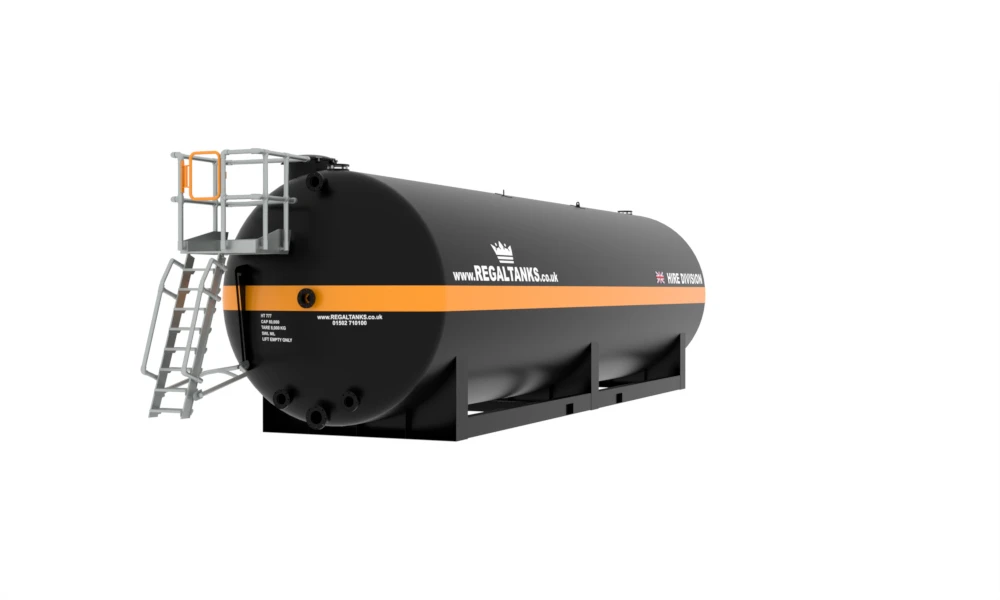

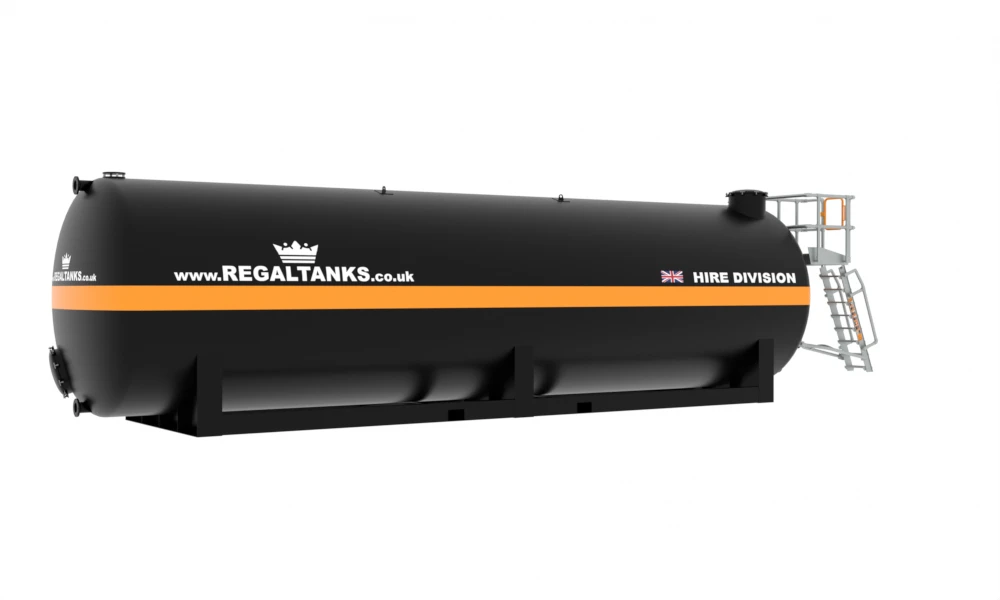

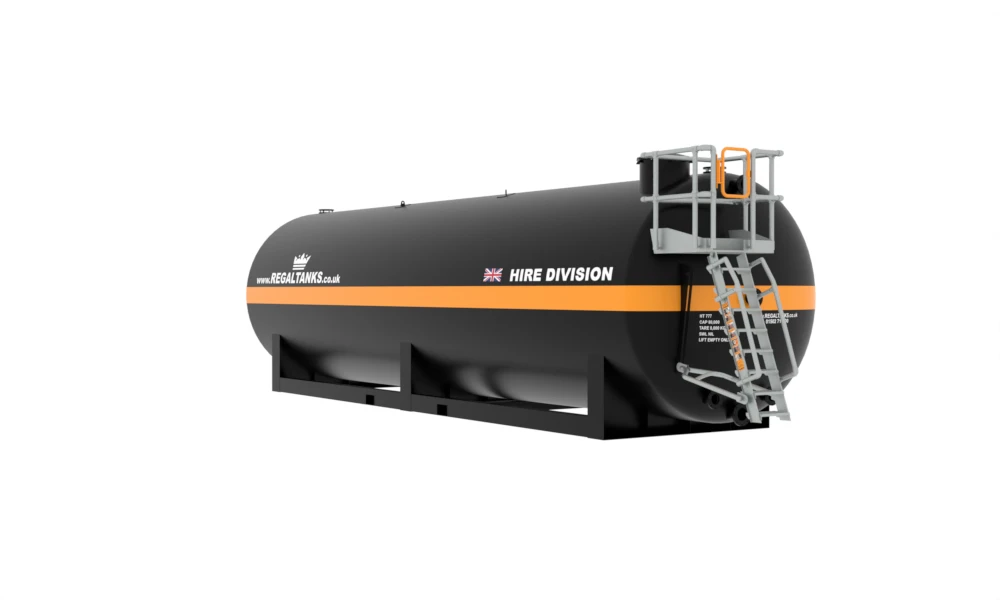

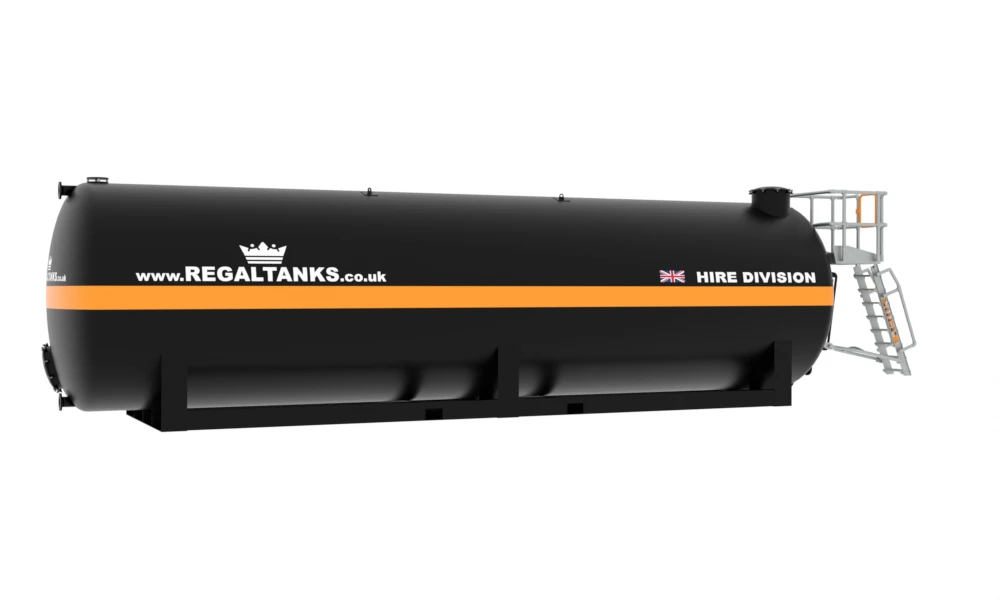

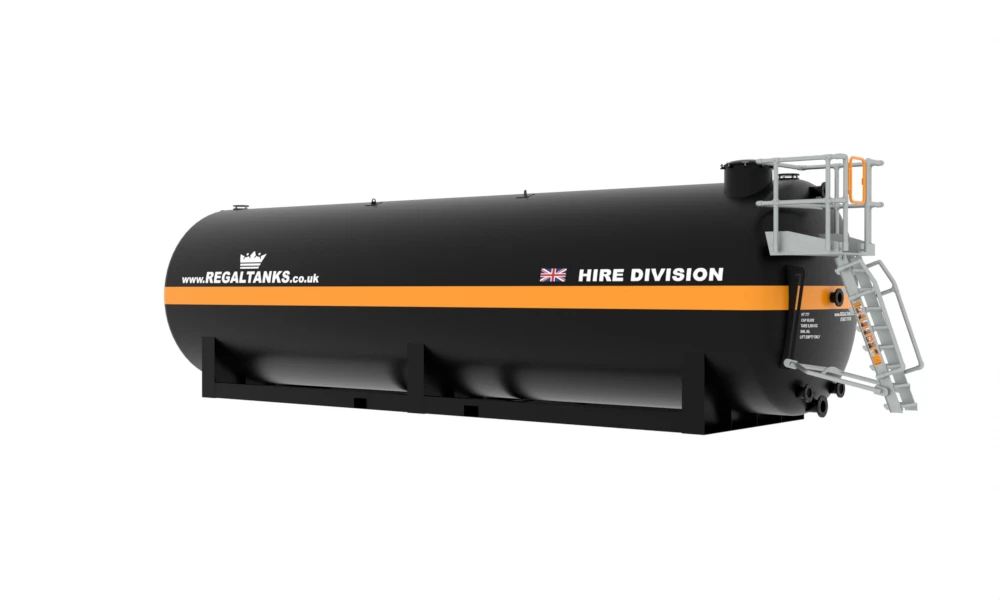

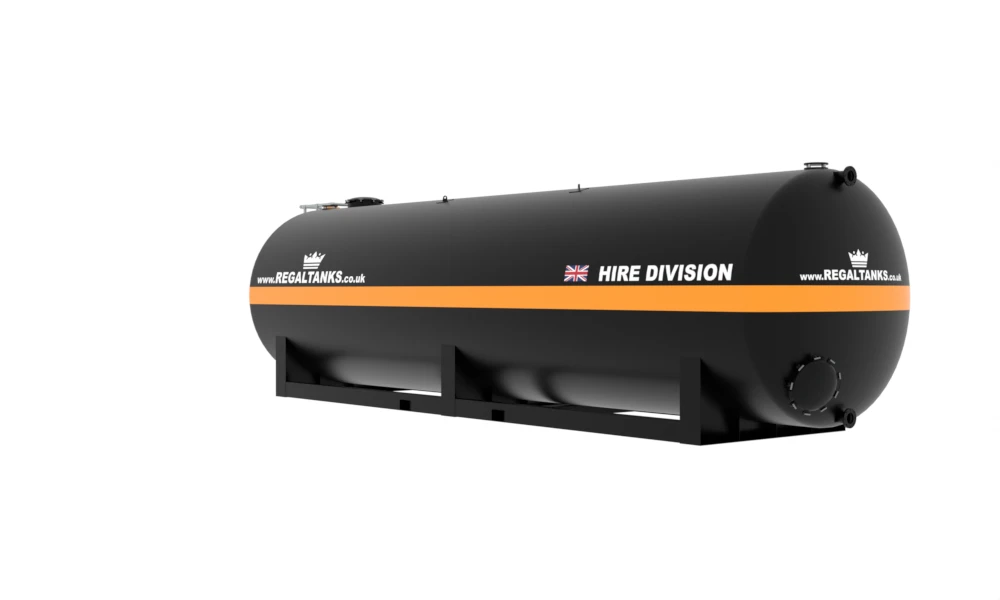

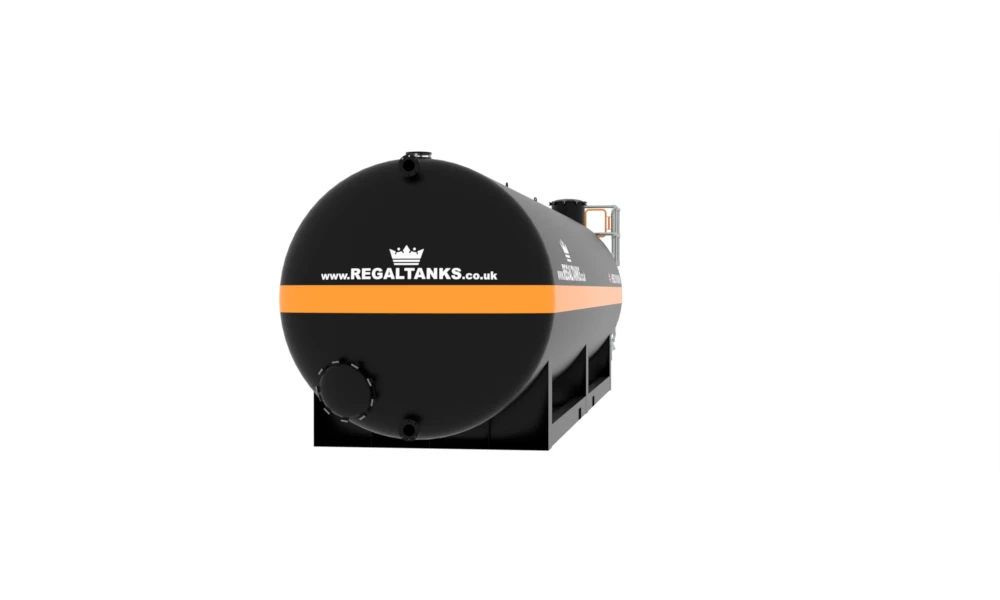

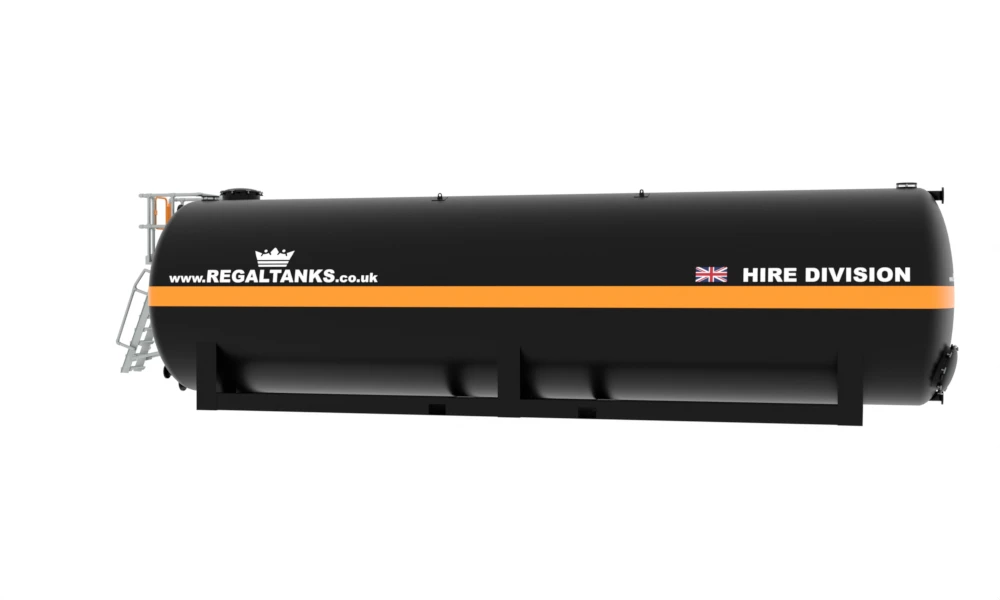

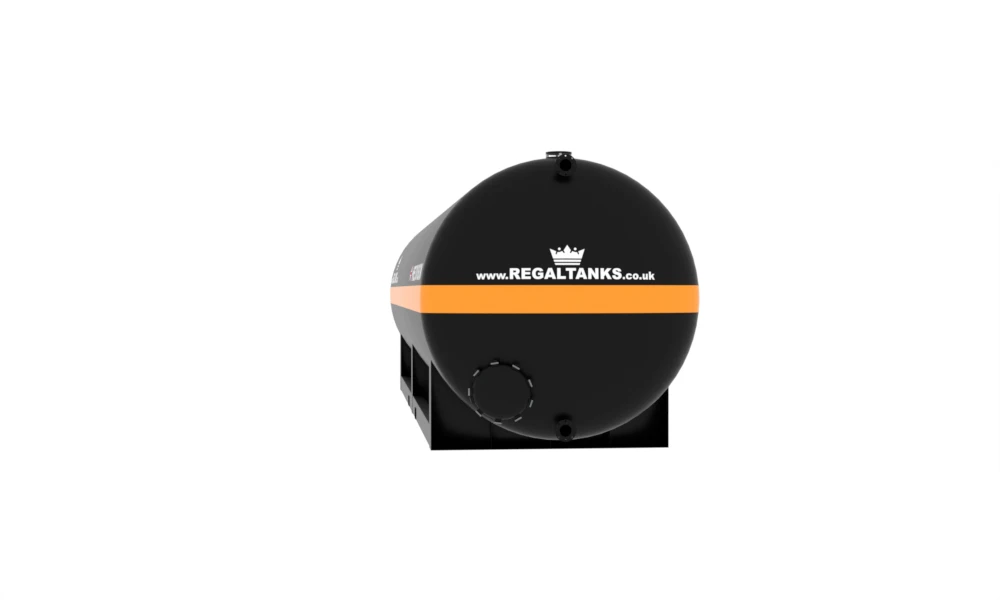

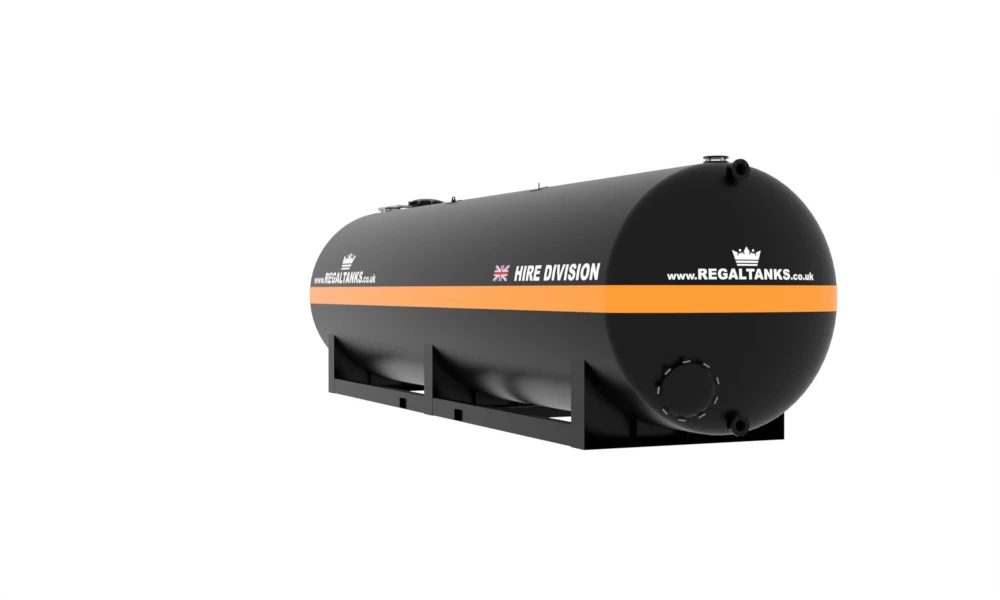

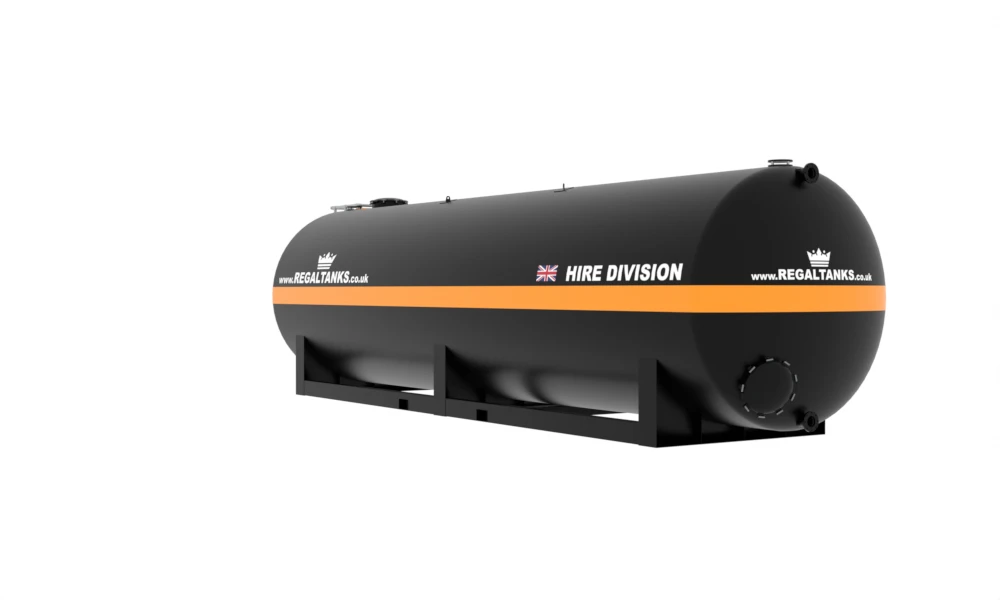

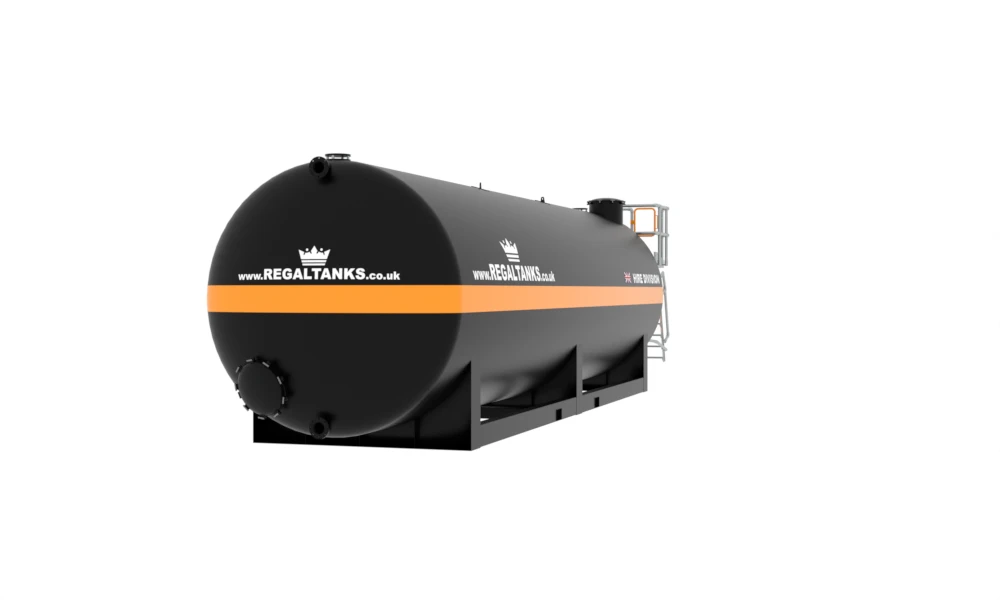

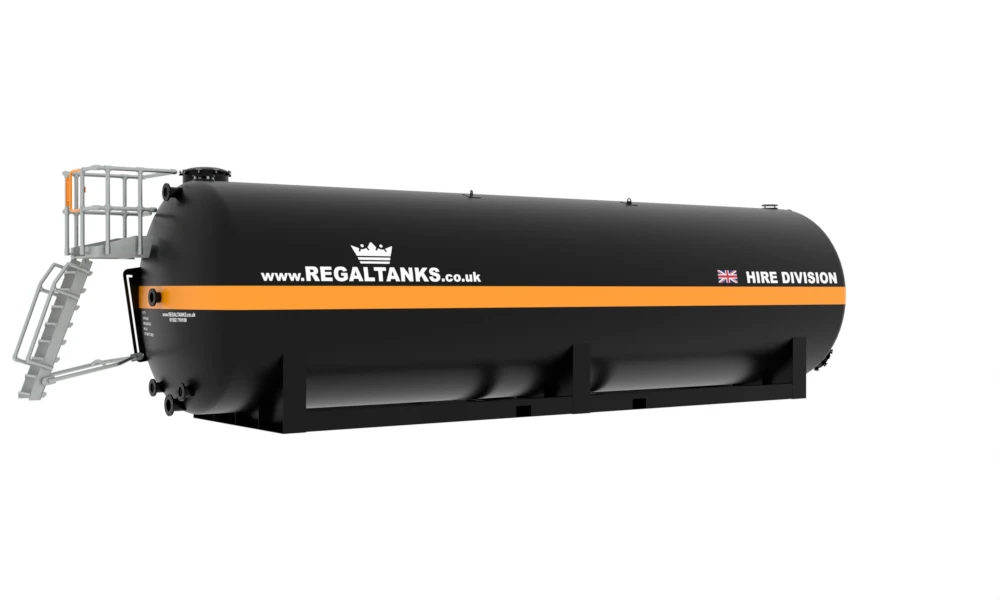

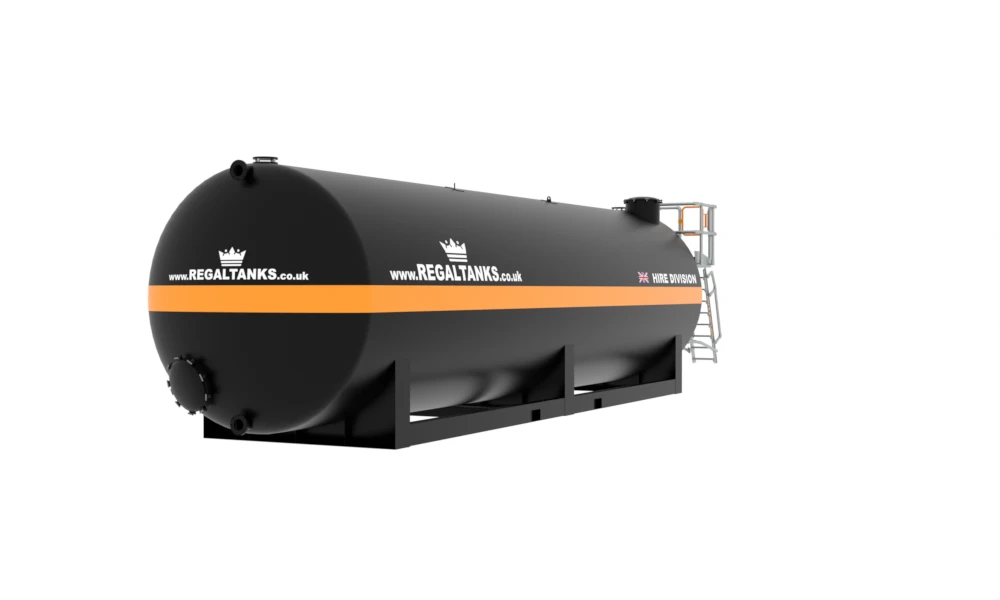

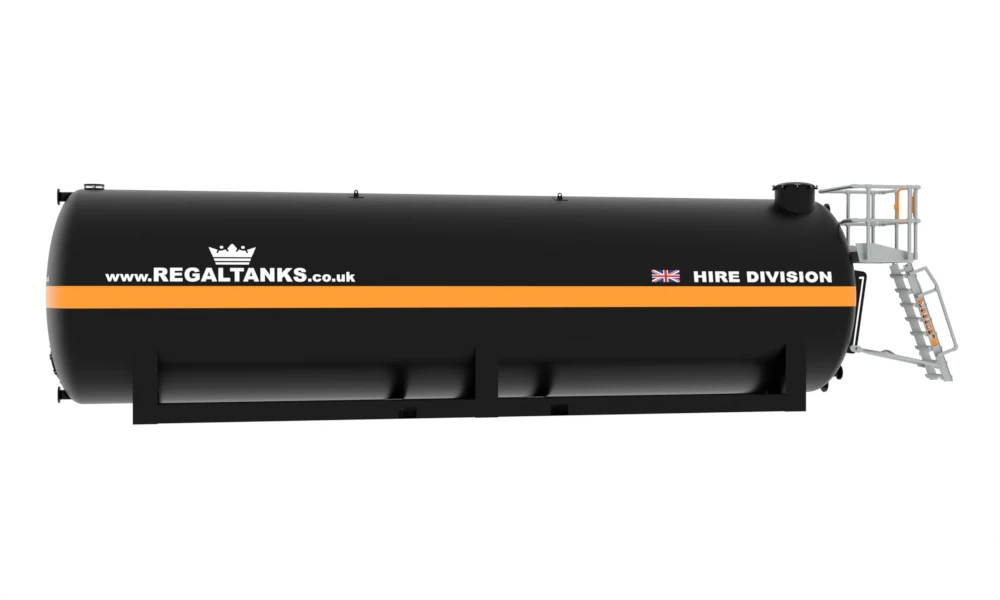

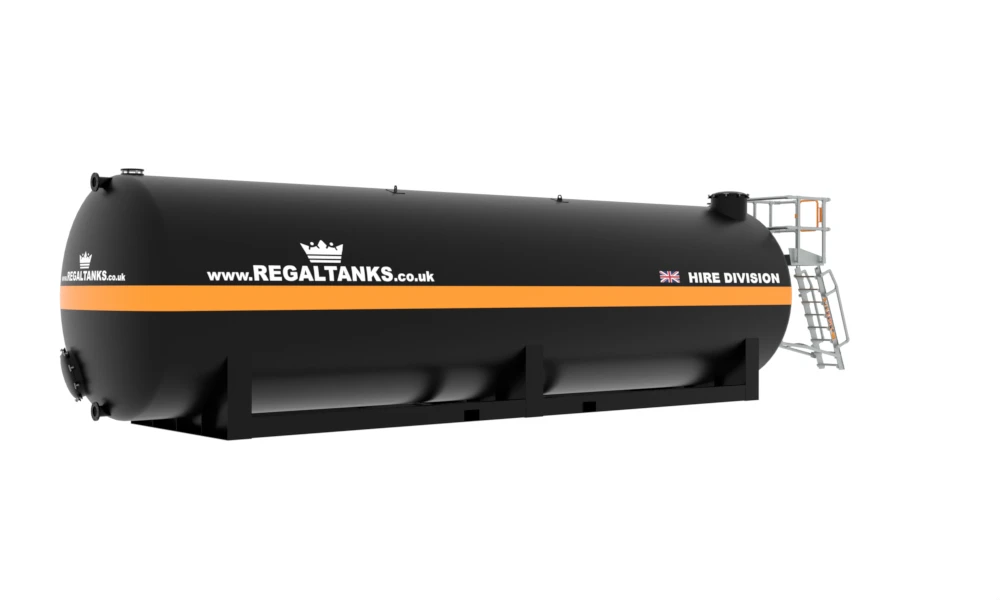

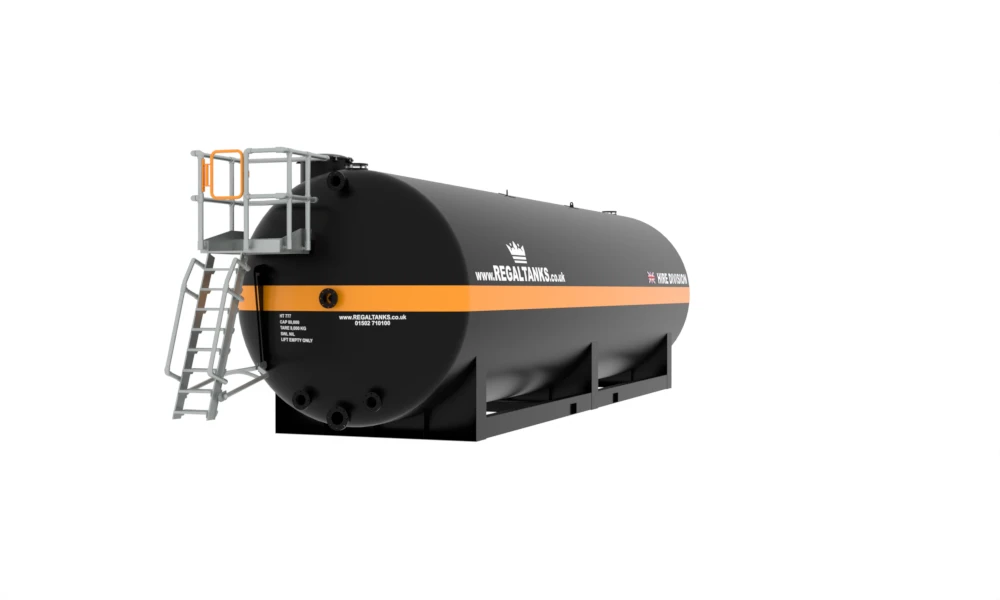

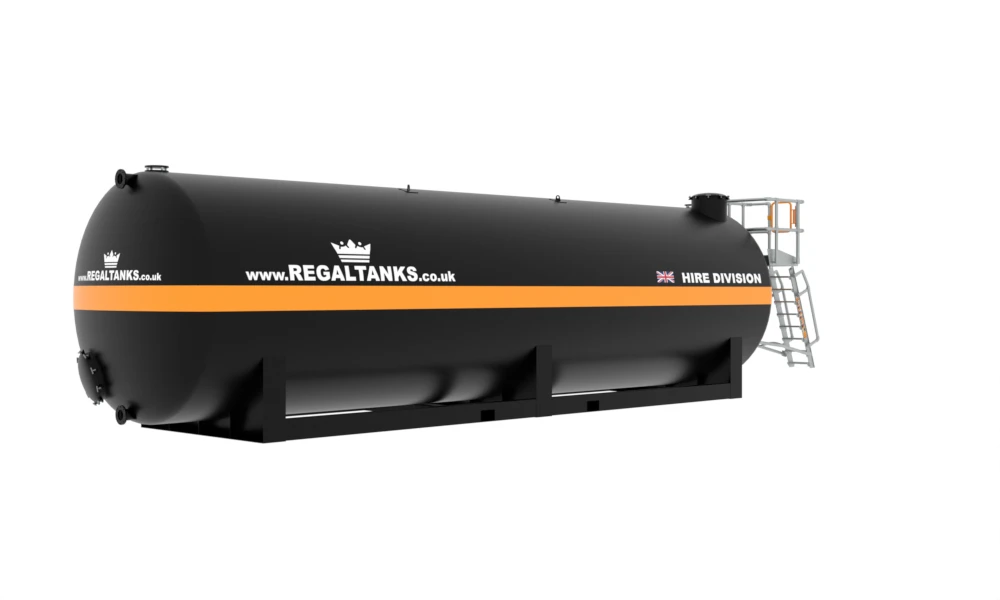

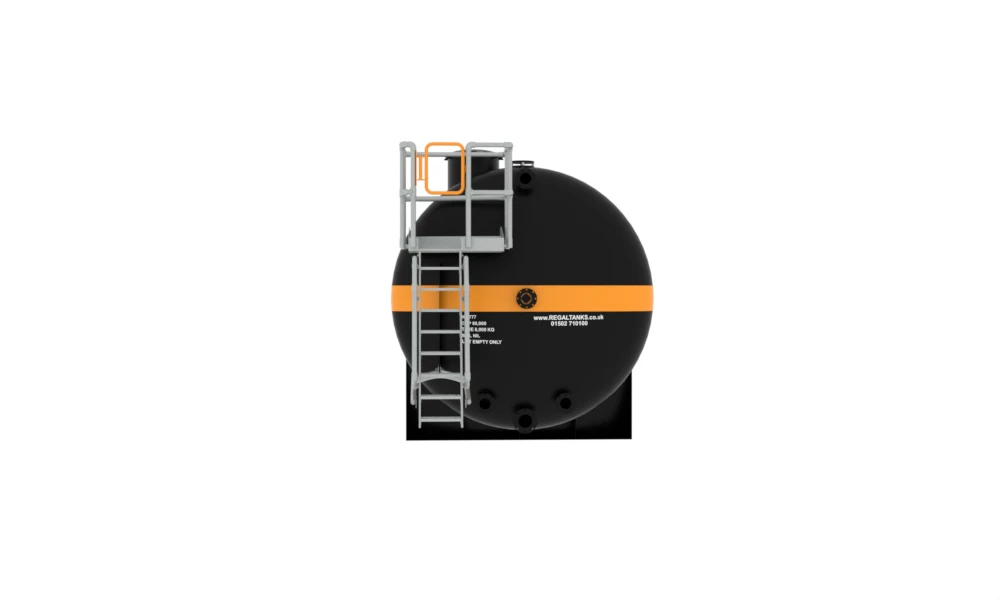

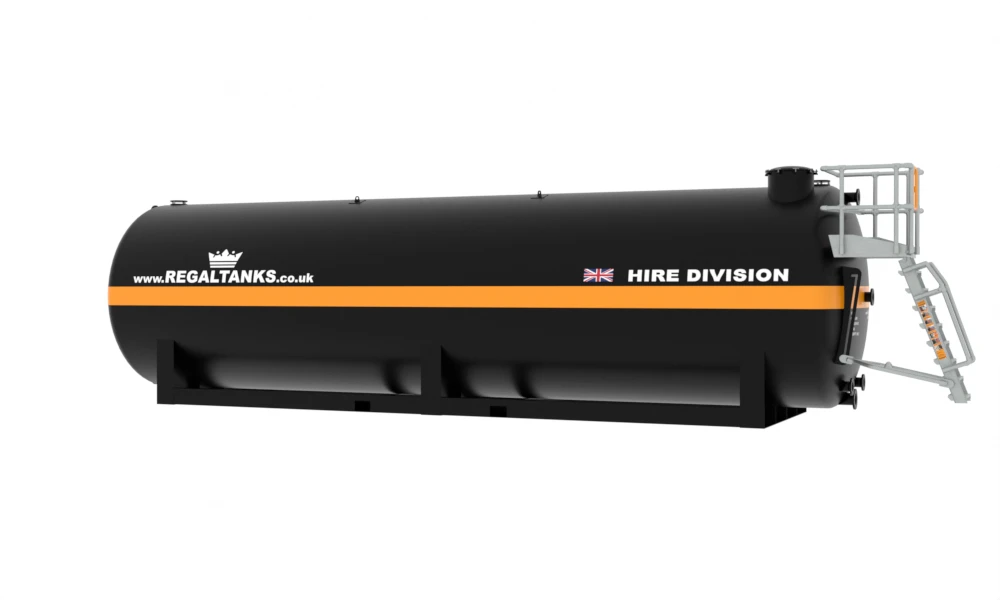

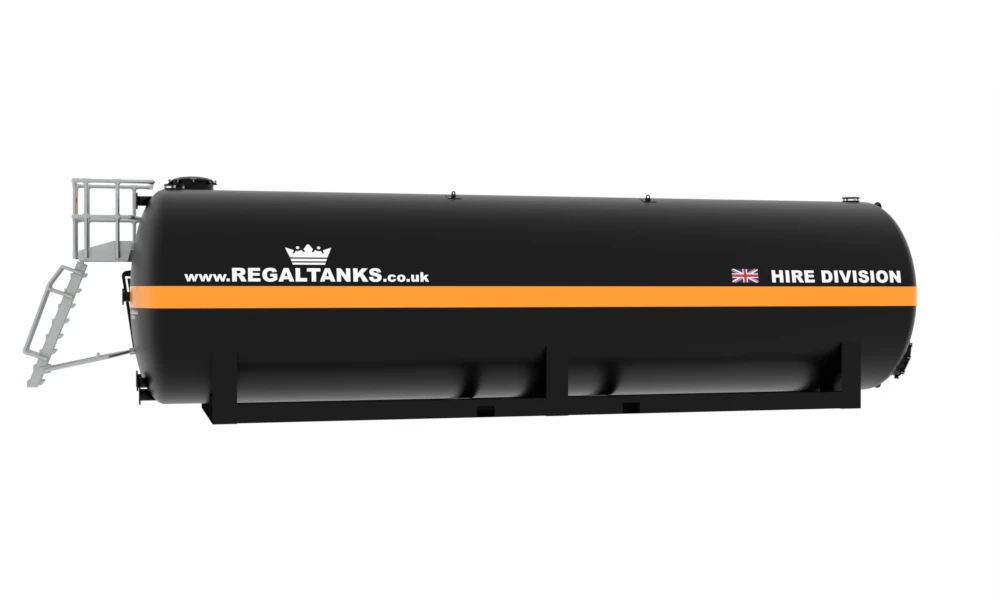

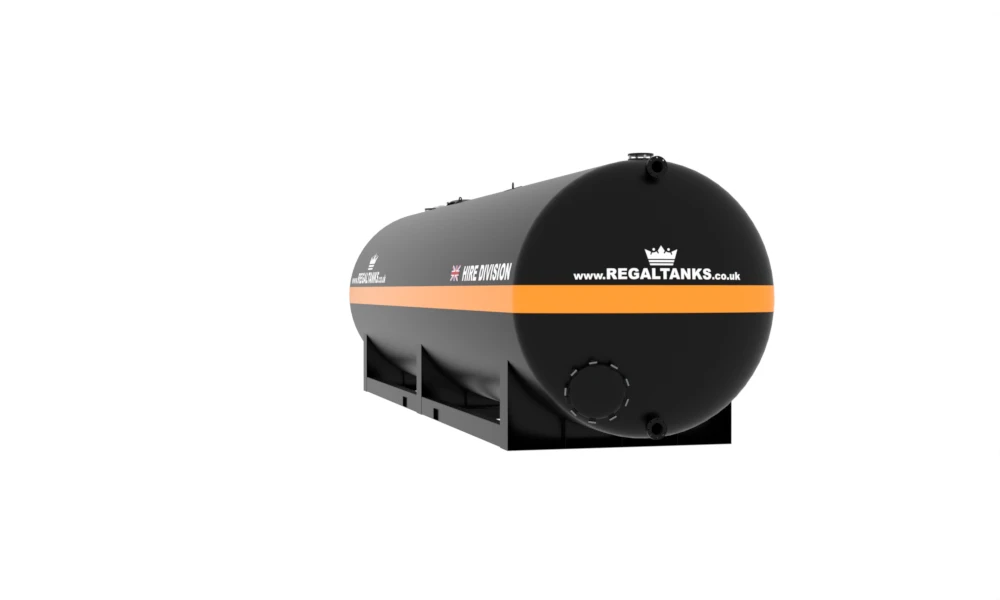

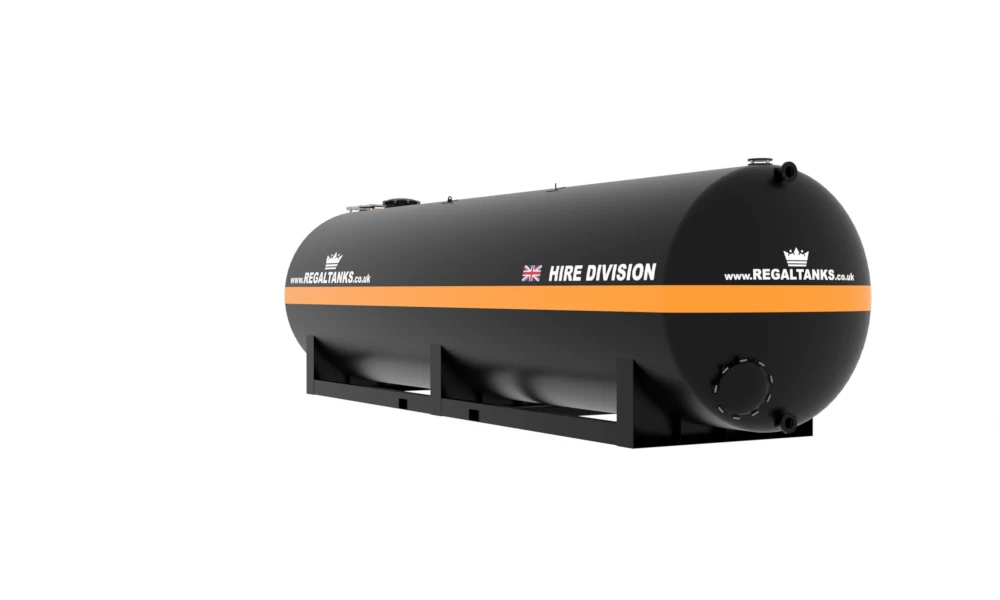

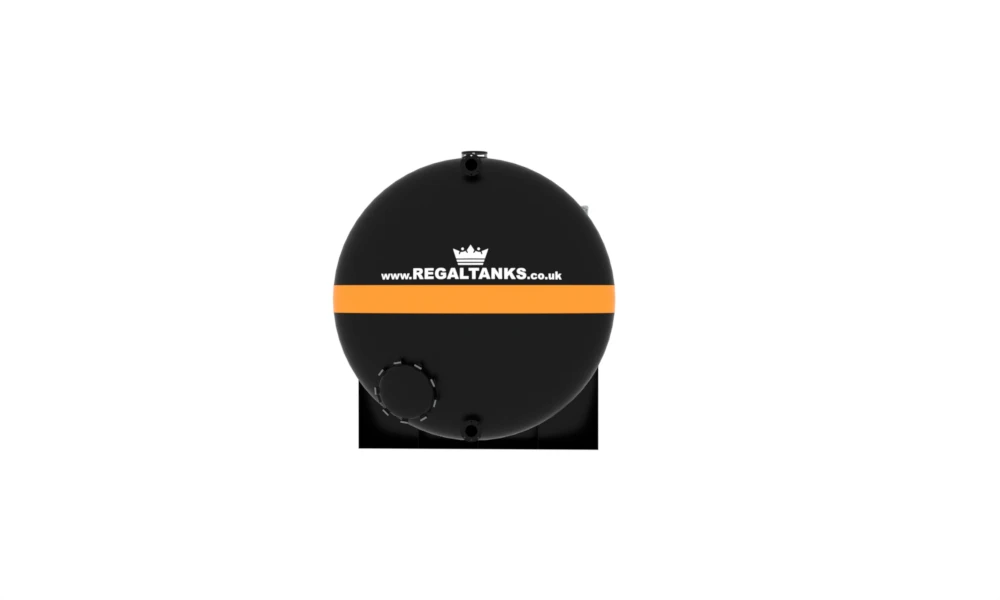

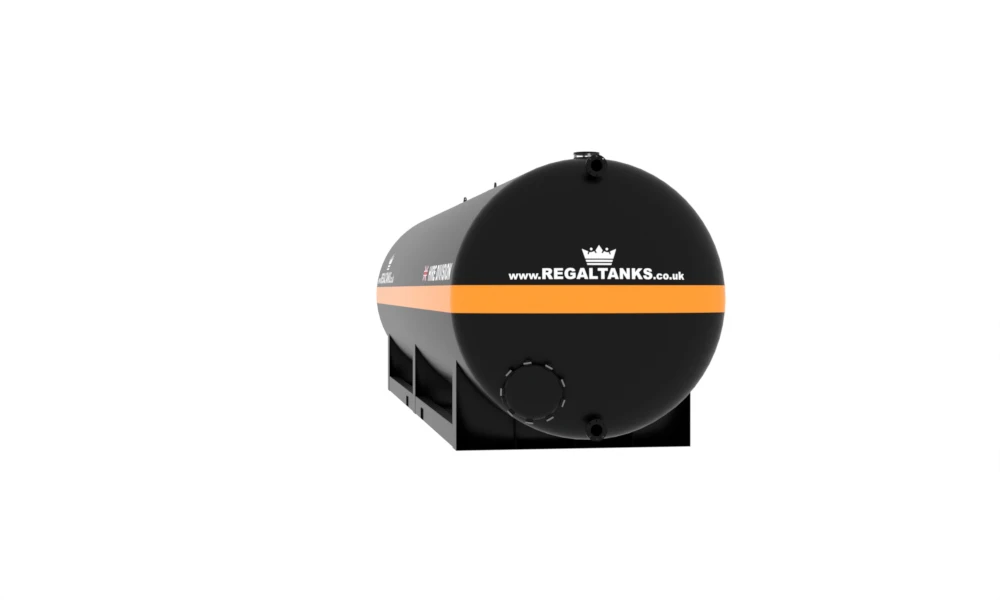

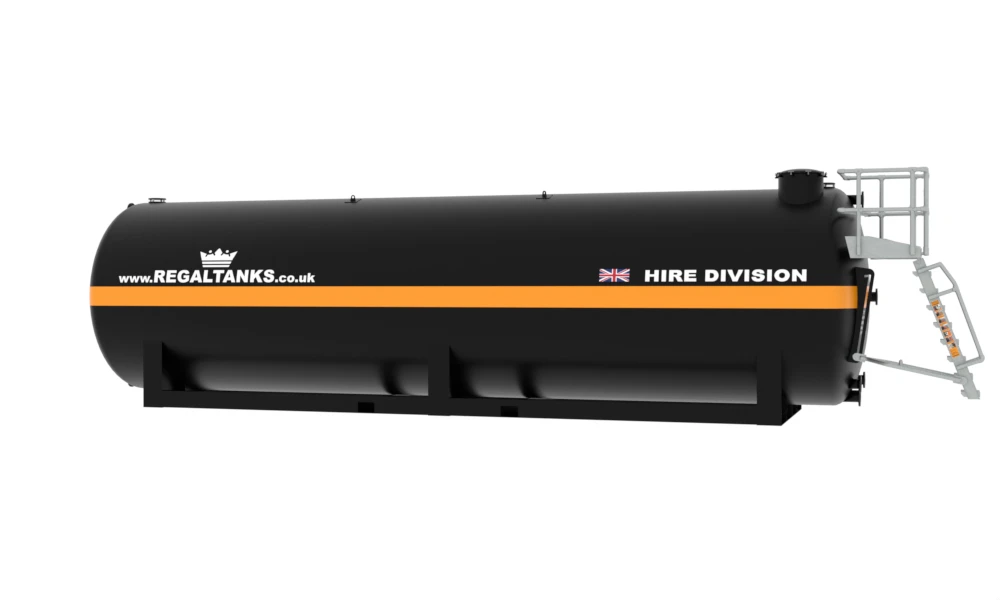

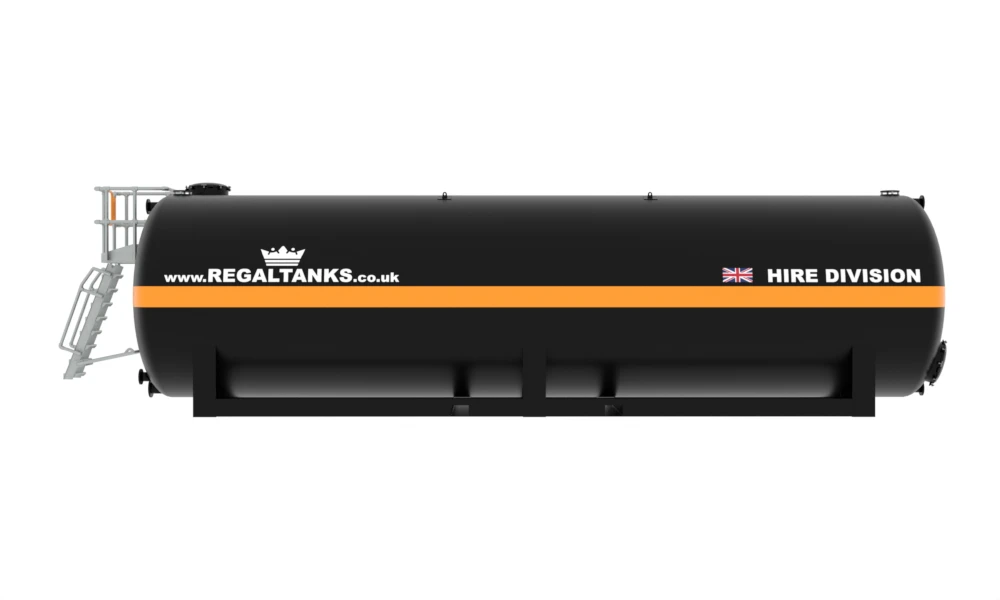

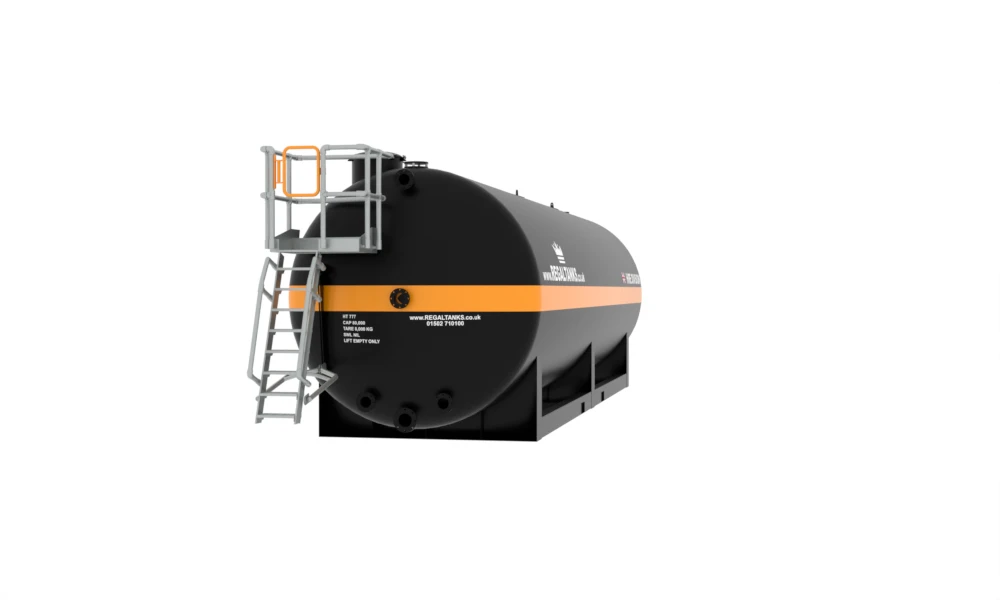

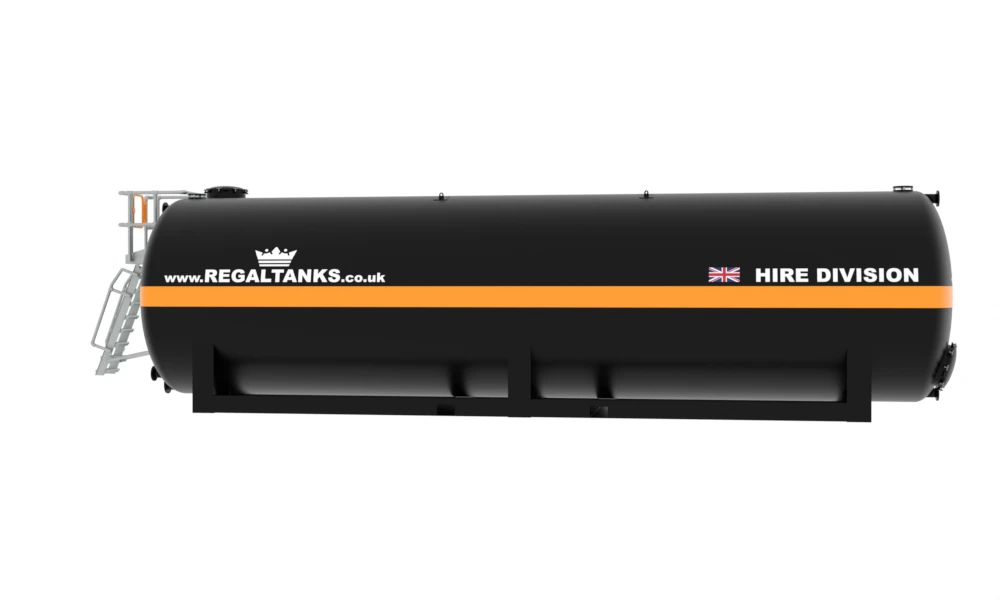

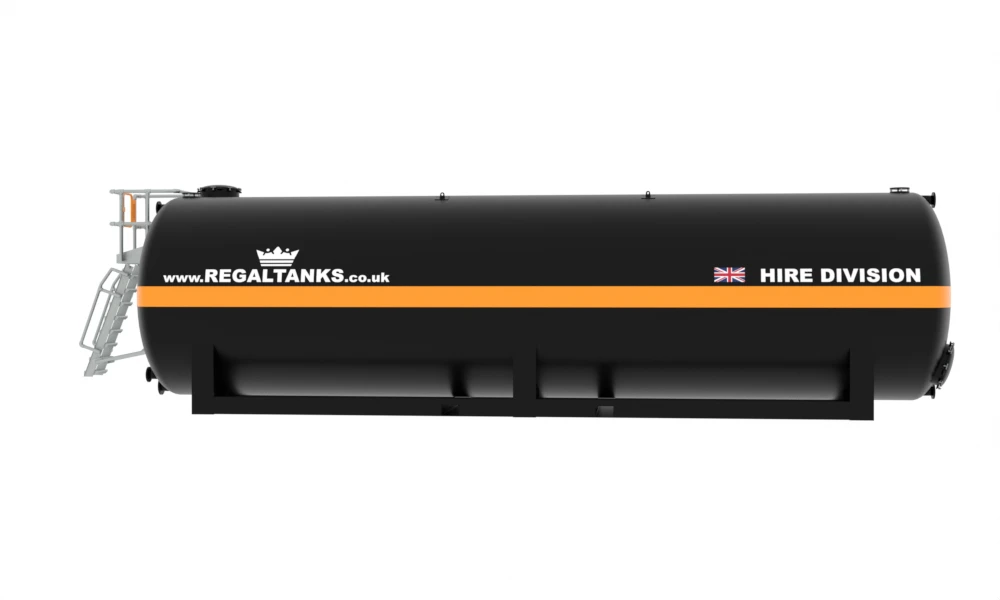

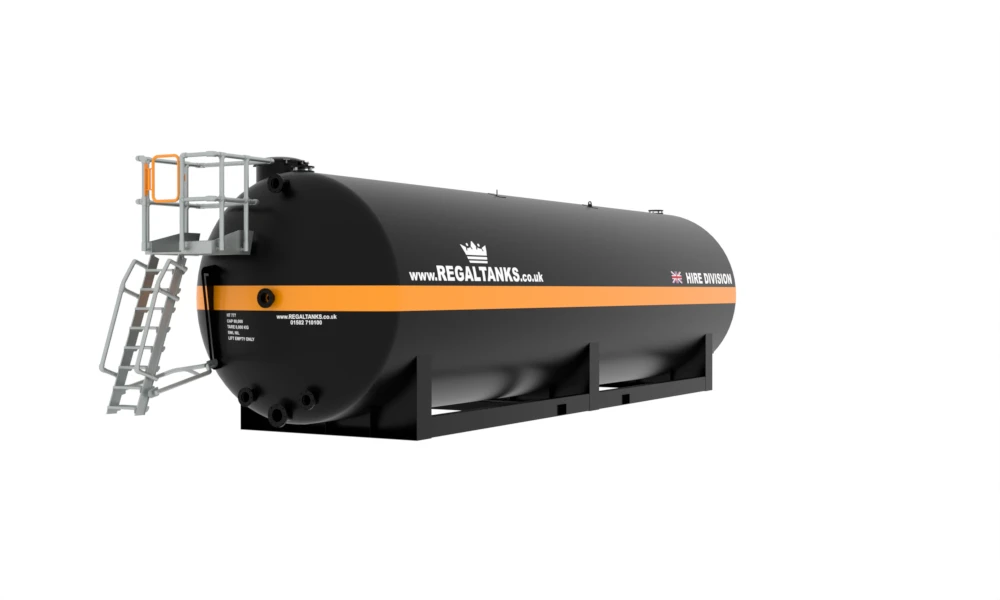

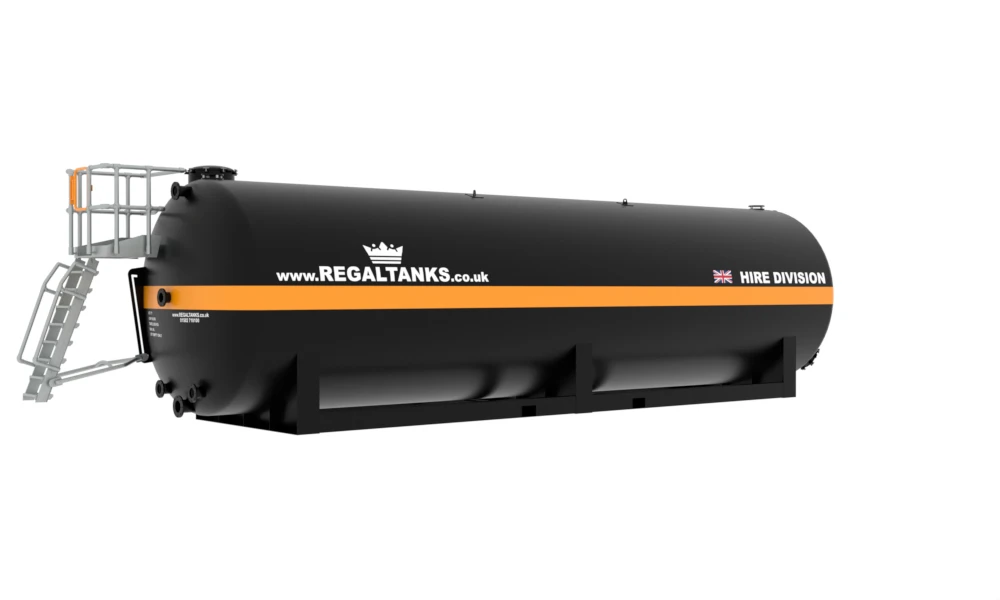

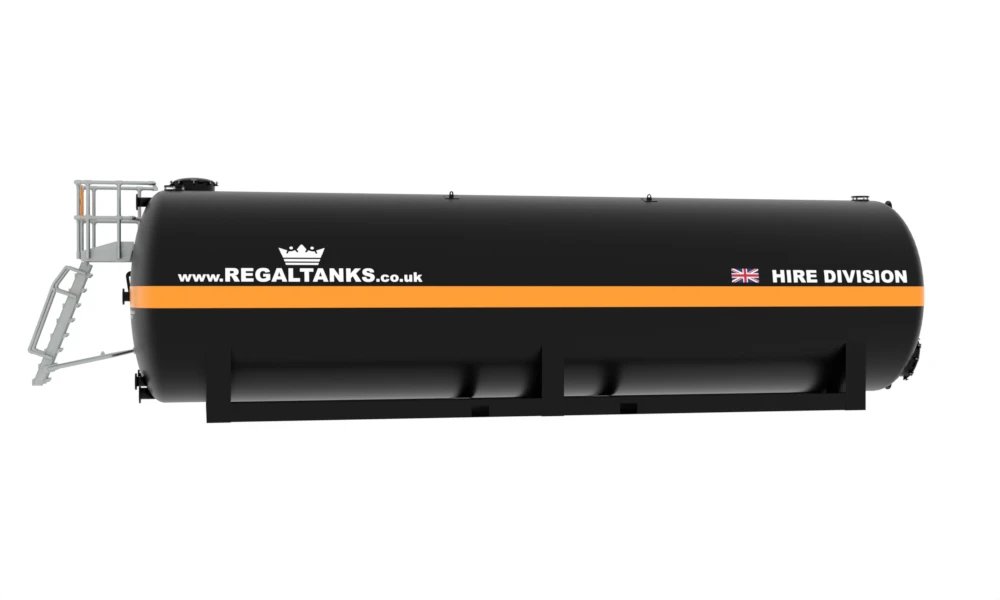

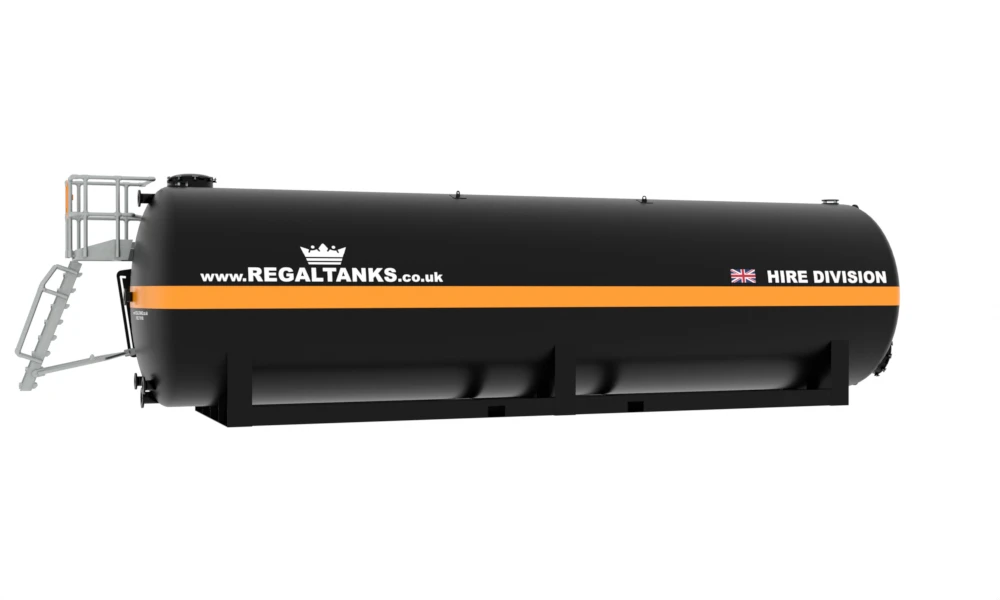

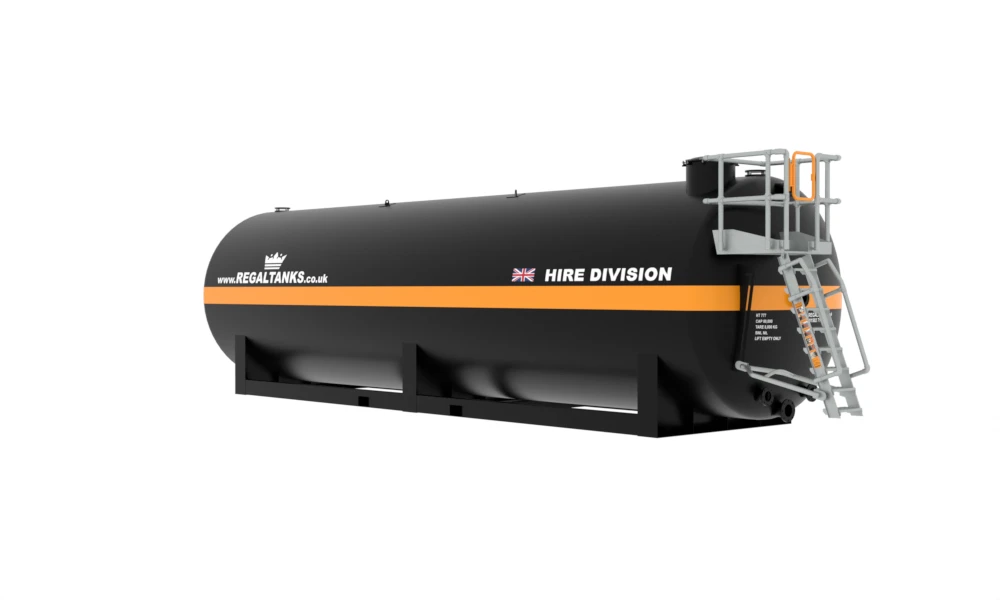

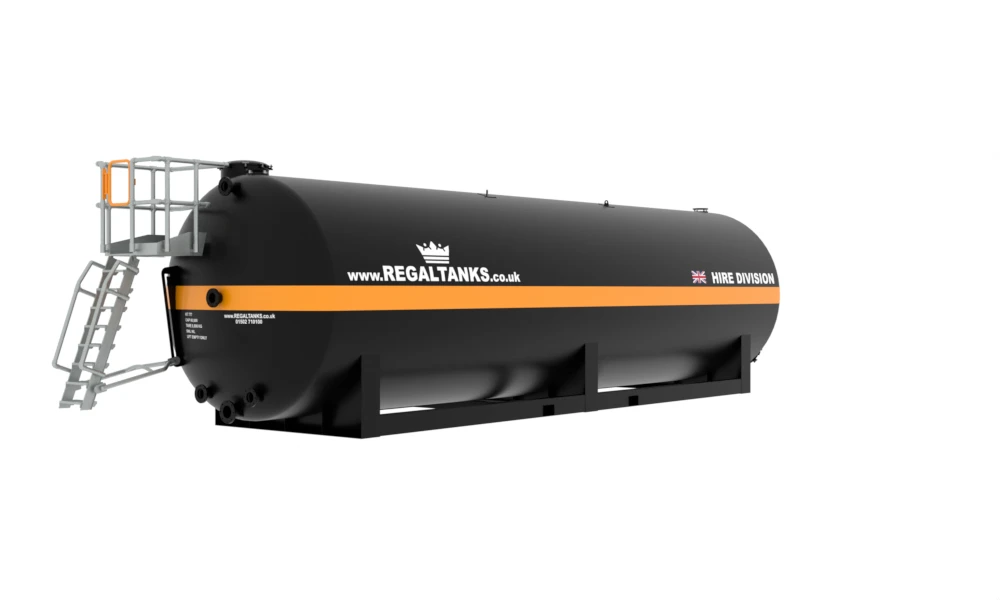

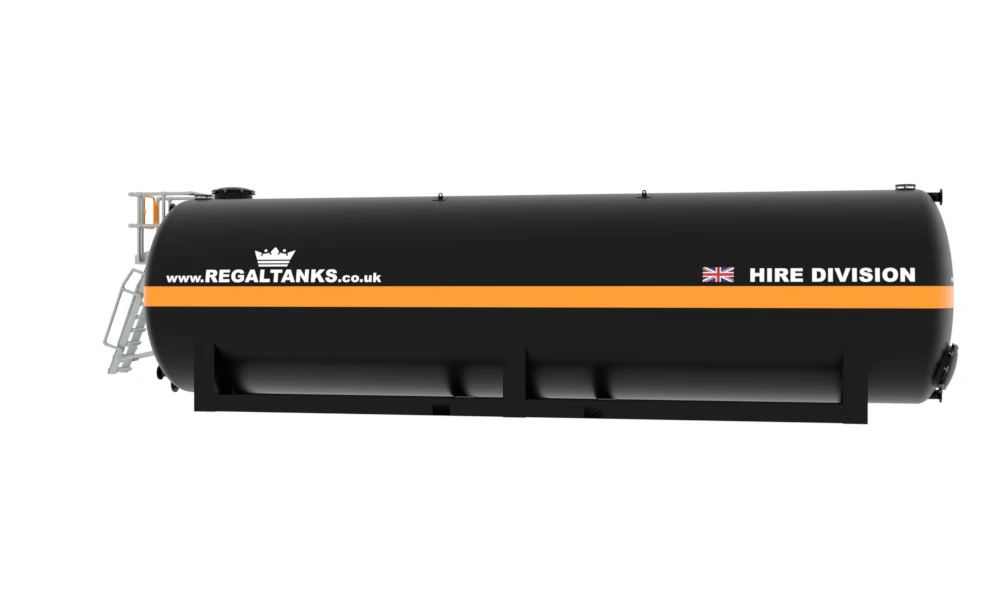

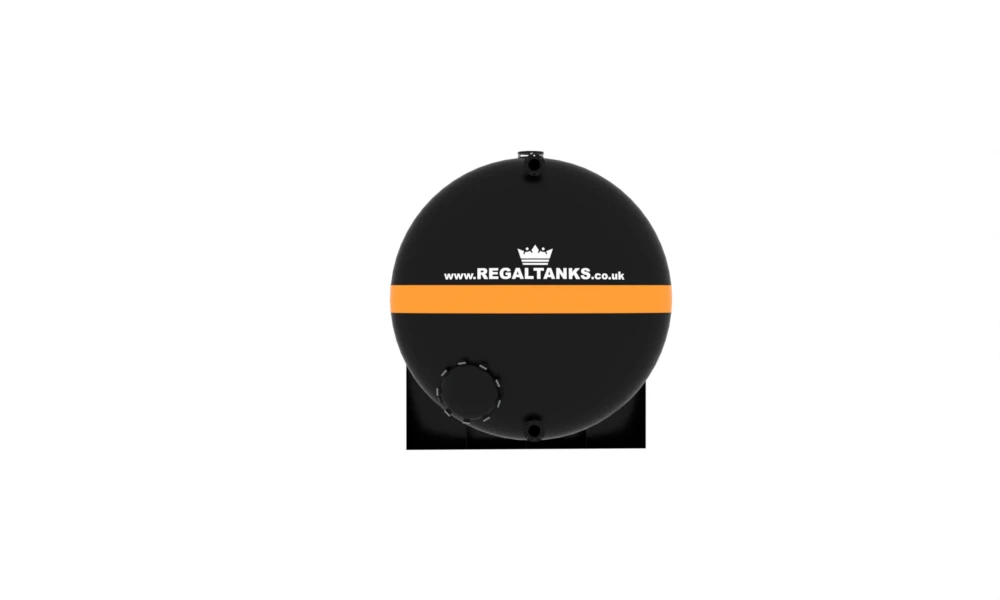

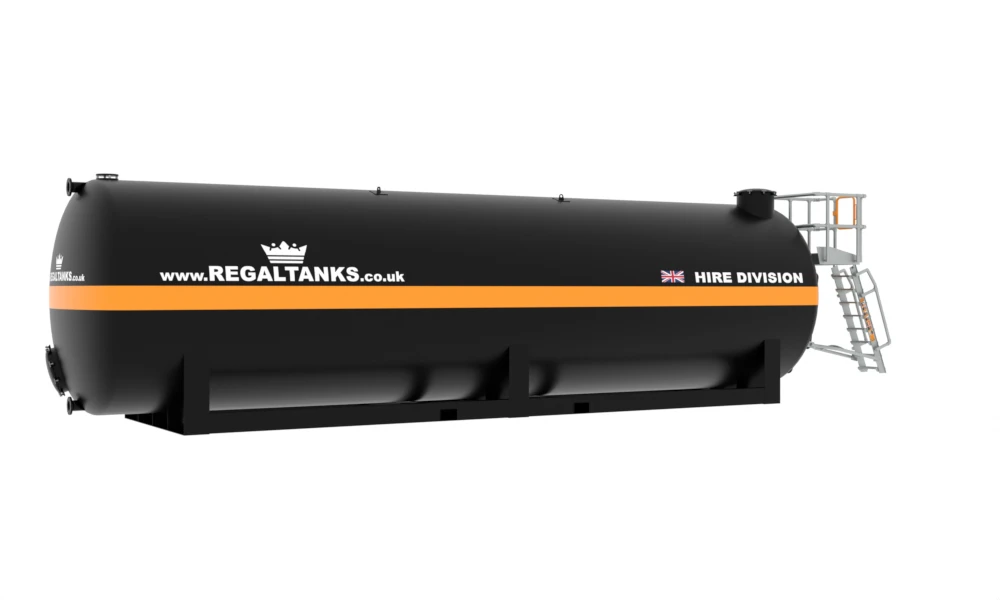

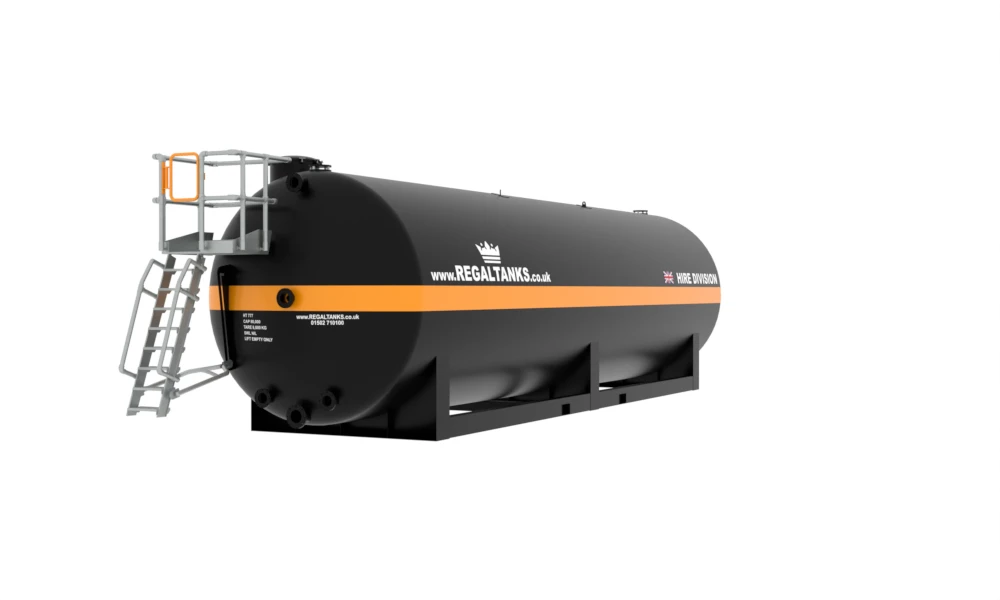

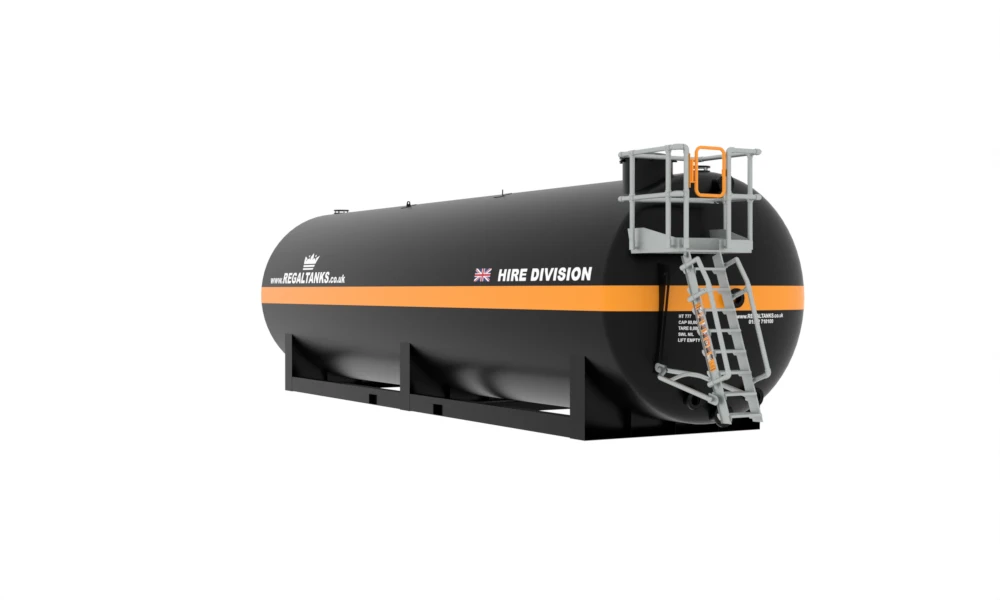

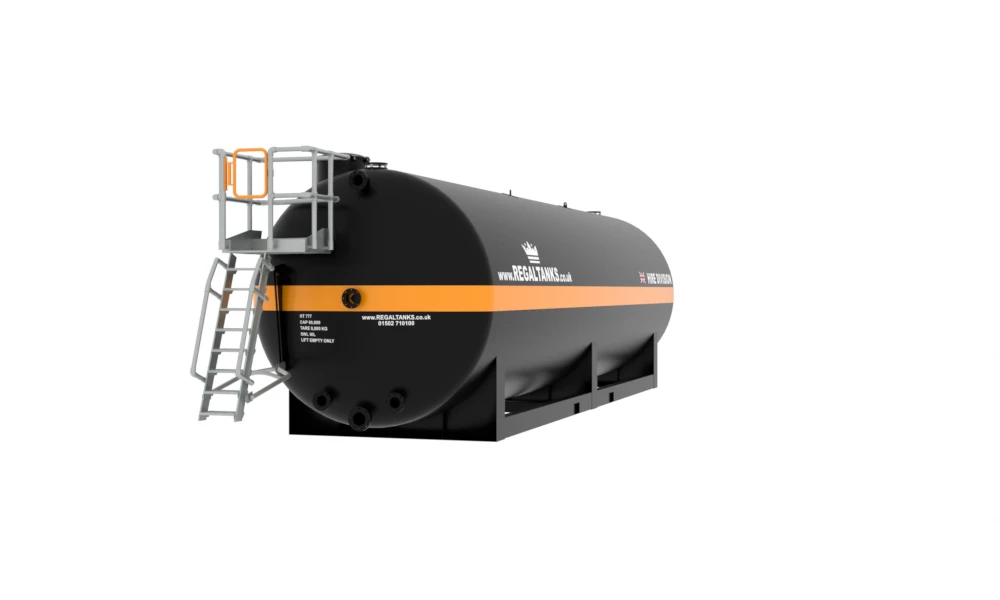

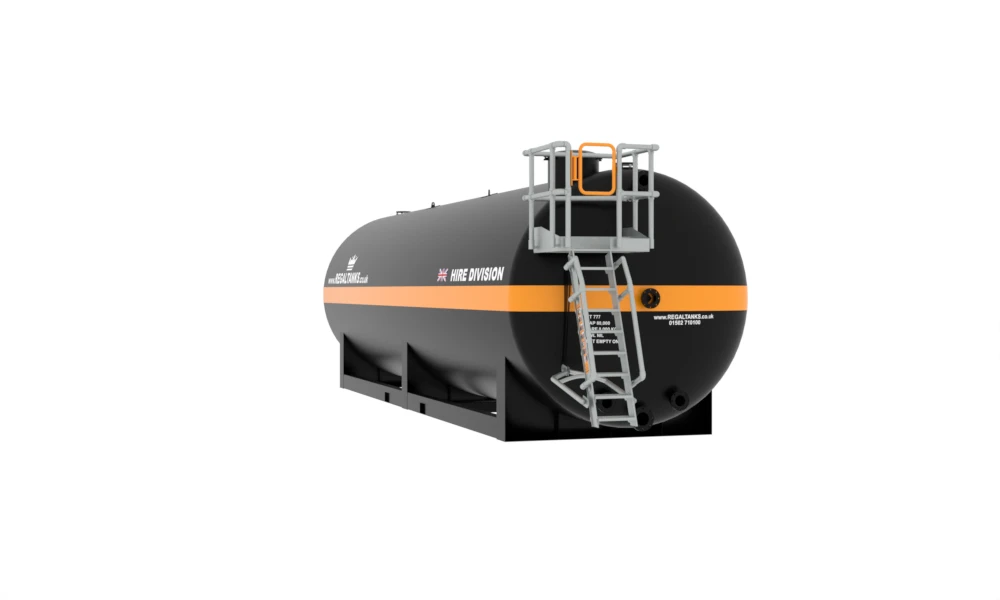

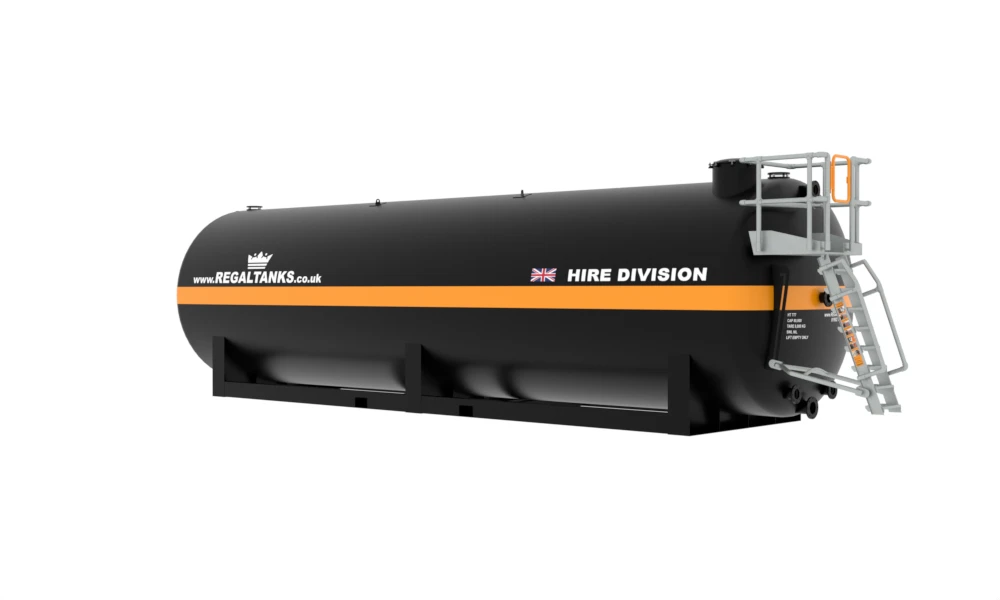

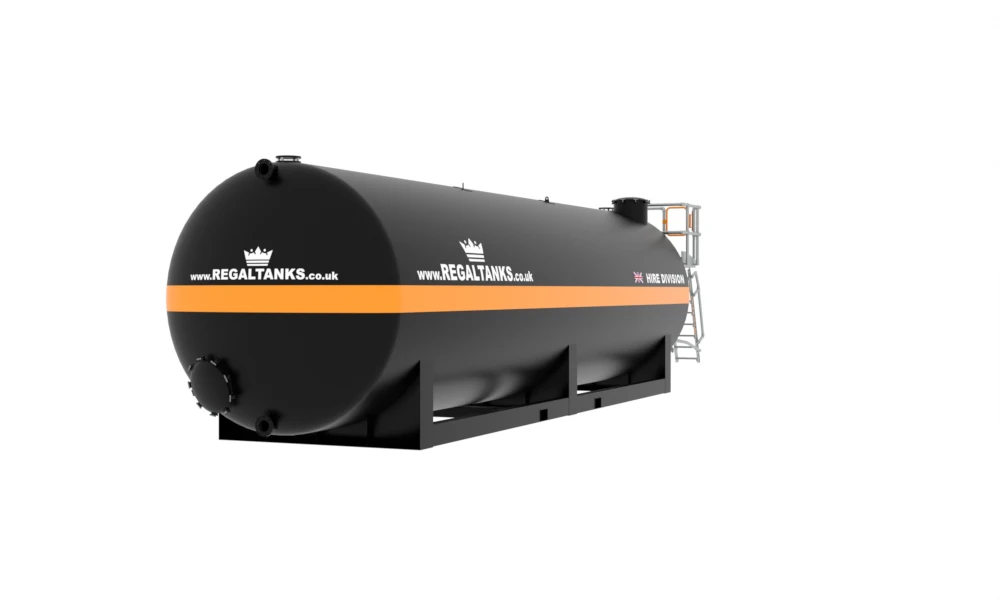

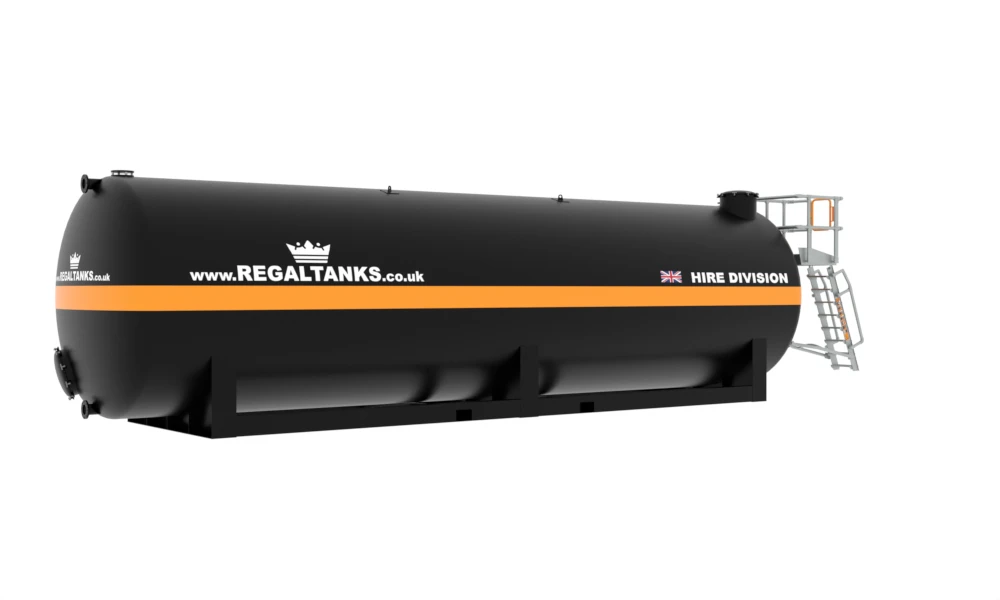

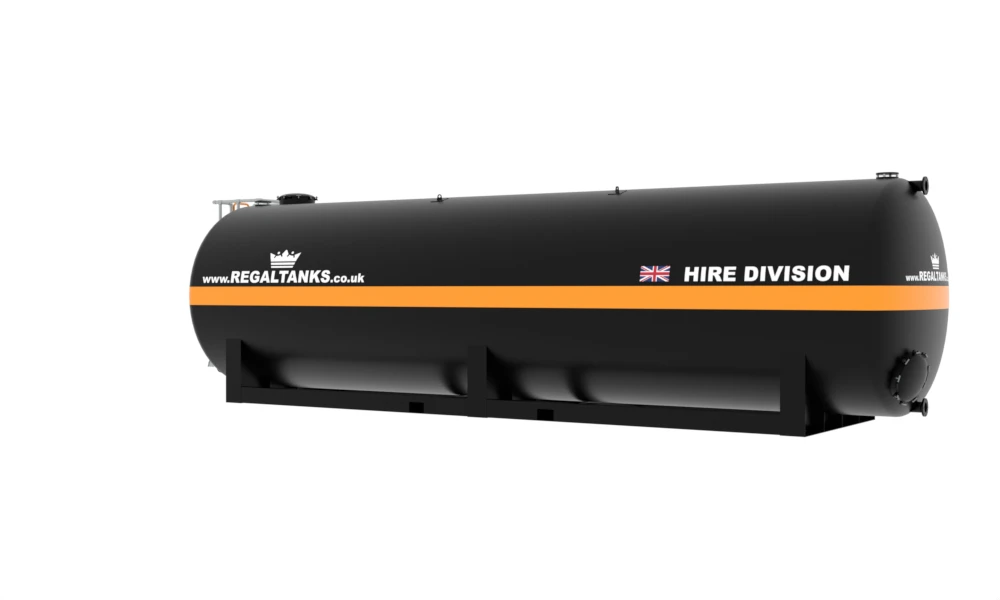

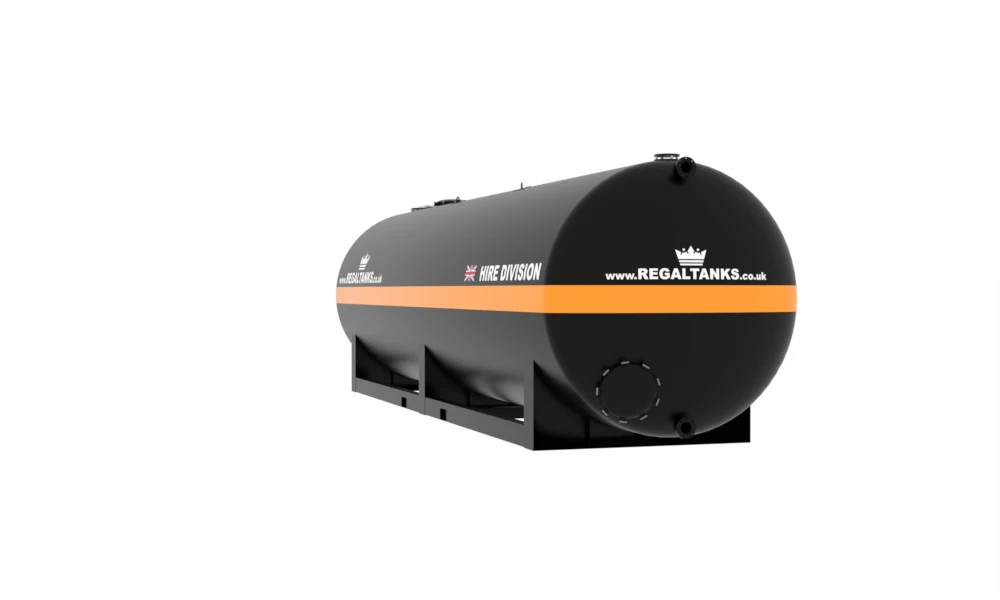

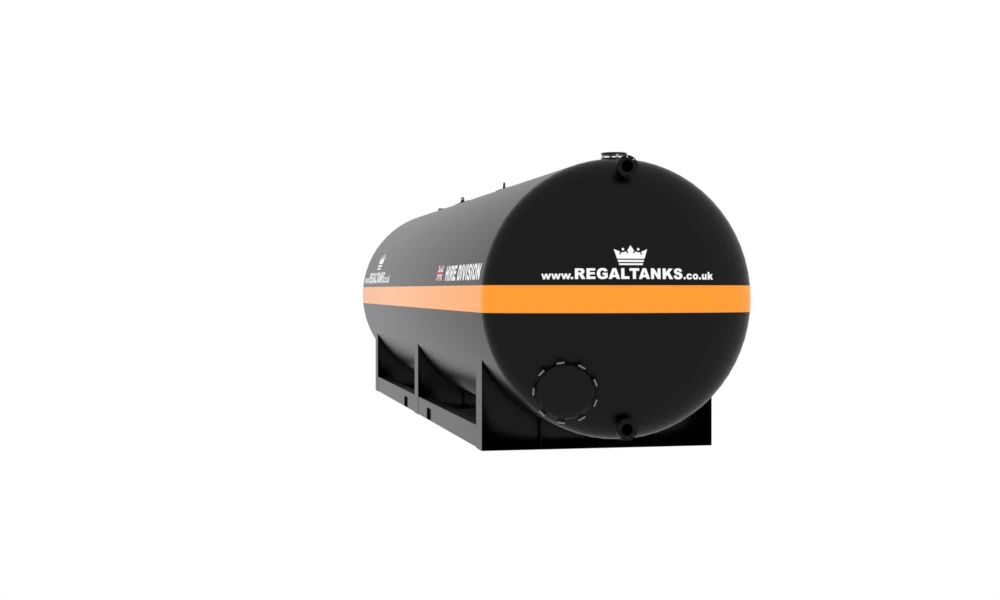

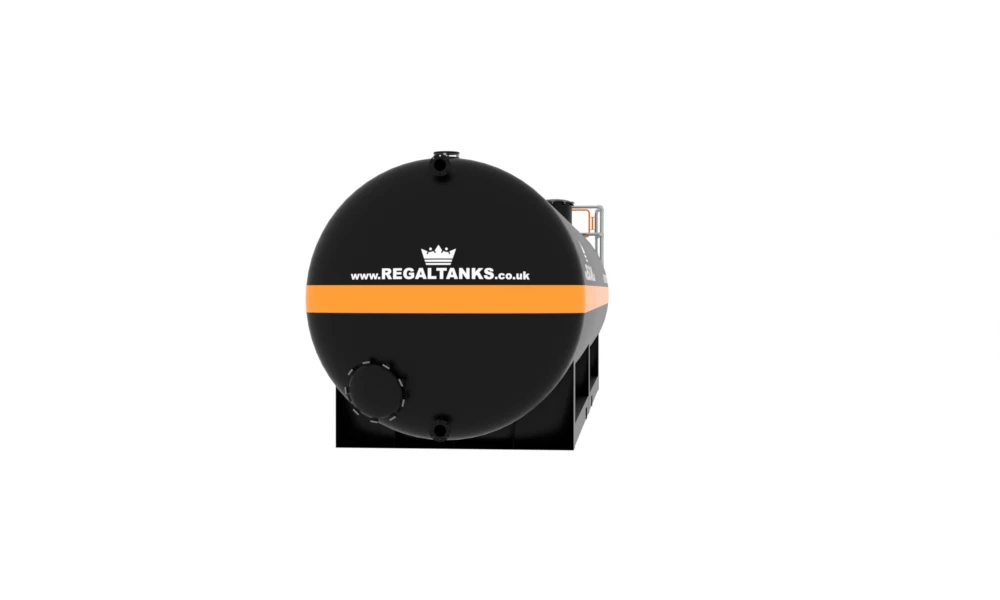

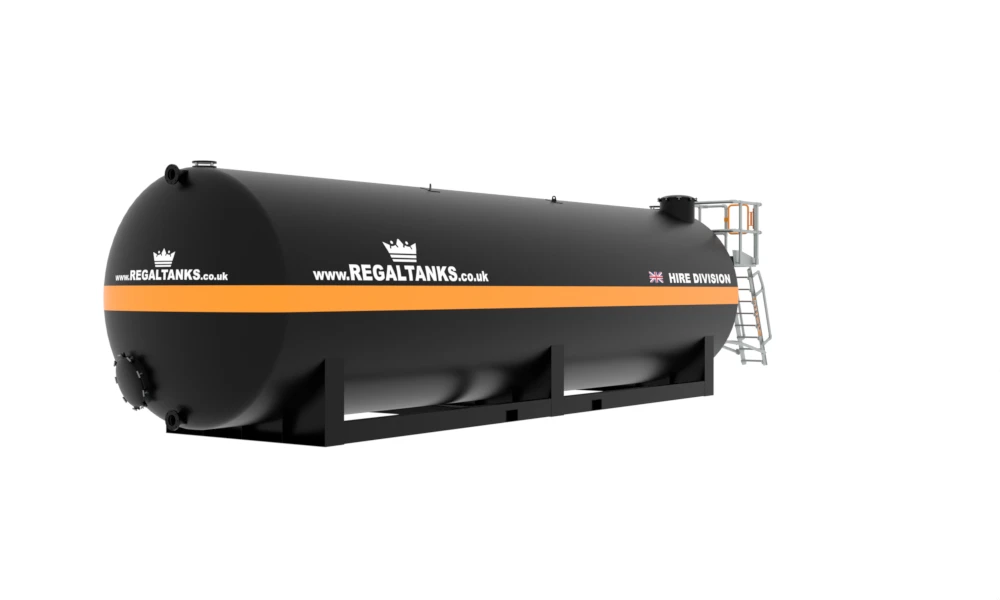

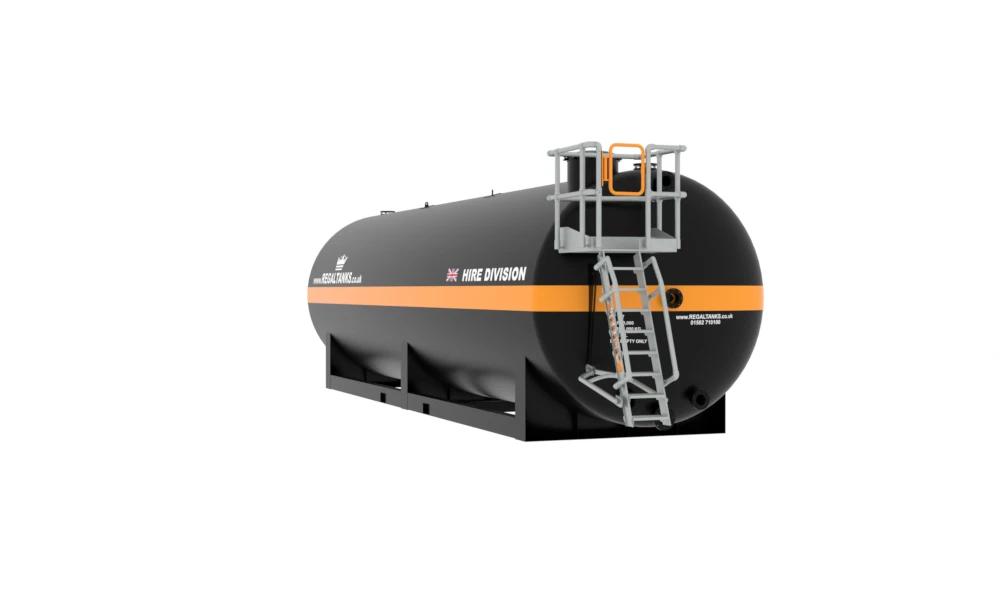

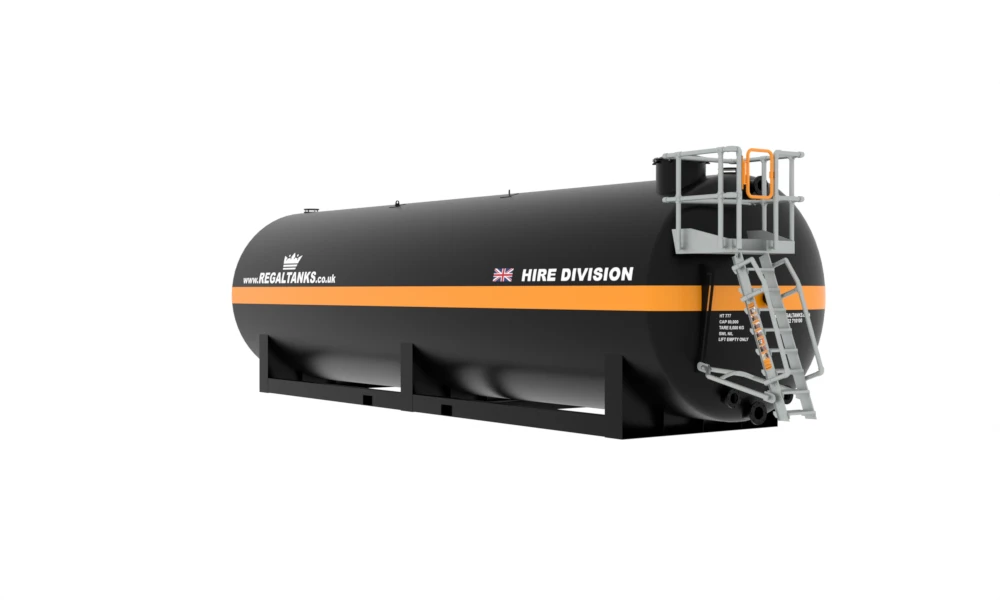

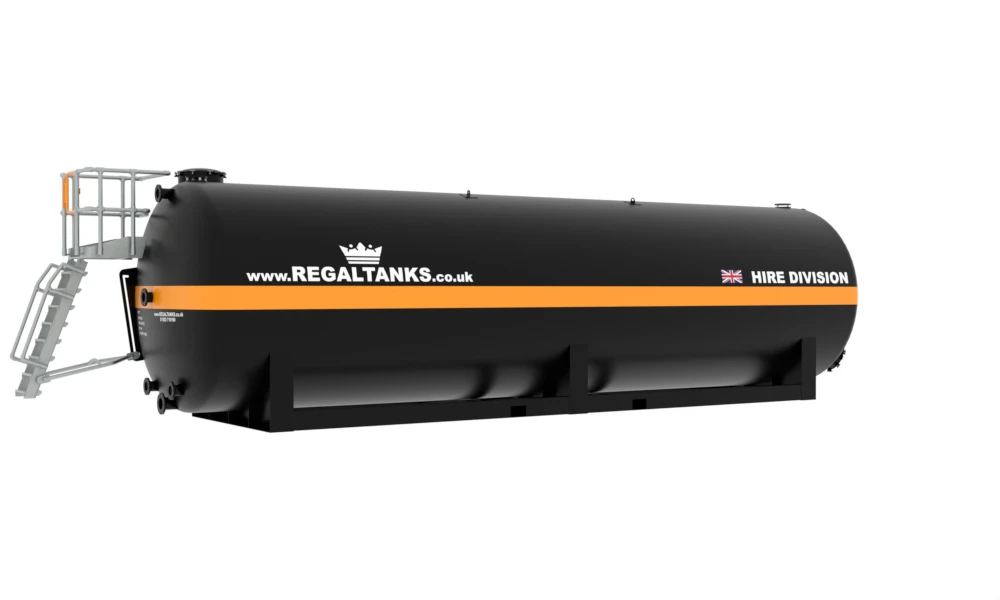

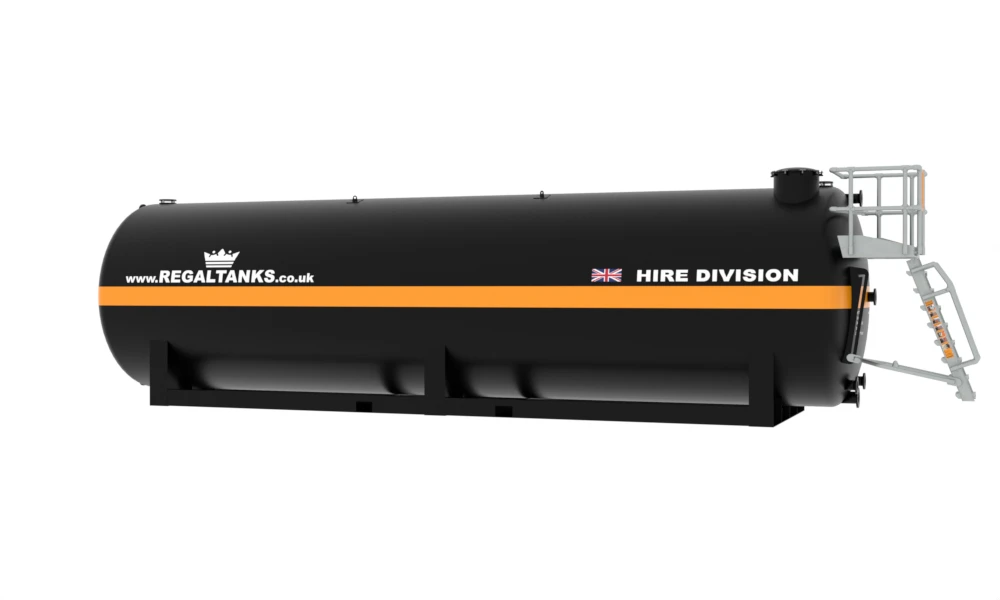

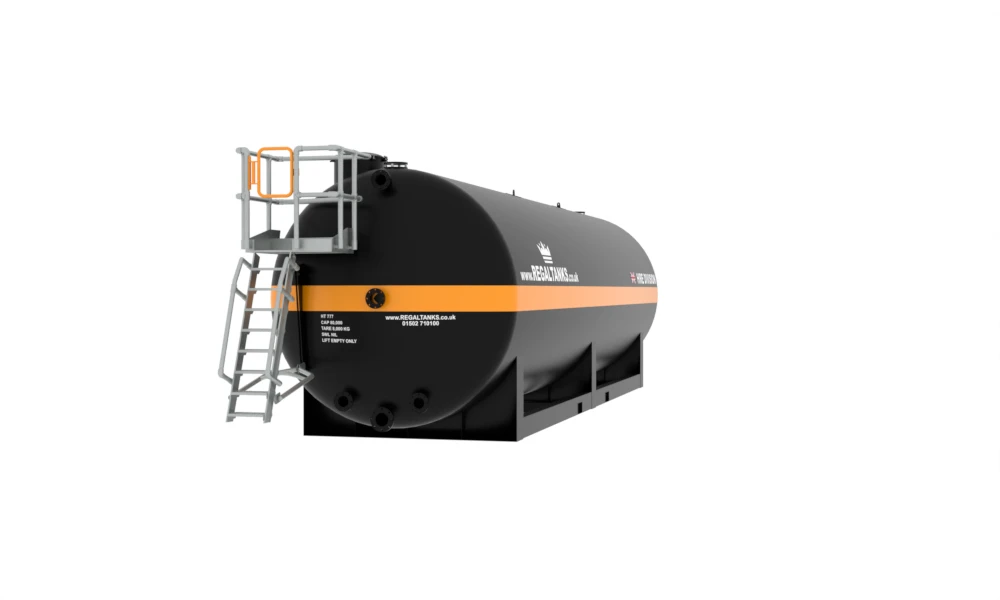

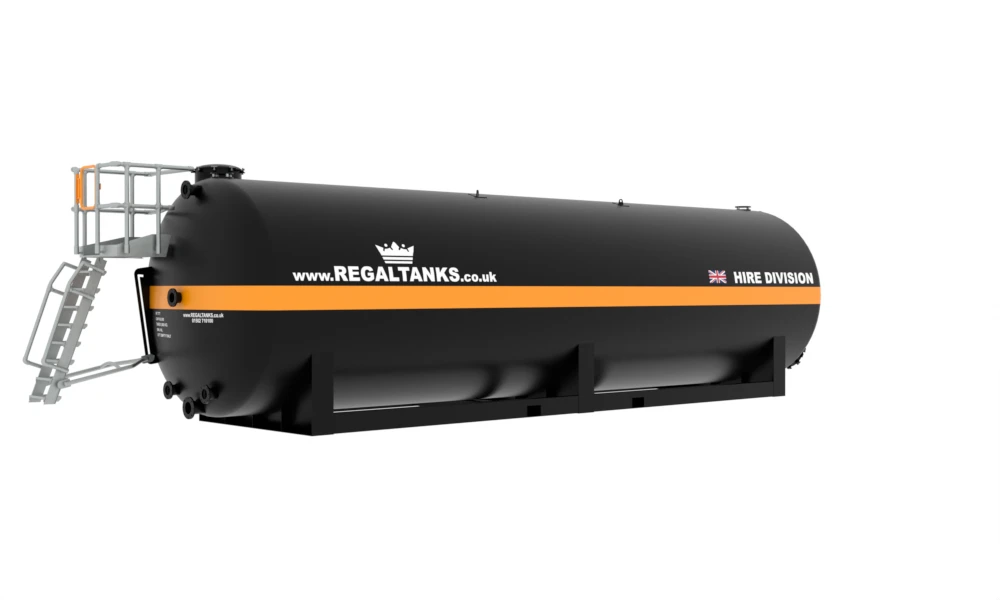

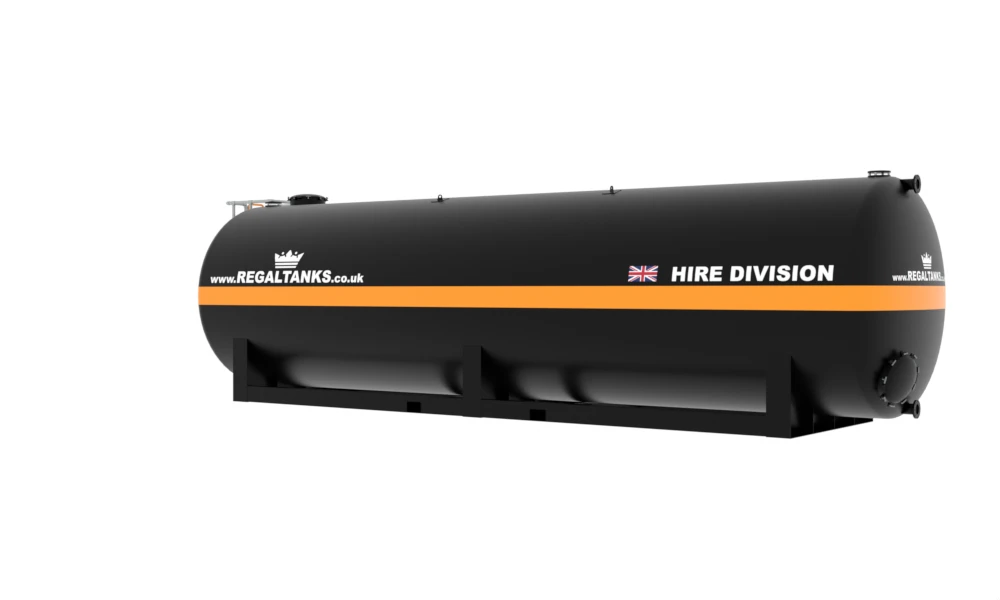

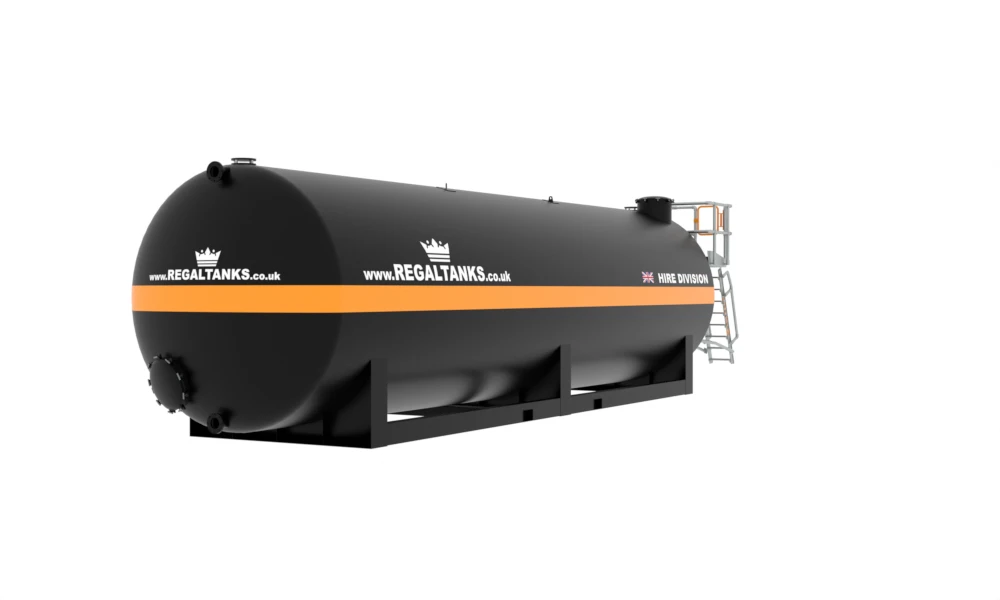

3D Model

Explore in 3D

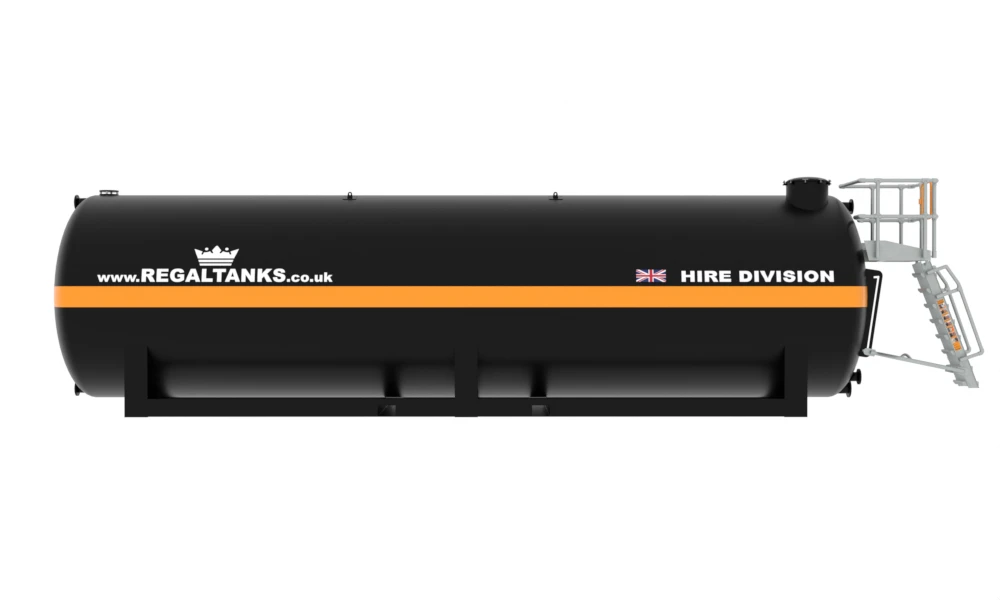

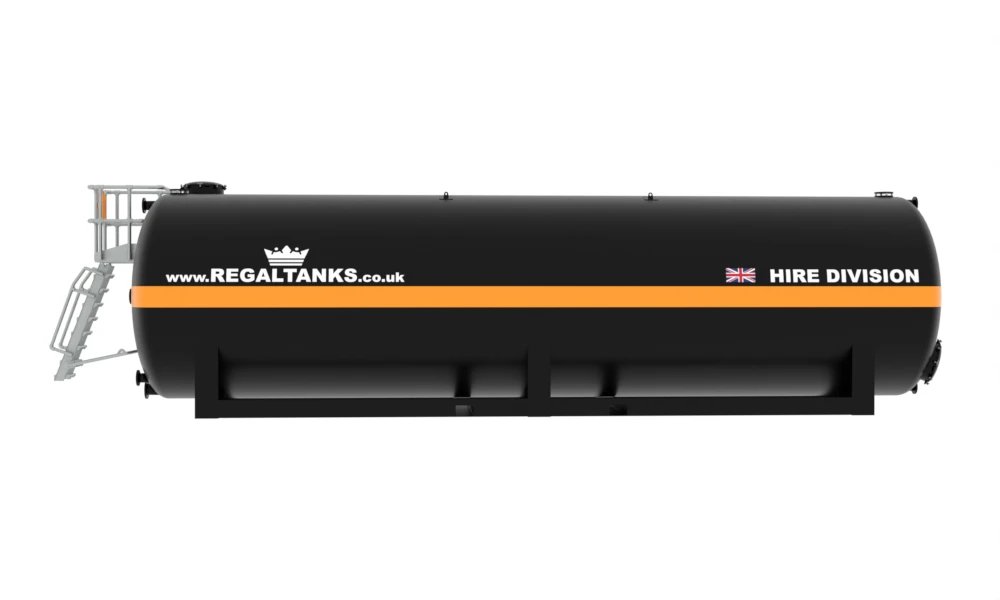

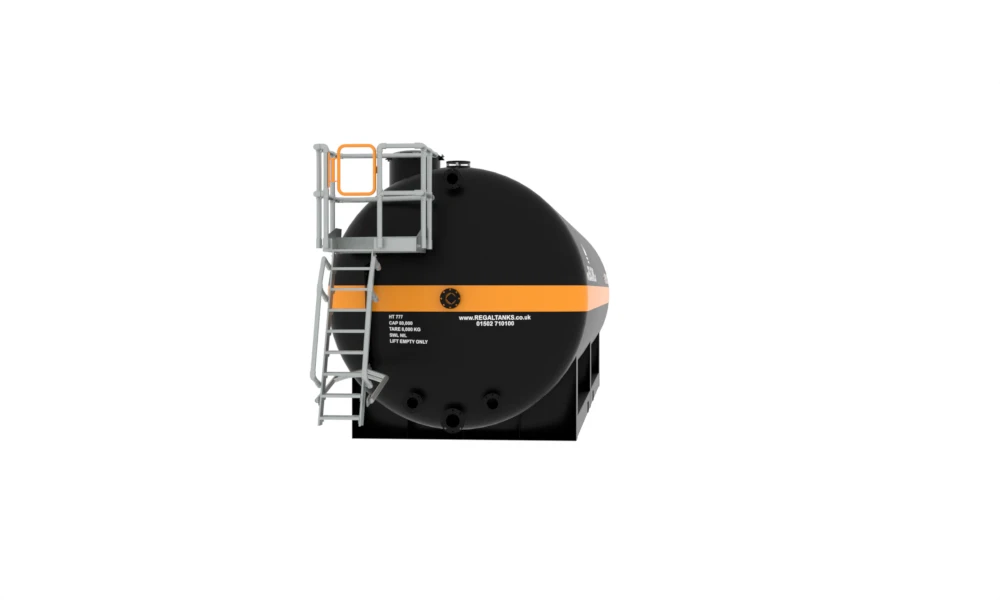

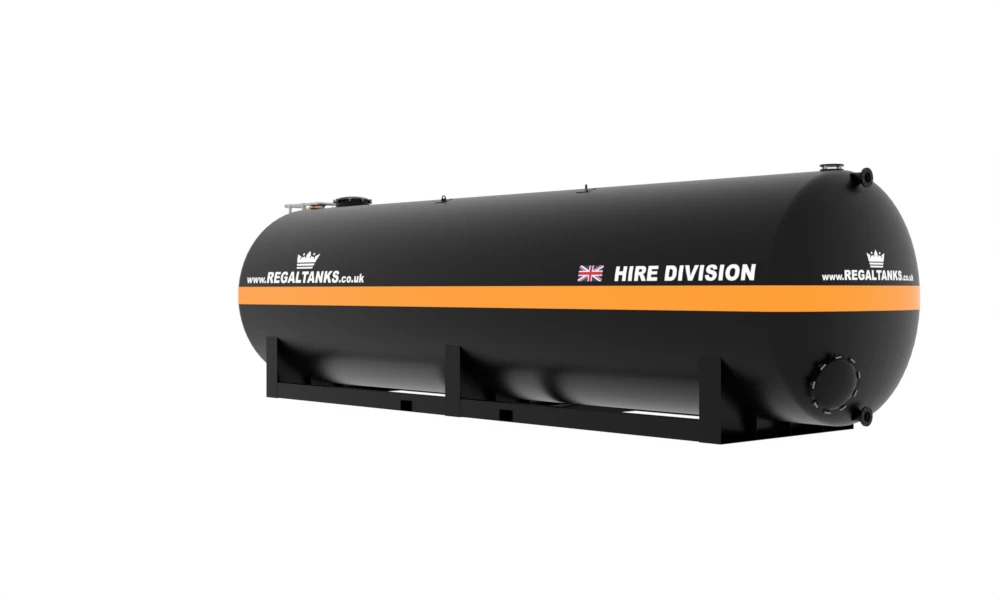

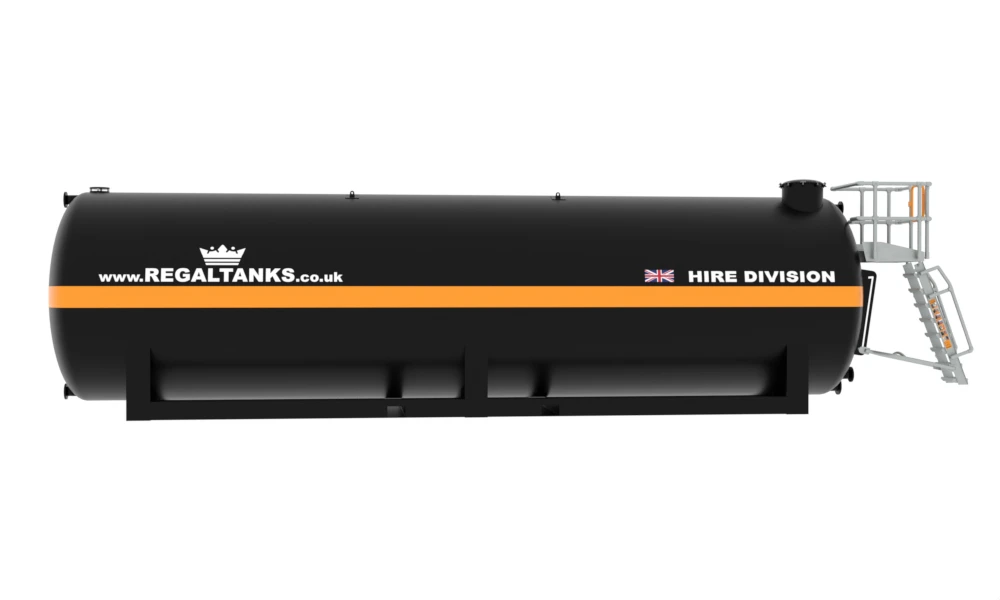

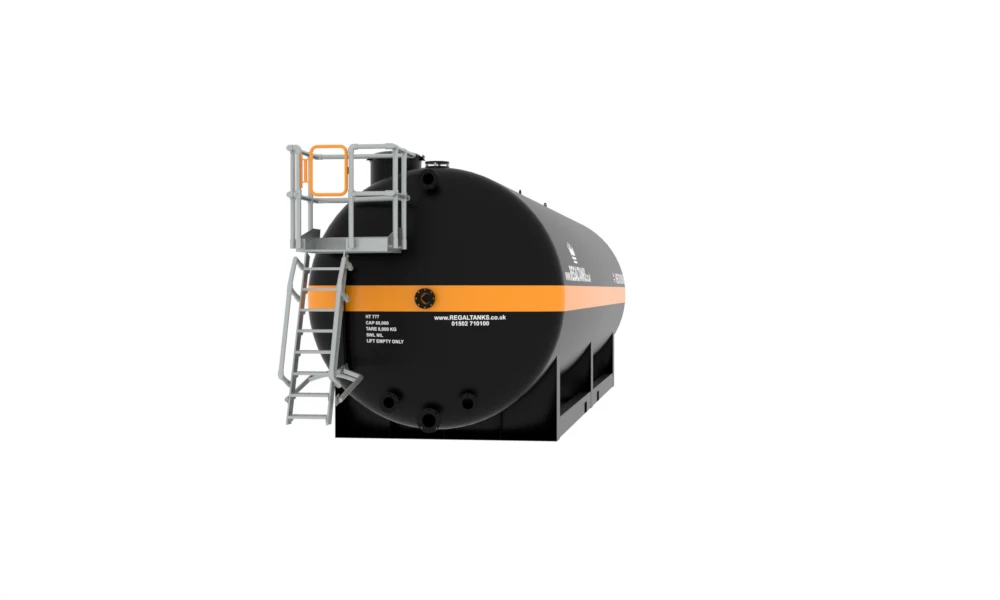

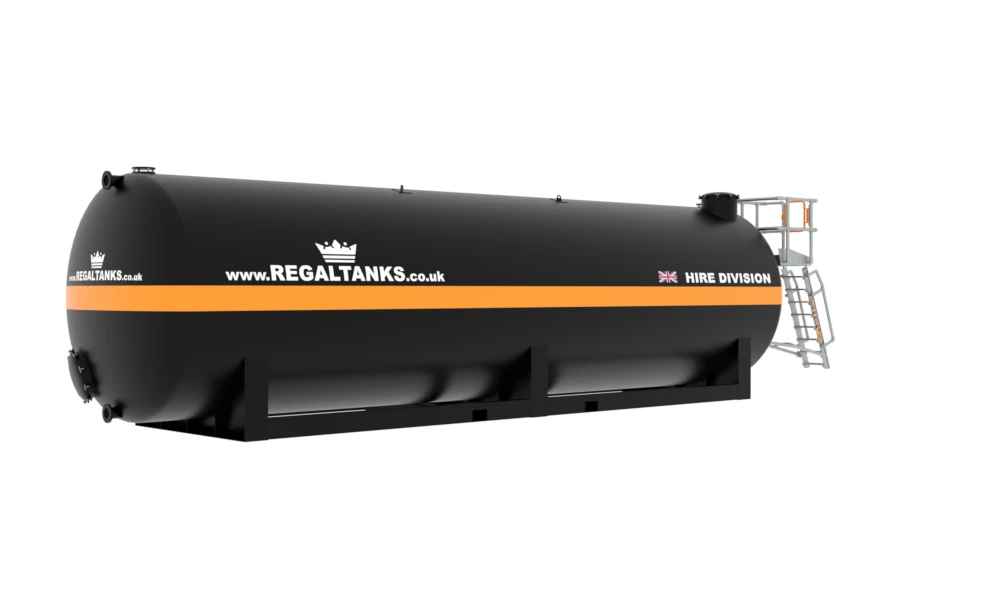

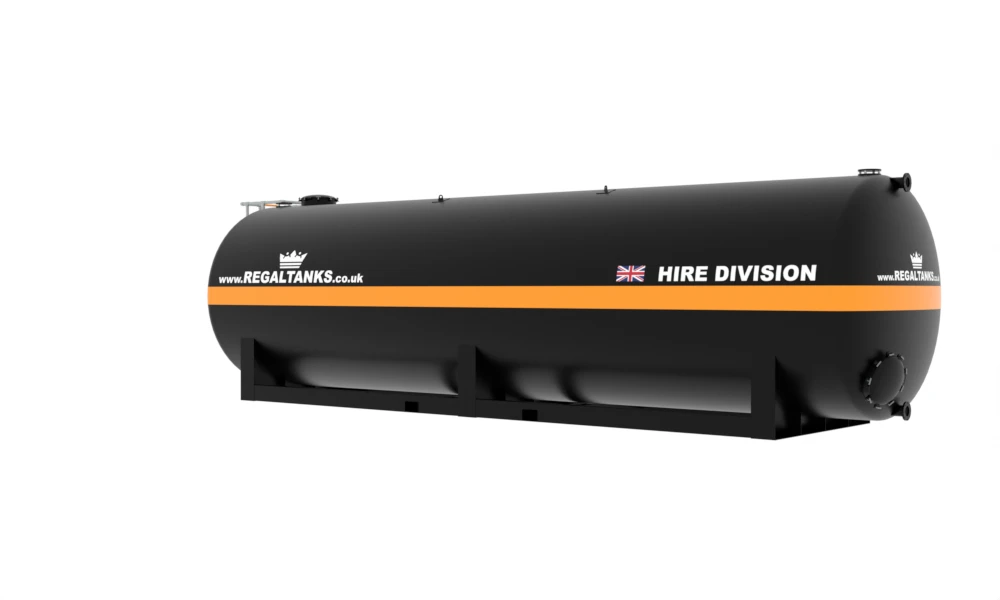

Dive into a detailed, interactive view of our storage tank, examine every angle and feature with our 3D model.

View the 3D model

Standard Fittings

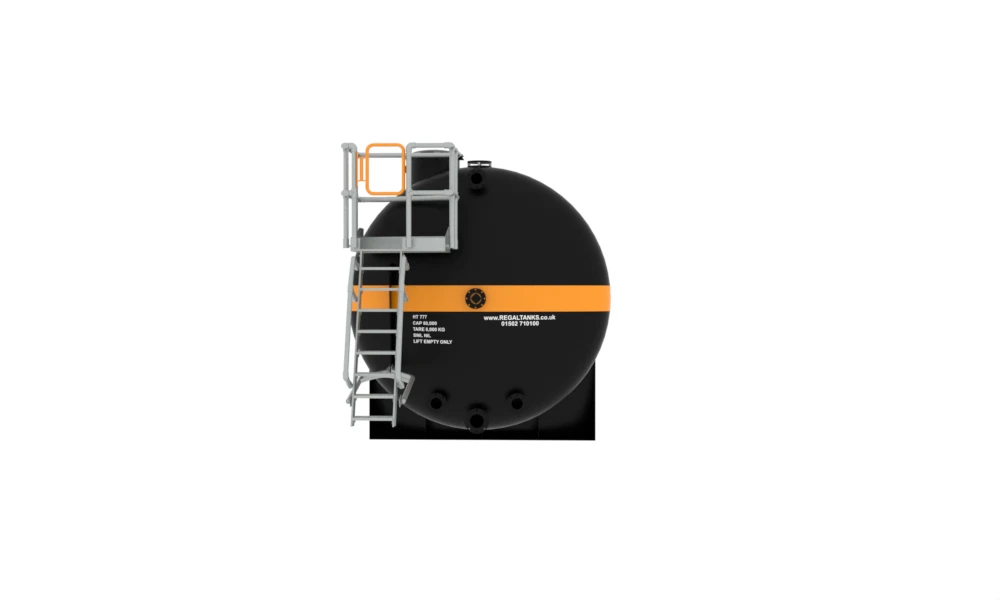

Front
  • 1 x 6" 150# ANSI flanged inlet / outlet
  • 1 x 6" 150# ANSI flanged internal fill line
  • 1" visual site tube with stop valve

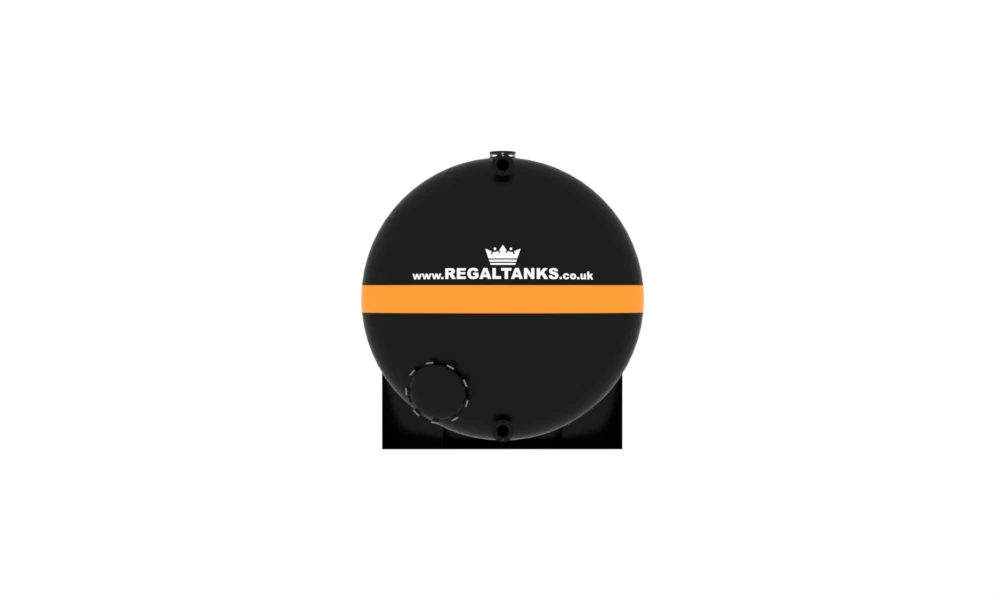

  • 1 x 500/600mm manway

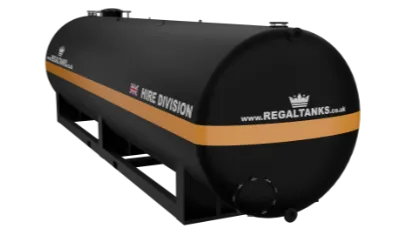

Rear
  • 1 x 6" 150# ANSI flanged inlet / outlet (blinded)
  • 1 x High level 6" 150# ANSI flanged return / overflow (blinded)
Top
  • 1 x Box style vent
  • 1 x 600mm manway
Lifting
  • 2 Leg wire rope sling with master link
  • 3rd Party certified to LOLER 98

Downloads

Download Tank Drawing
Get a quote for this hire tank

Don't like forms? Call us on 01502 710100 and speak to one of our hire tank advisers.
