Storage Tank Hire:
75,000 Litre Horizontal Tanks

Get a quote Get expert advice today

Tank Specification

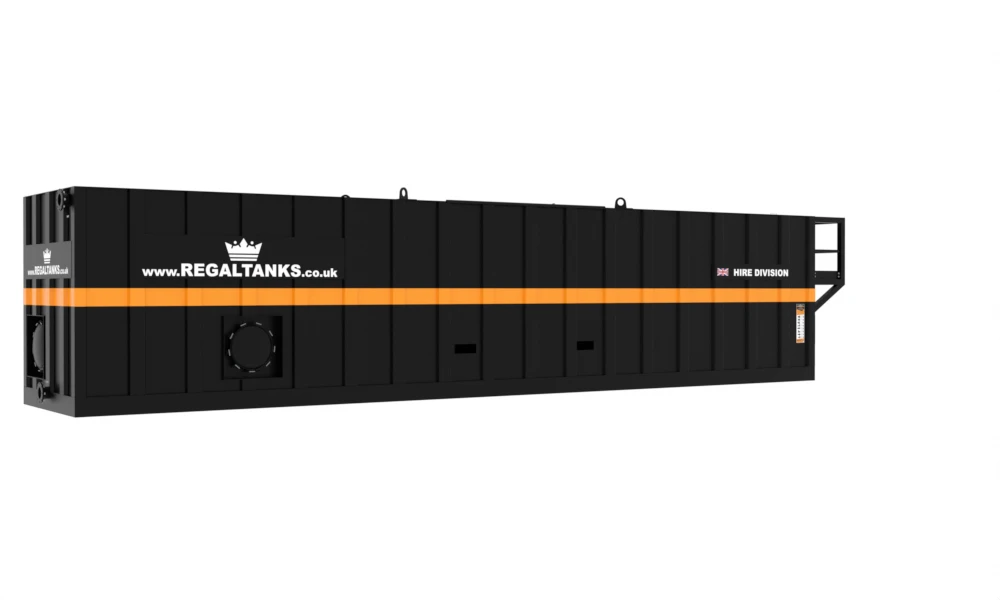

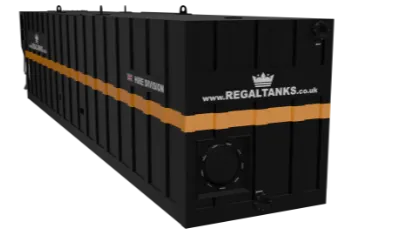

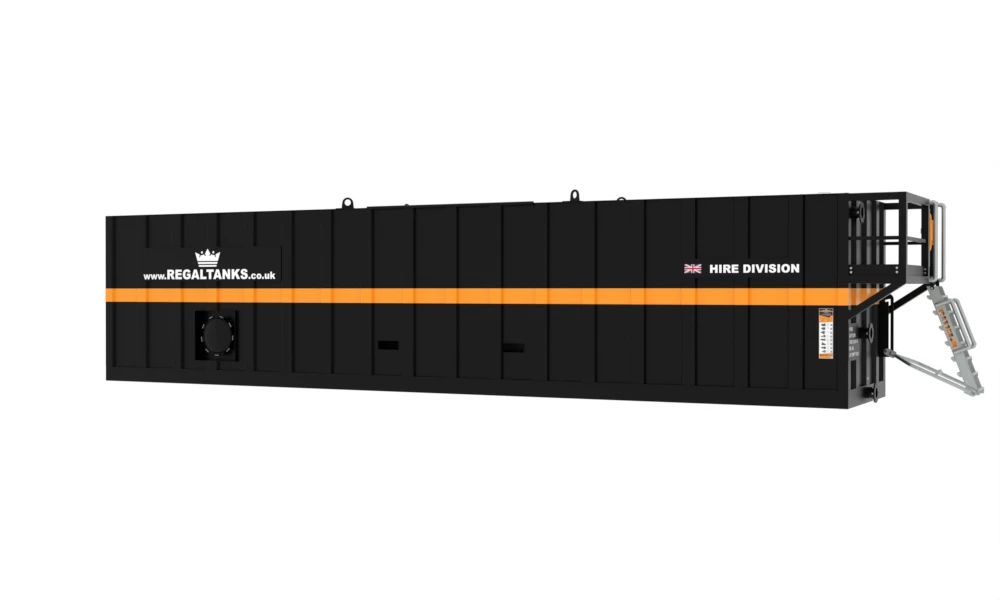

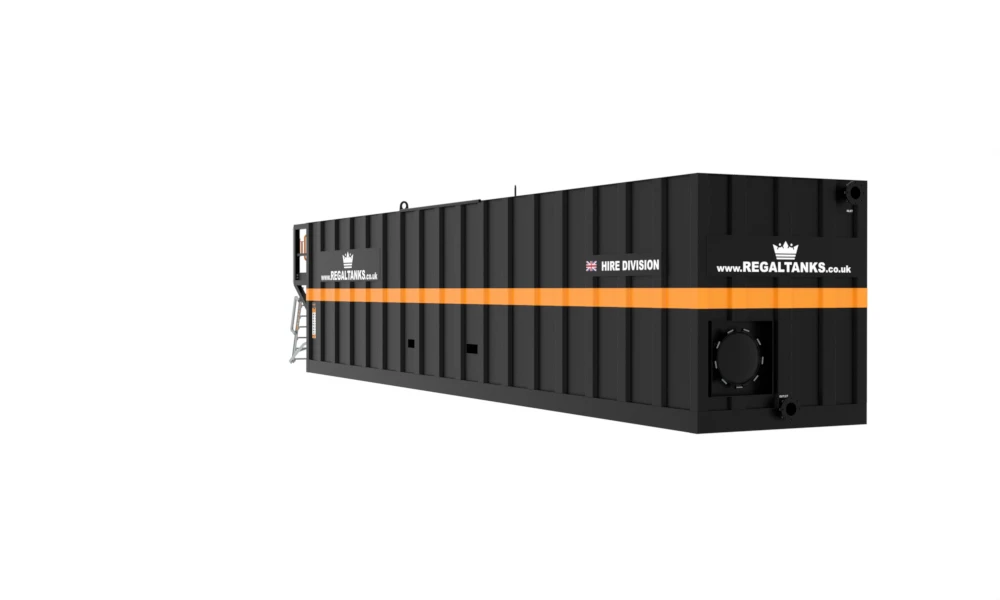

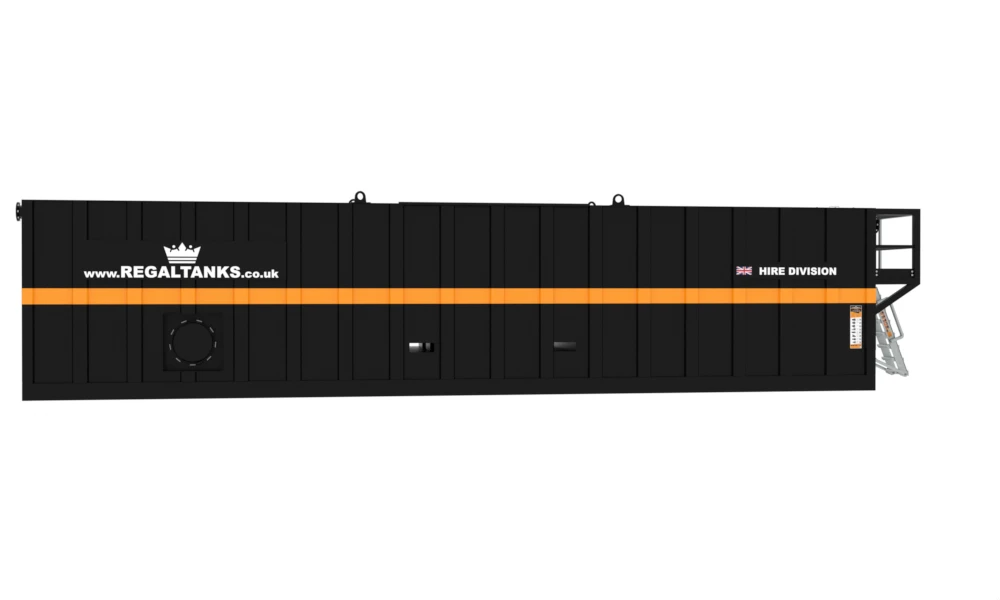

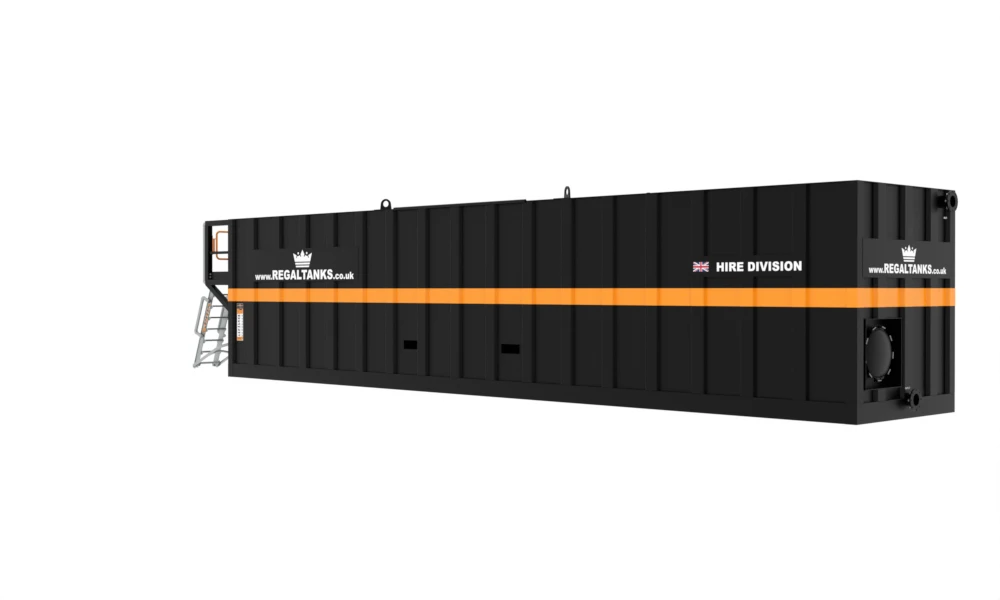

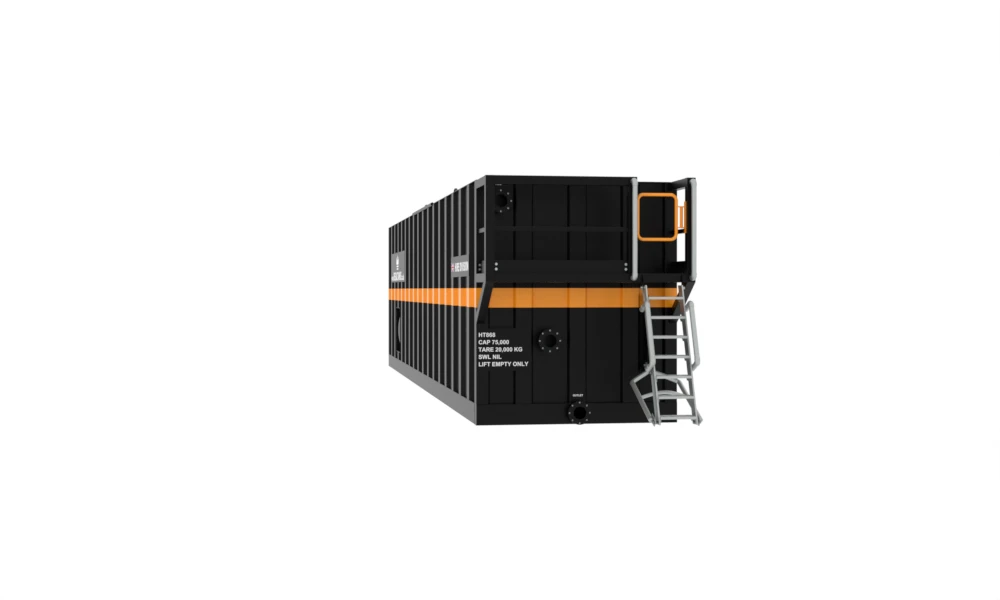

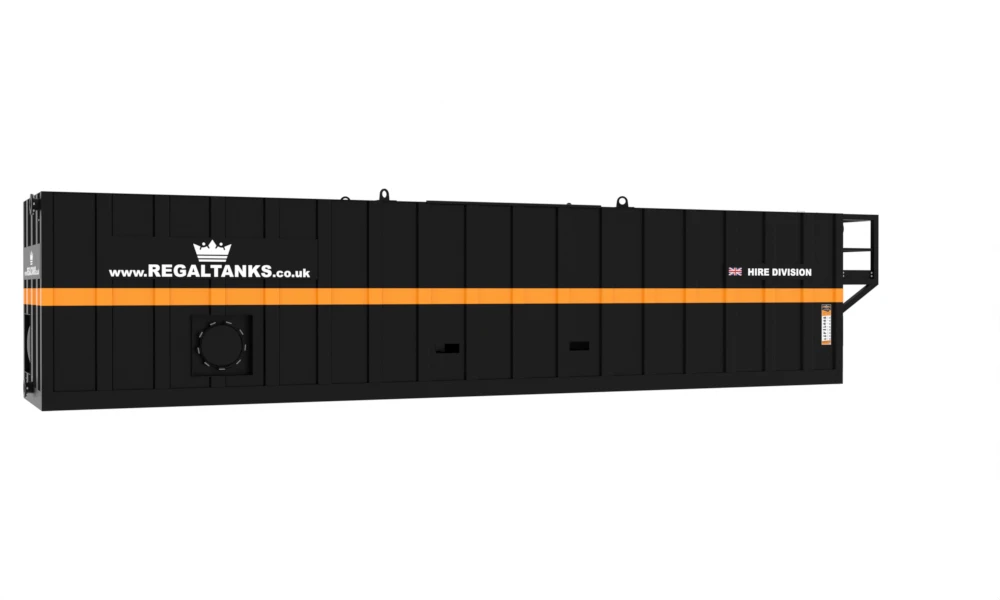

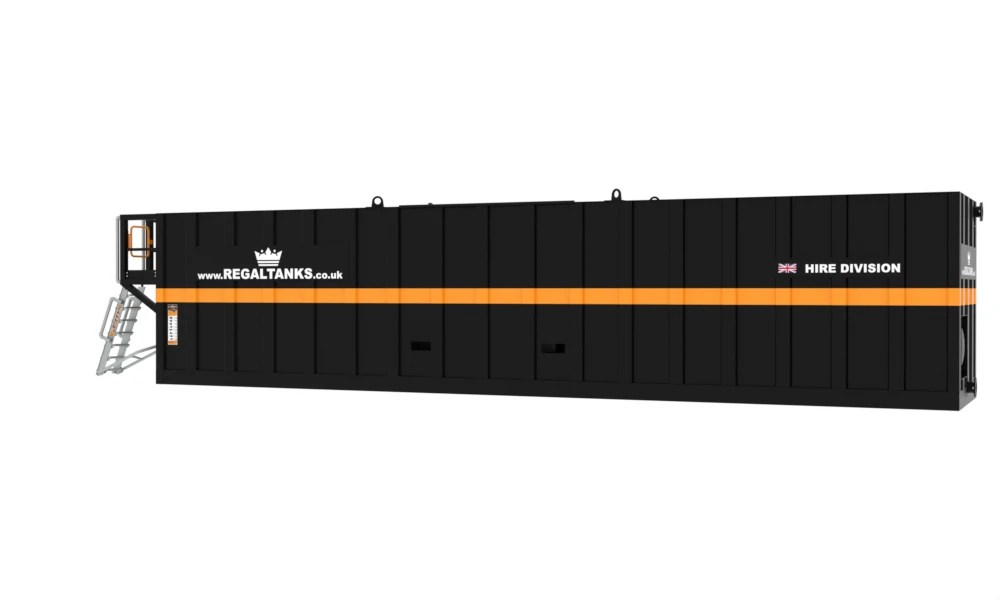

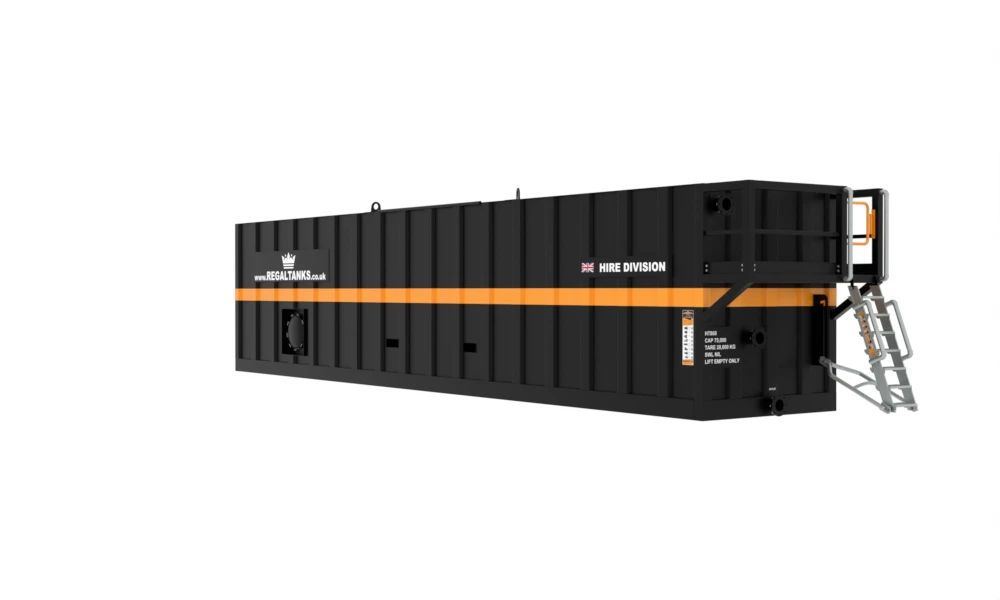

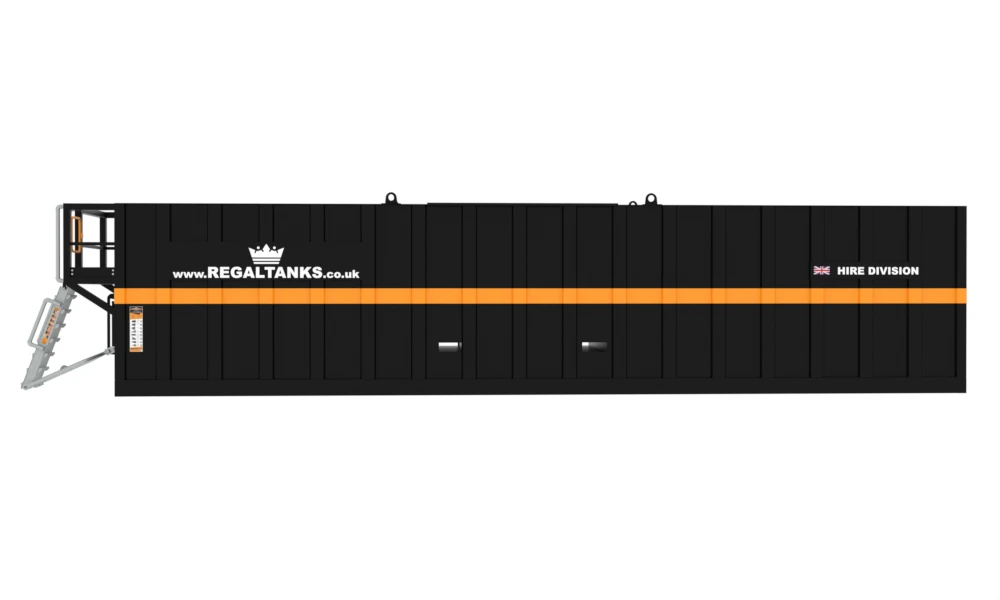

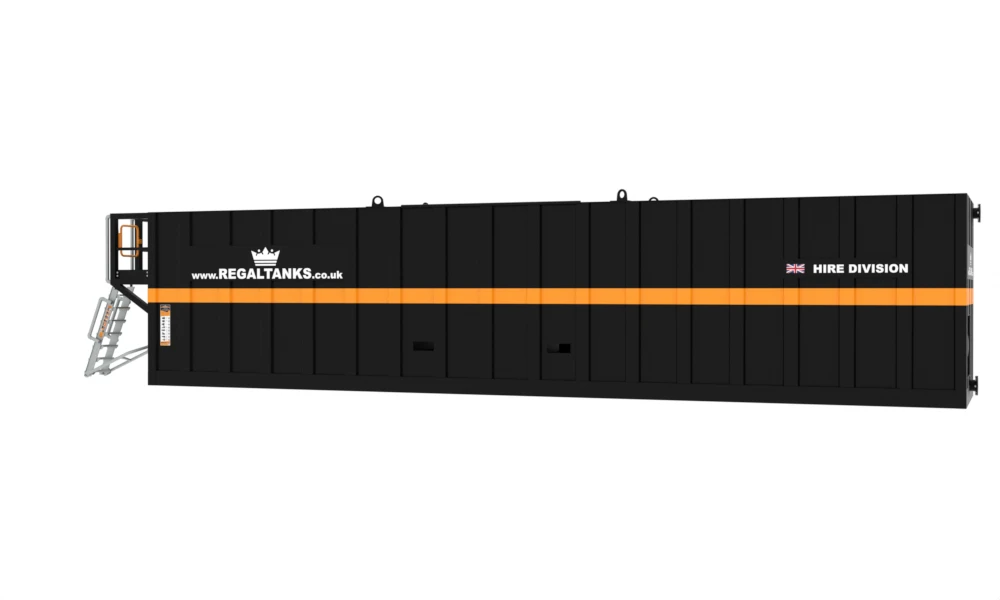

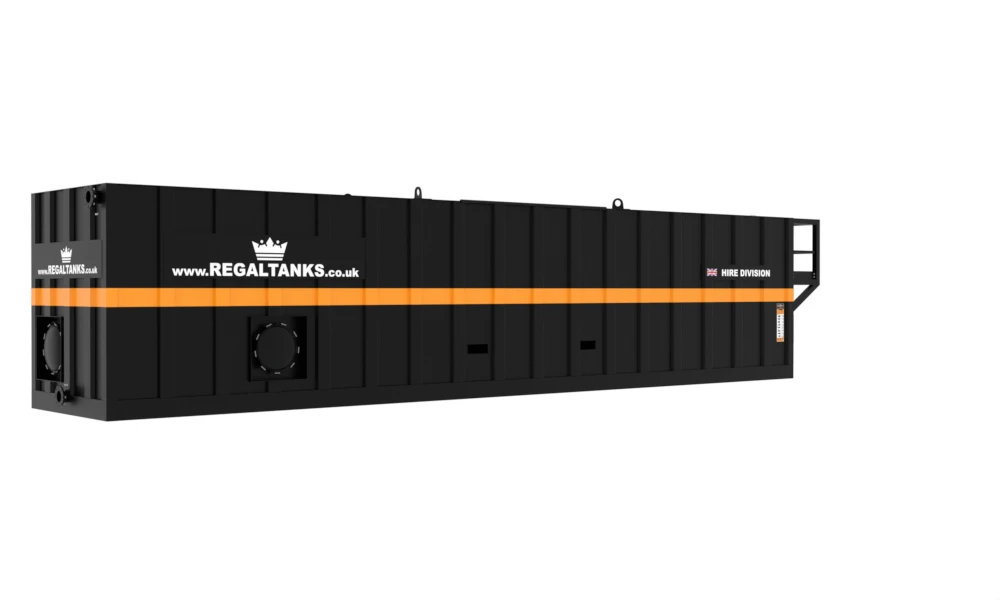

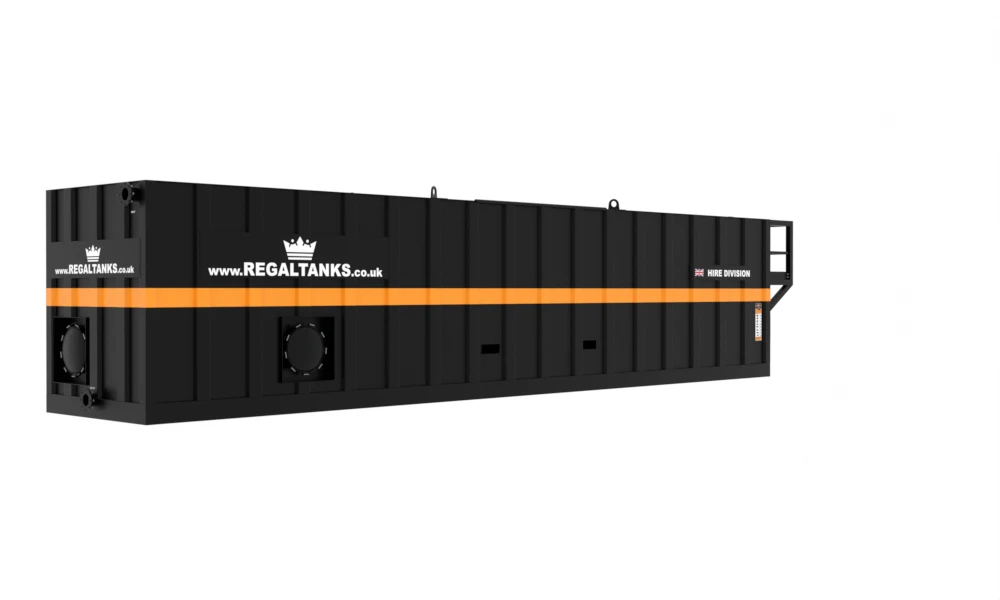

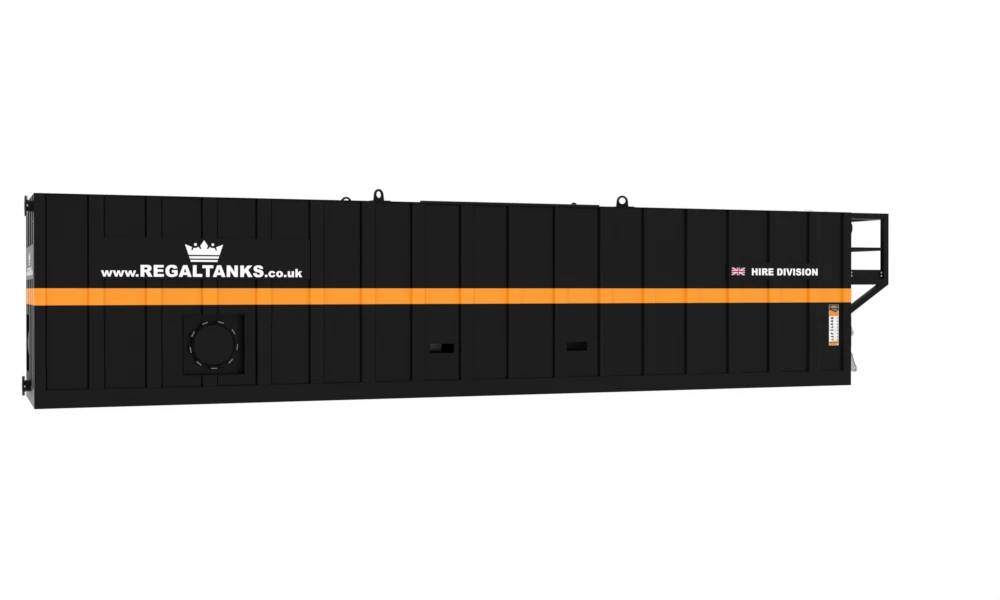

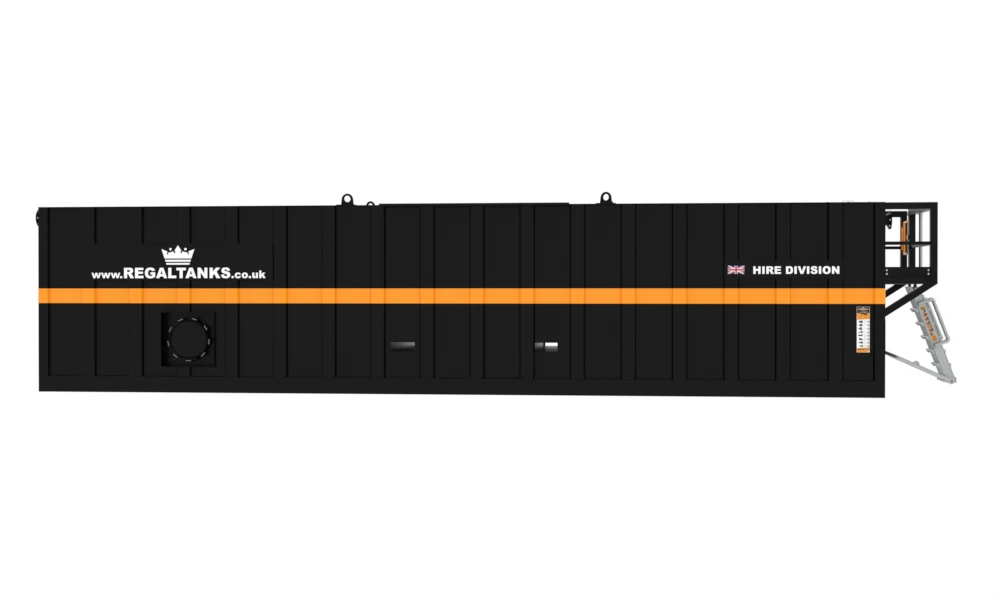

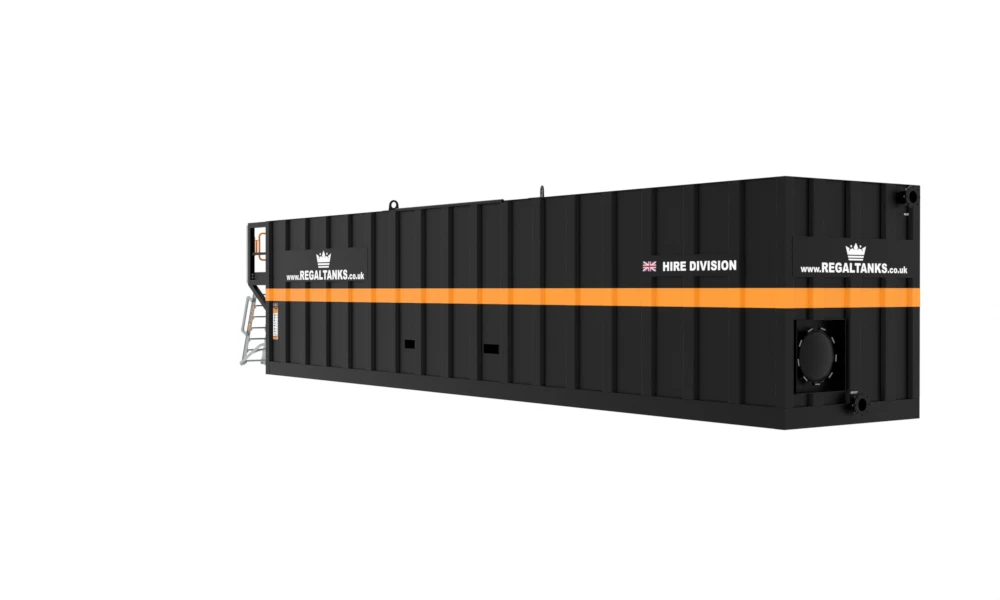

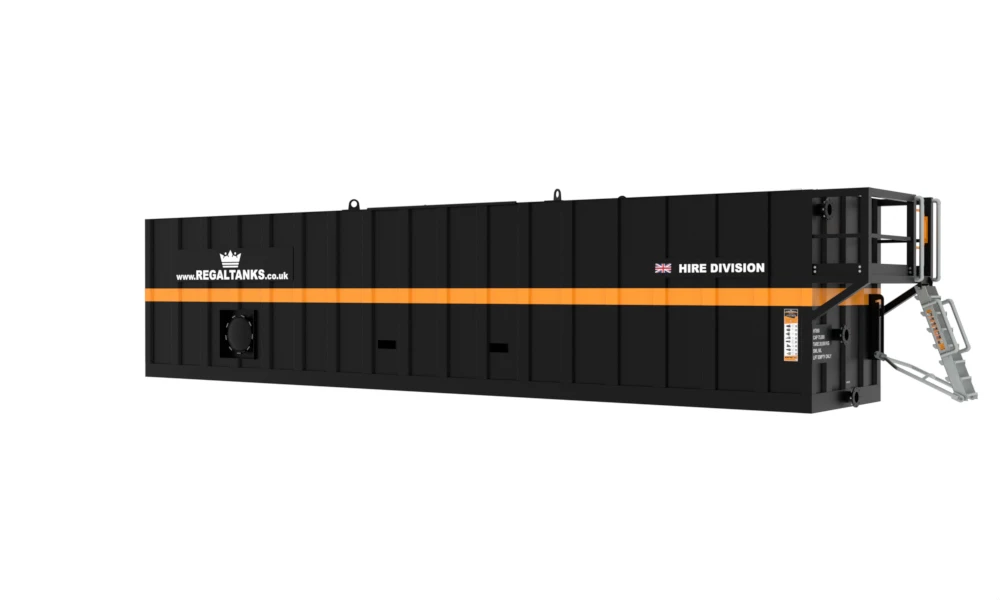

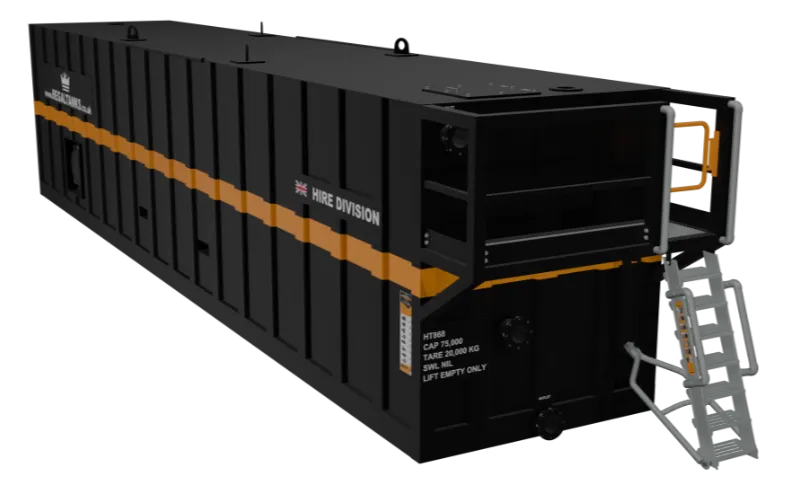

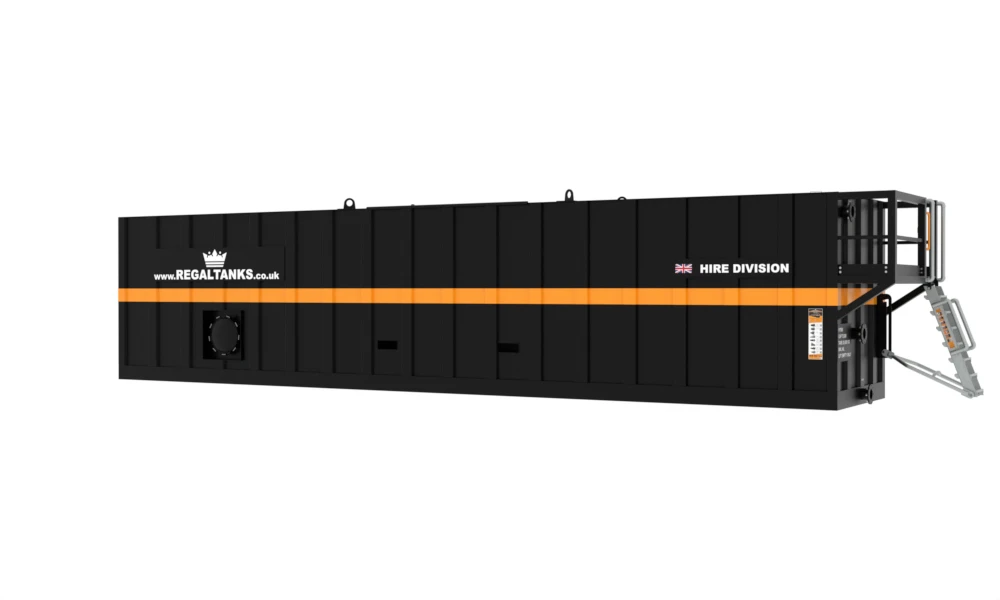

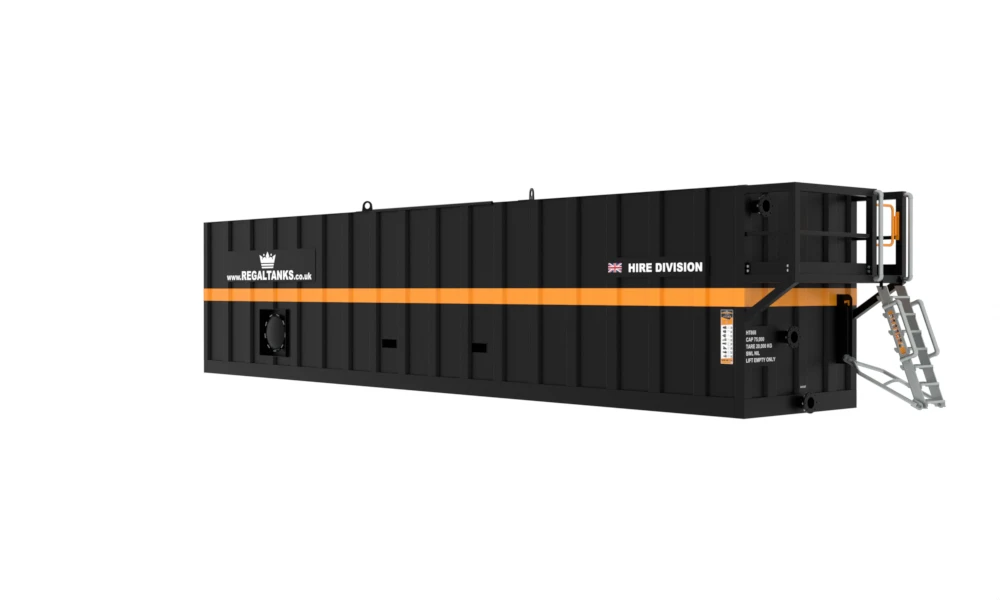

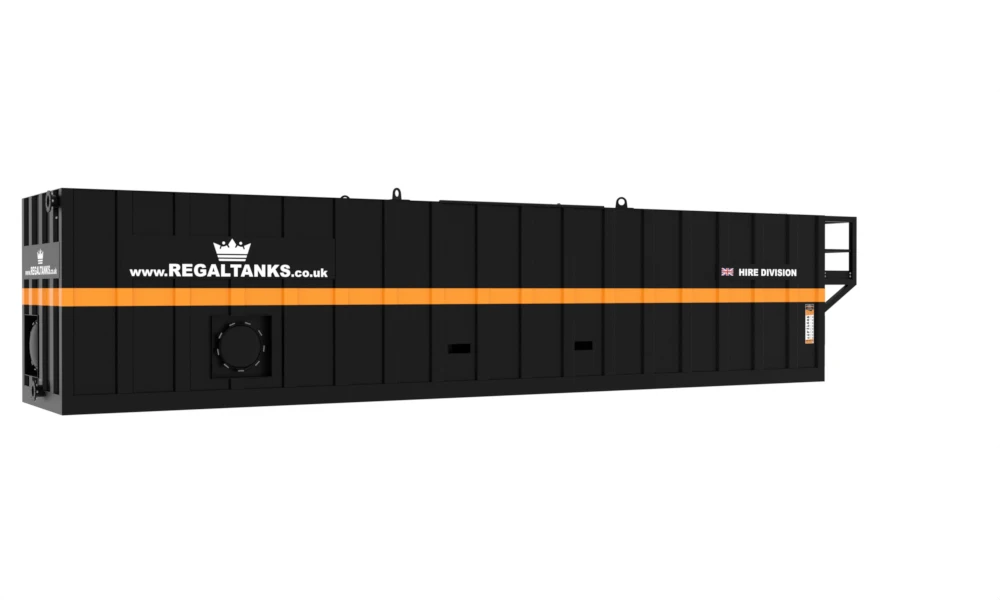

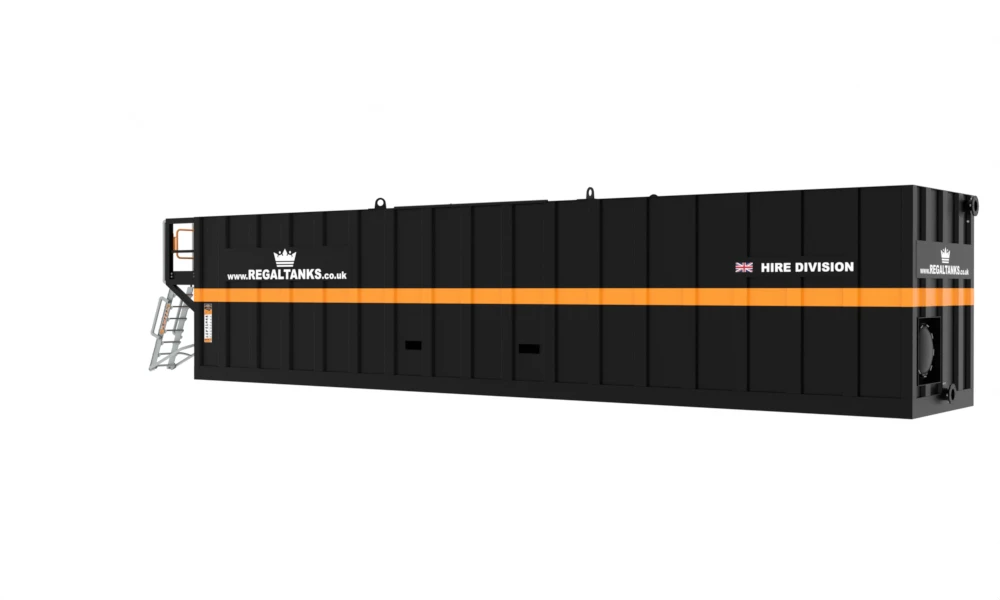

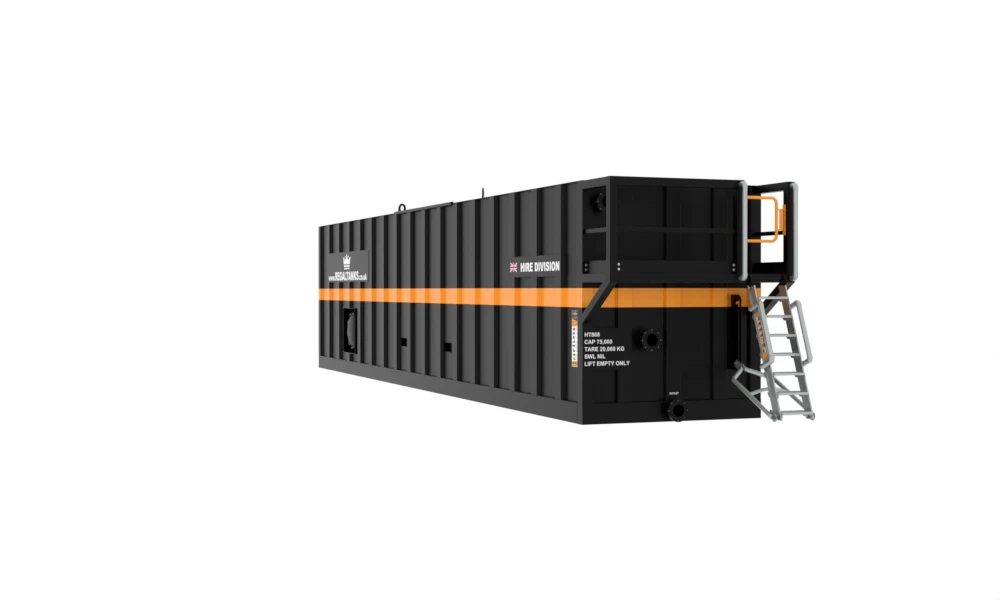

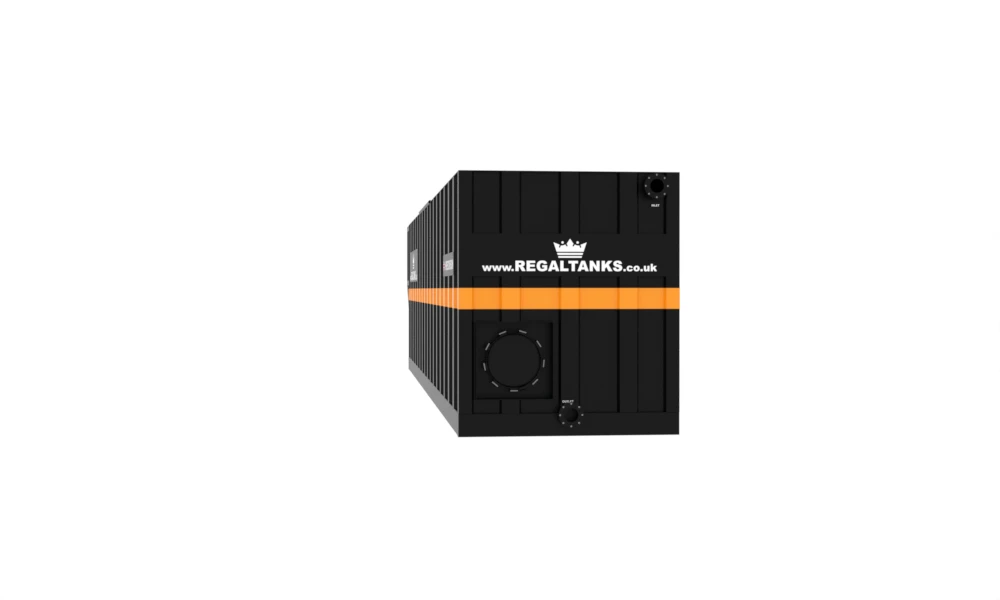

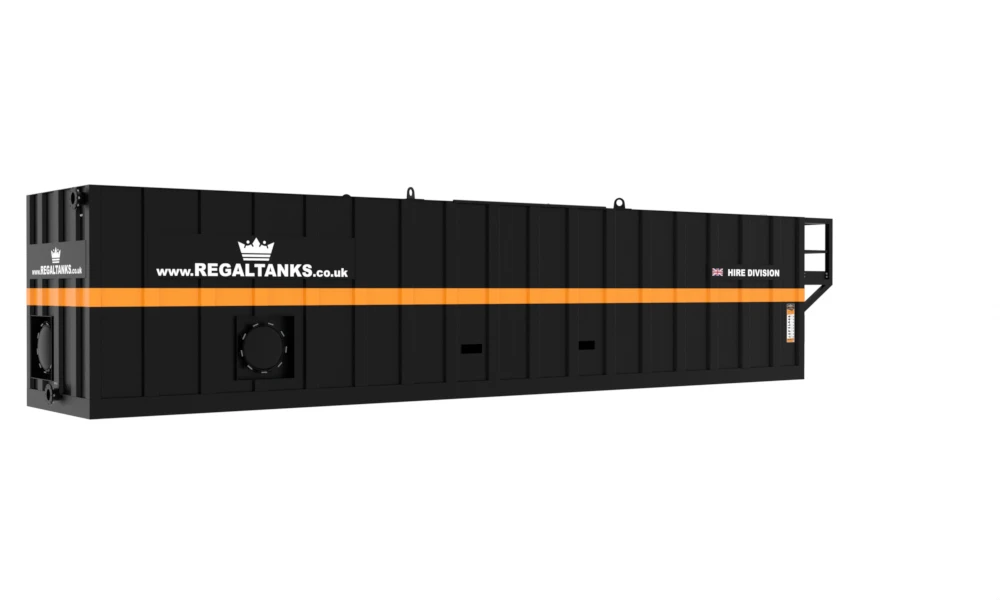

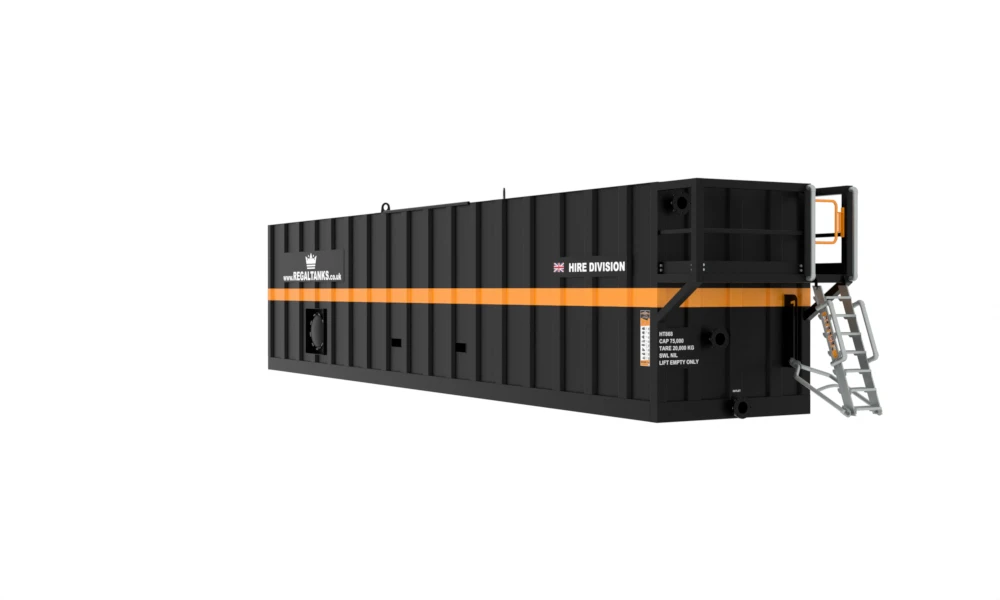

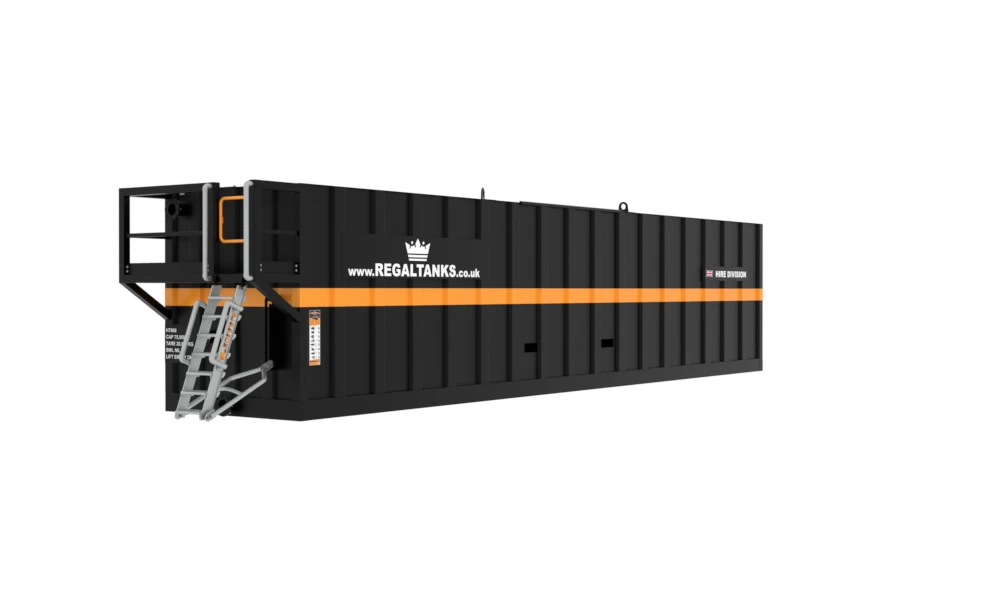

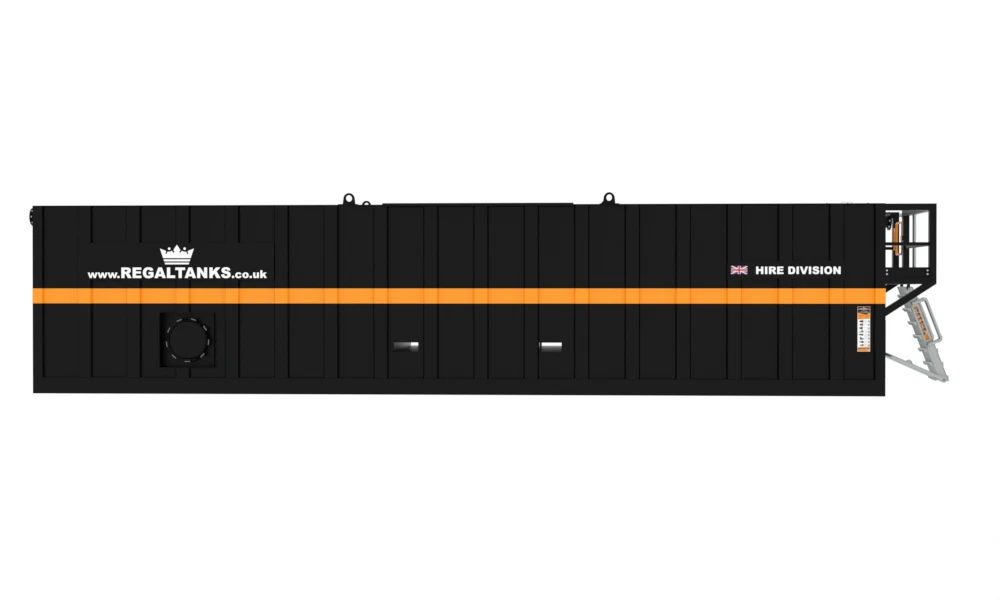

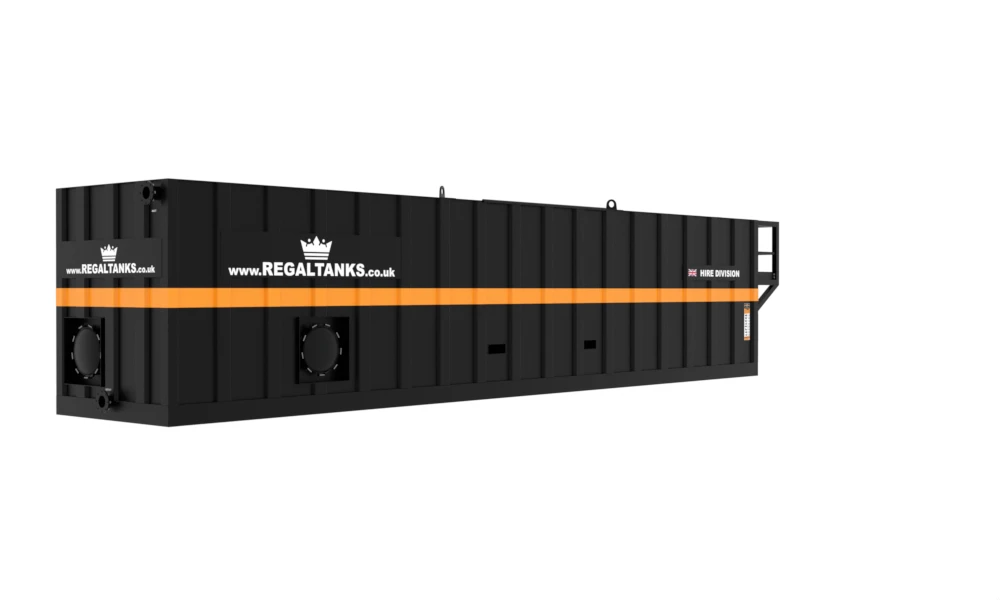

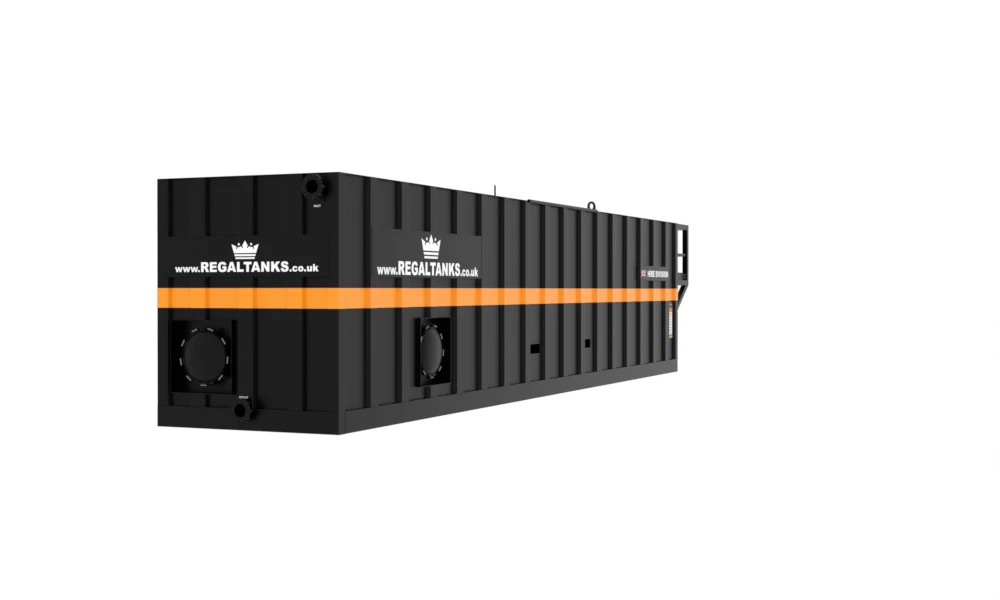

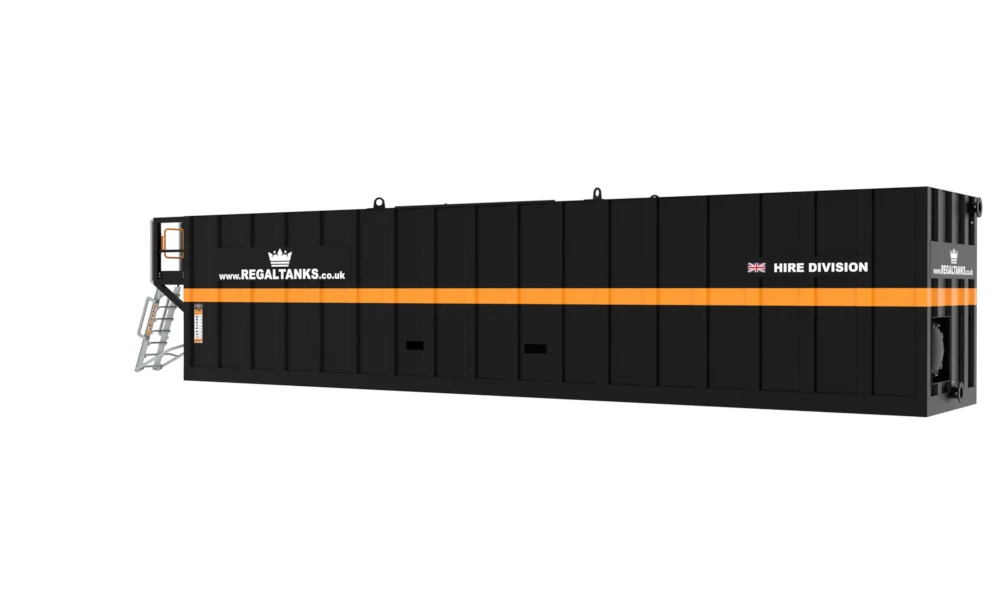

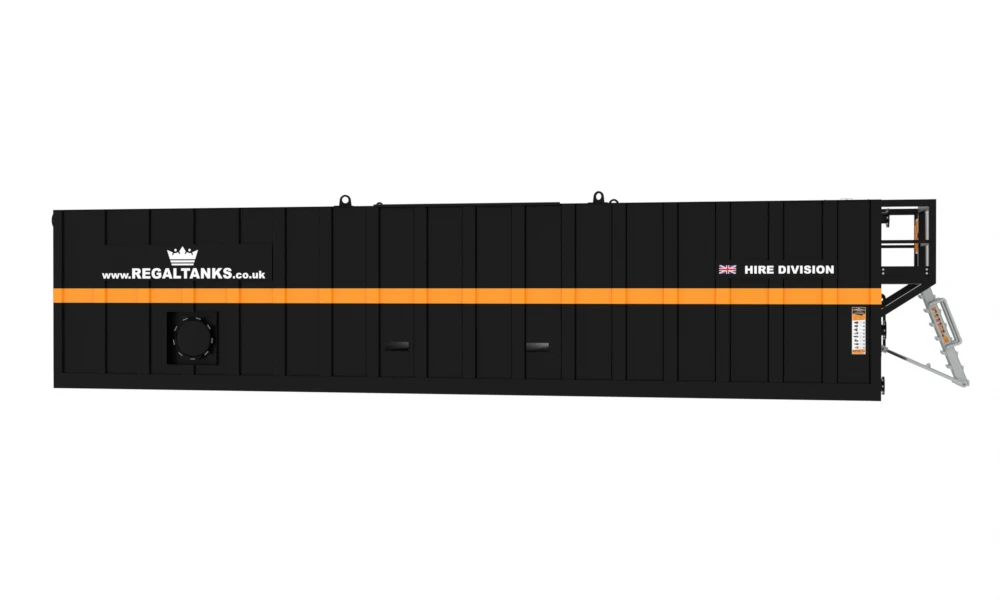

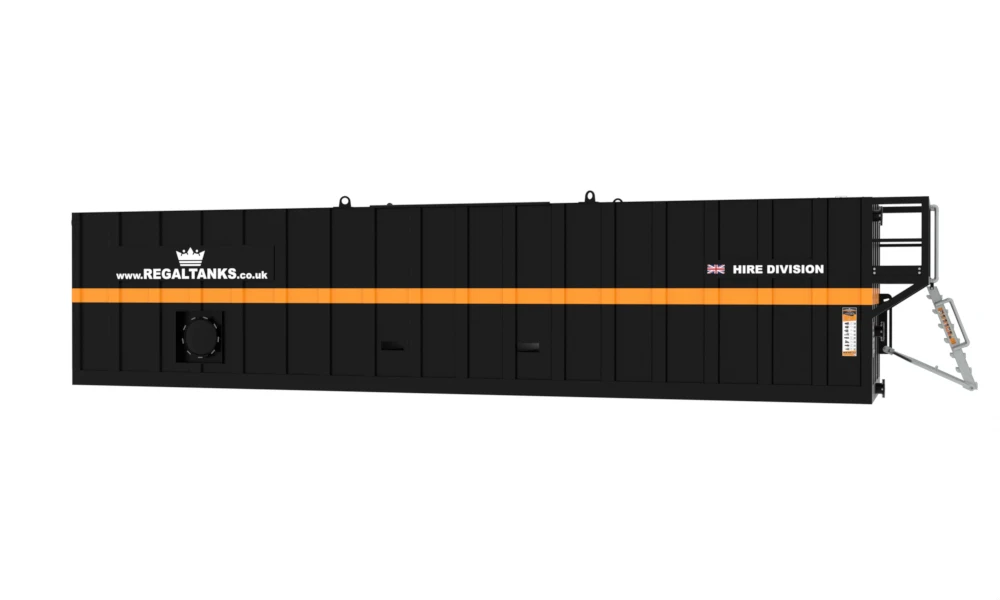

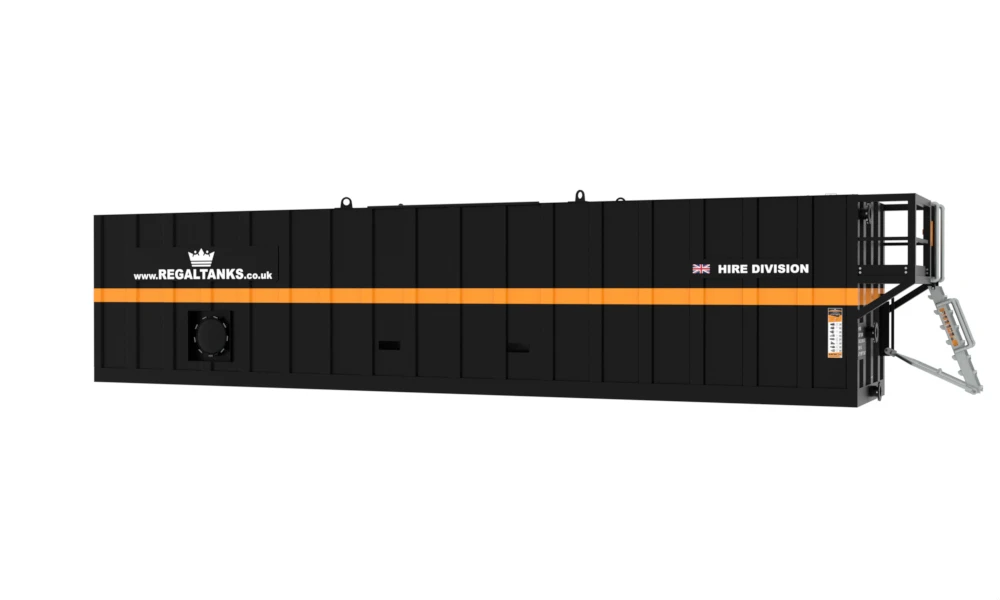

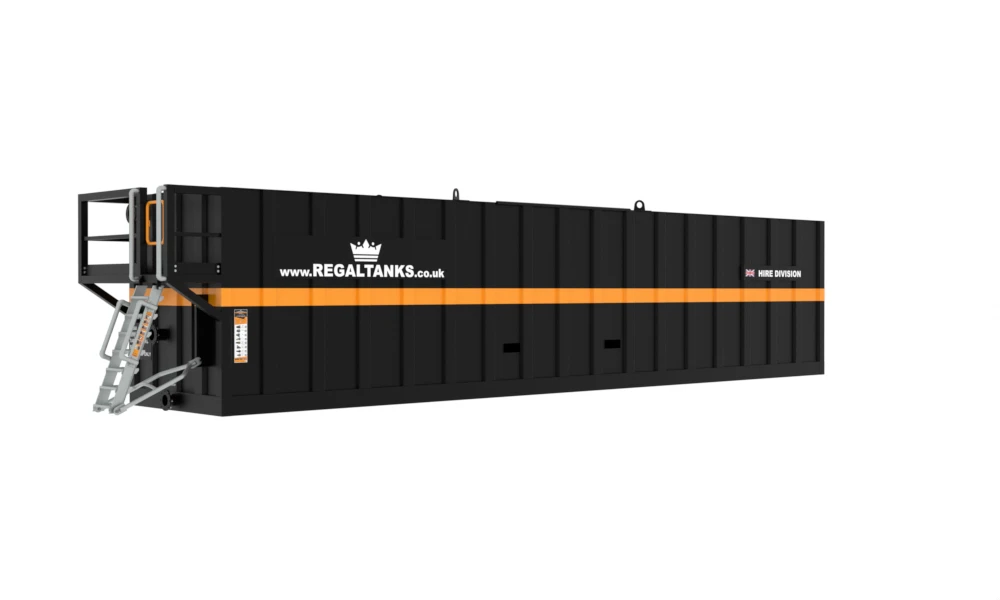

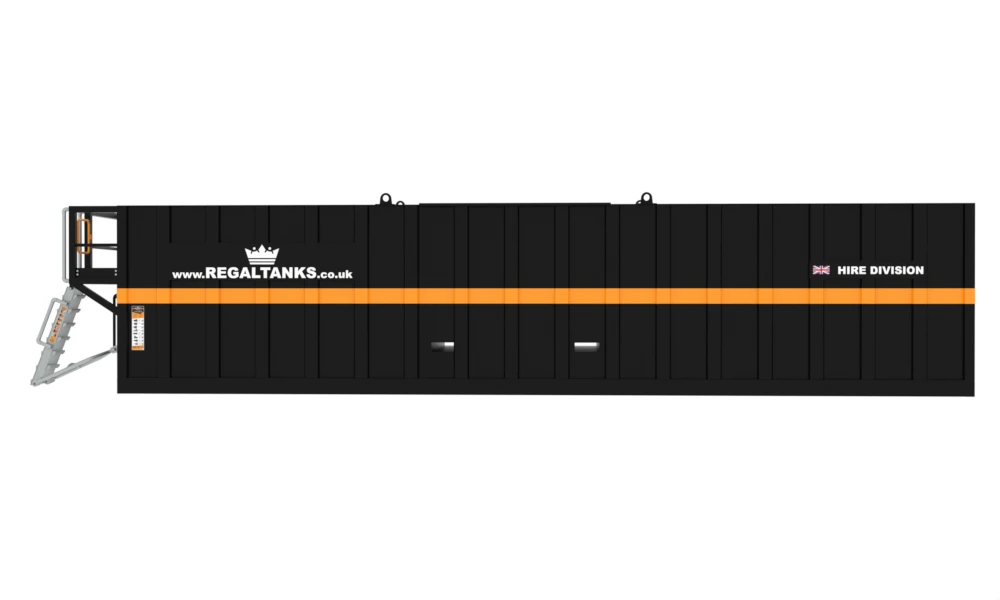

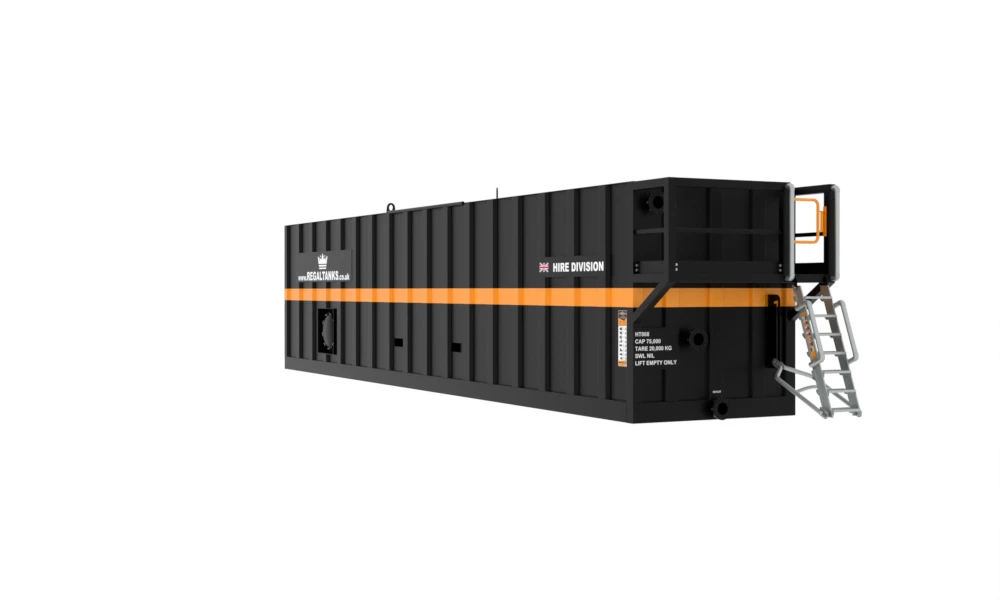

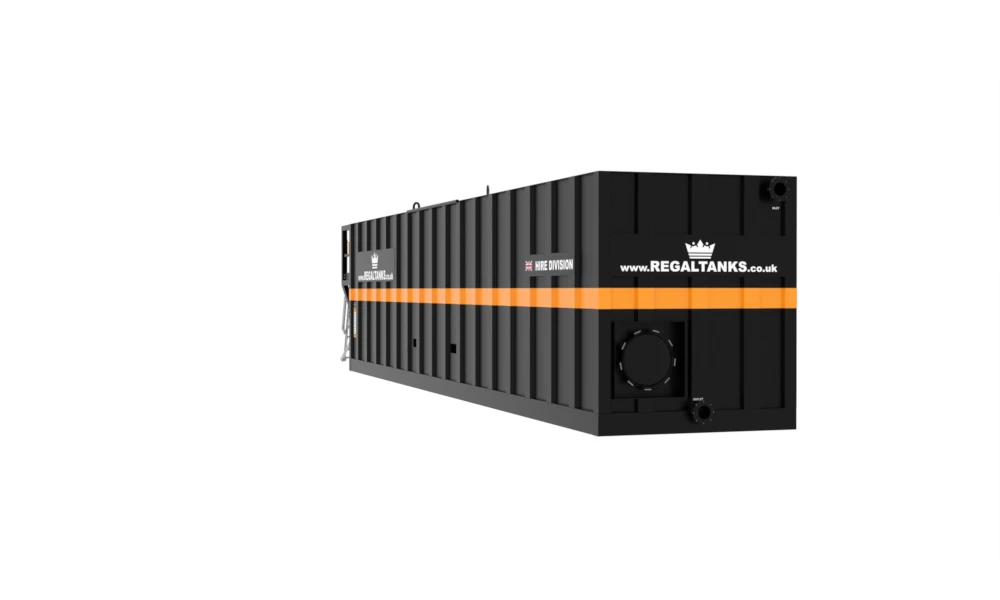

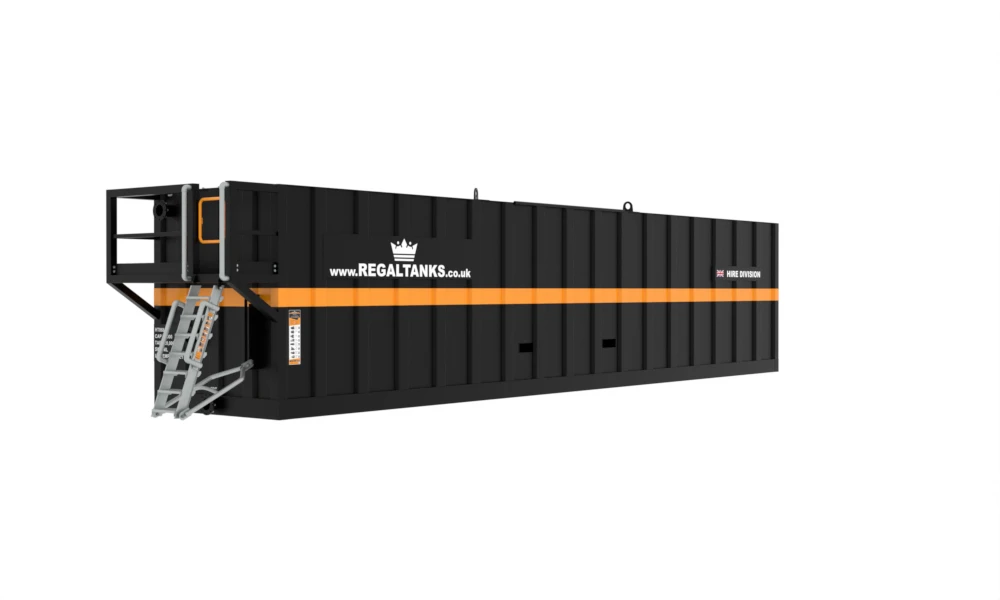

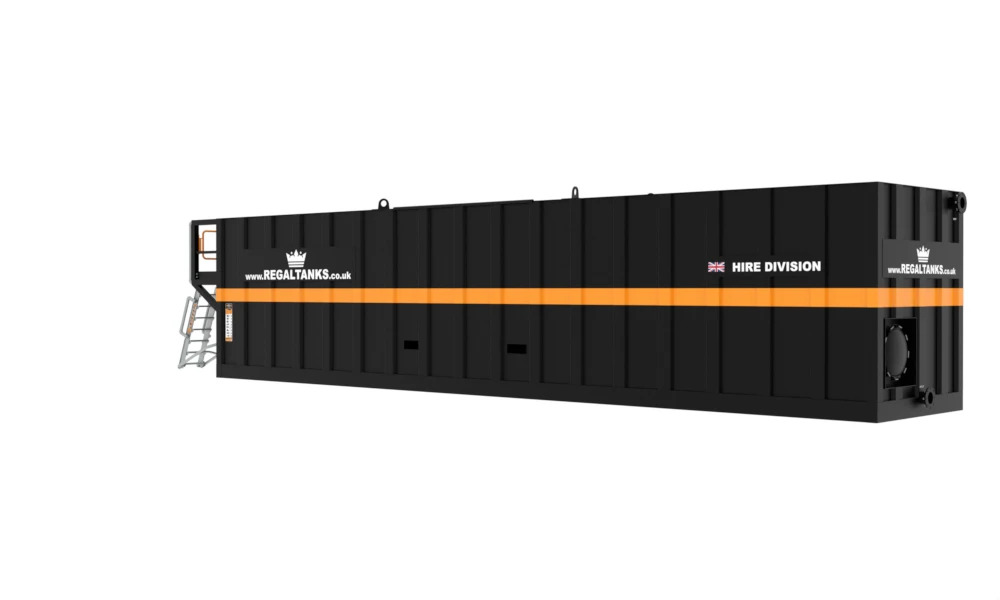

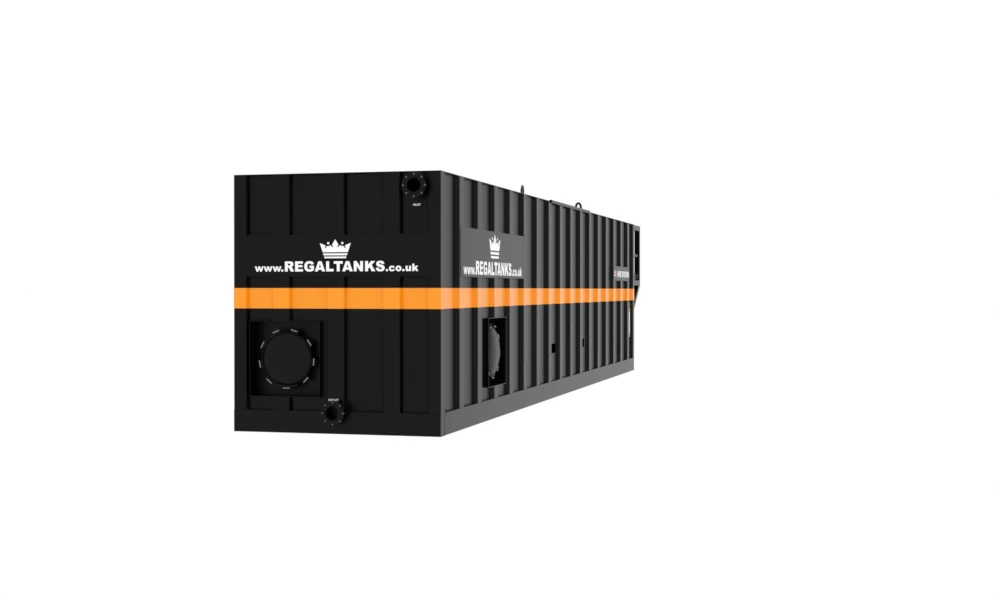

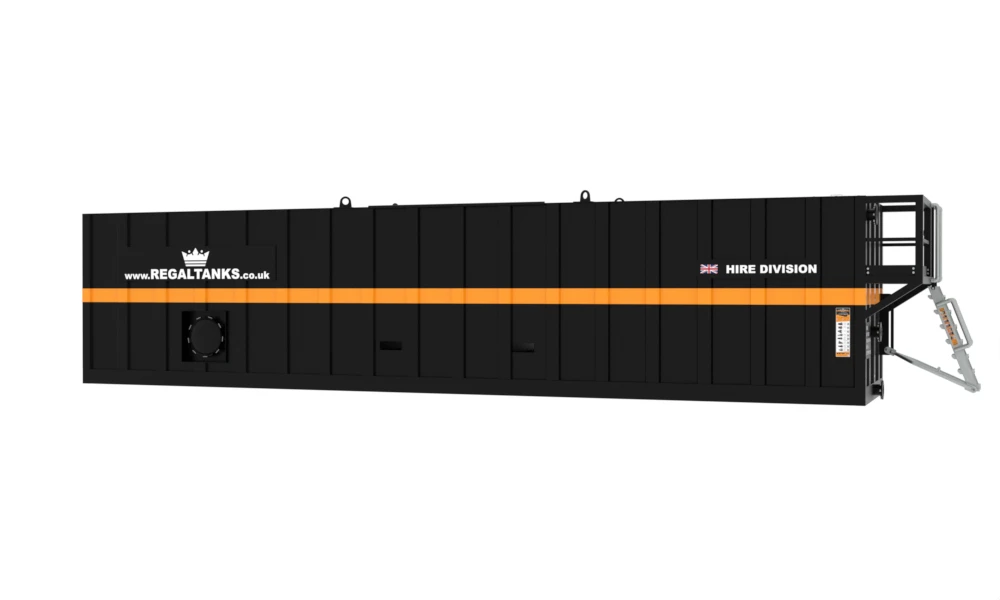

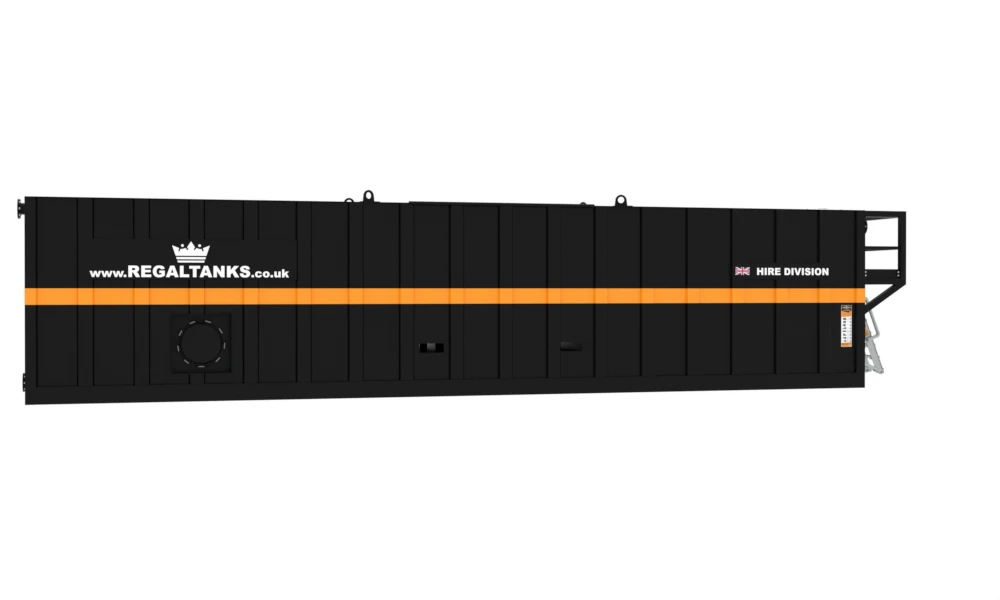

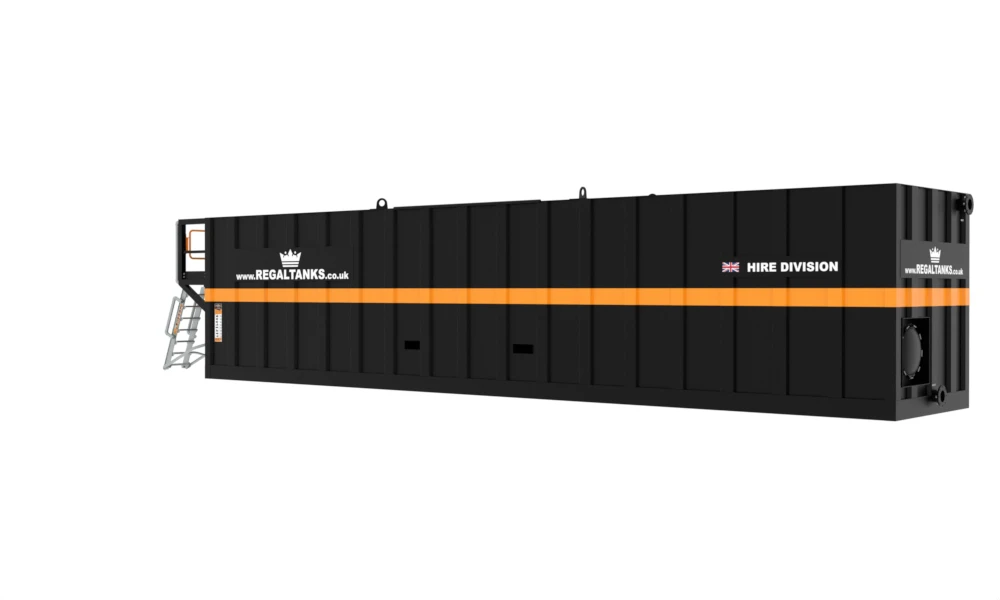

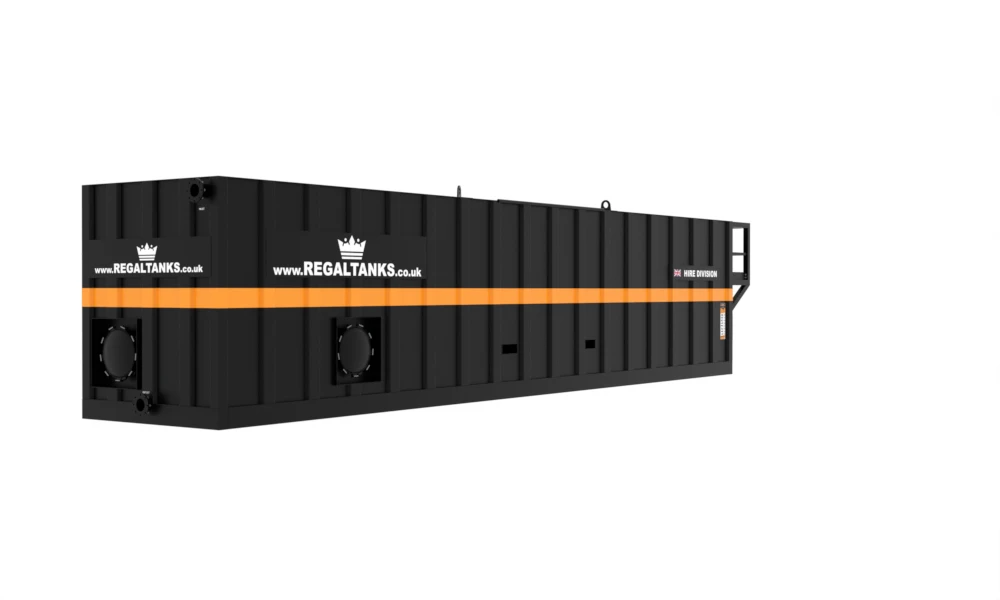

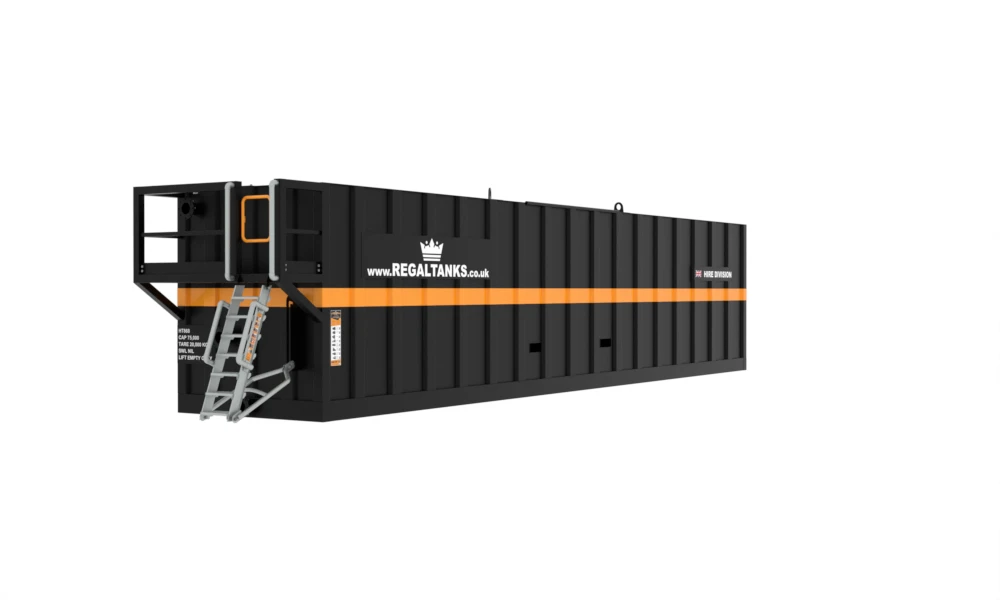

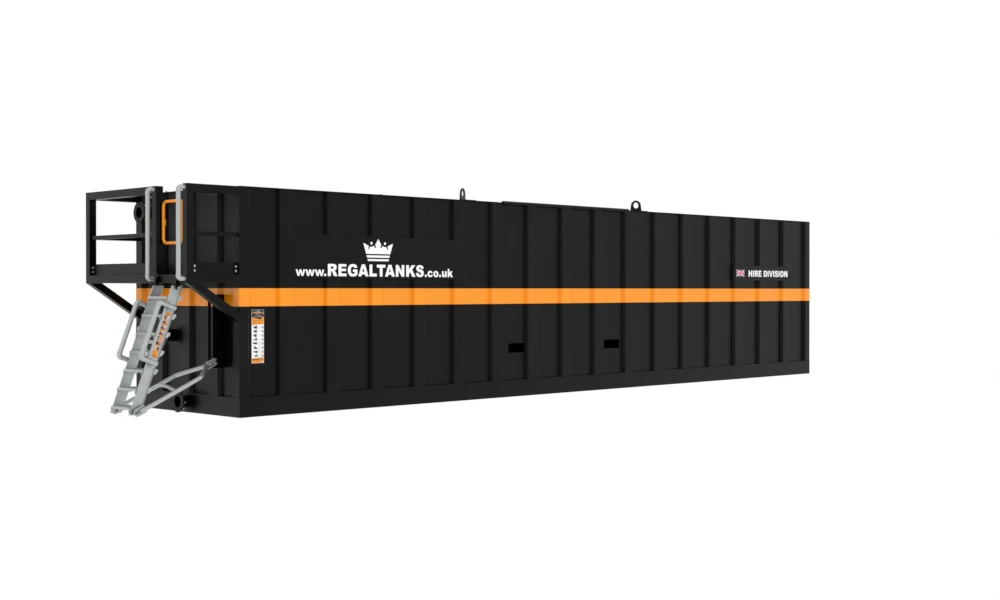

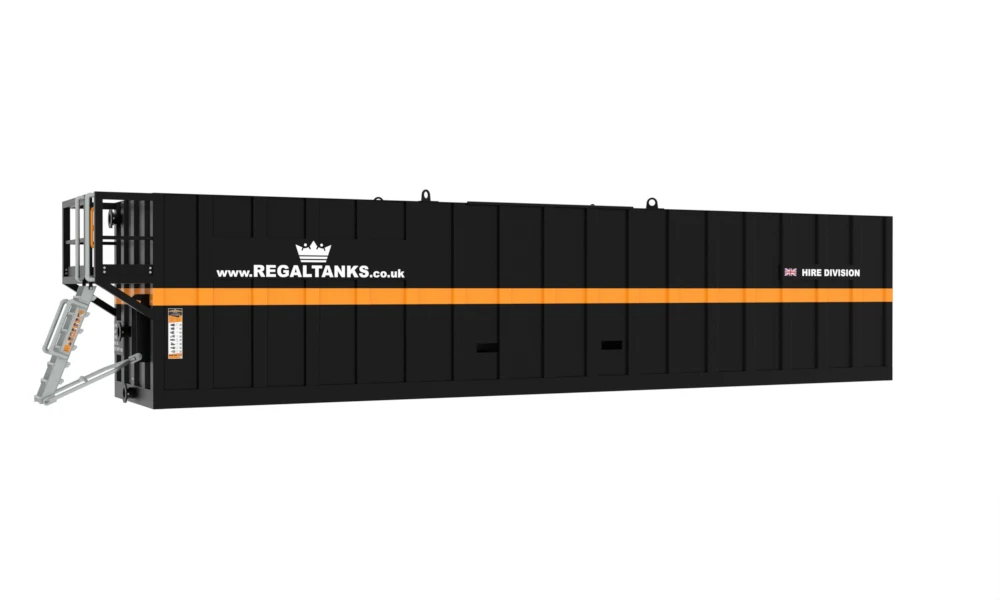

Designed by Regal Tanks, this rectangular tank has the same dimensions as a 45' High Cube Container and is perfect for easy transport in Europe and the UK.

Other features include a V-Bottom for easy cleaning, a non-skid stairway for access to the top inspection hatches and folding top handrails for additional safety.

Like all of our Premium Hire tanks, this tank has two quick release manways.

Maximum Capacity

75,000 Litres

Material

Mild Steel

Footprint

L: 13,716 mm, W: 2,438 mm, H: 2,896 mm

Weight

11,500kg

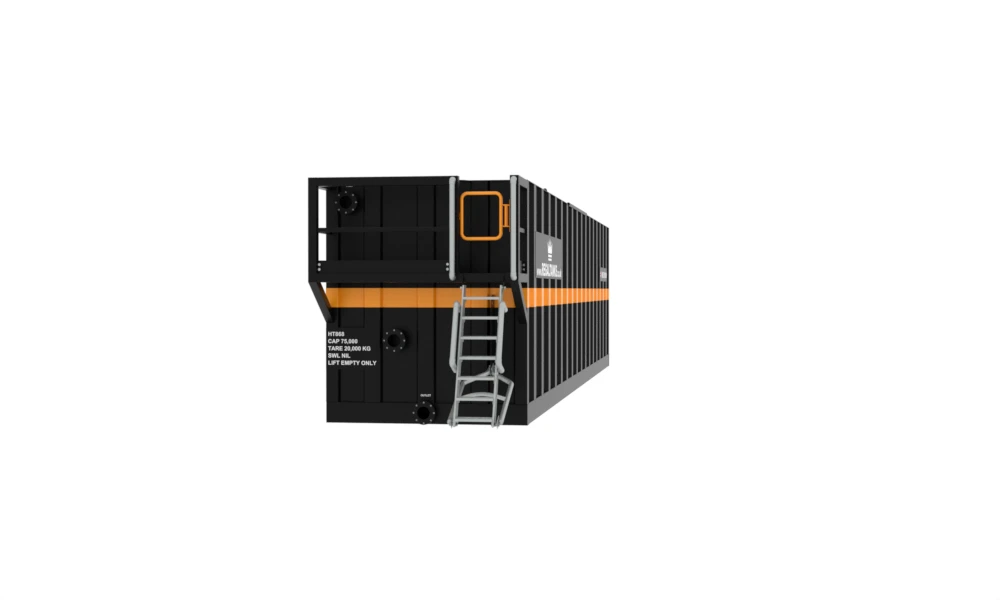

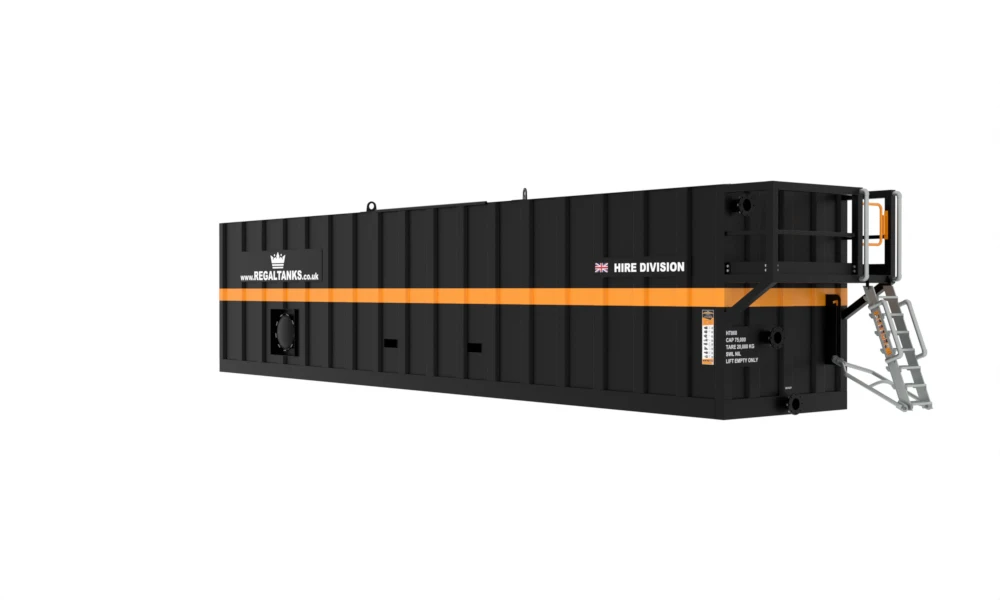

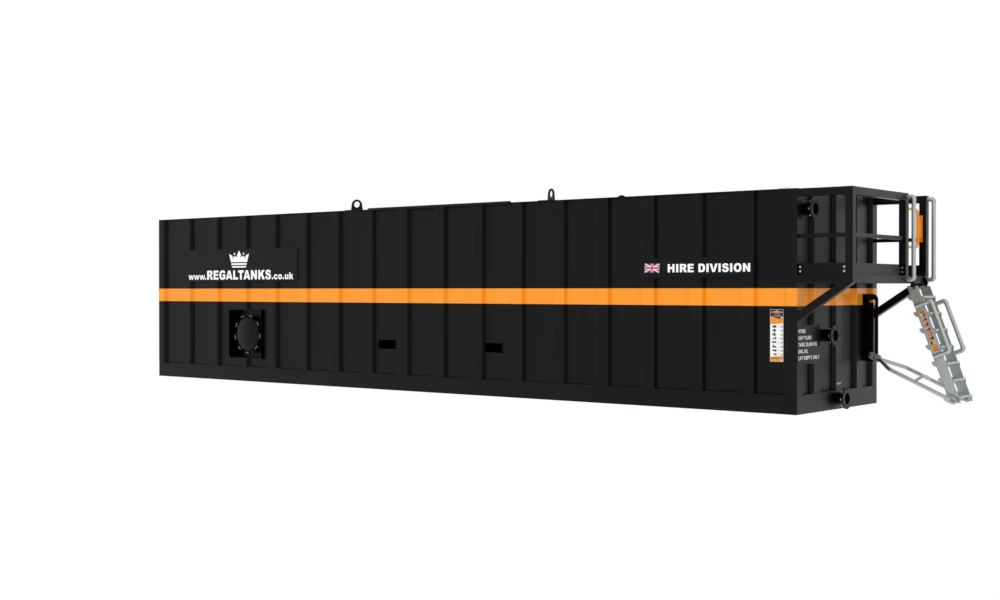

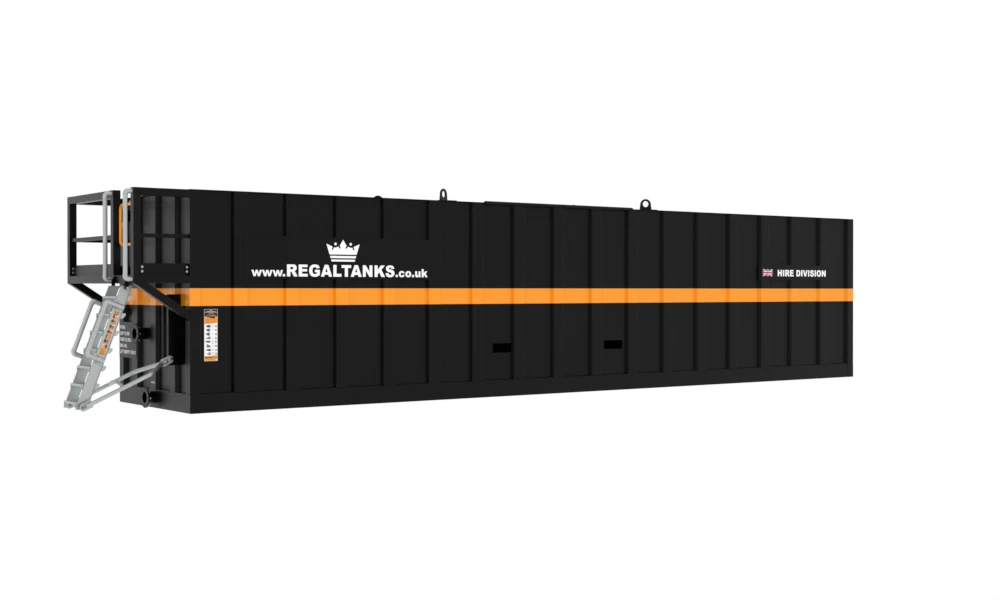

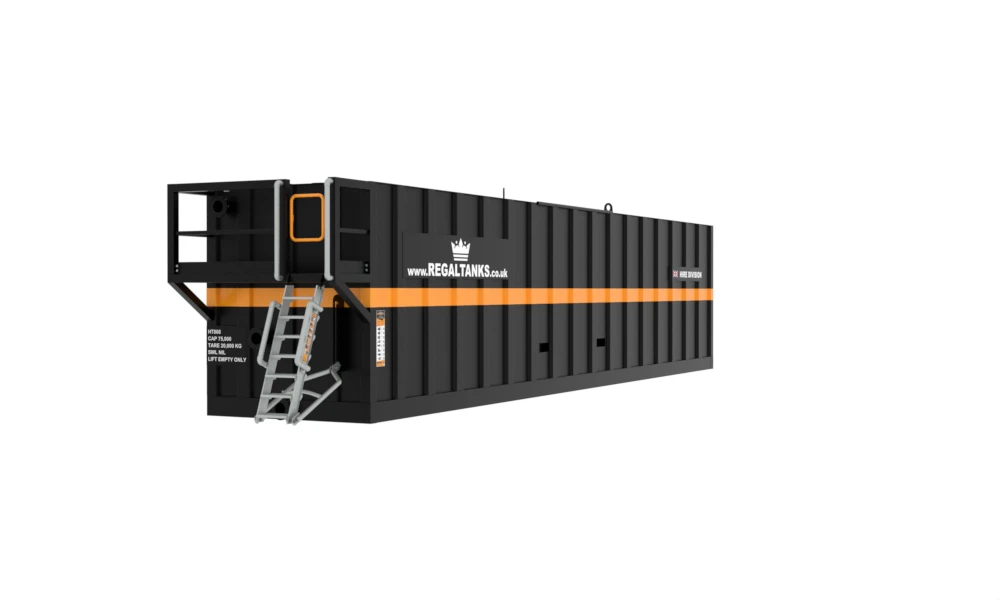

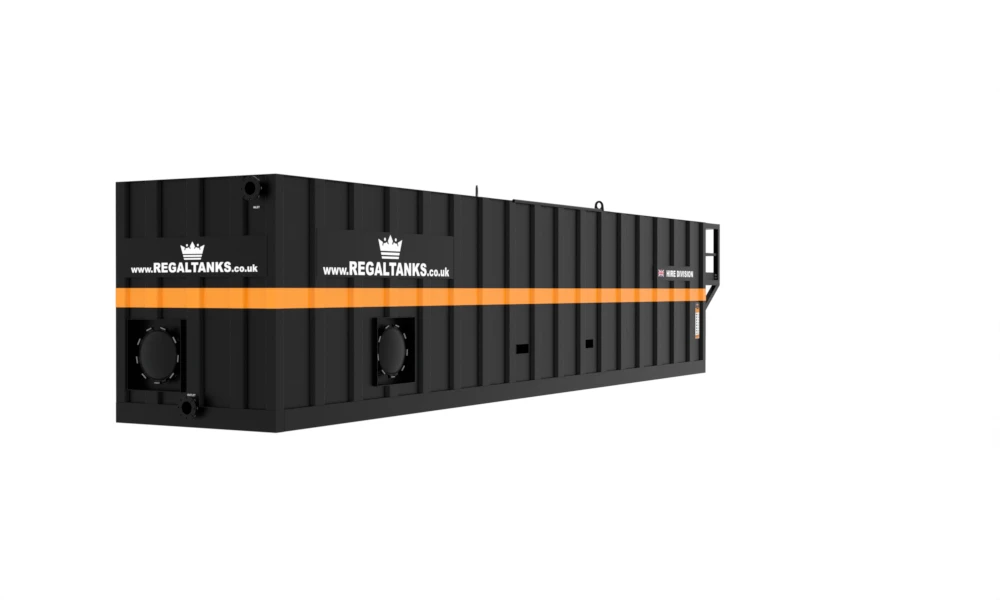

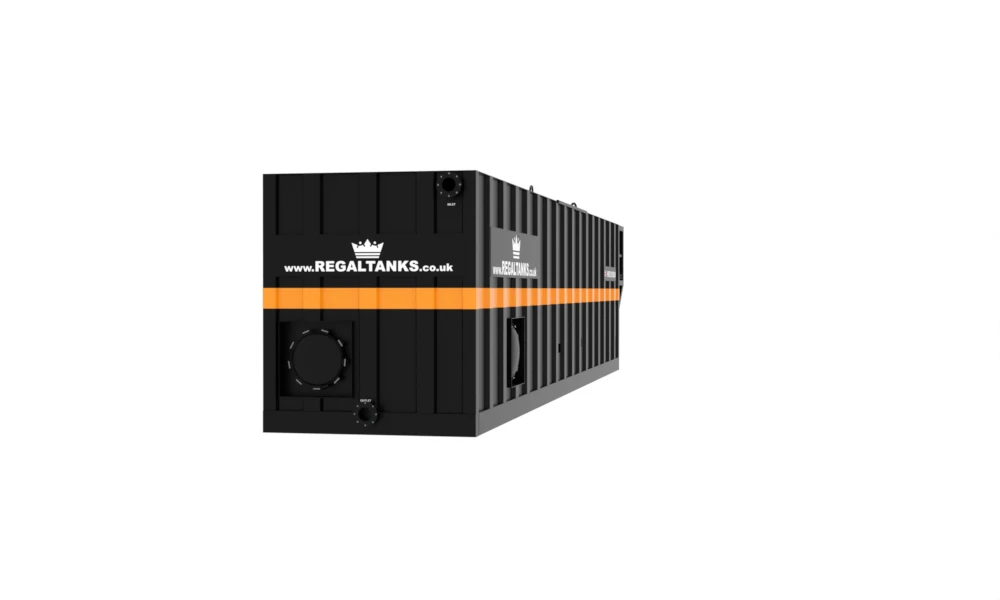

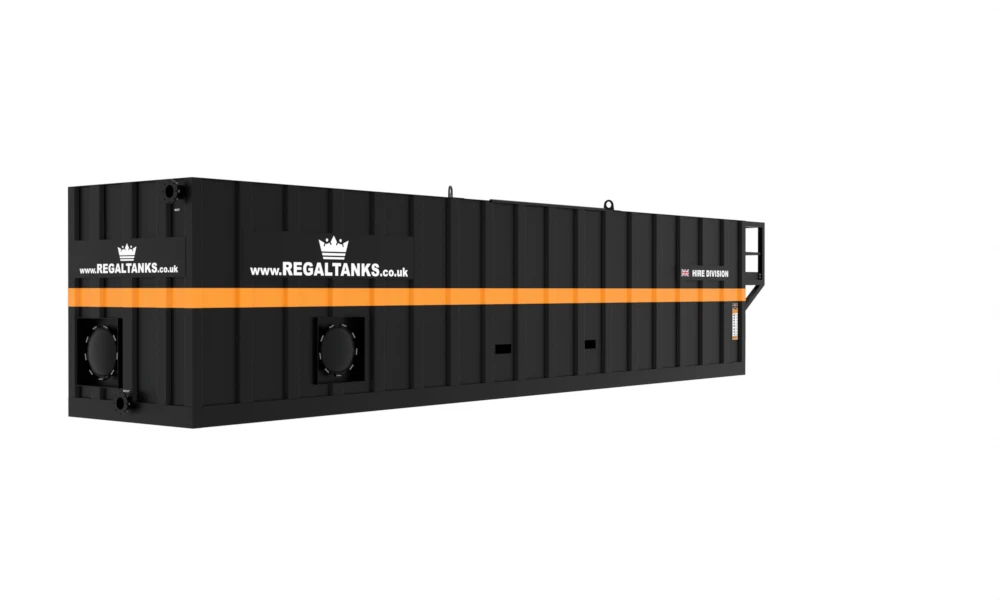

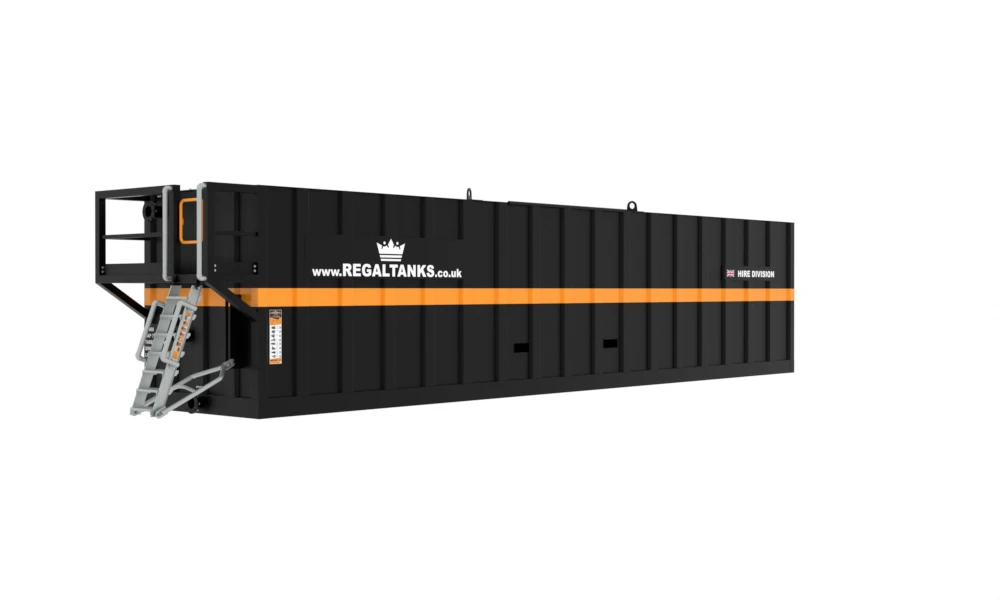

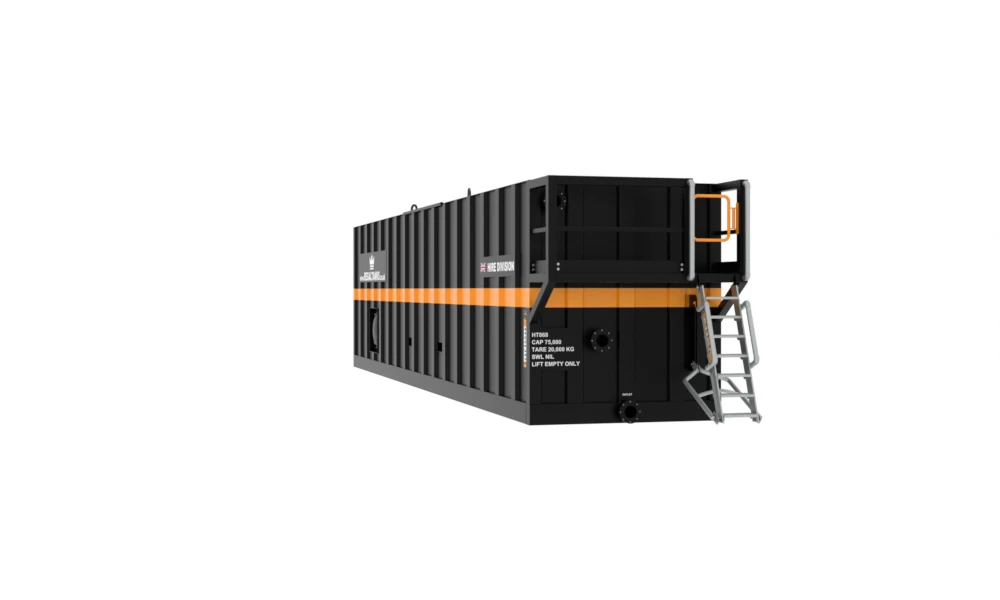

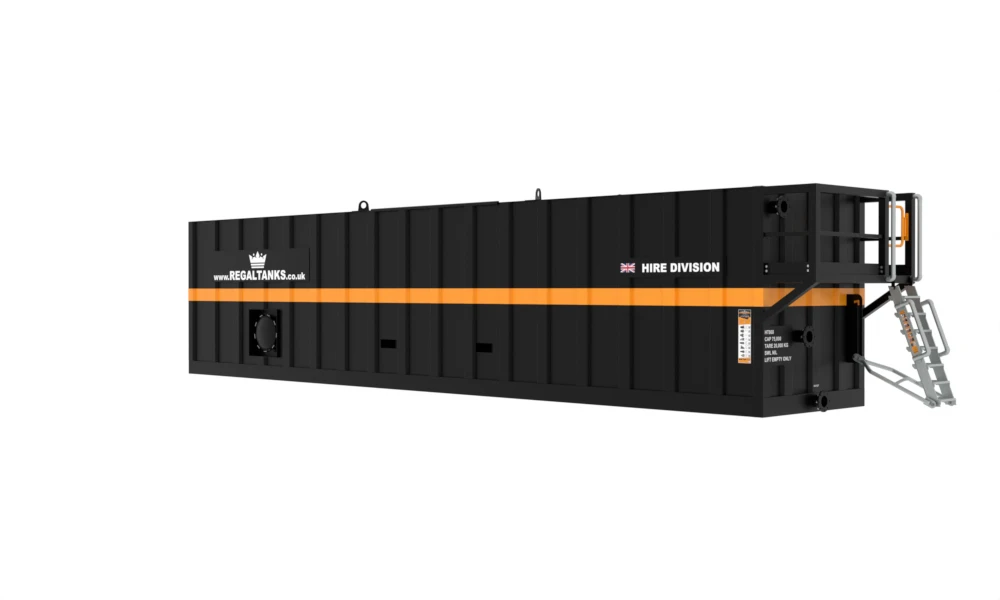

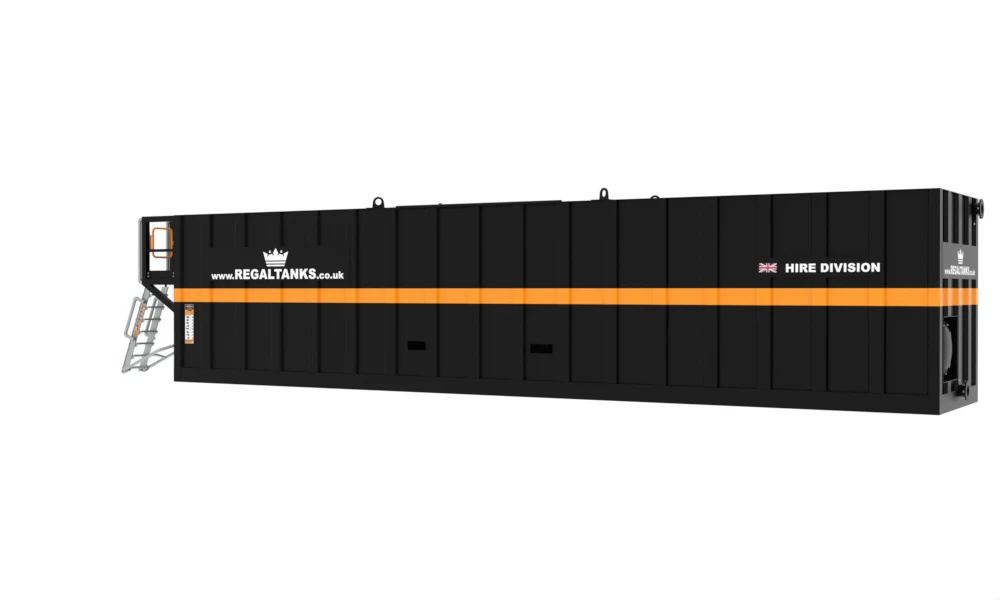

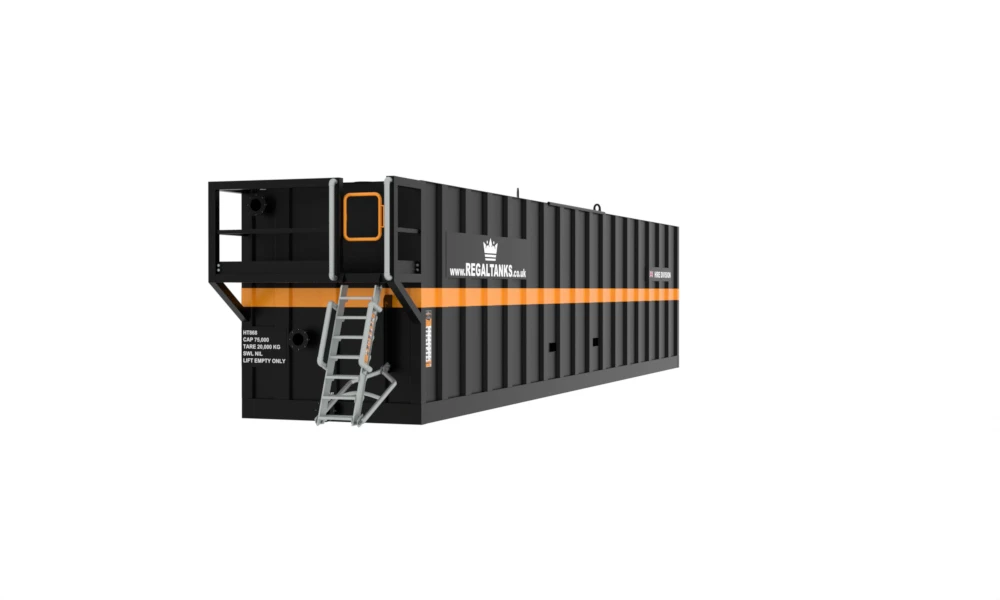

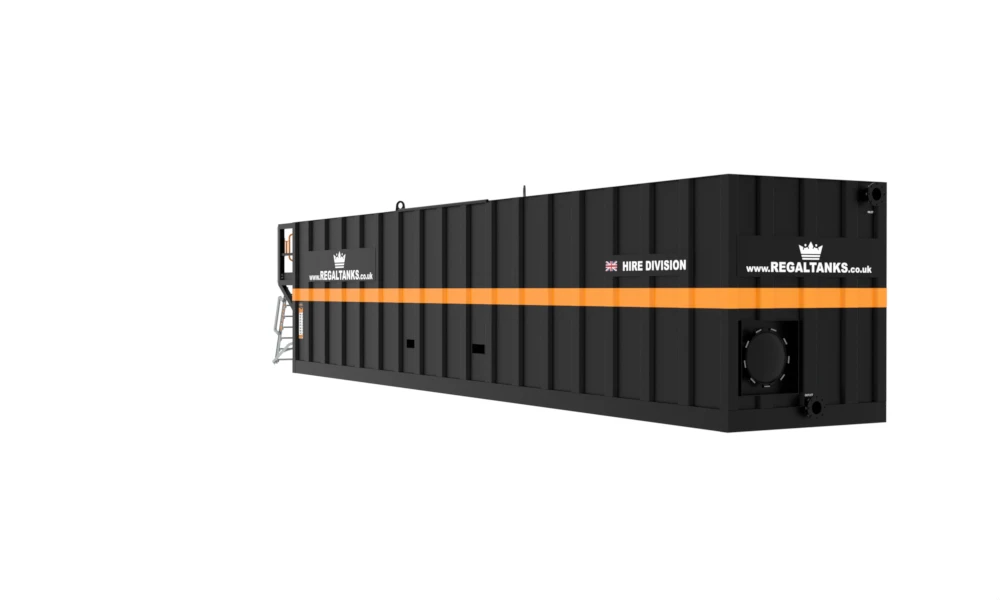

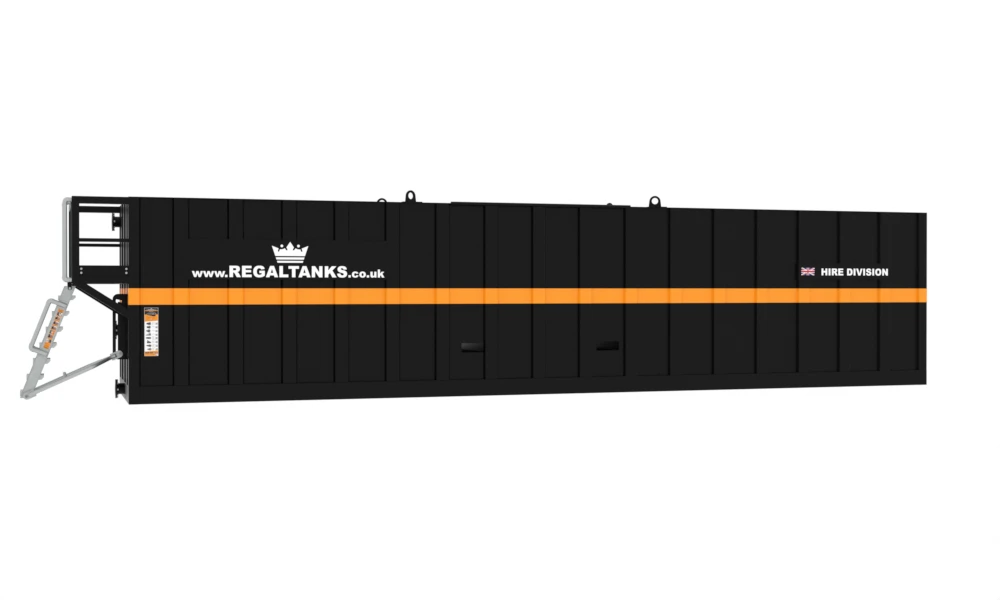

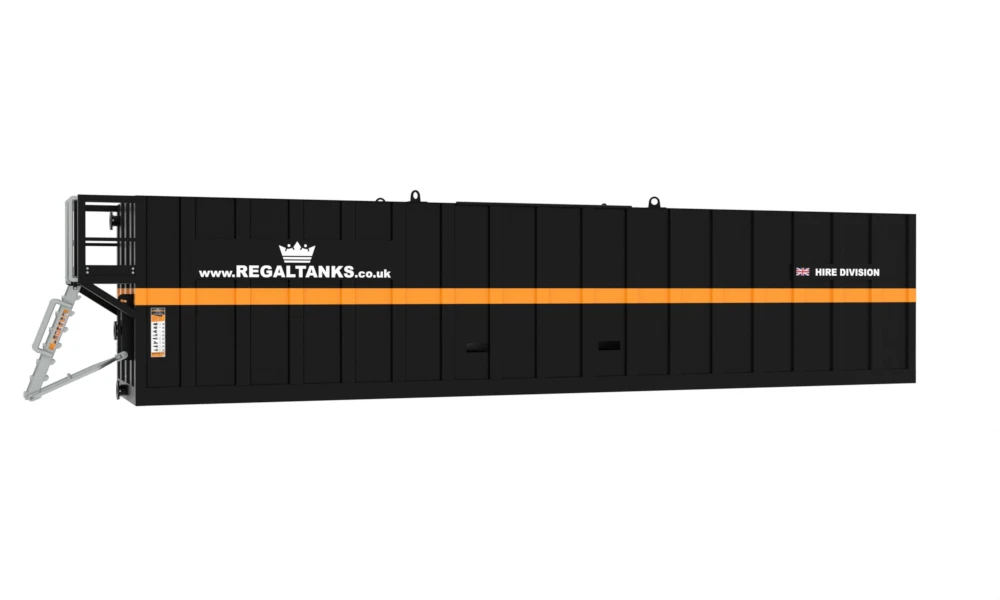

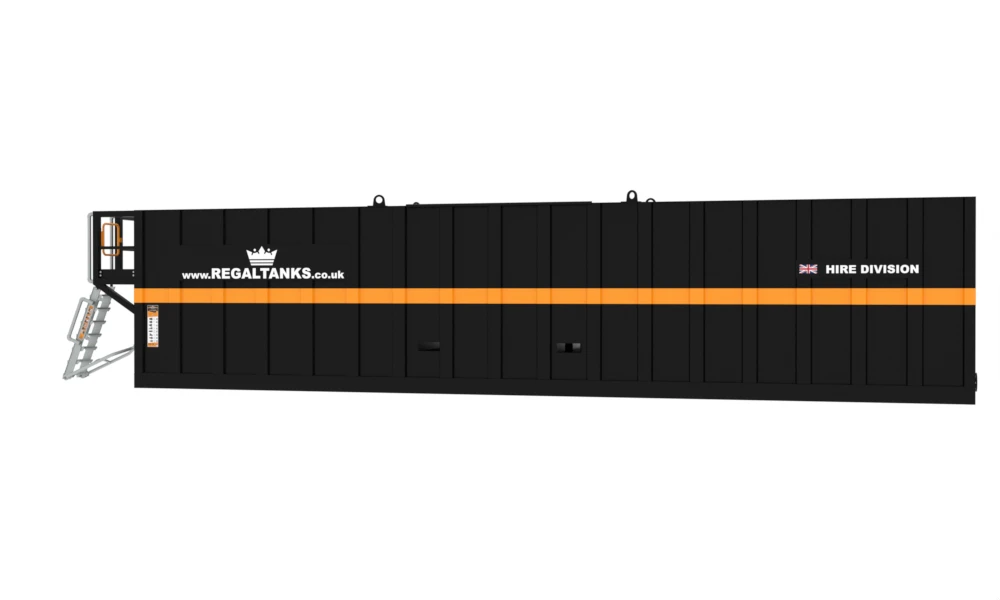

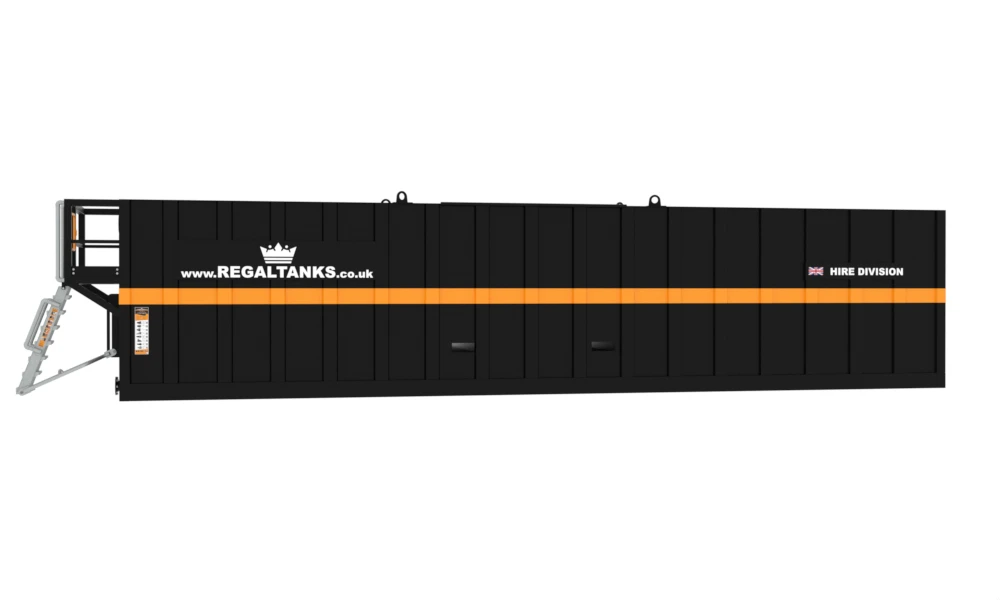

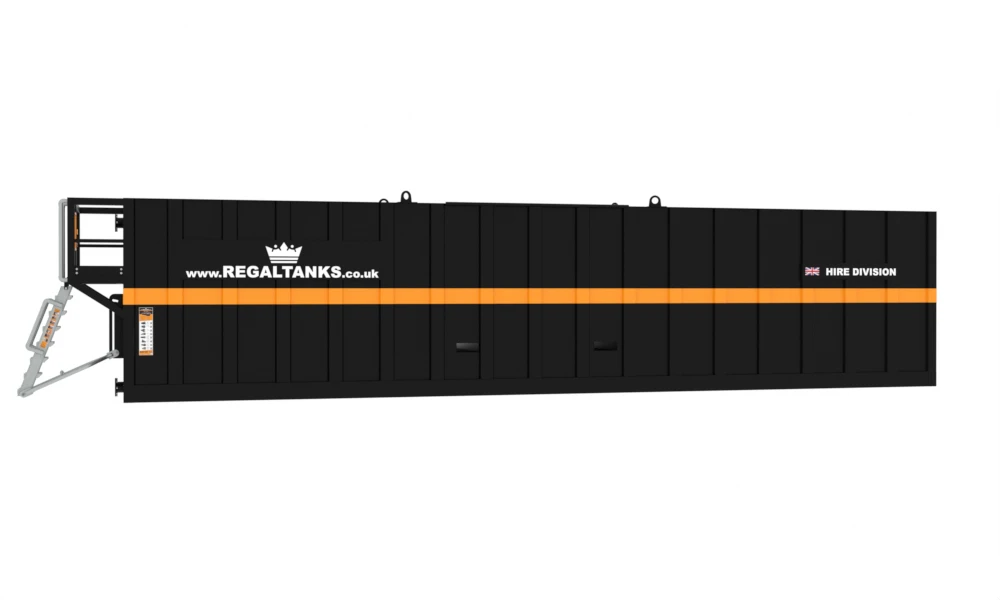

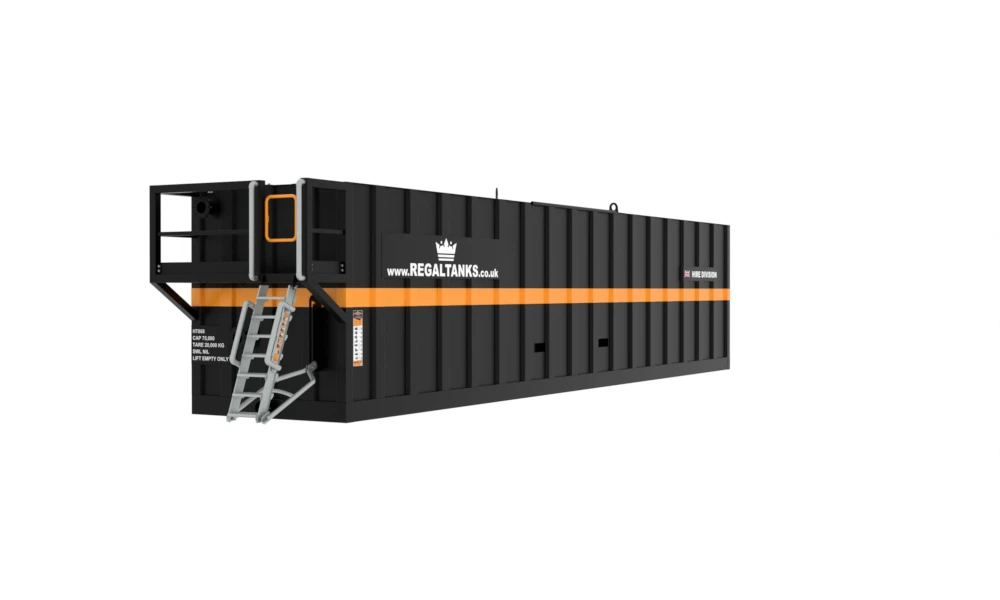

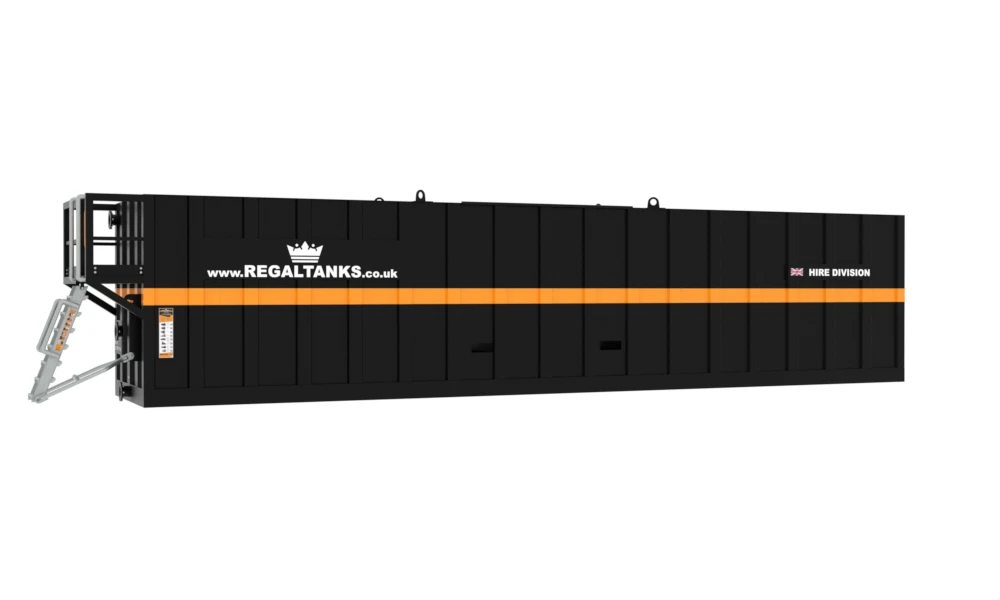

3D Model

Explore in 3D

Dive into a detailed, interactive view of our storage tank, examine every angle and feature with our 3D model.

View the 3D model

Standard Fittings

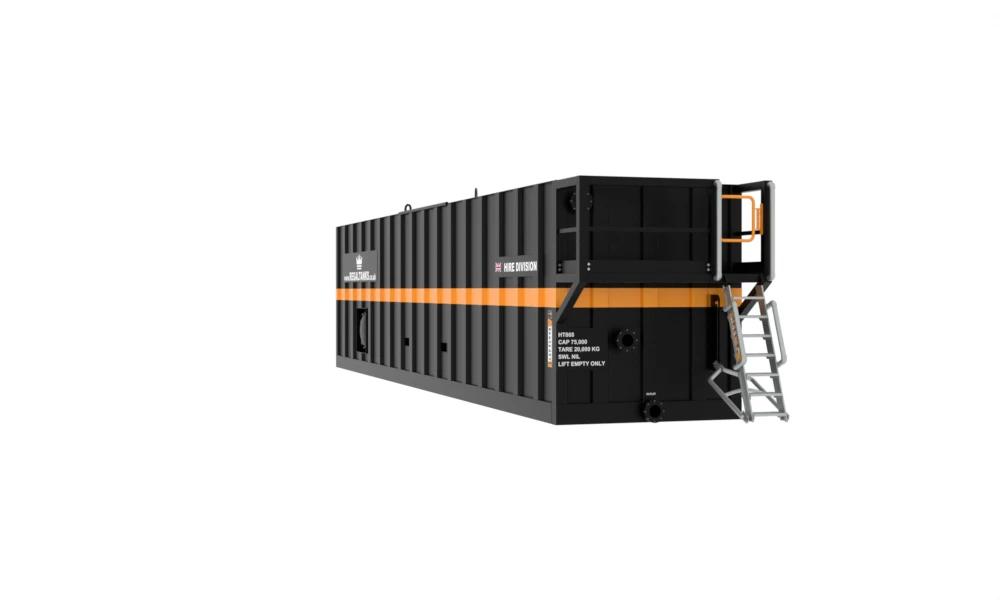

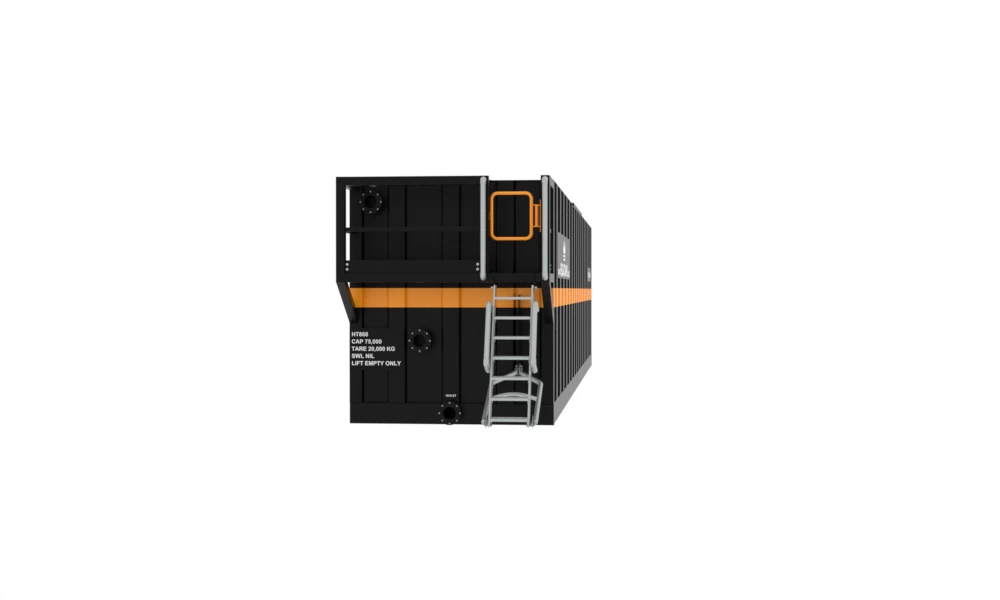

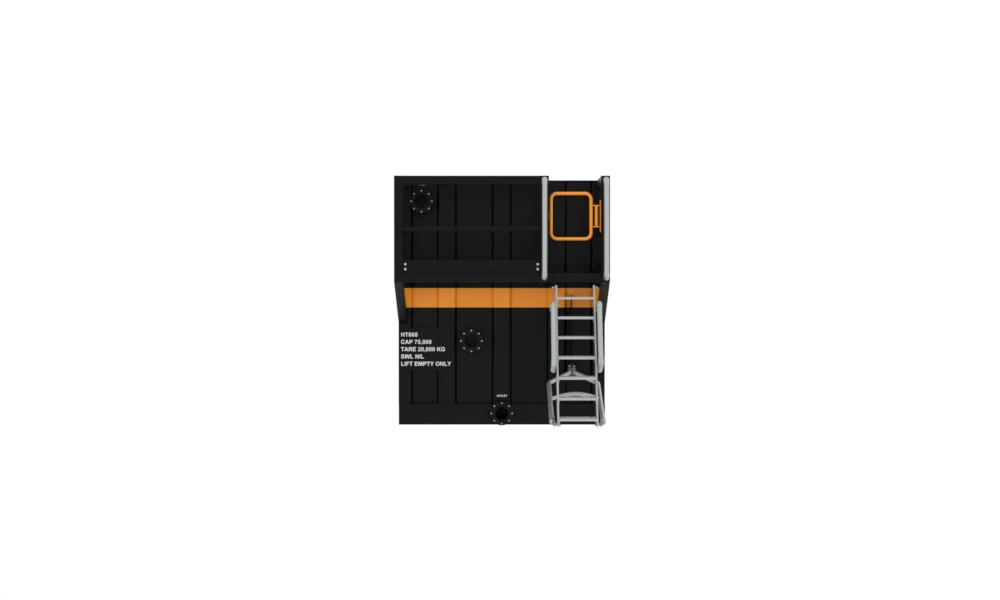

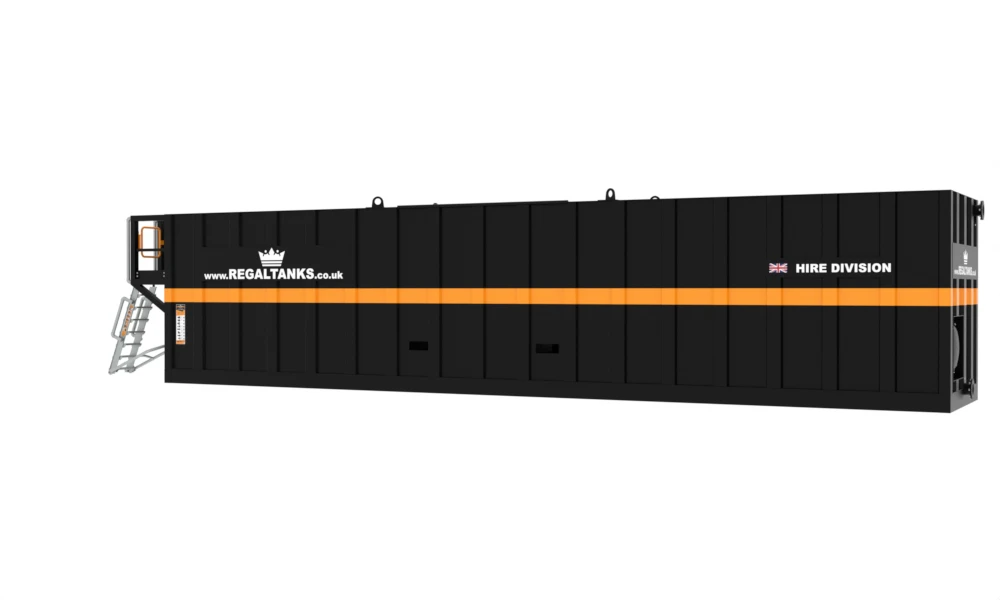

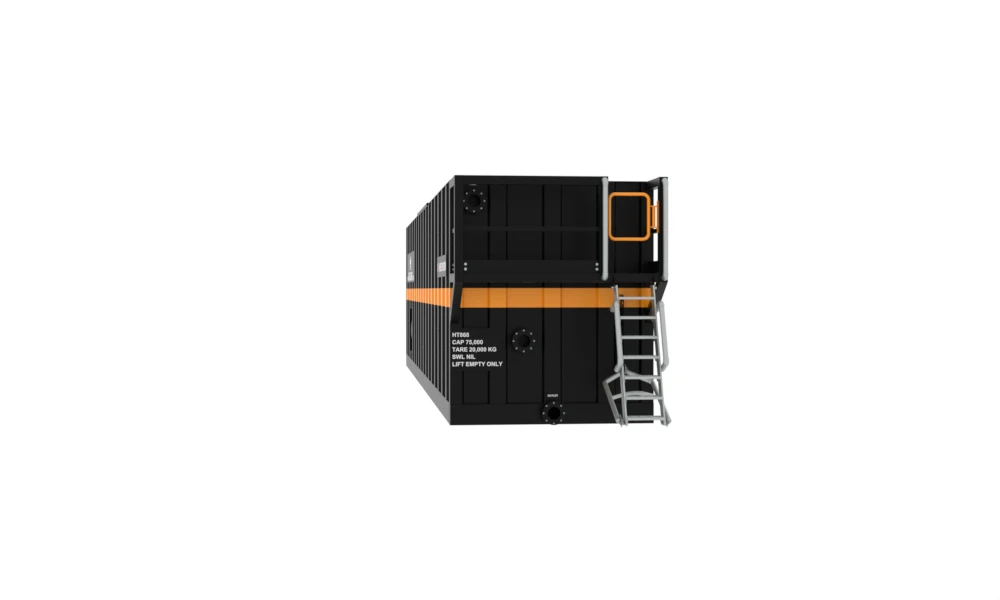

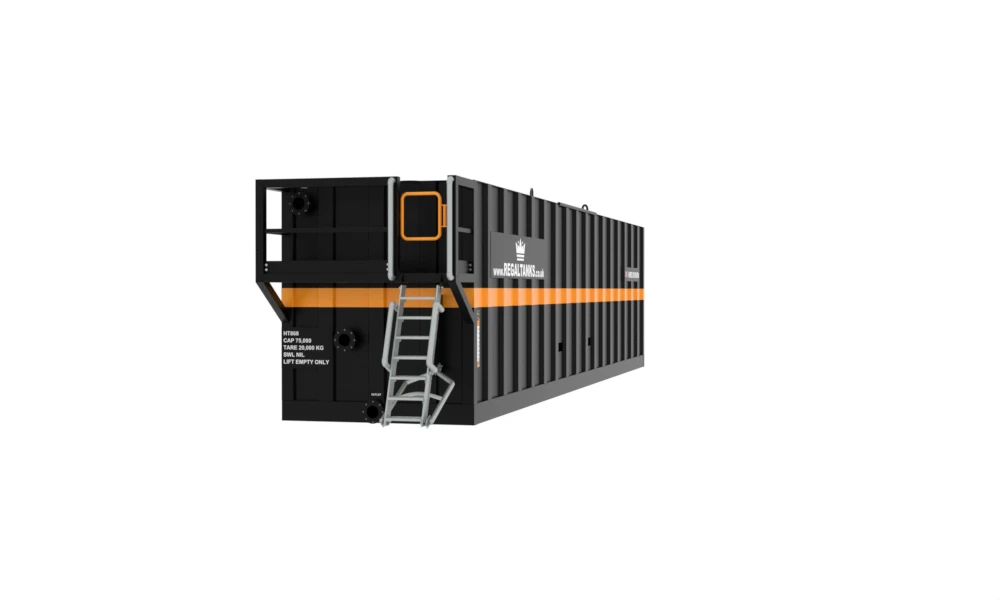

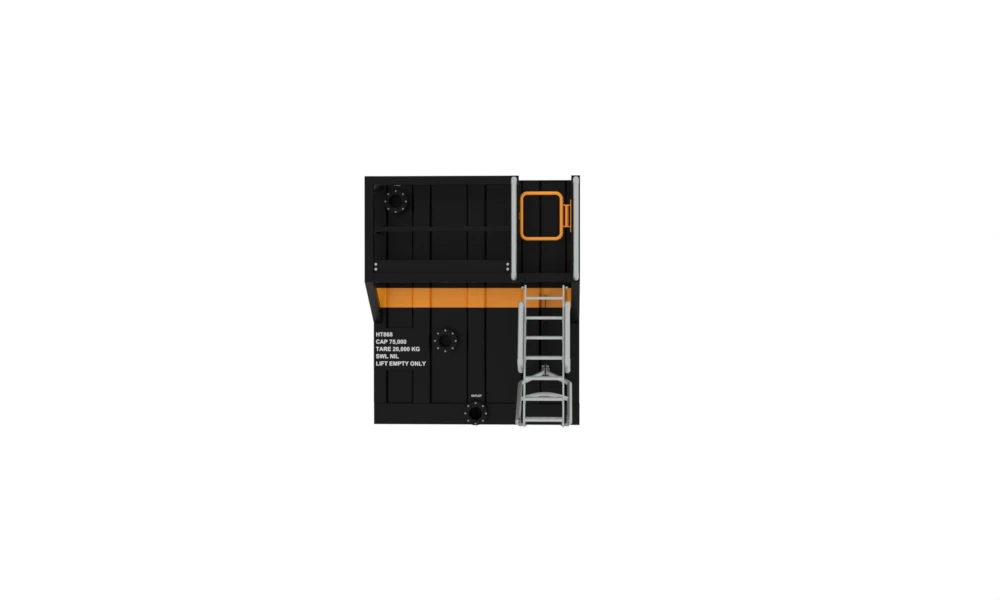

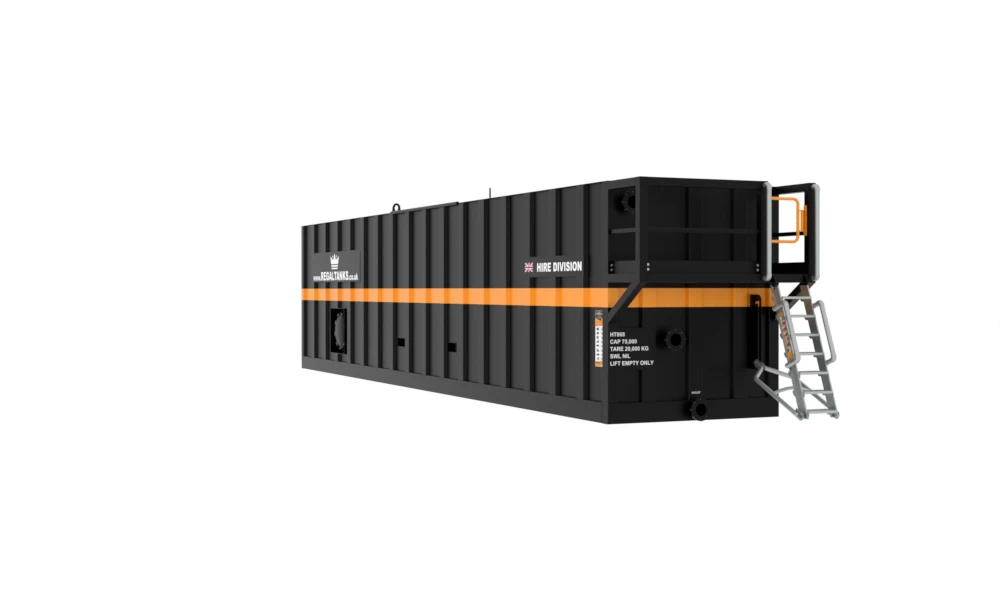

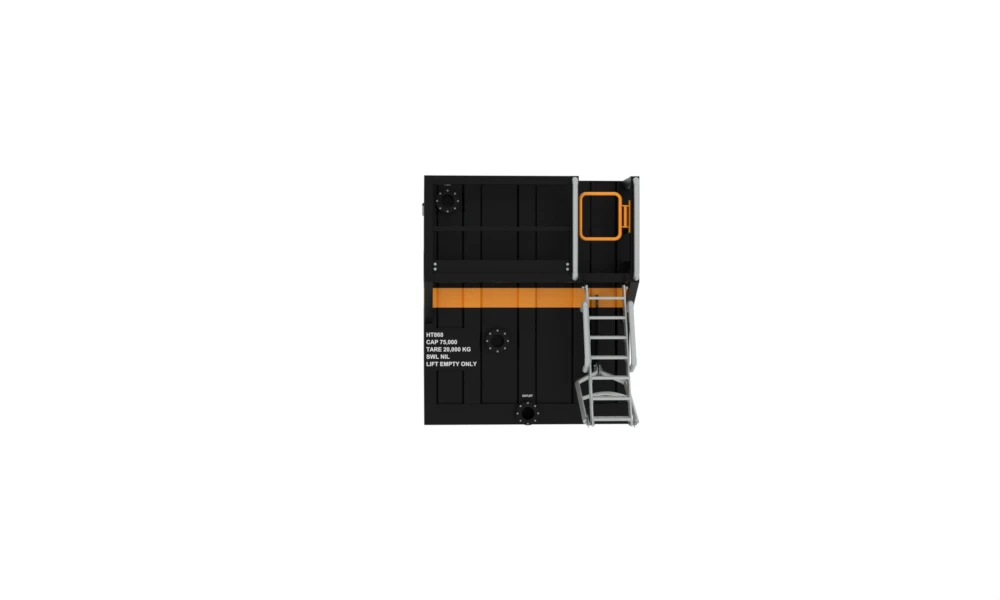

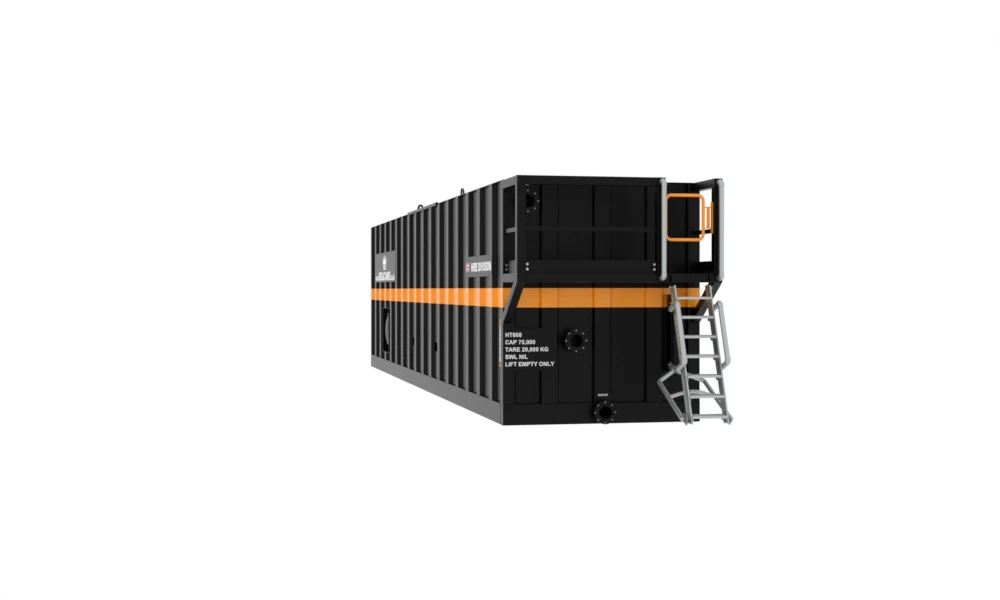

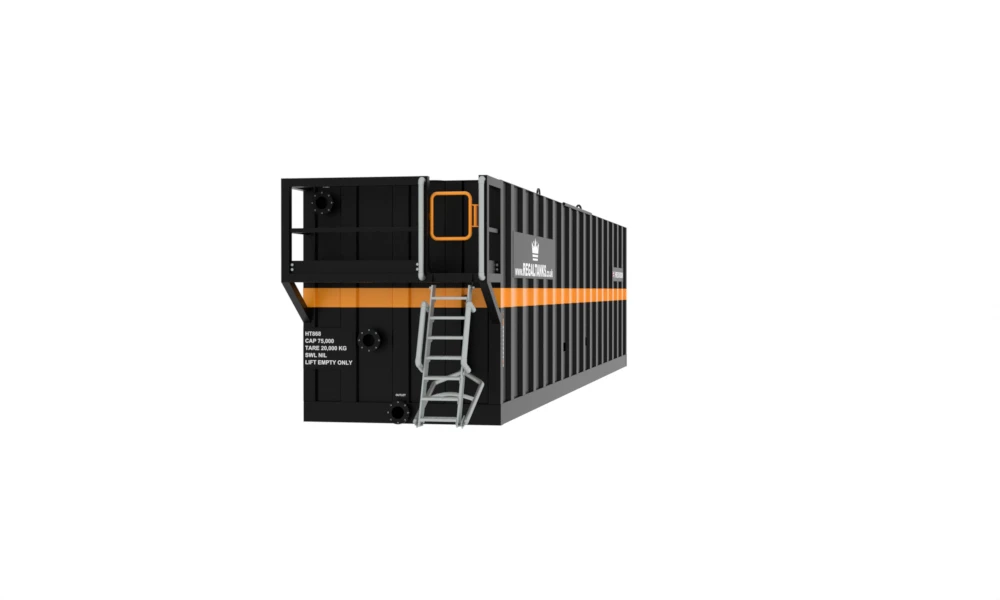

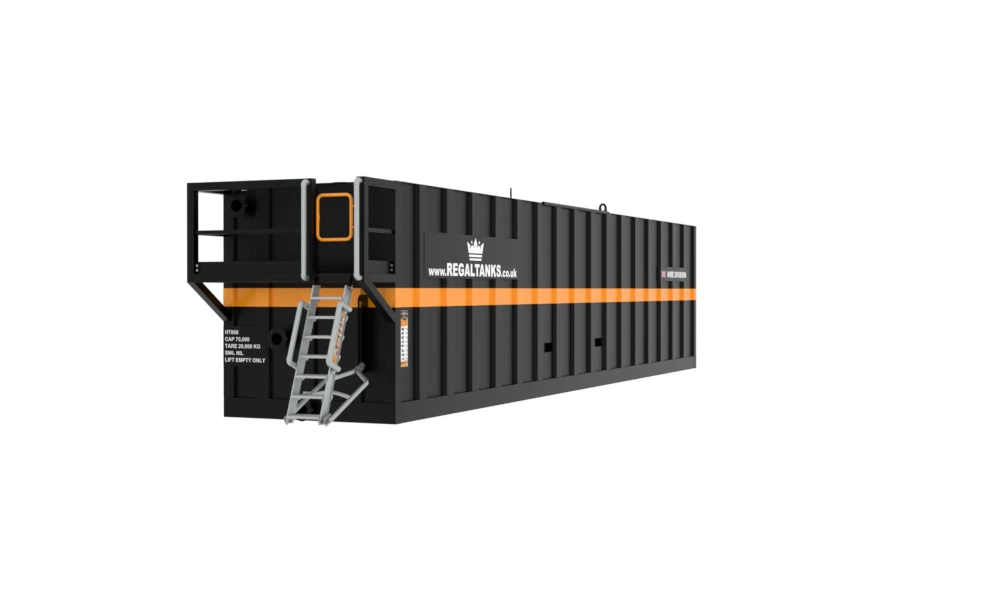

Stair End
  • 1 x 6" 150# ANSI flanged outlet
  • 1 x 6" 150# ANSI flanged inlet with internal elbow
  • 1 x 6" 150# ANSI flanged connection, (blinded)
  • 1" Visual site tube with stop valve
  • Stairs and platform

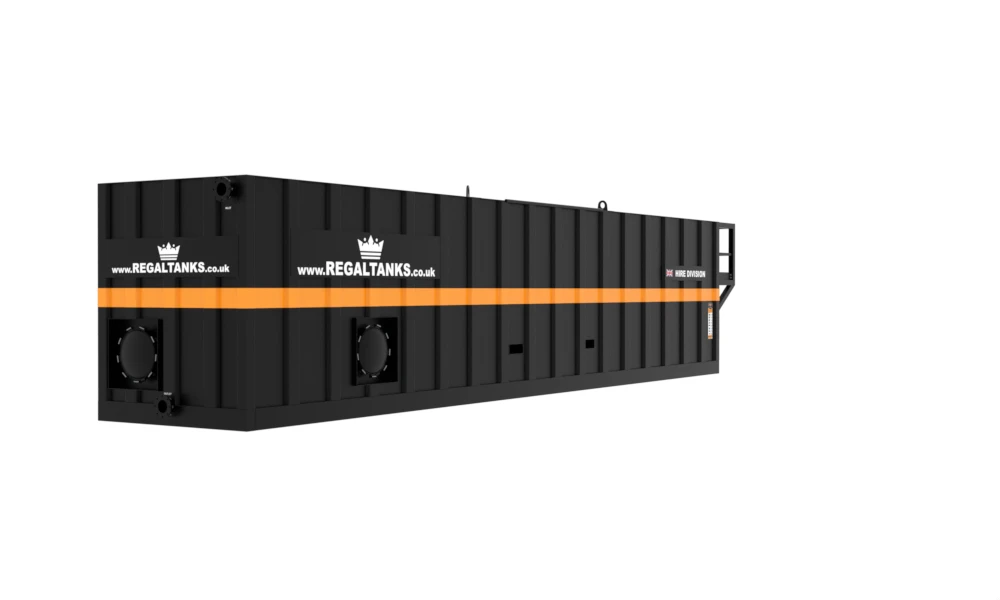

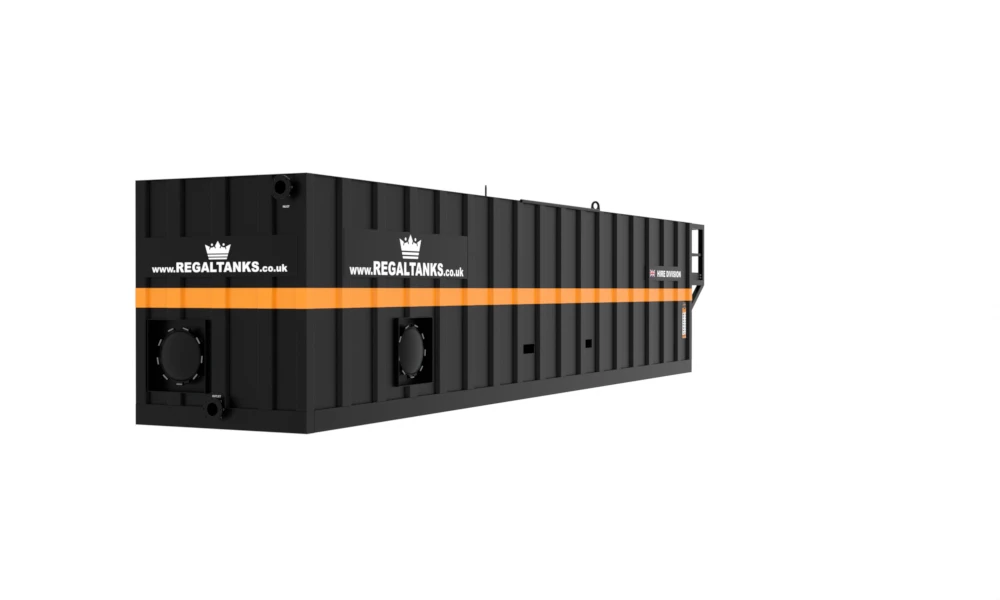

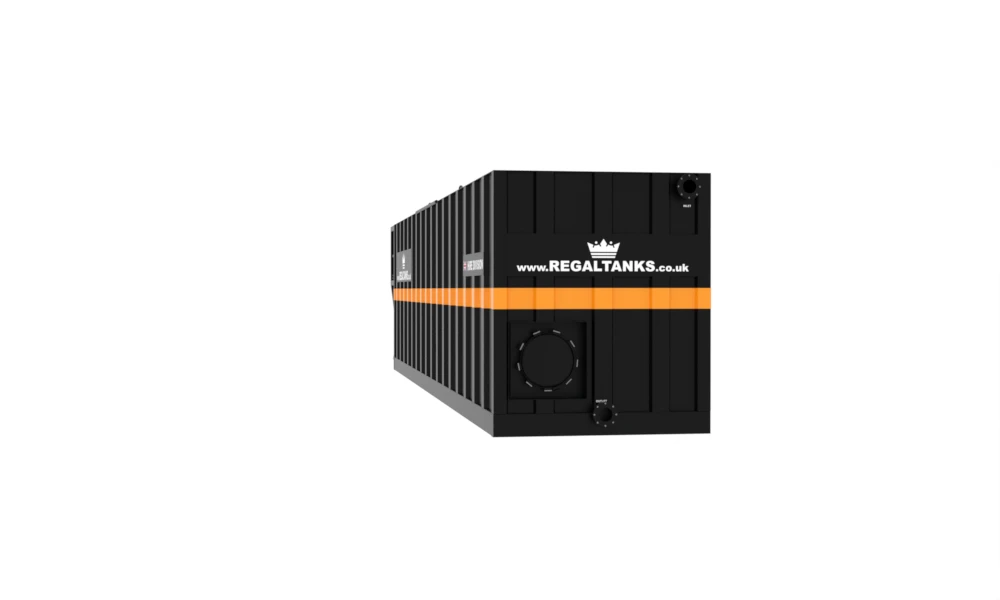

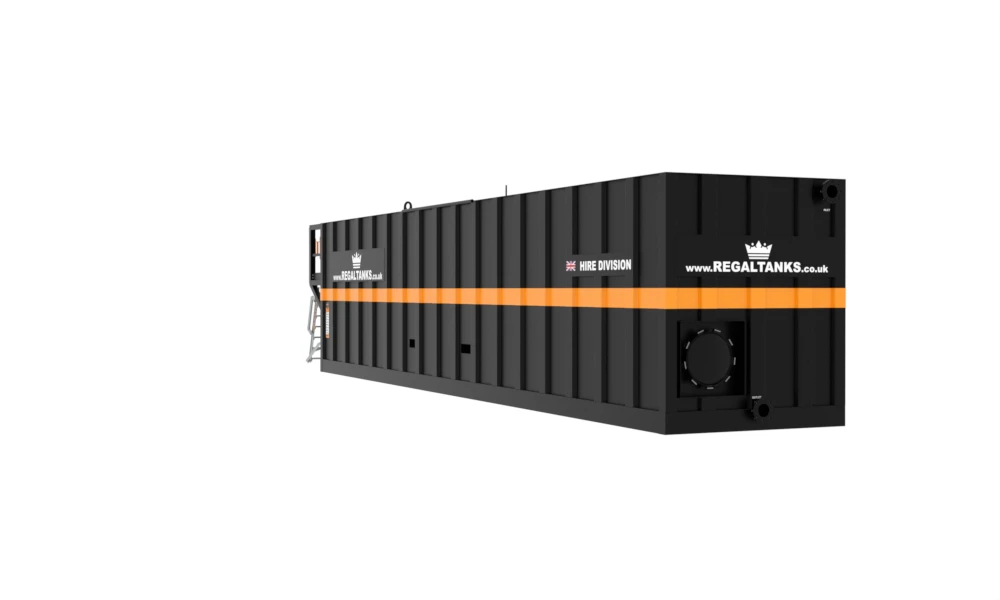

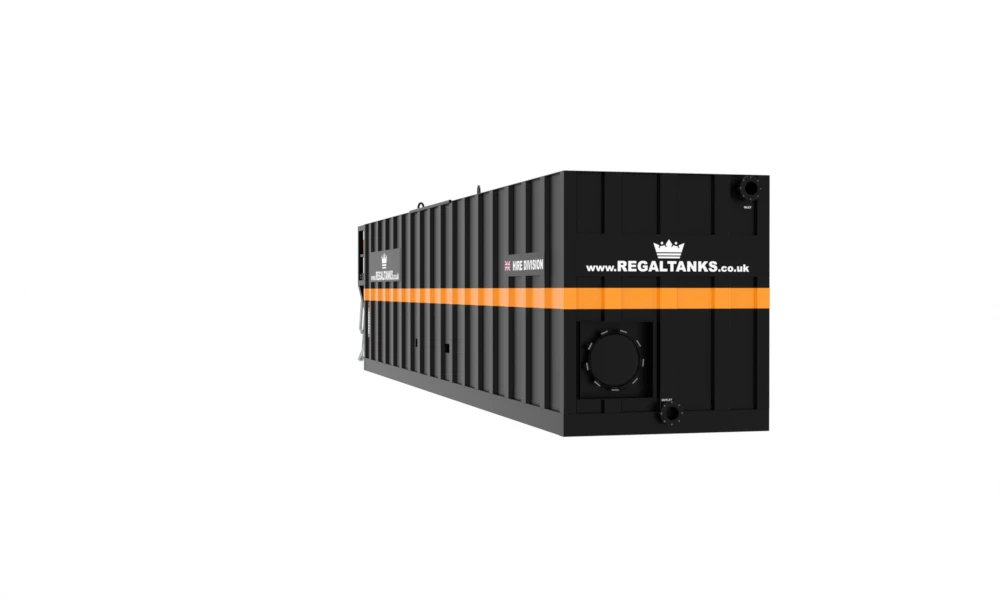

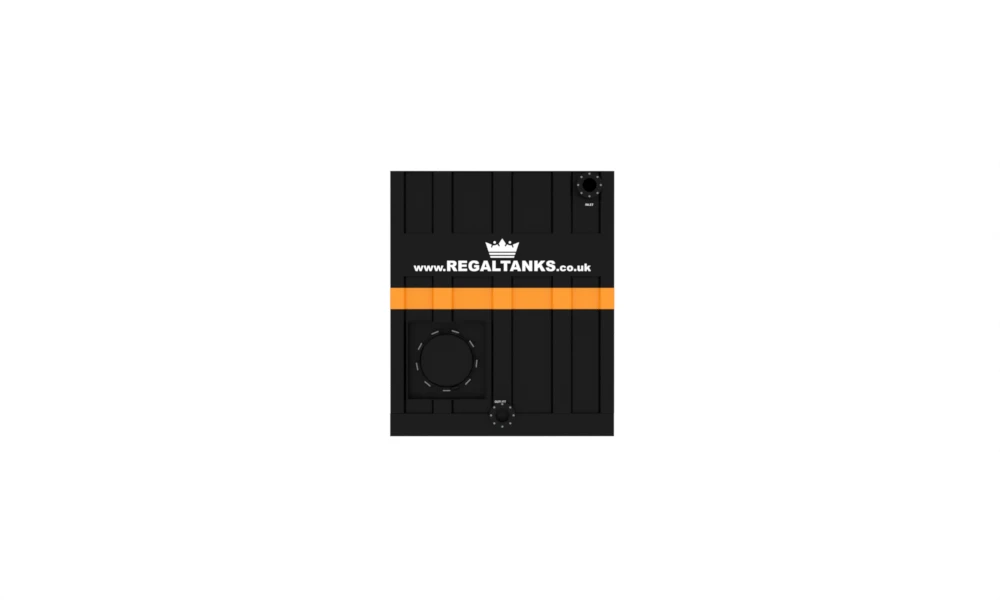

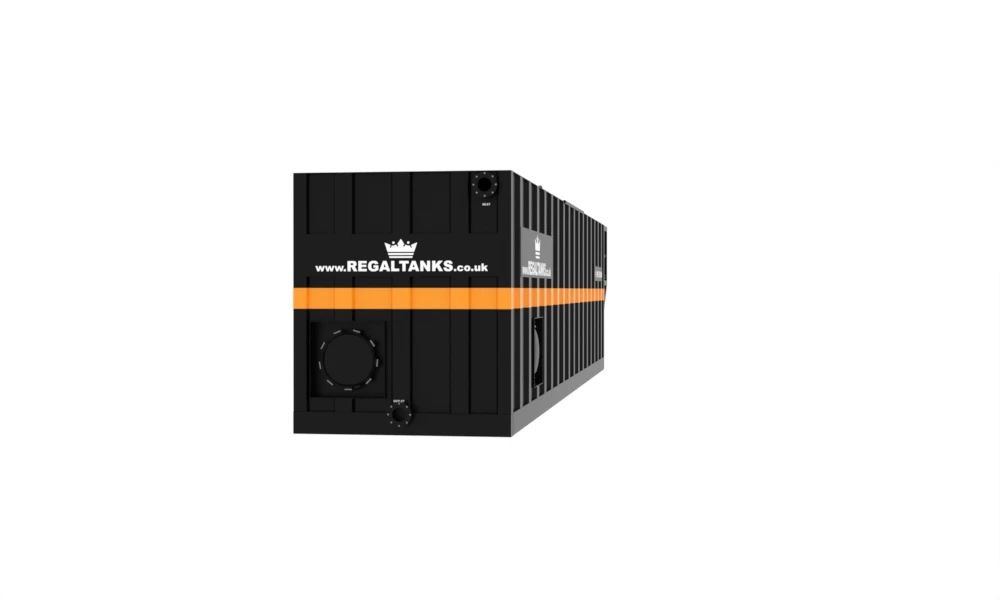

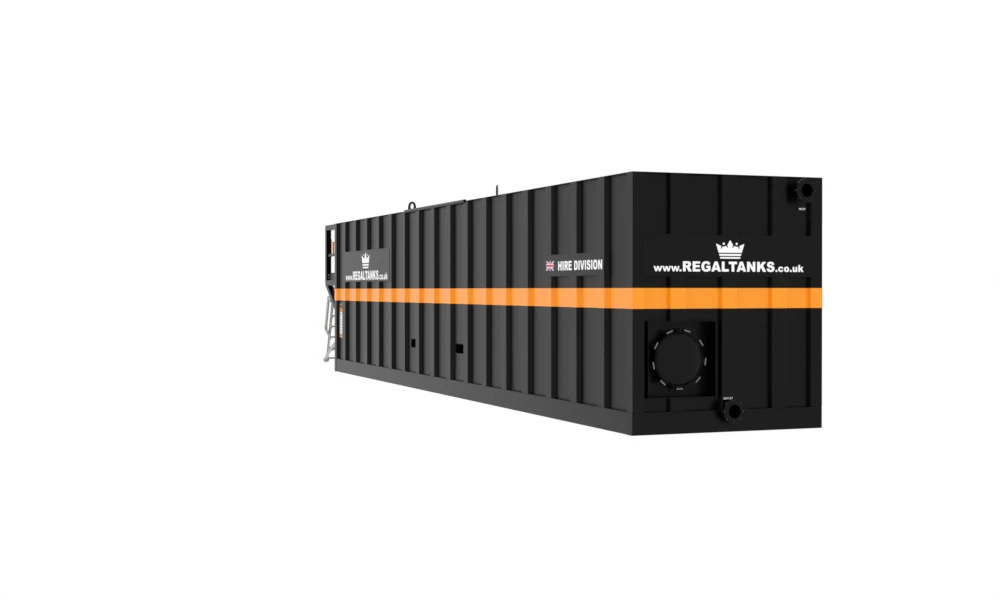

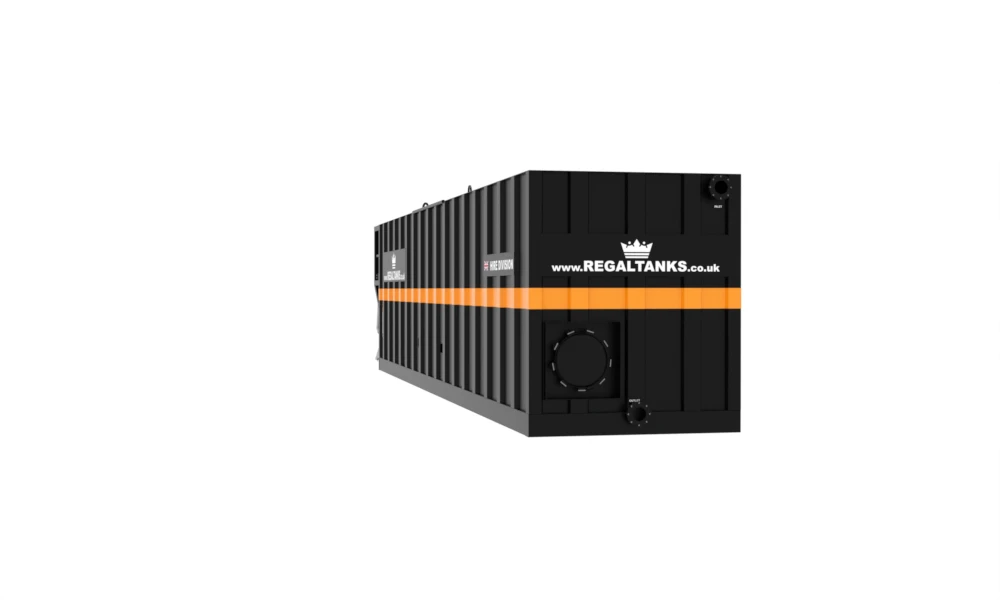

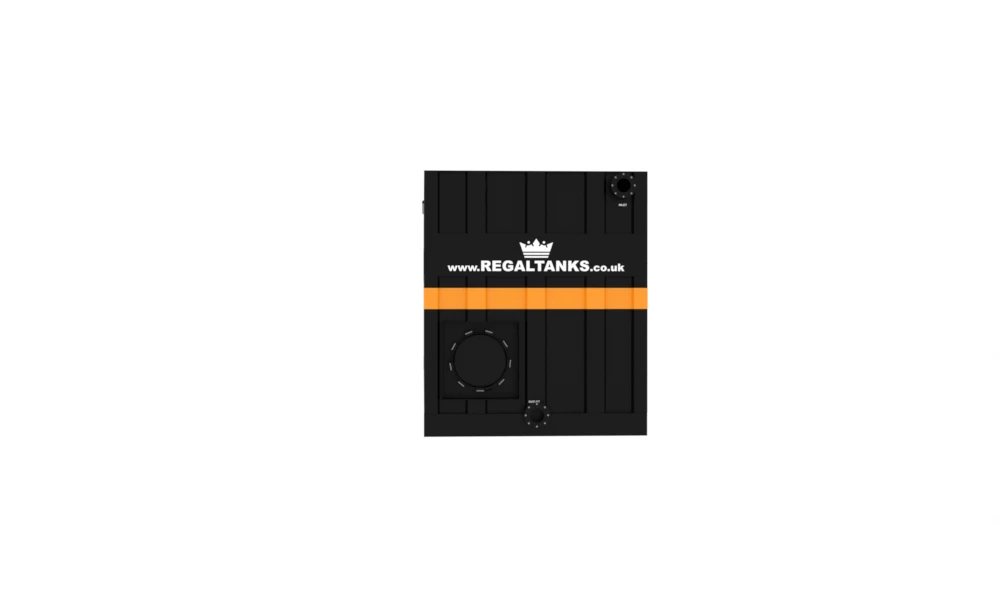

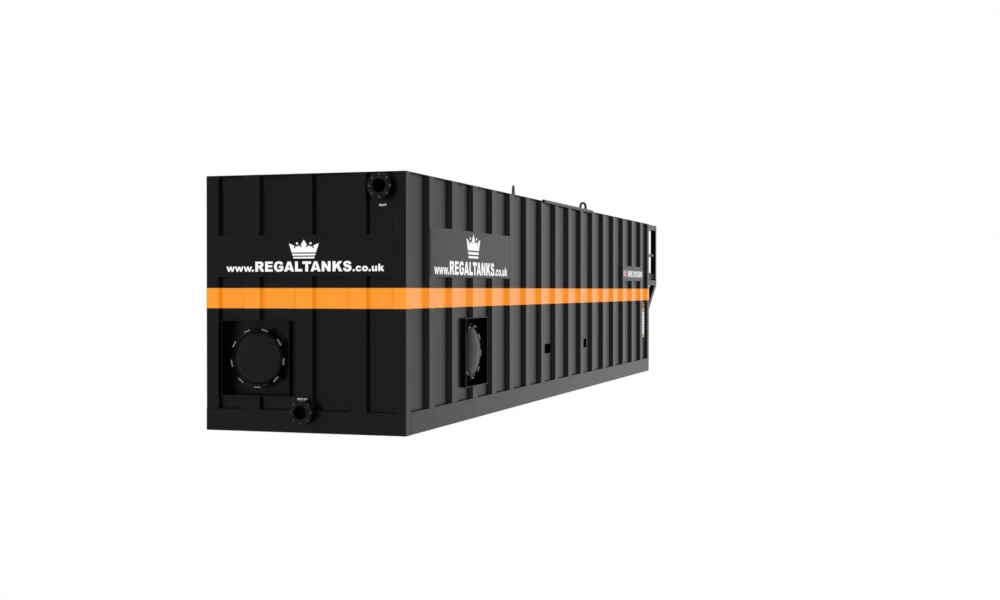

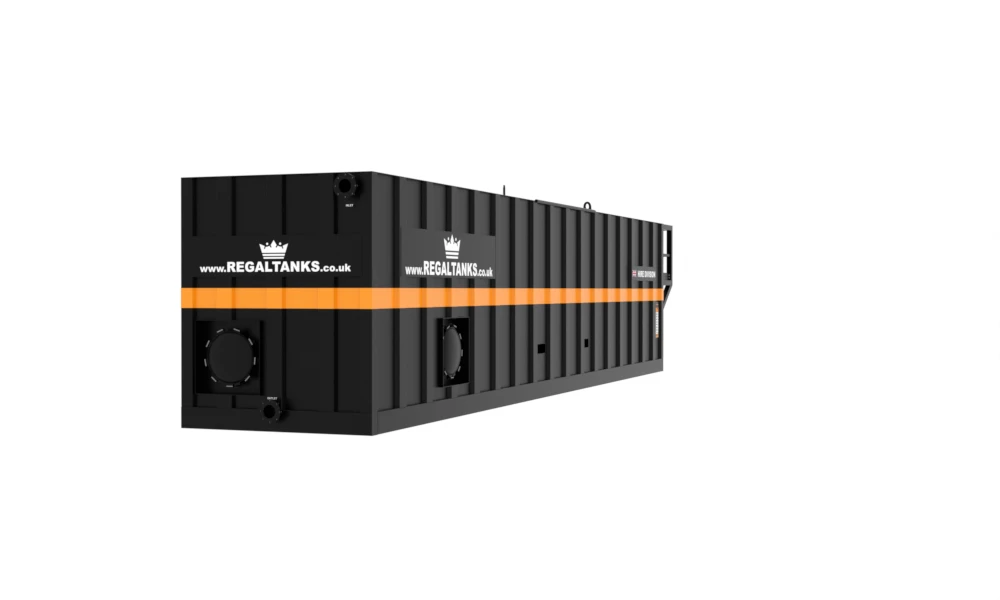

Non-Stair End
  • 1 no. 6" 150# ANSI flanged outlet
  • 1 no. 6" 150# ANSI flanged inlet.
  • 1 x 500mm quick release manway.

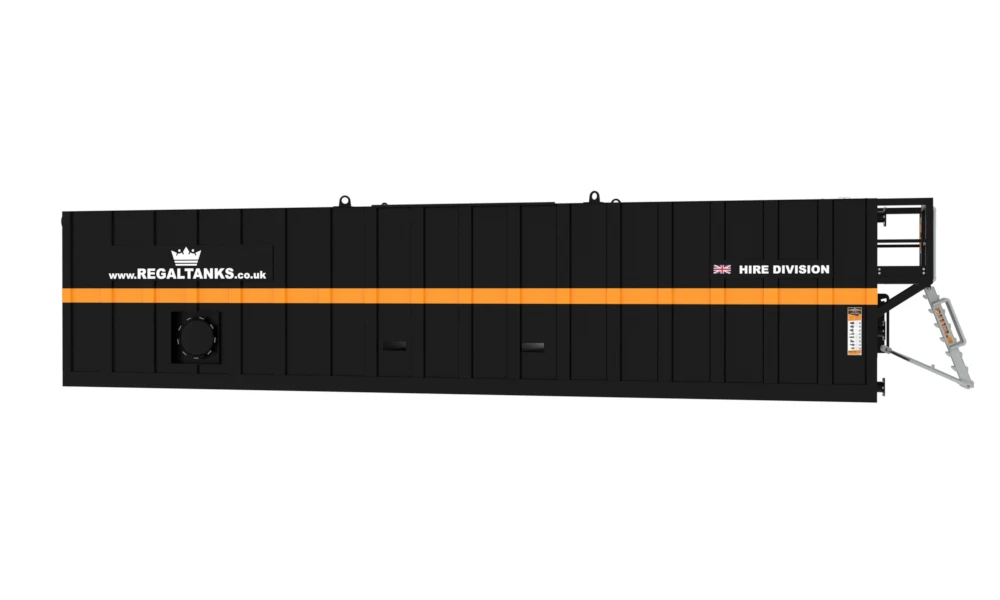

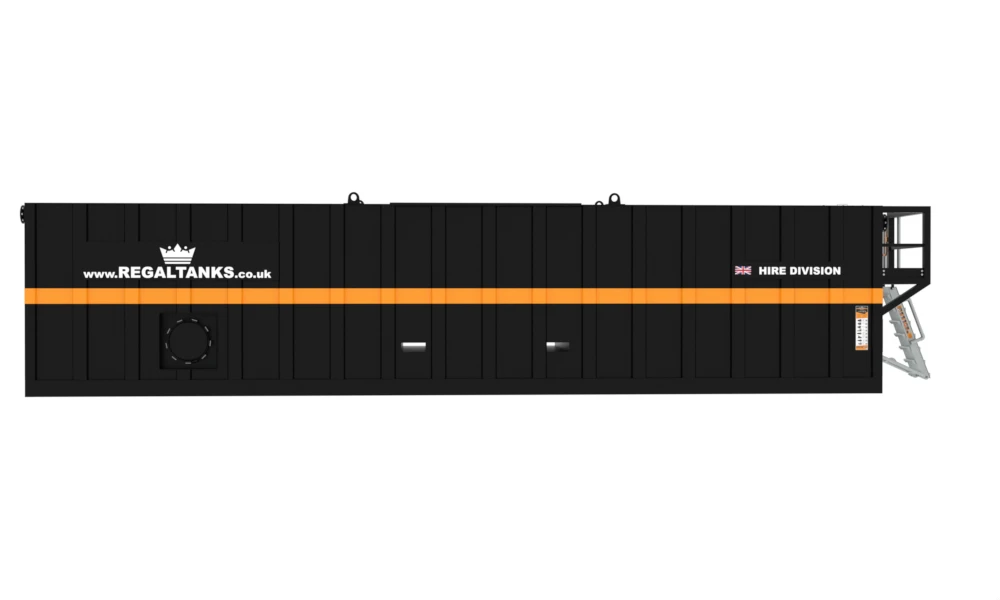

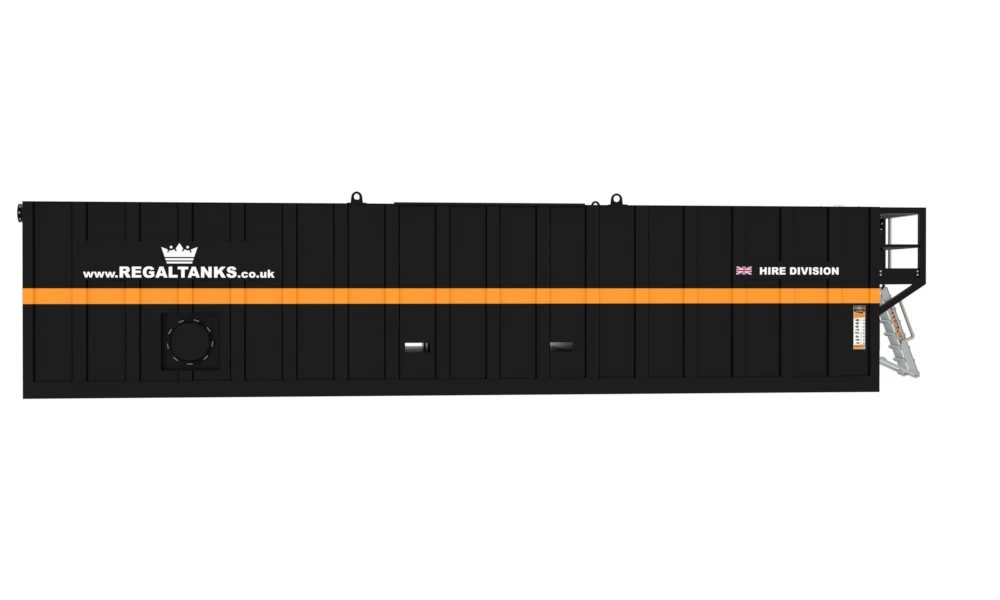

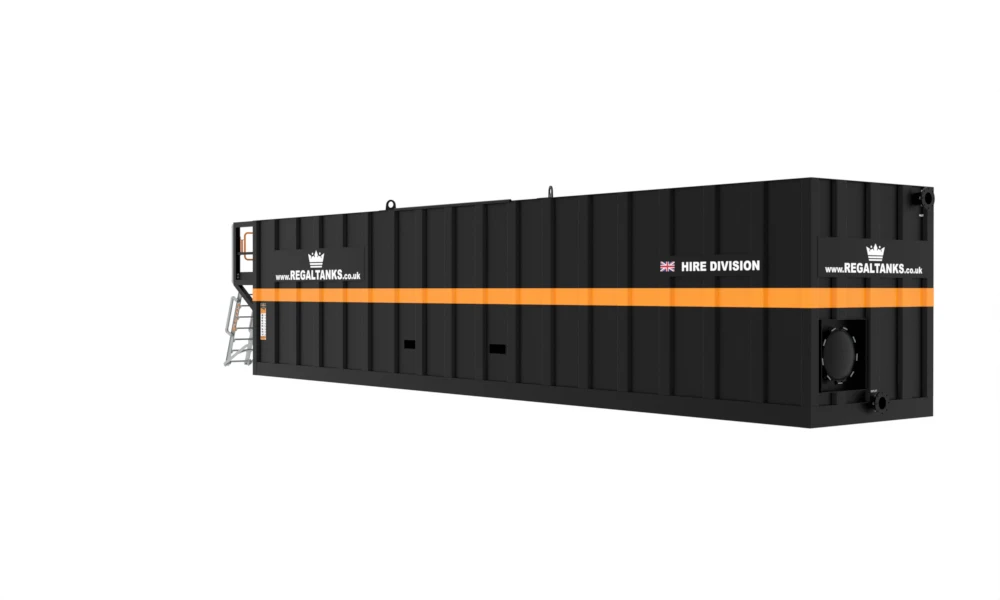

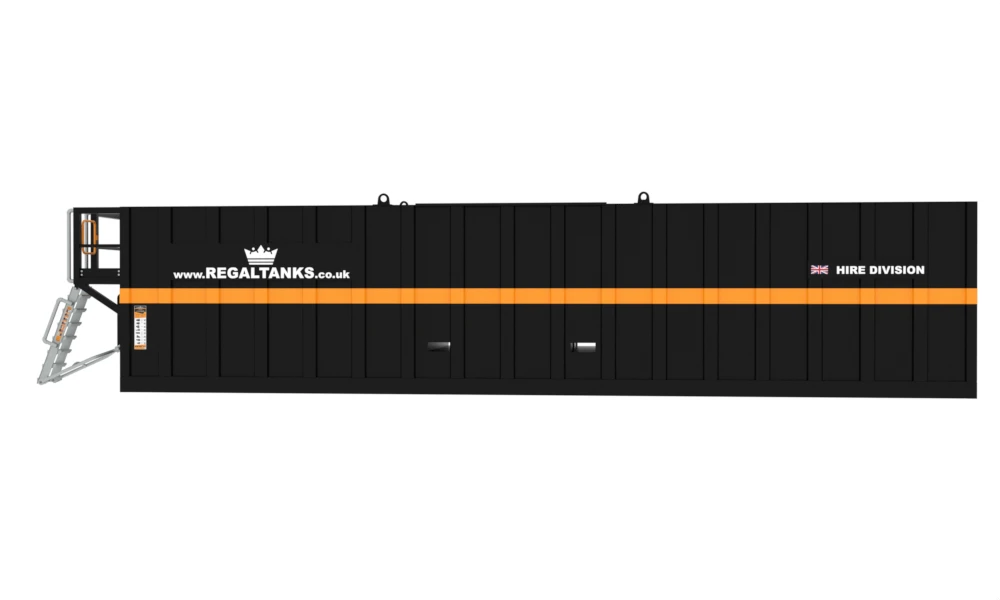

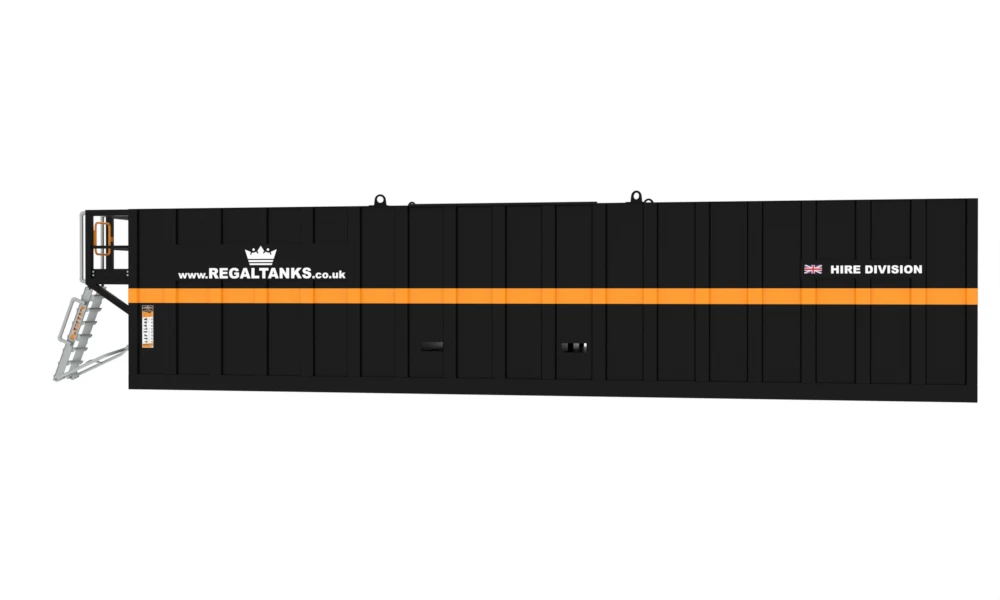

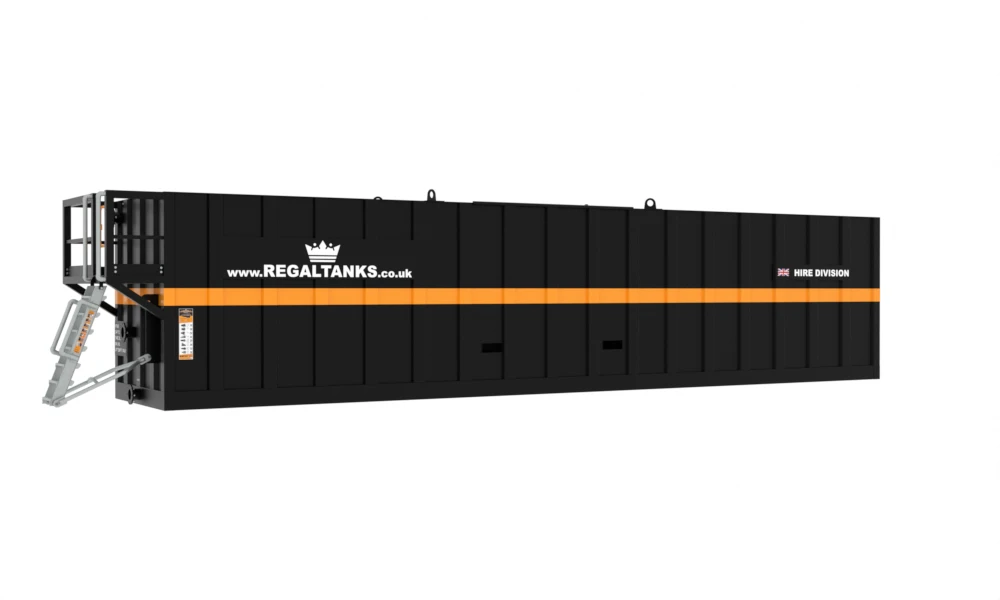

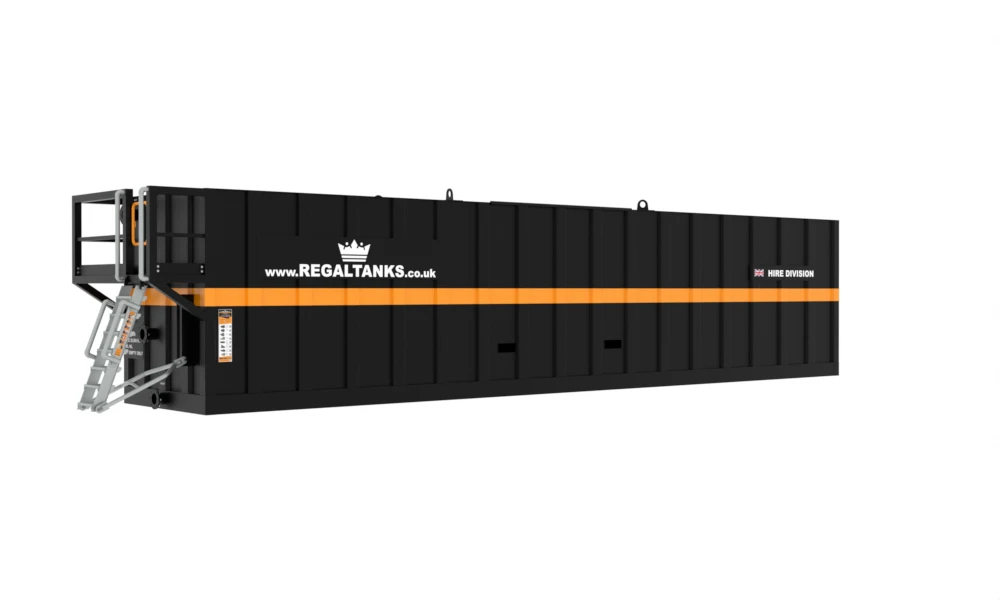

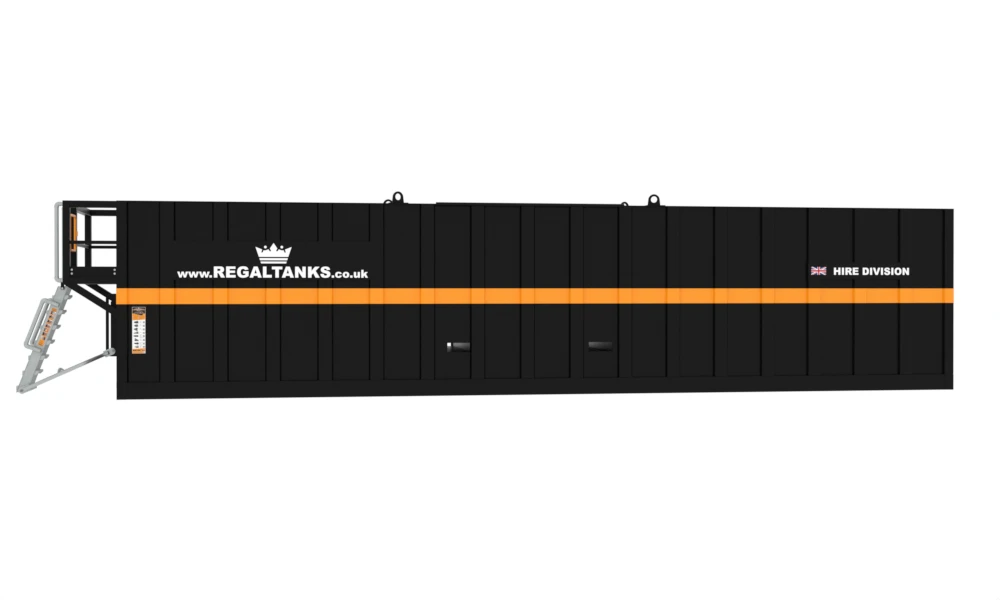

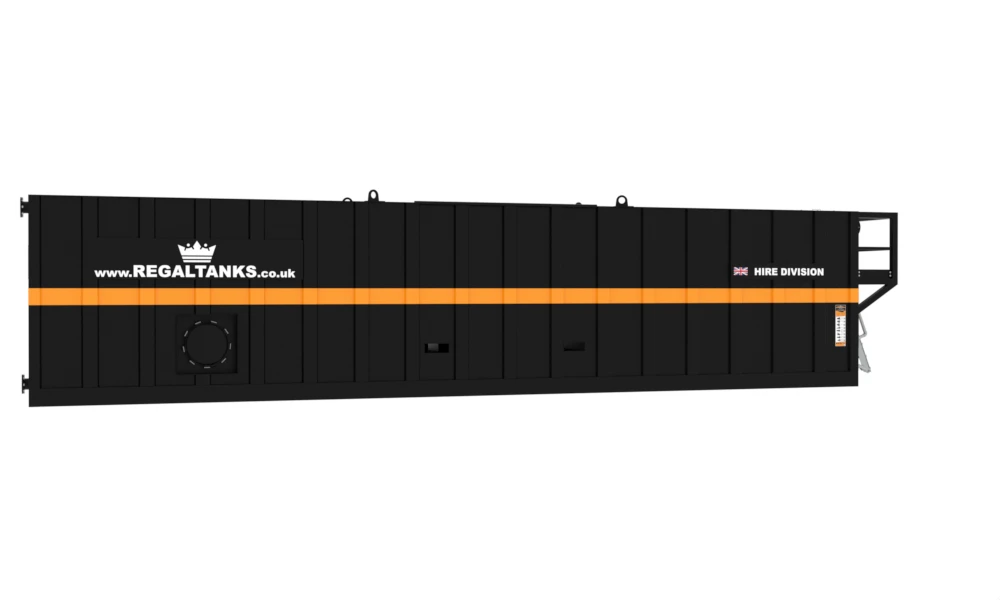

Side
  • 500mm quick release manway
Top
  • 2 x 6" 150# ANSI flanged vents
  • 1 x 600mm Square hinged hatch
Lifting
  • 1 no. 4 leg wire slings with master link
  • 3rd Party certified to LOLER 98

Downloads

Download Details Sheet
Get a quote for this hire tank

Don't like forms? Call us on 01502 710100 and speak to one of our hire tank advisers.
