Storage Tank Hire:

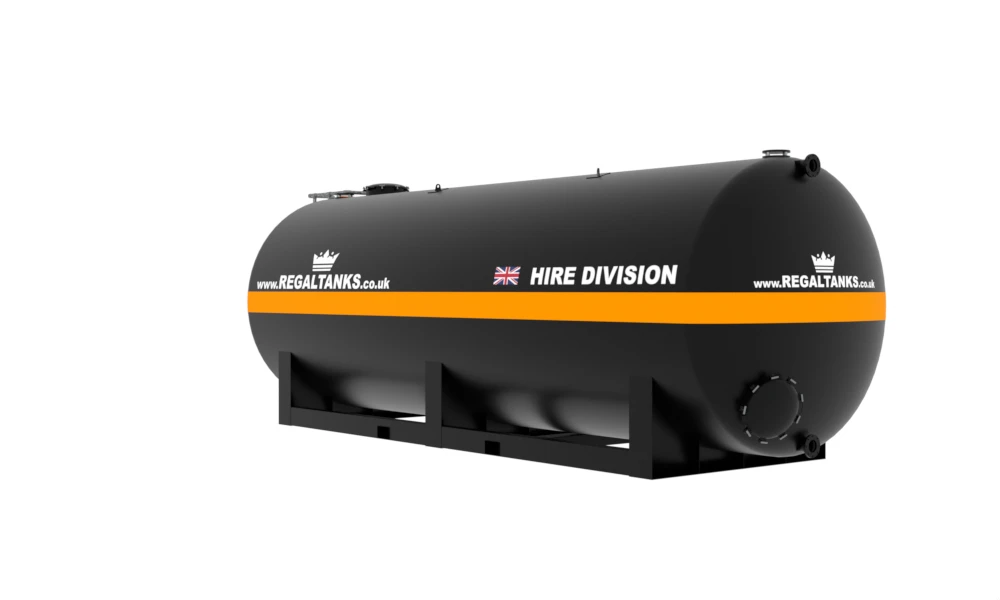

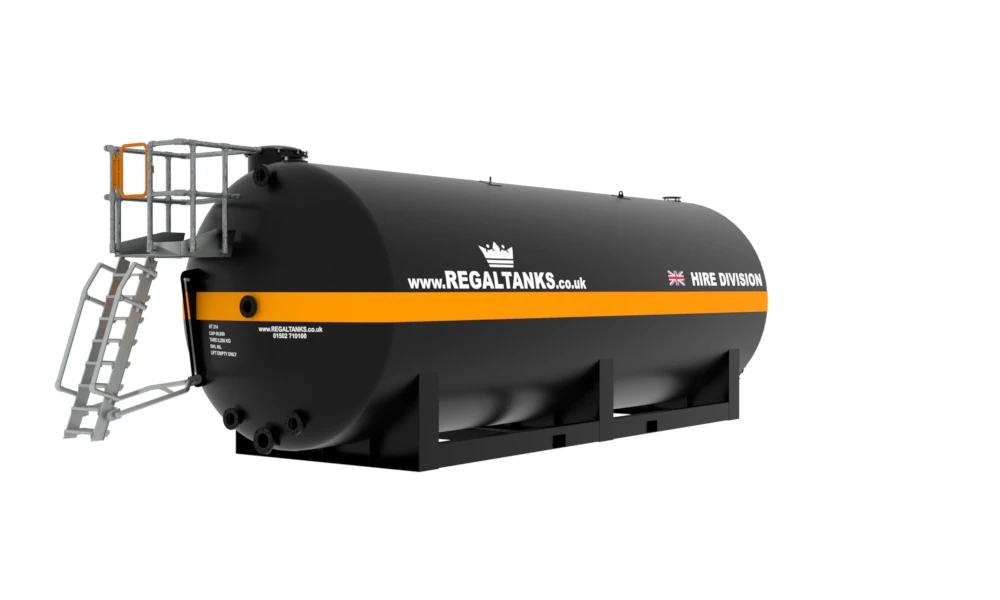

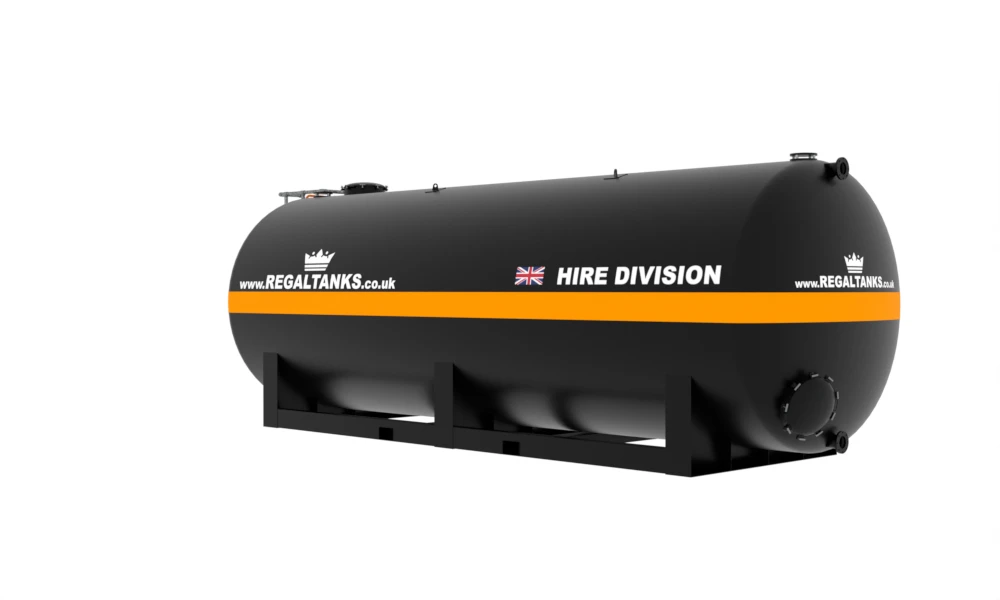

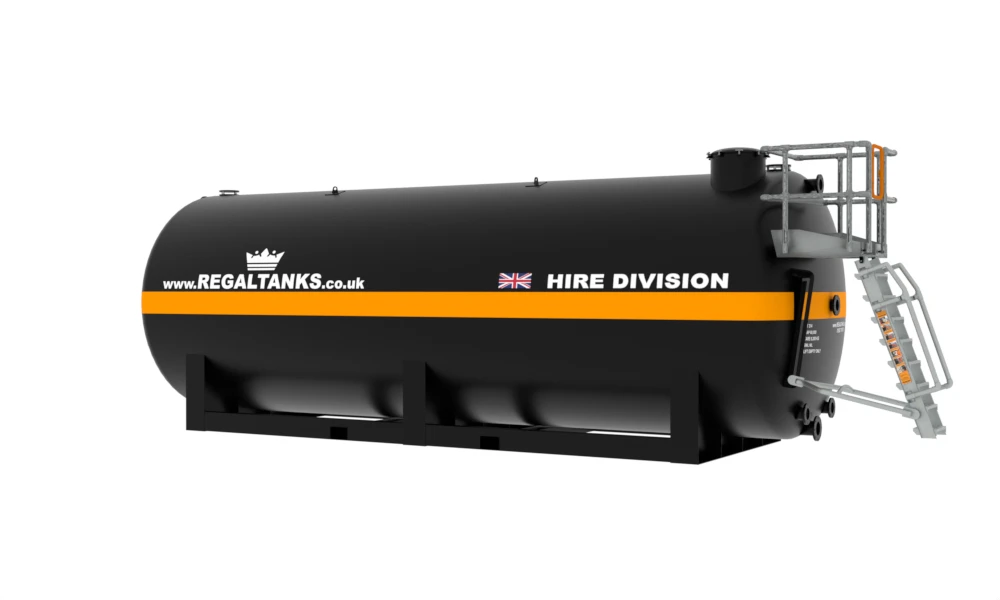

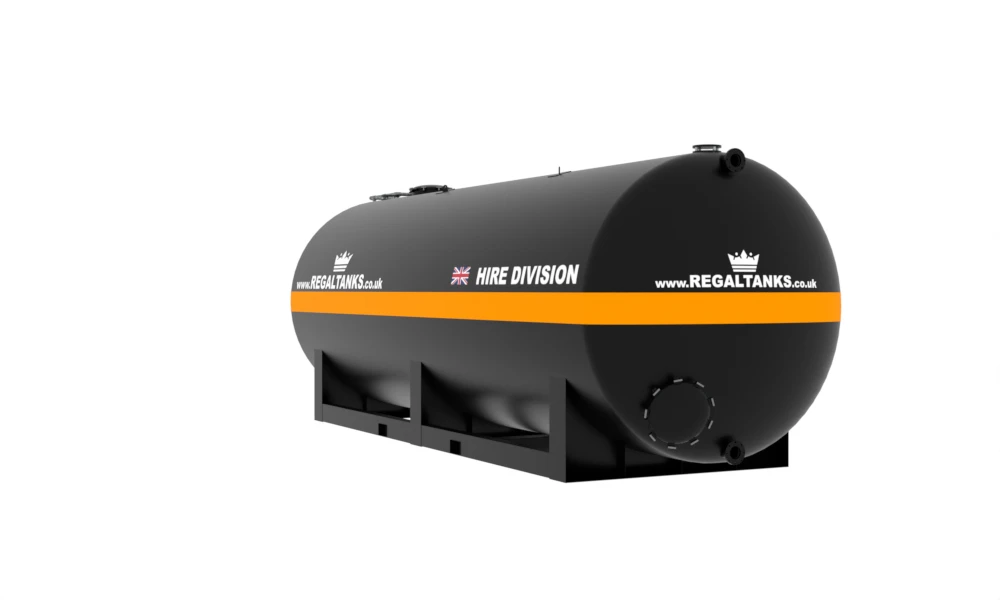

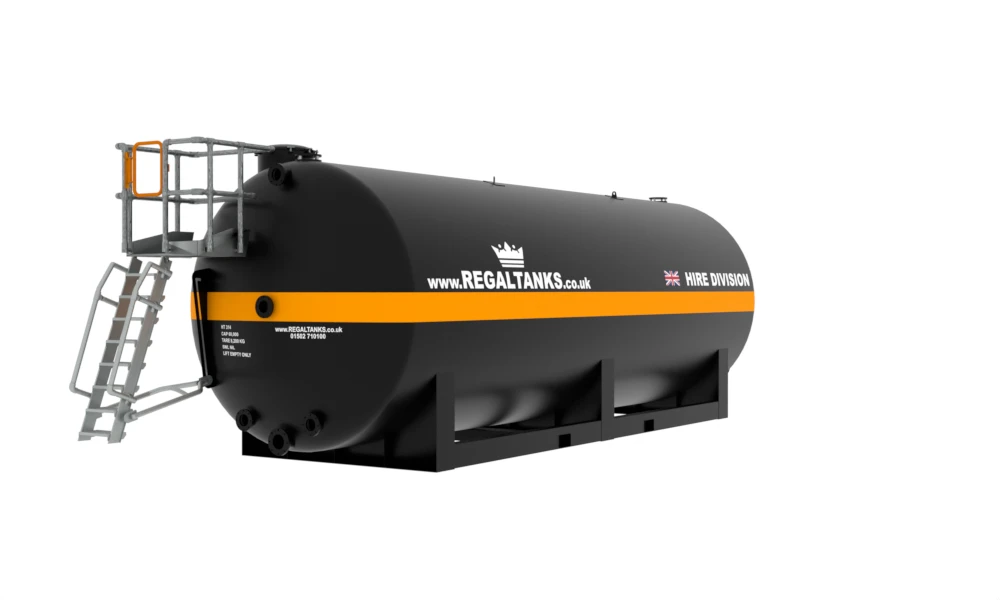

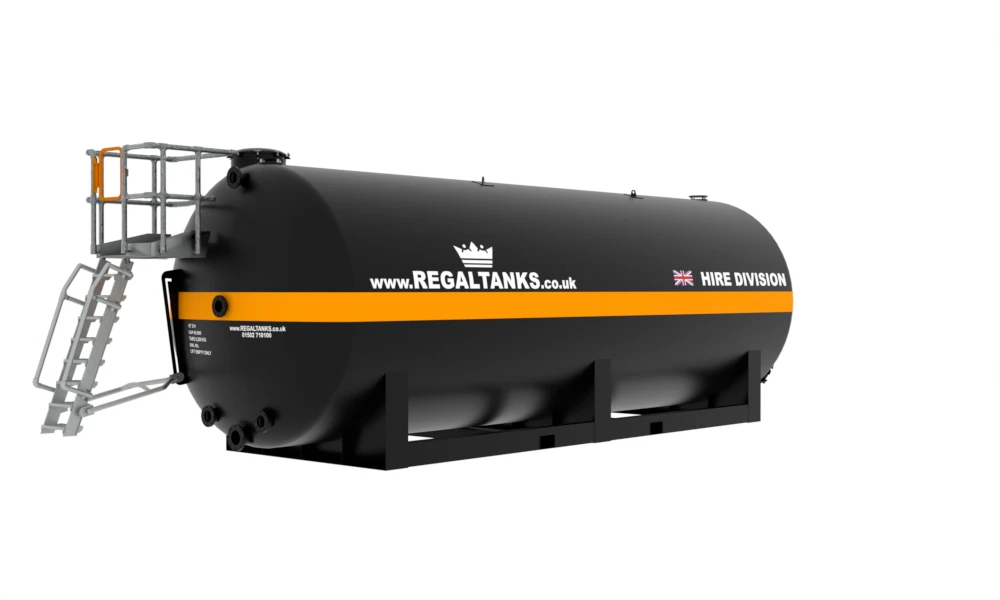

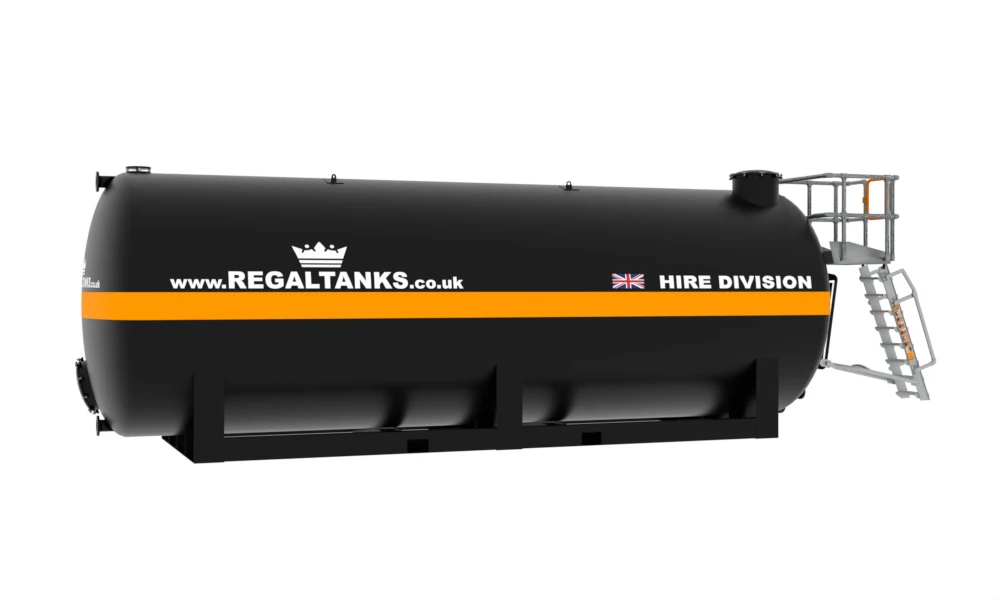

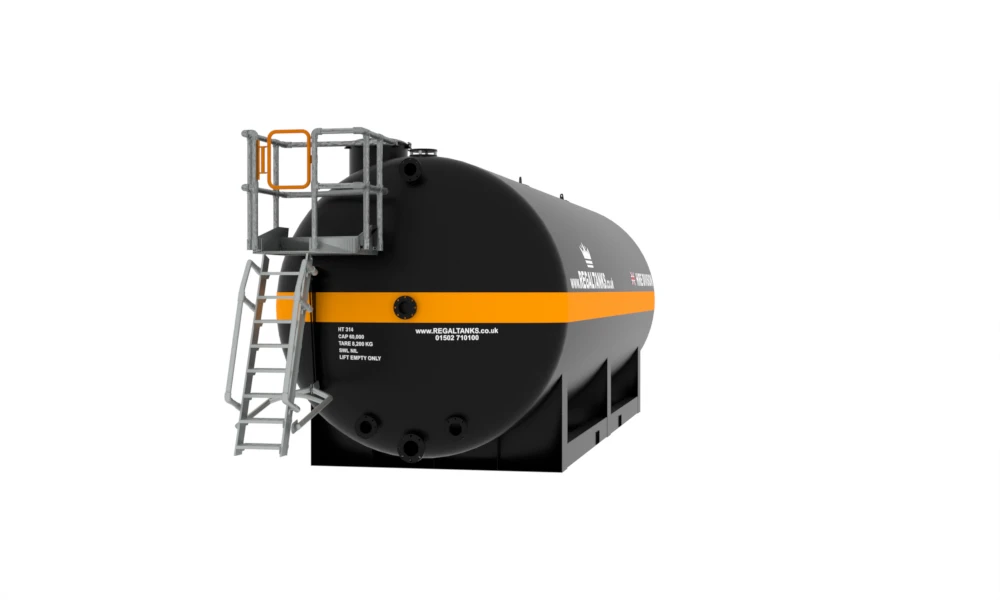

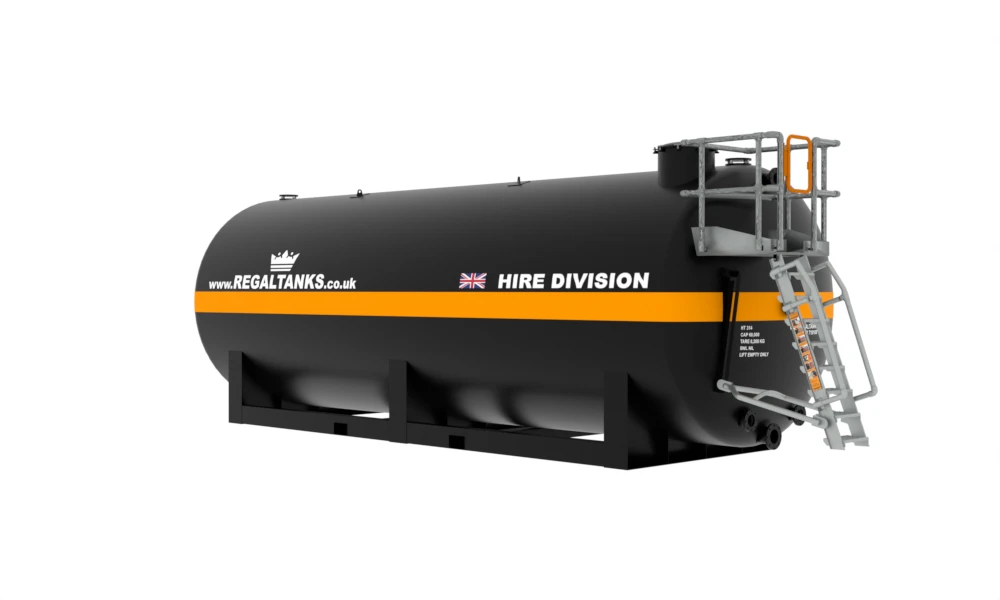

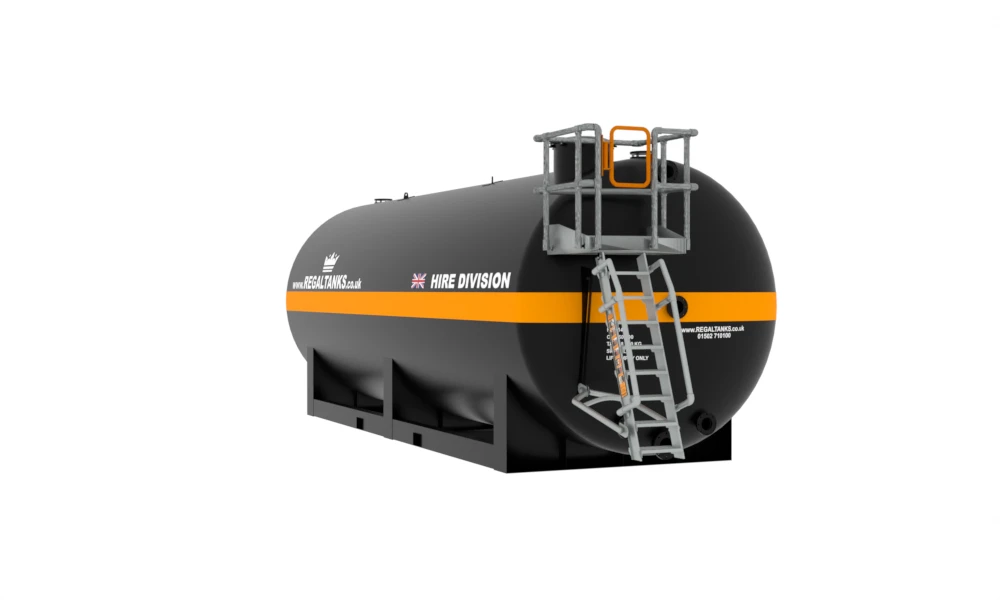

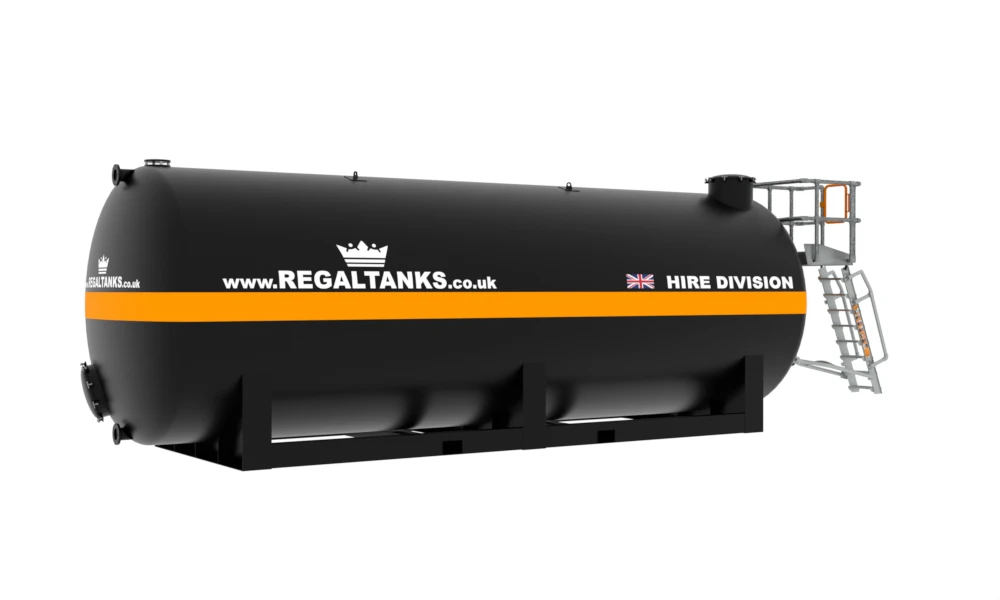

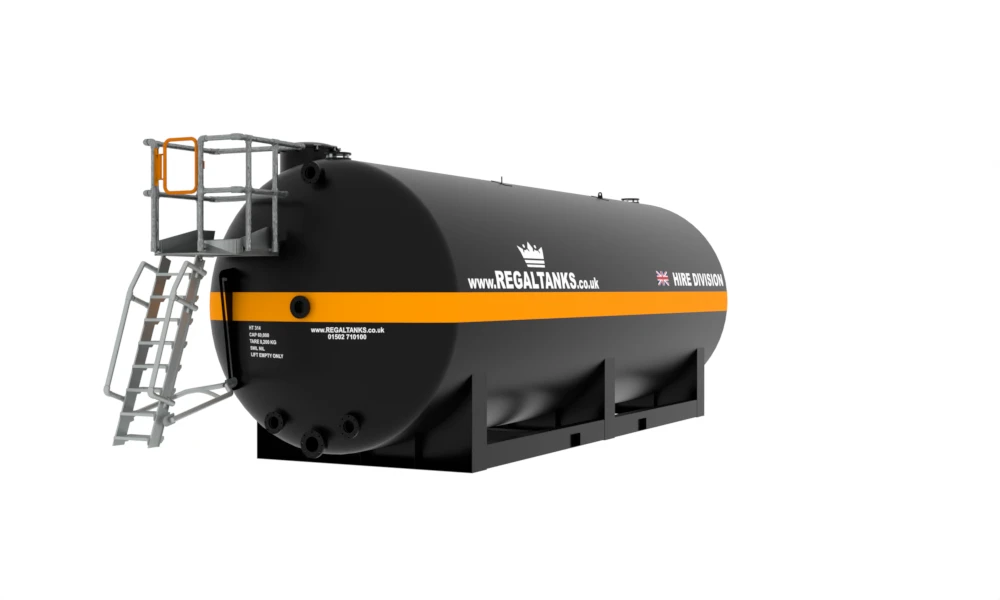

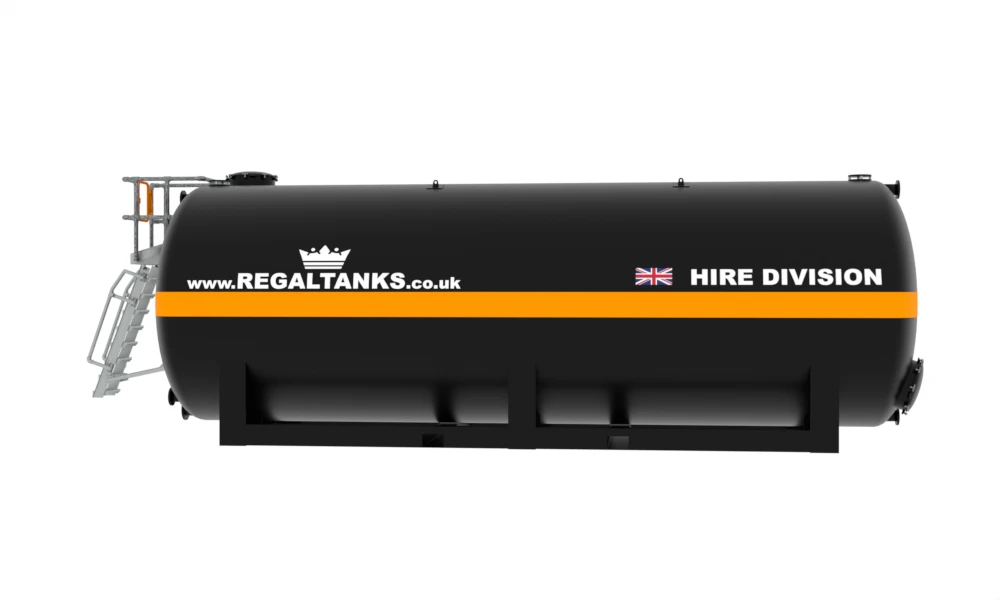

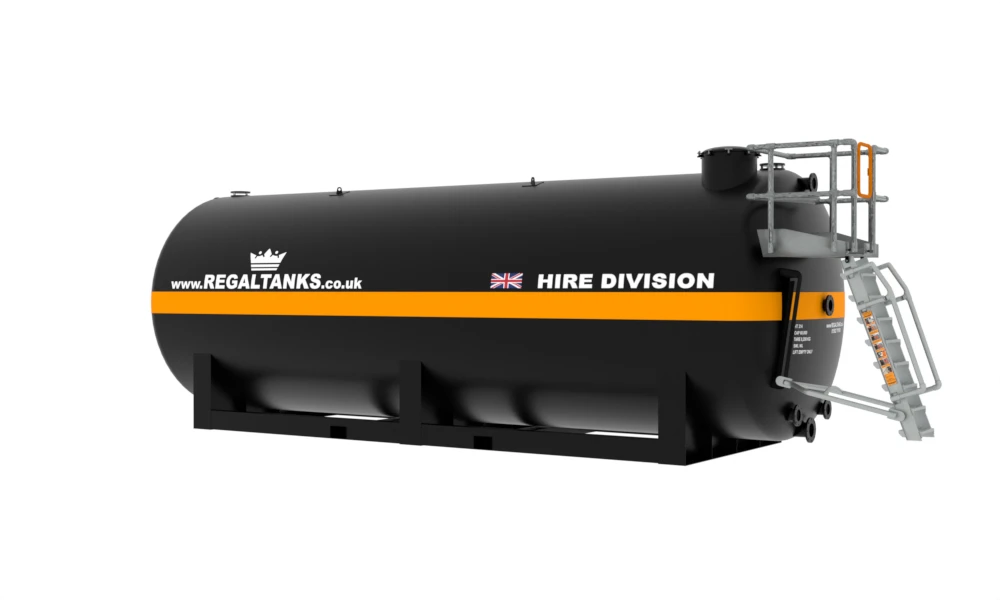

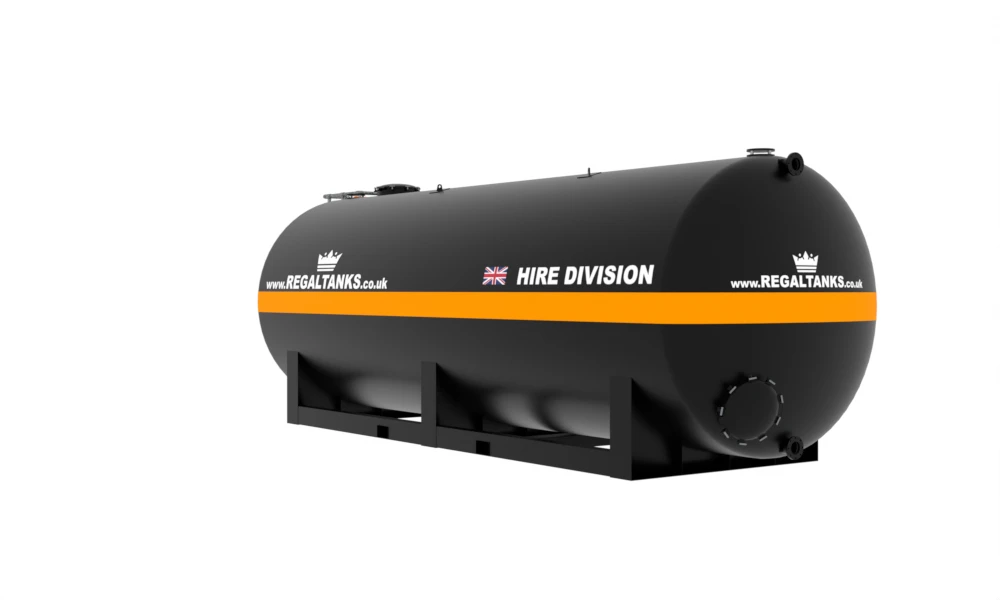

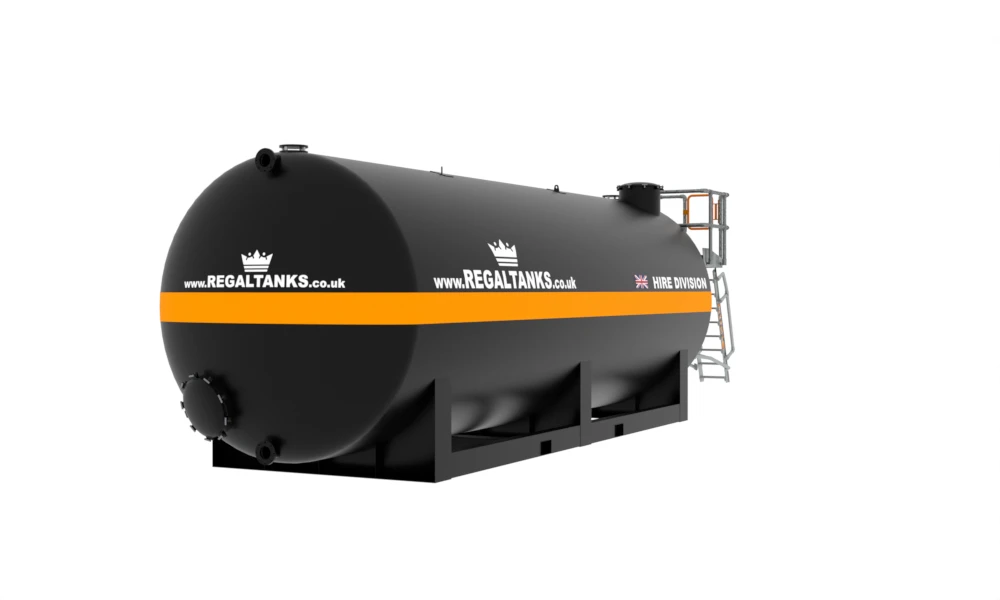

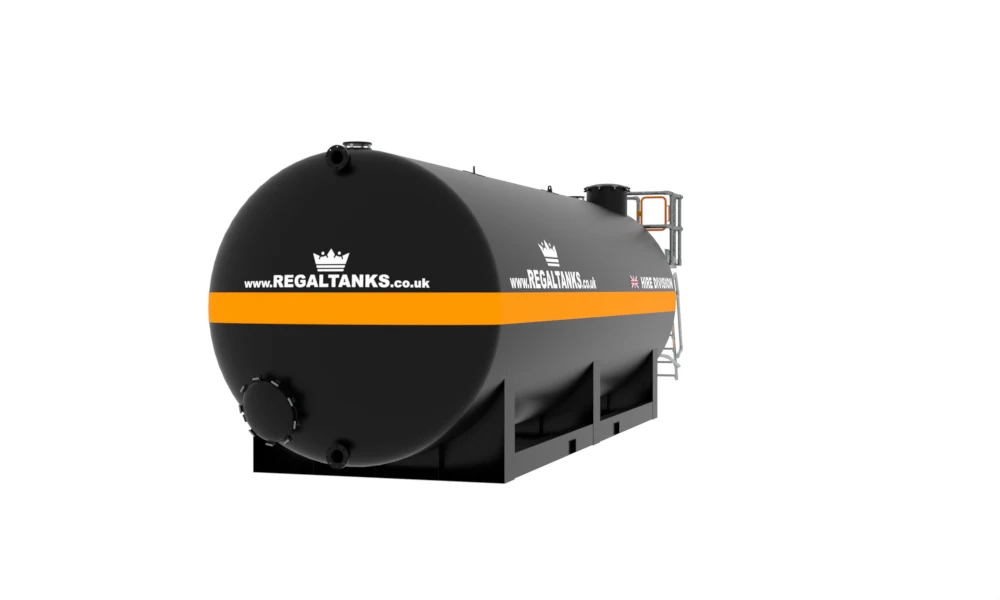

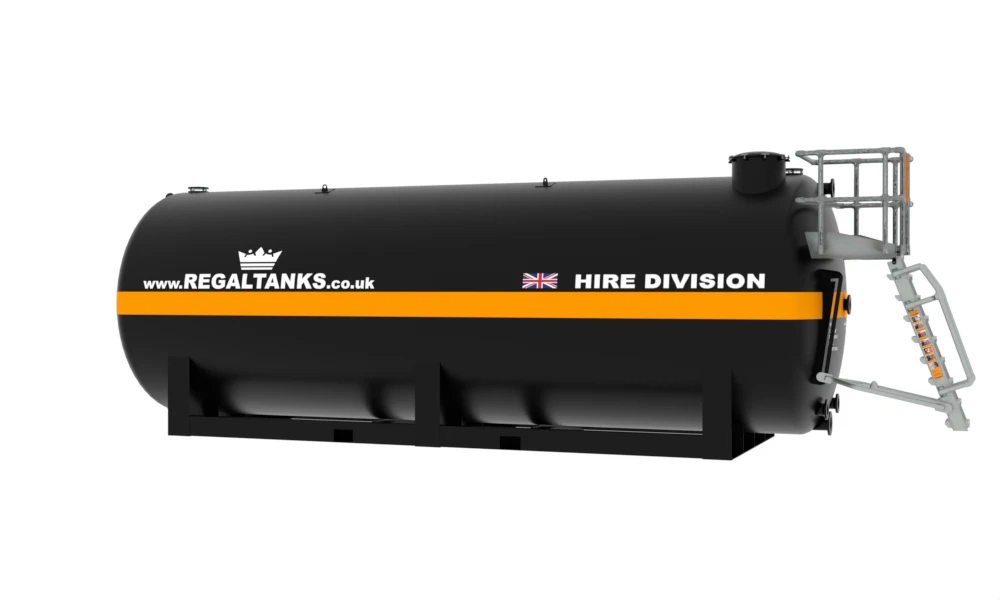

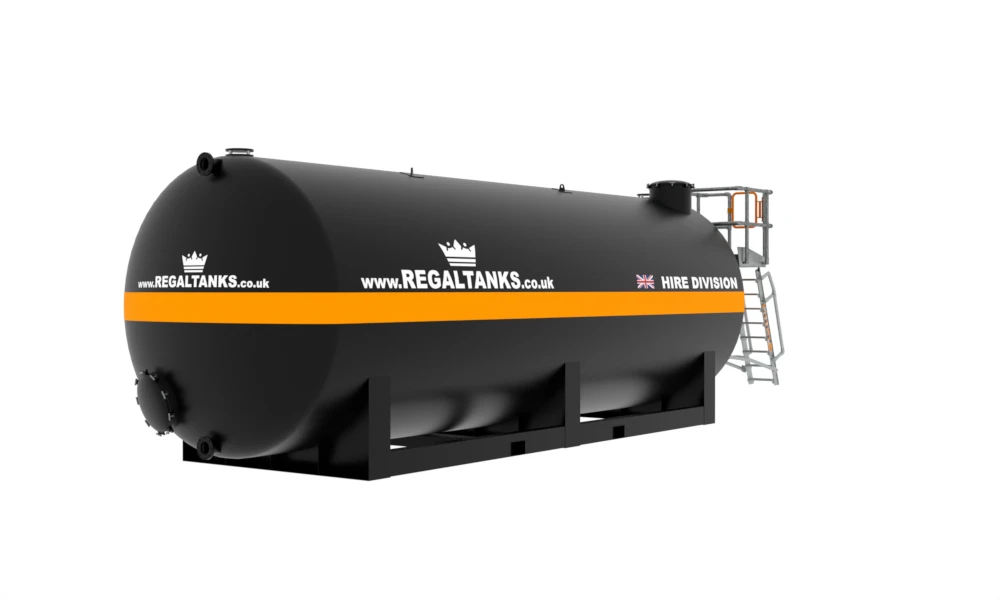

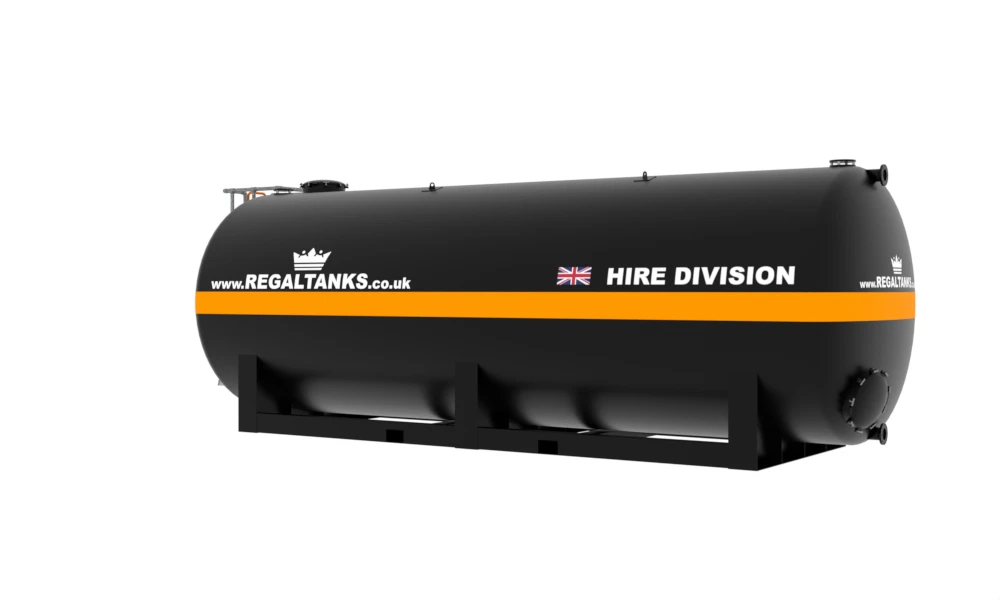

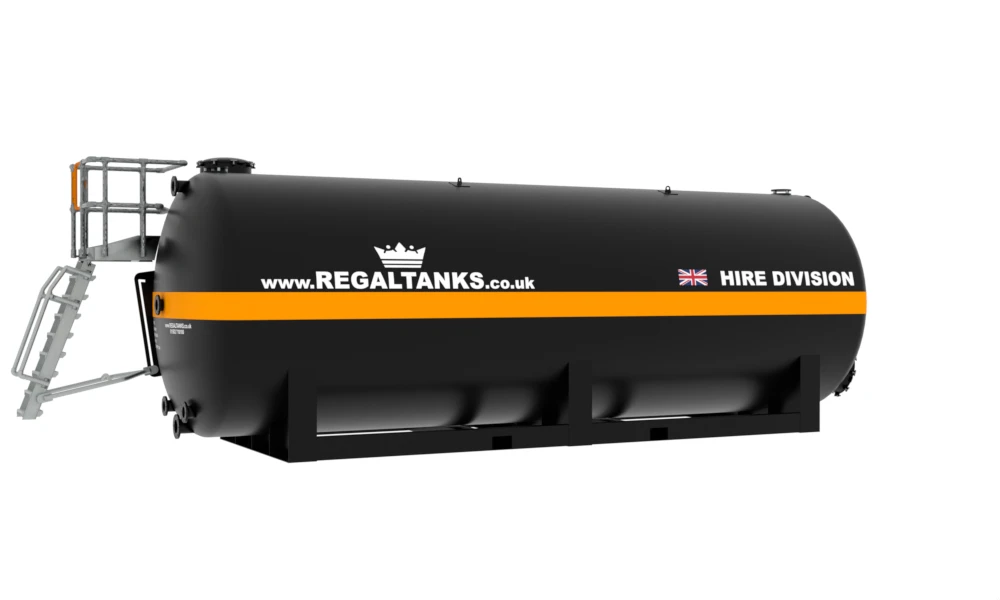

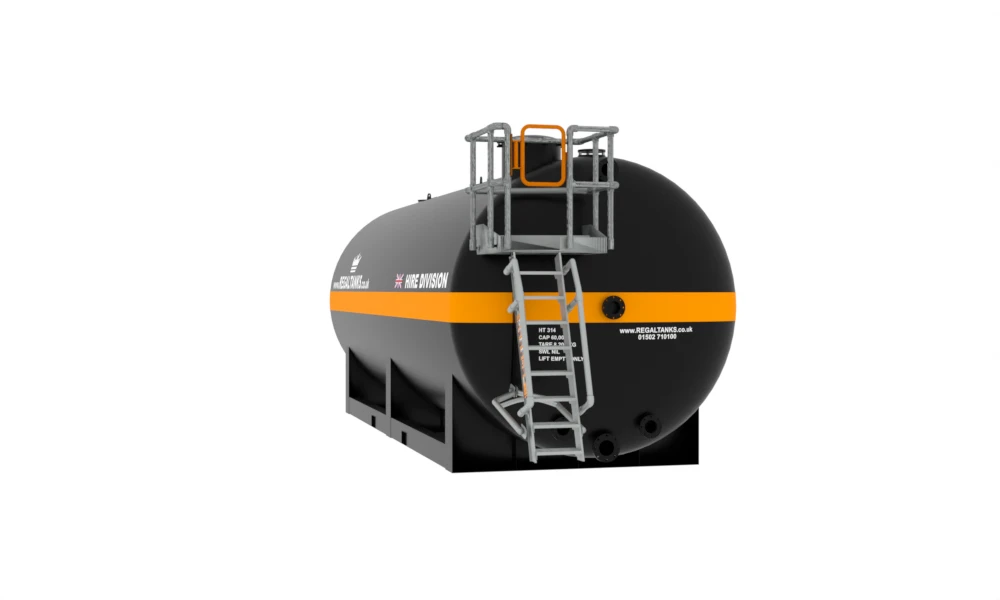

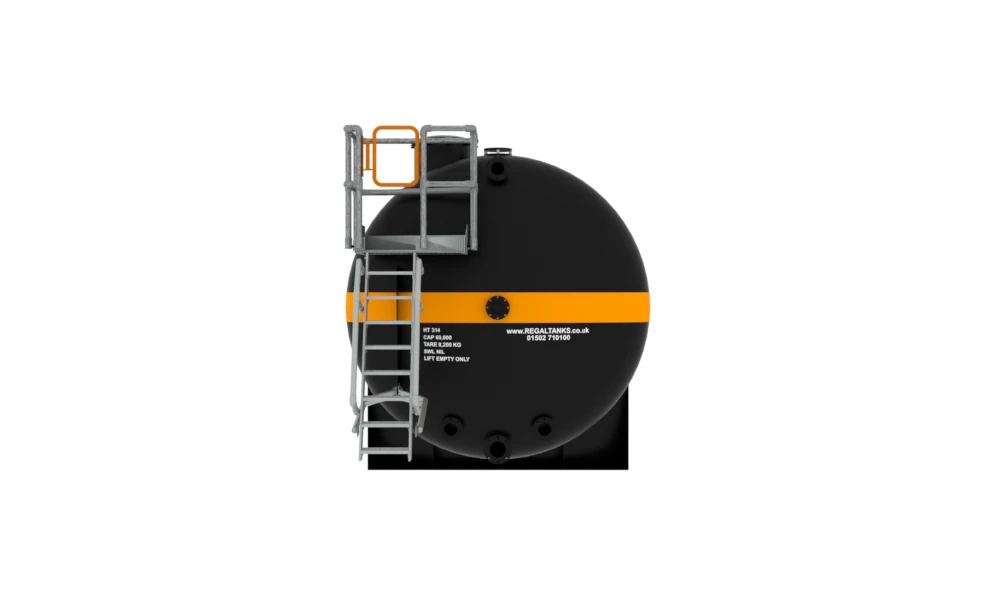

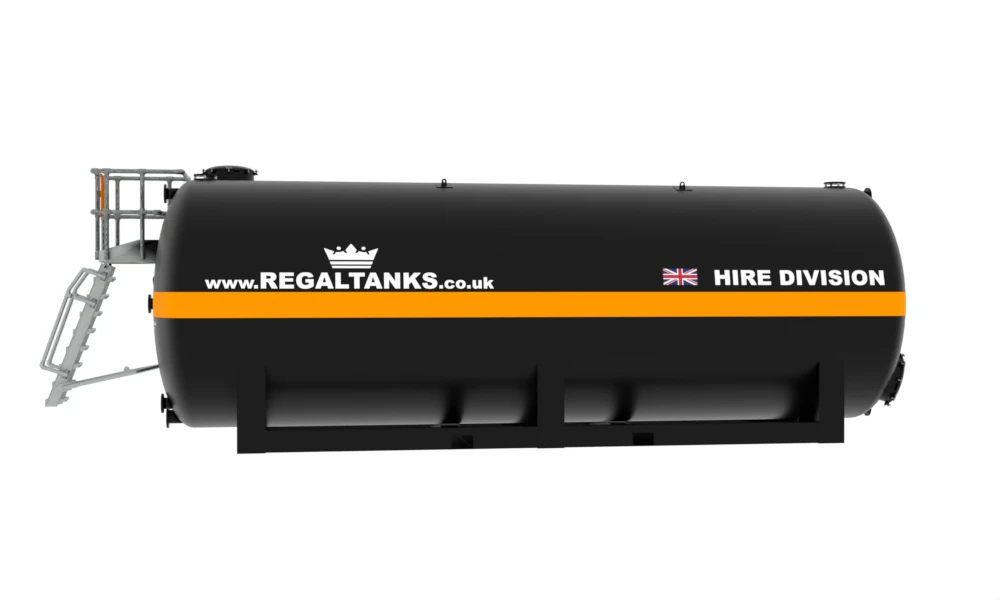

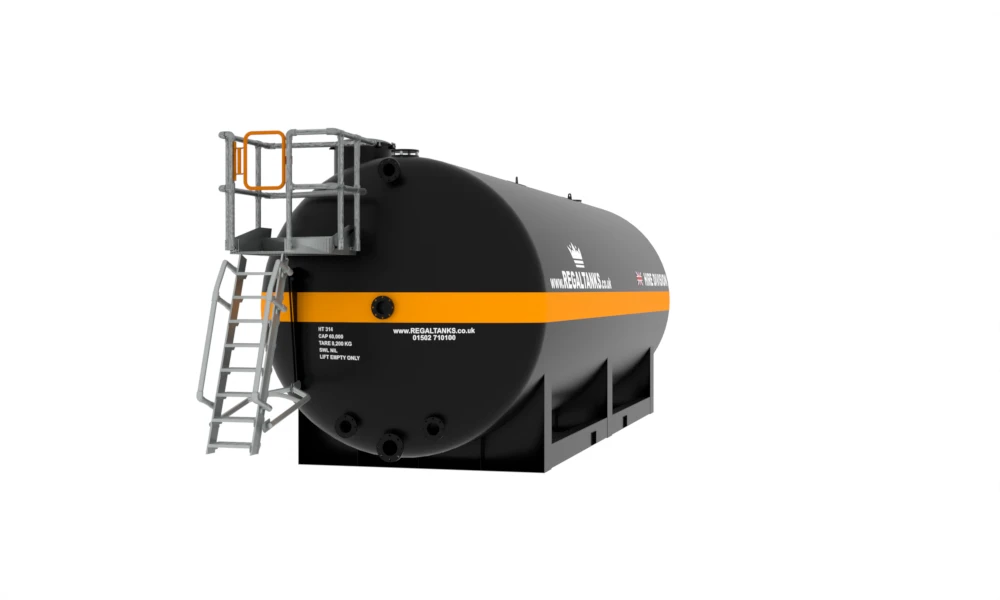

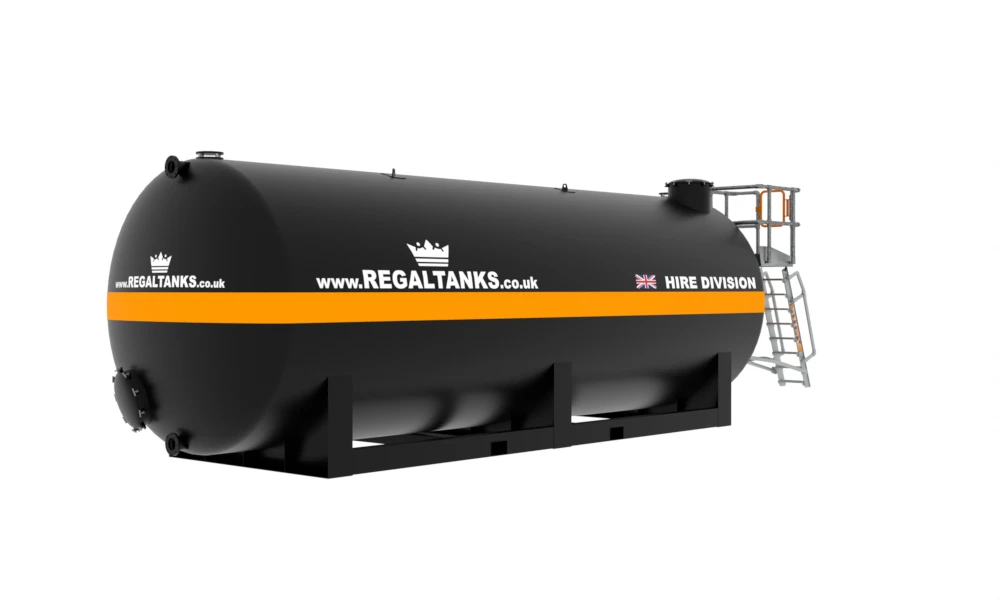

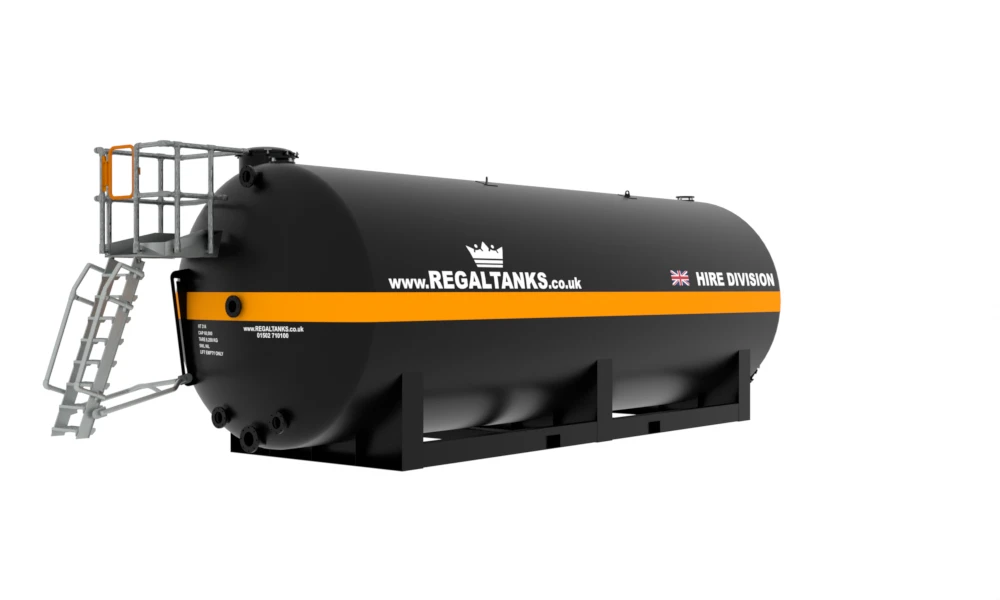

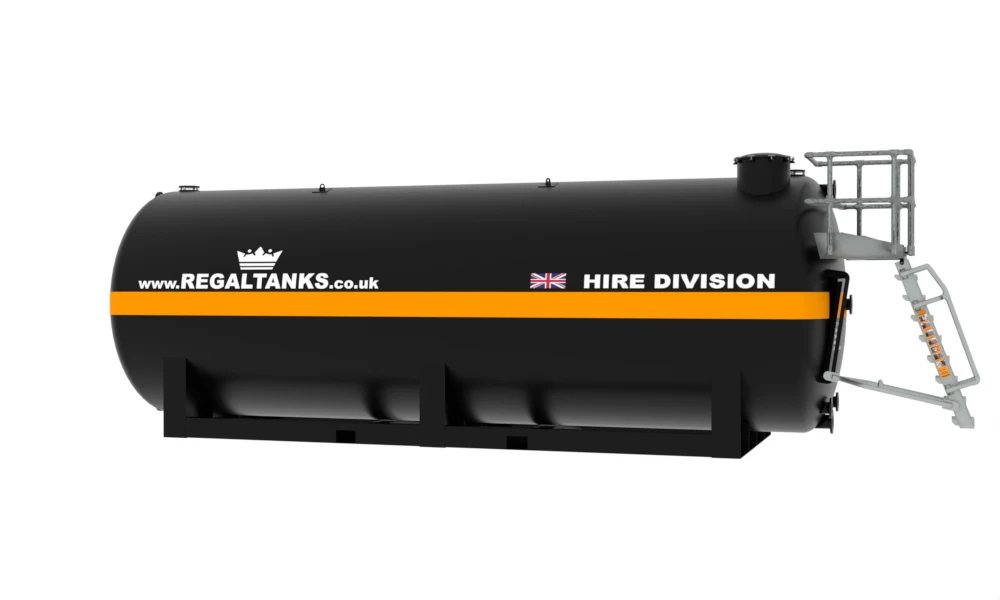

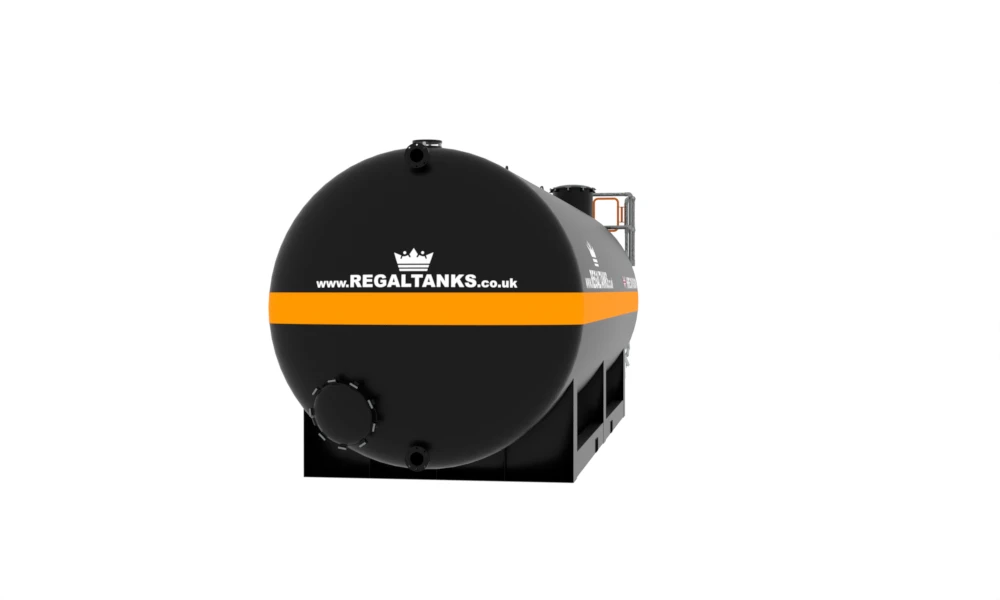

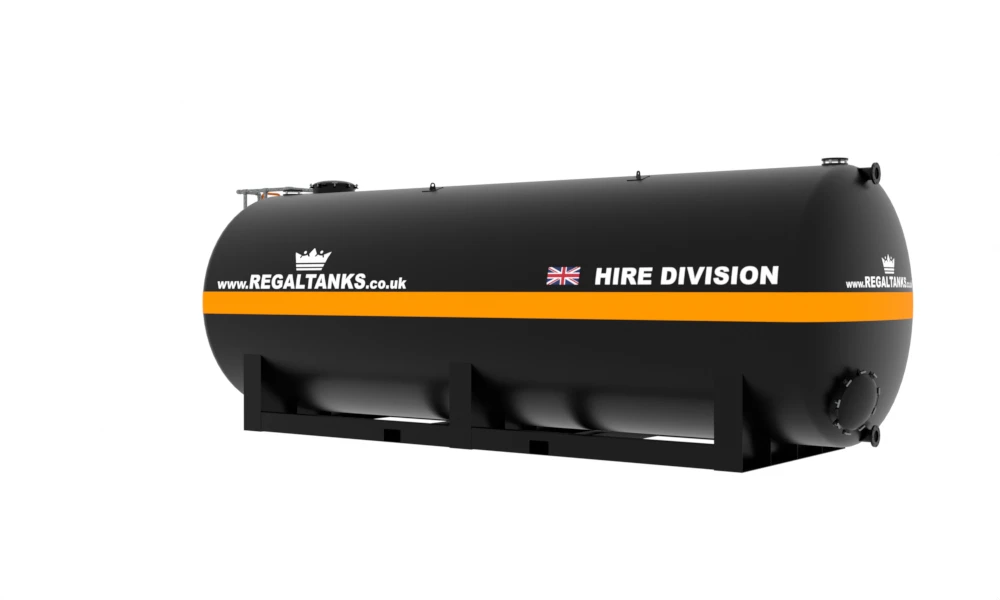

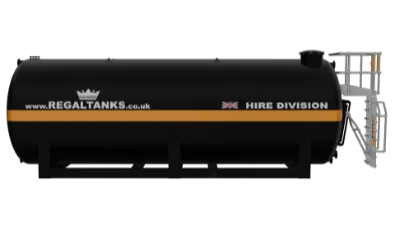

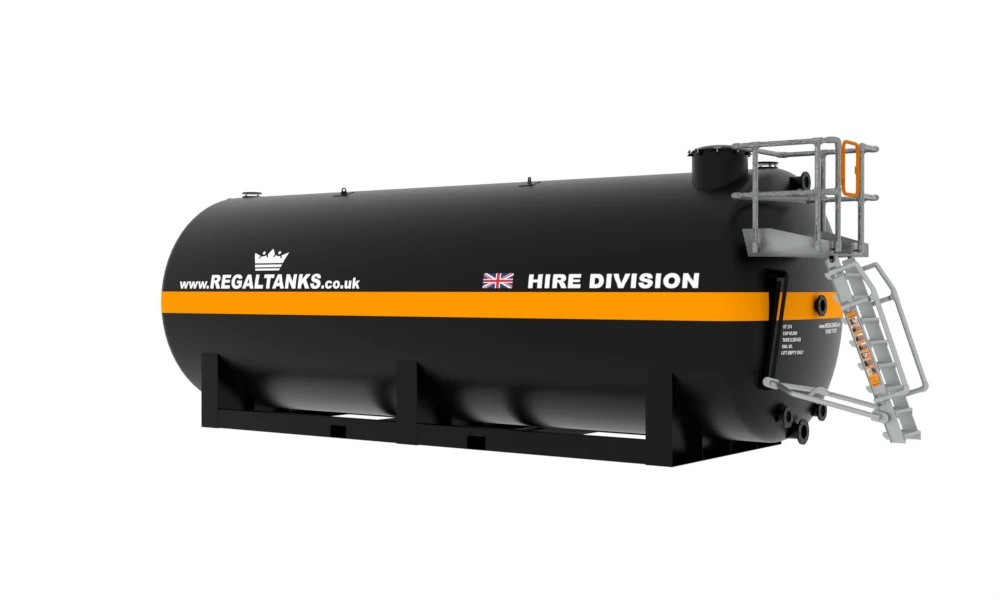

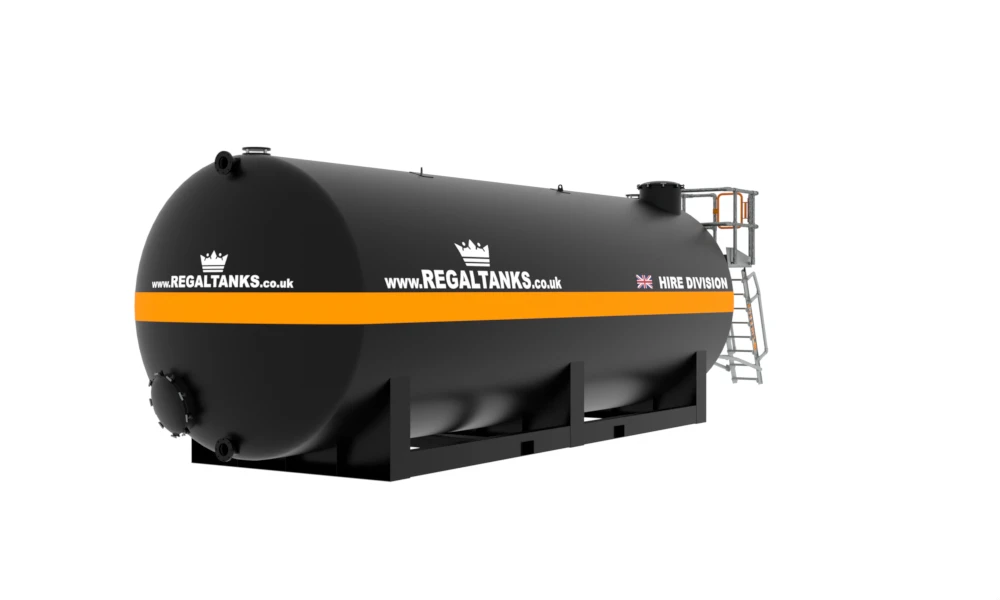

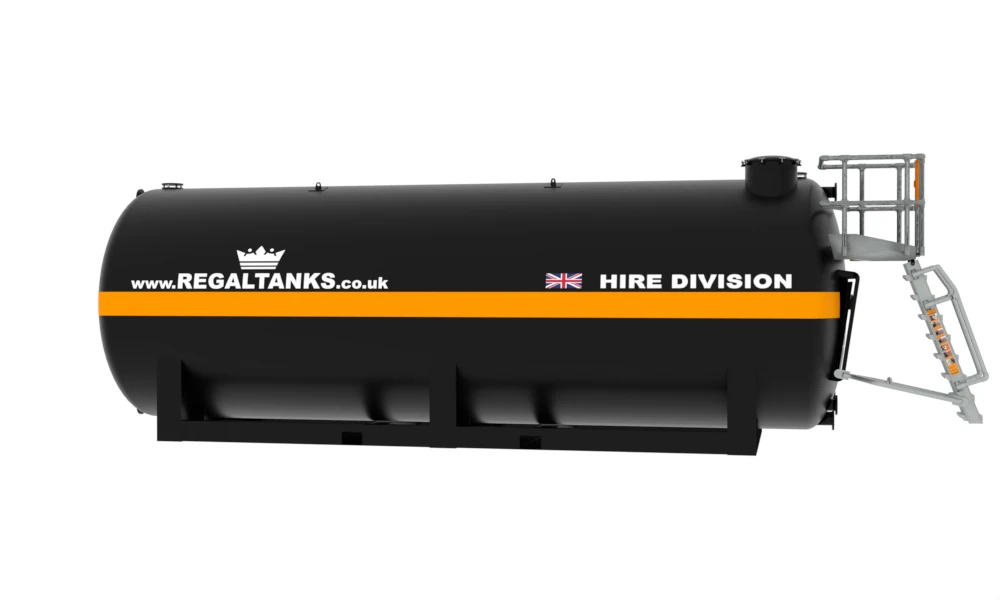

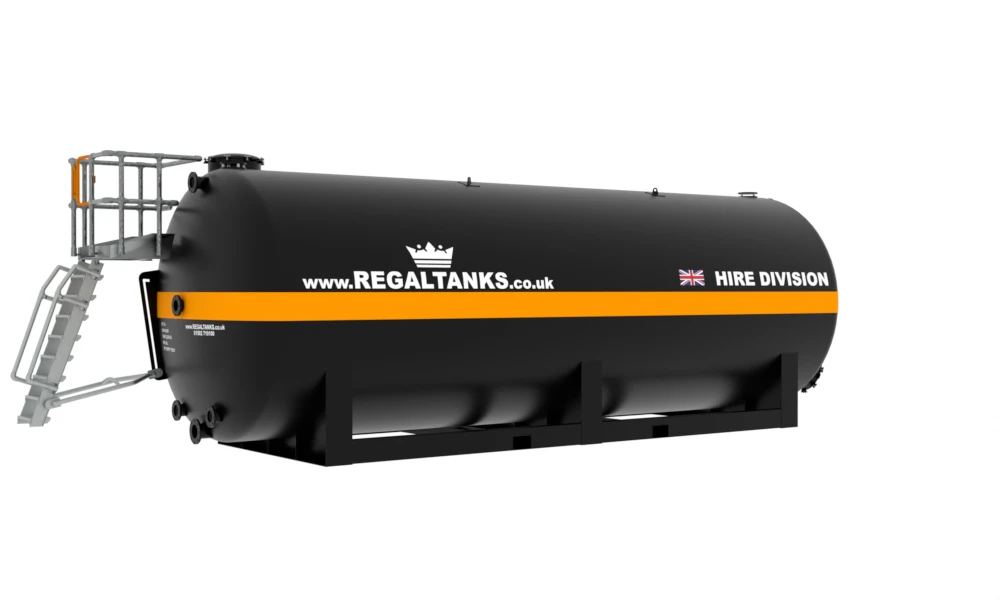

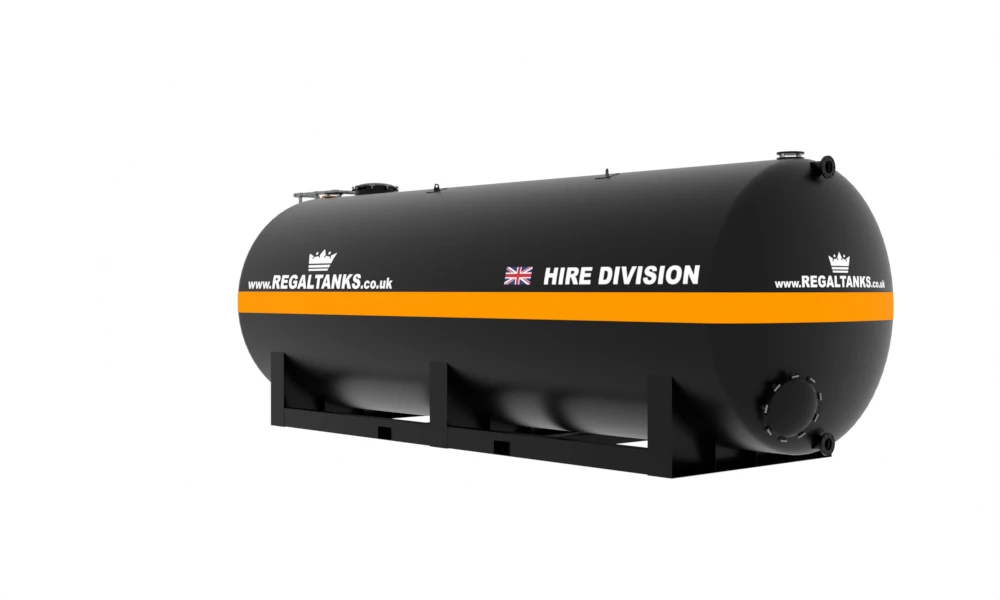

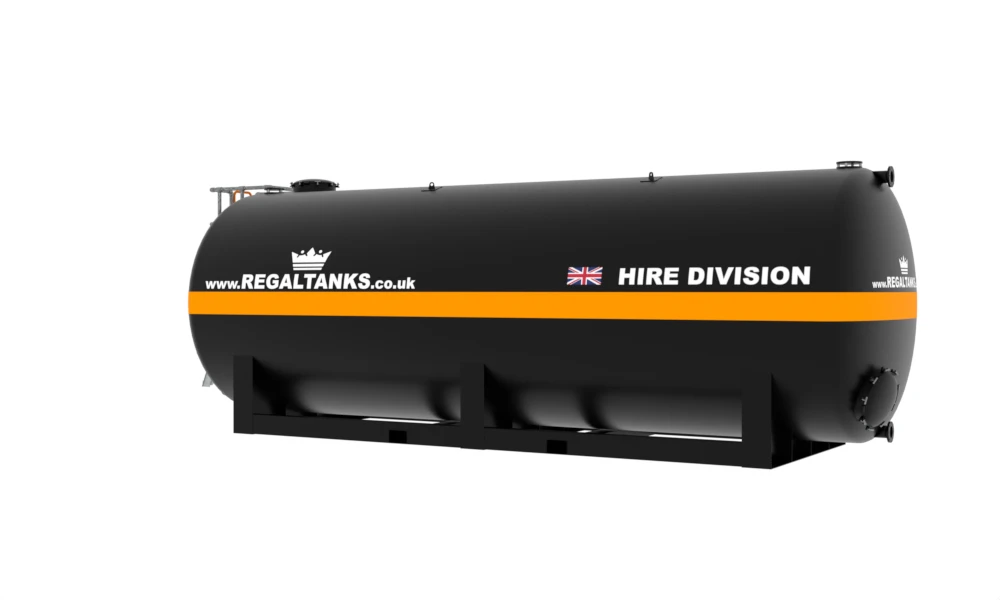

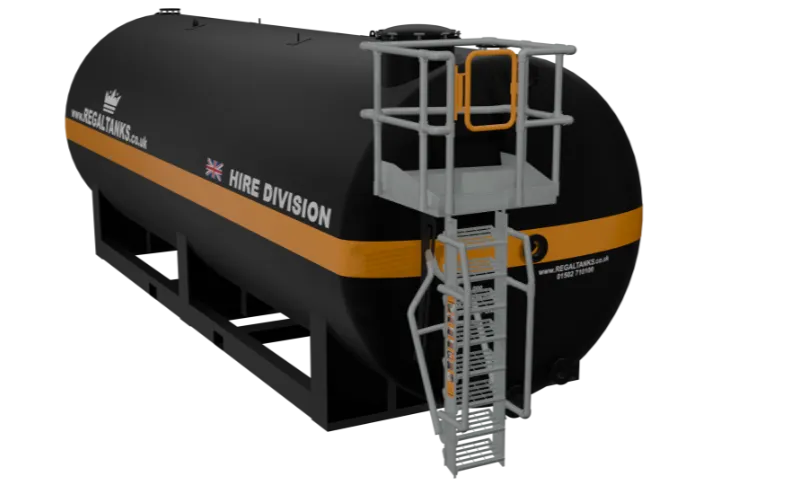

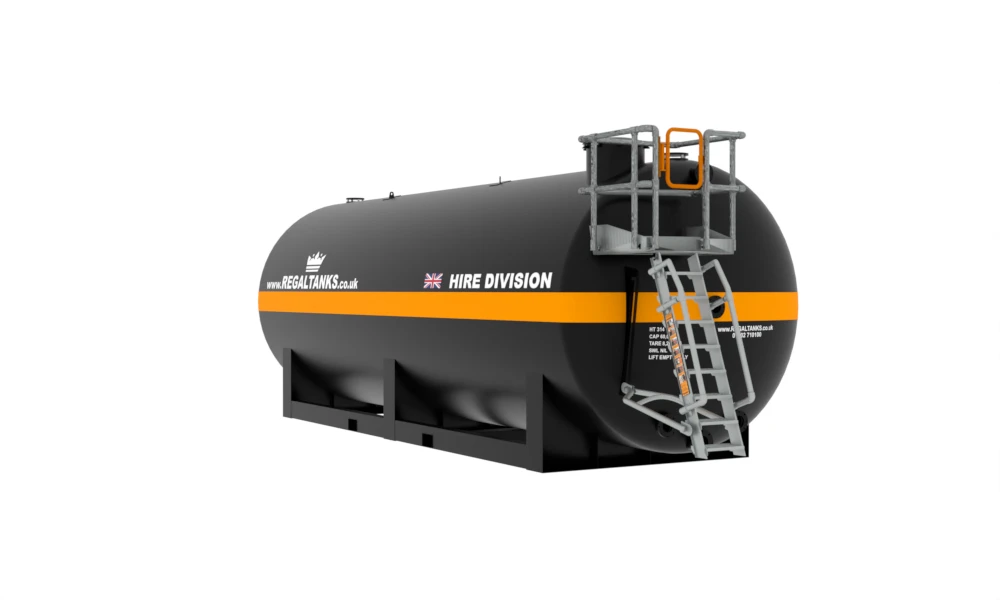

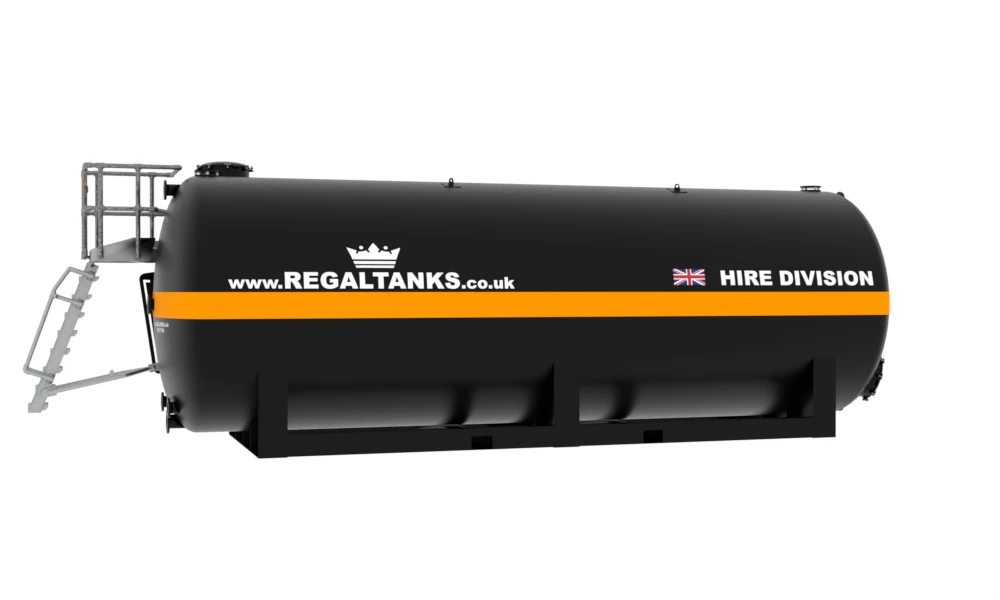

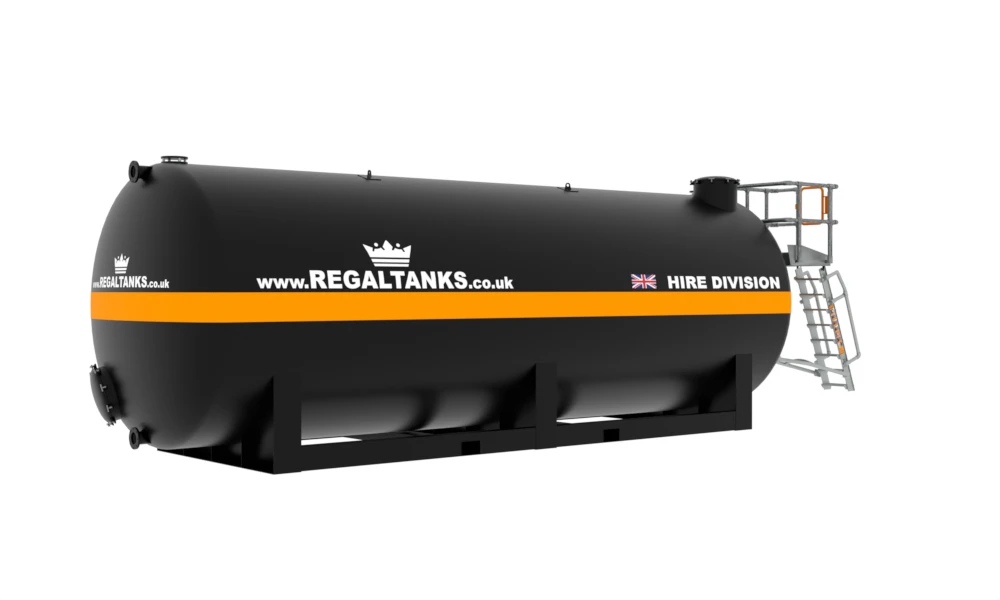

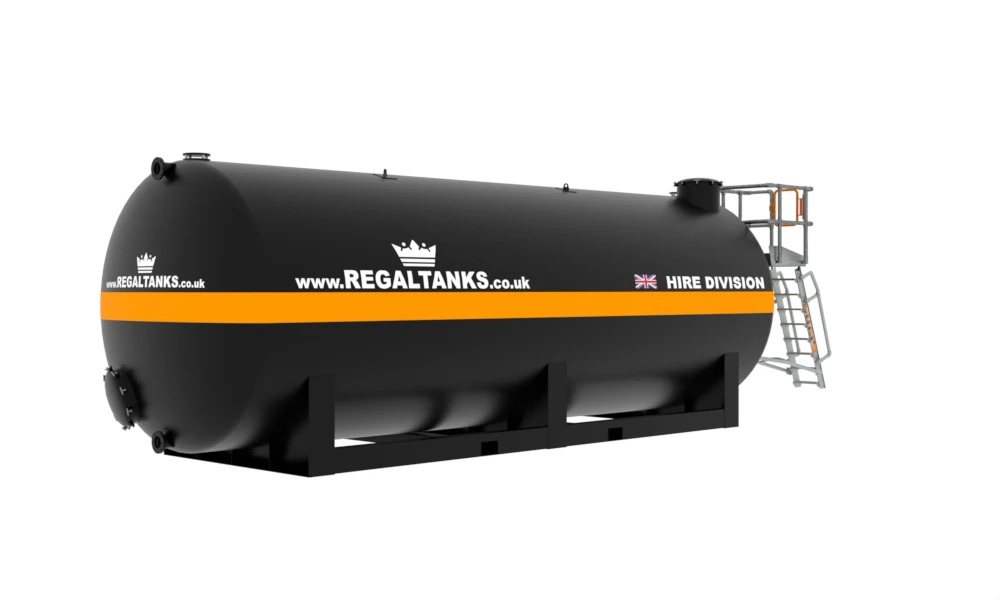

60,000 Litre Horizontal Tanks

Get a quote Get expert advice today

Tank Specification

Lined and unlined liquid storage solutions from a single tank to 1 million litres or more.

Our 60m3 tanks are a cost effective option. Need a different capacity storage tank? We can supply you with 40m3, 60m3, 80m3 and 100m3 storage tanks. Designed to be delivered on standard transport and available for next day delivery - you will save time and money.

Features vary slightly depending on the size of the tank, but all include front, rear and top 6" ANSI flanges, 2 x 600mm quick release manways and are supplied with 3rd party certified LOLER 98 lifting strops.

With safety in mind, our storage tanks are fitted with stairs and access platforms.

Maximum Capacity

60,000 Litres

Material

Mild Steel

Footprint

L: 10,000 mm, W: 3,000 mm, H: 3,340 mm

Weight

8,200kg

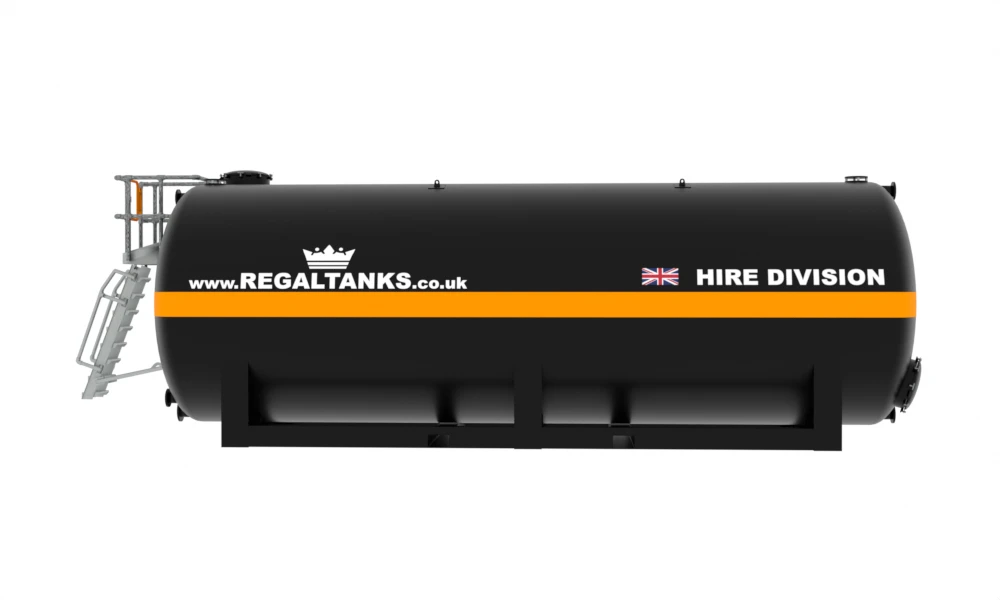

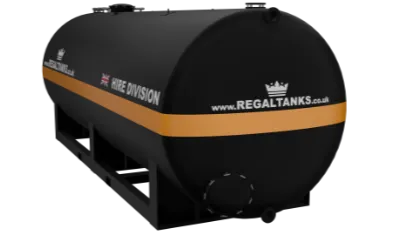

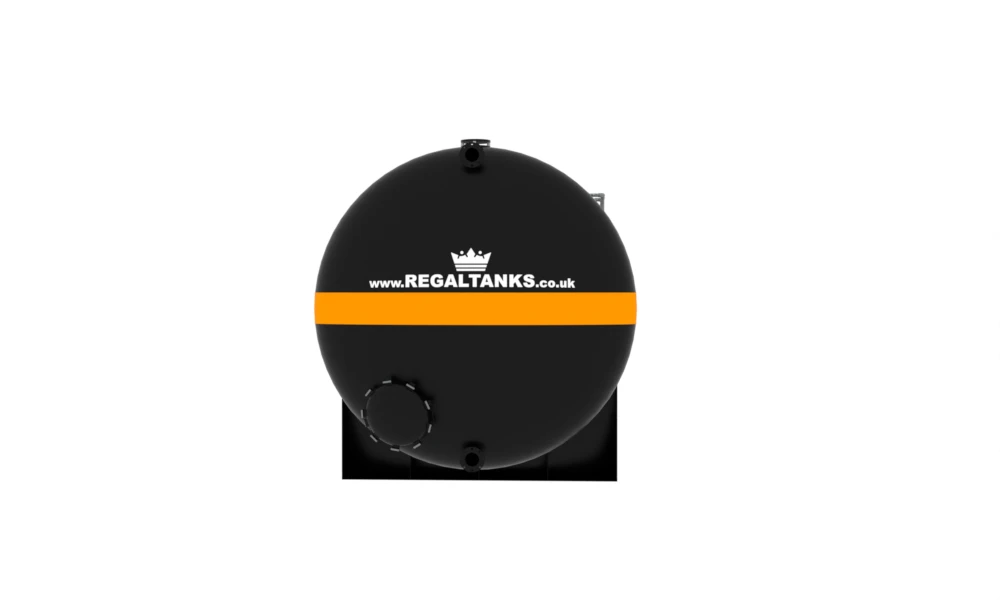

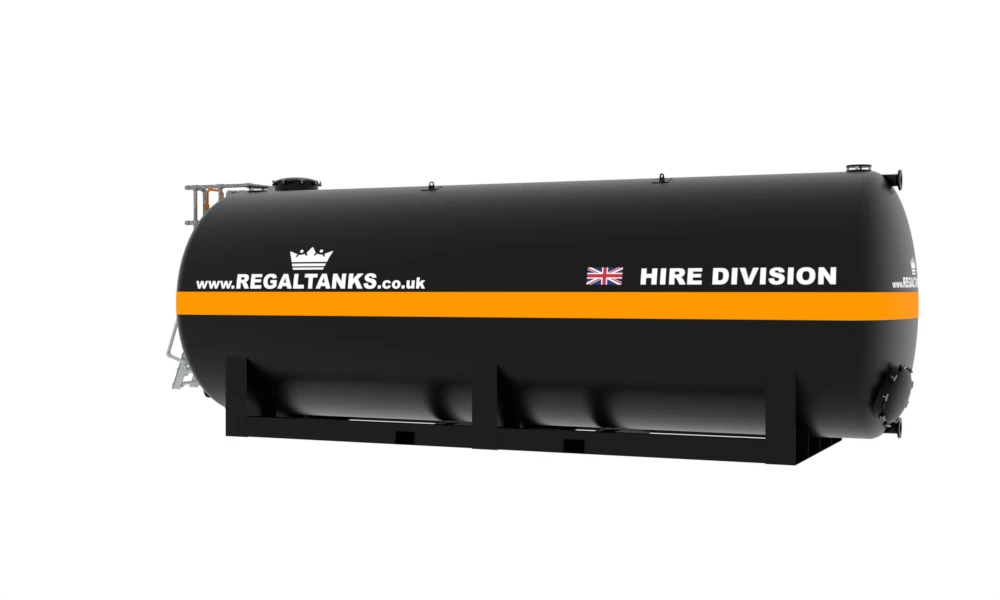

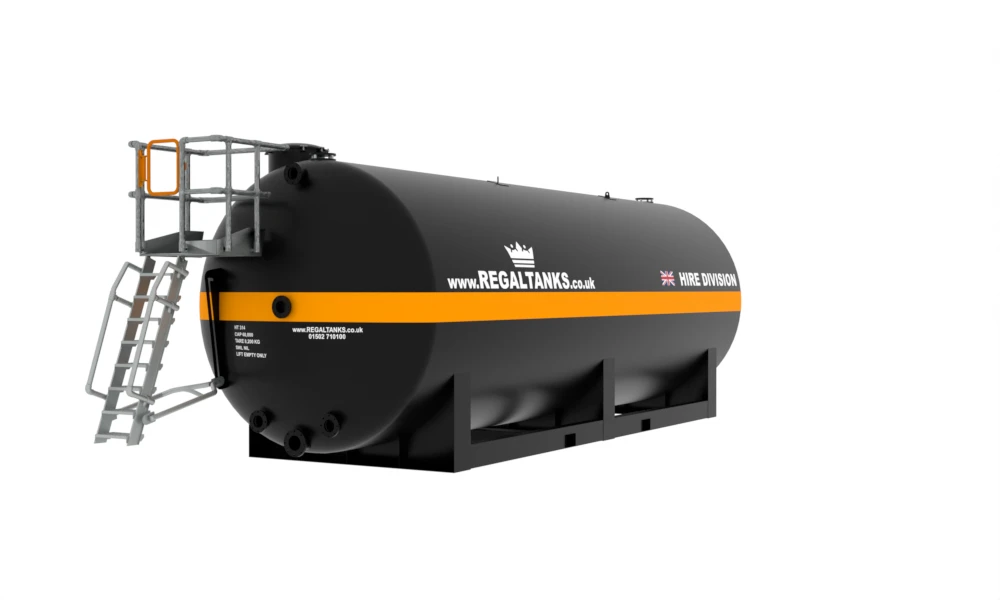

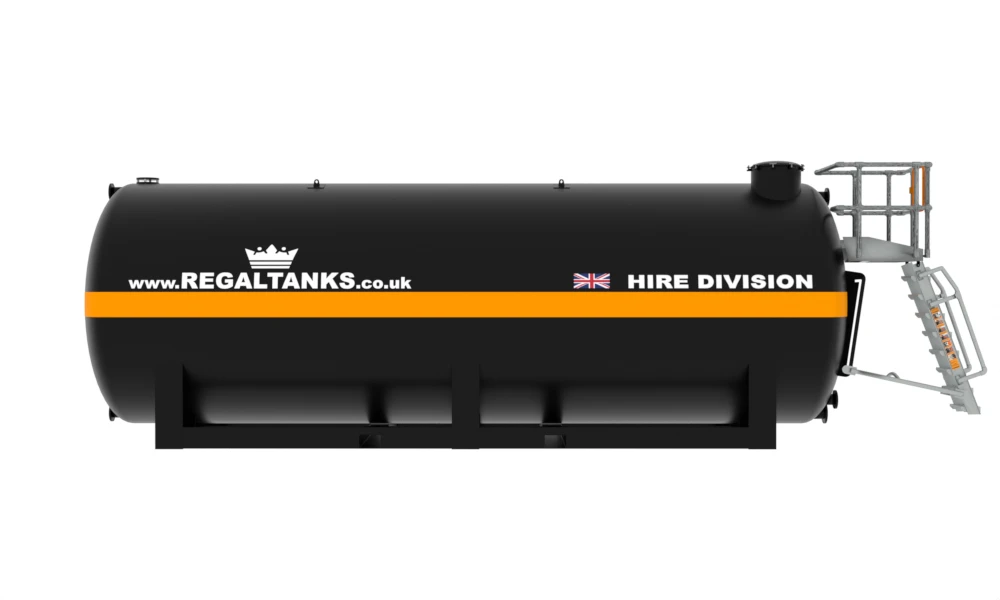

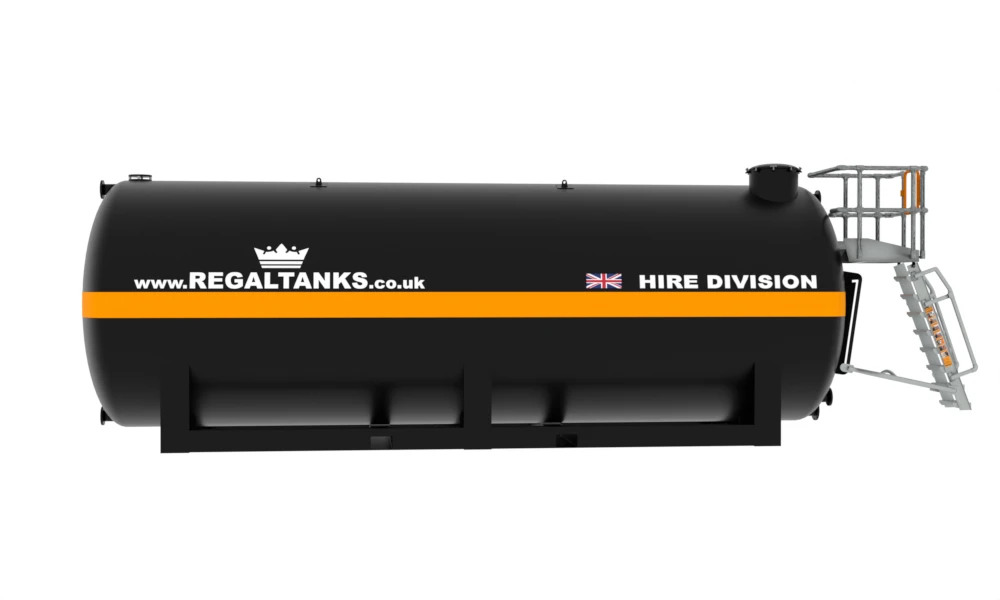

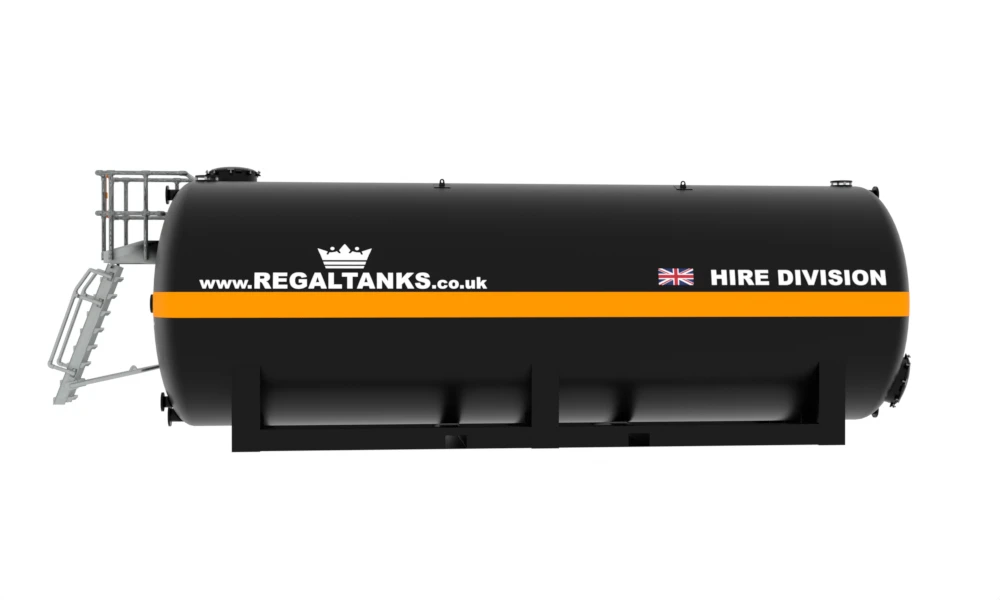

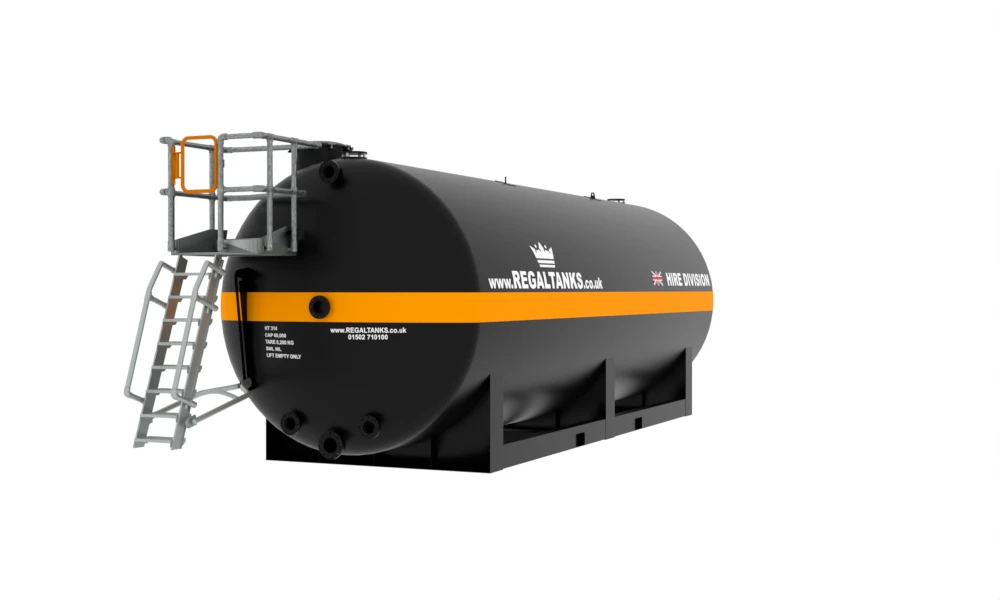

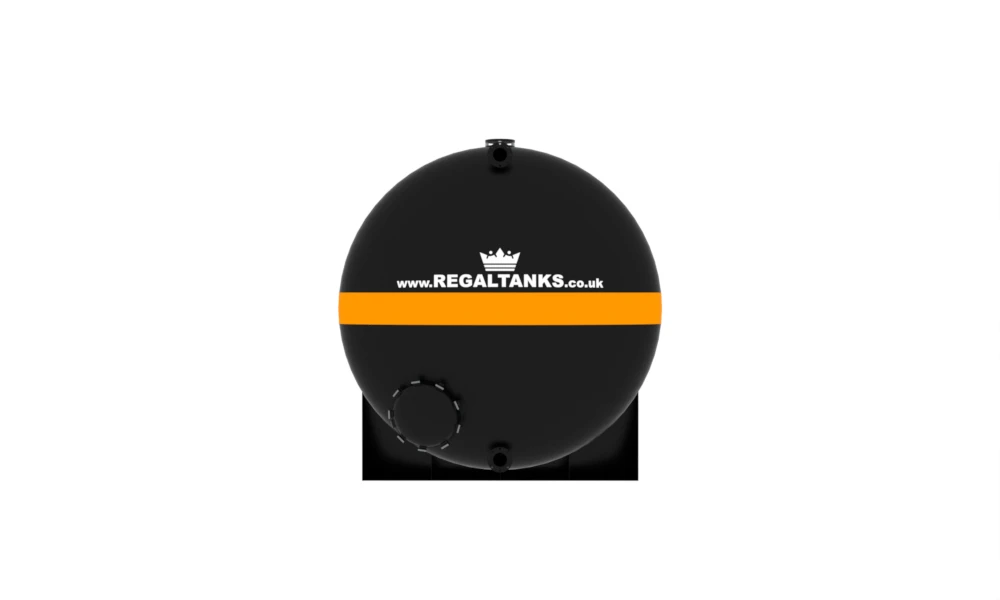

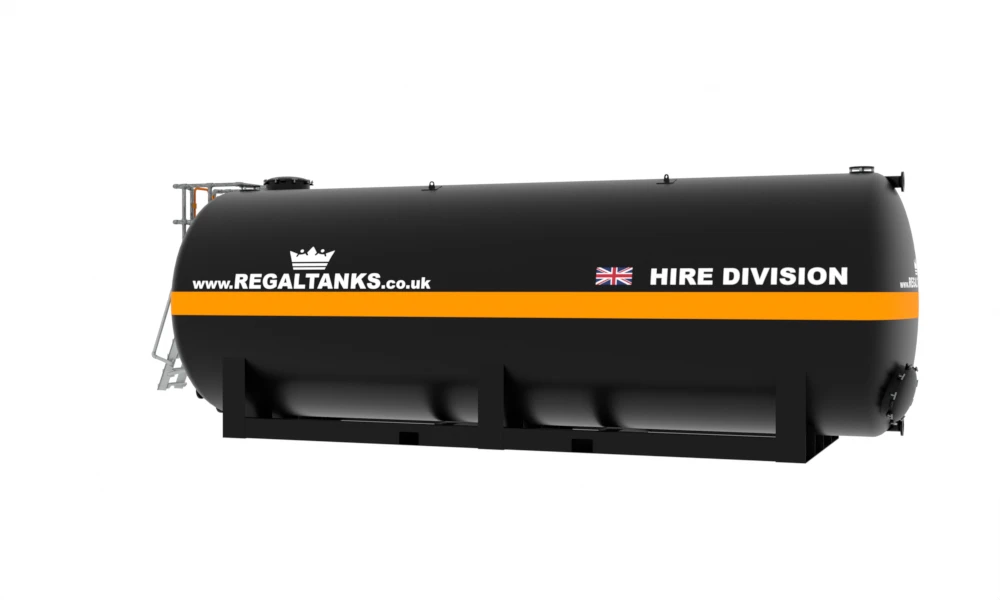

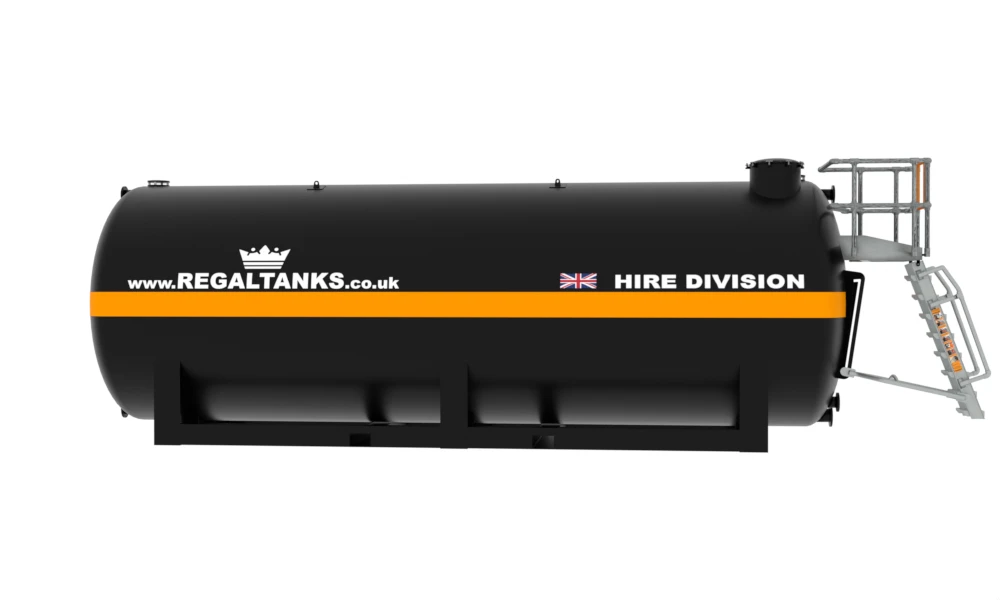

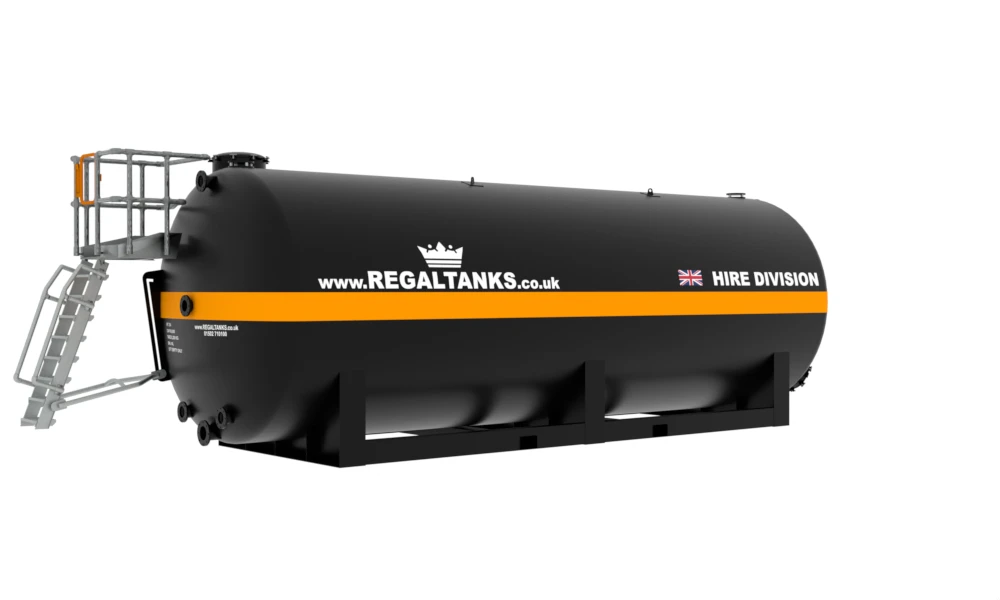

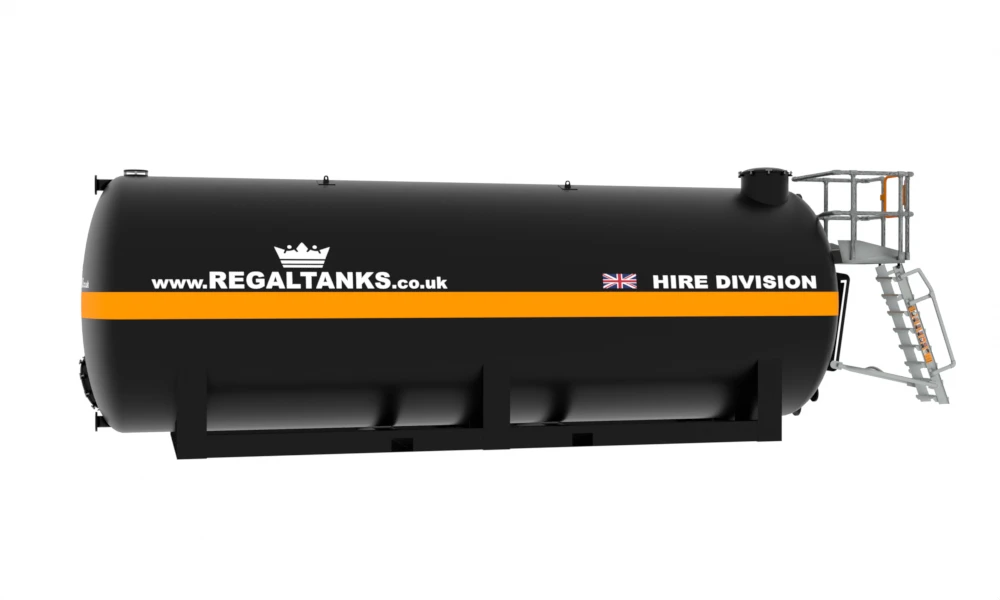

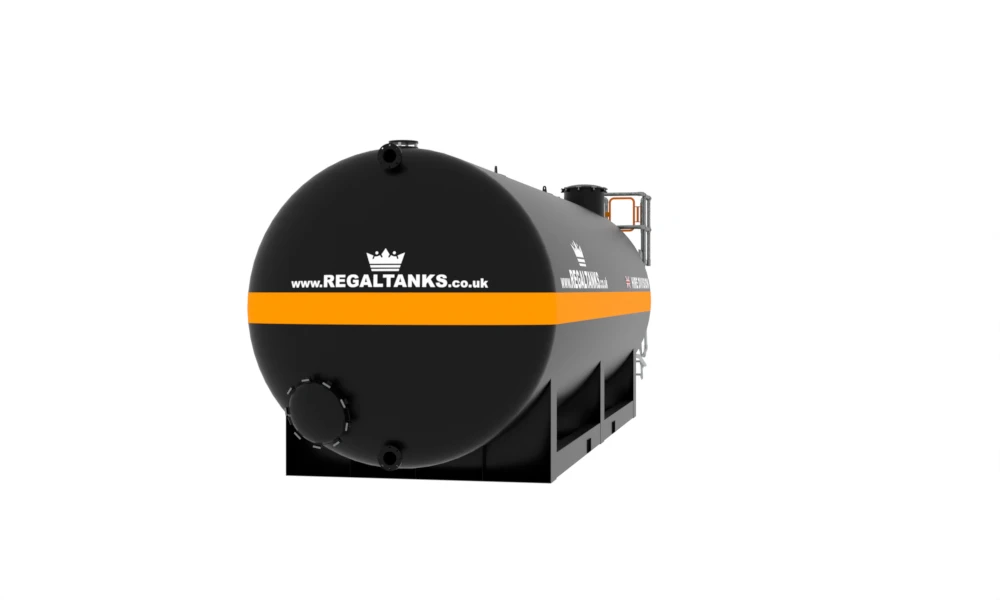

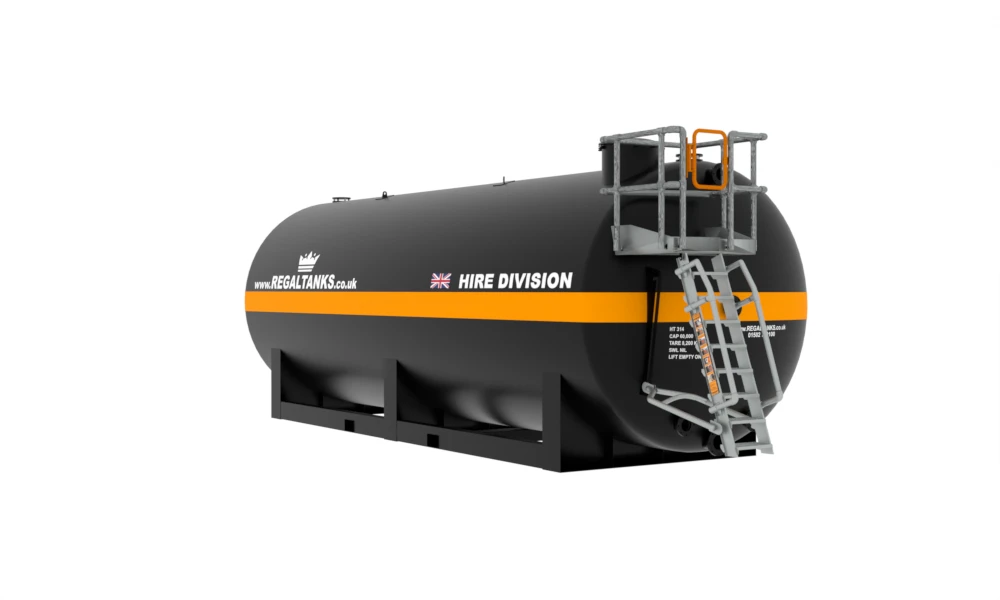

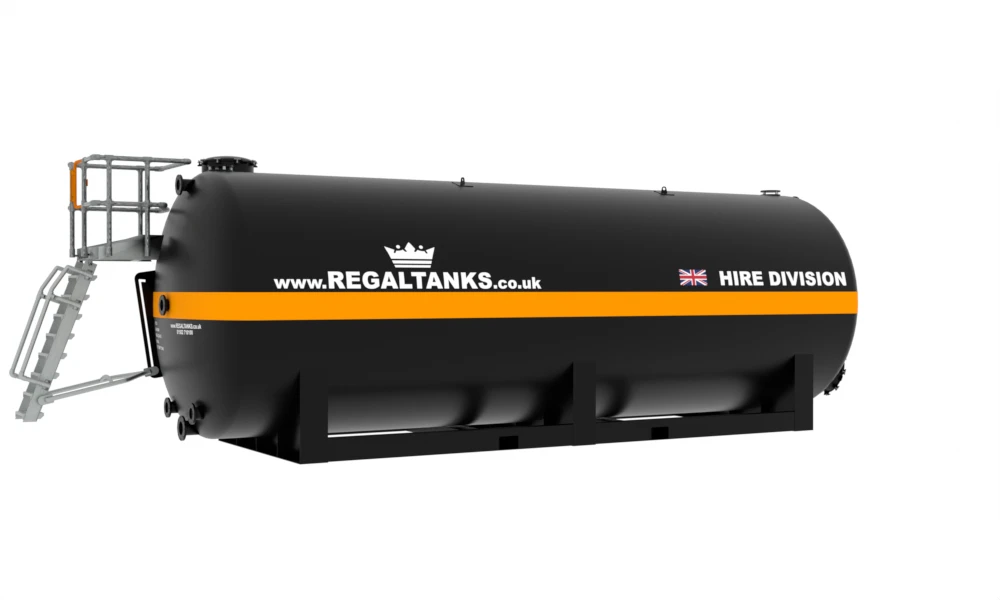

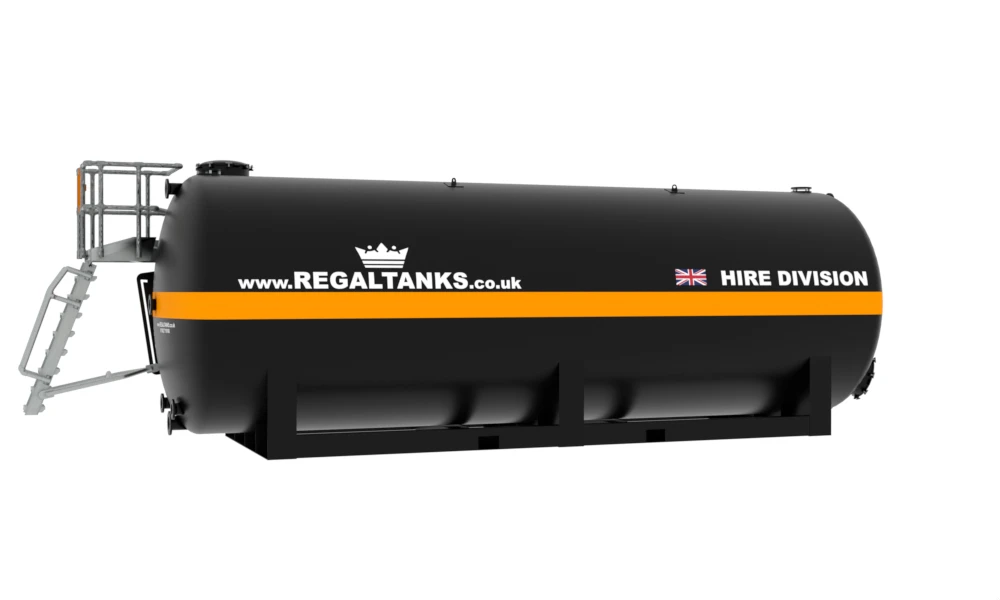

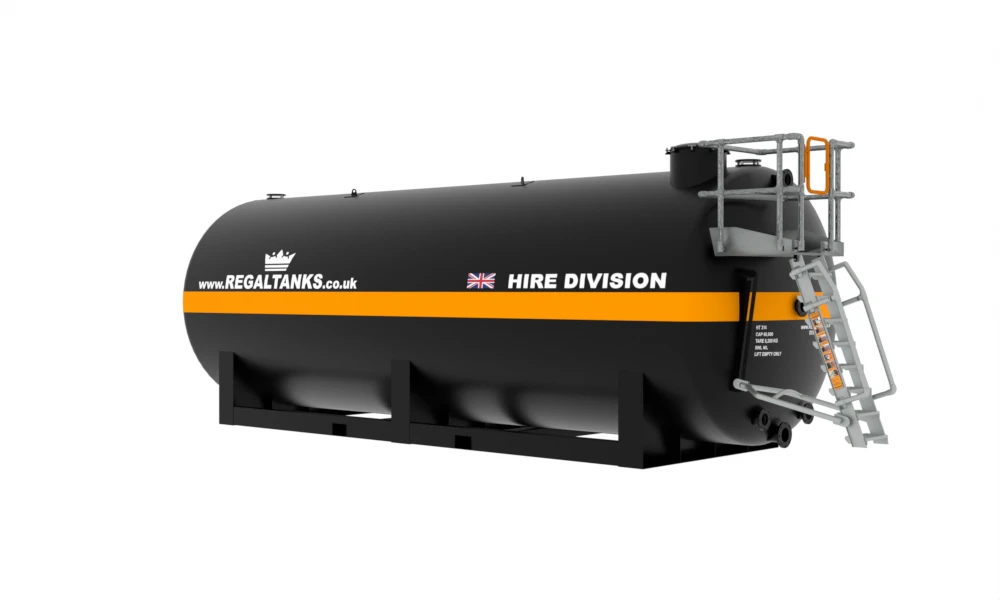

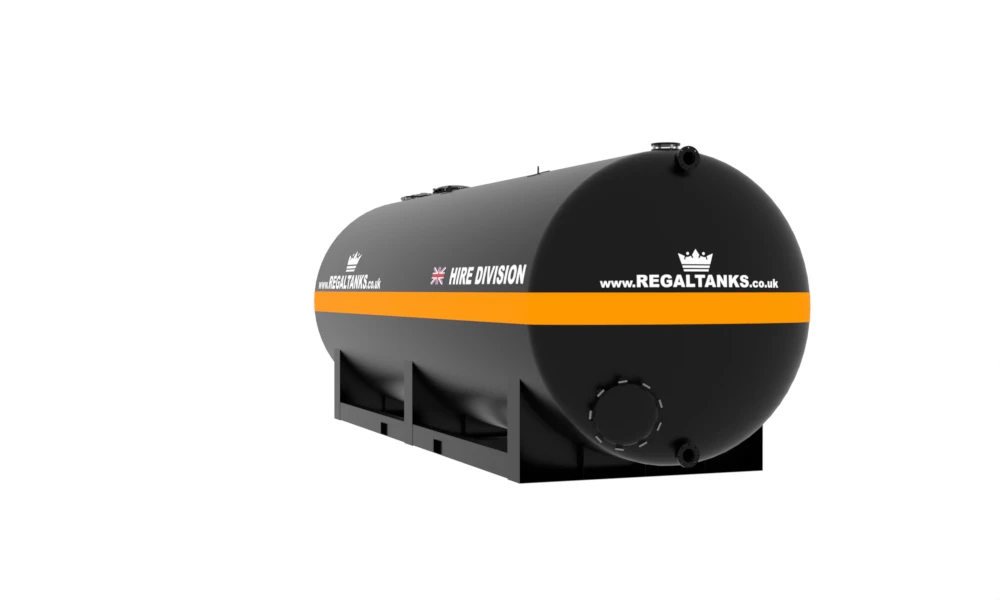

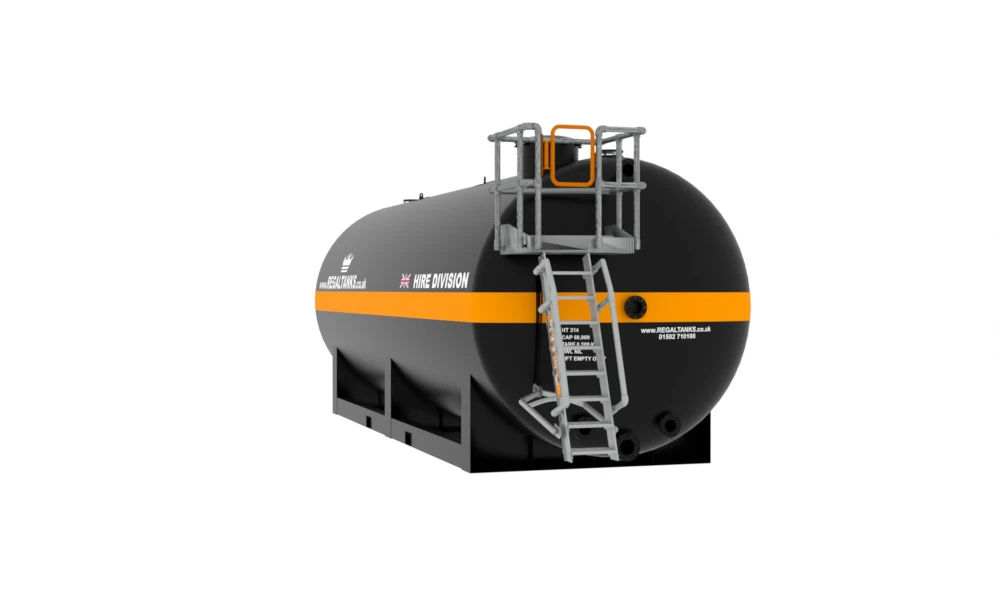

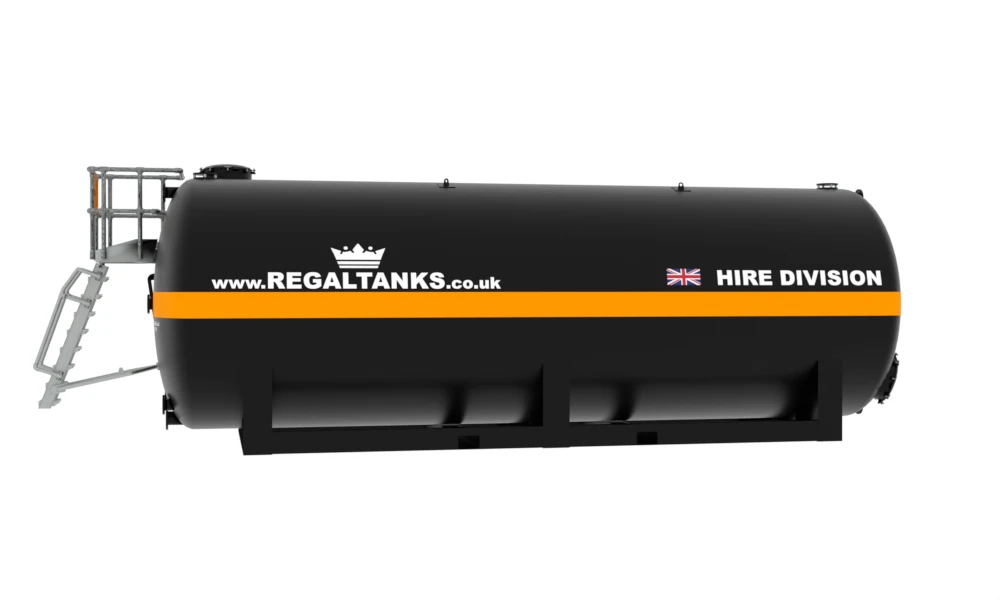

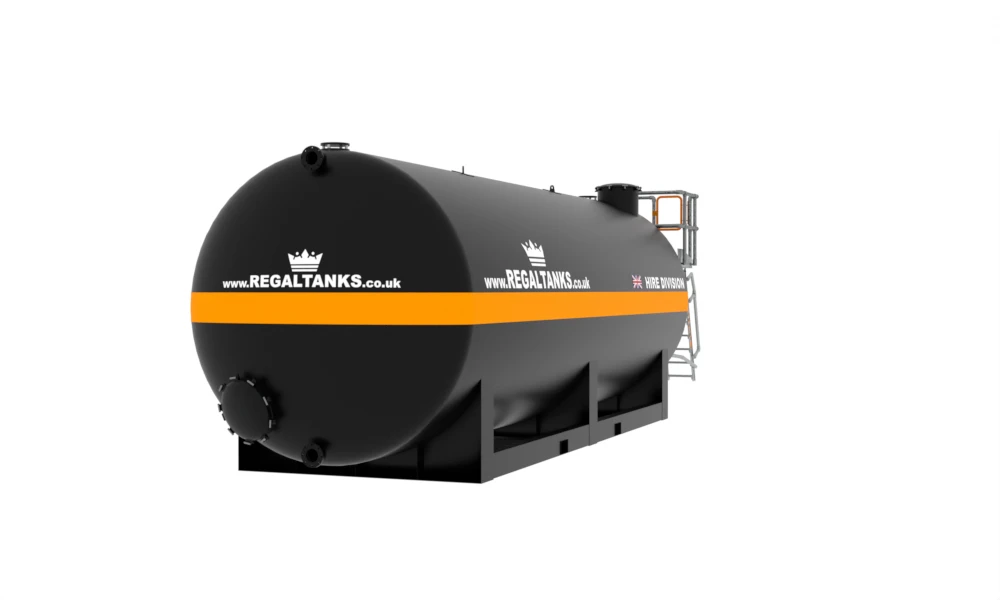

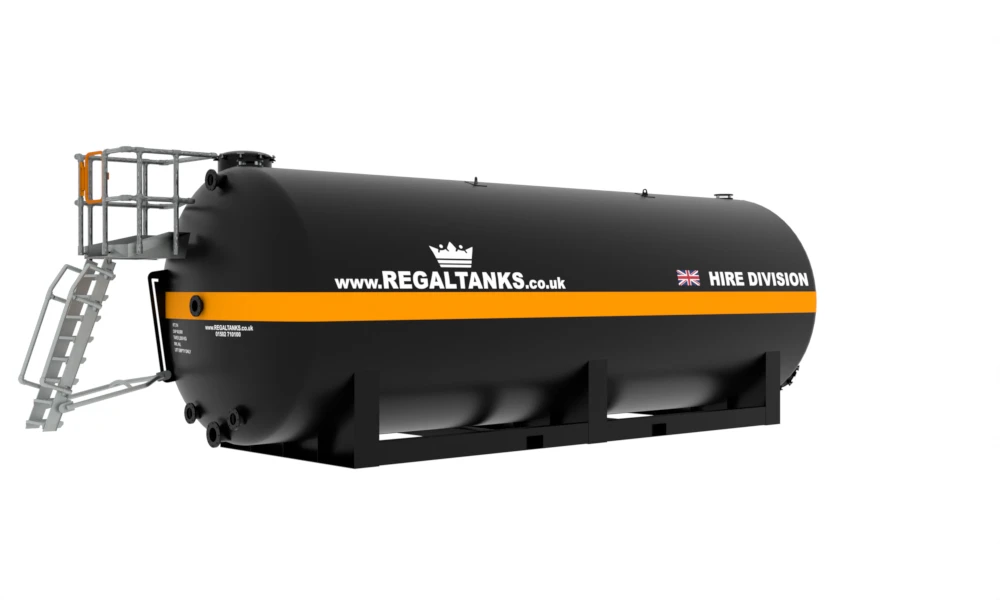

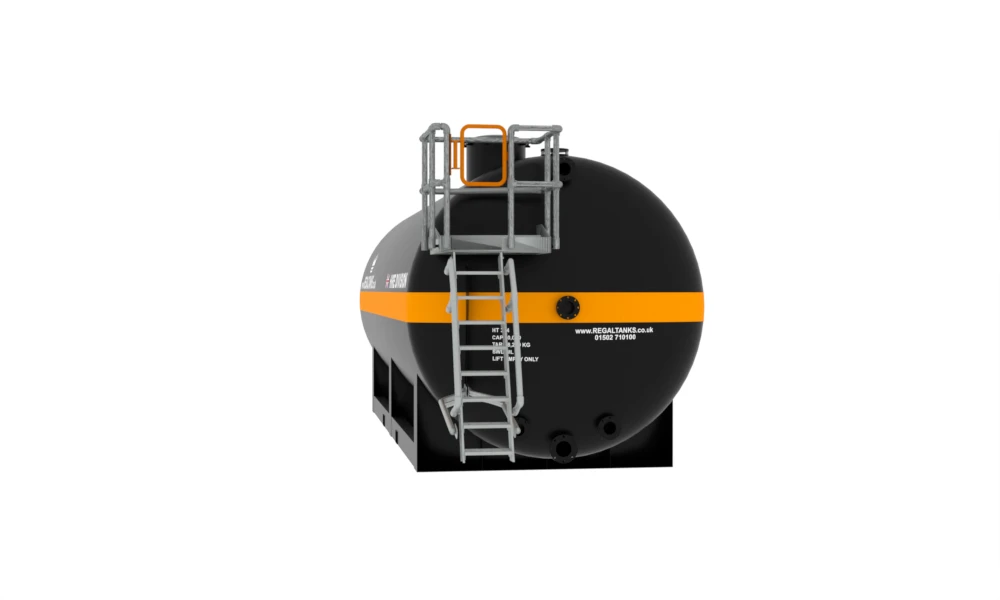

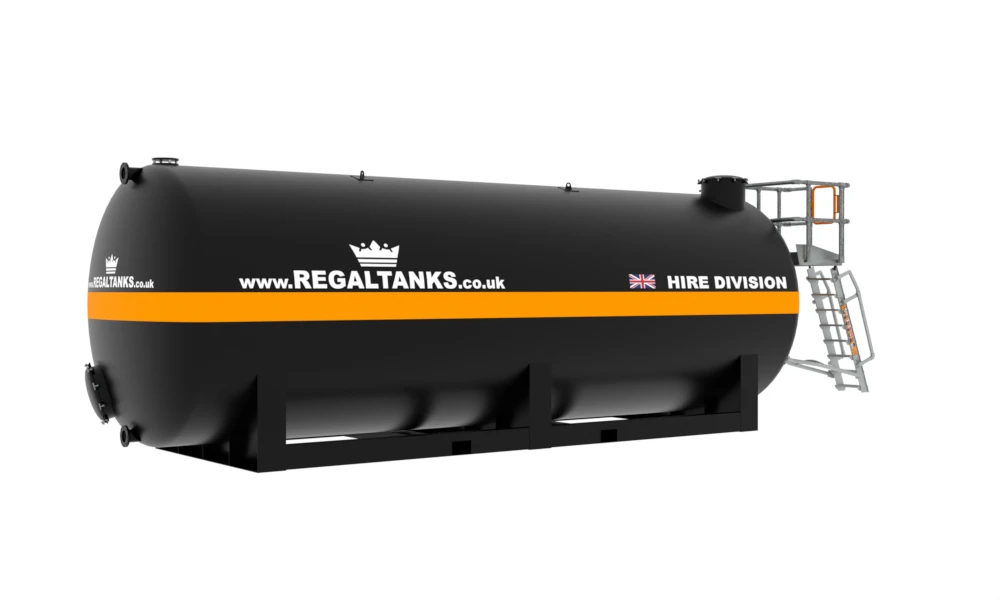

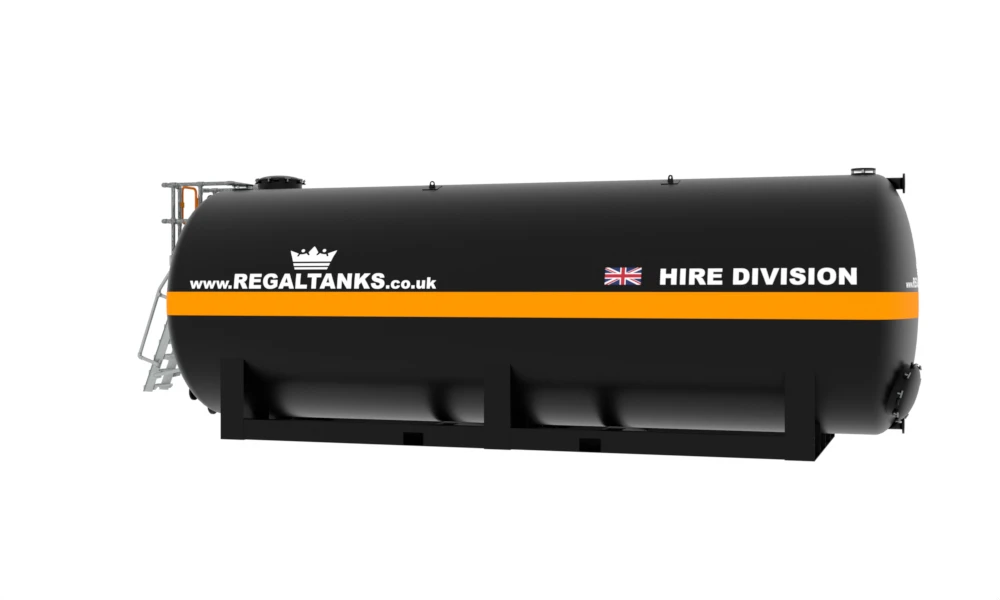

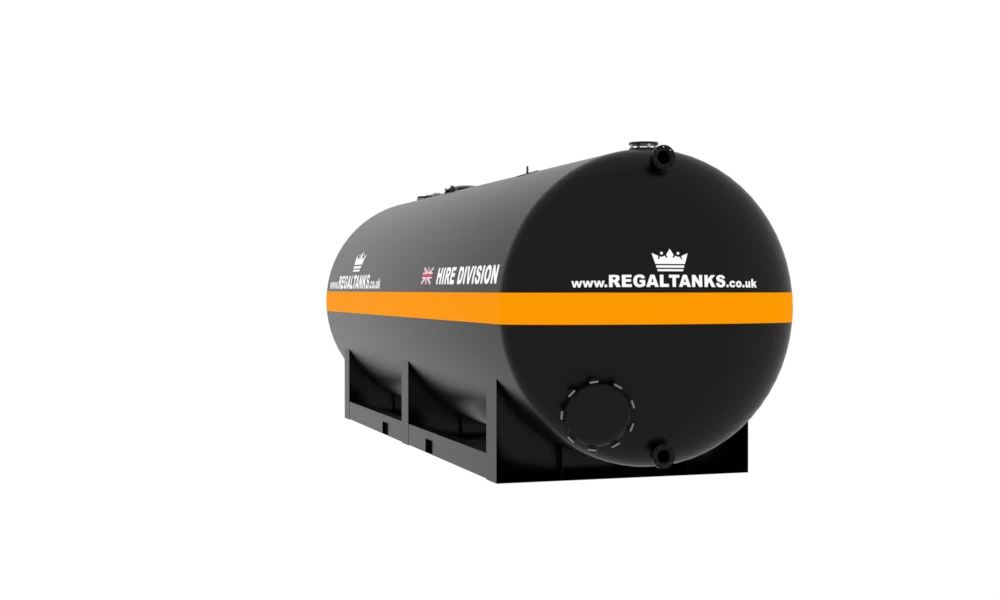

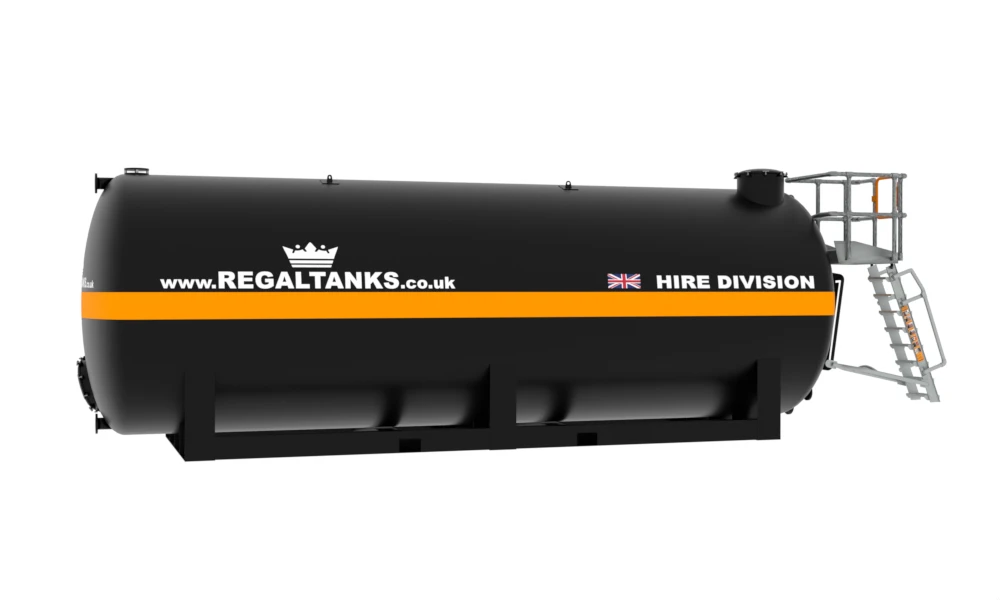

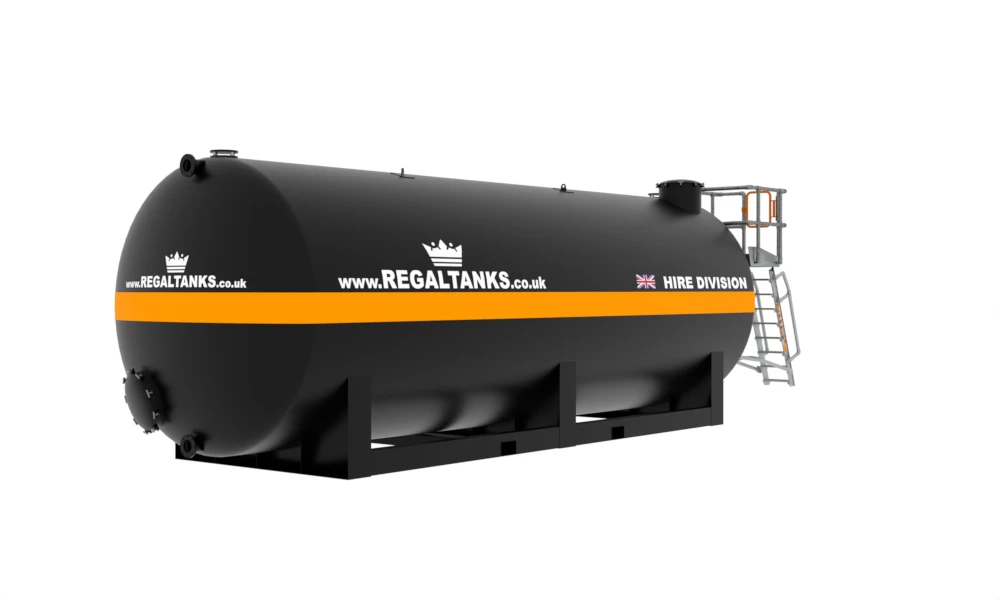

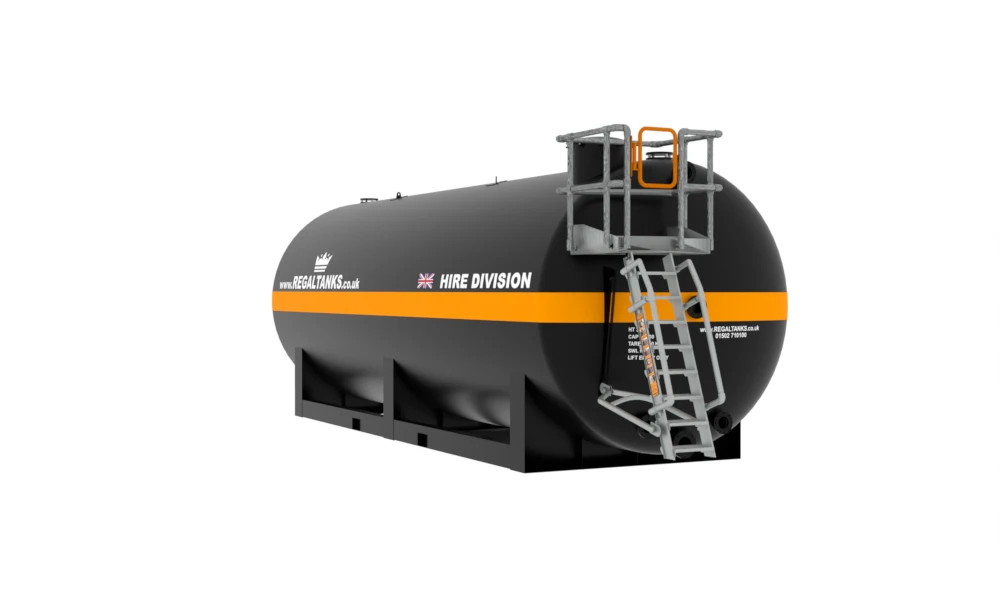

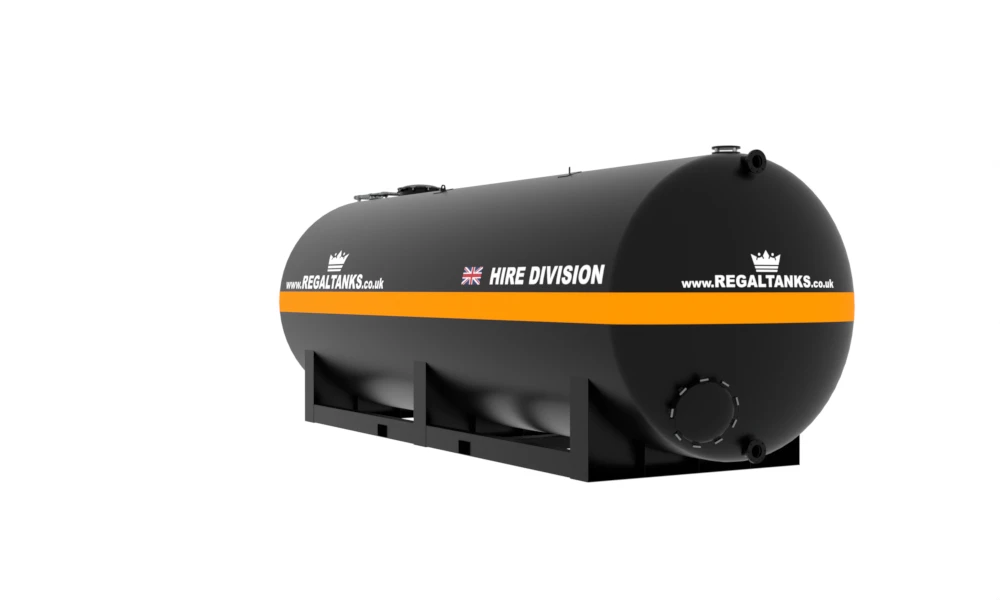

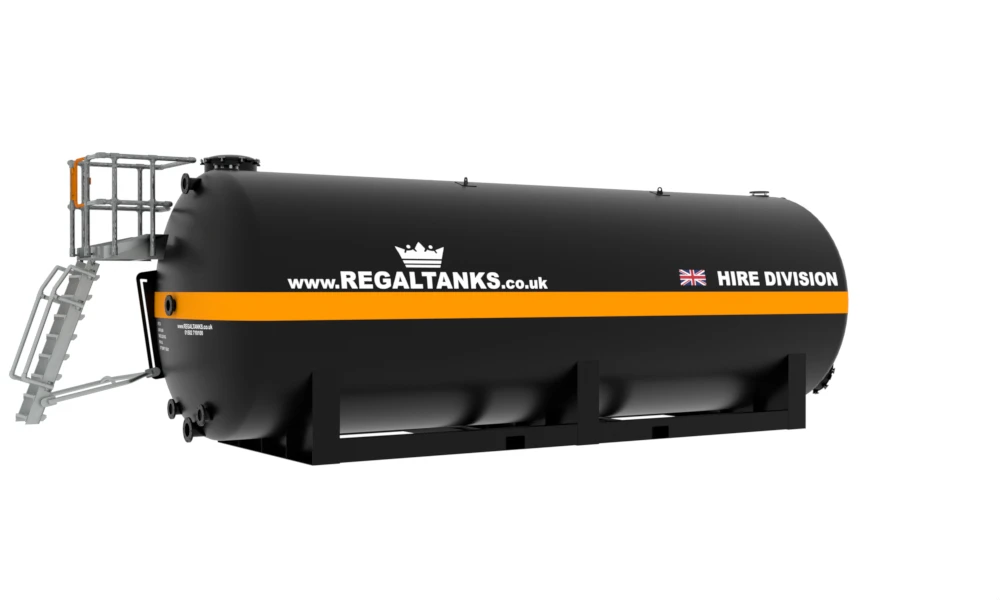

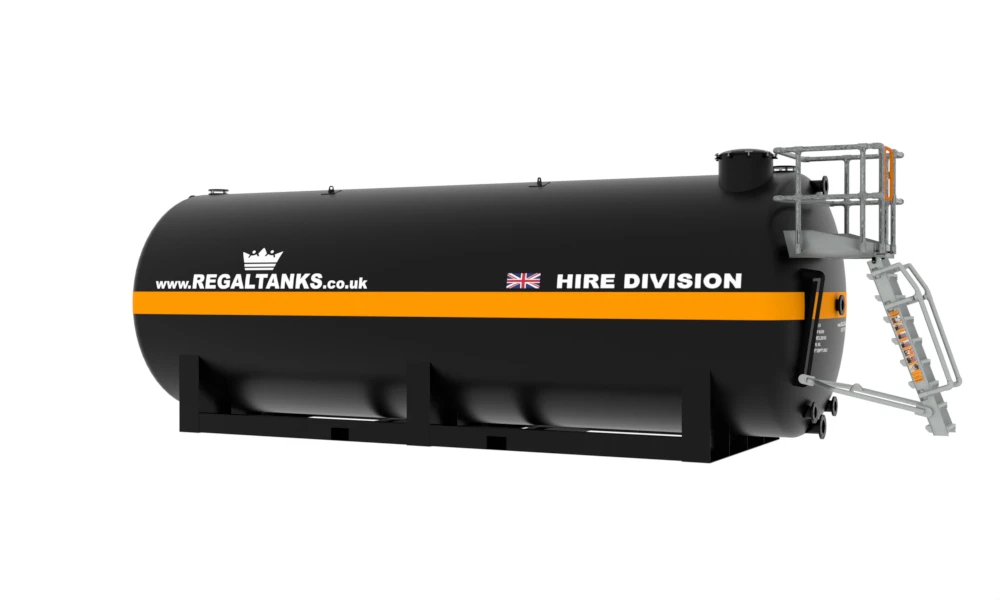

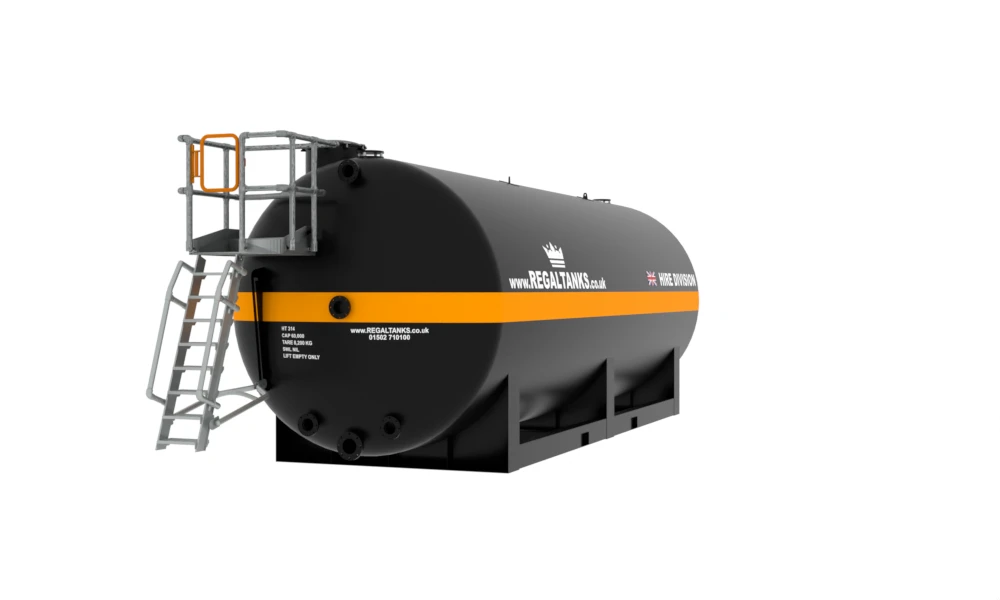

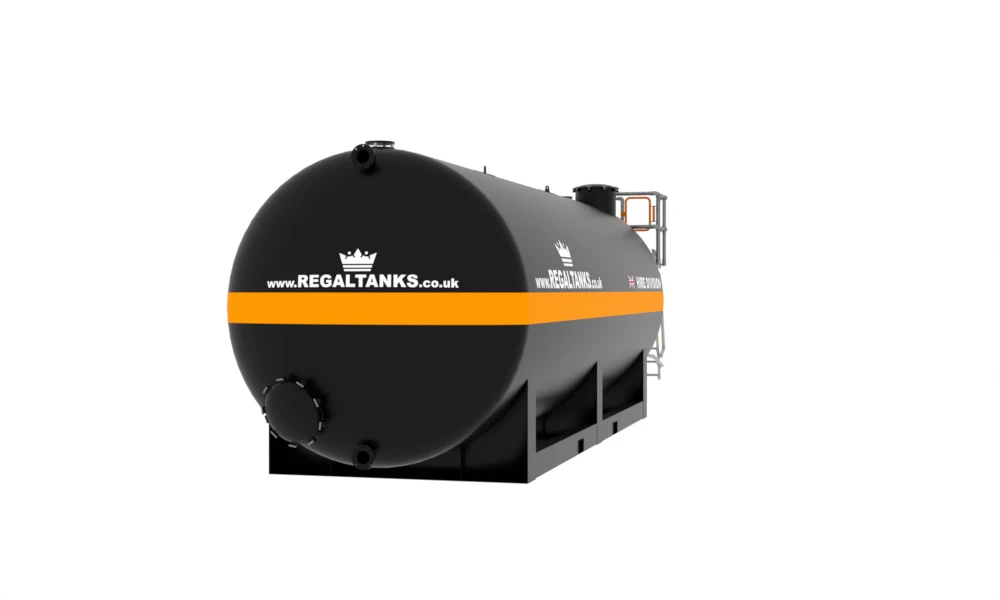

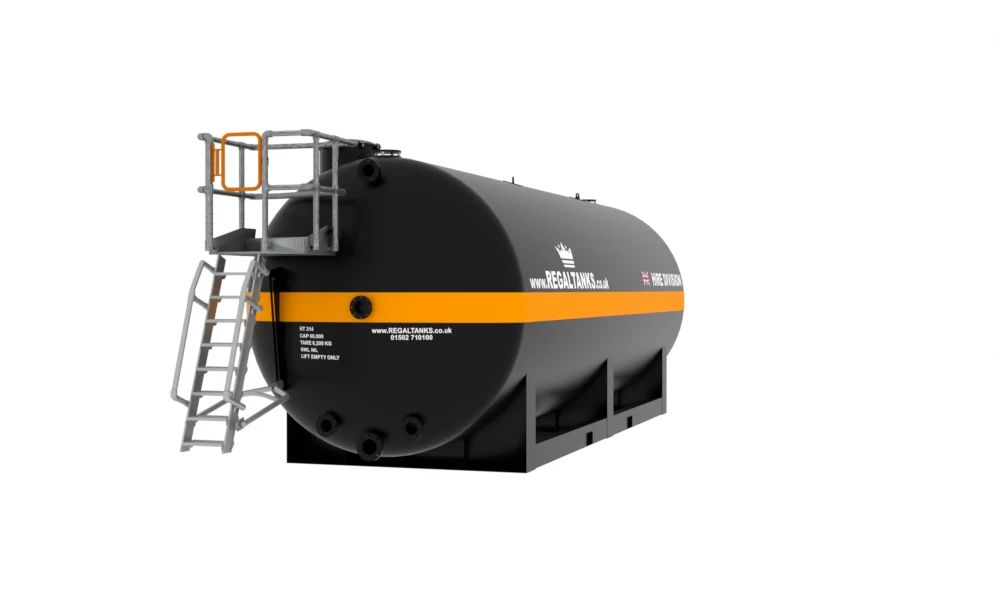

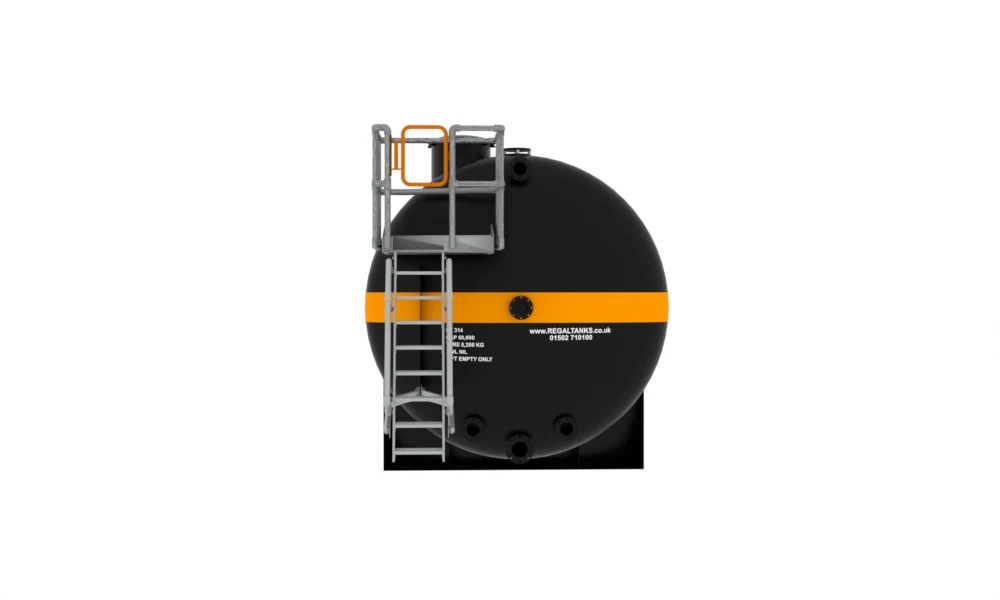

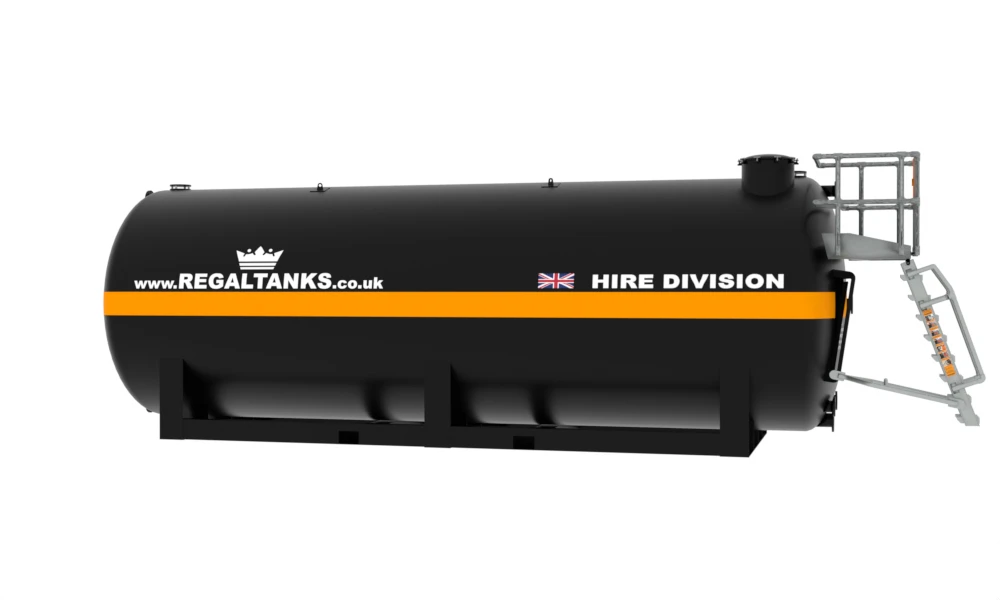

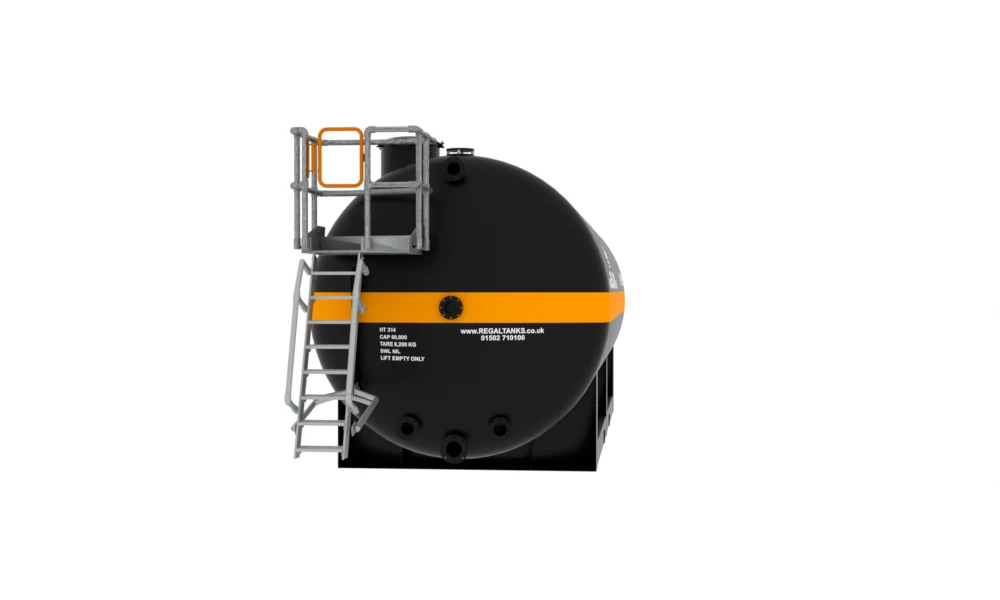

3D Model

Explore in 3D

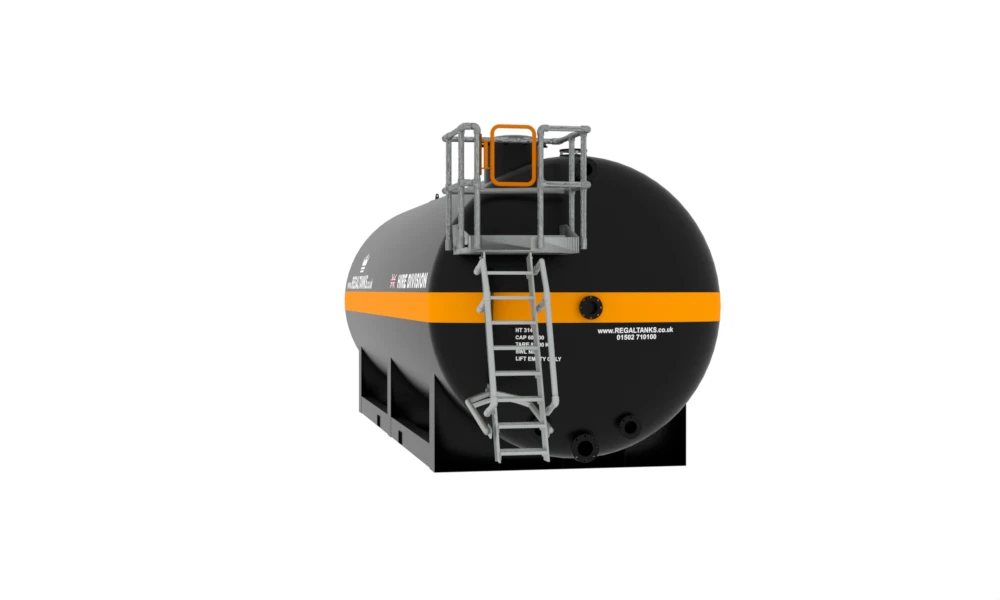

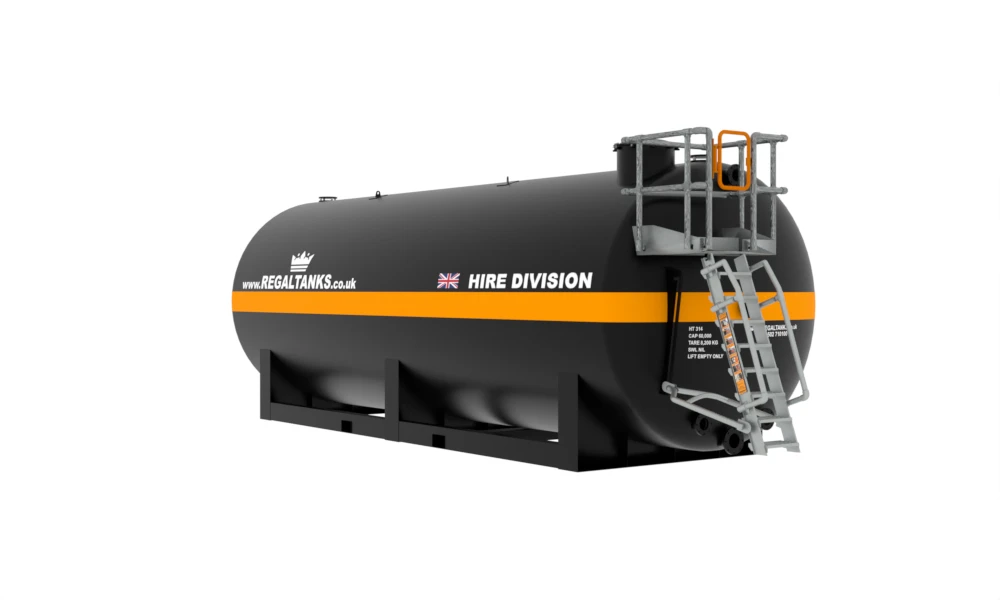

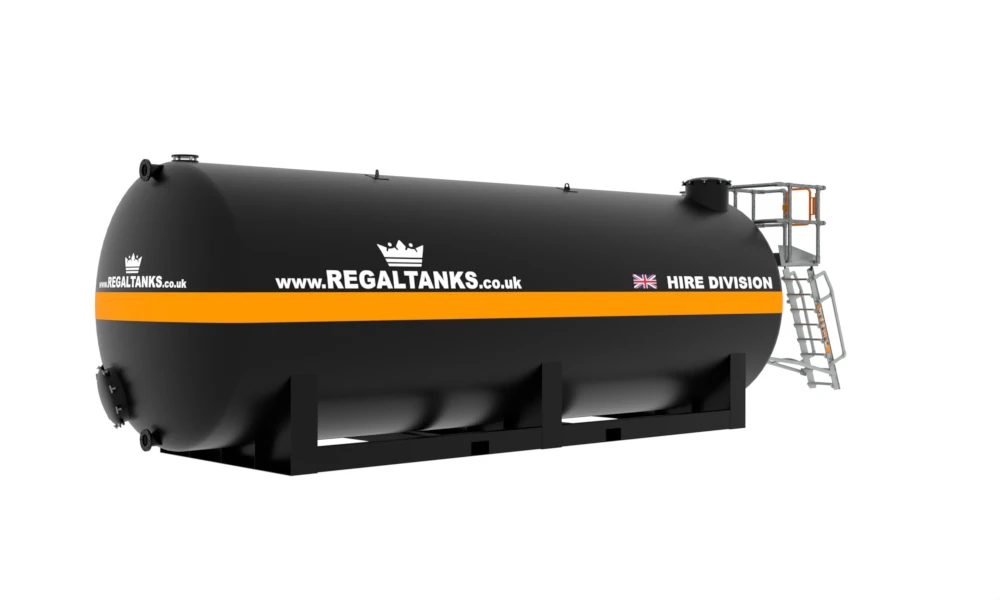

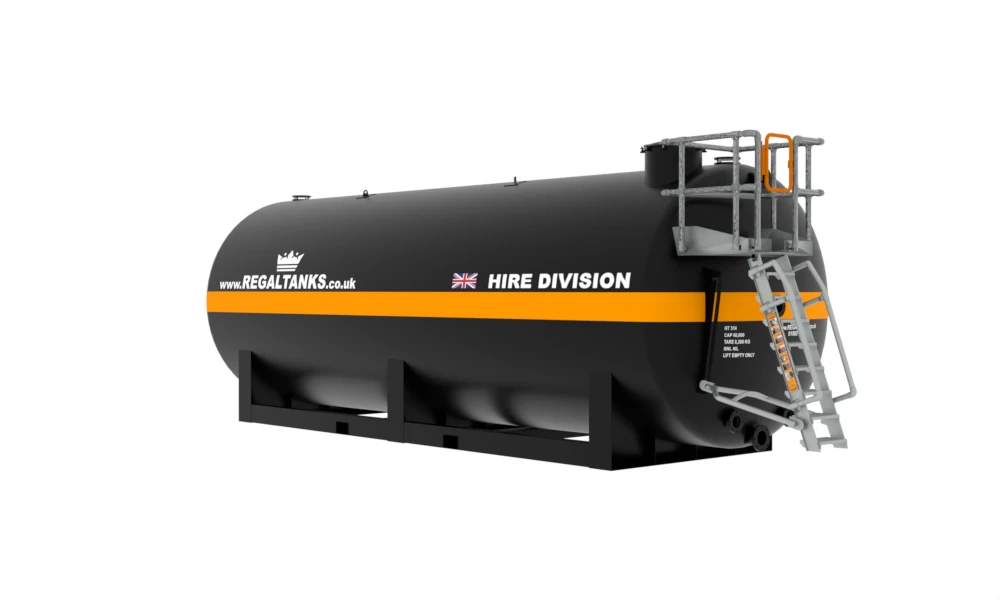

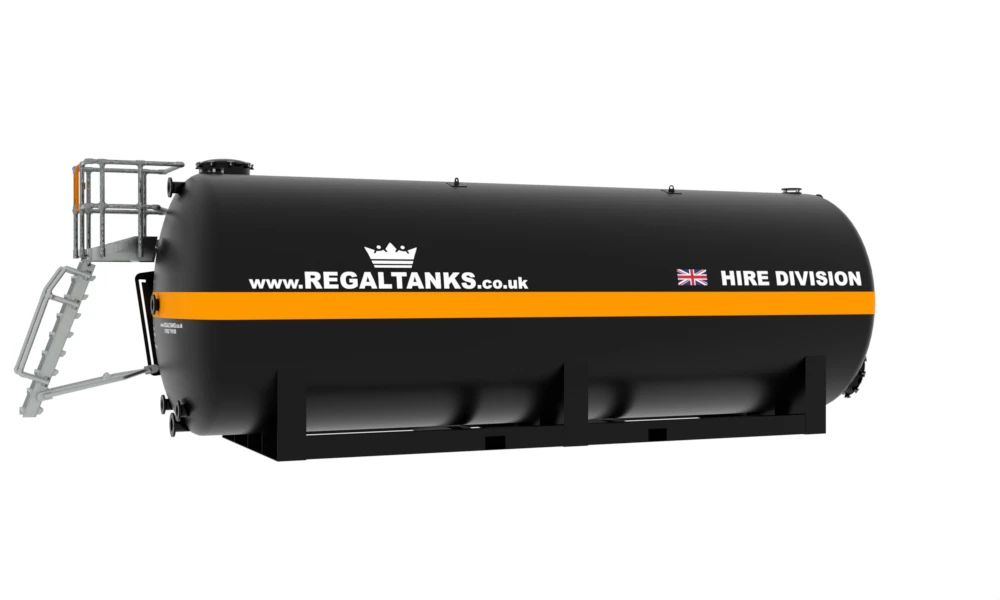

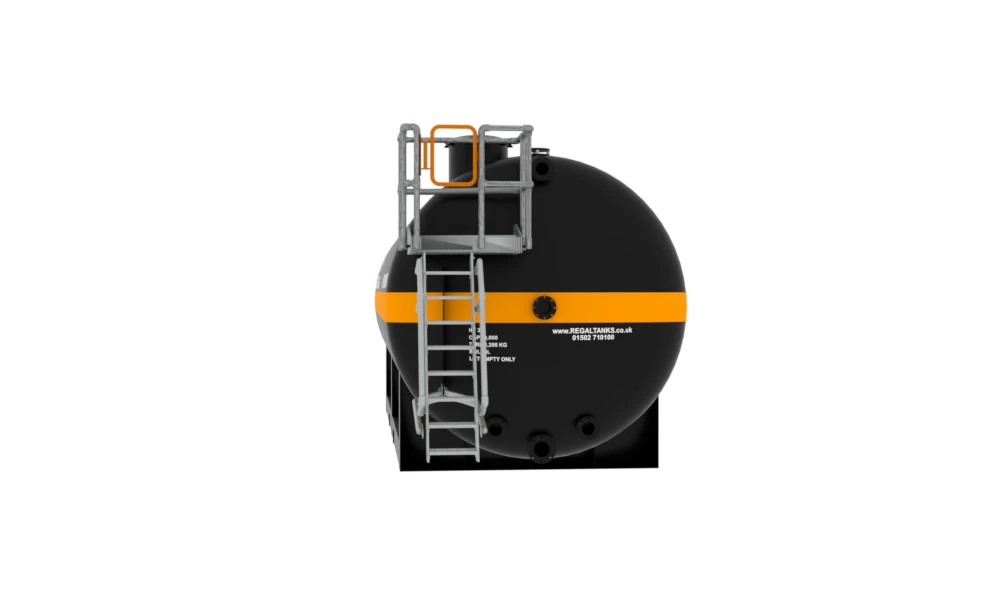

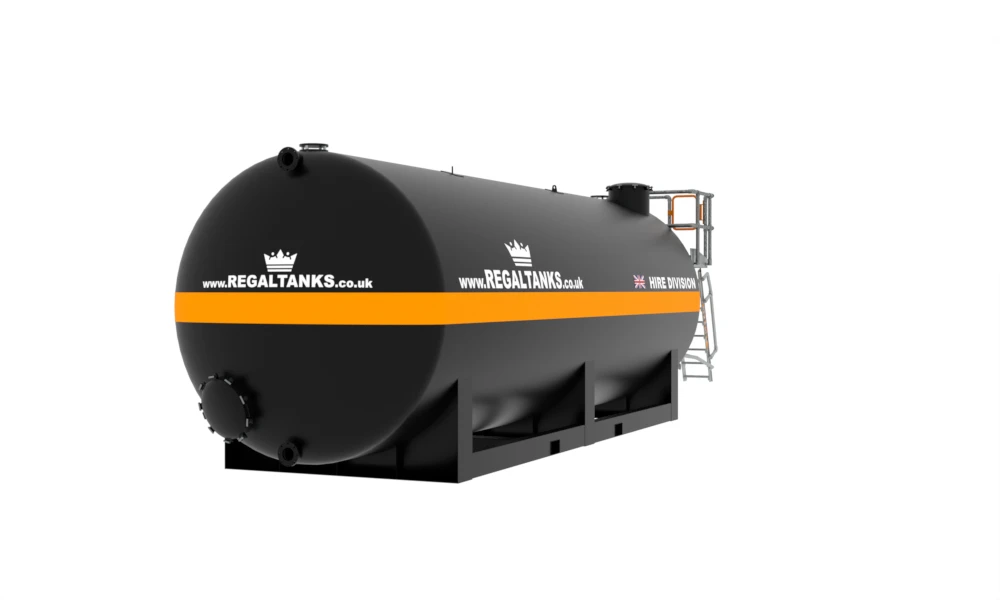

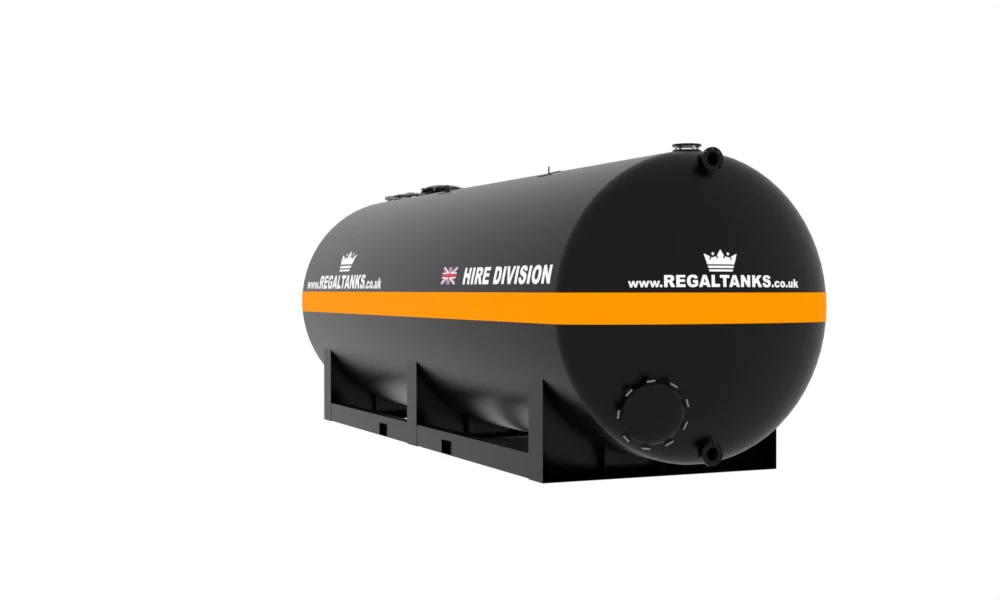

Dive into a detailed, interactive view of our storage tank, examine every angle and feature with our 3D model.

View the 3D model

Standard Fittings

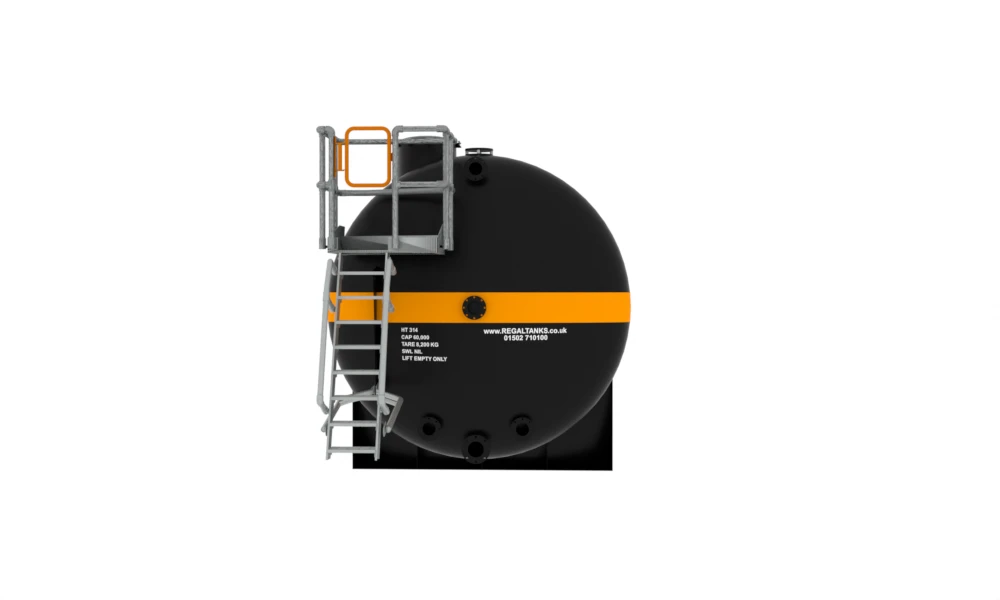

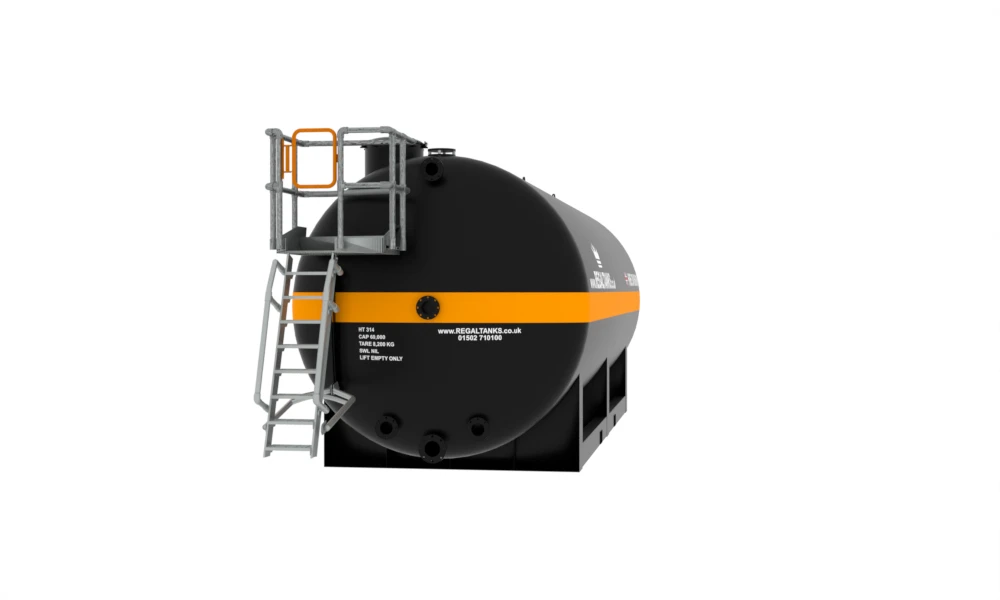

Front
  • 1 x 6" 150# ANSI flanged inlet / outlet
  • 1 x 4" 150# ANSI flanged return / fill
  • 1 x 4" 150# ANSI flanged return / overflow (blinded)
  • 2 x 4" 150# ANSI flanged blinded – to accept optional 3" steam coil
  • 1" Visual site tube with stop valve

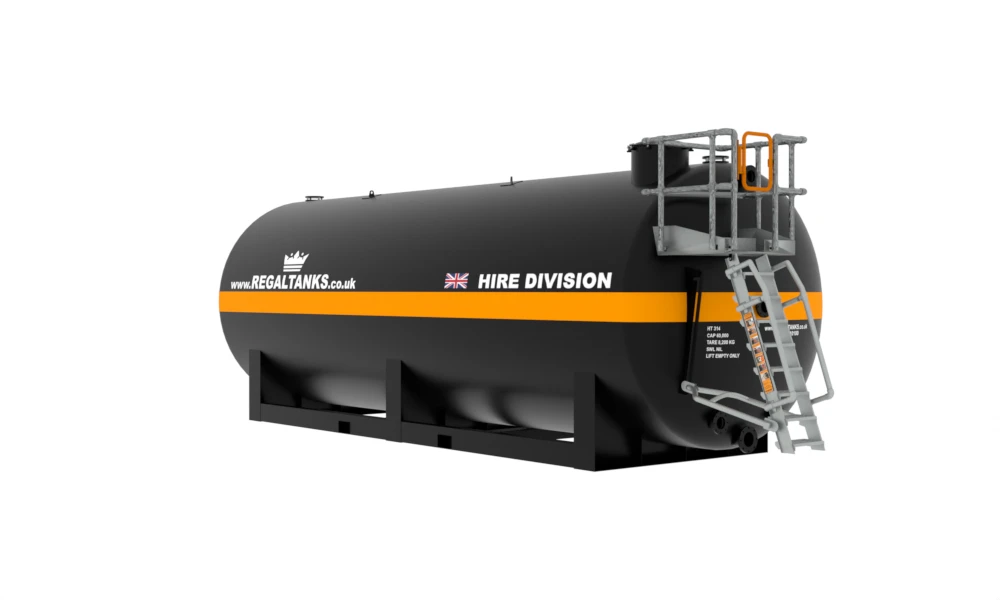

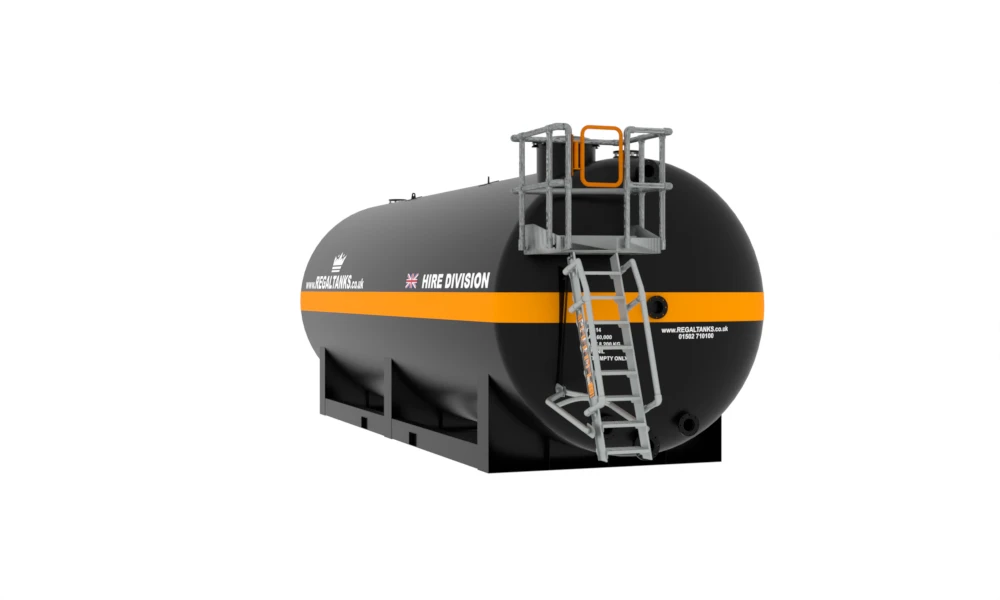

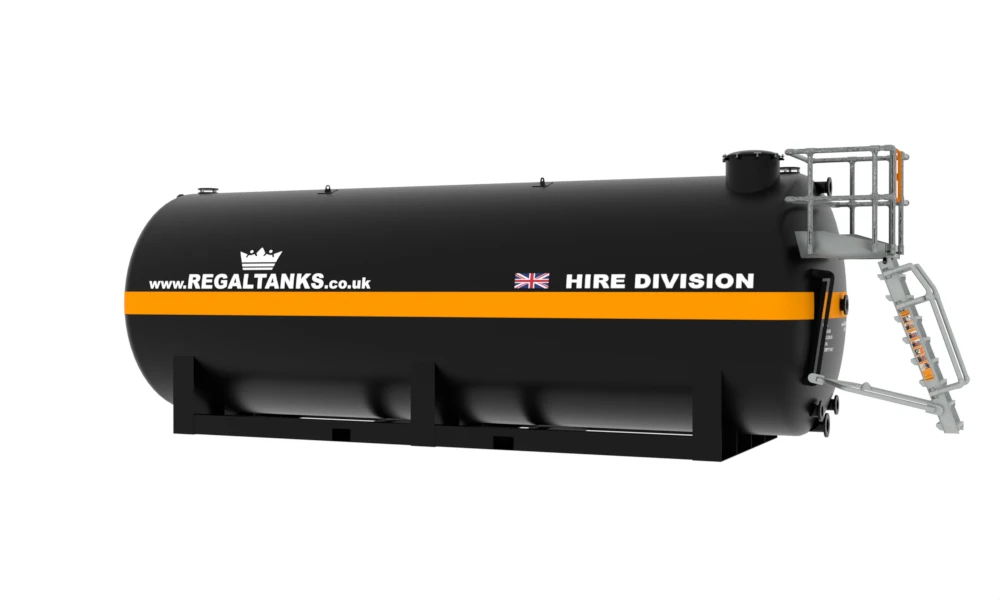

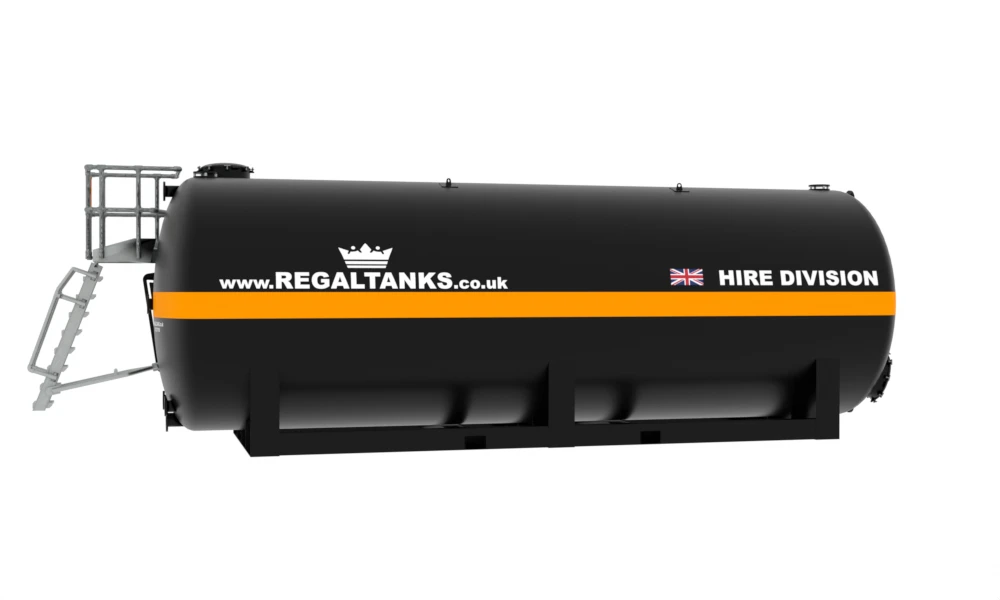

  • Stairs and access platform

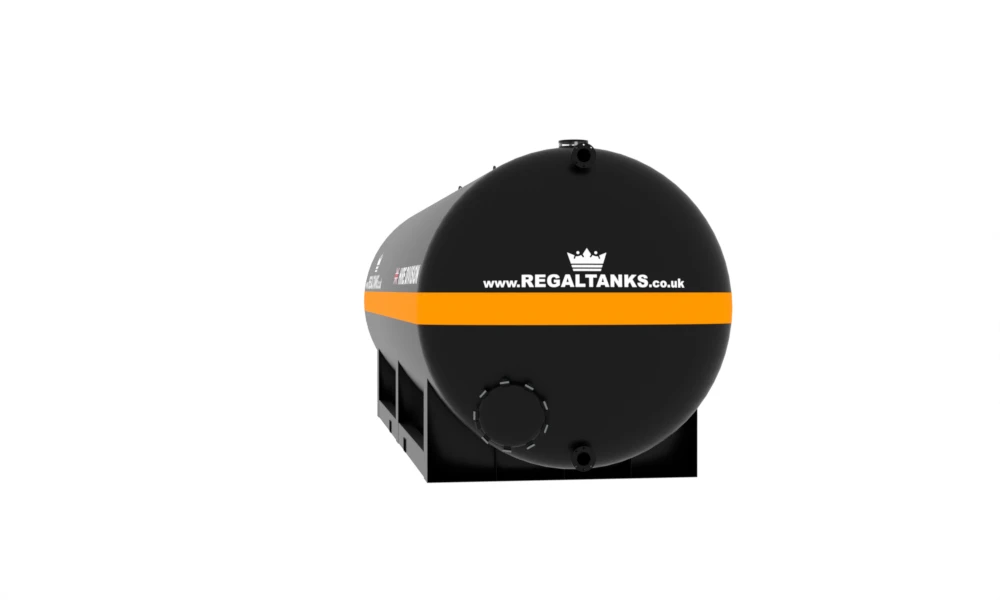

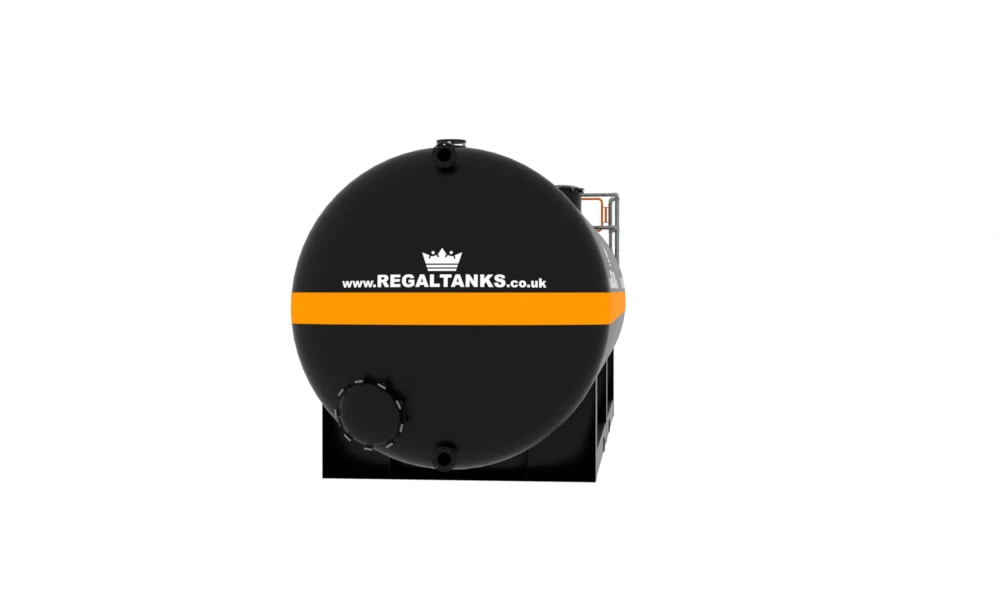

Rear

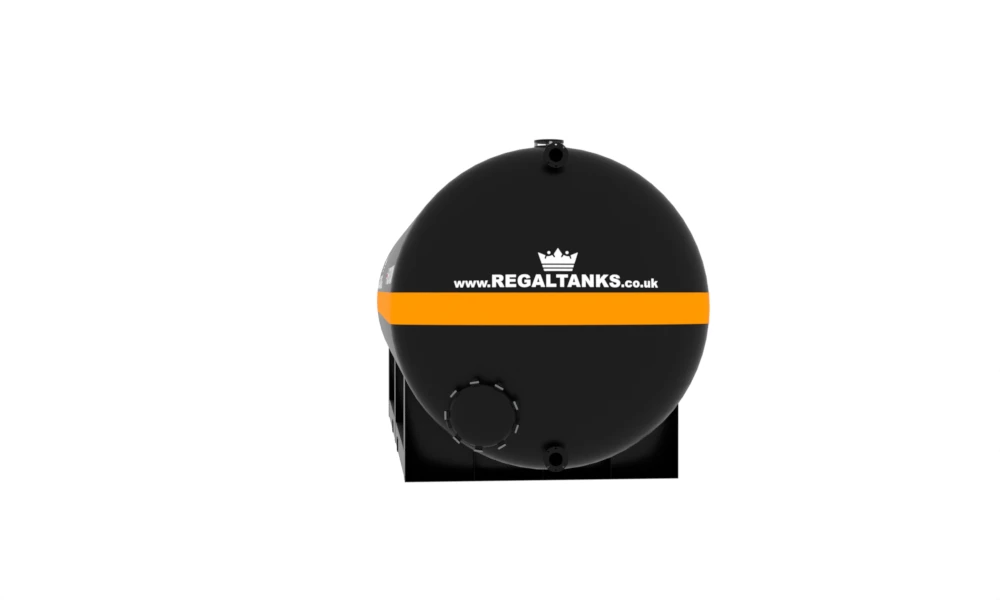

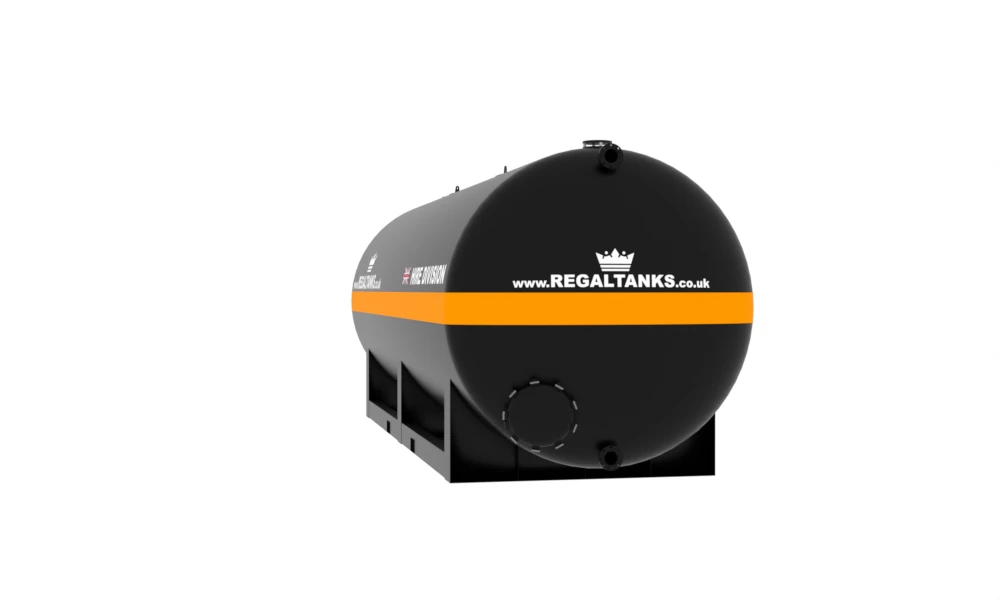

  • 1 x 4" 150# ANSI flanged inlet / outlet (blinded)
  • 1 No 600mm quick release manway
Top
  • 1 x 6" 150# ANSI flange (blinded)
  • 1 x 6" 150# ANSI flanged vent
  • 1 x 600mm quick release manway
Lifting
  • 4 Leg wire rope sling complete with ring assembly
  • All lifting points and equipment tested to double proof load + 25%
  • 3rd Party certified to LOLER 98

Downloads

Download Details SheetDownload Details Sheet (Lined)Download Tank Drawing
Get a quote for this hire tank

Don't like forms? Call us on 01502 710100 and speak to one of our hire tank advisers.
