Storage Tank Hire:

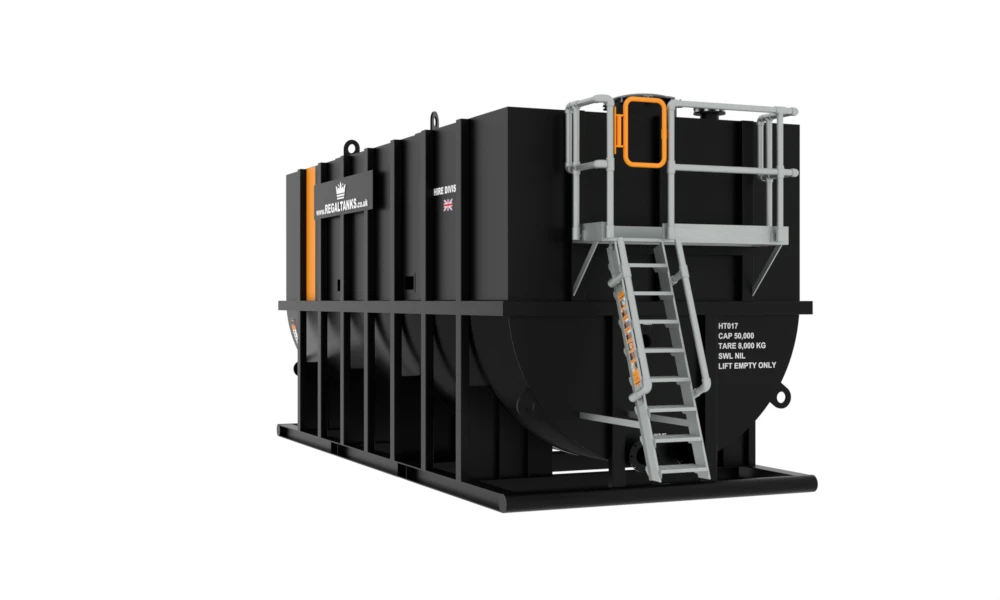

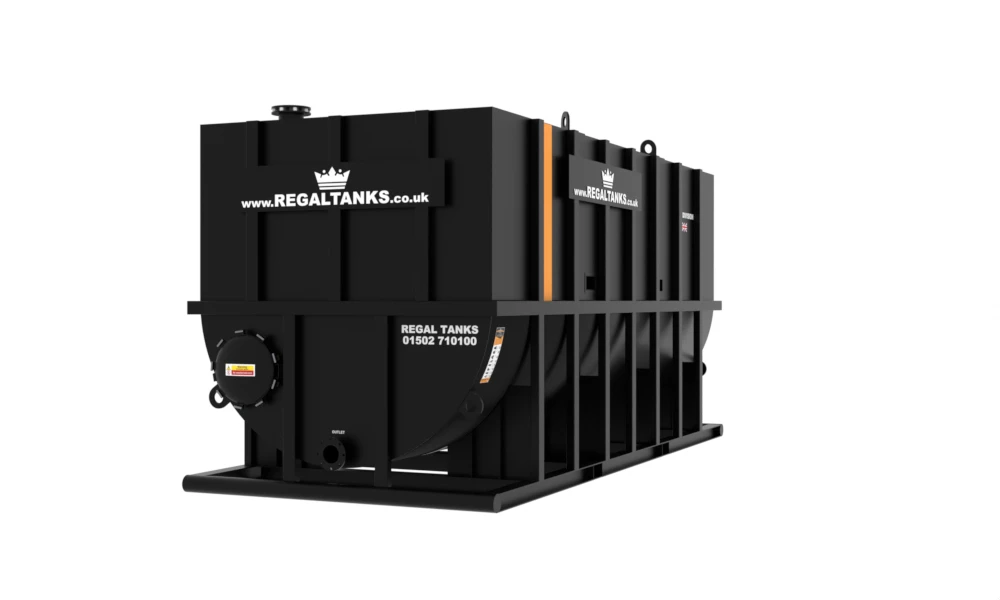

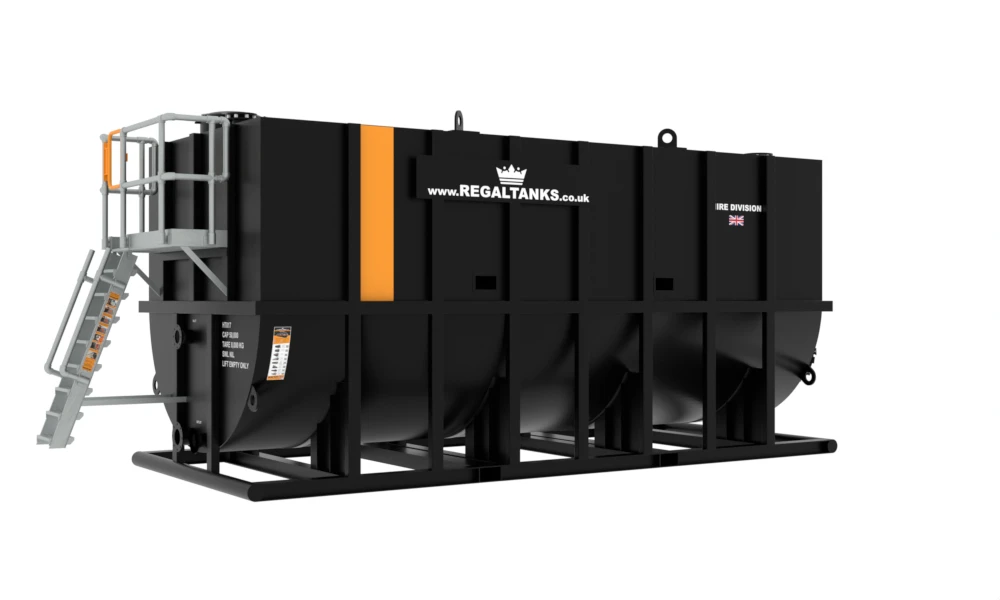

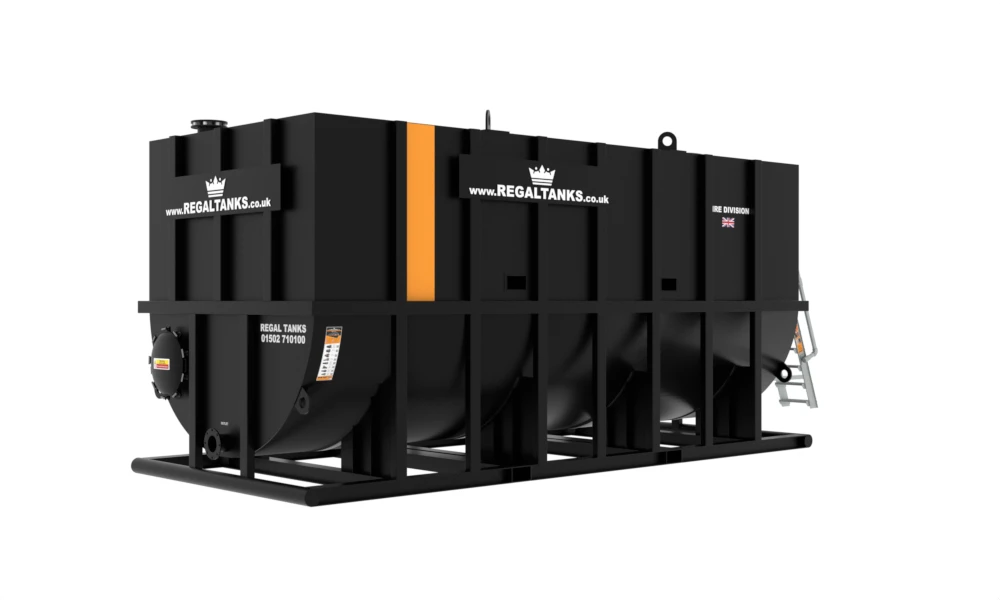

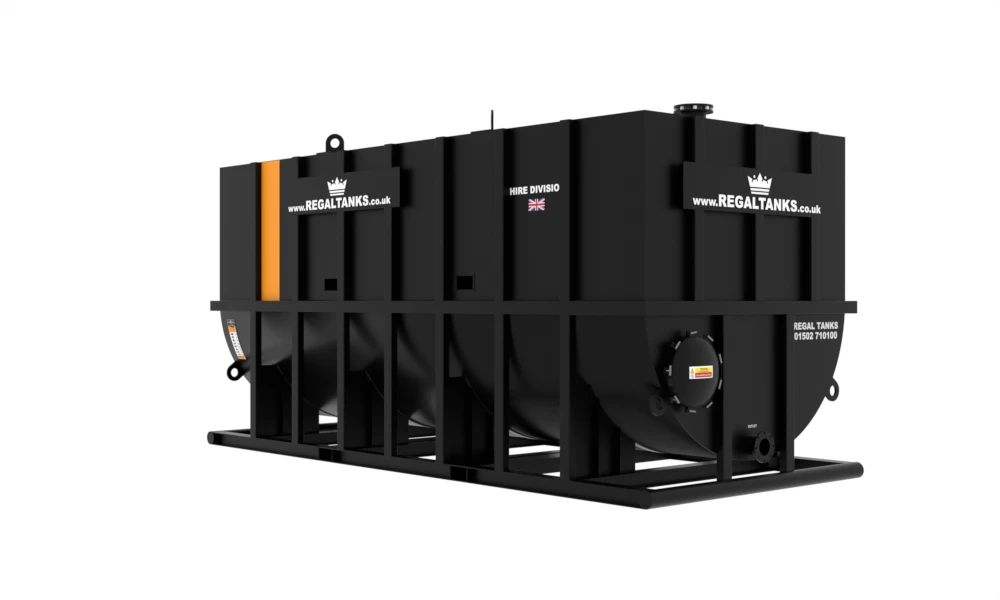

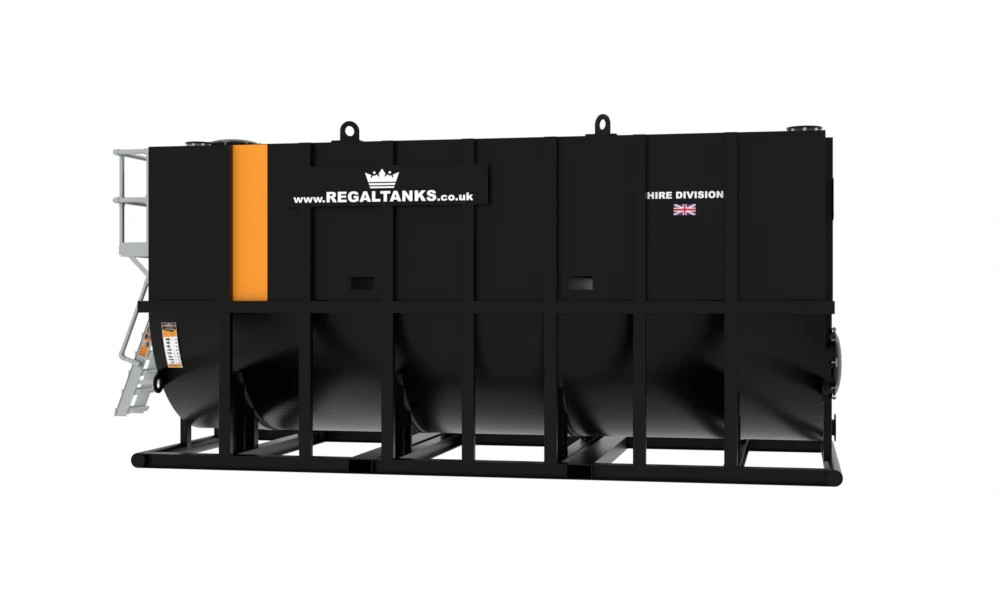

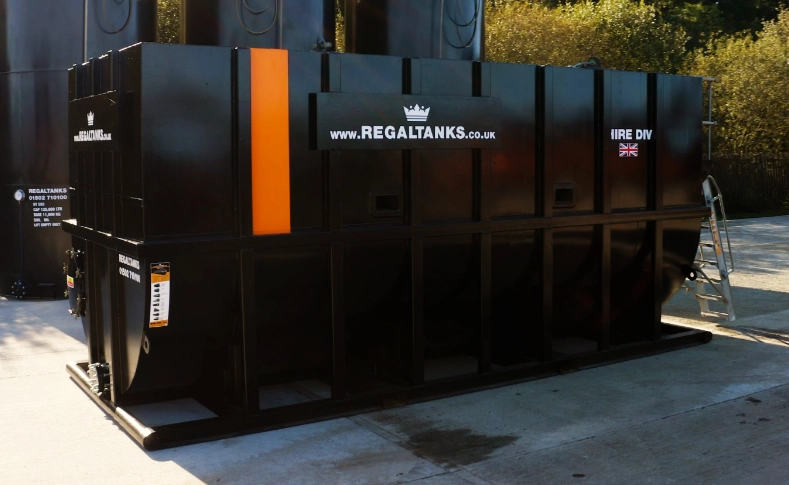

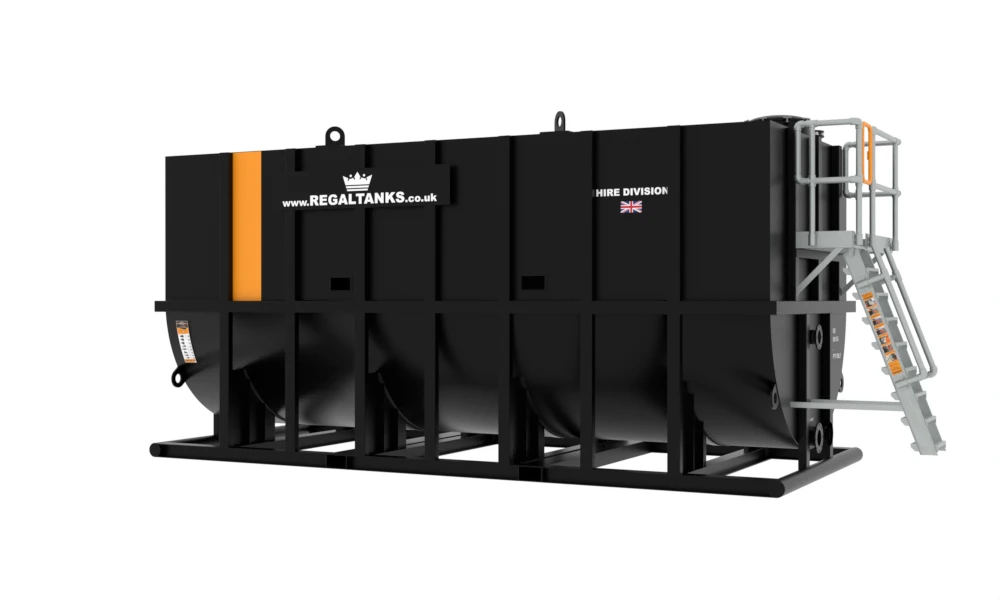

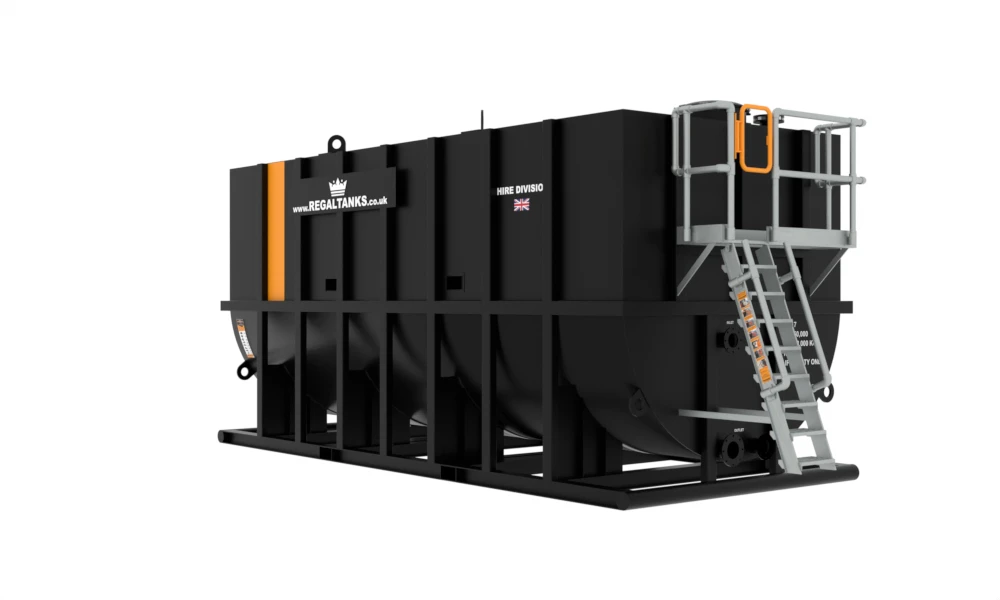

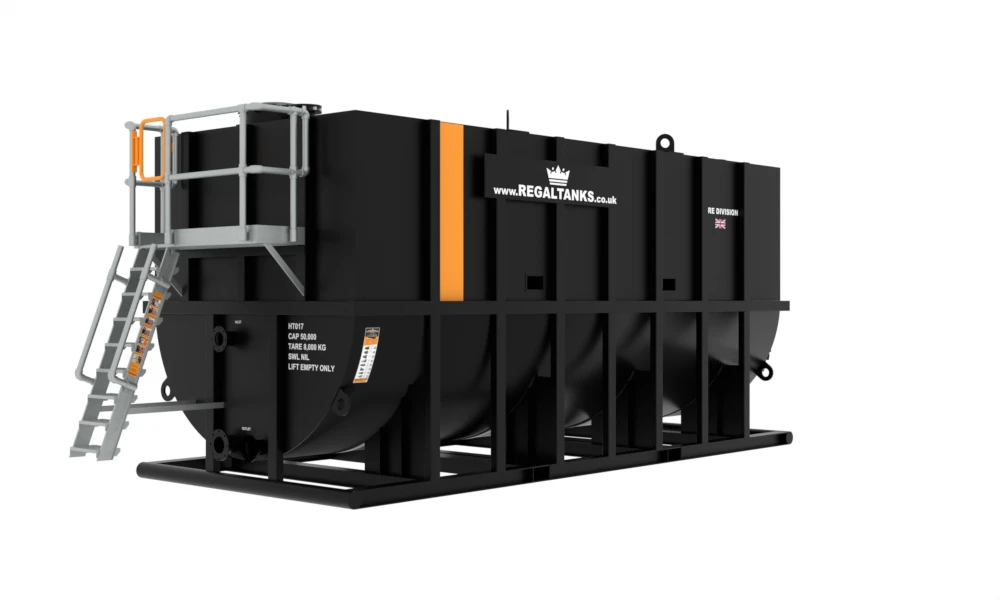

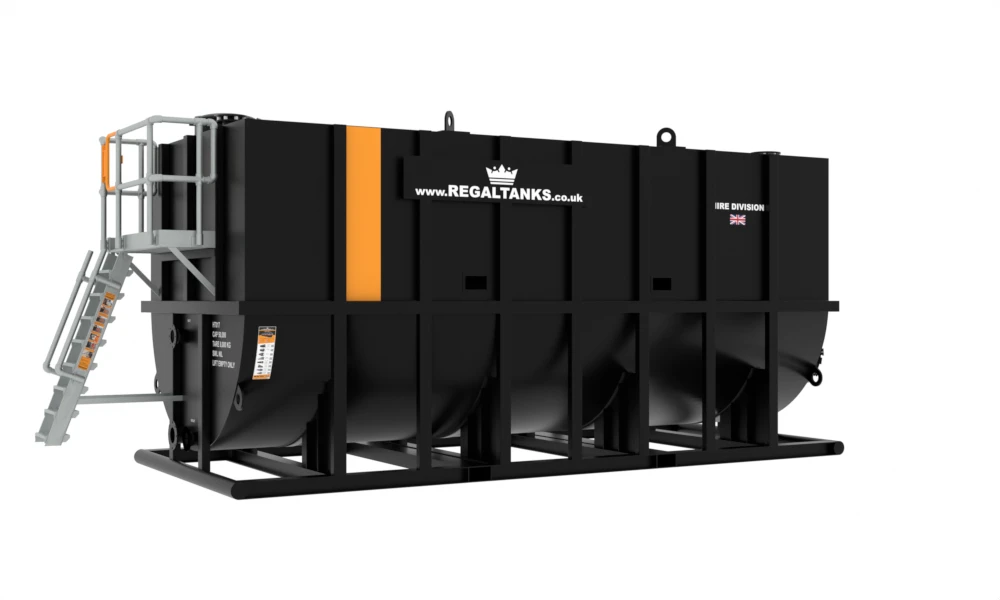

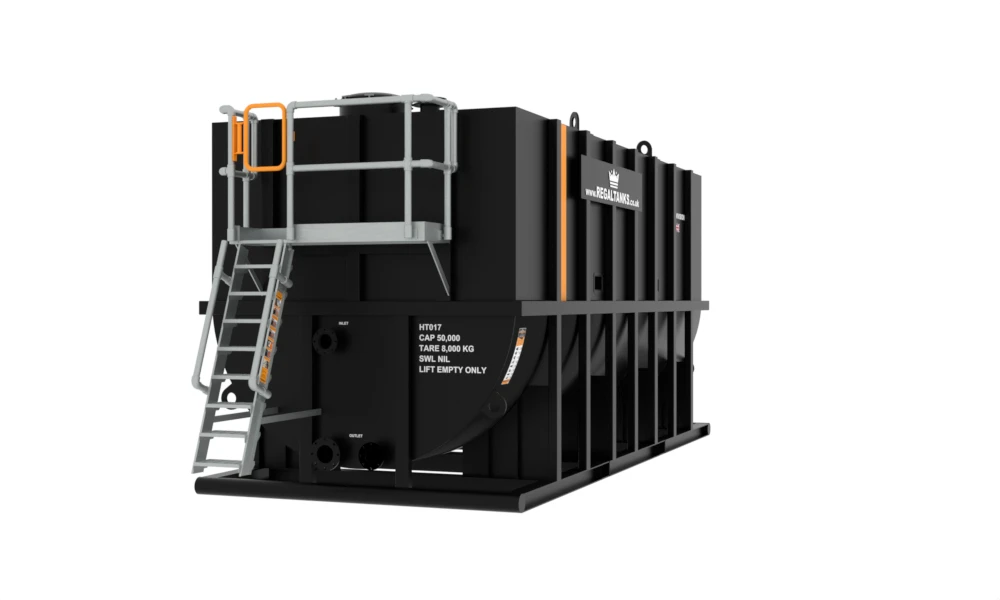

50,000 Litre Horizontal Tanks

Get a quote Get expert advice today

Tank Specification

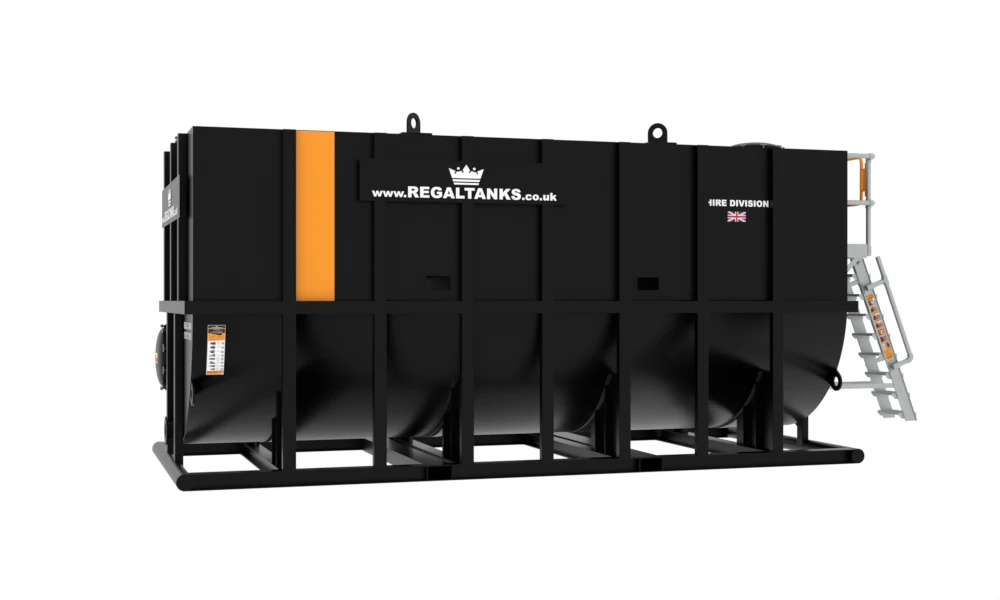

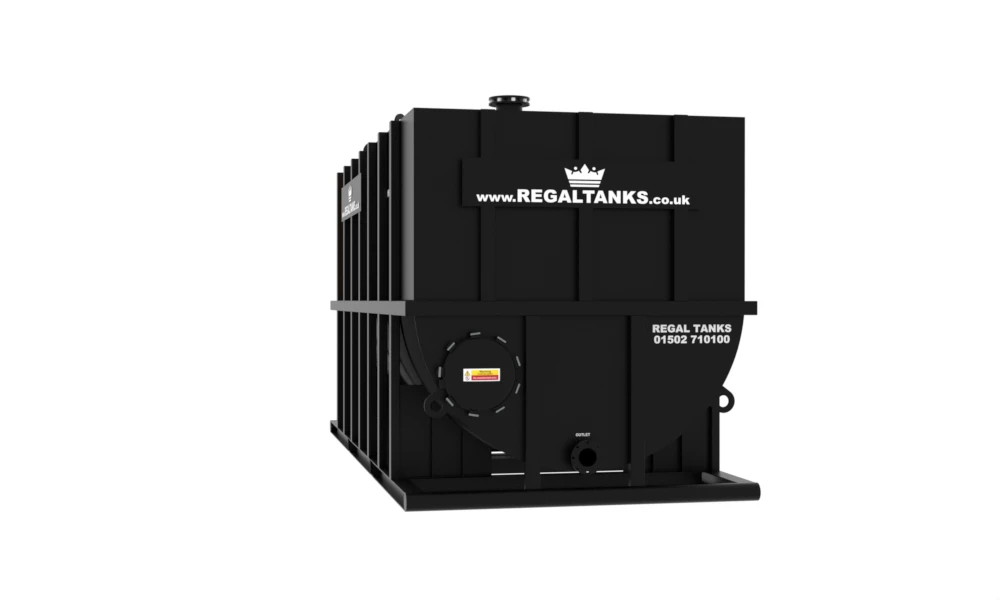

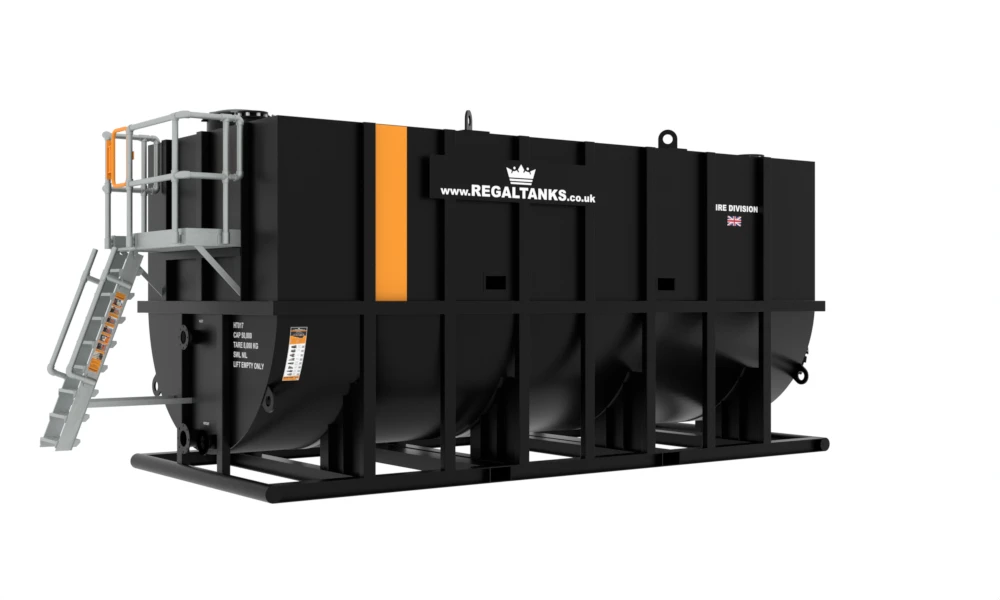

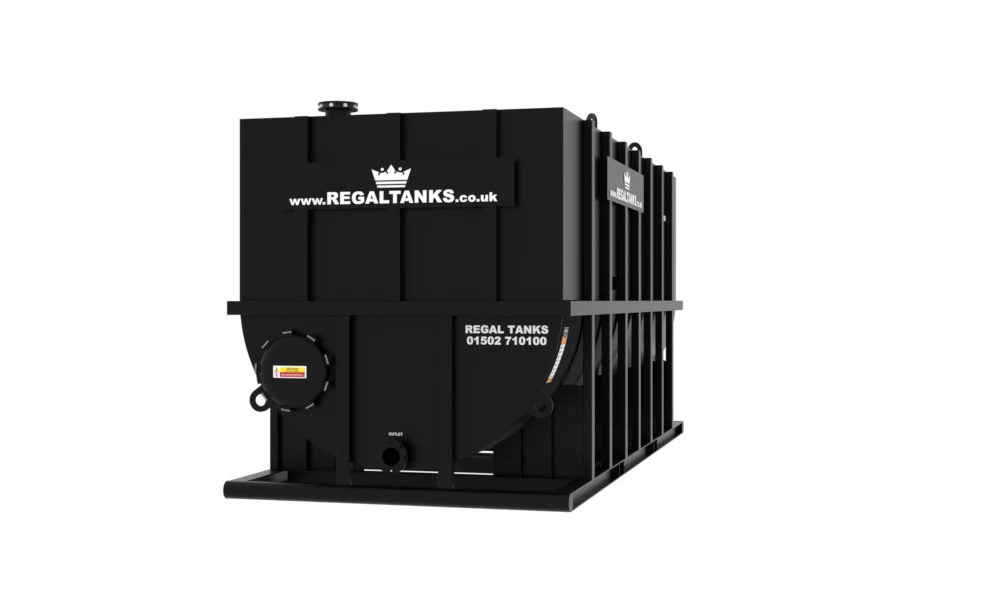

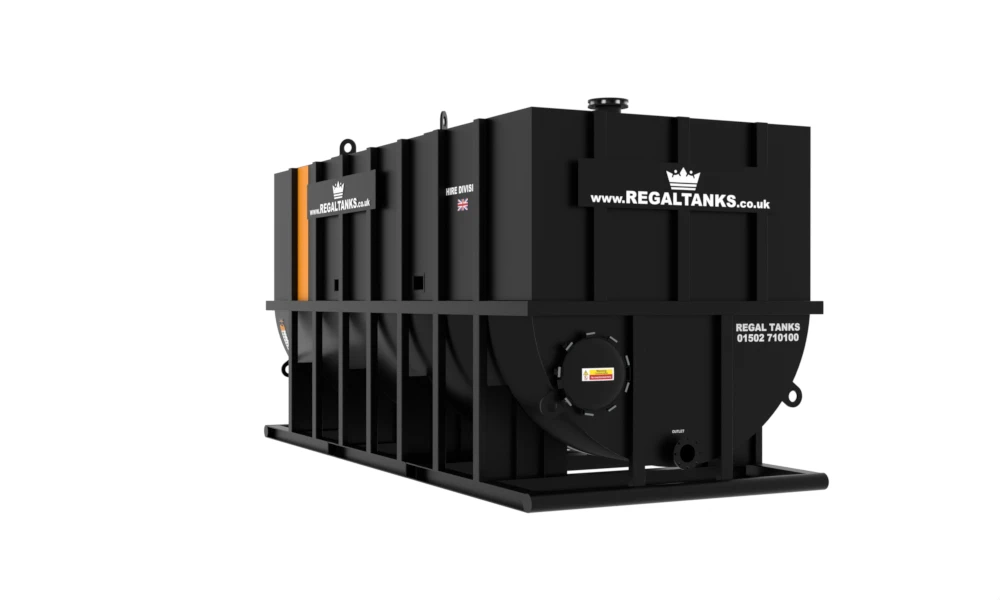

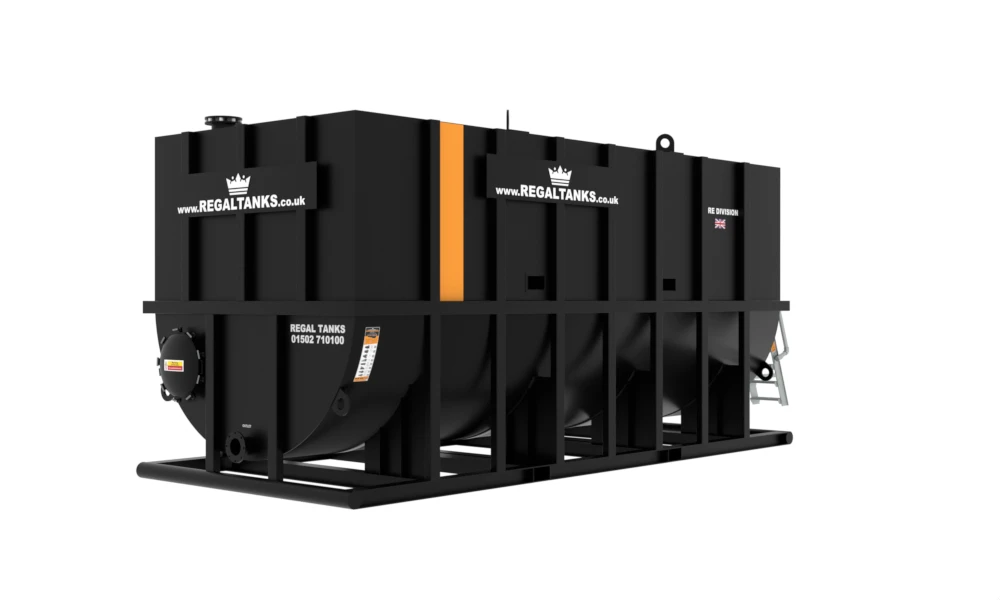

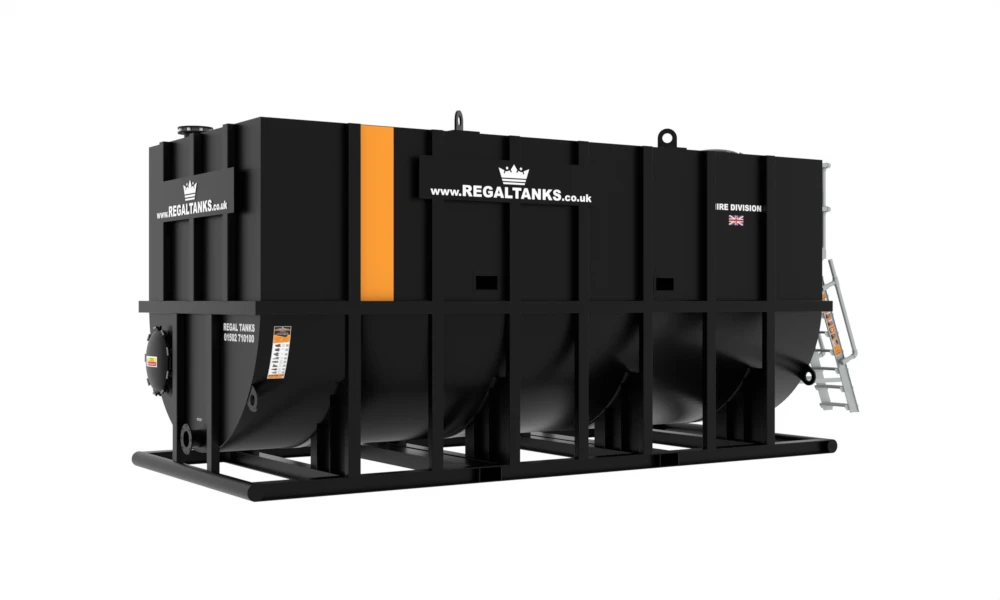

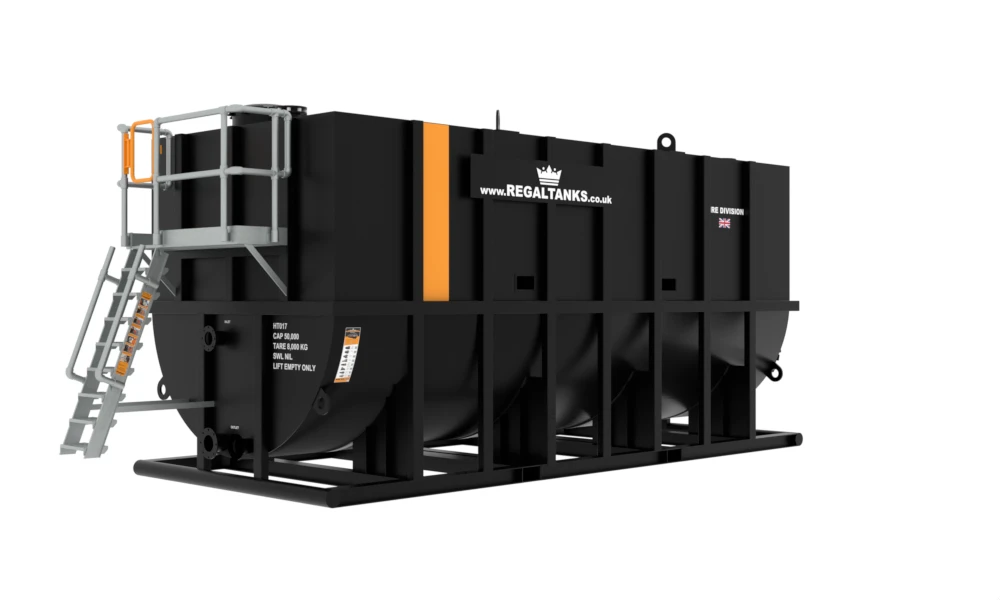

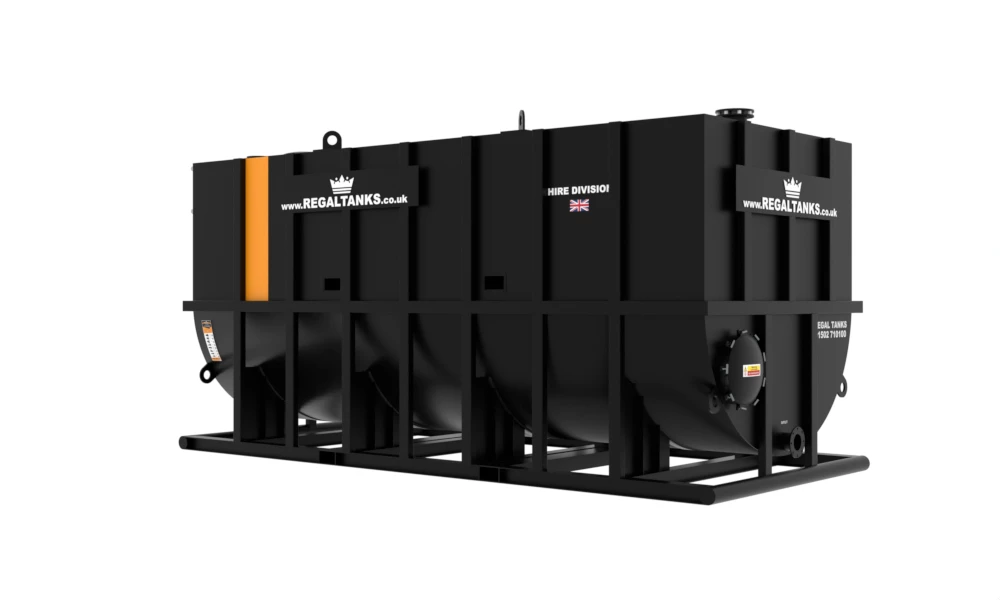

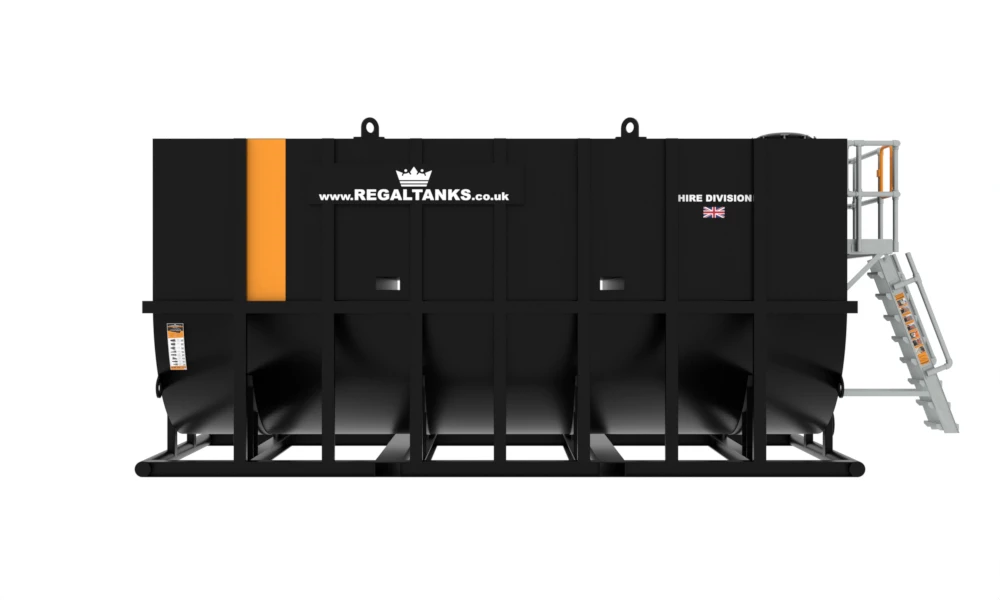

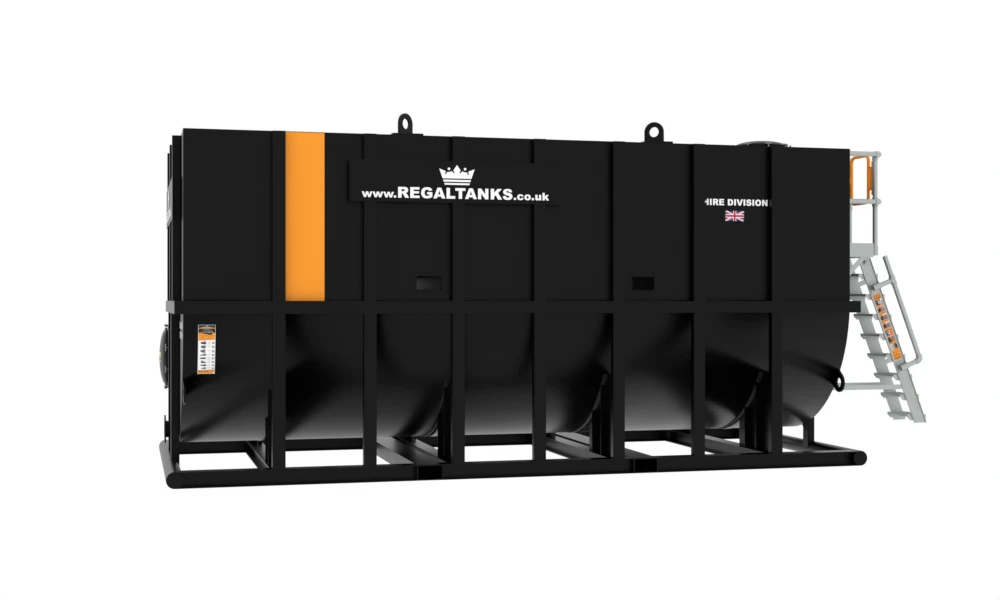

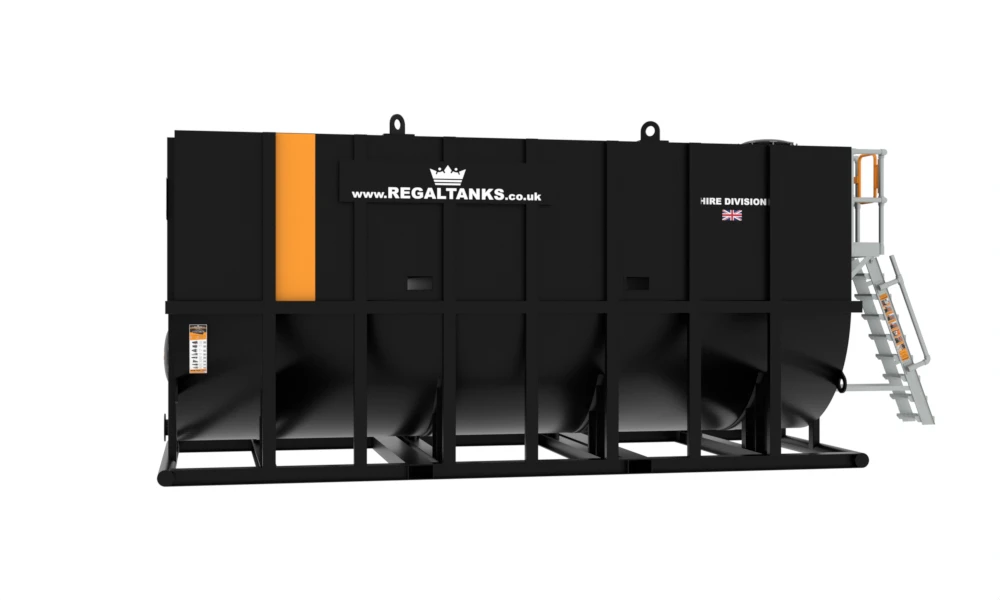

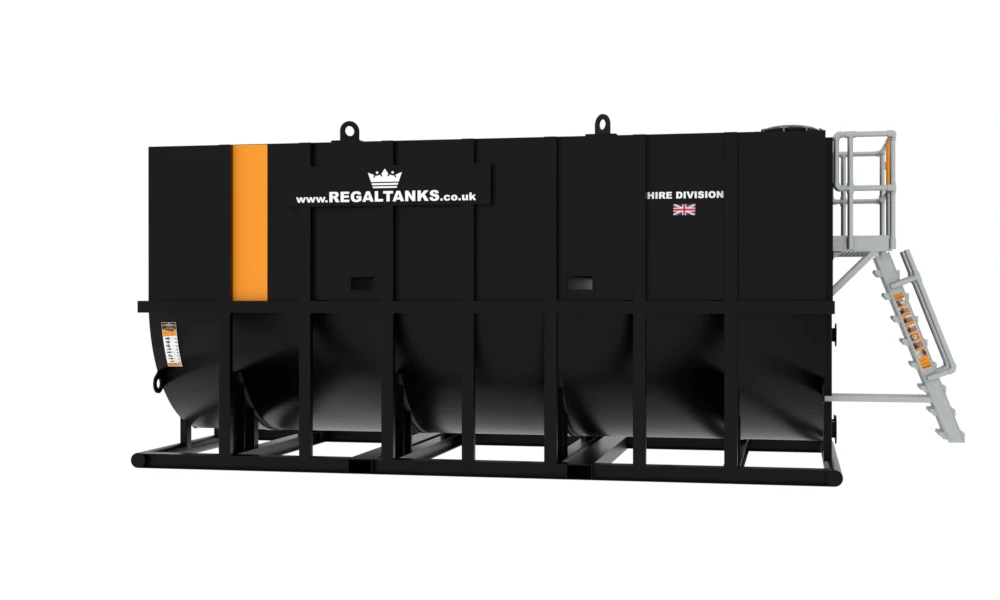

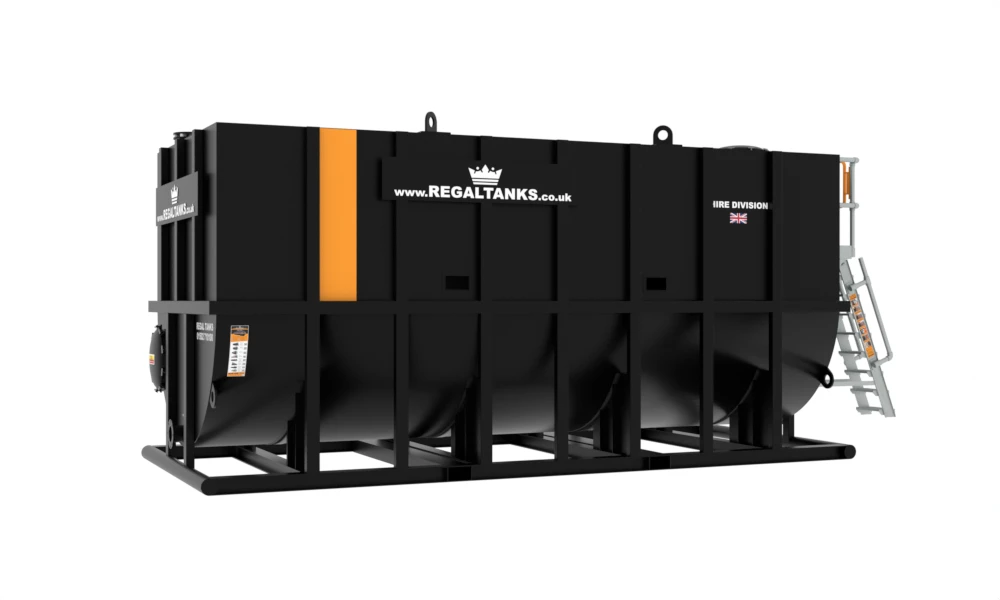

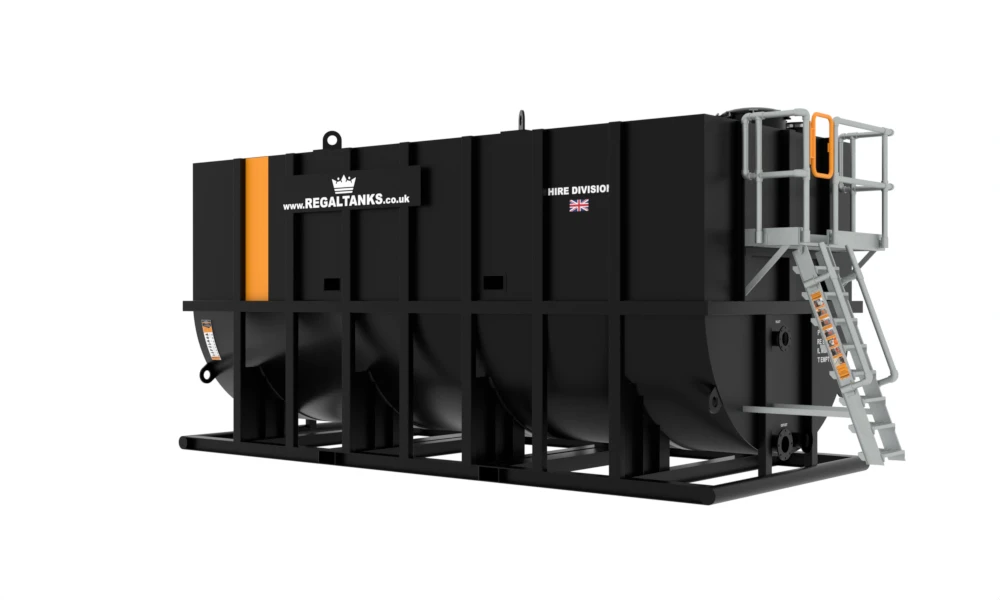

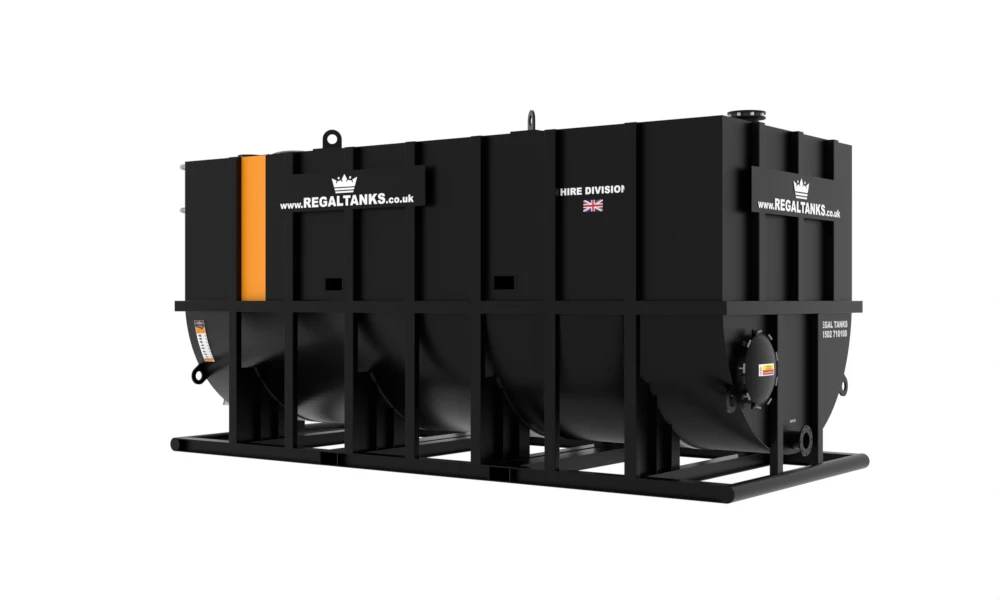

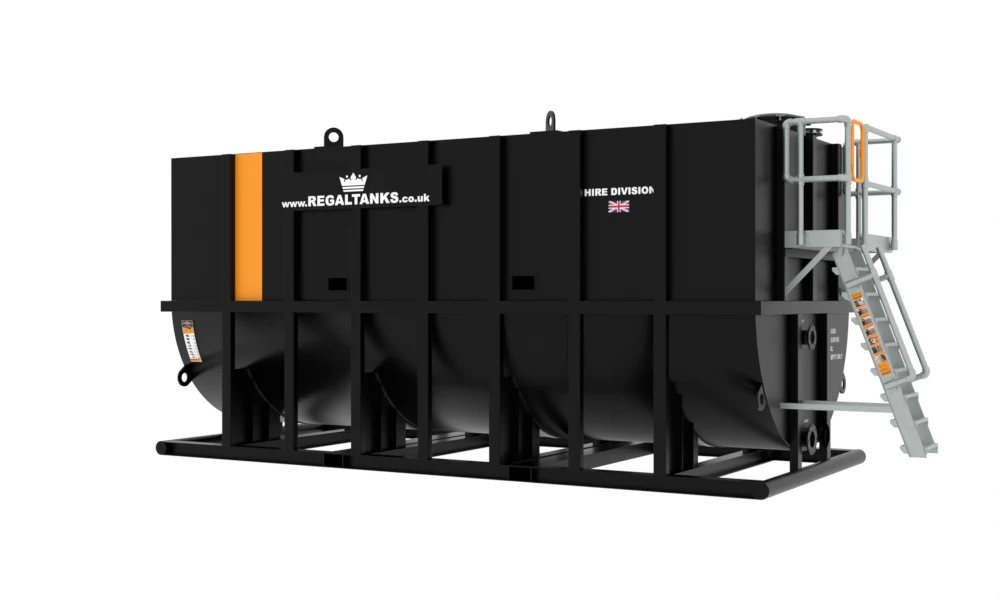

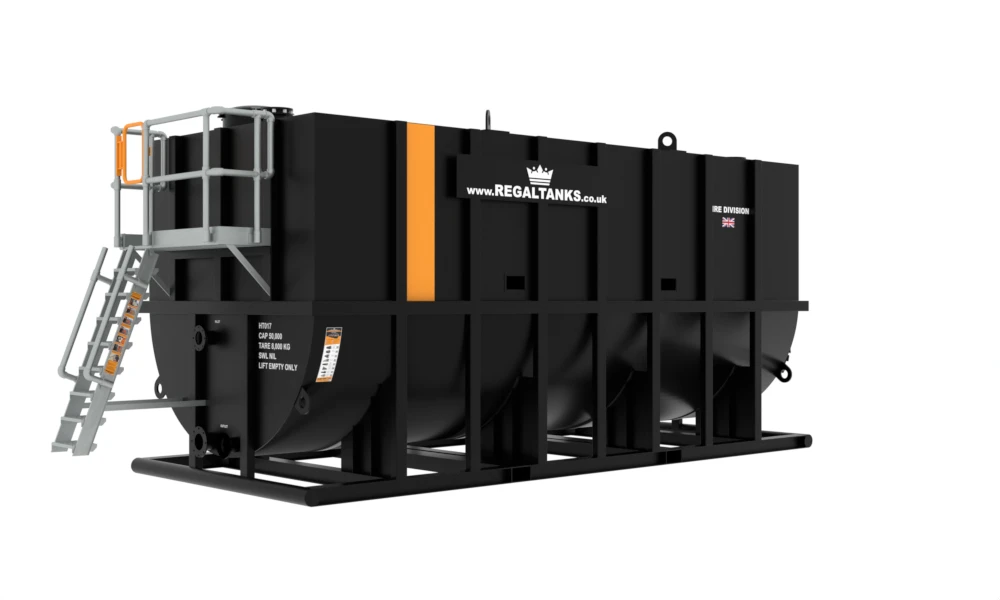

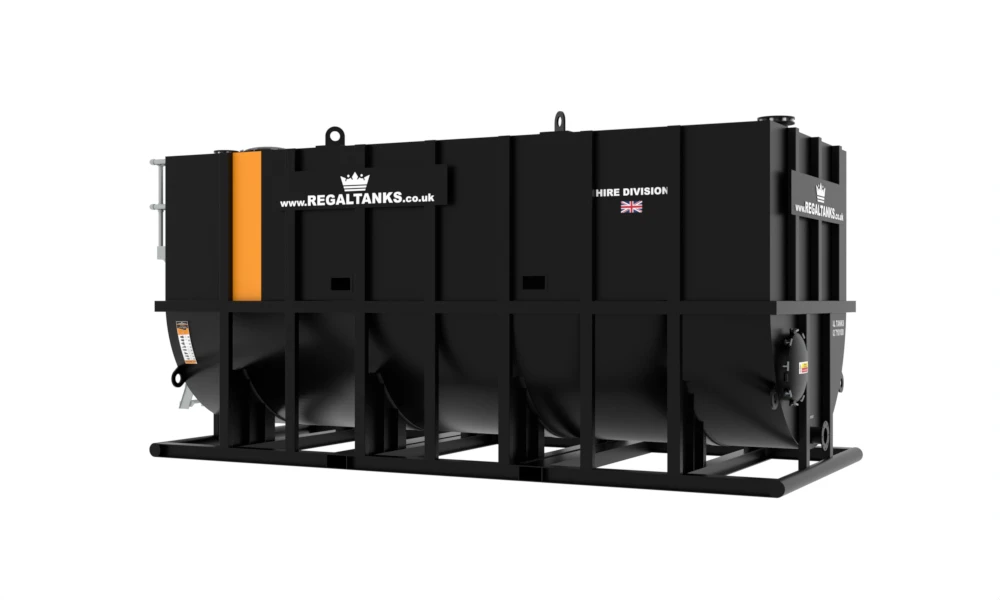

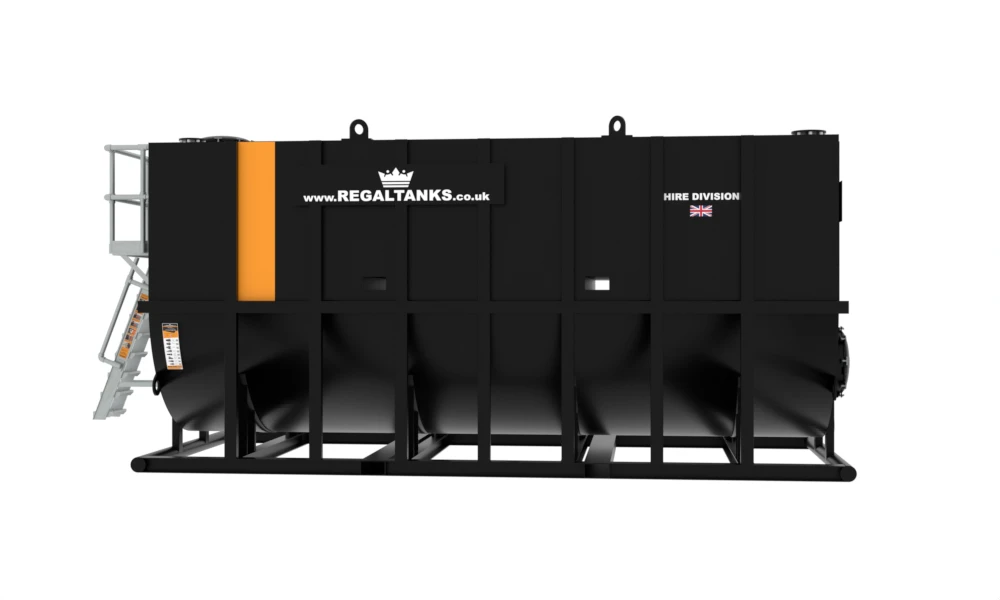

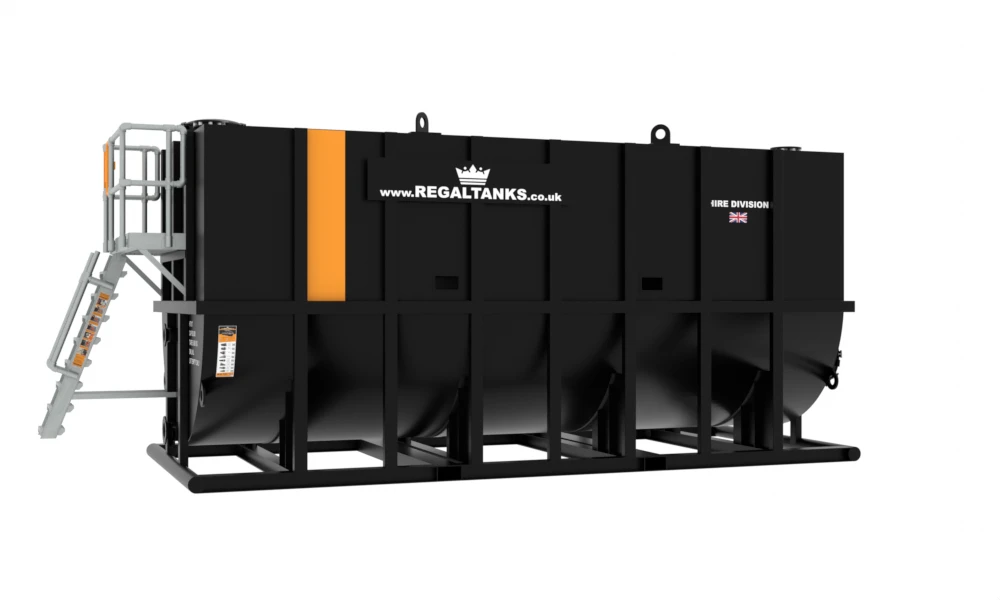

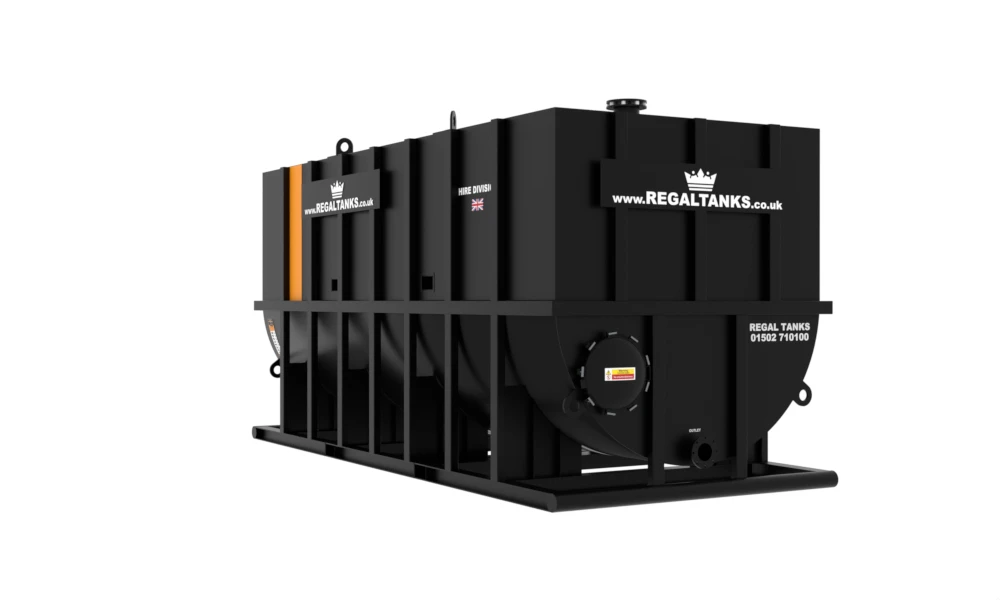

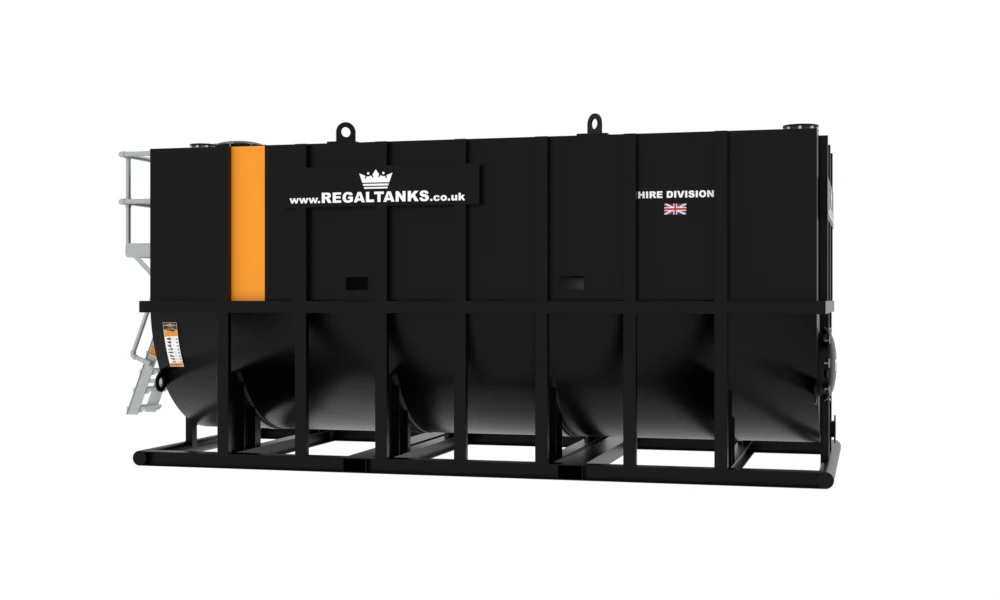

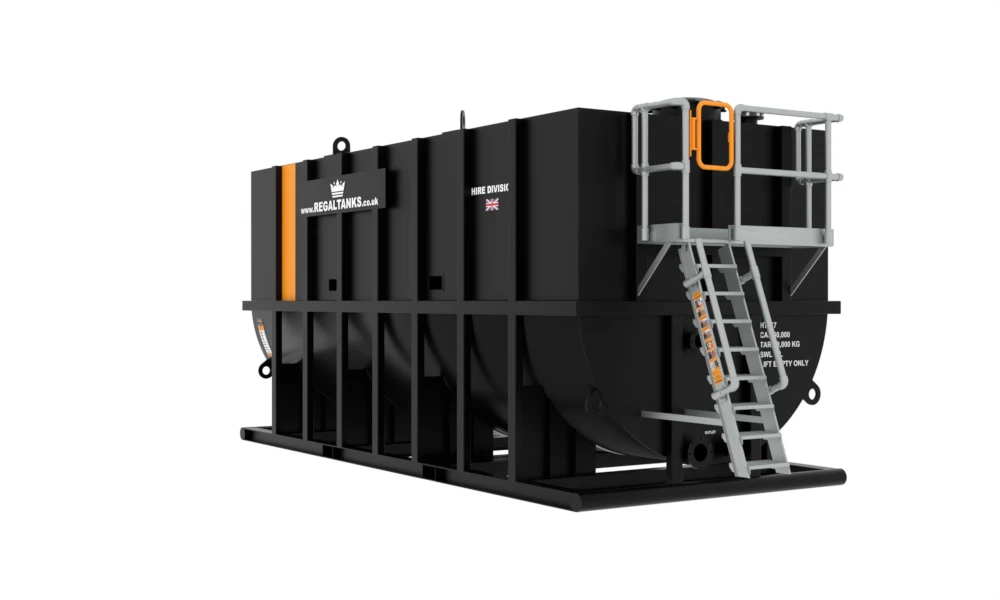

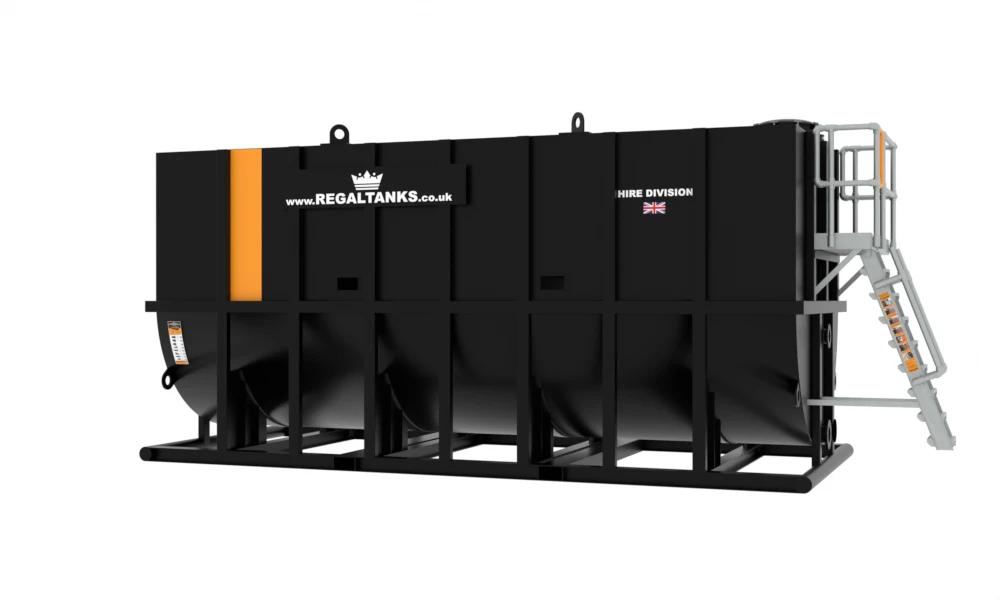

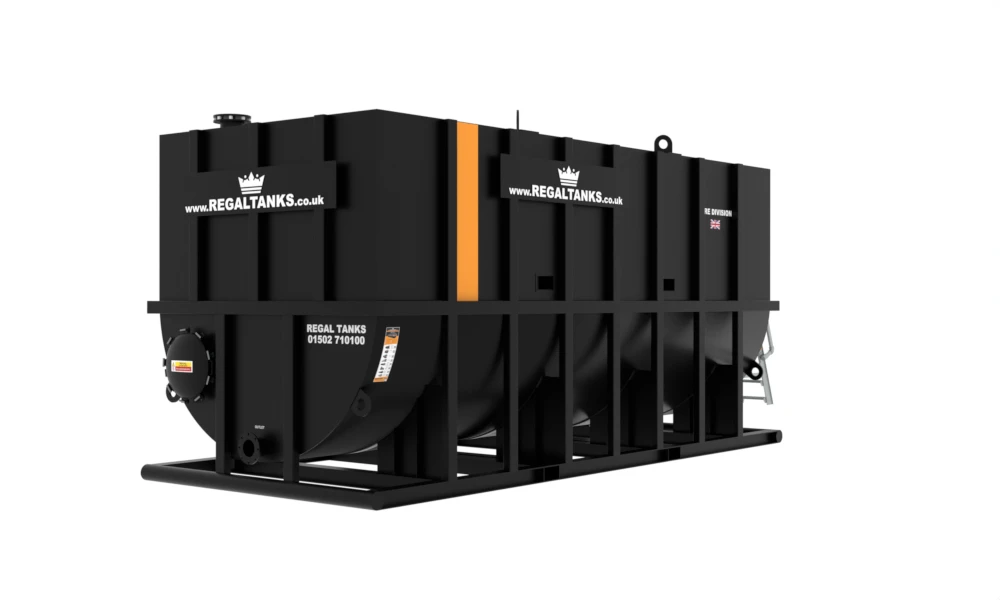

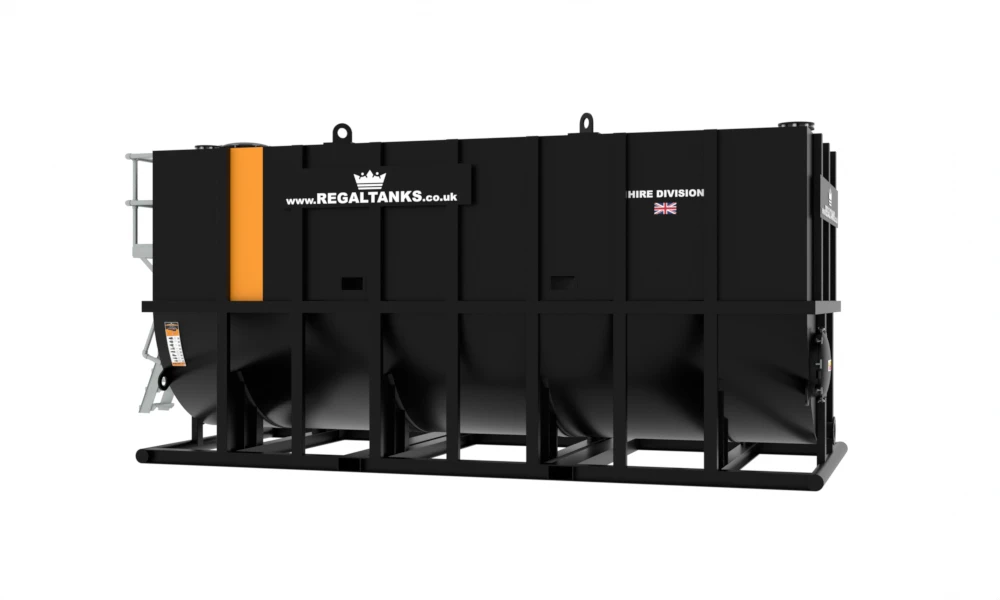

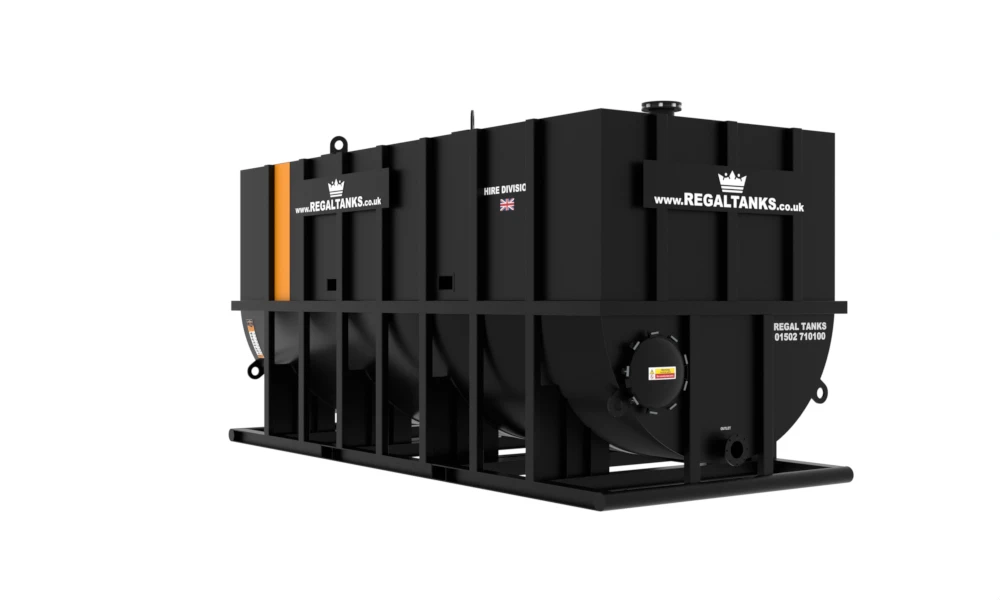

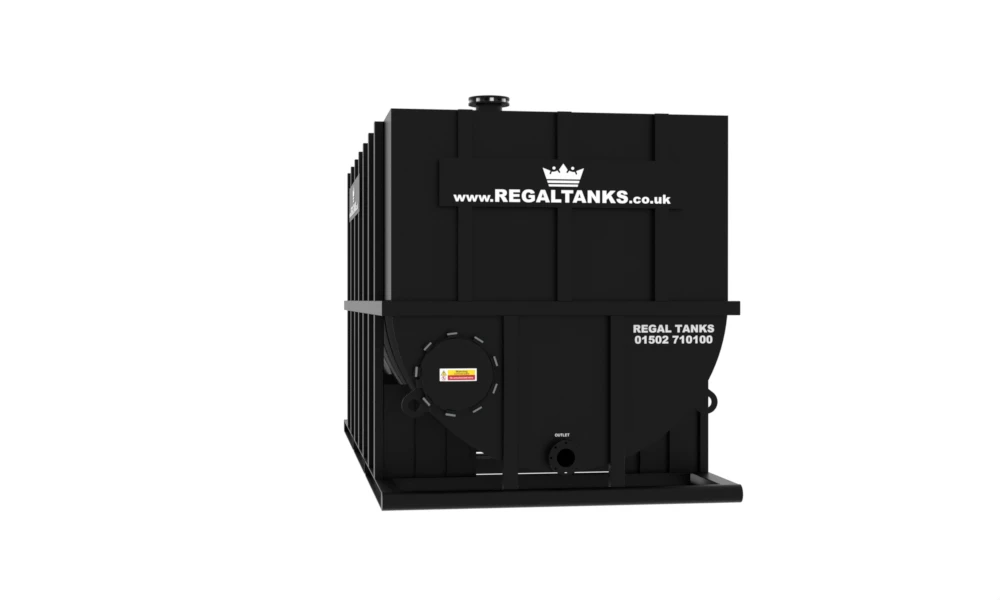

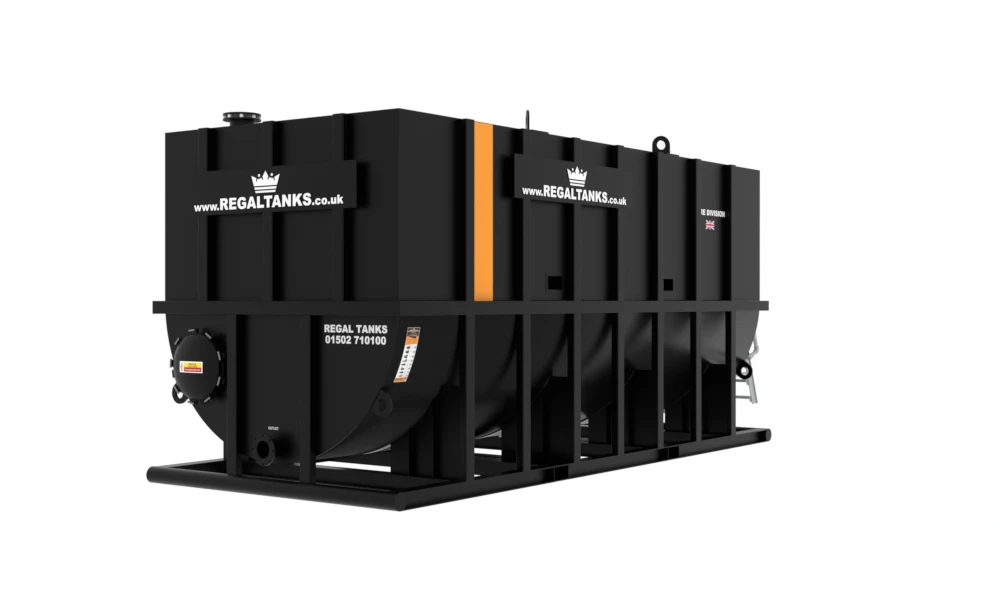

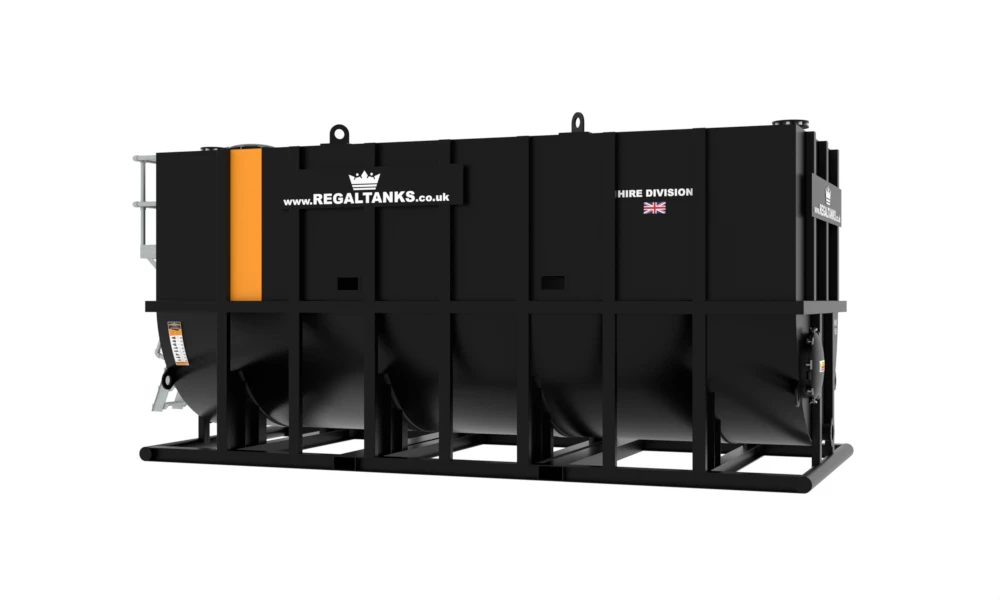

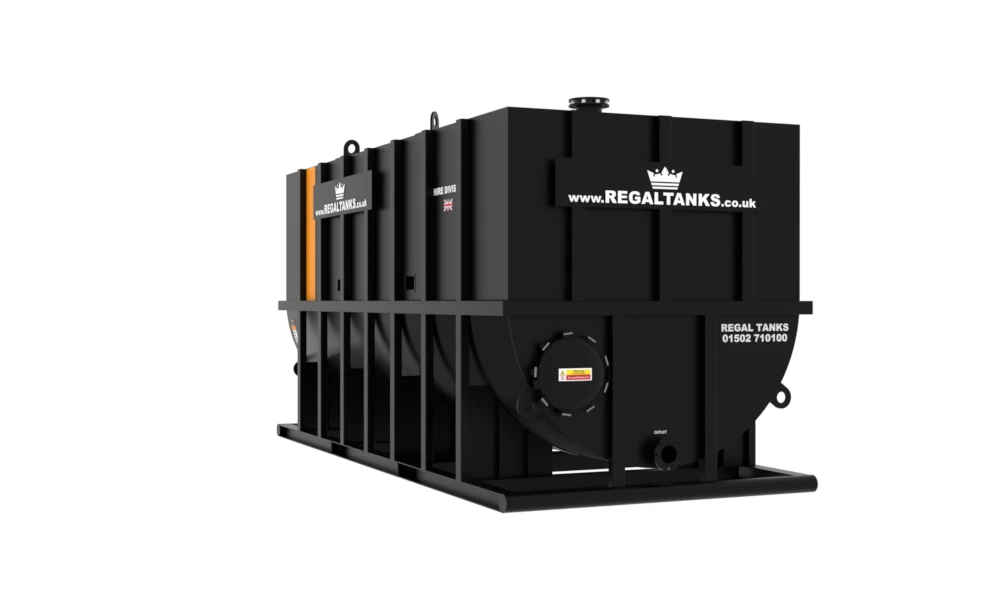

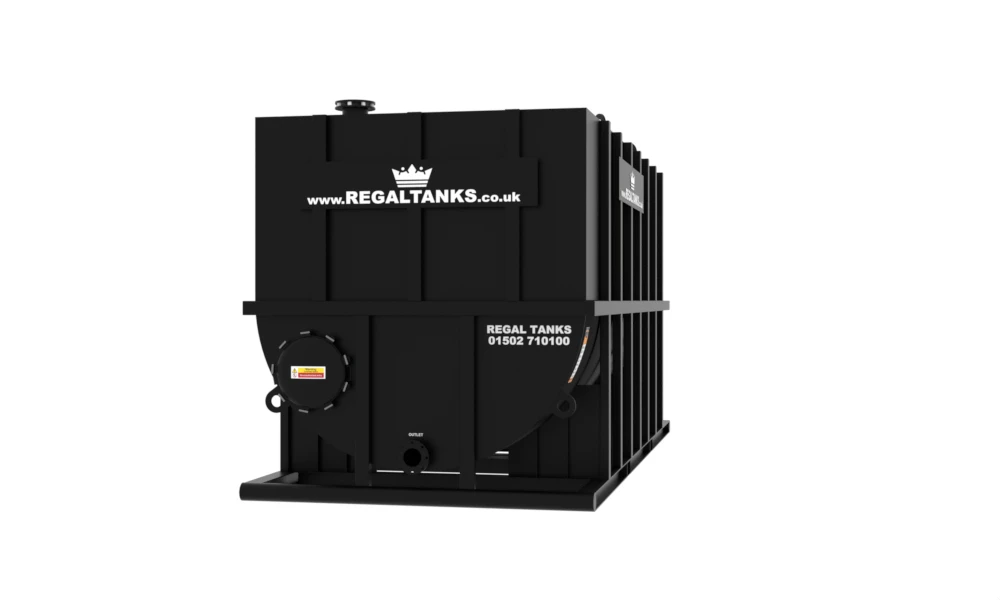

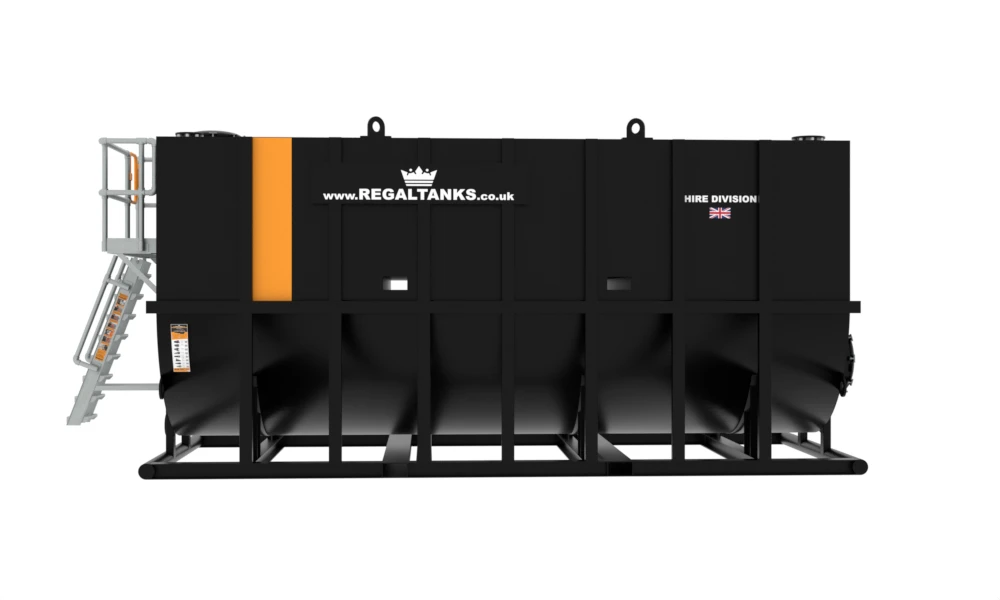

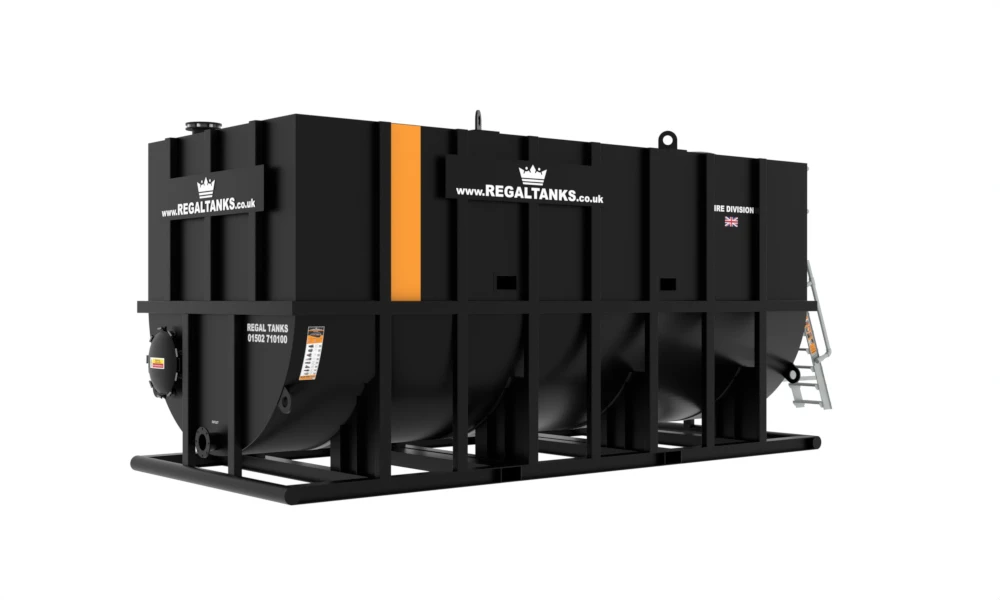

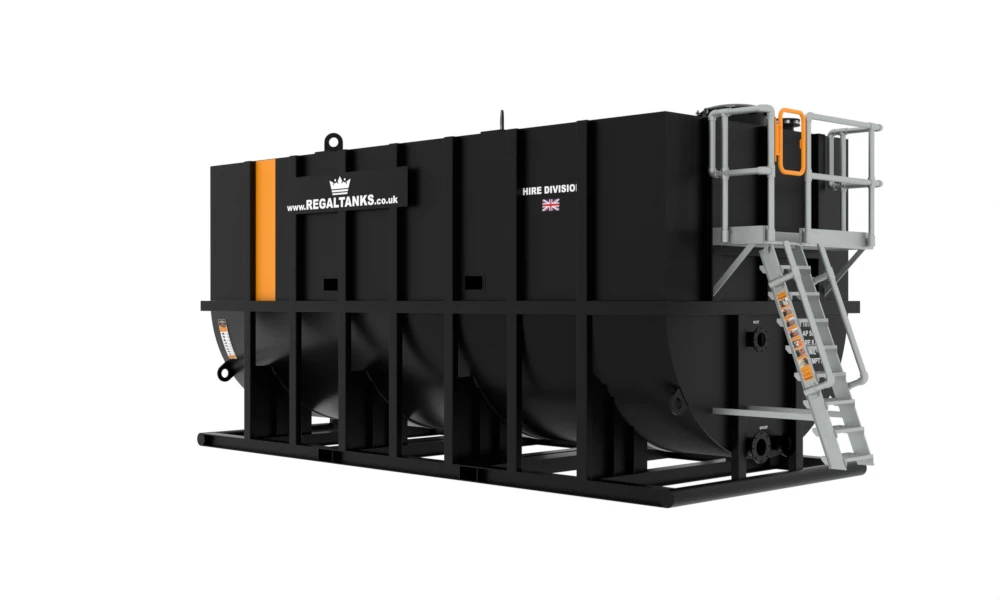

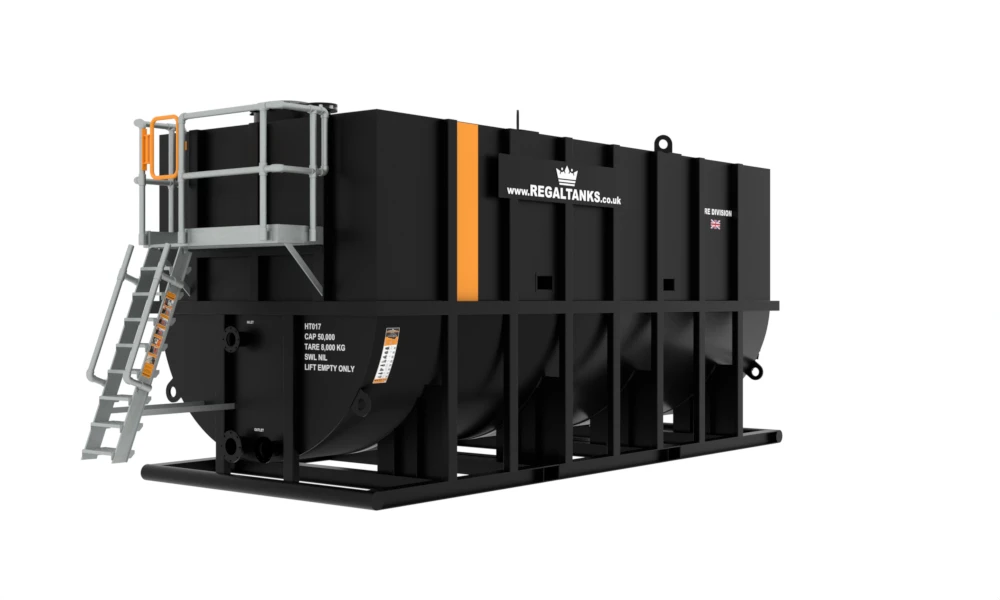

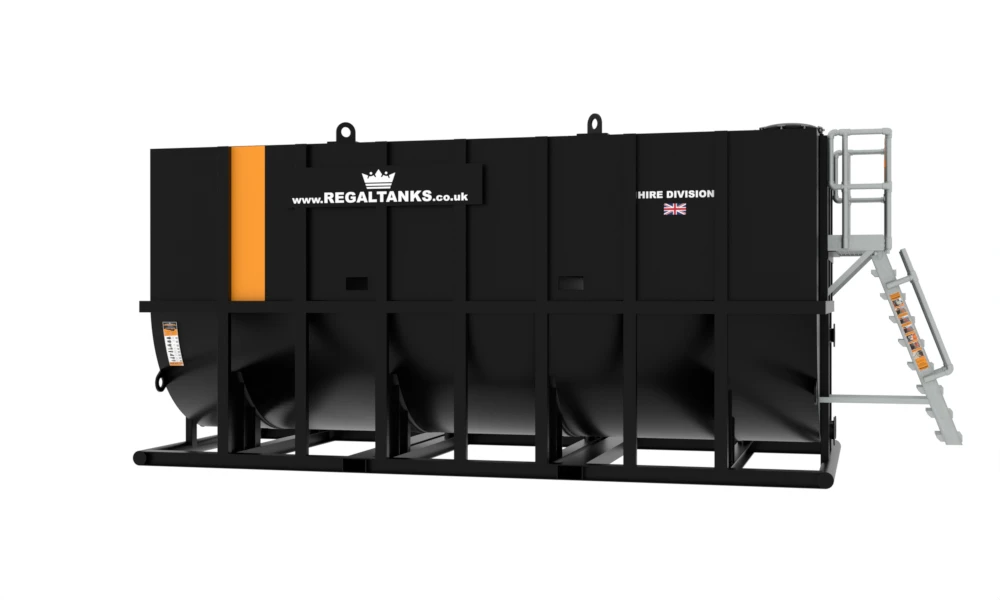

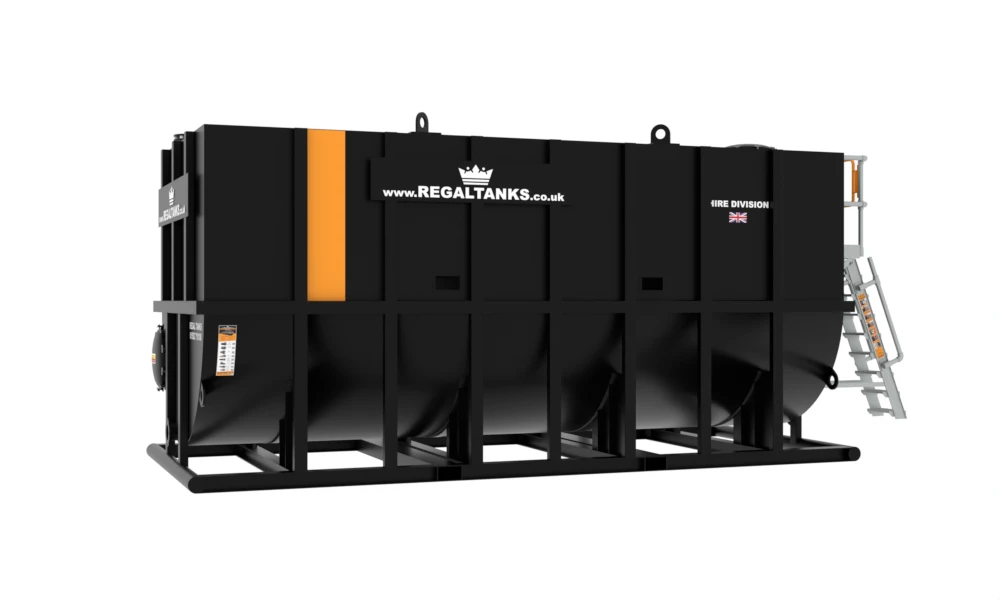

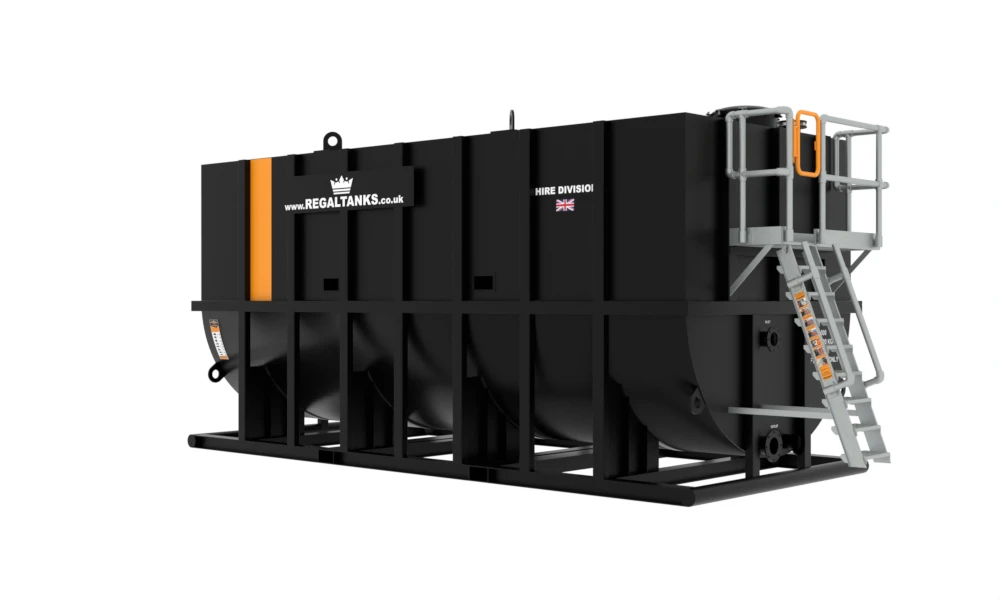

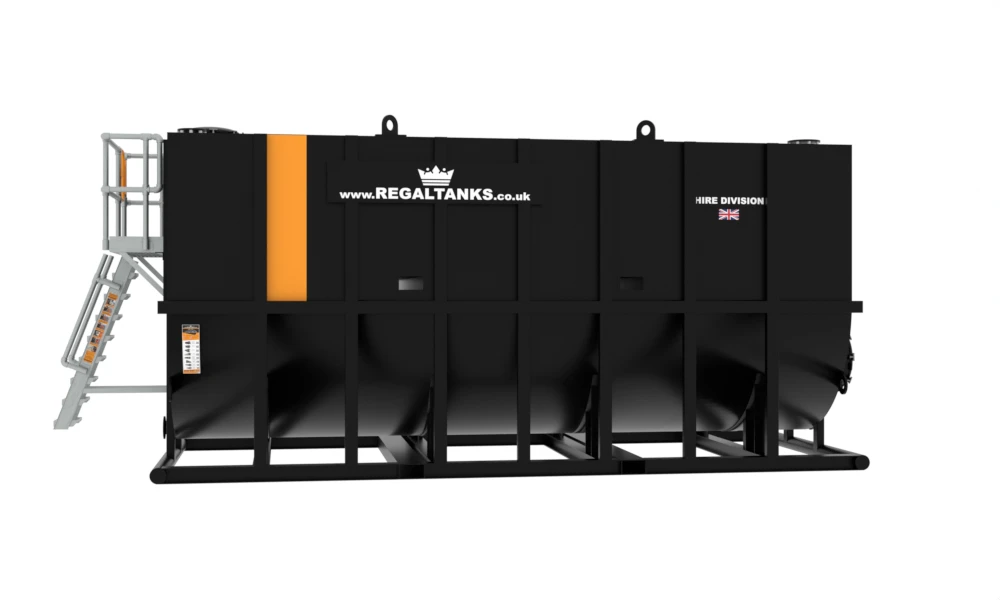

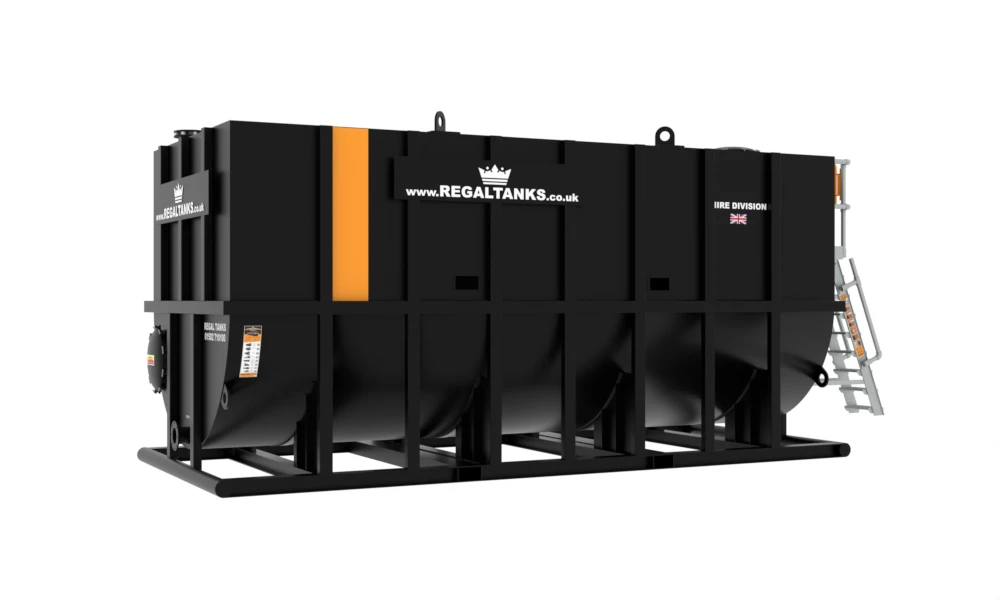

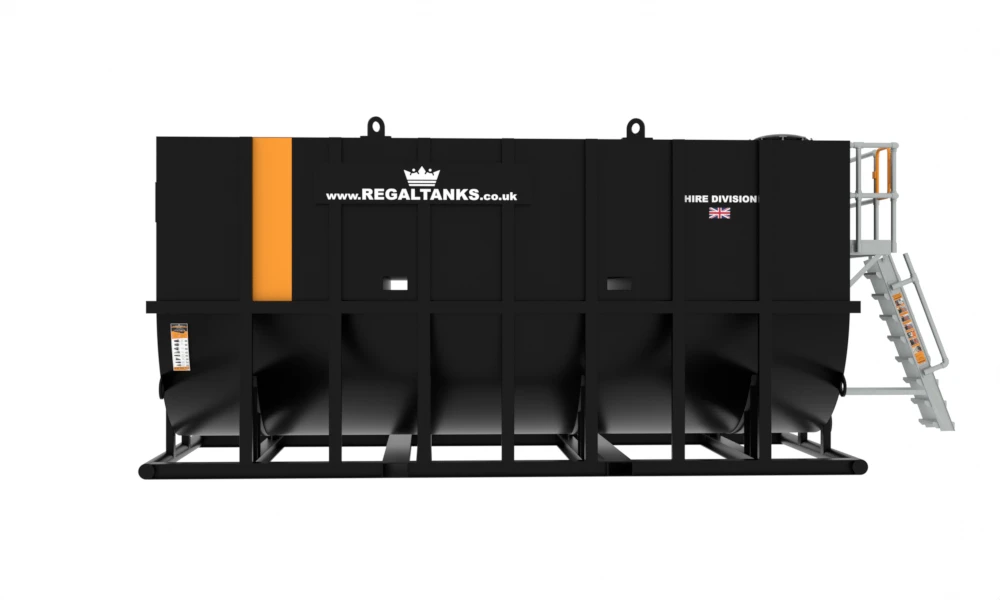

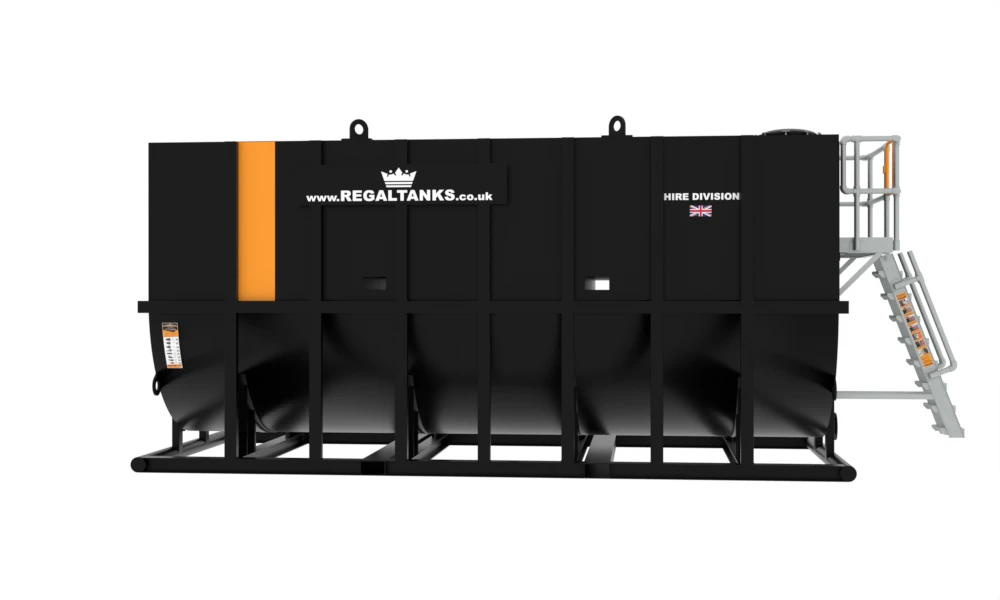

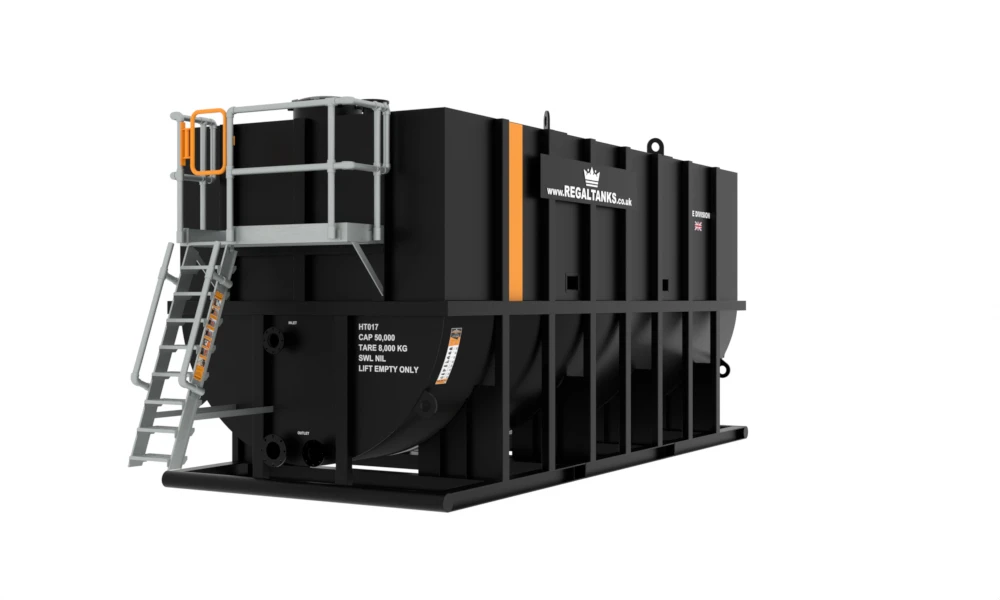

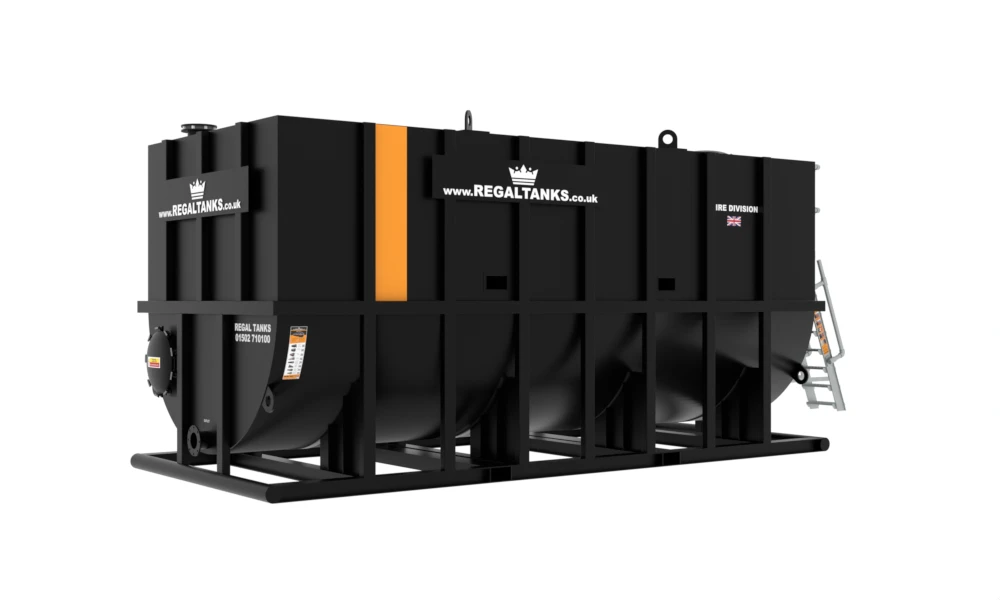

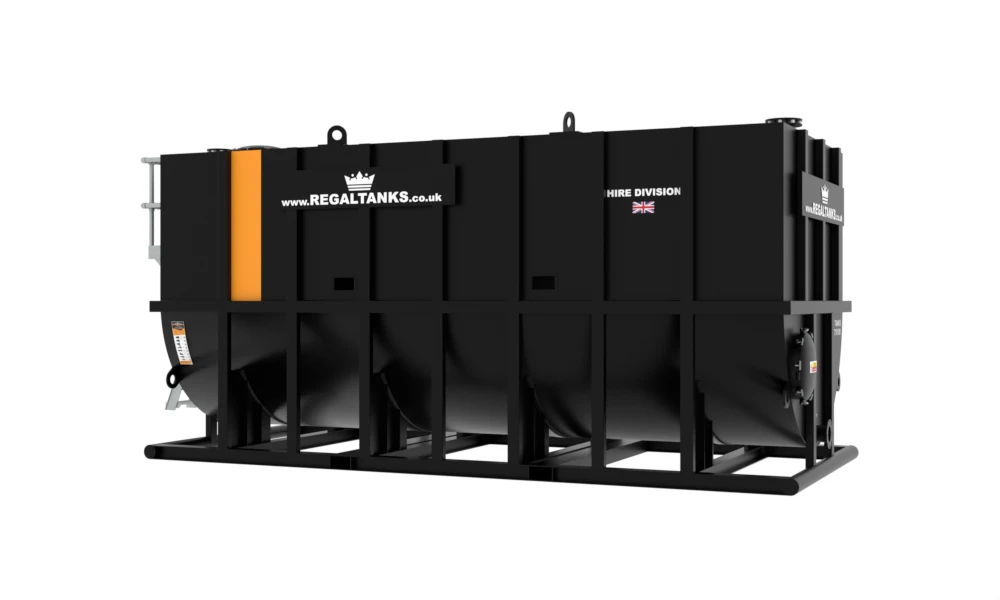

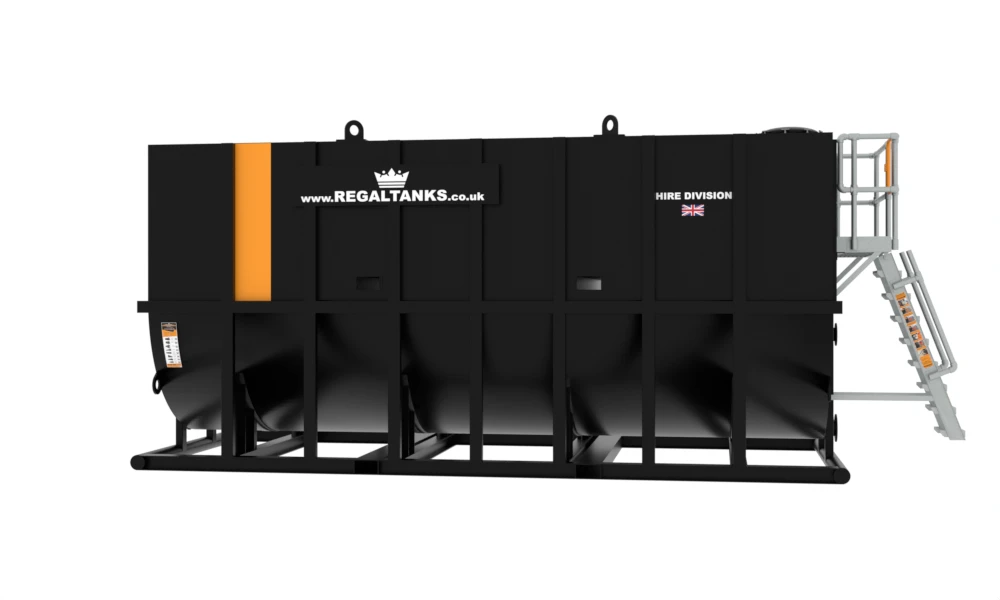

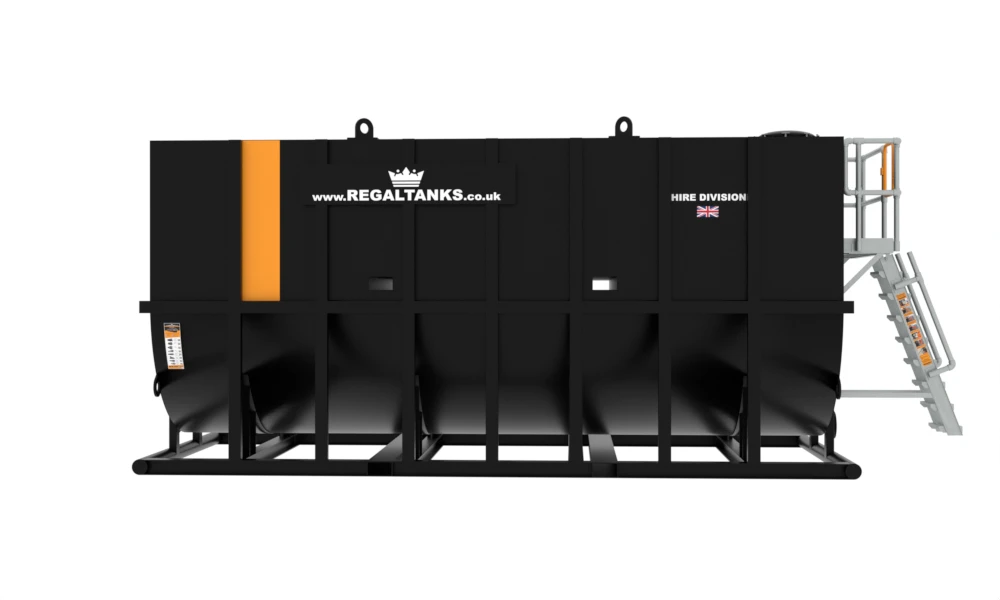

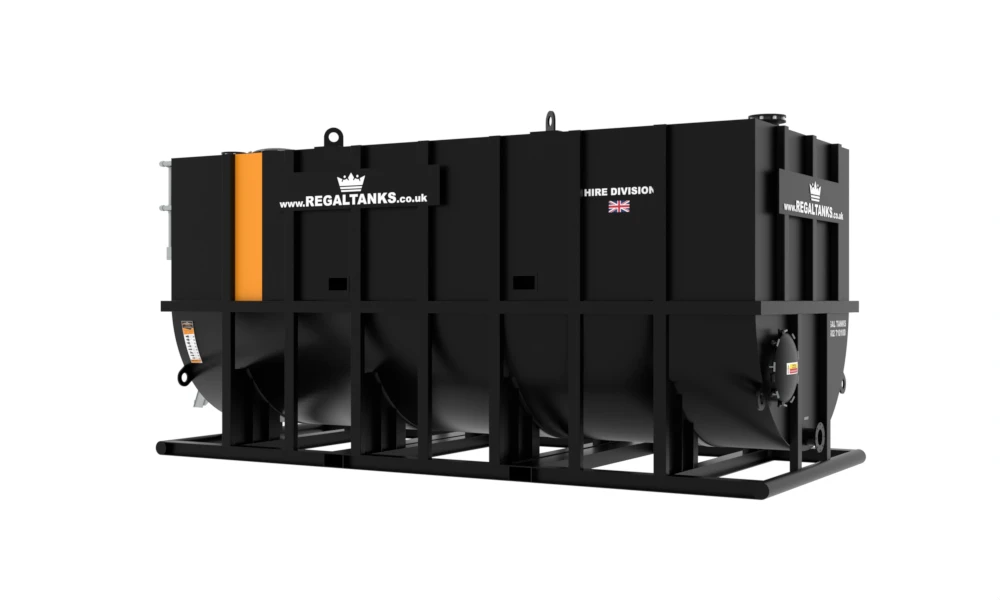

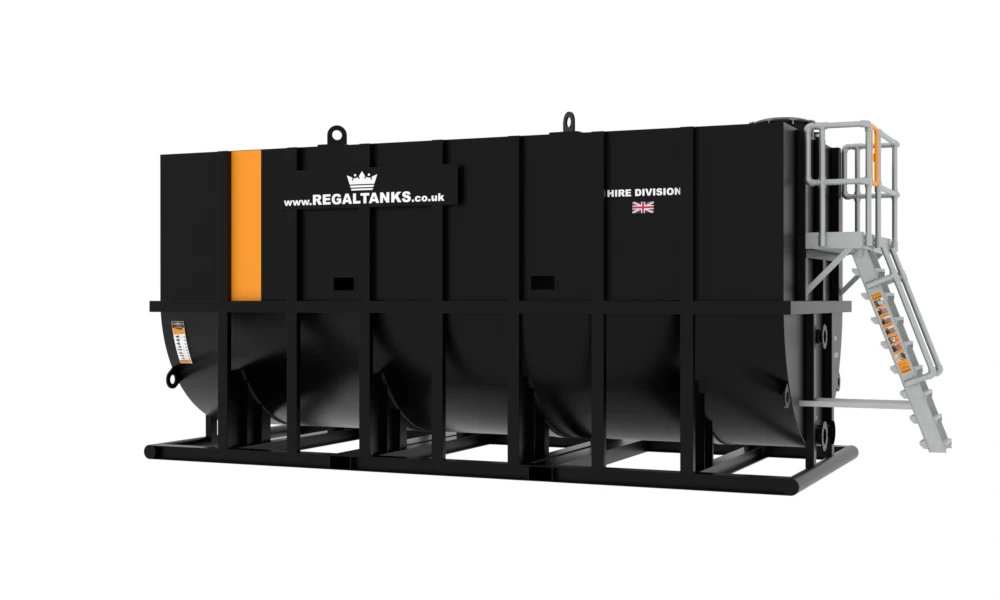

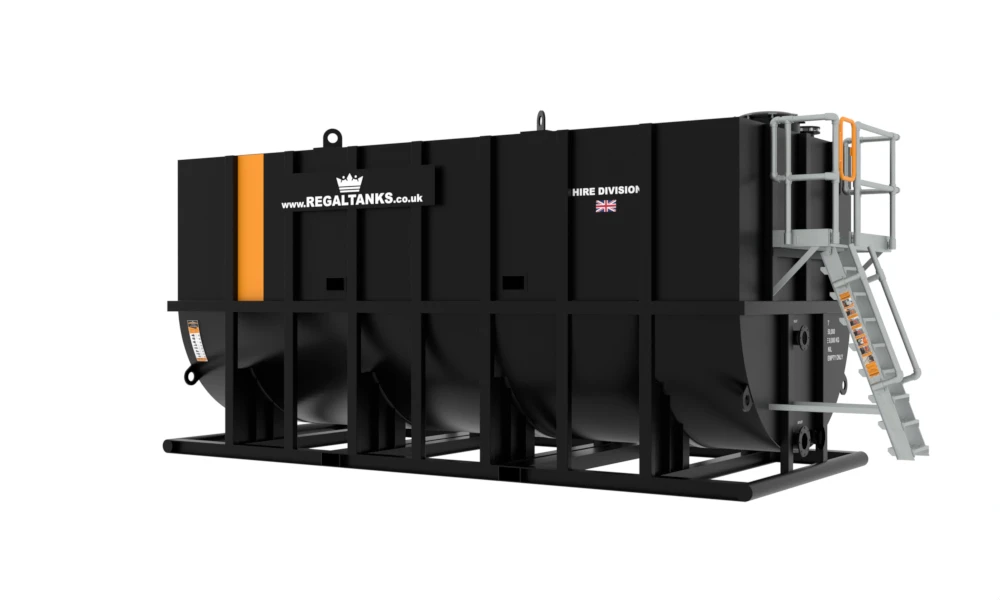

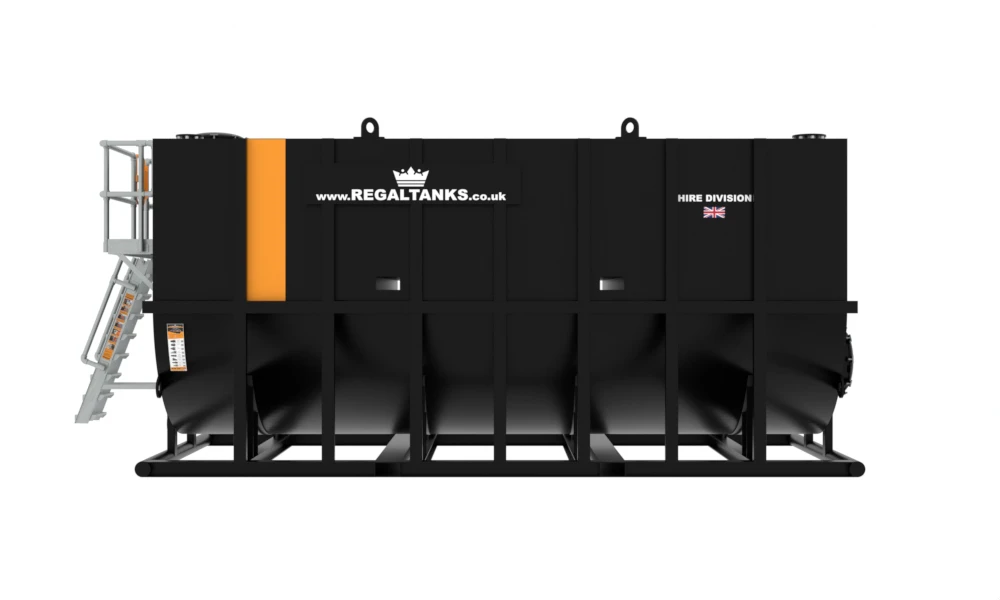

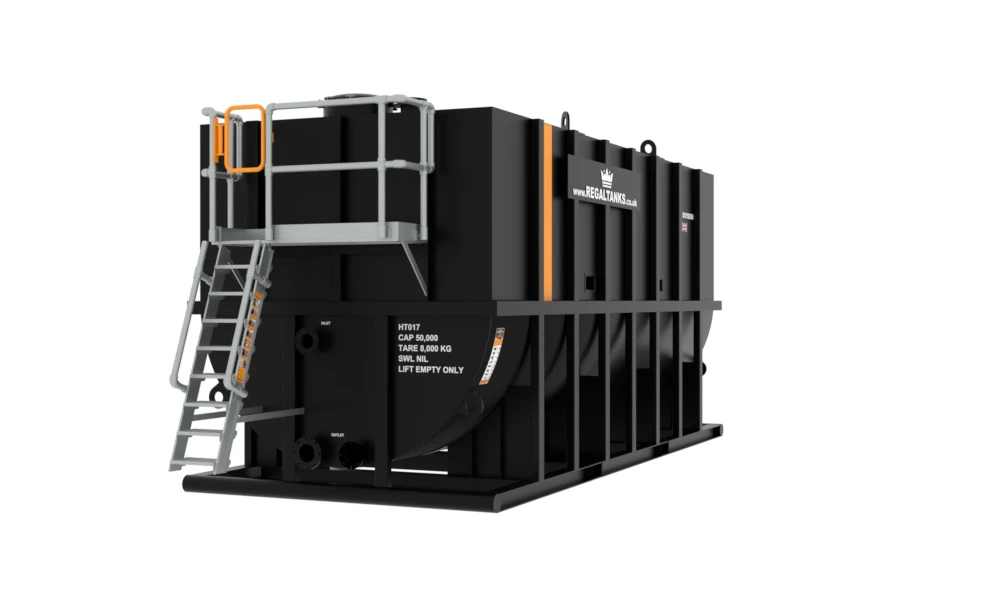

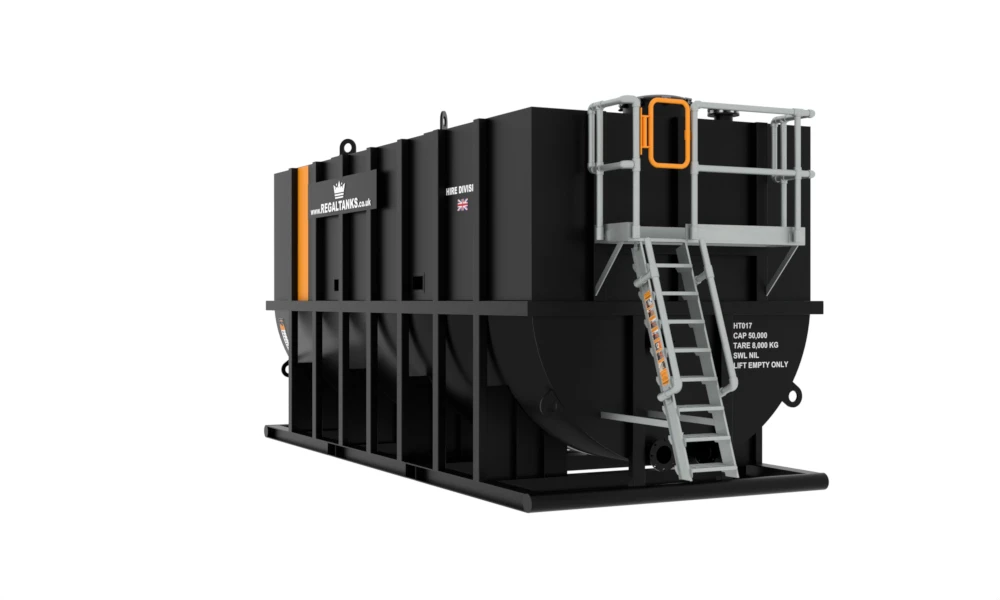

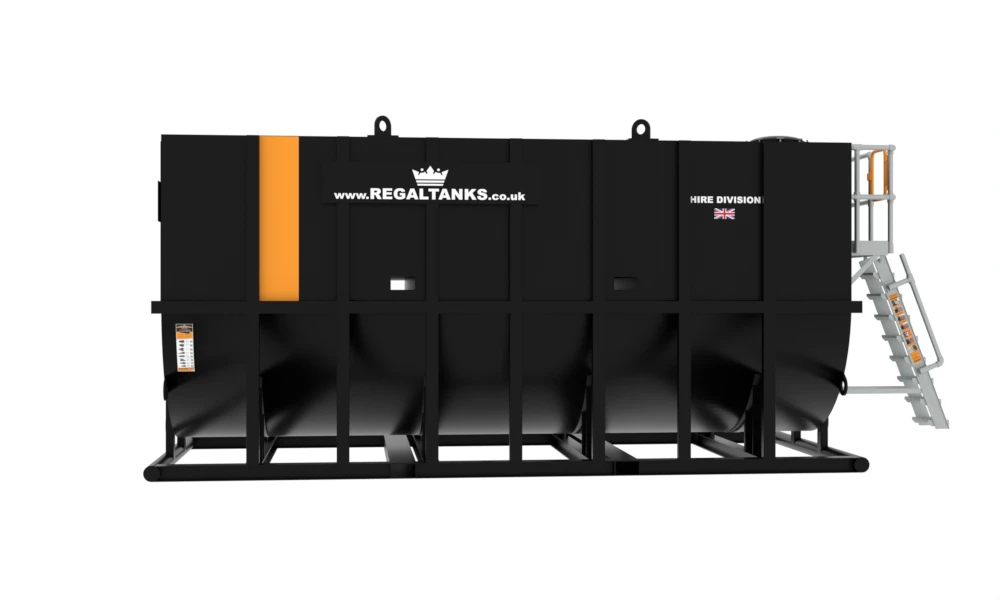

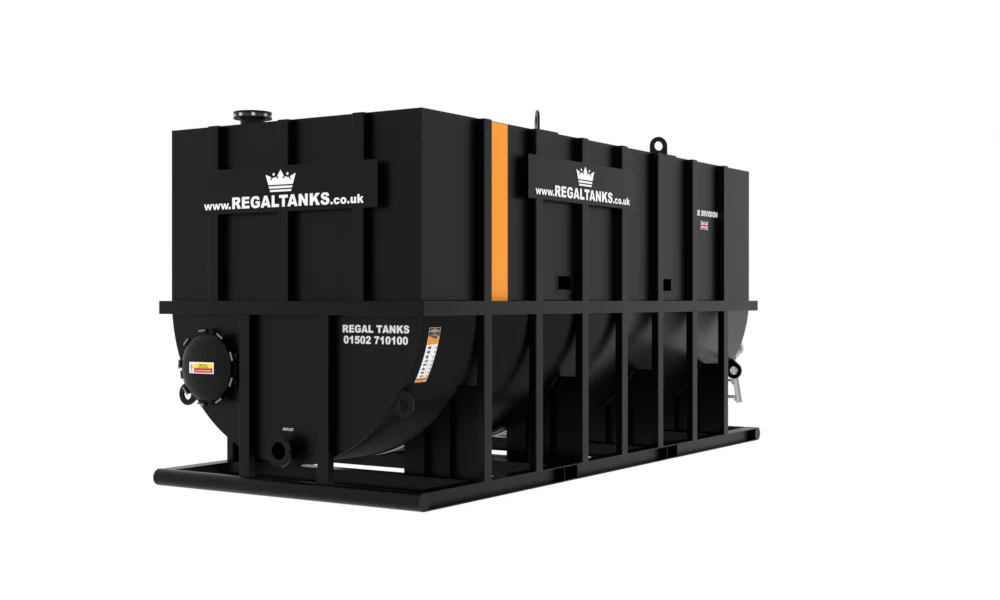

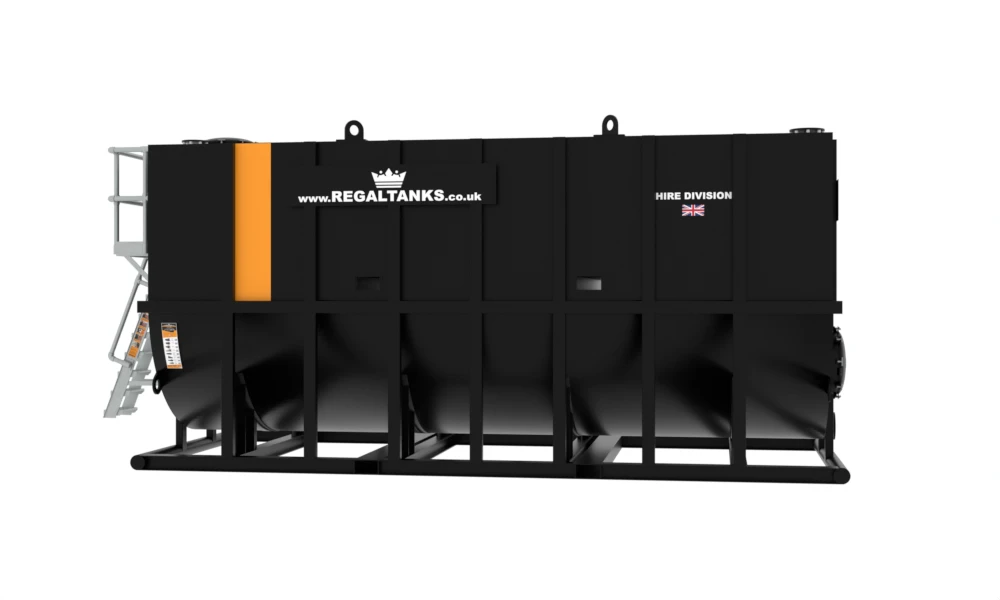

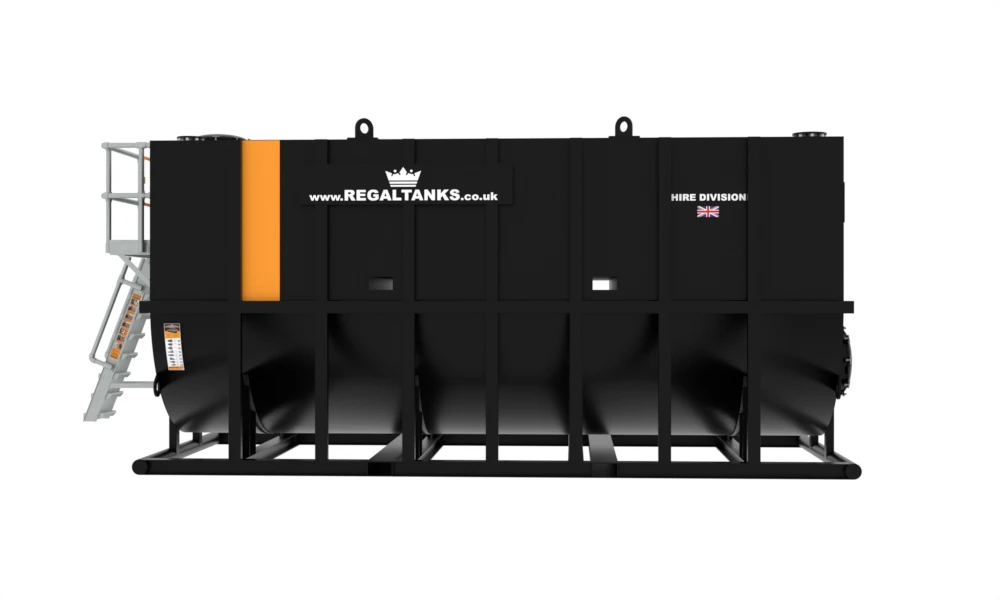

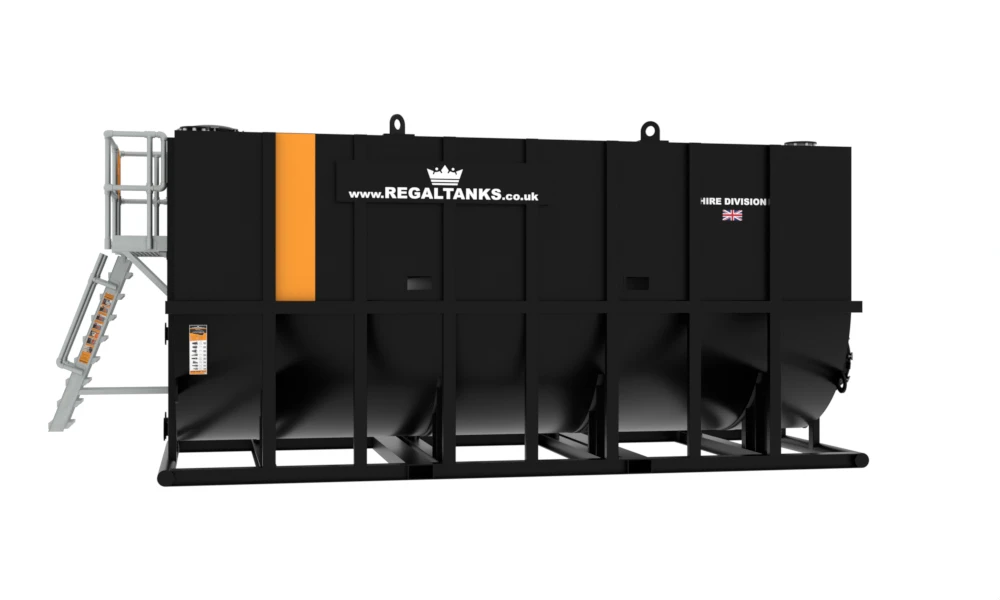

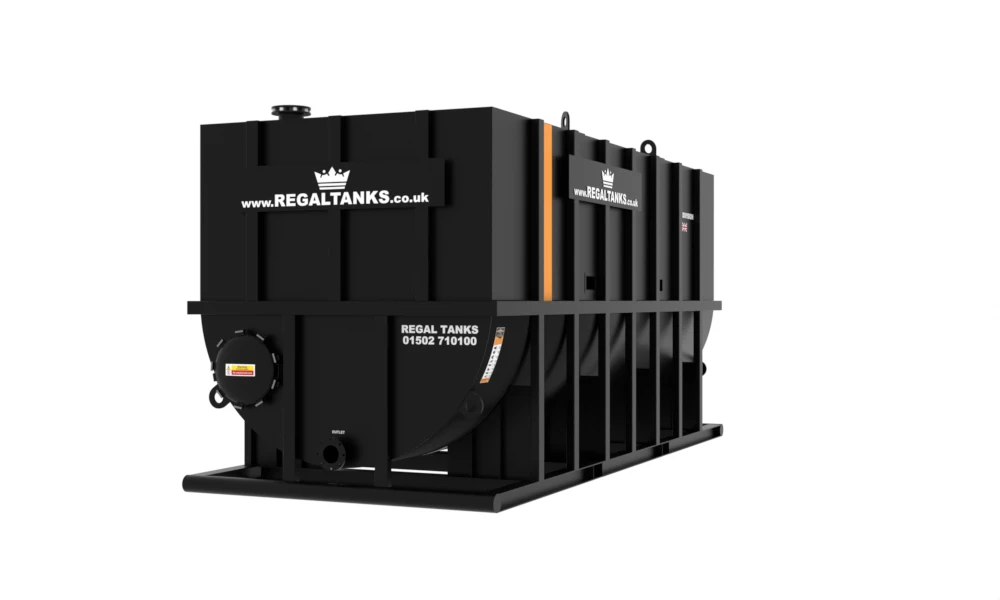

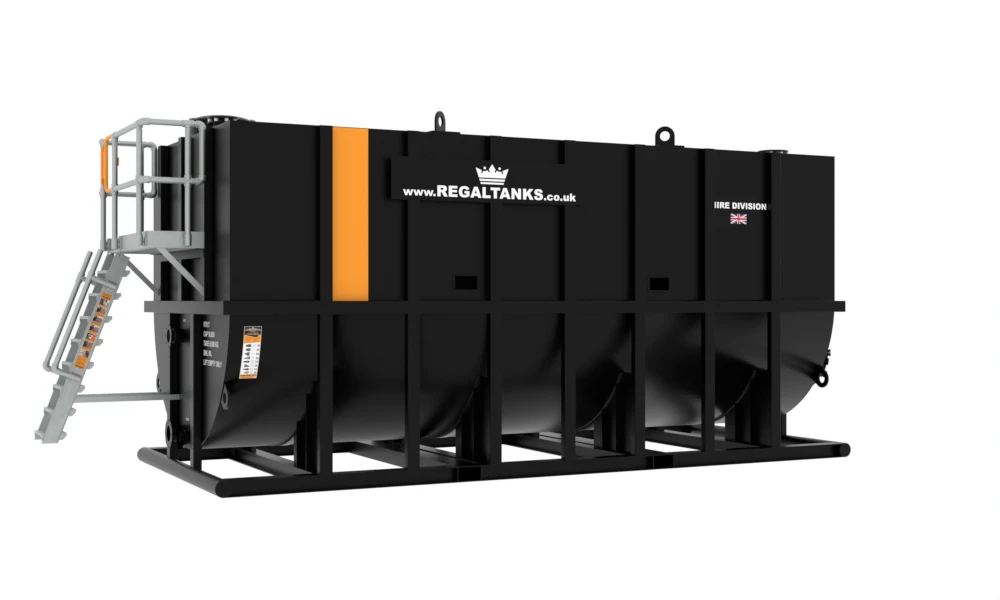

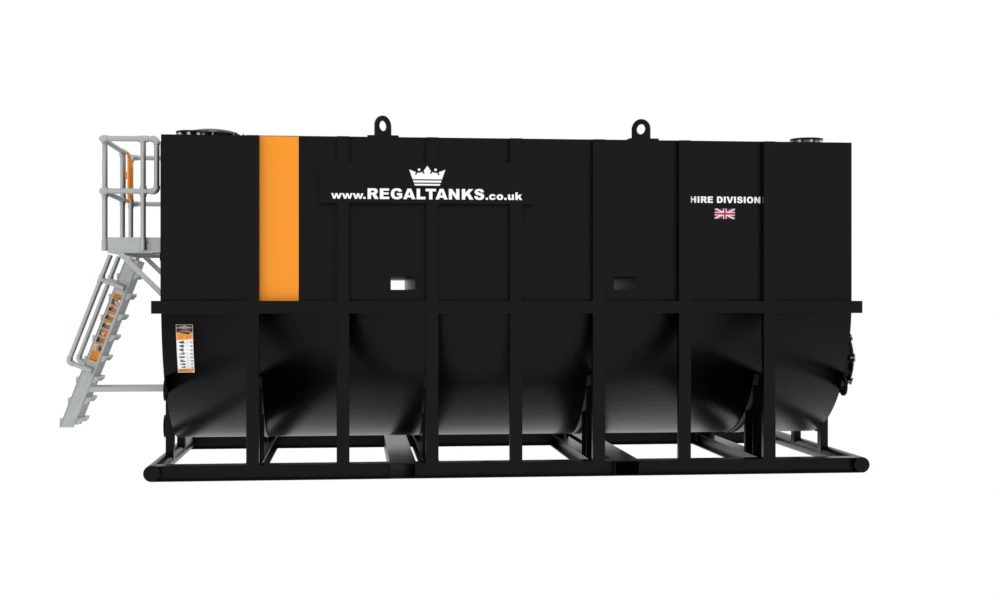

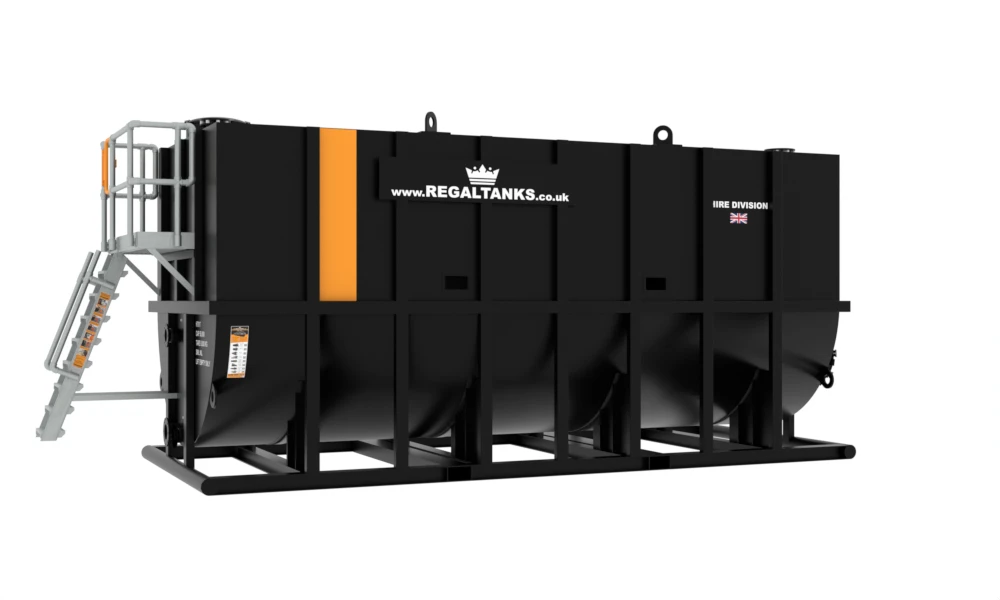

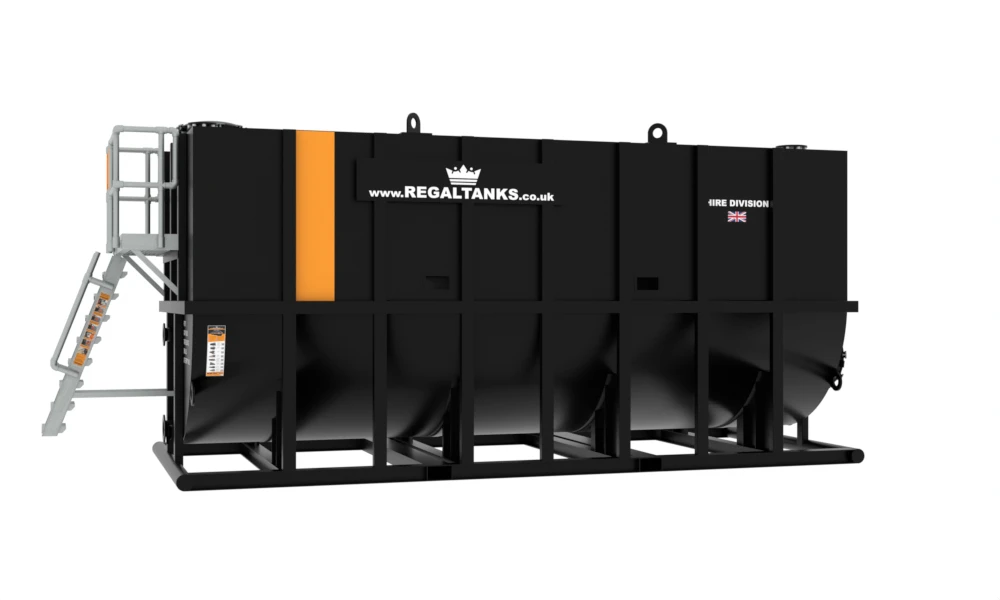

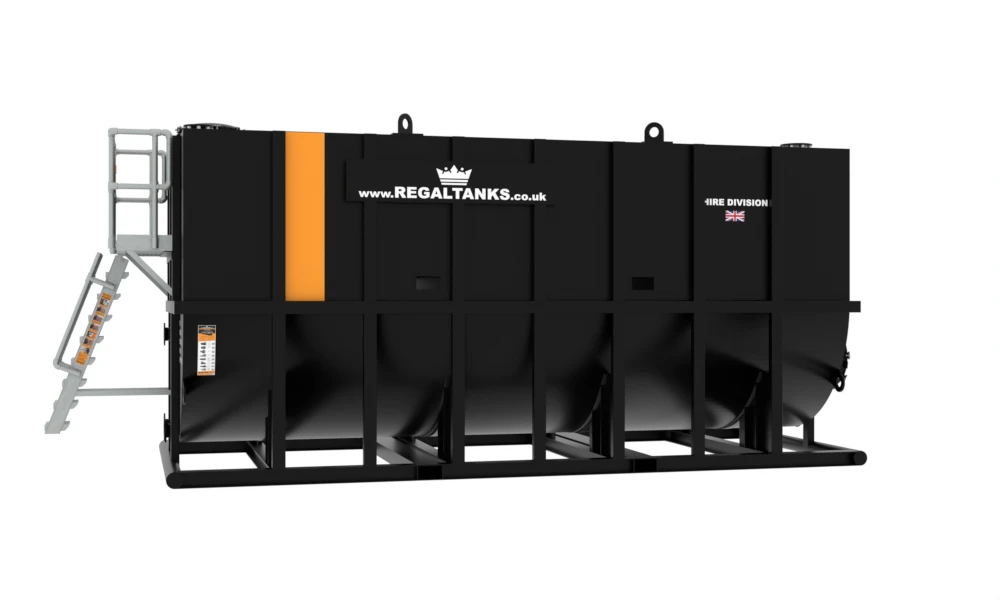

An economic hybrid storage tank allowing for the transport of two tanks on one vehicle. Each hybrid storage tank is supplied with certified lifting equipment for easy movement and positioning.

Additional features include a 600mm diameter top and end quick release manways along with stairs and secure platform for observation.

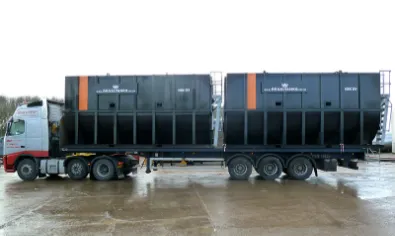

We can deliver up-to two tanks per load with this tank – a great way to save on your costs.

Maximum Capacity

50,000 Litres

Material

Mild Steel

Footprint

L: 7,400 mm, W: 3,000 mm, H: 3,450 mm

Weight

8,000kg

Standard Fittings

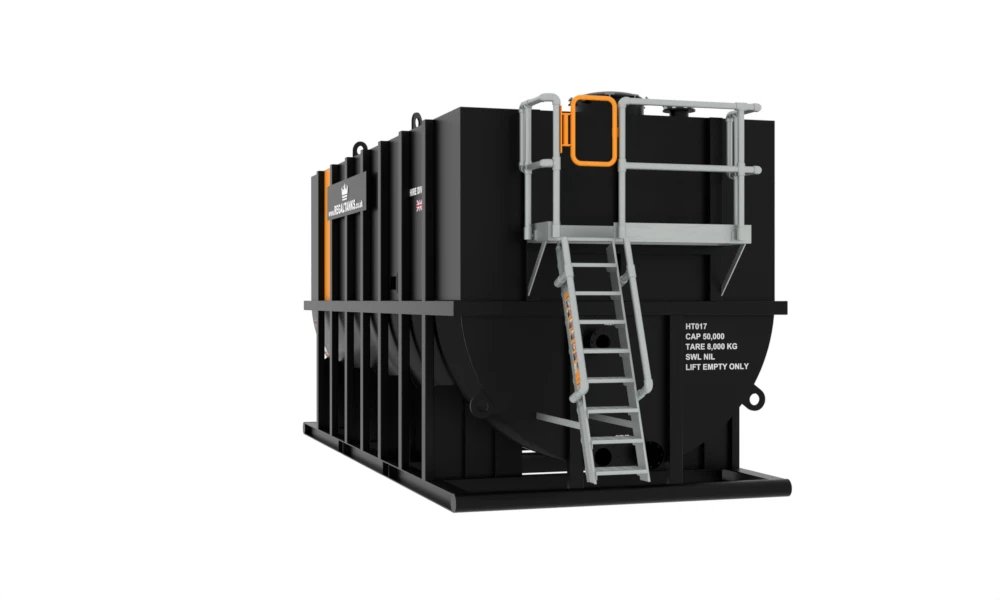

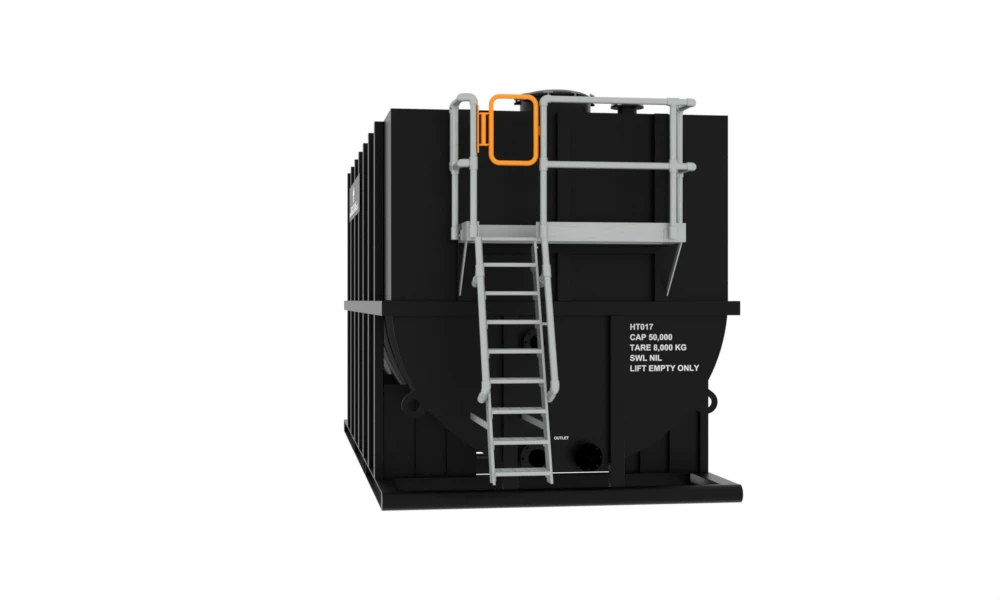

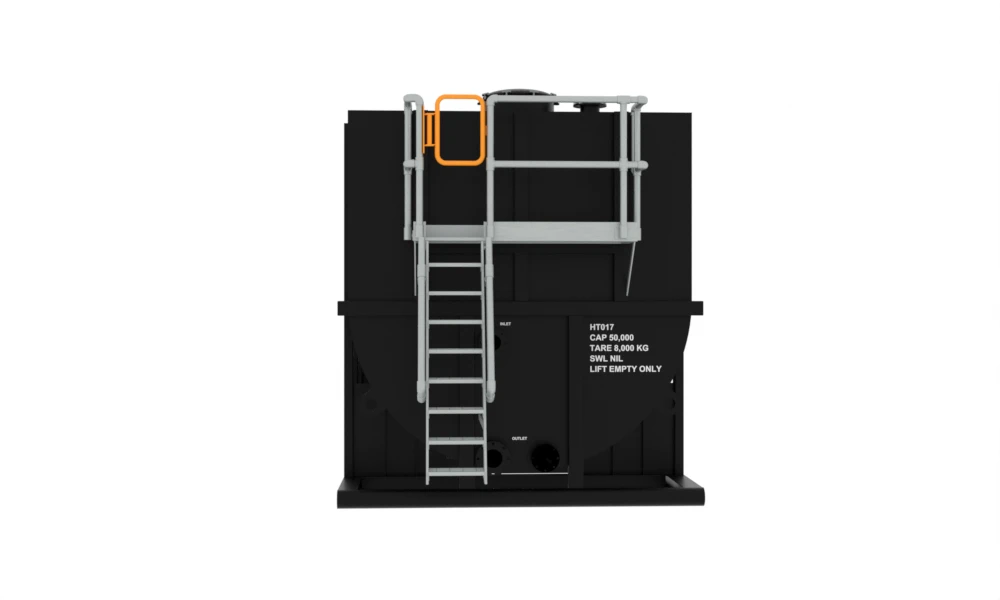

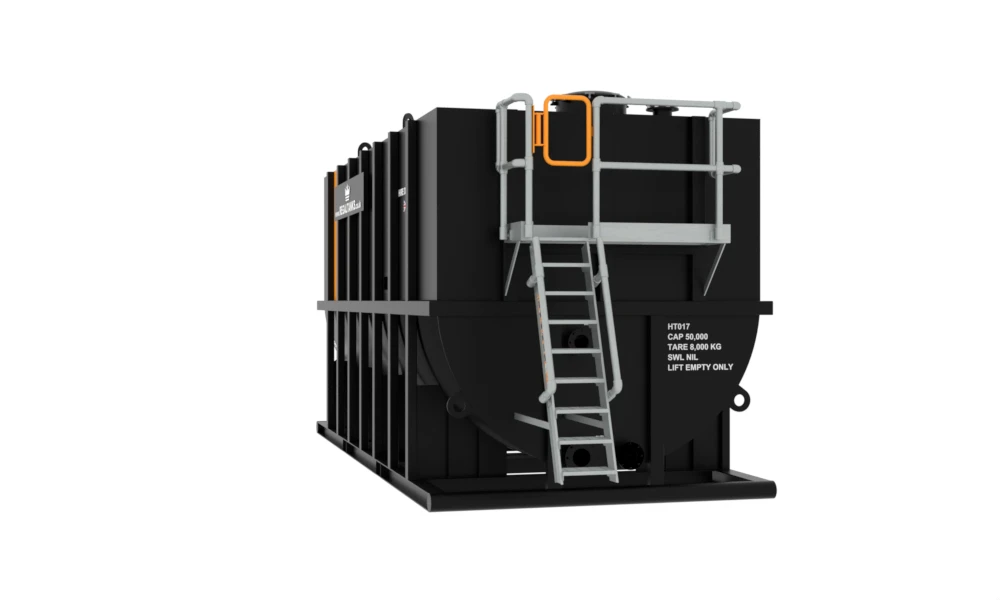

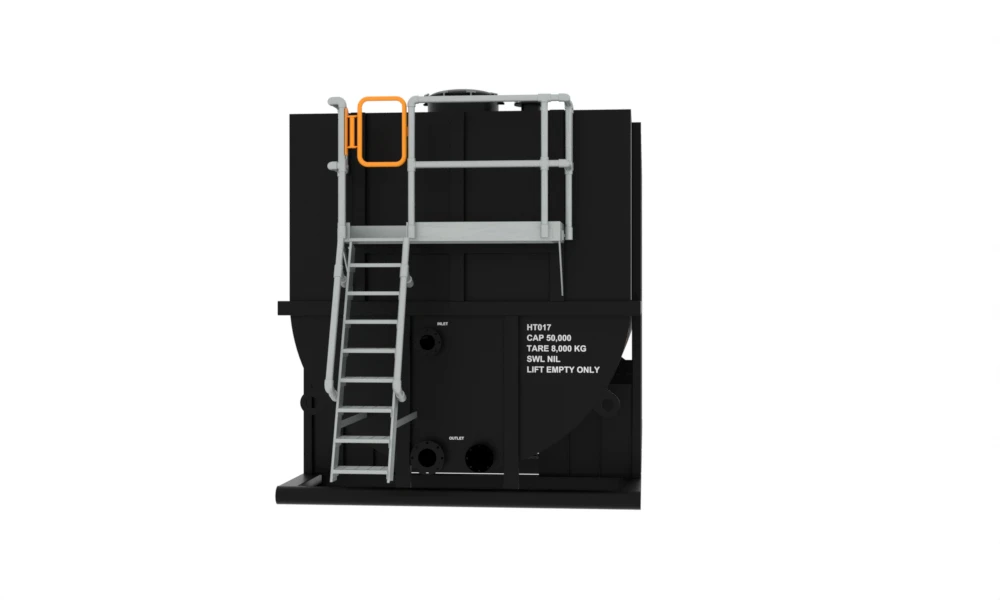

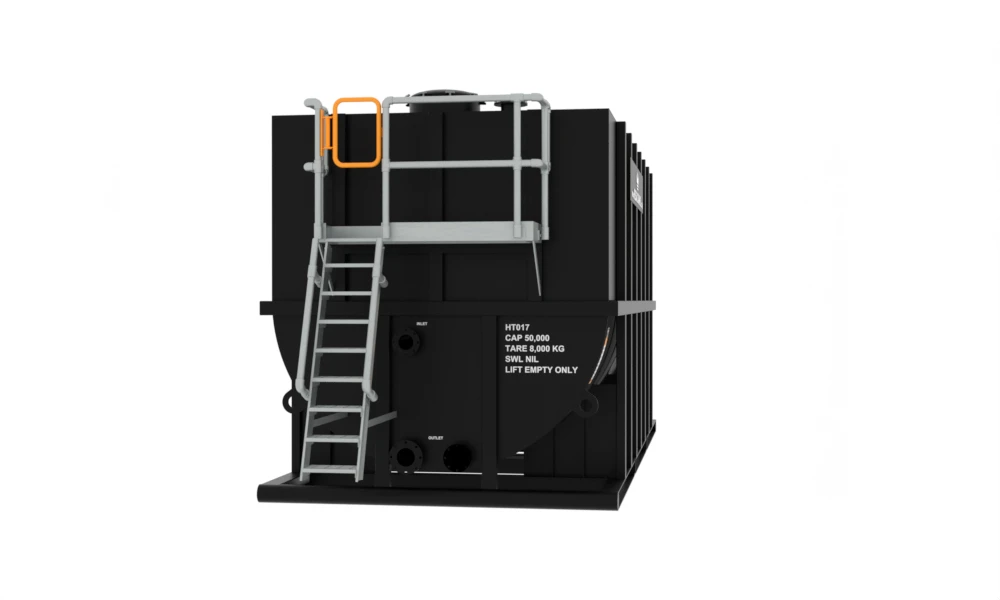

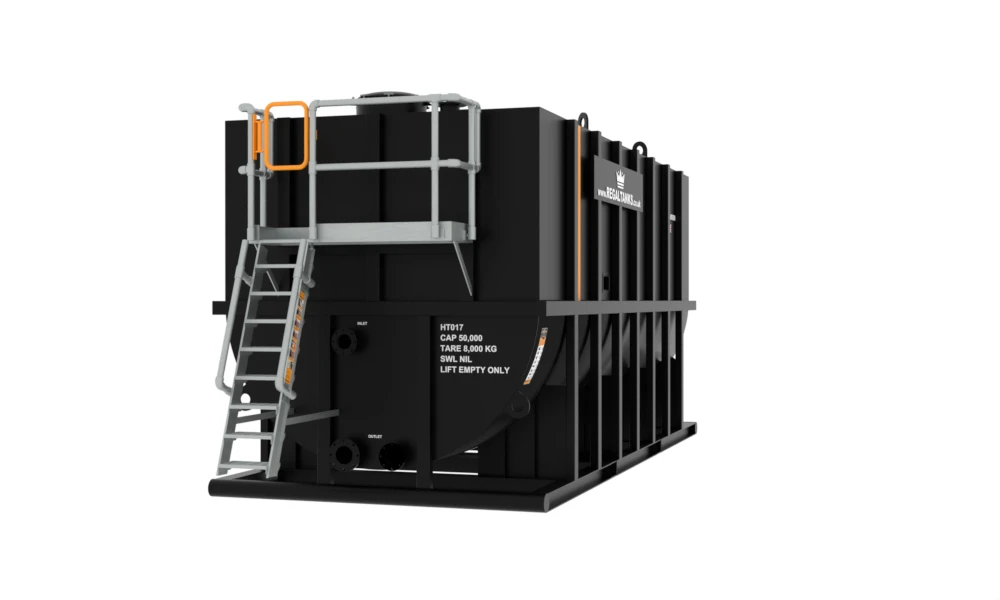

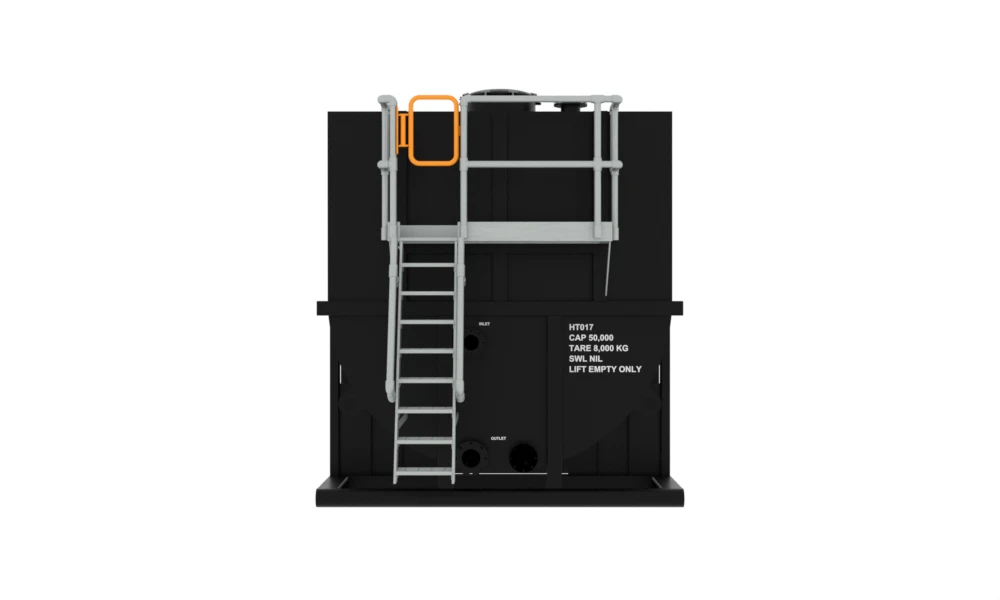

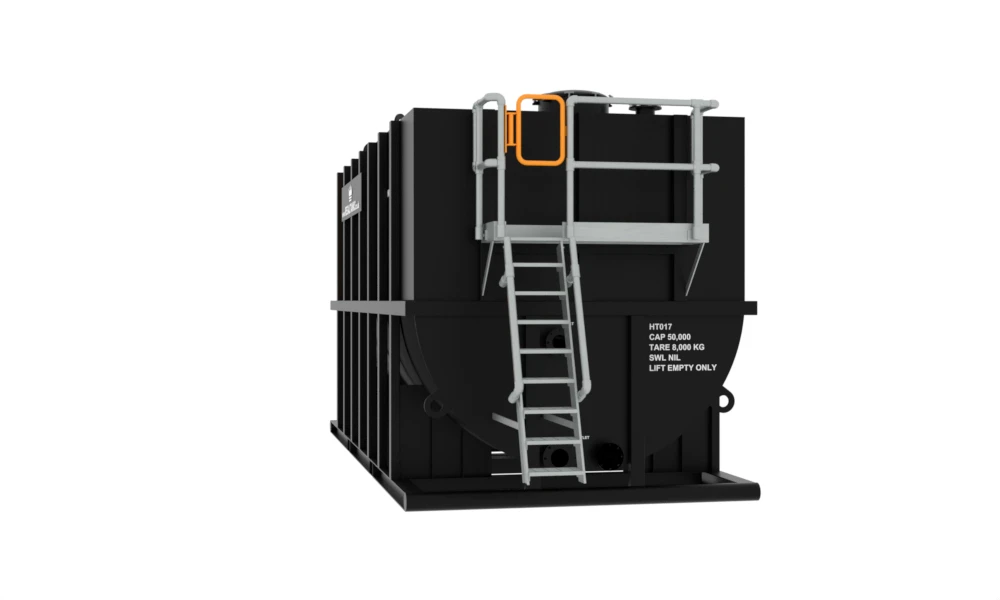

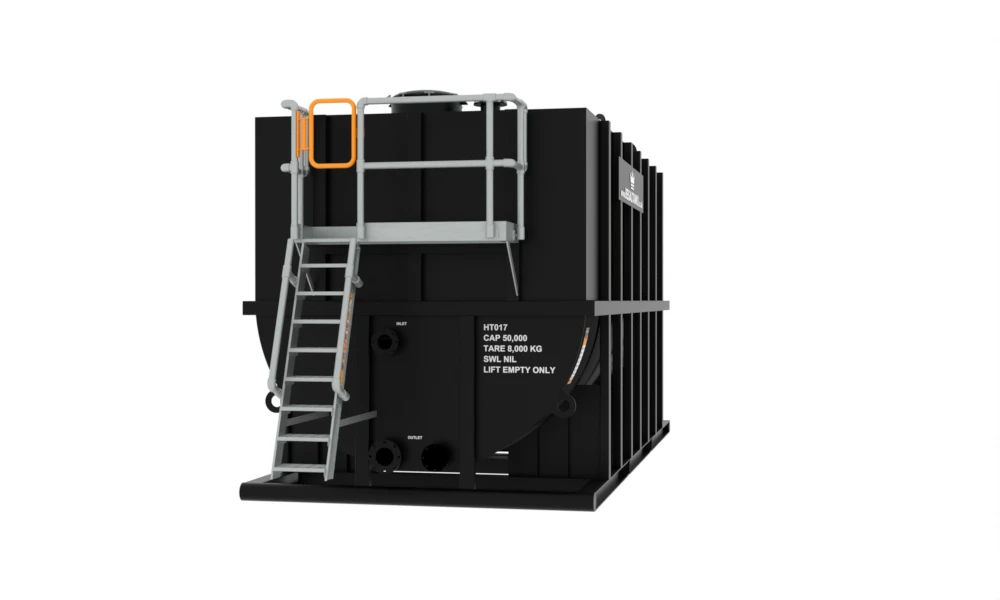

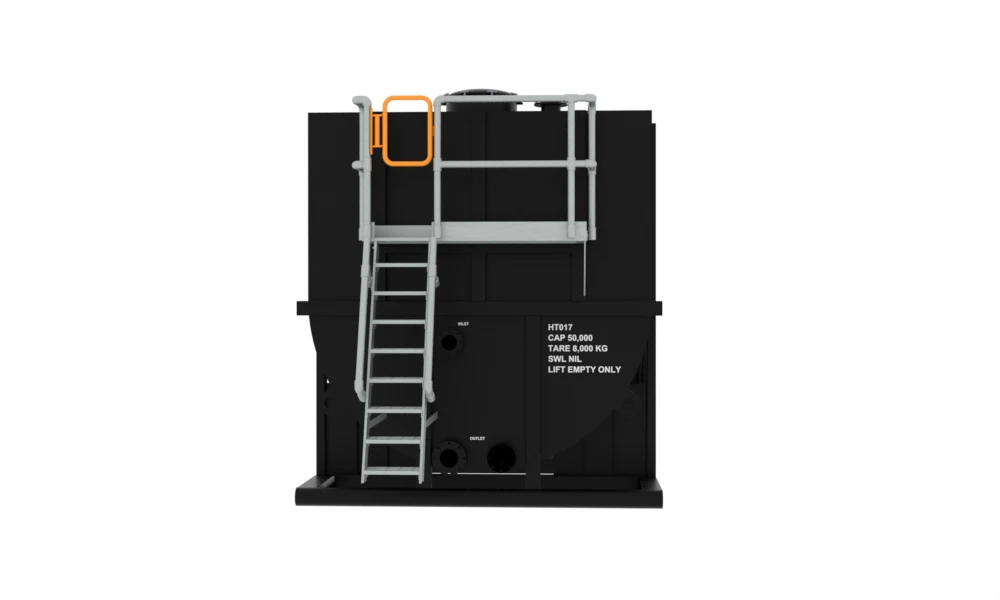

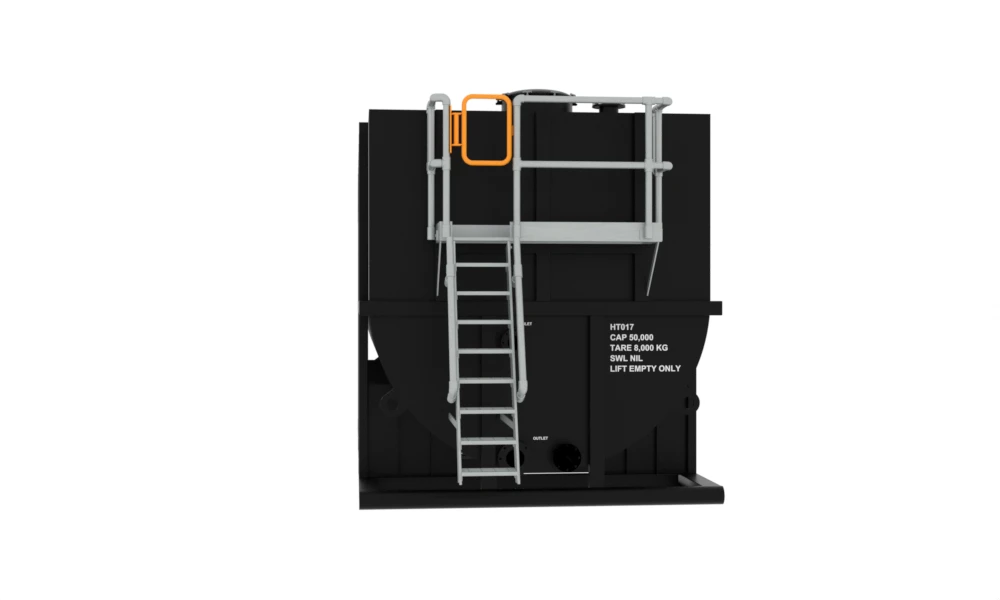

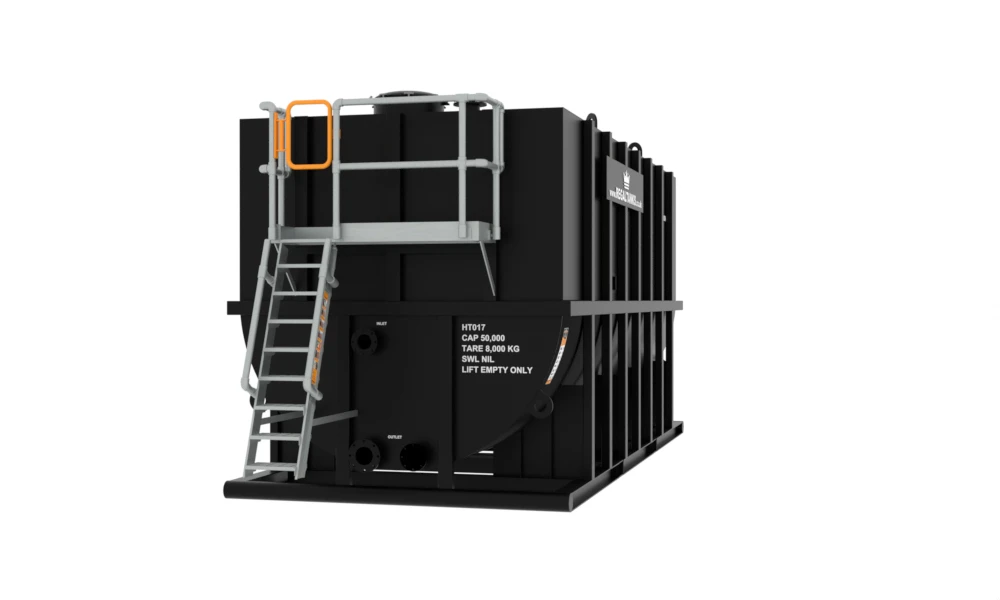

Stair End
  • 1 x 4" asa 150# ANSI flanged internal fill line
  • 1 x 4" asa 150# ANSI flanged inlet/outlet
  • 1 x 6" asa 150# ANSI flanged inlet/outlet (blinded)
  • 1" Visual site tube with stop valve

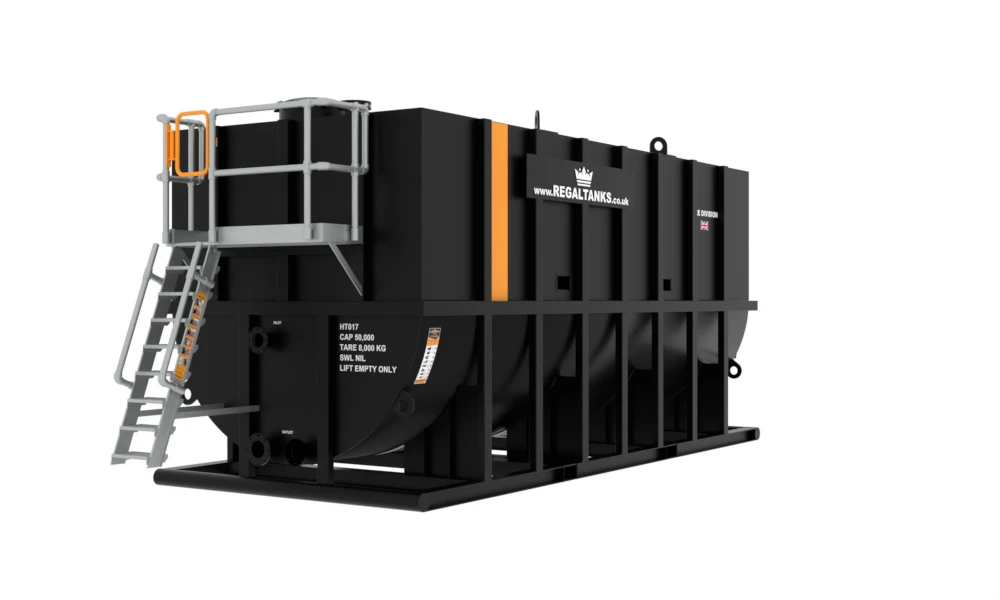

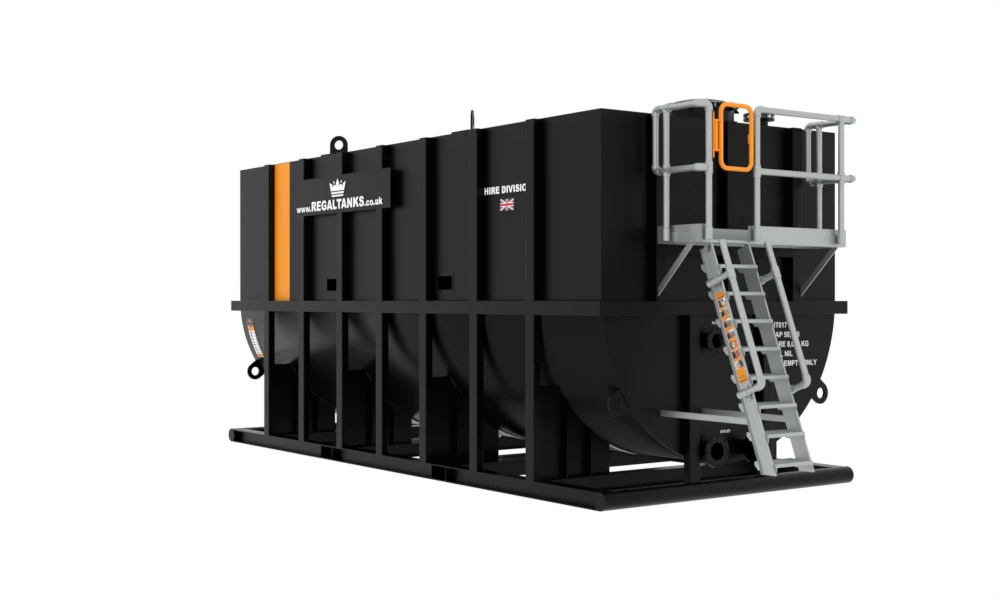

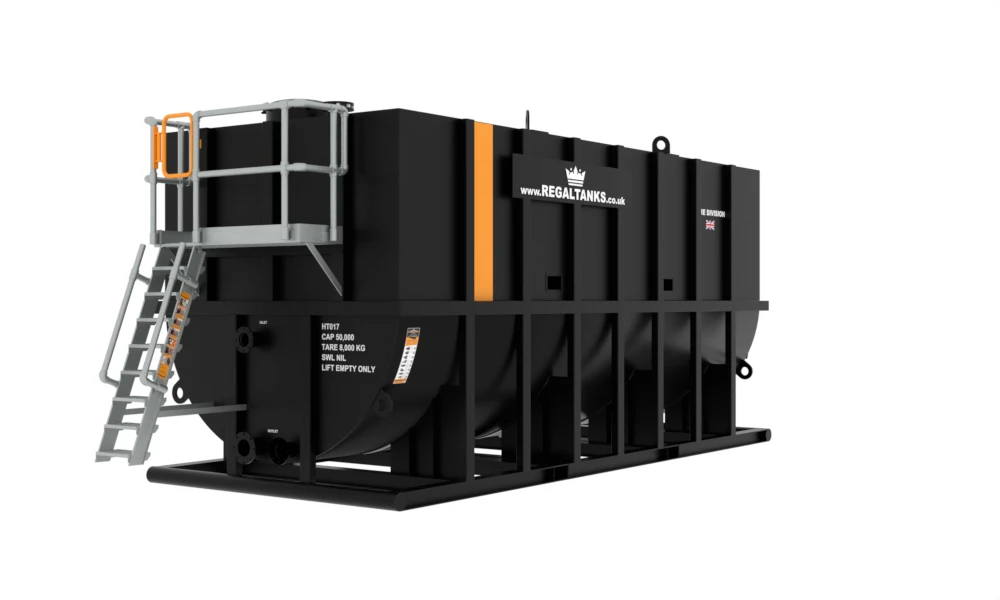

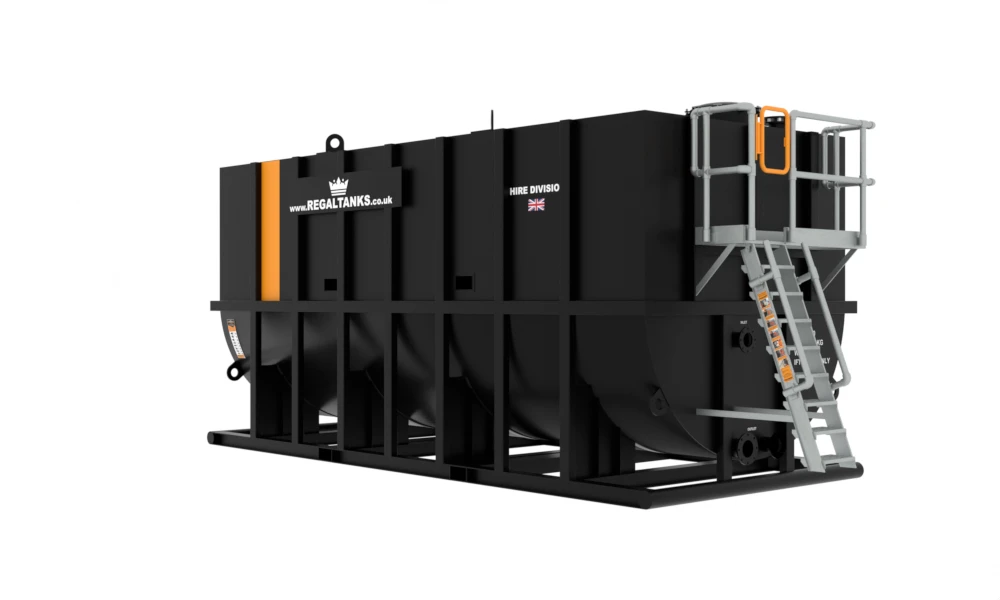

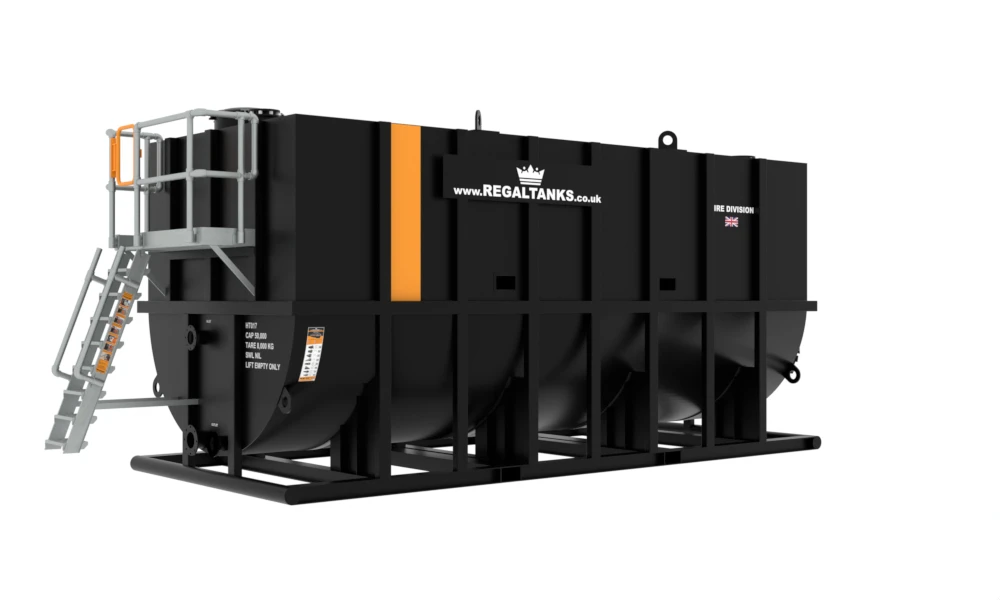

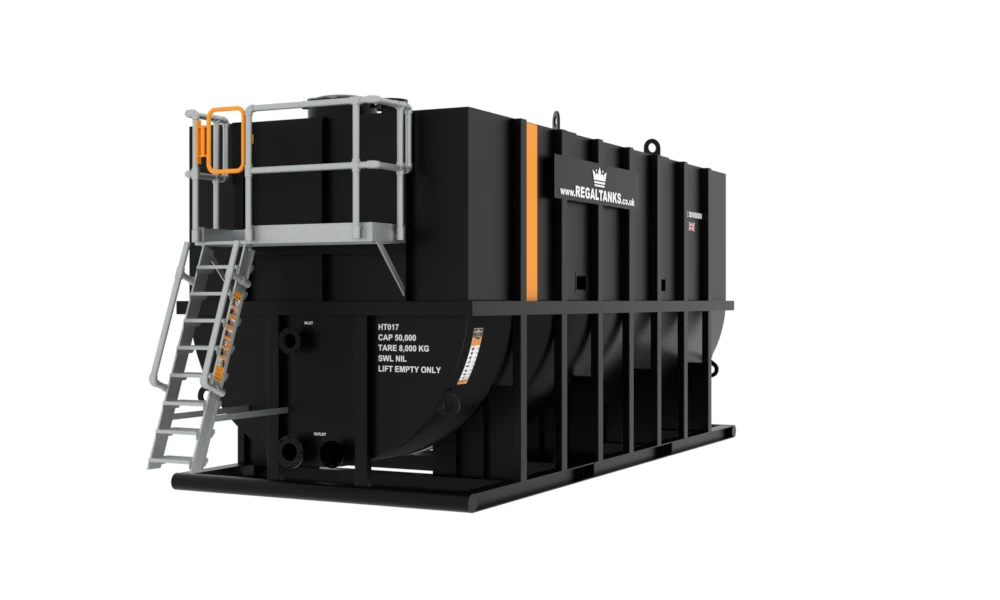

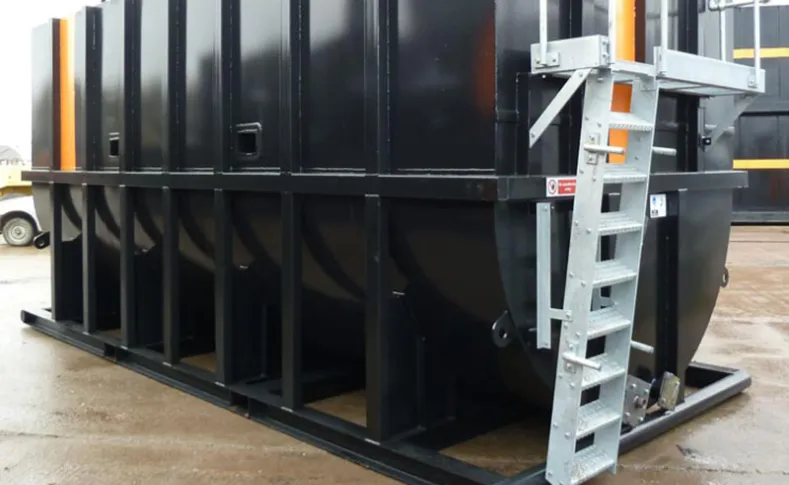

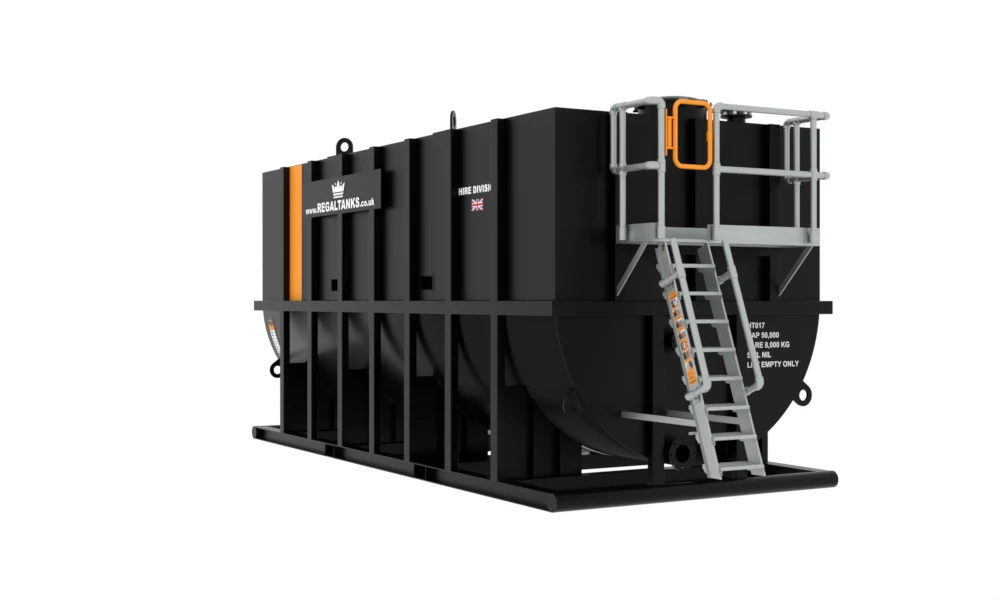

  • Stairs and access platform to top manway

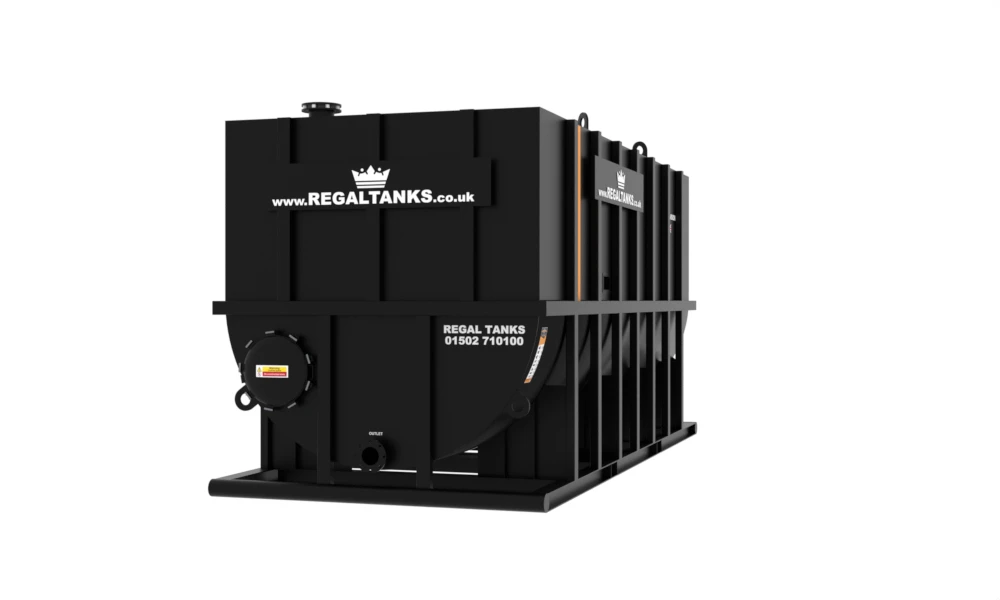

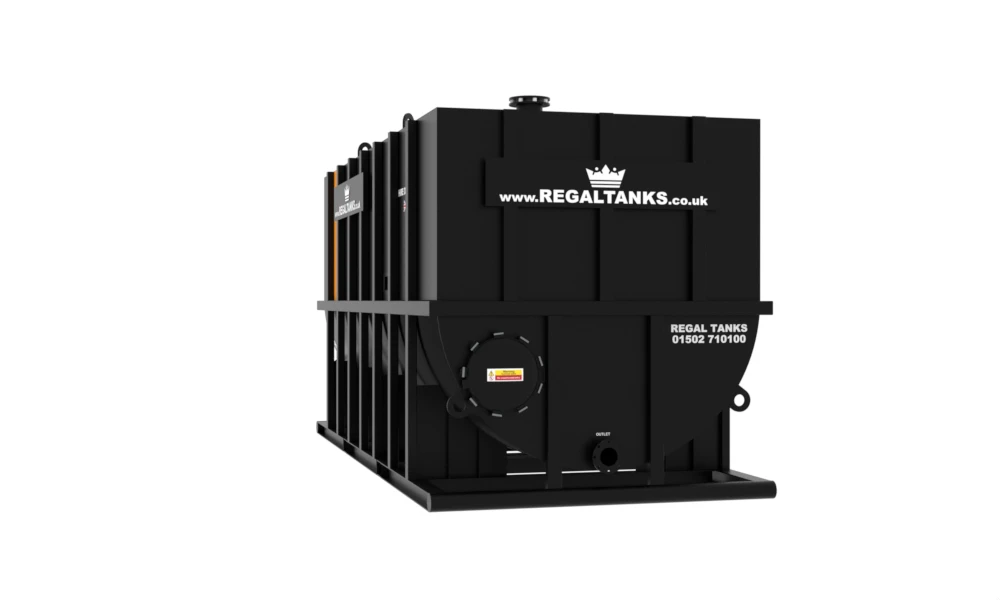

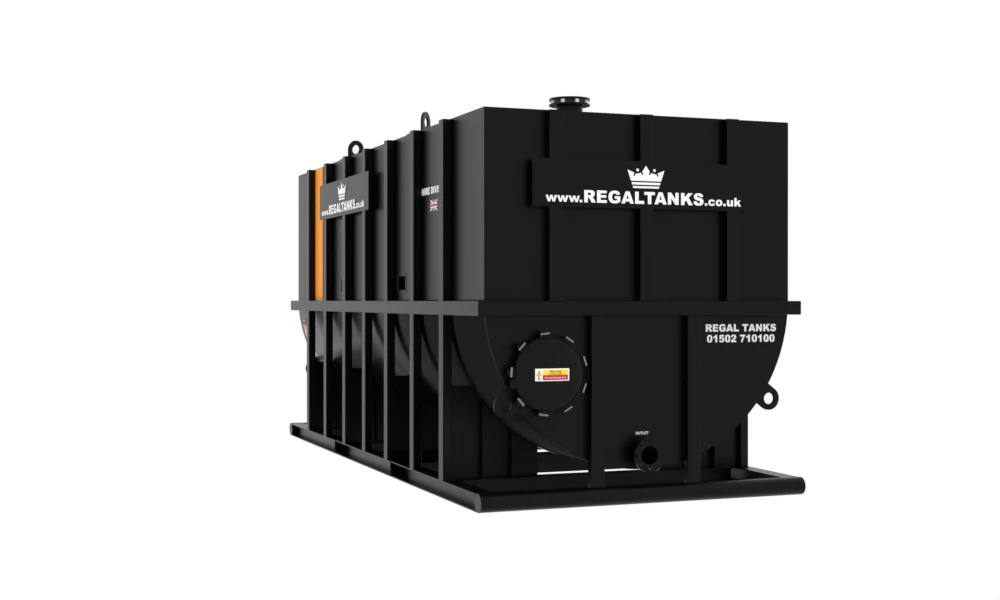

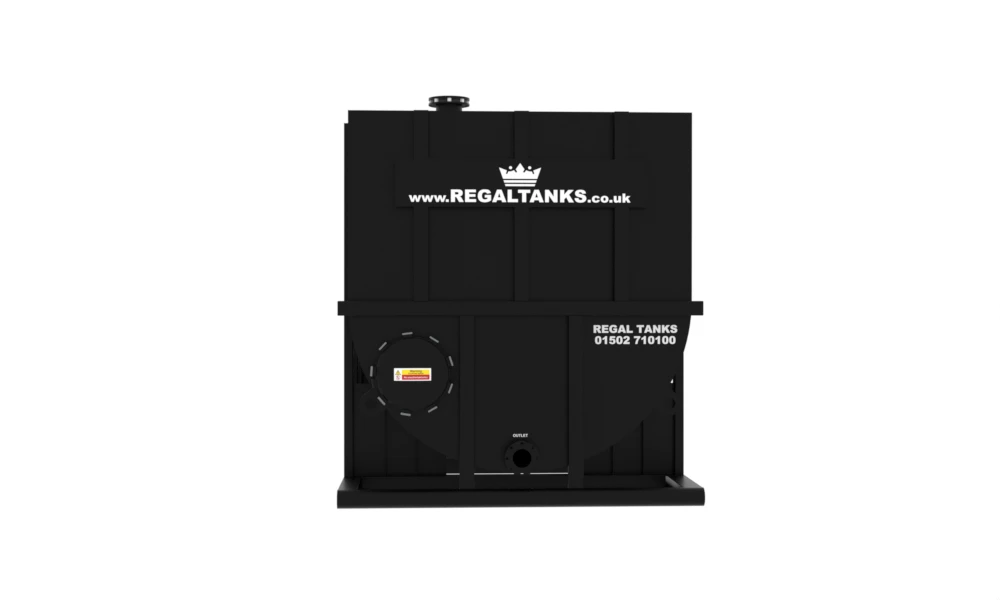

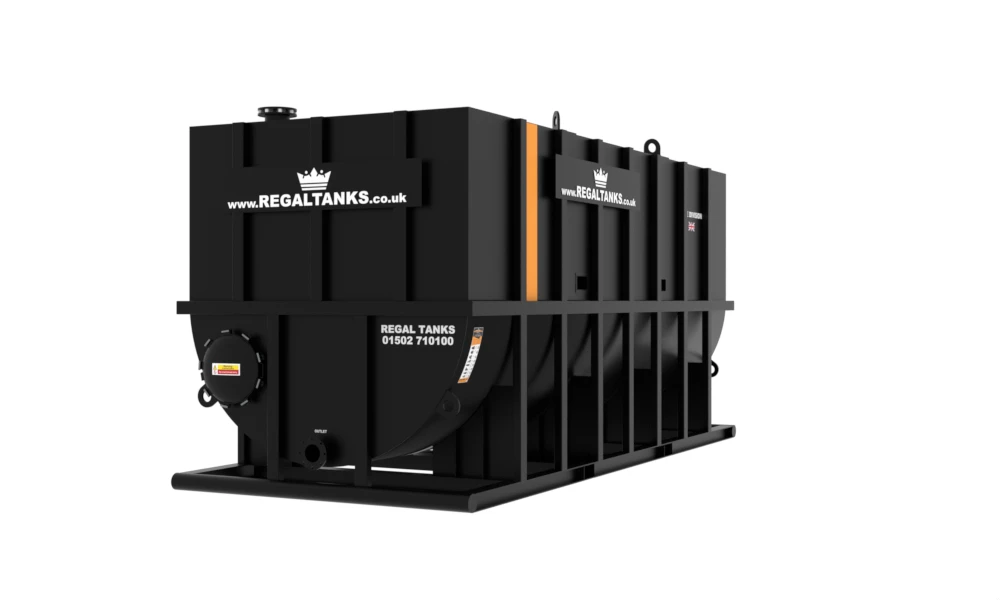

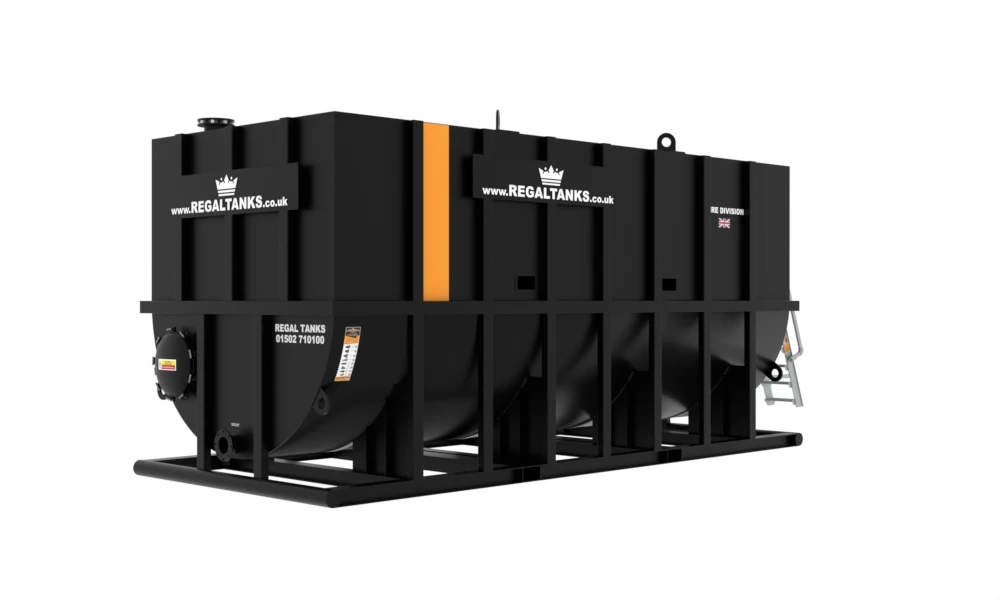

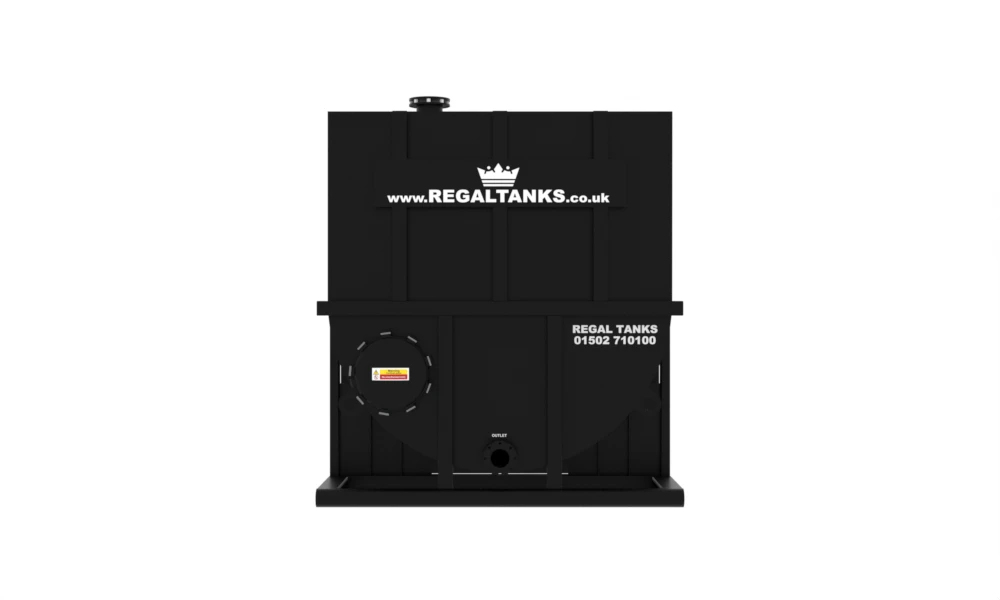

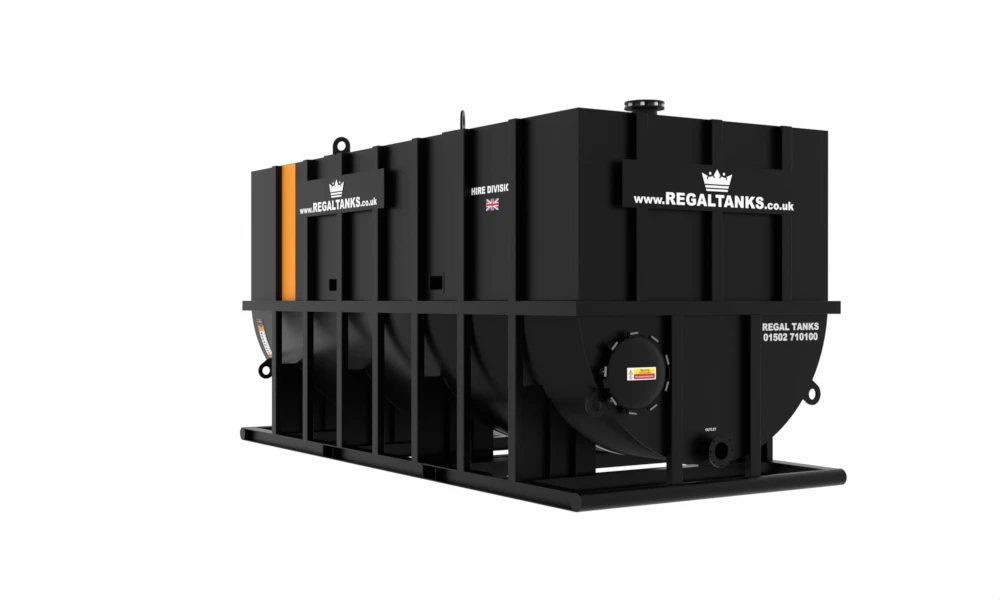

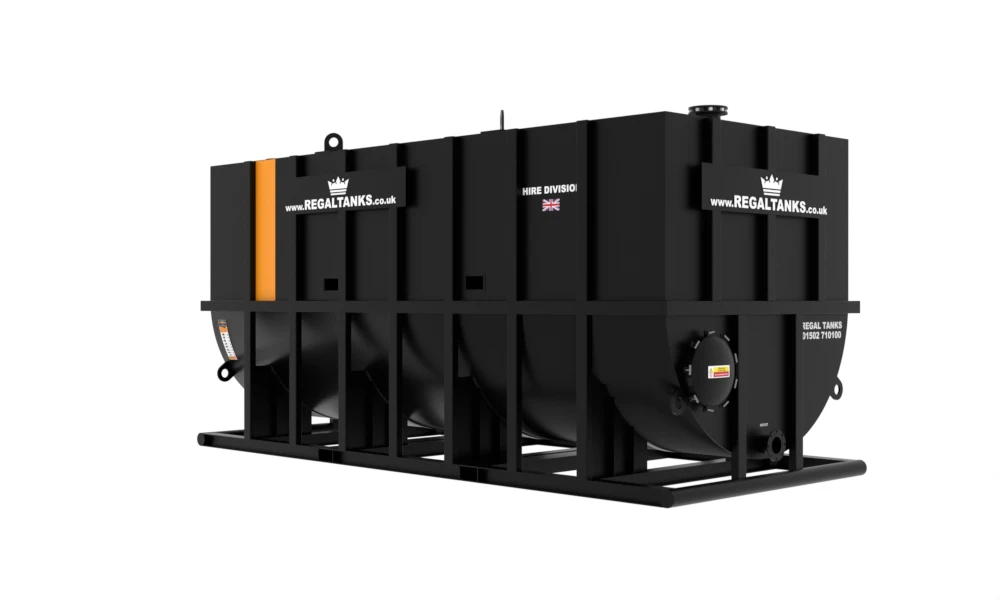

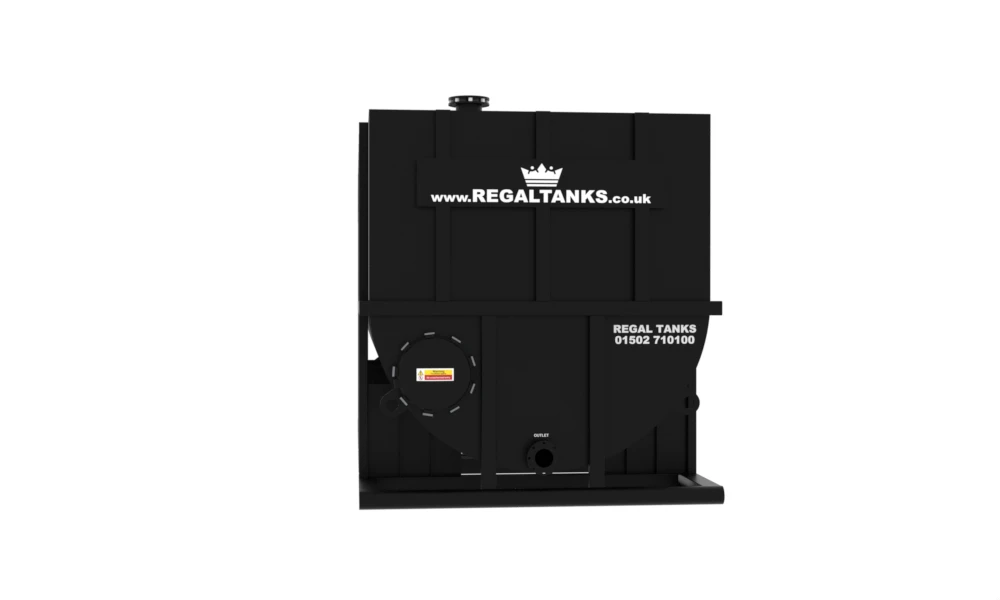

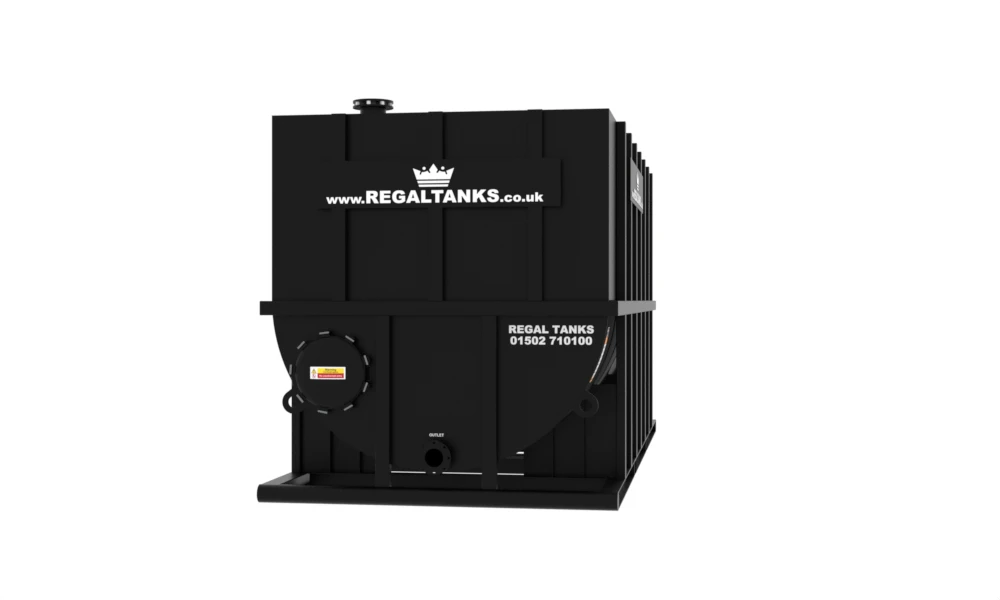

Non-Stair End
  • 1 x 6" 150# ANSI flanged inlet/outlet (blinded)
  • 1 x 600mm Quick release manway
Top
  • 1 x 6" 150# ANSI flanged (blinded)
  • 1 x 8" 150# ANSI flanged connection fitted with box type vent
  • 1 x 600mm Quick release manway
Lifting
  • 4 Leg wire rope sling complete with ring assembly
  • 3rd Party certified to LOLER 98
3D Model

Explore in 3D

Dive into a detailed, interactive view of our storage tank, examine every angle and feature with our 3D model.

View the 3D model

Downloads

Download Details SheetDownload Tank Drawing
