Storage Tank Hire:

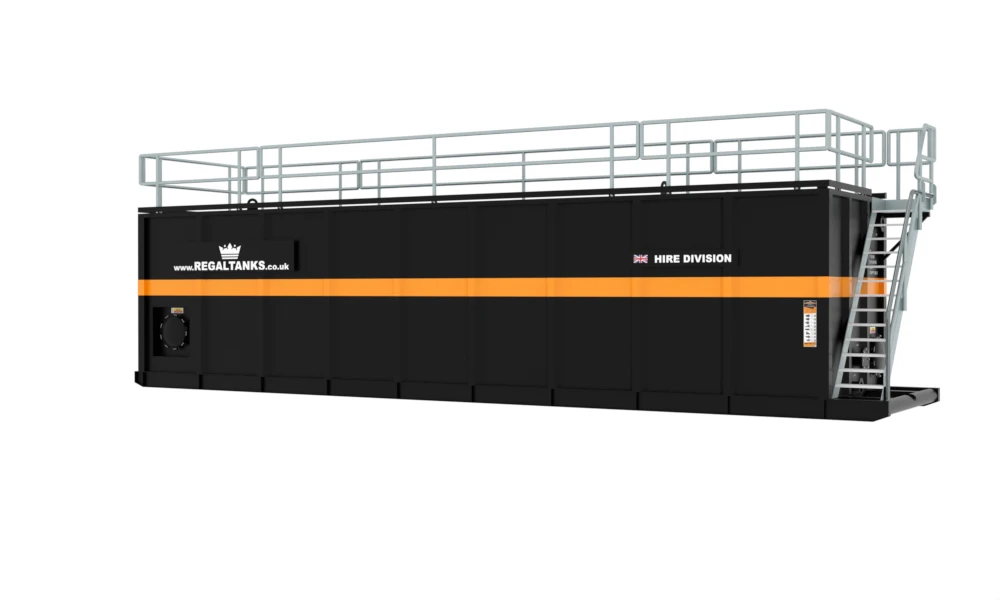

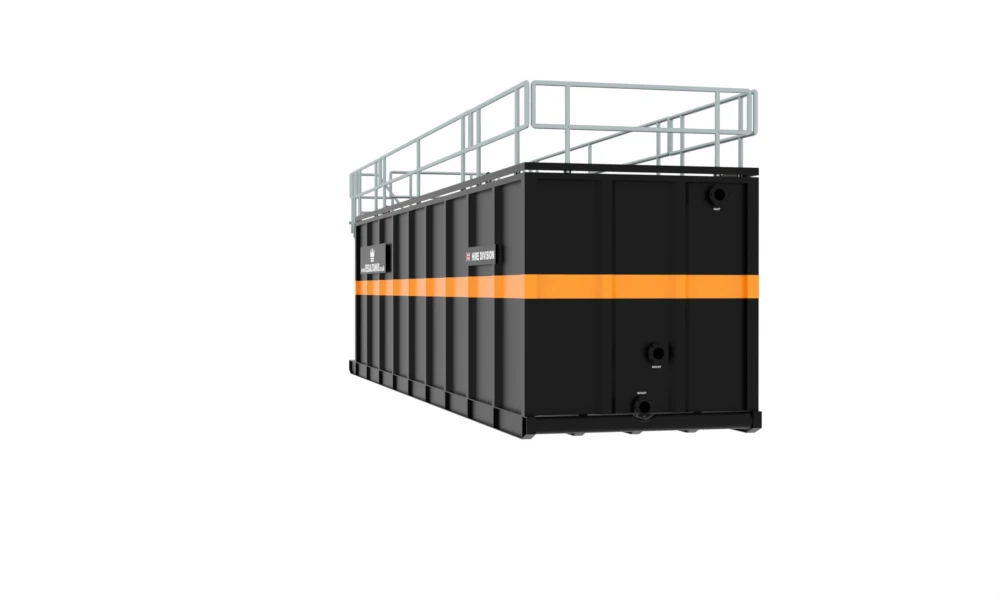

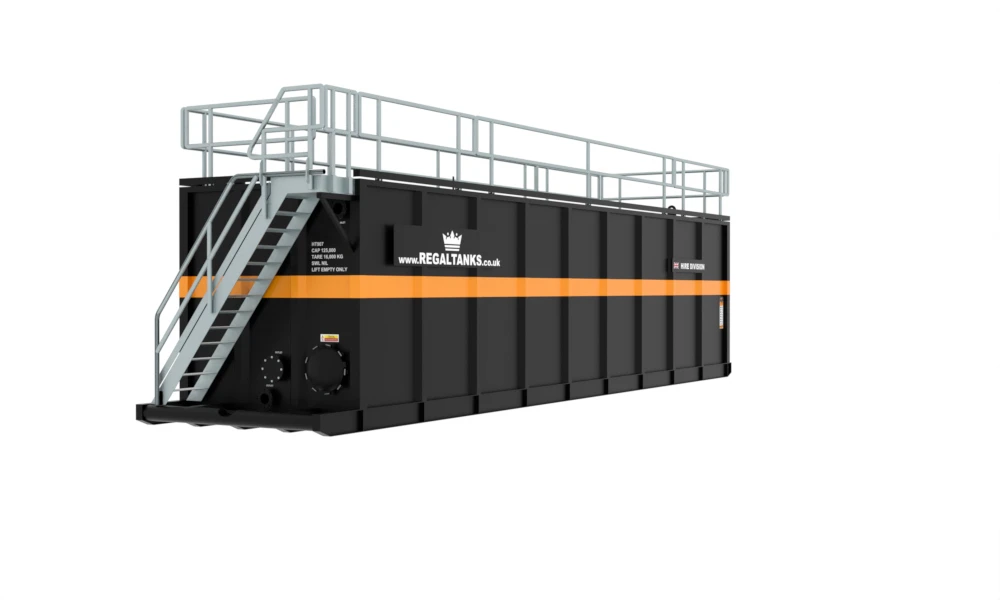

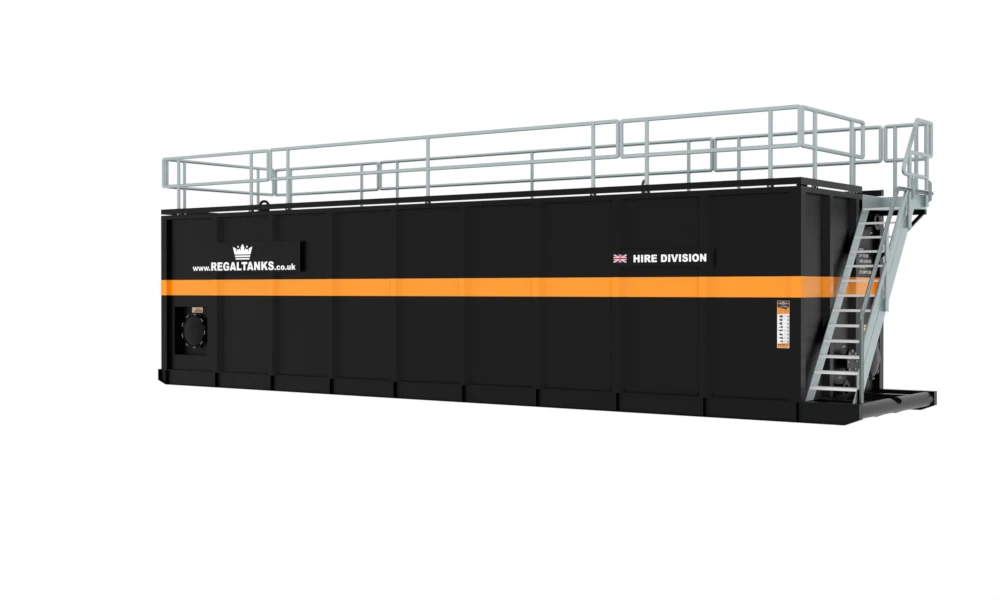

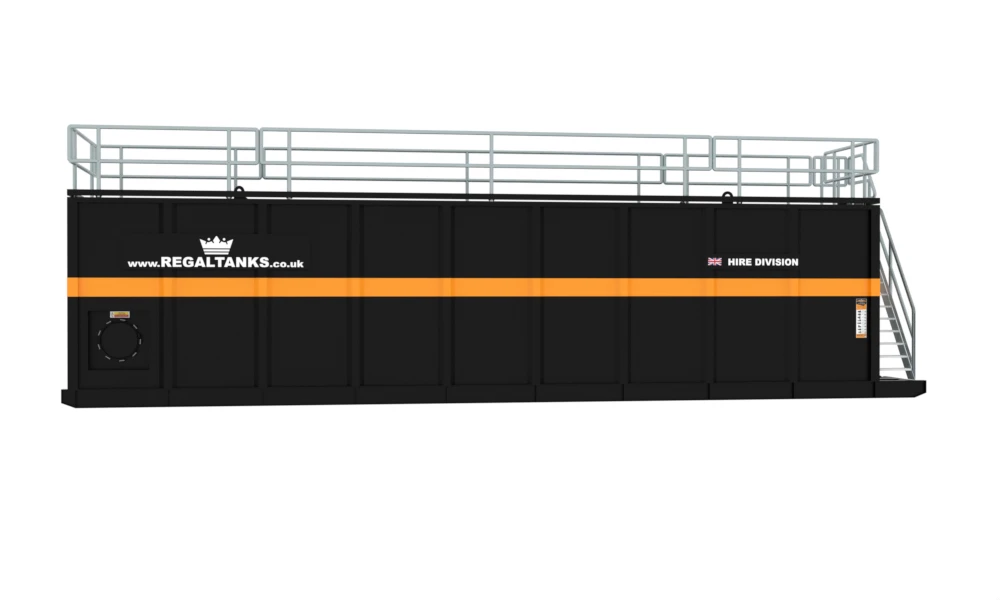

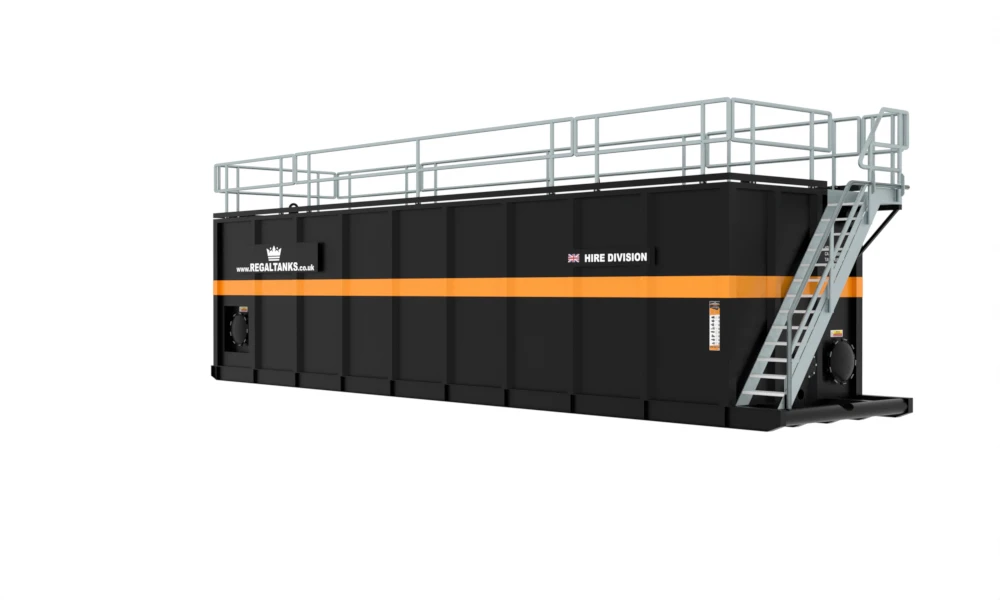

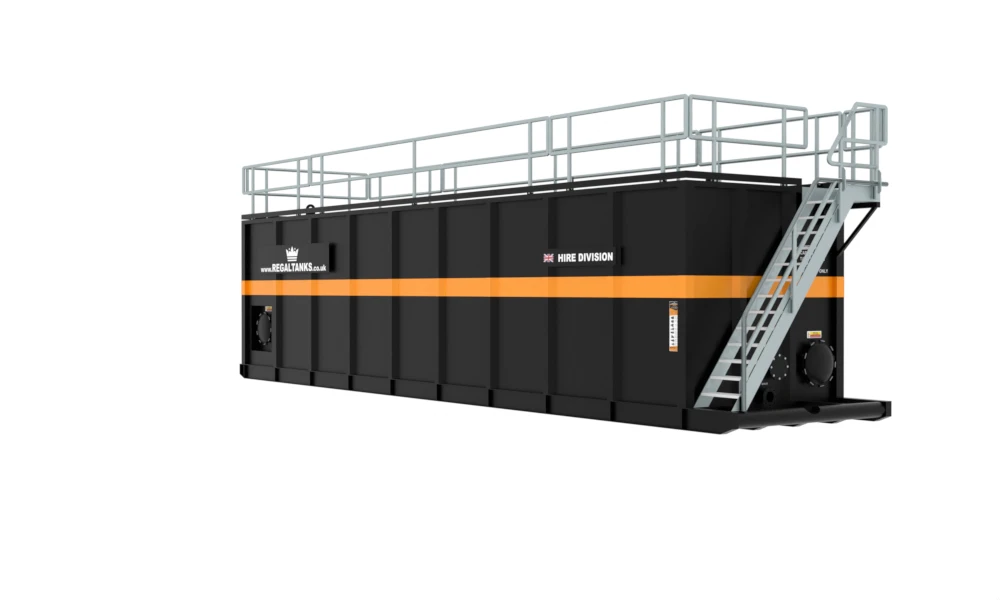

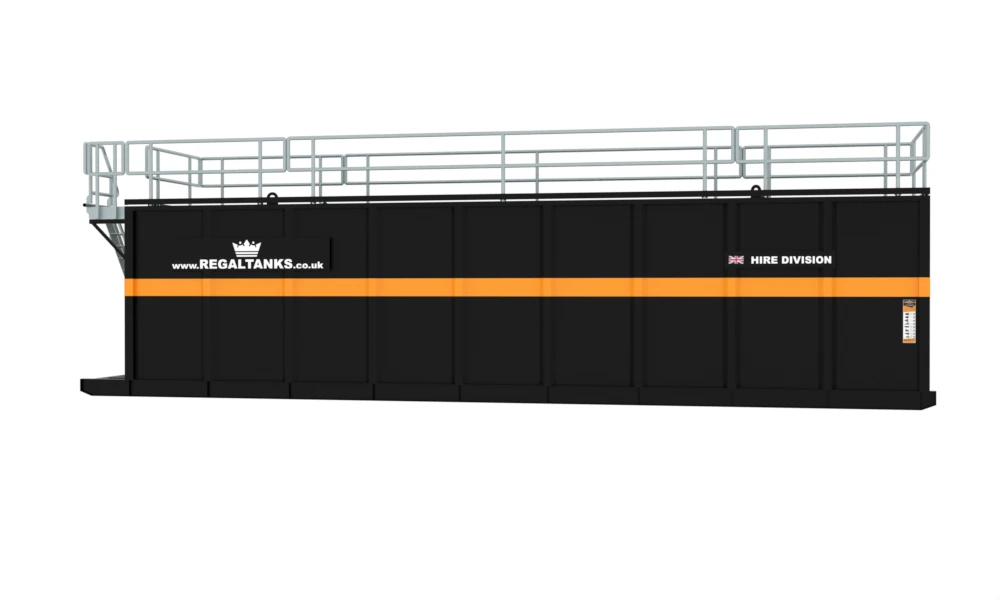

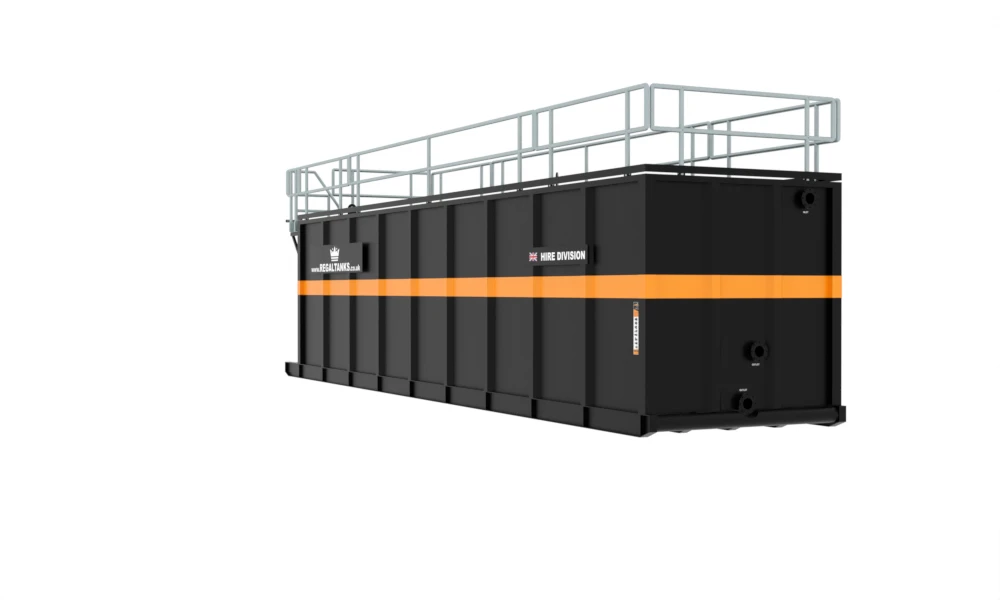

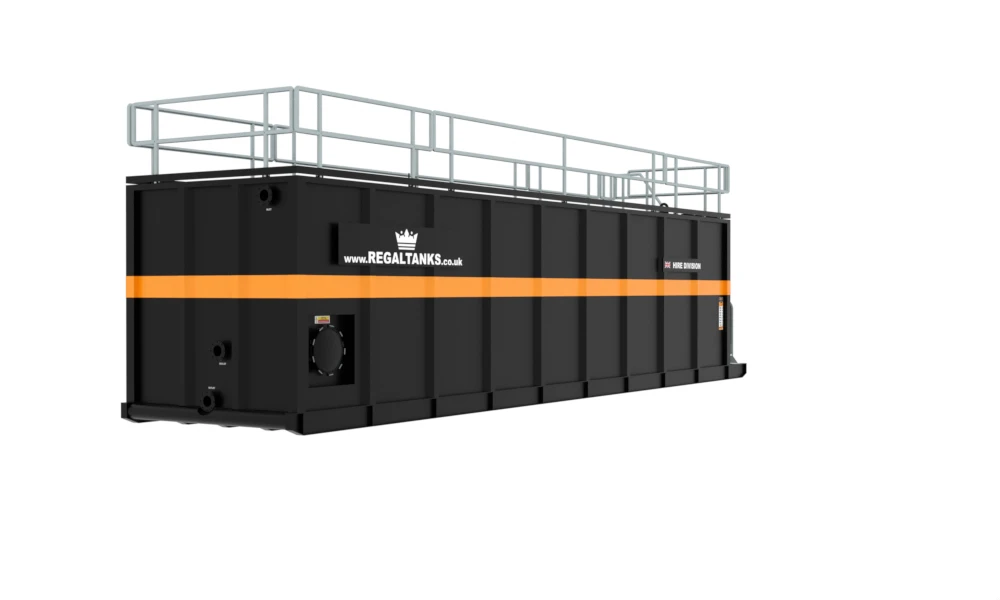

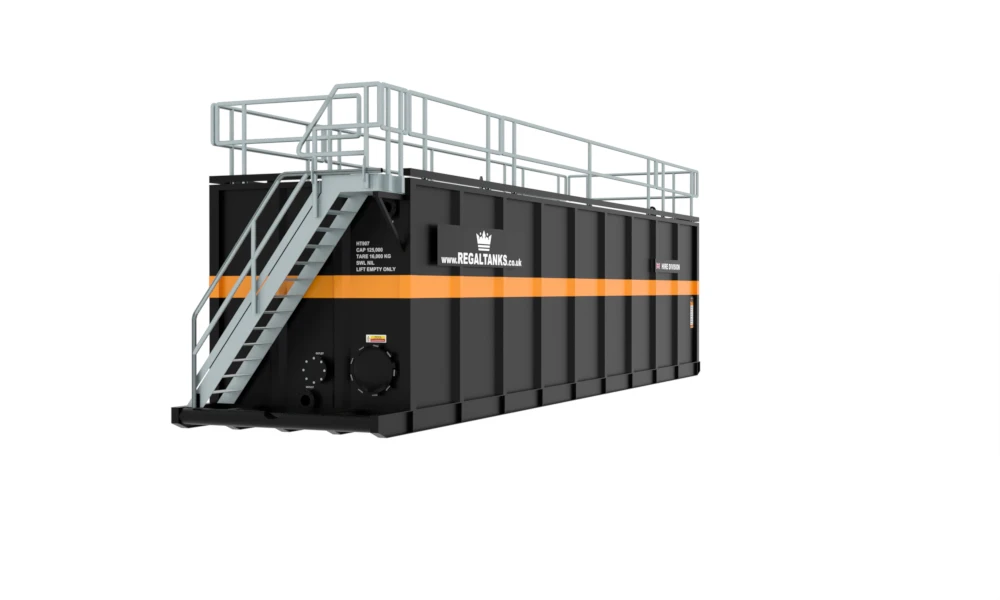

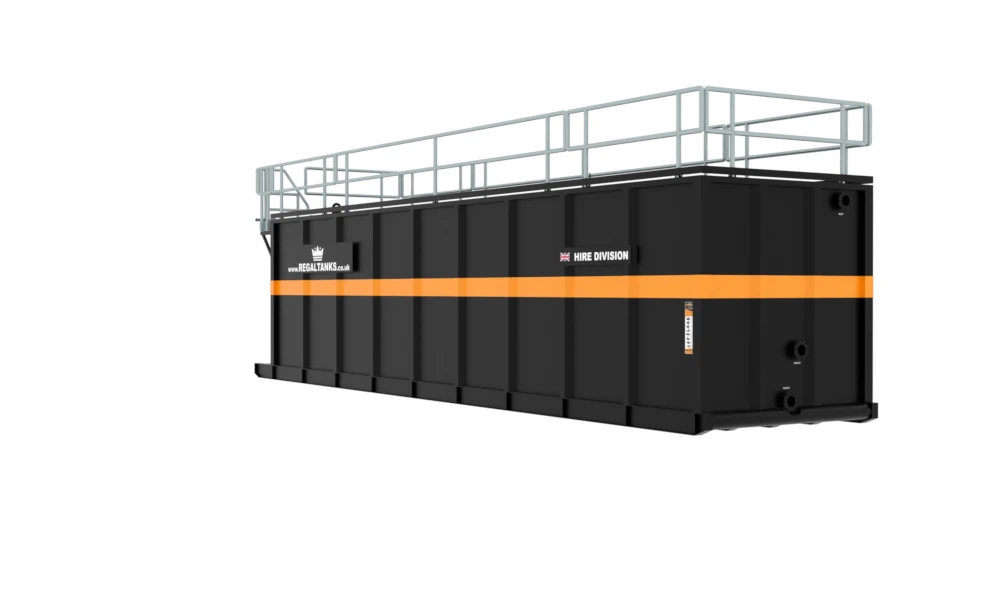

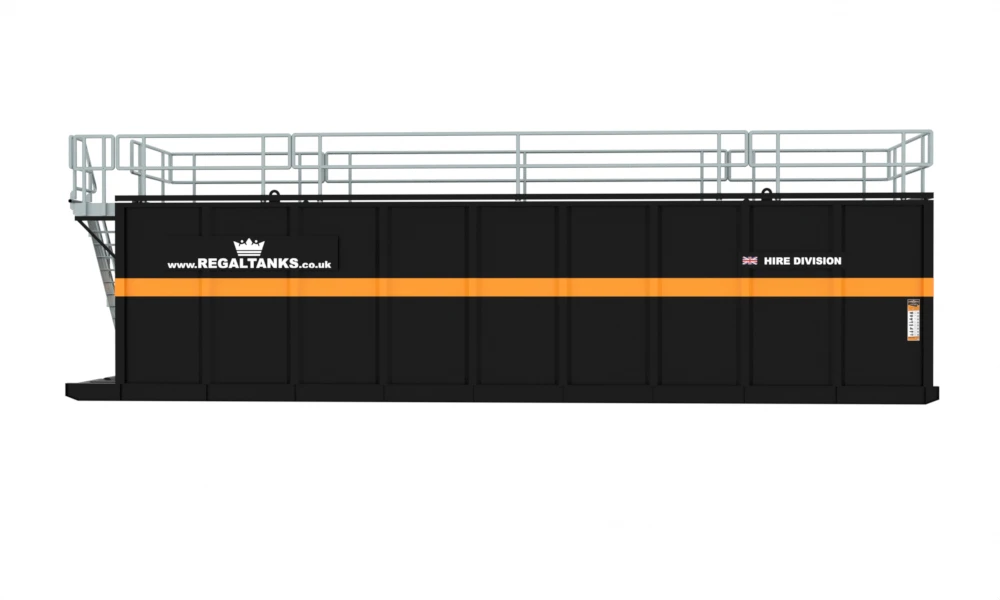

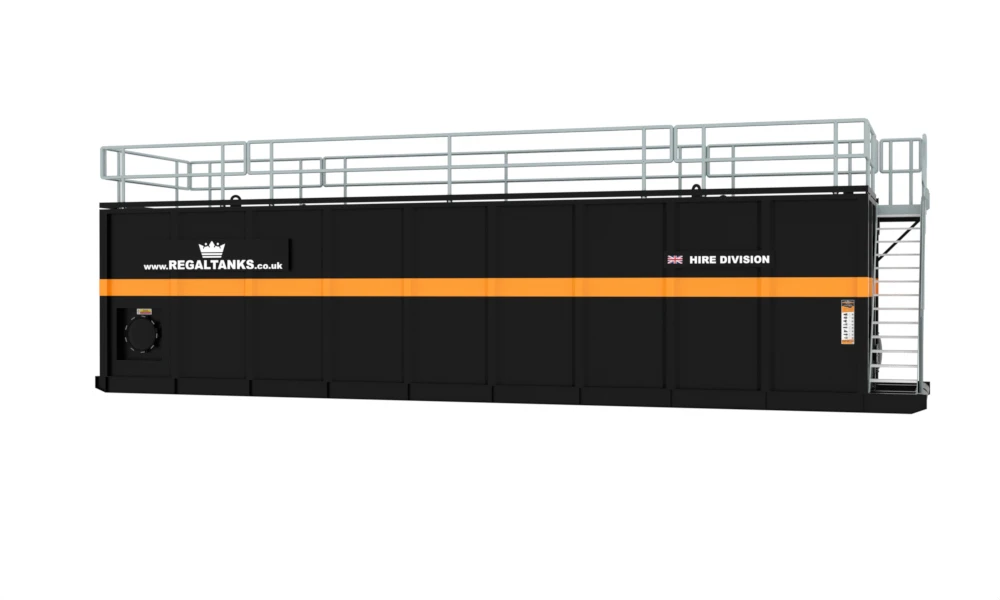

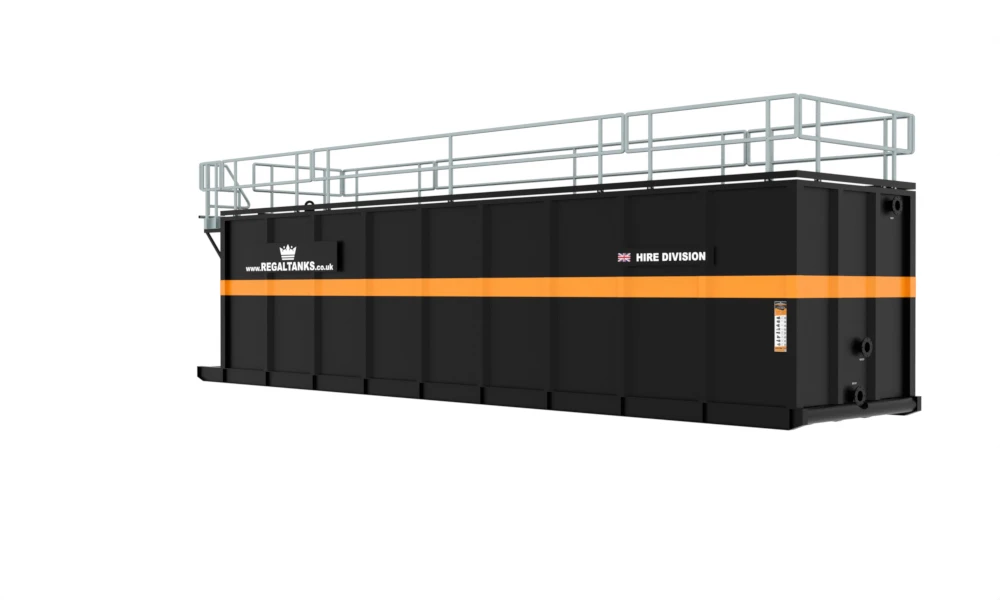

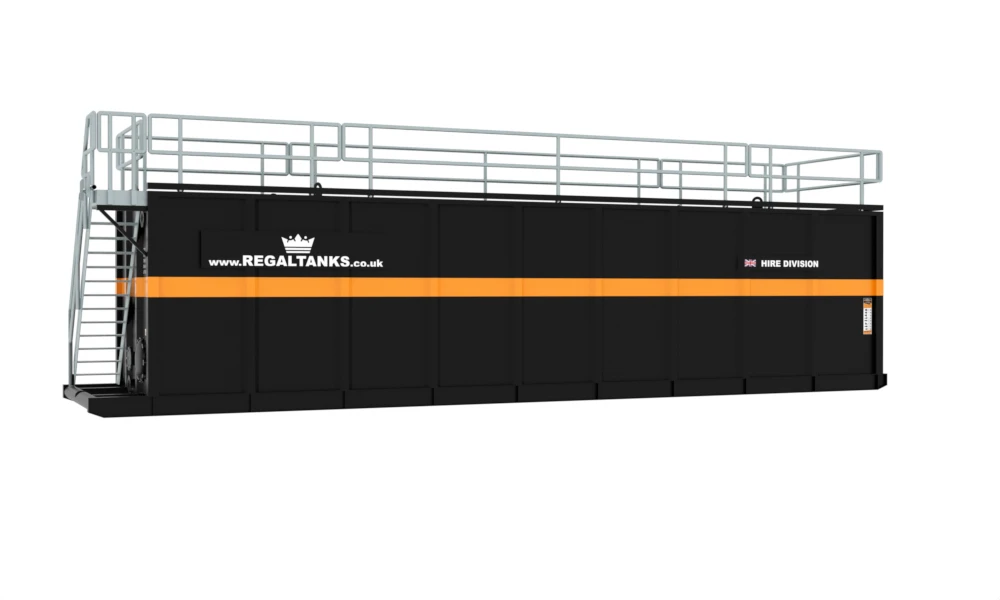

125,000 Litre Horizontal Tanks

Tank Specification

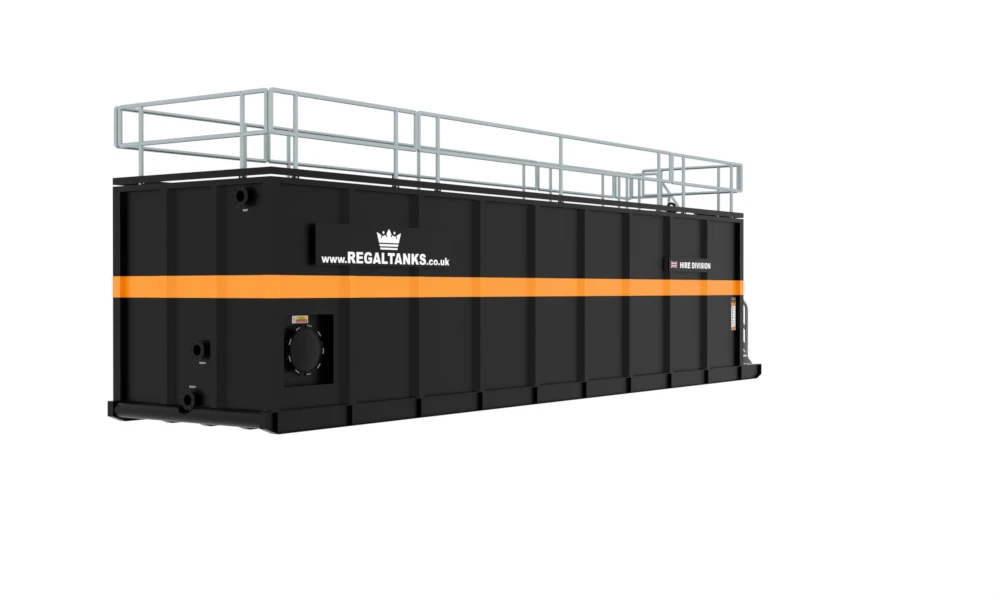

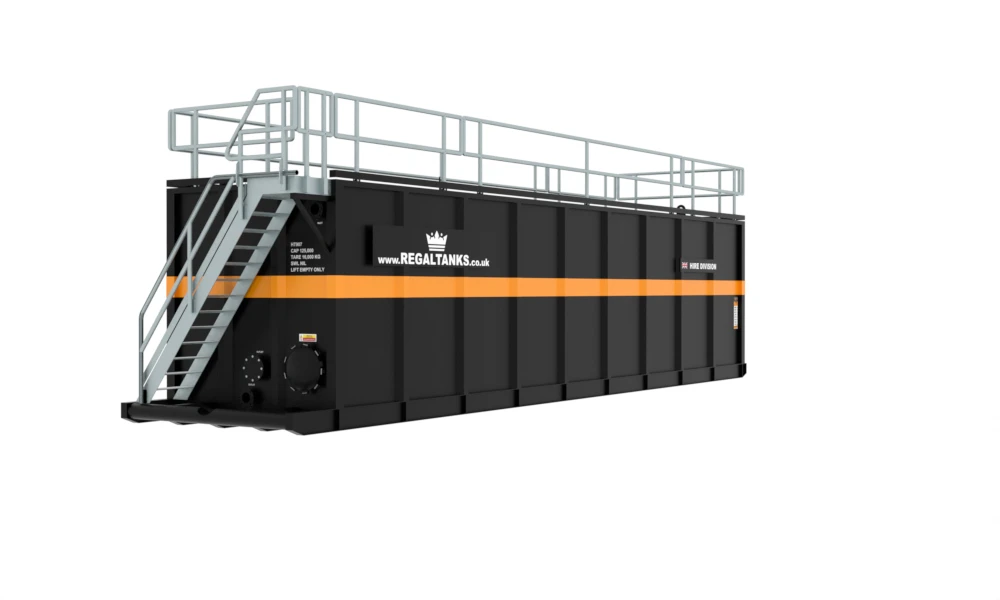

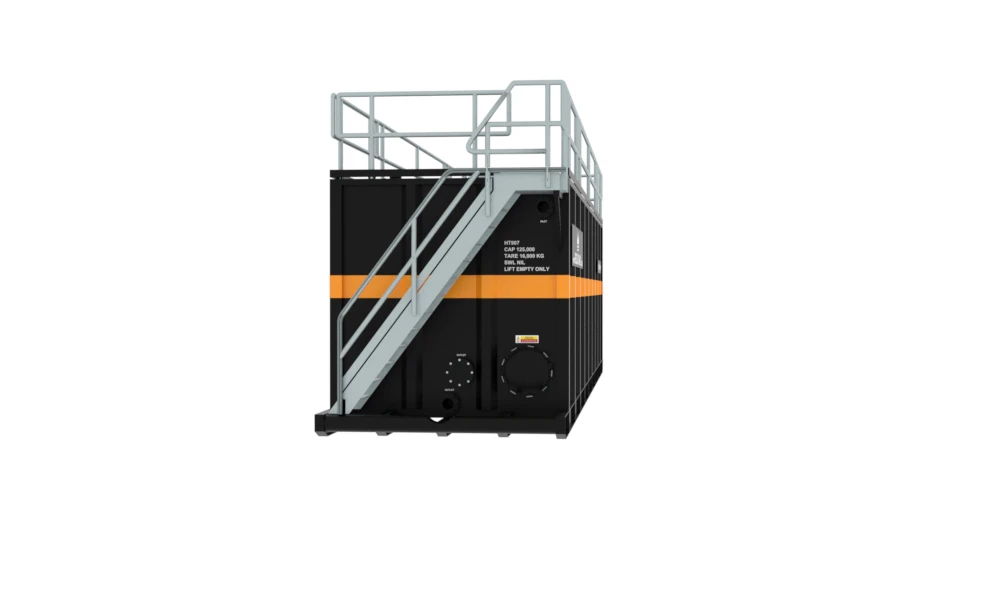

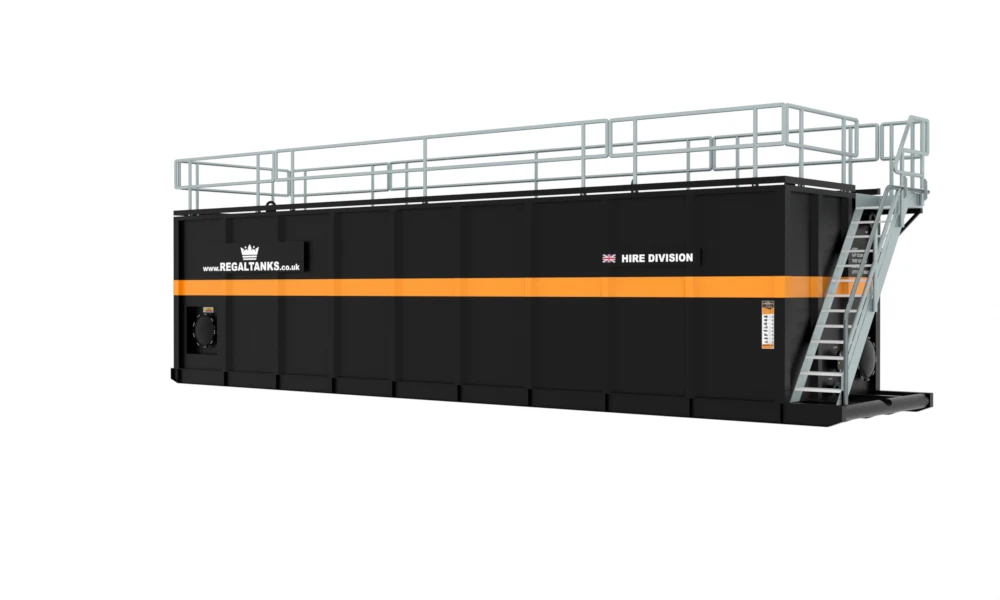

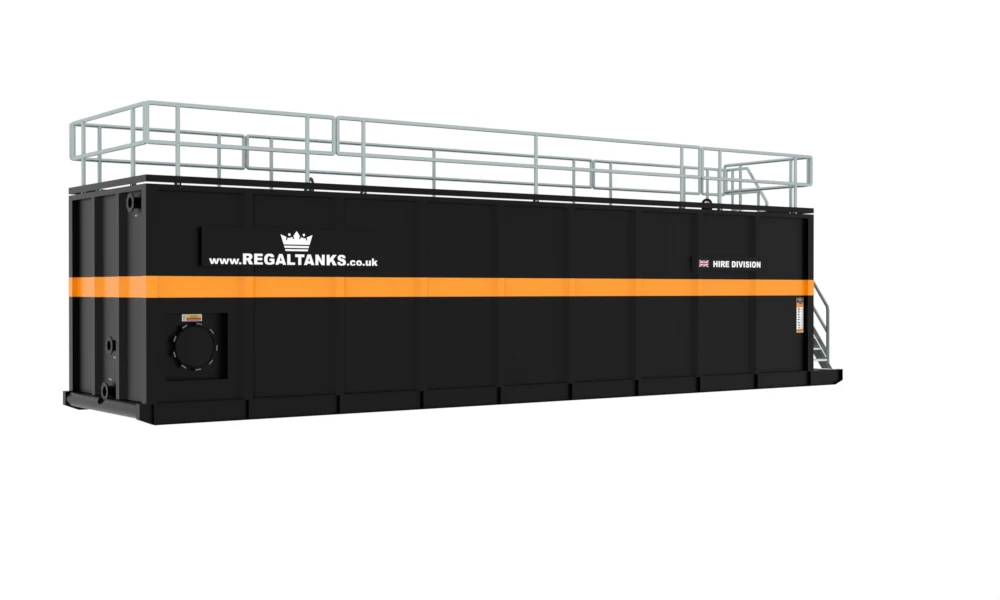

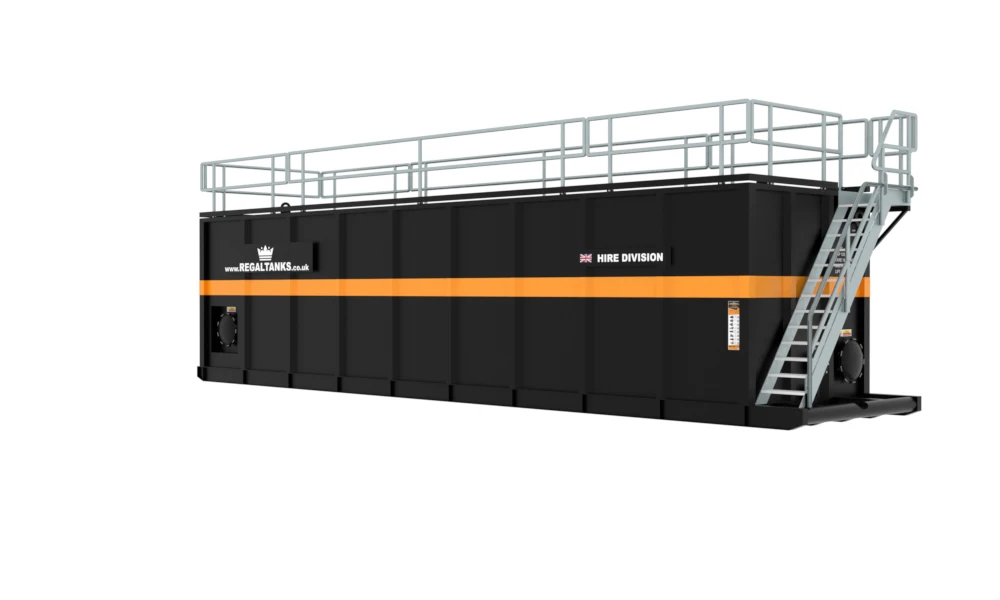

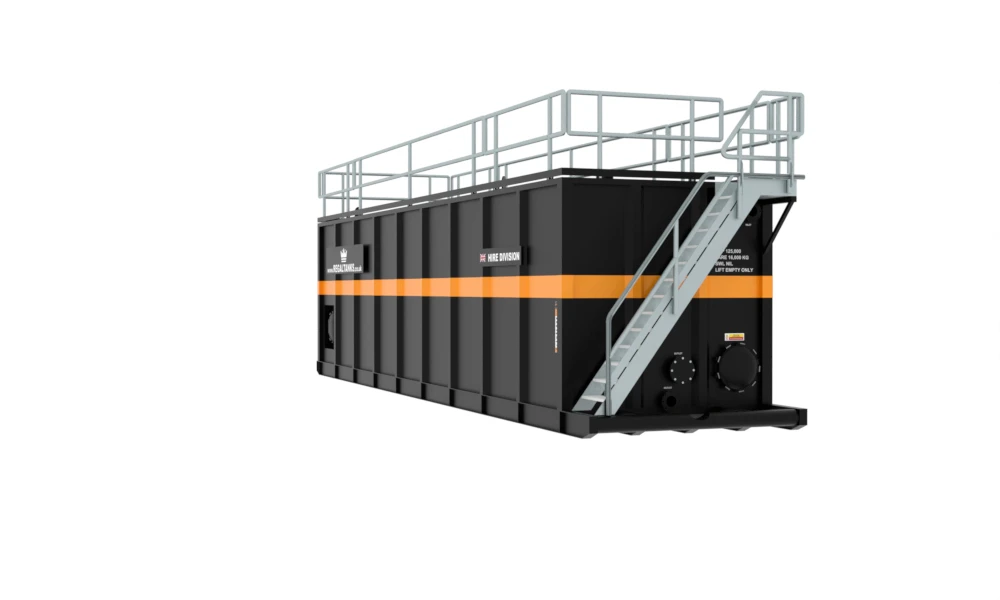

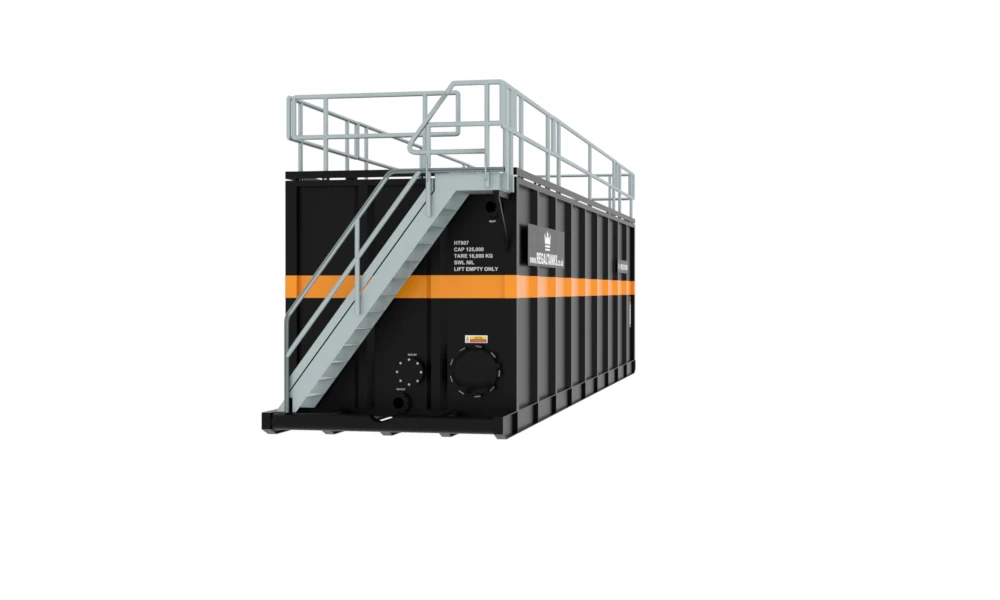

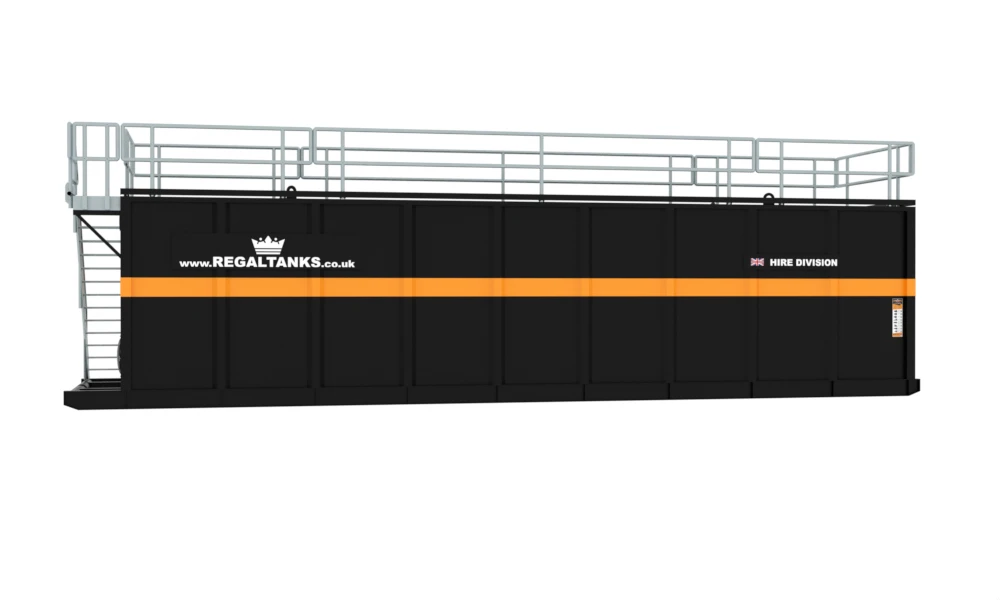

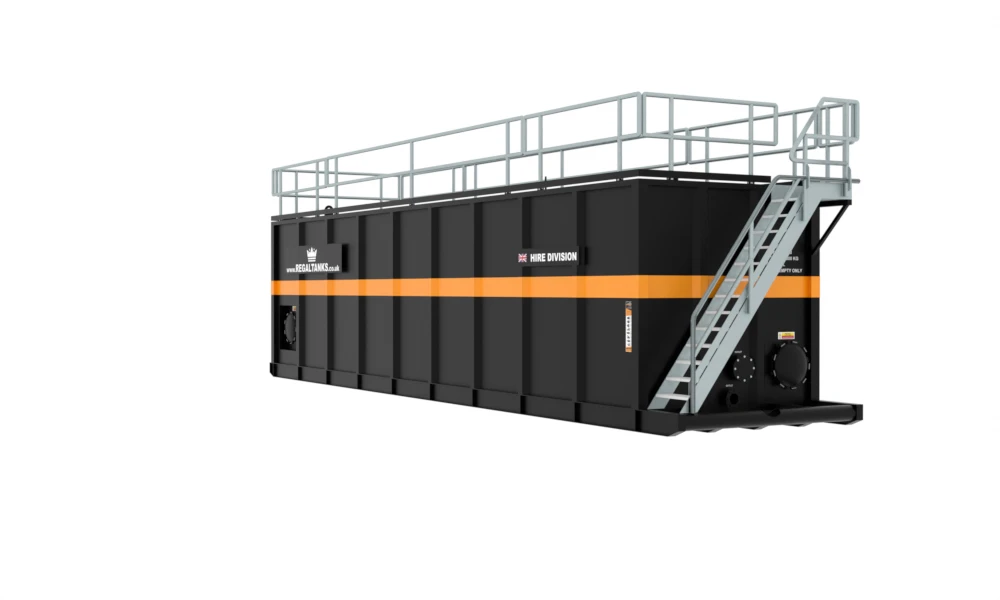

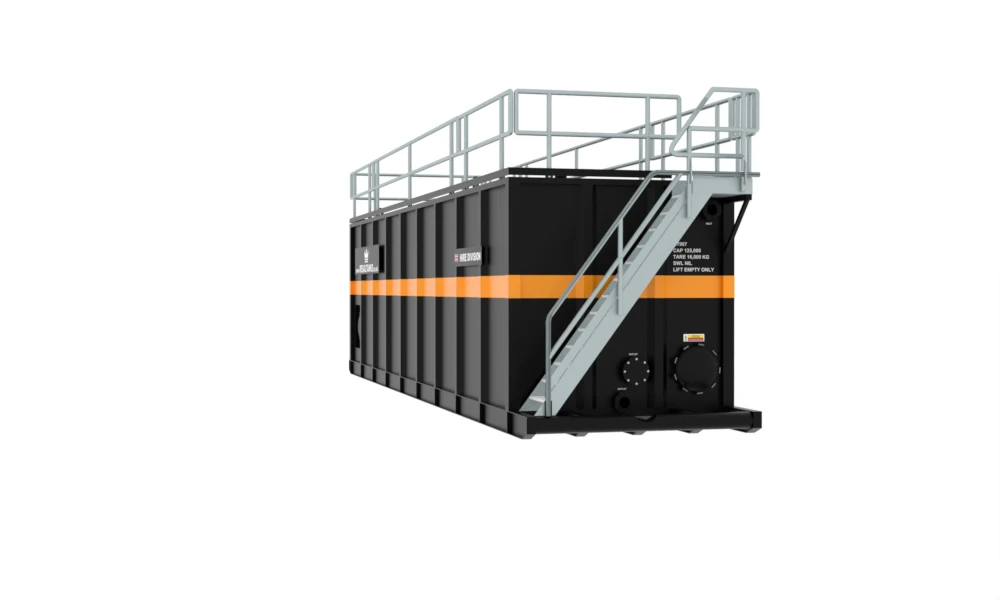

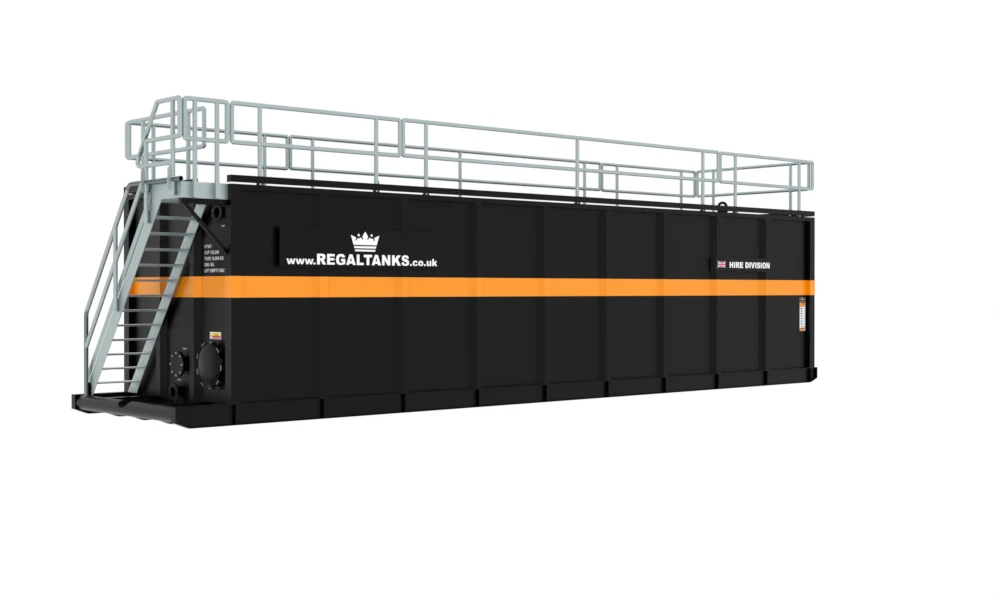

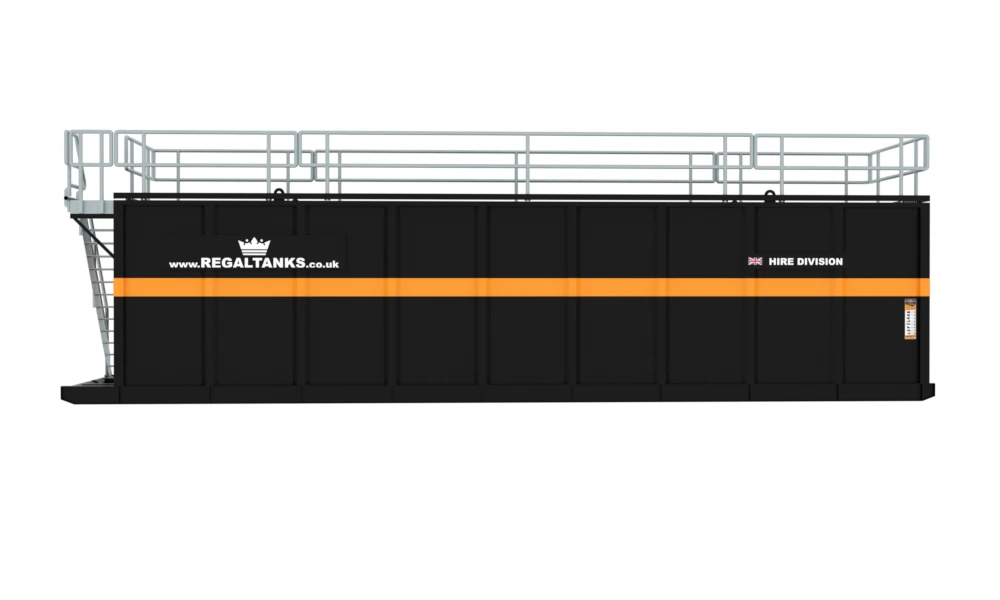

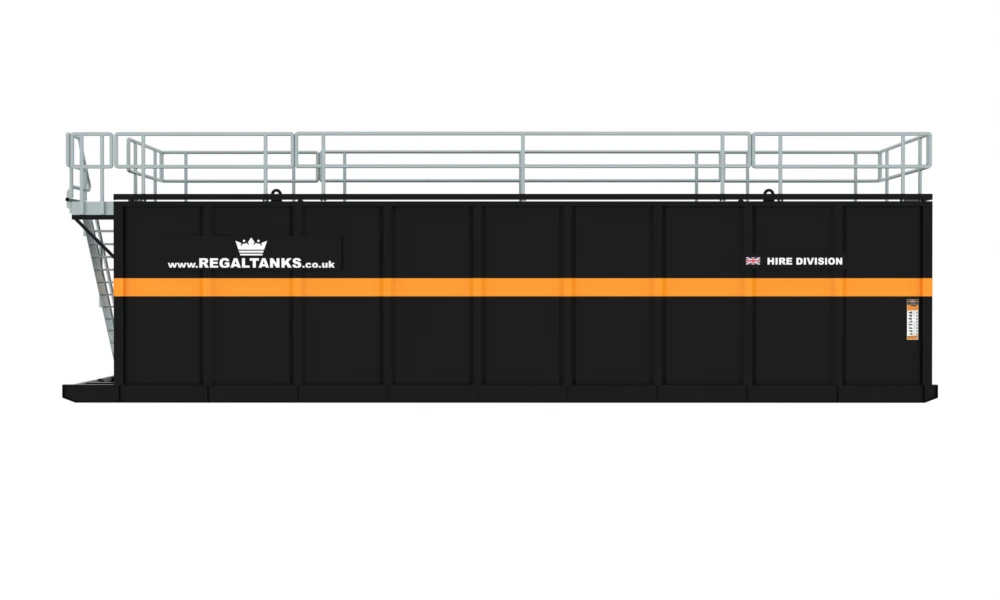

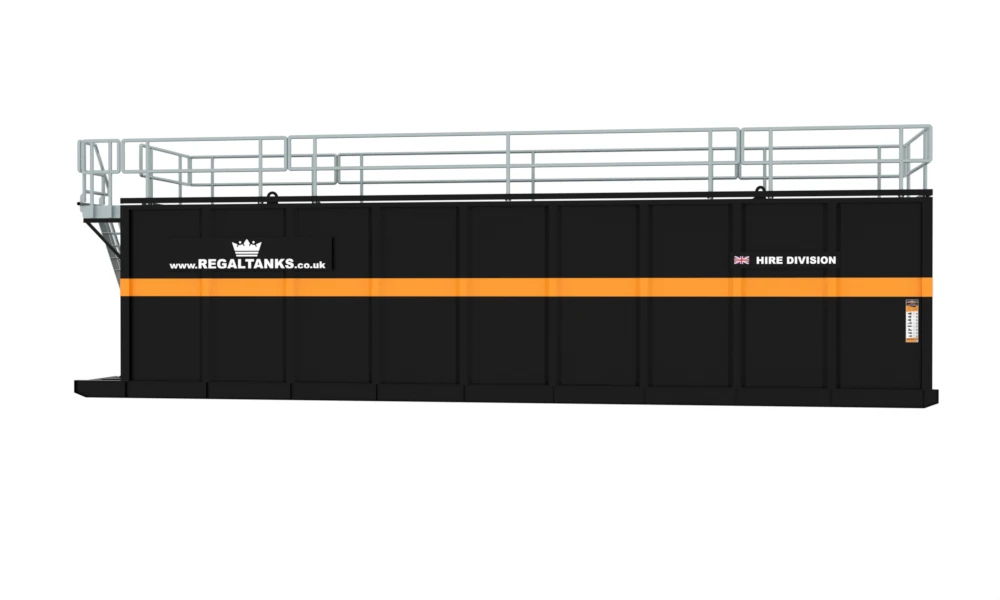

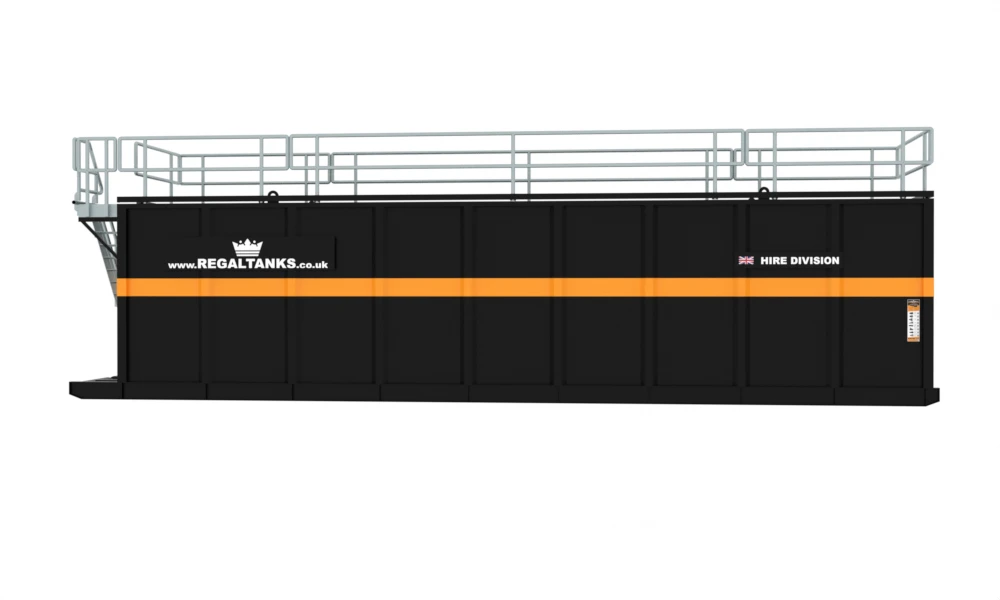

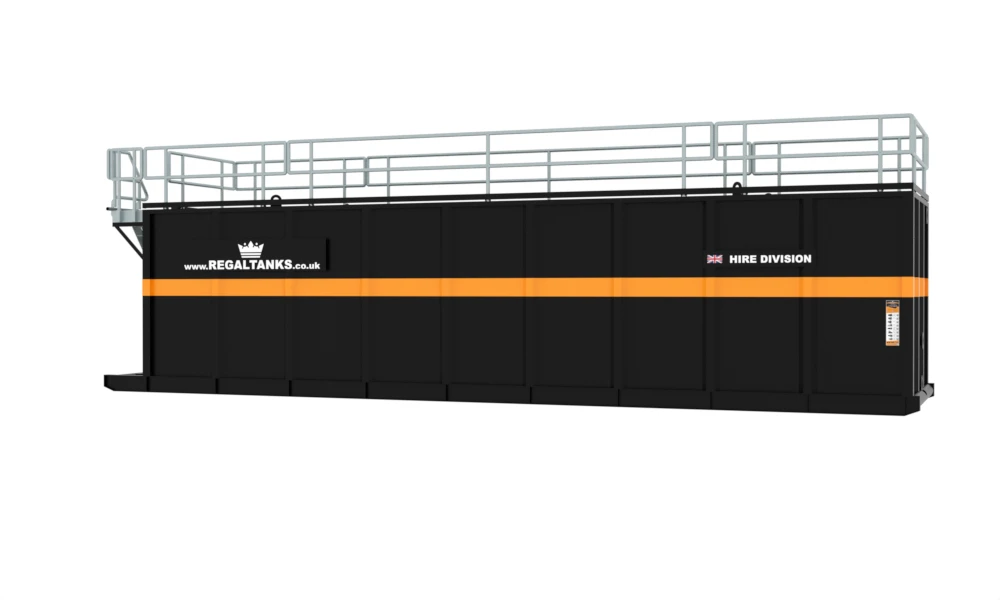

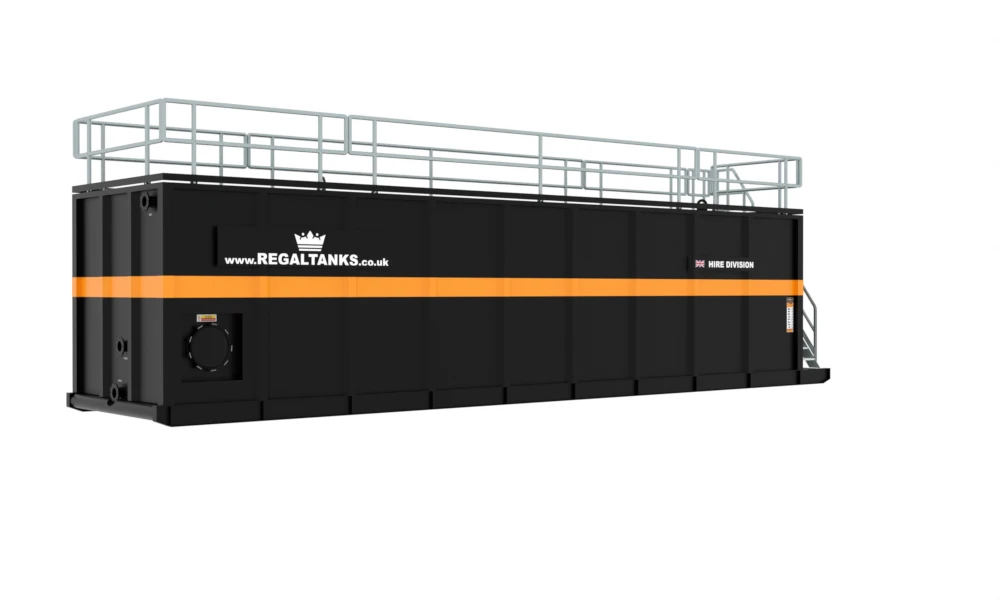

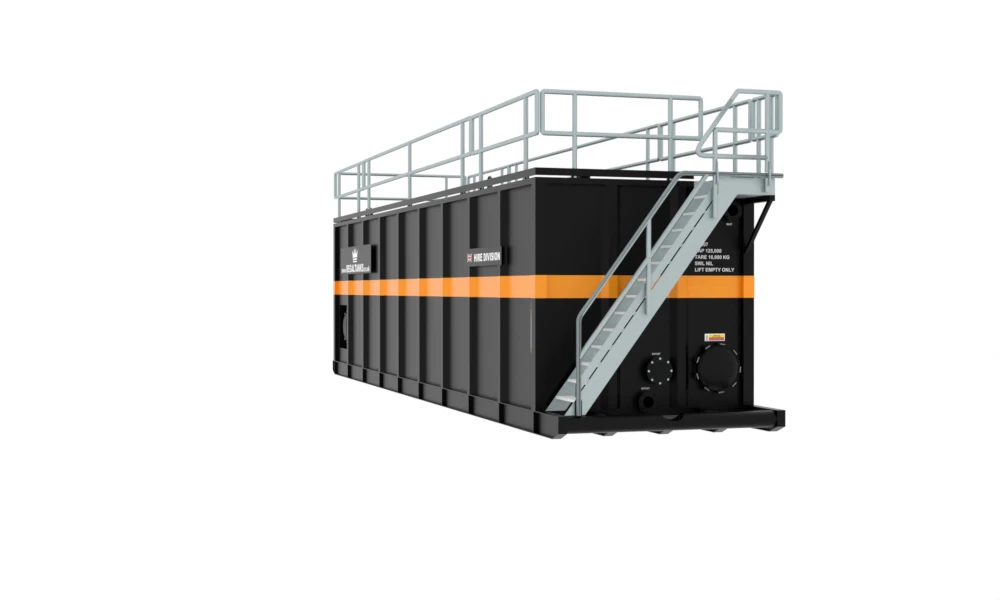

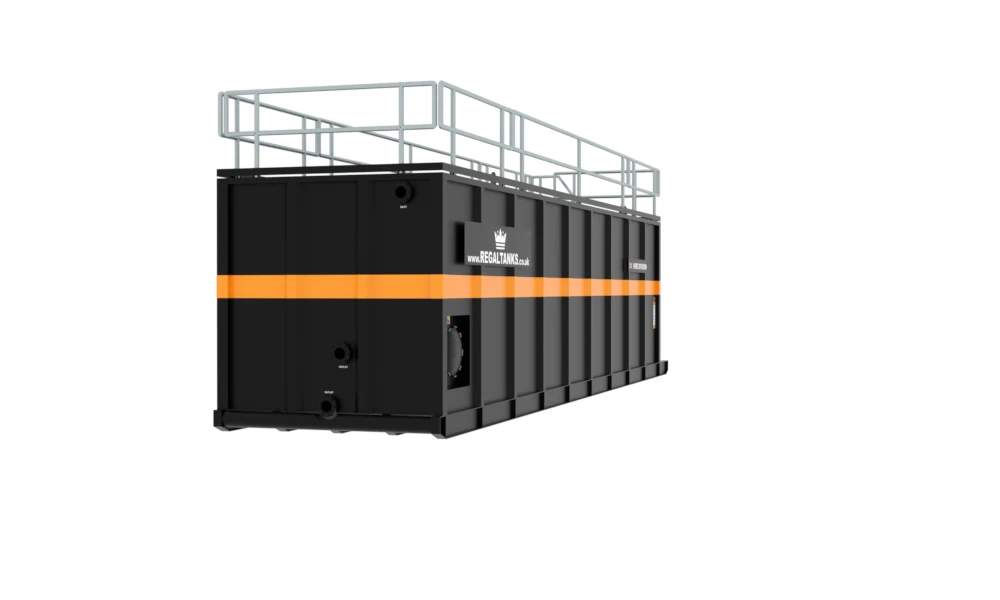

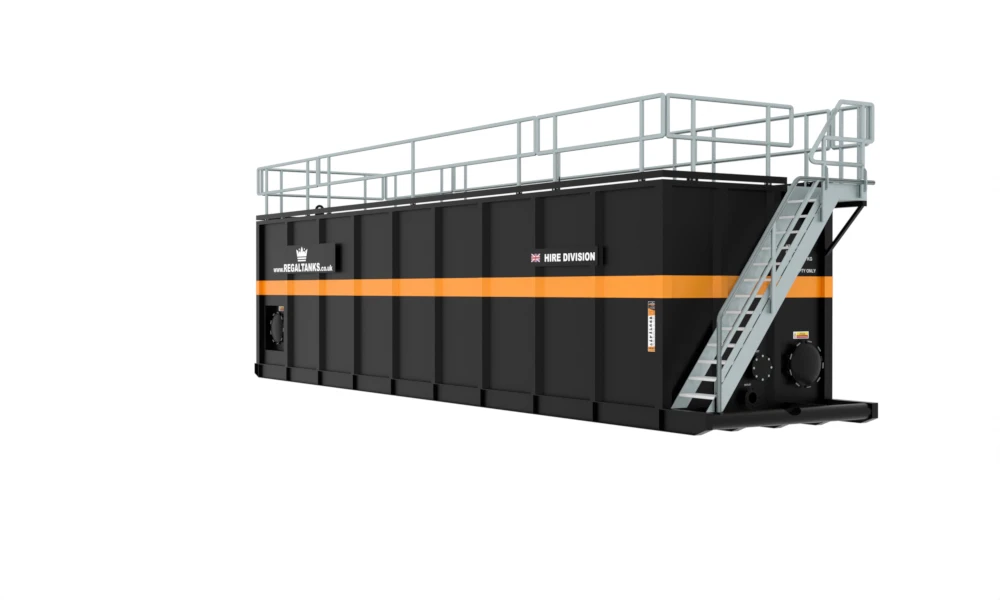

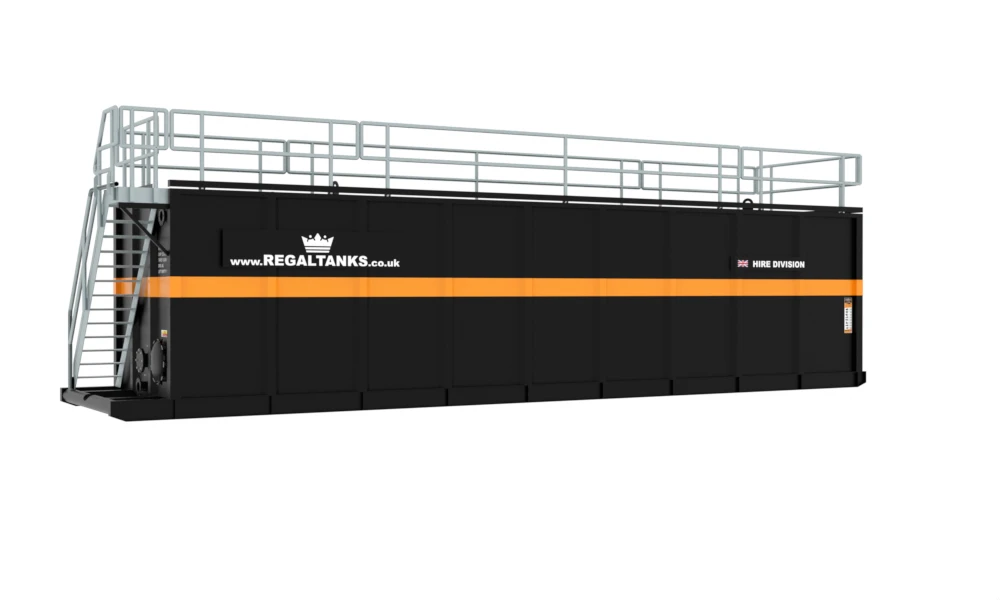

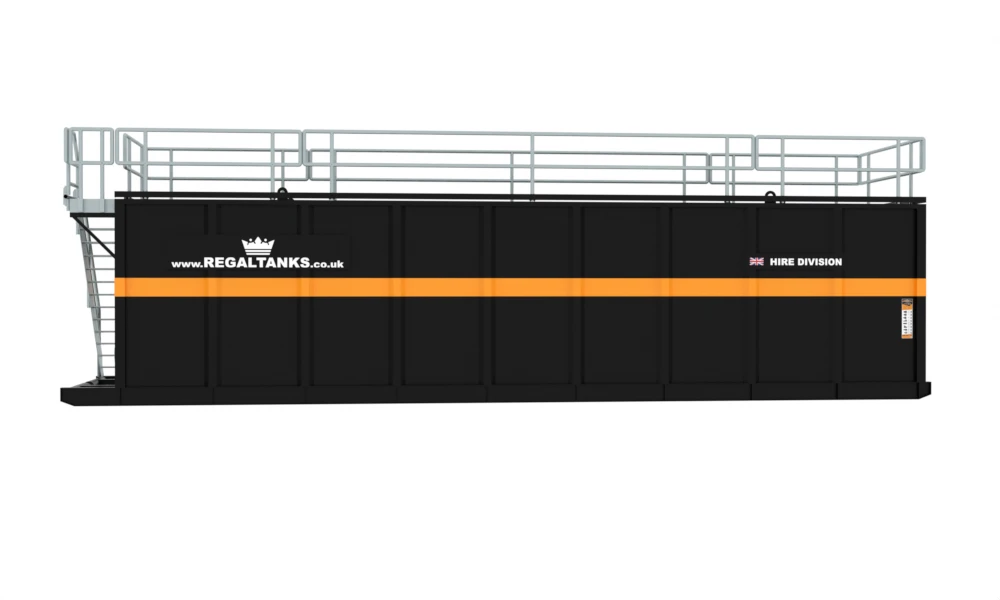

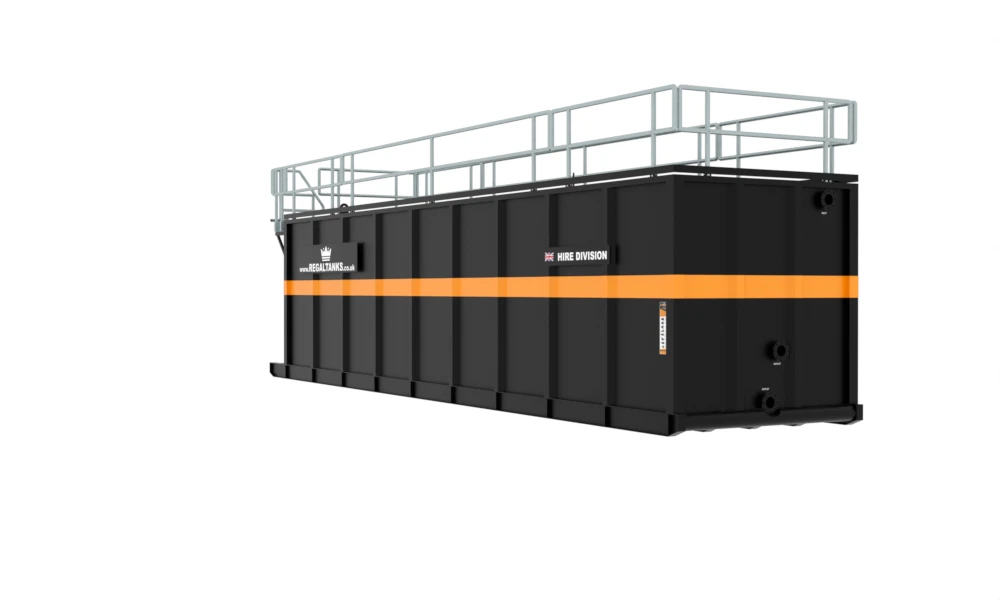

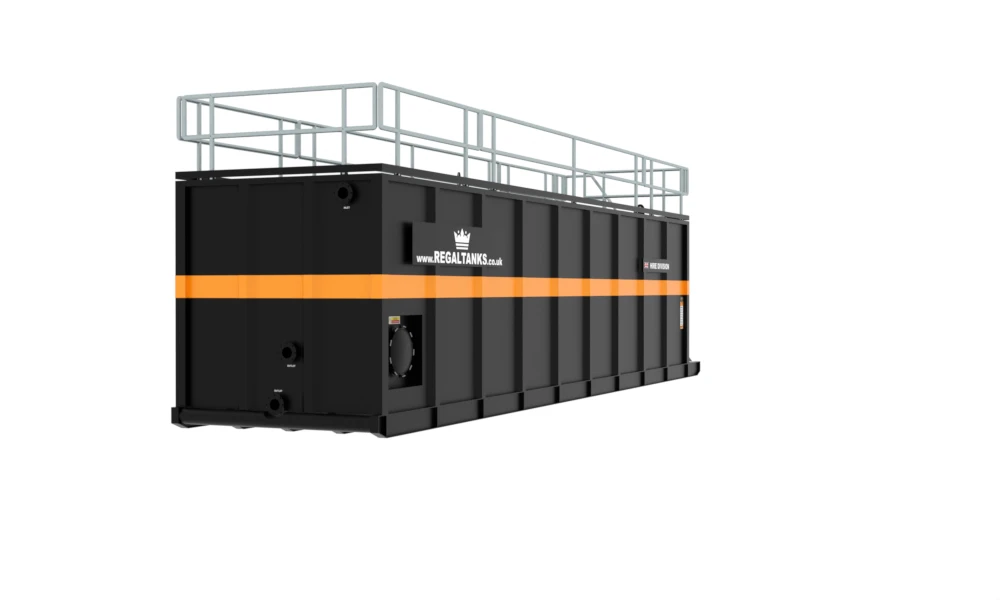

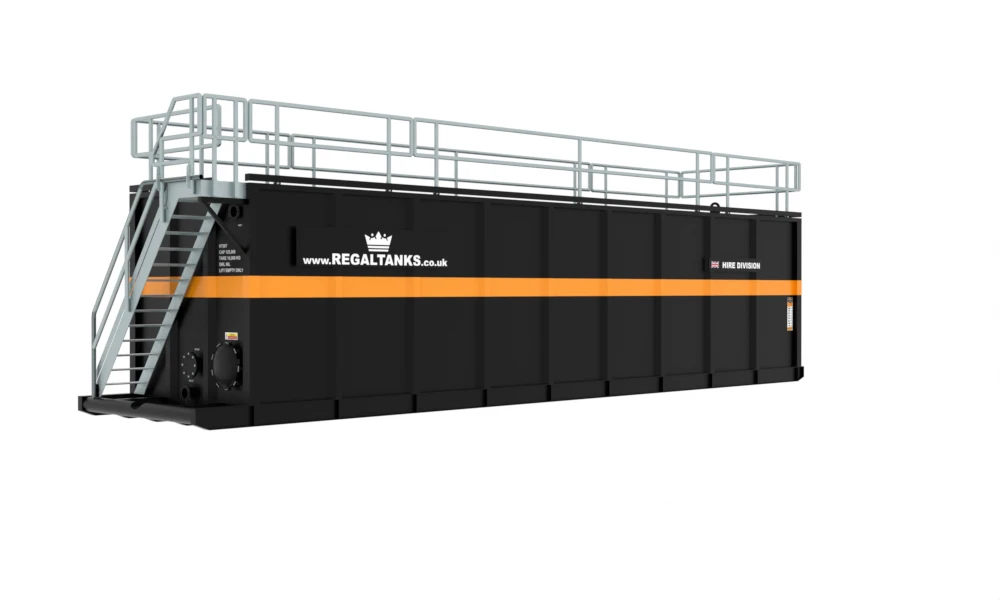

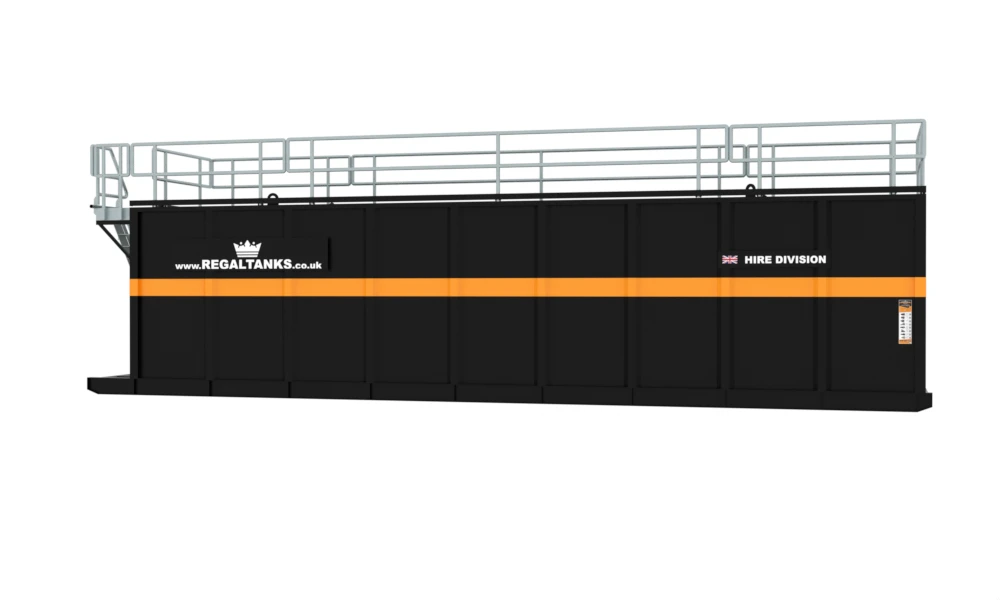

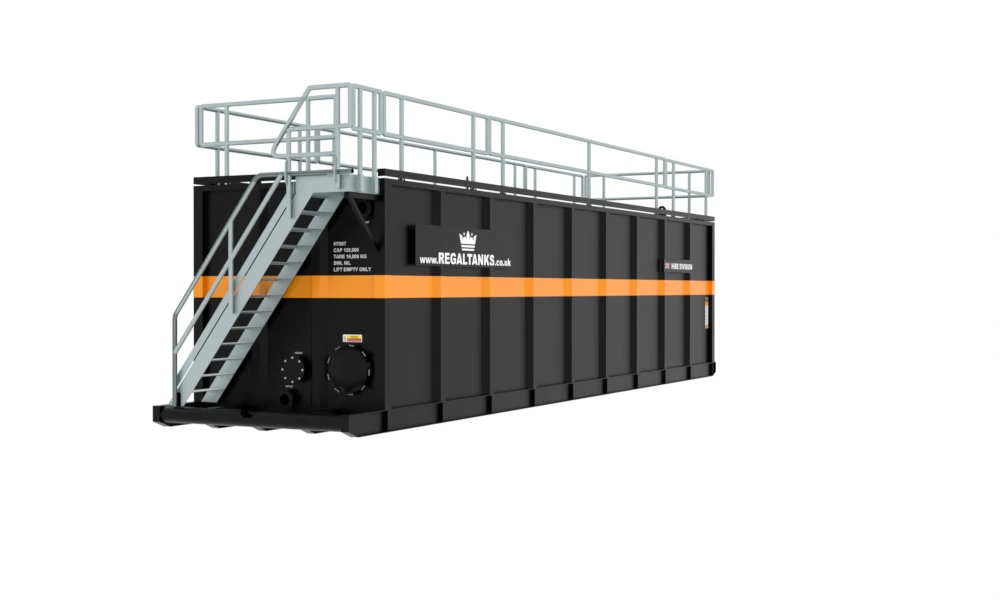

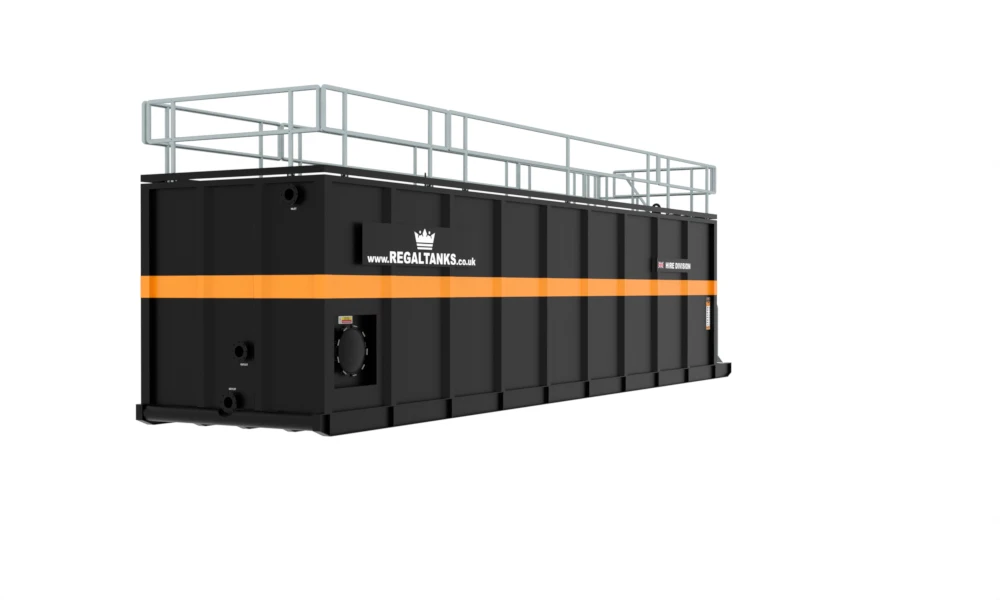

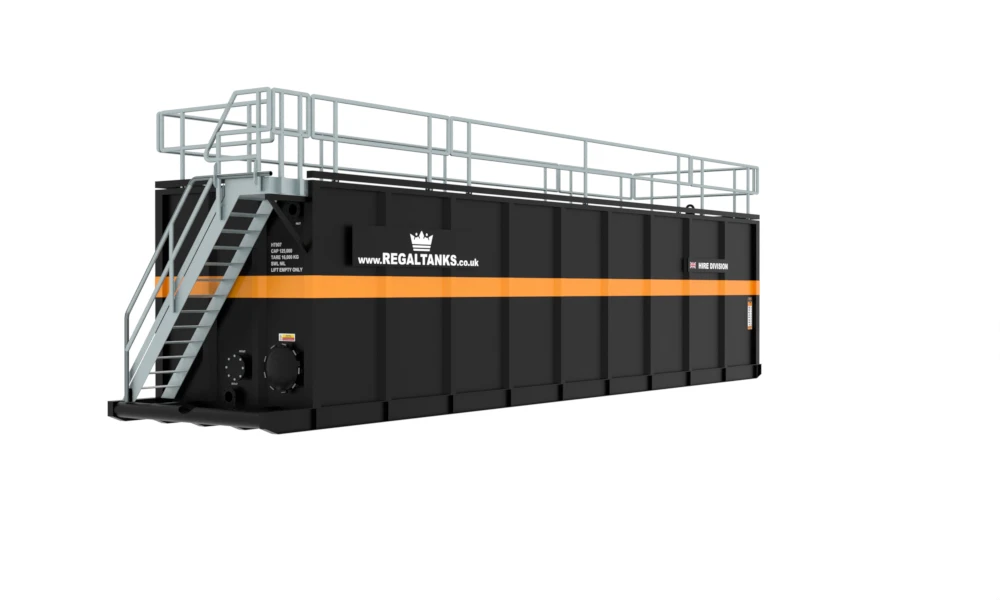

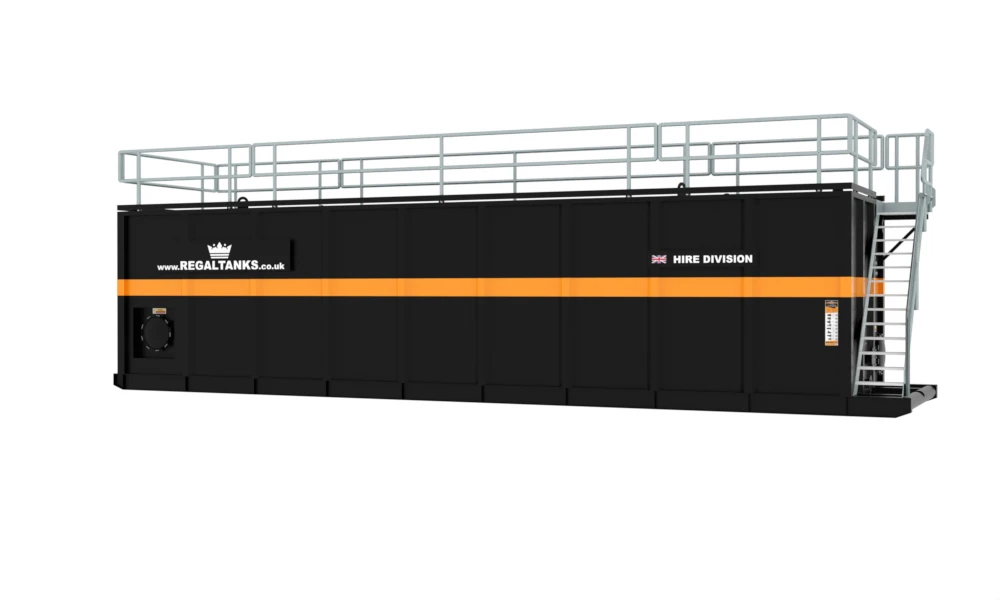

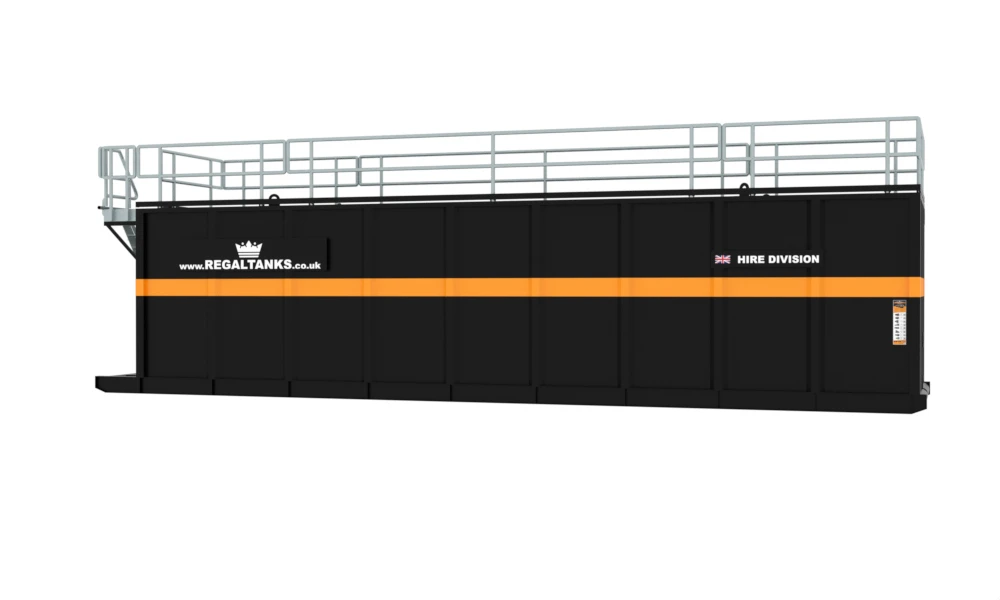

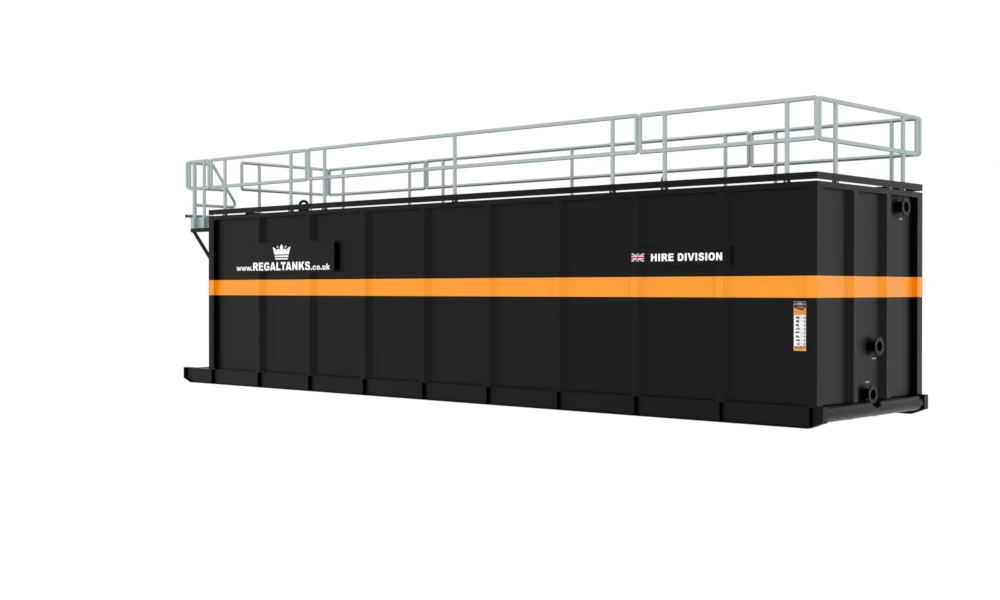

The largest hire tank in our fleet with a maximum capacity of 125,000 litres.

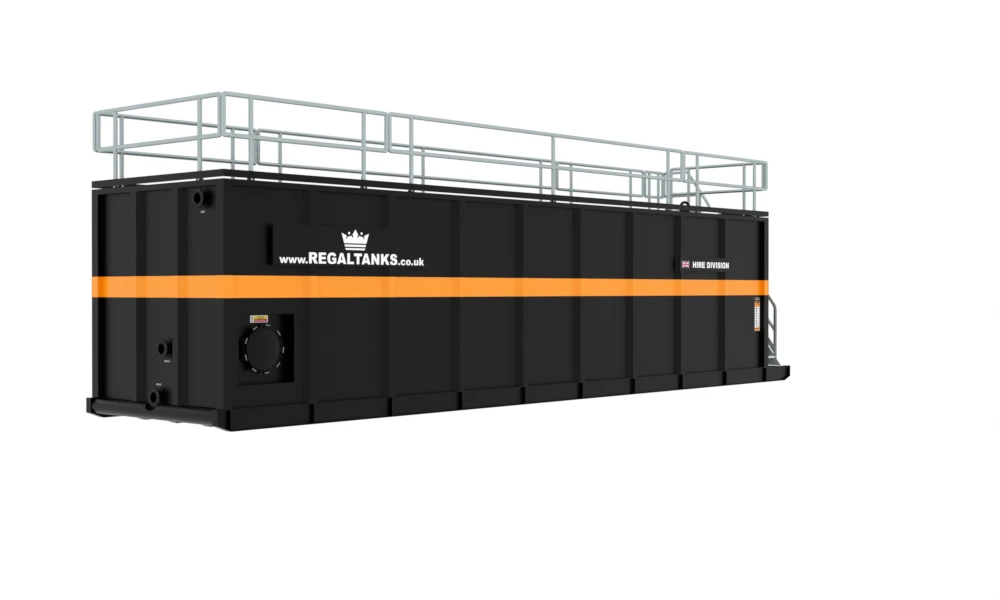

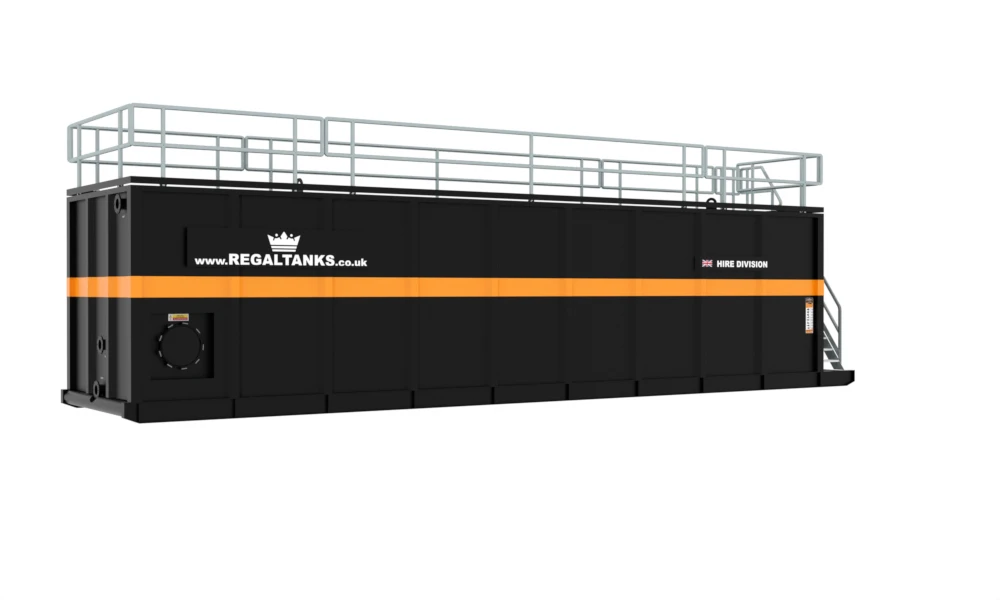

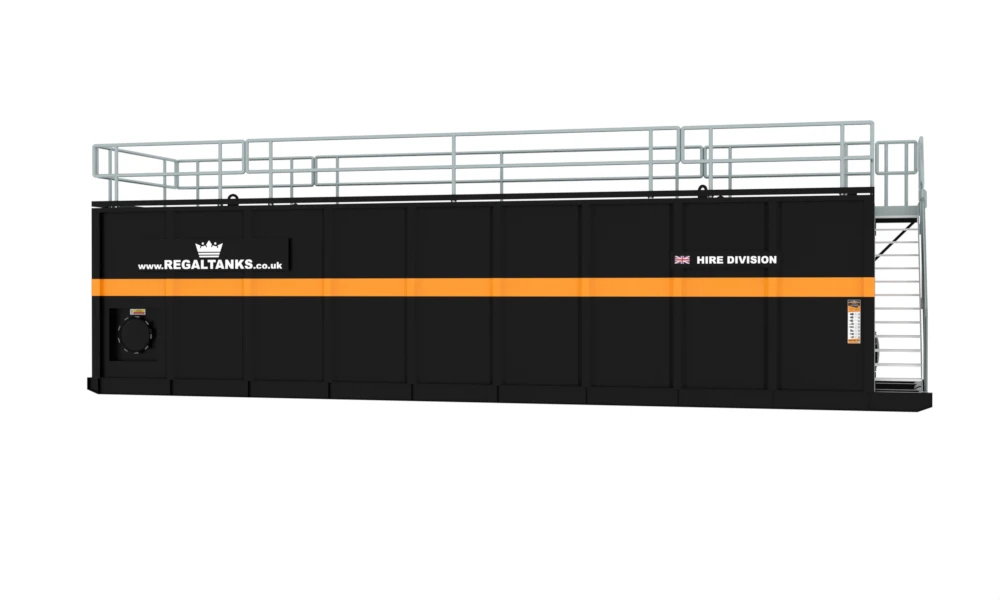

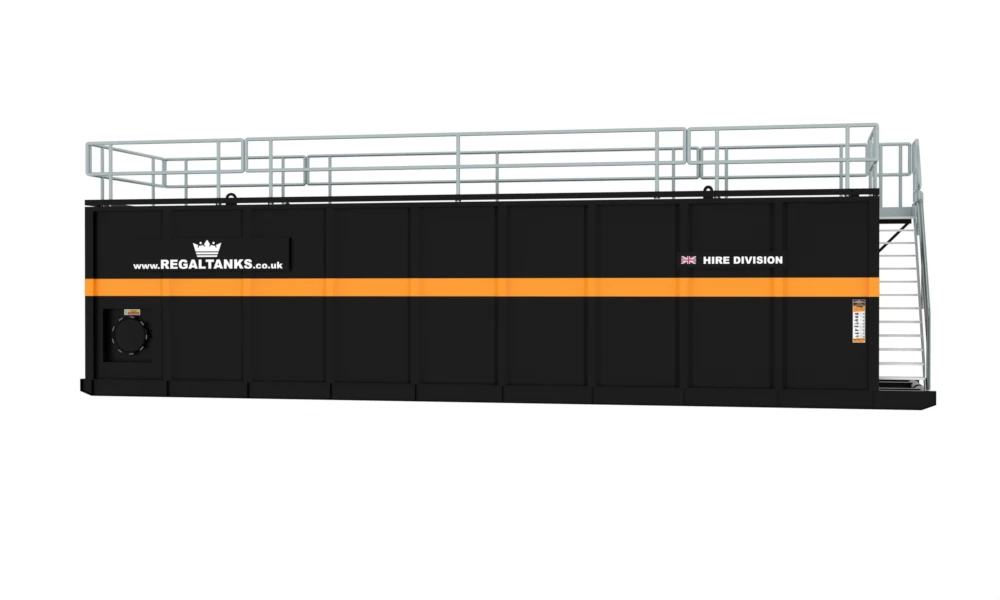

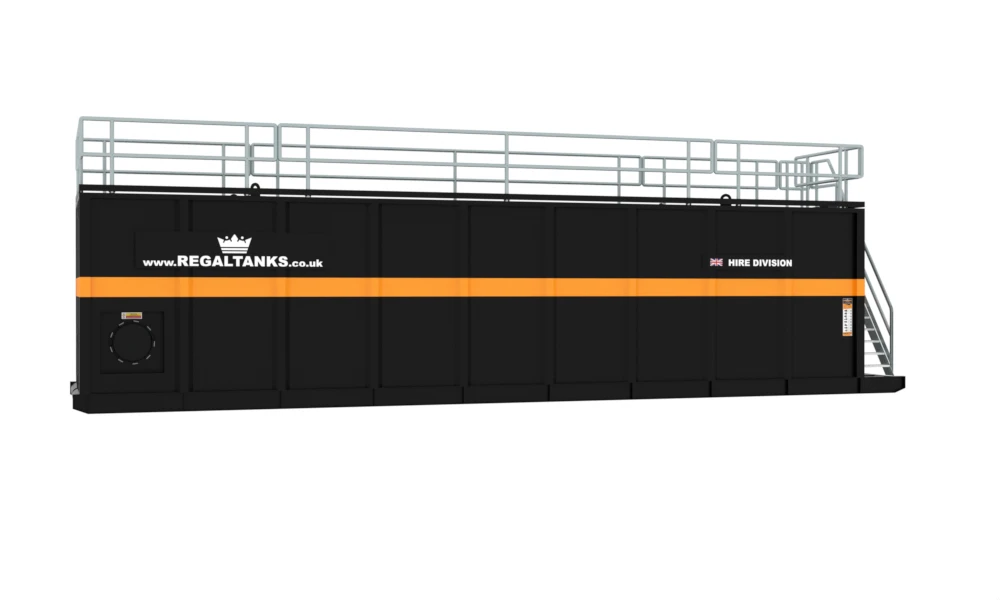

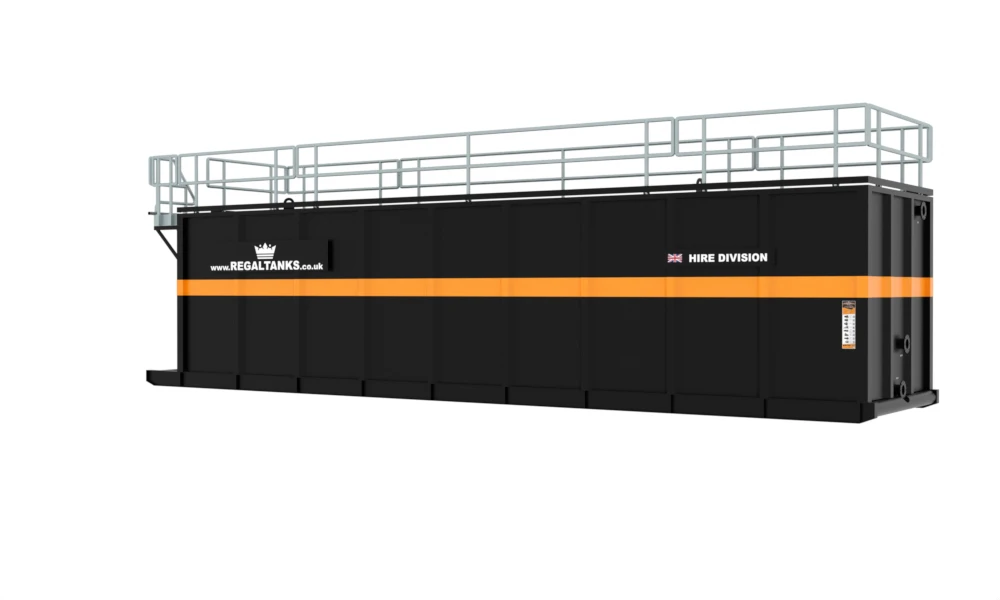

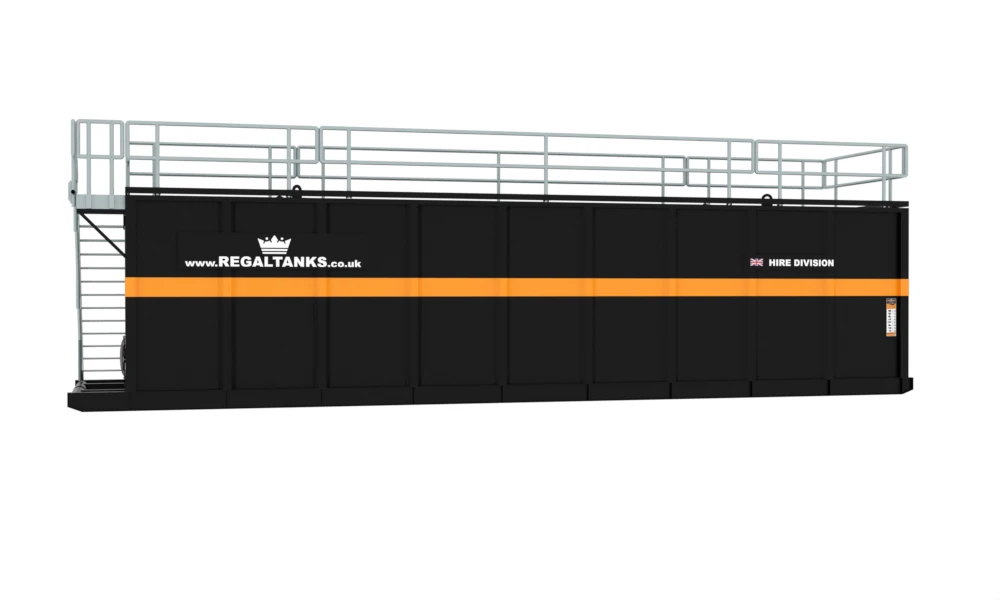

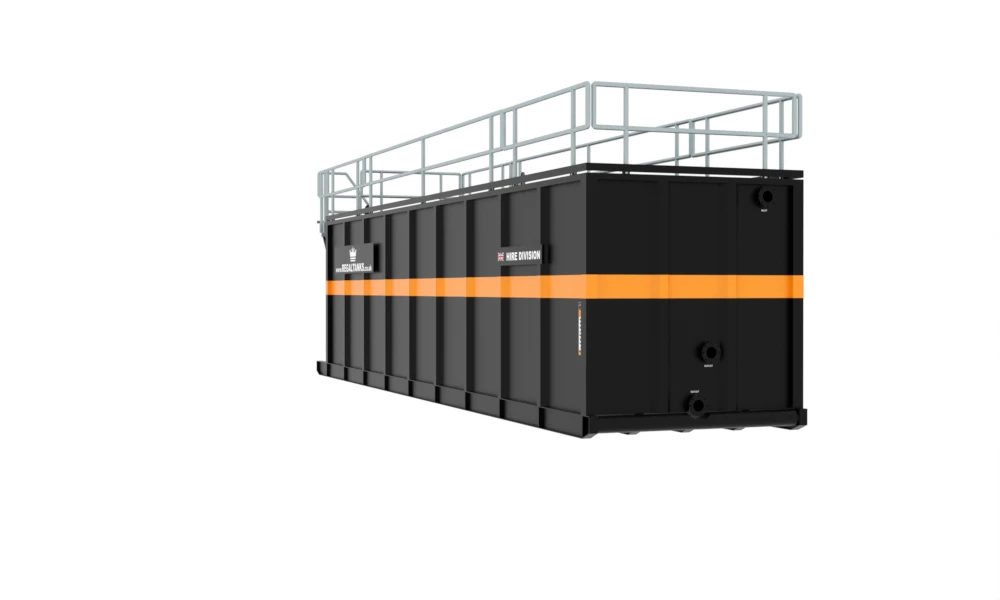

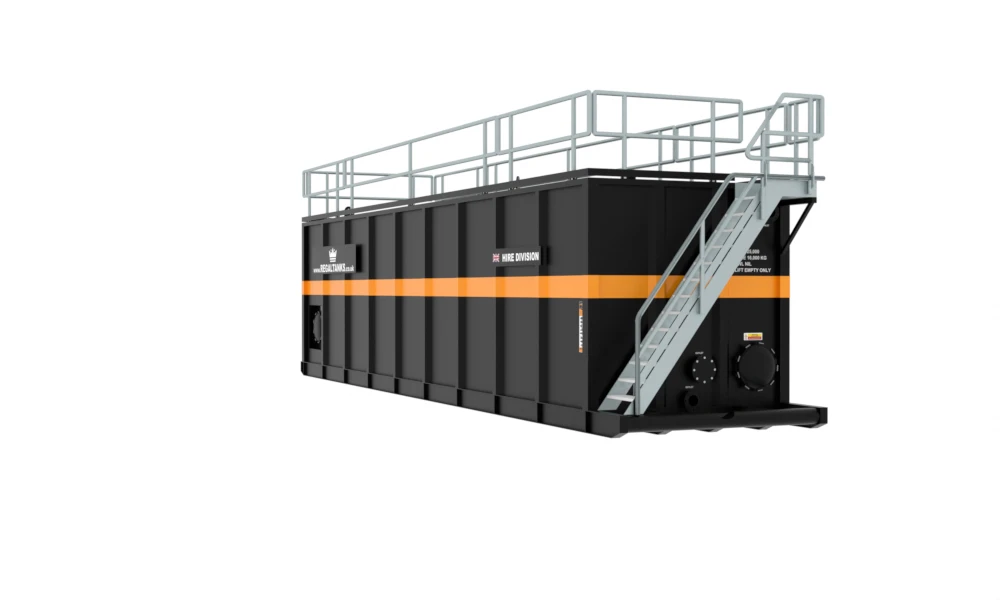

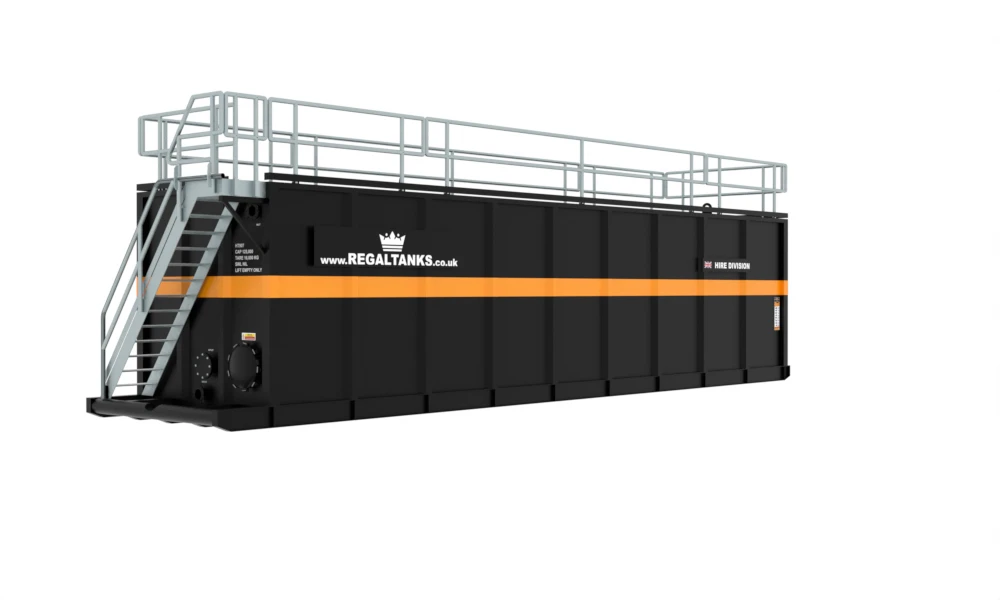

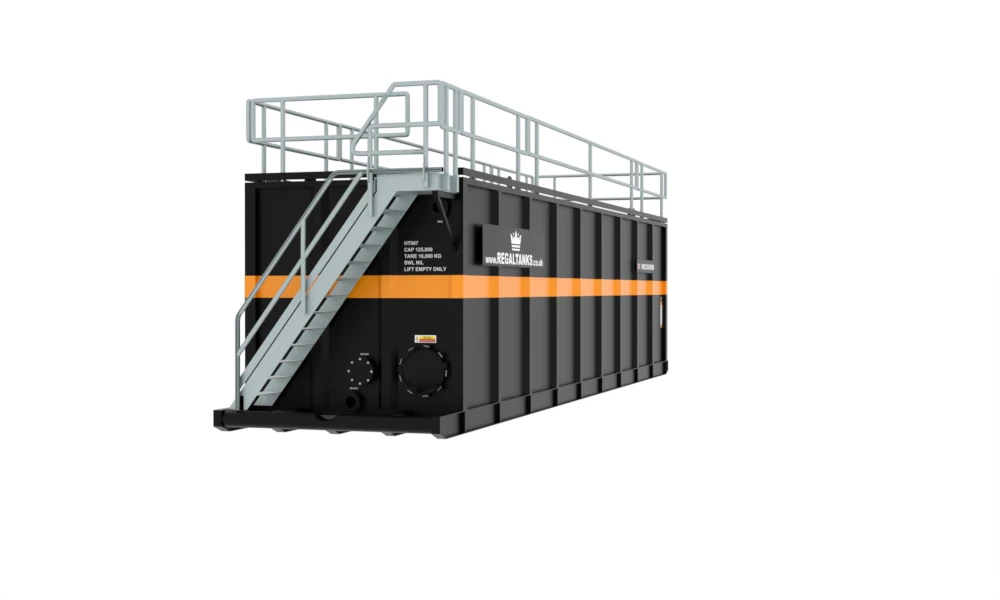

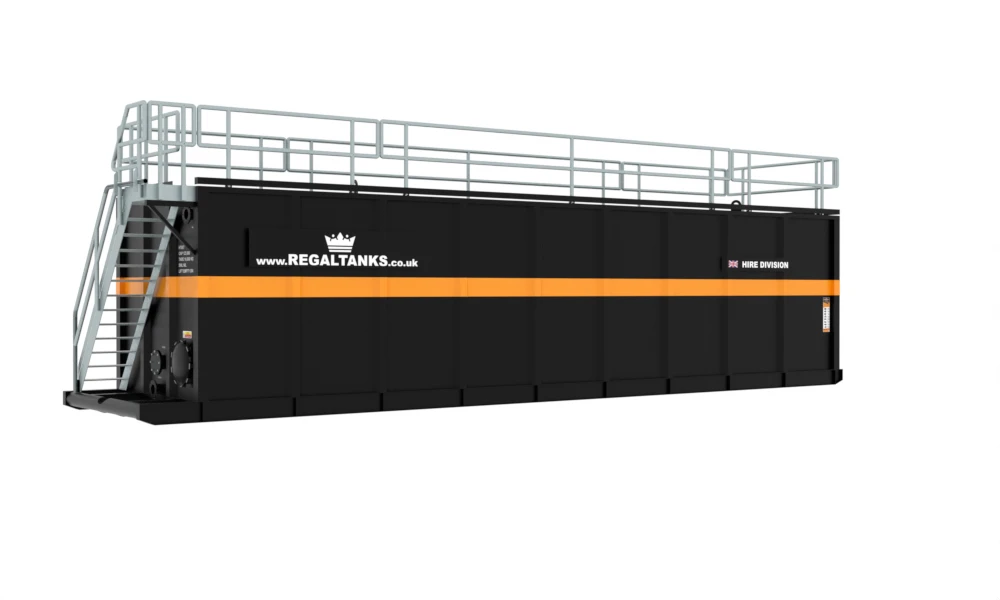

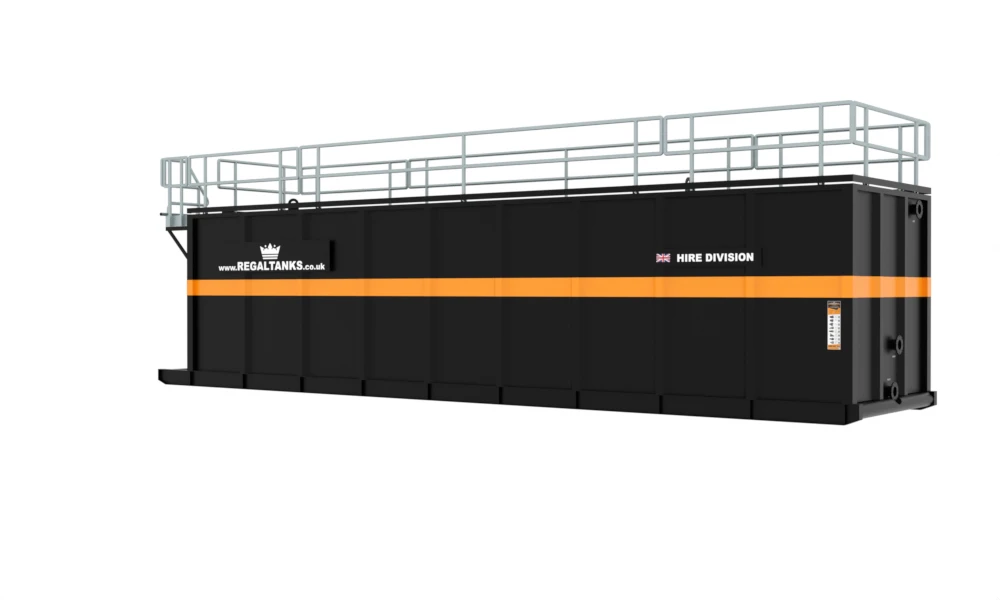

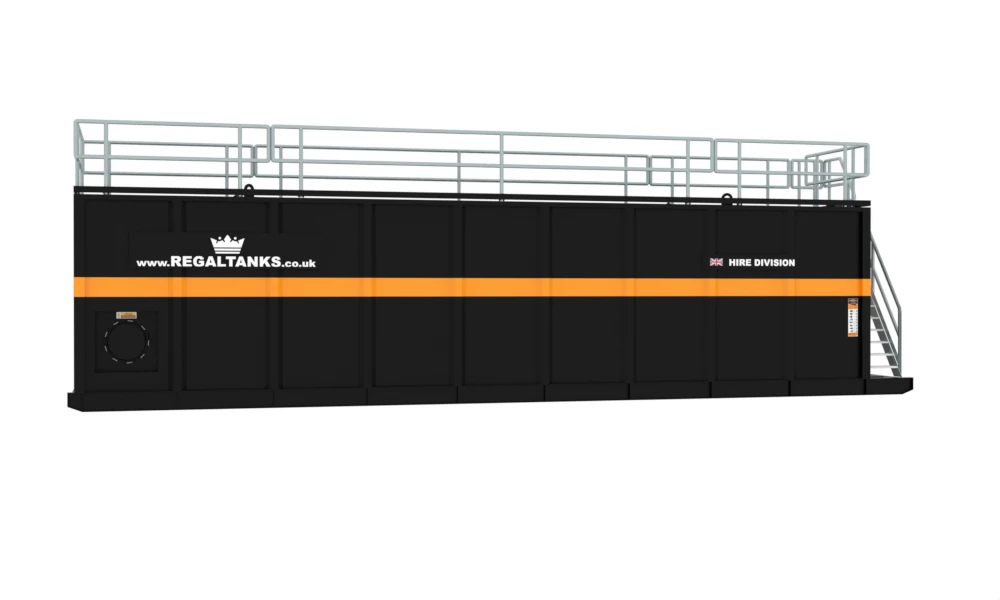

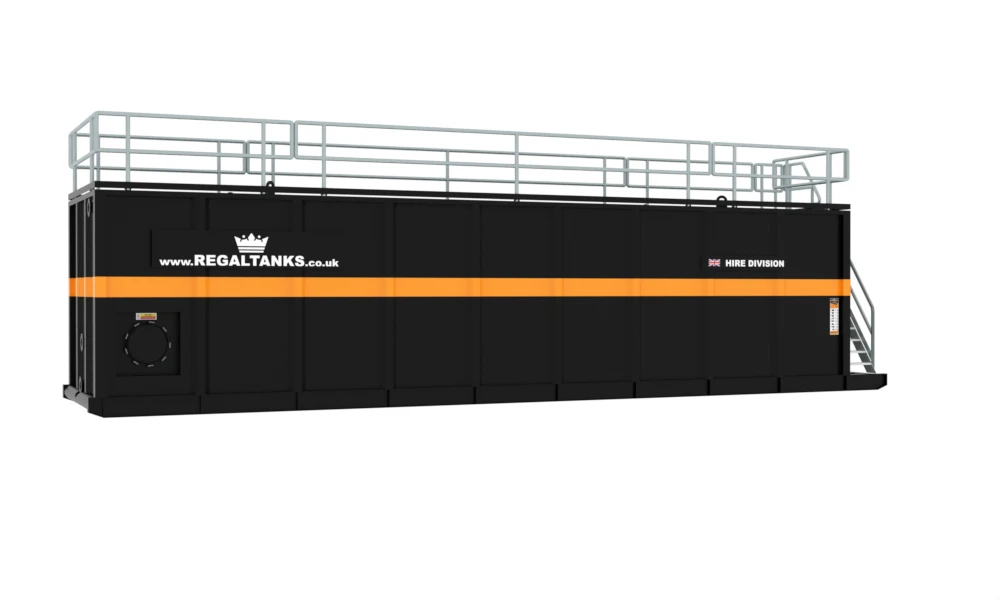

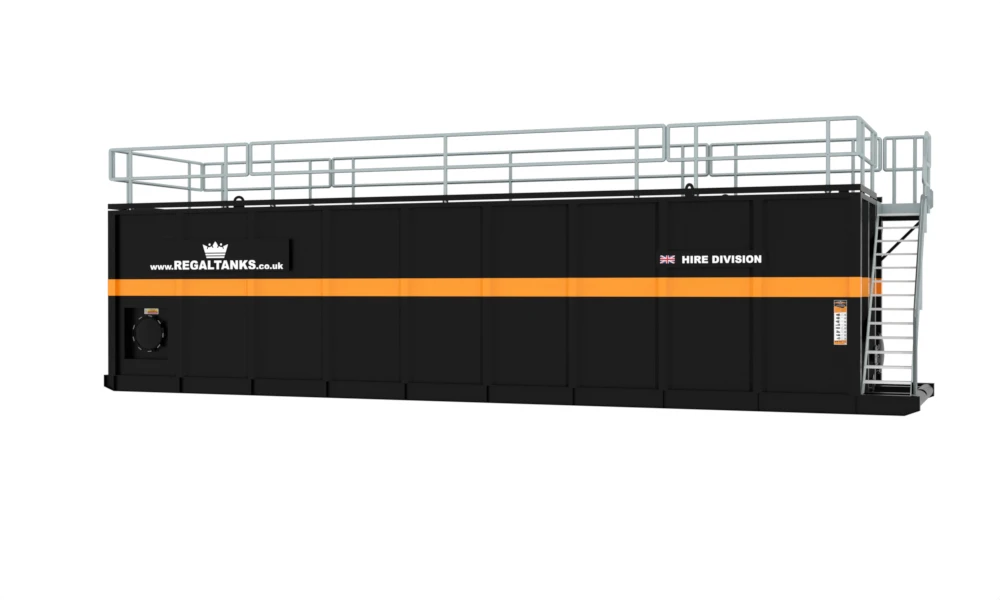

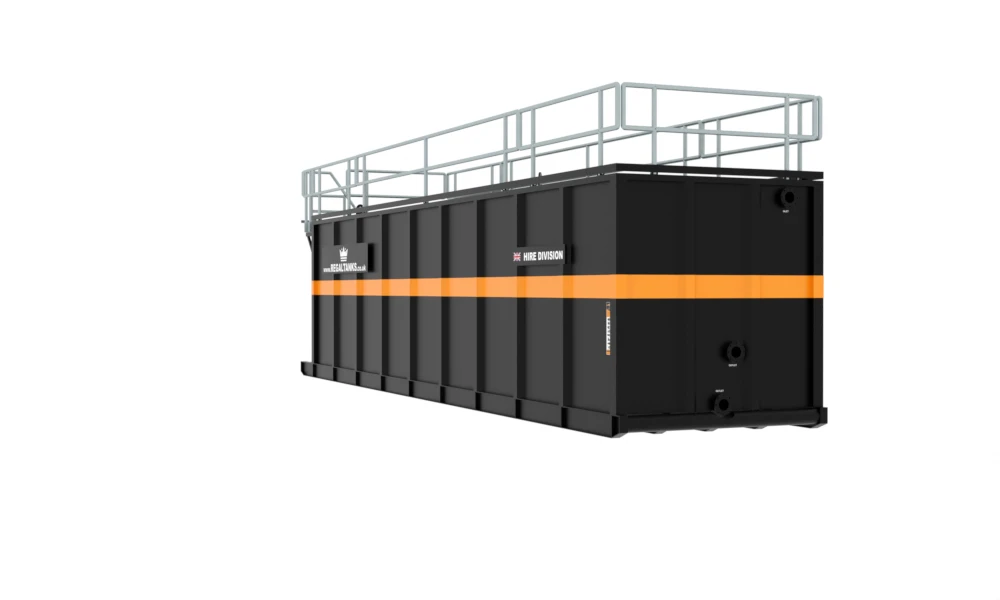

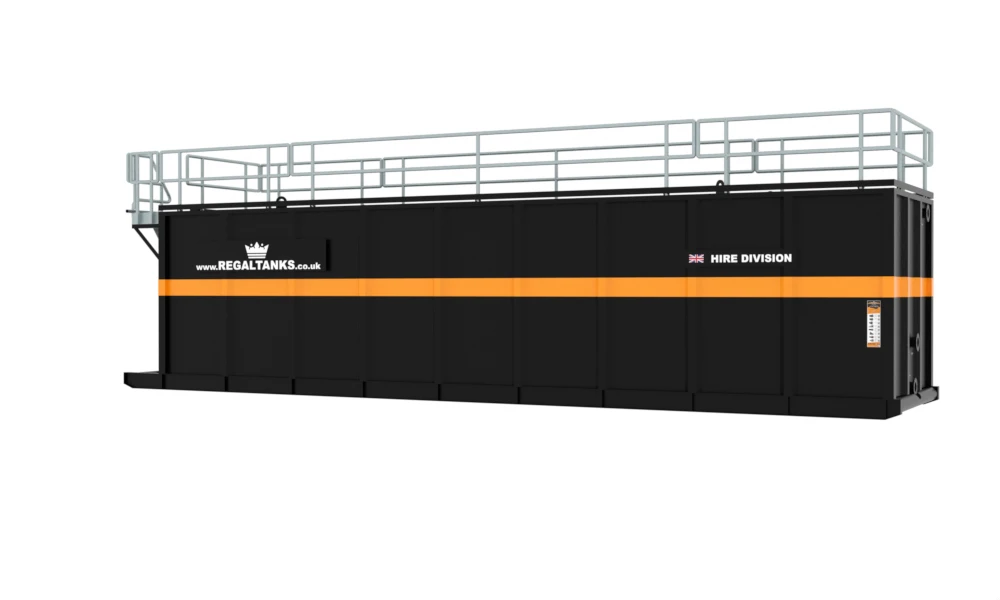

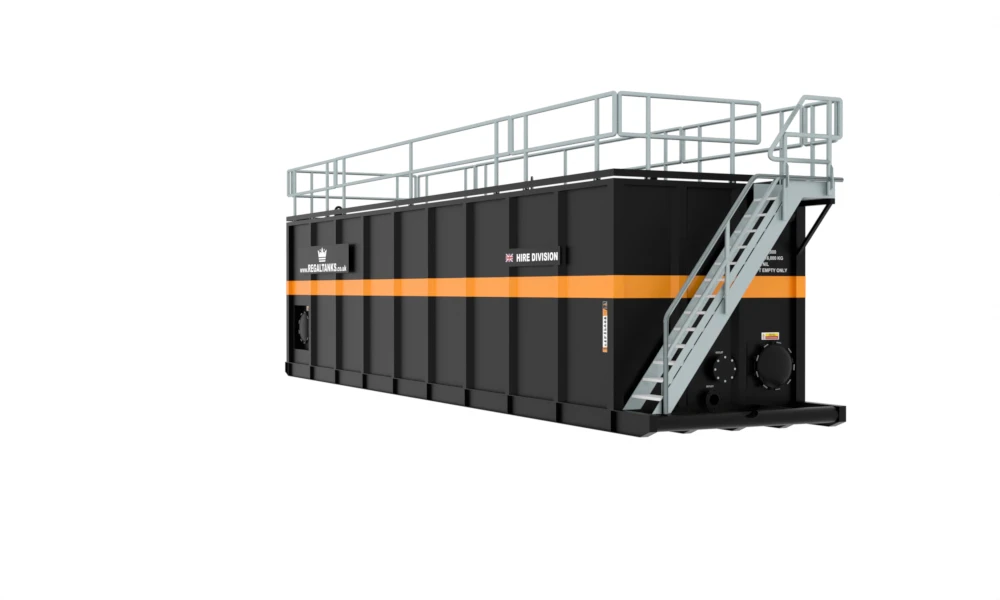

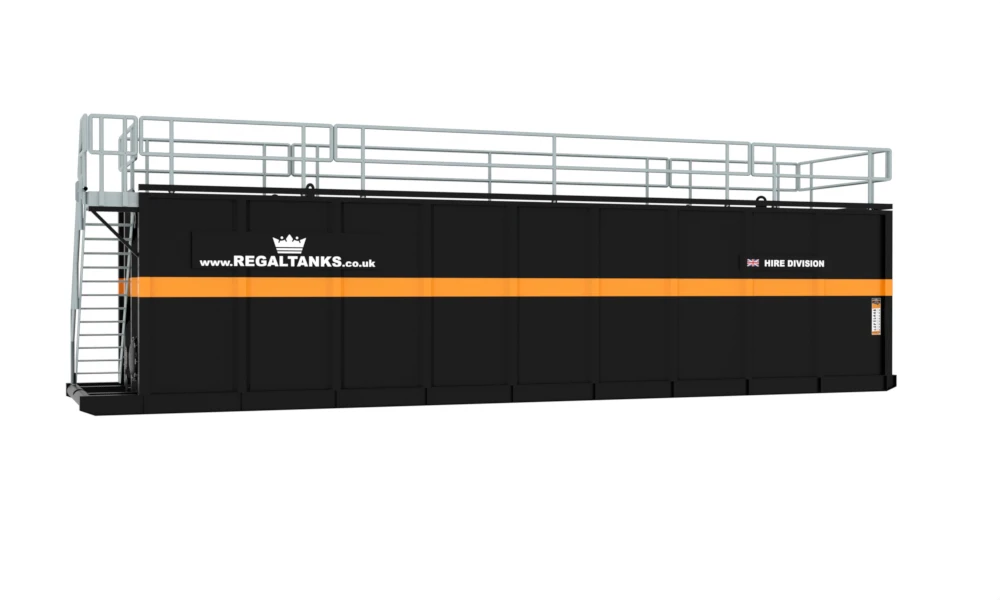

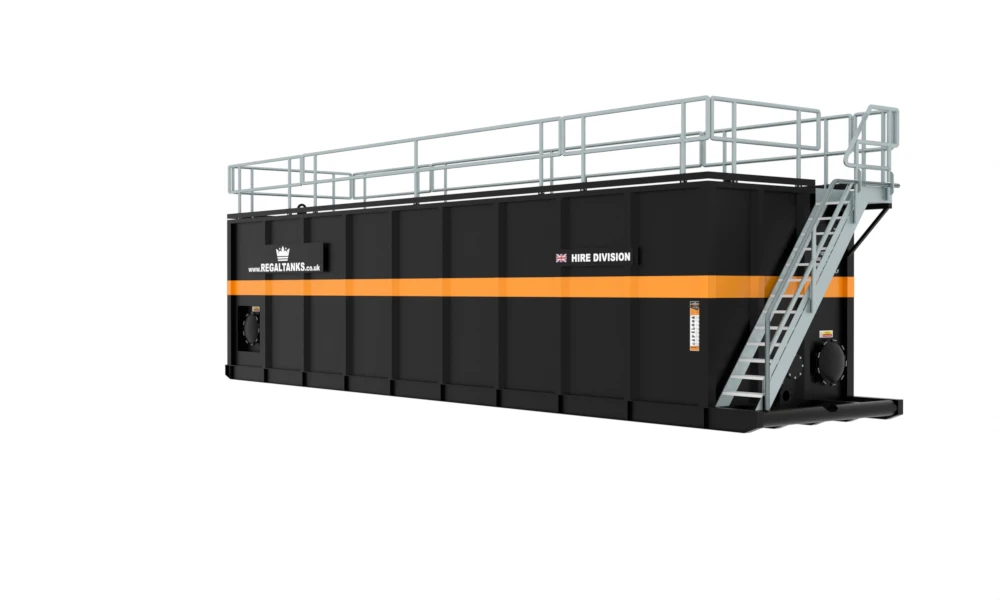

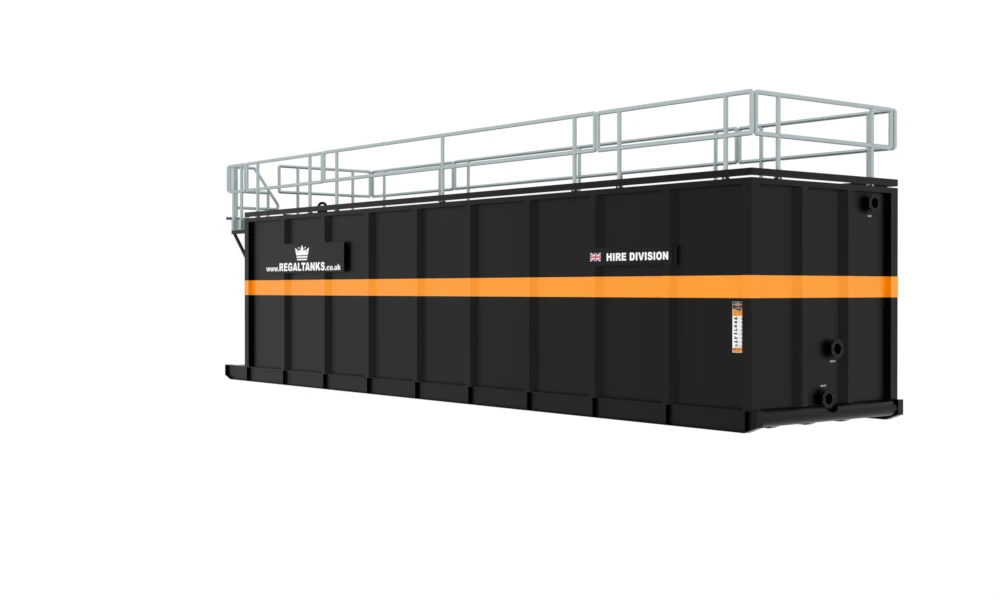

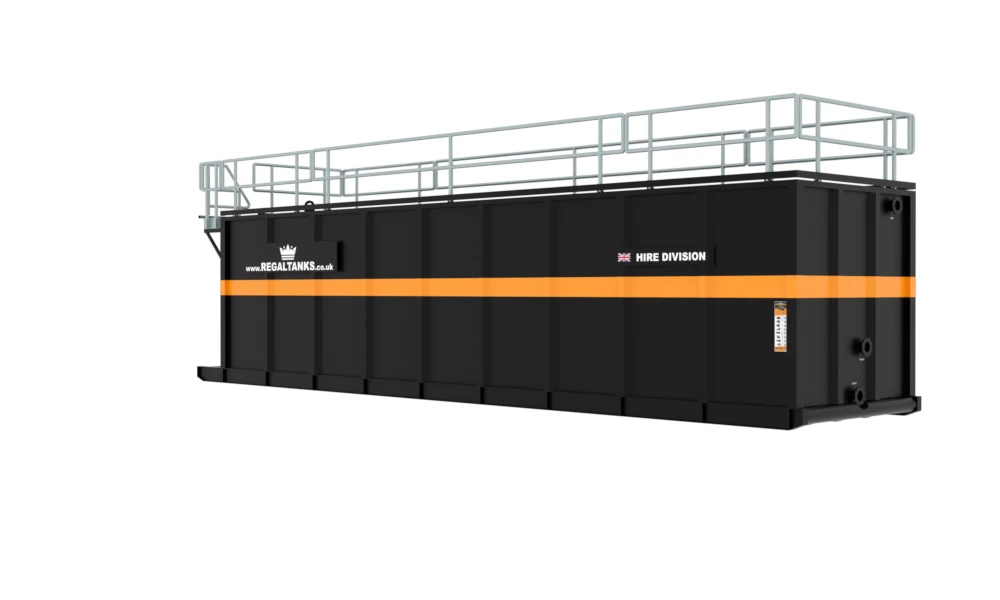

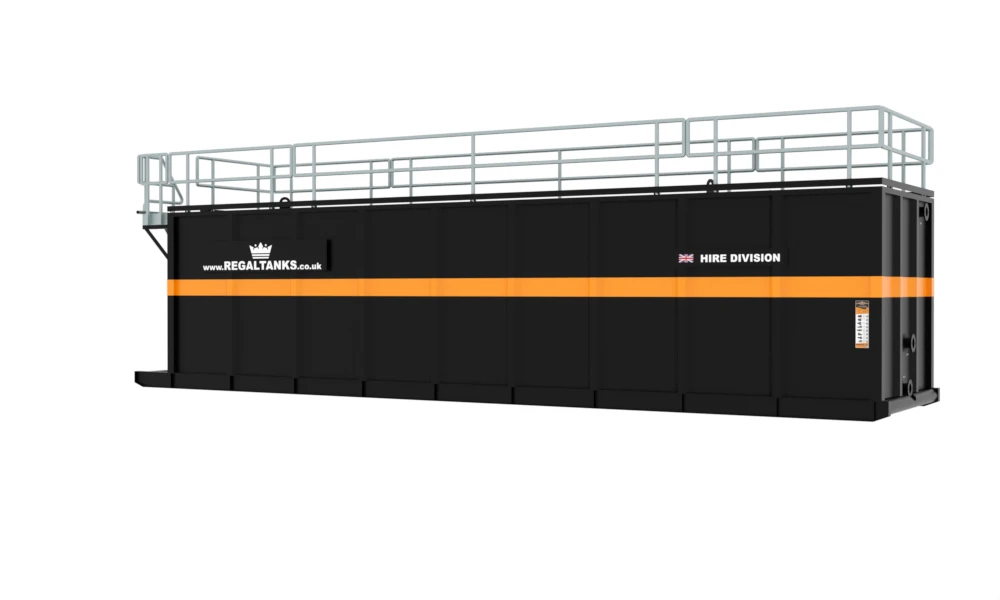

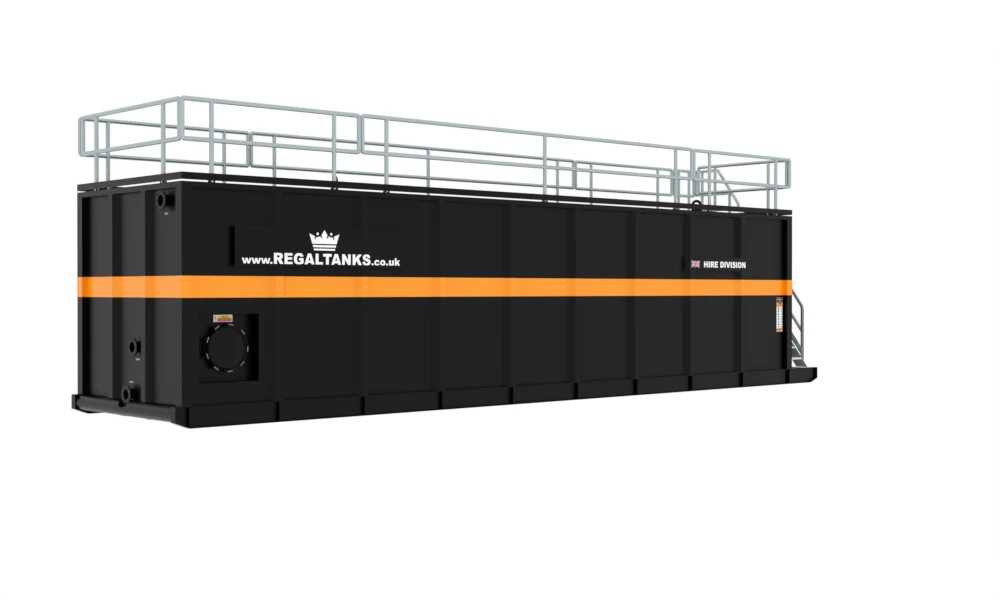

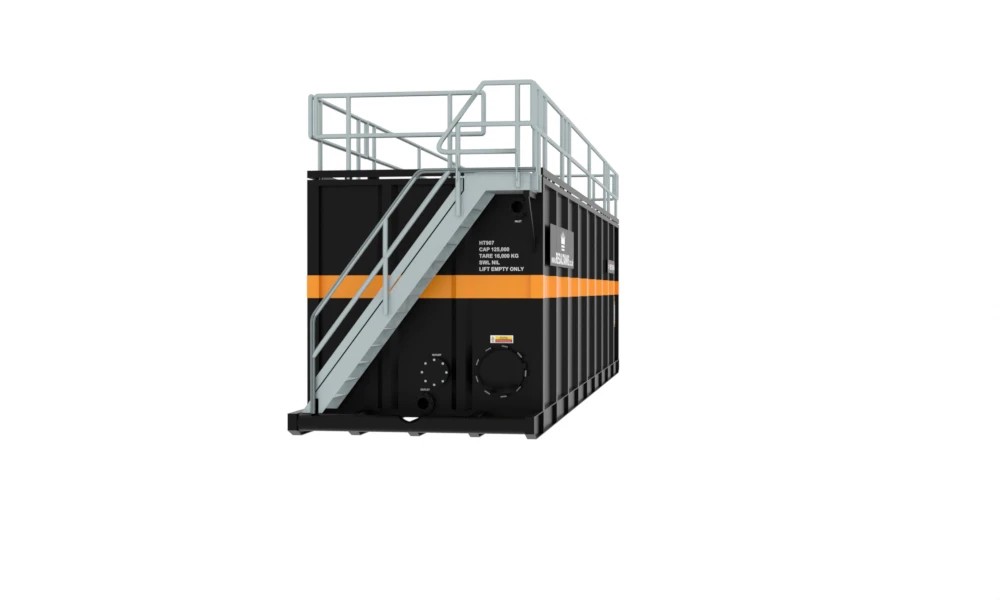

Although not shown in the pictures, this tank has a flat folding safety rail system which is easily erected around the top perimeter of the tank. This provides safety for the user when accessing the top inspection hatch or 6" inlet/outlet via the stairs.

This tank is Chemflake lined and provides resistance for waste water, grey water and most chemicals. Manufactured with a V-bottom, this assists with easy drainage for liquids contained in the tank.

Maximum Capacity

125,000 Litres

Material

Mild Steel

Footprint

L: 14,600 mm, W: 3,200 mm, H: 3,500 mm

Weight

16,000kg

Standard Fittings

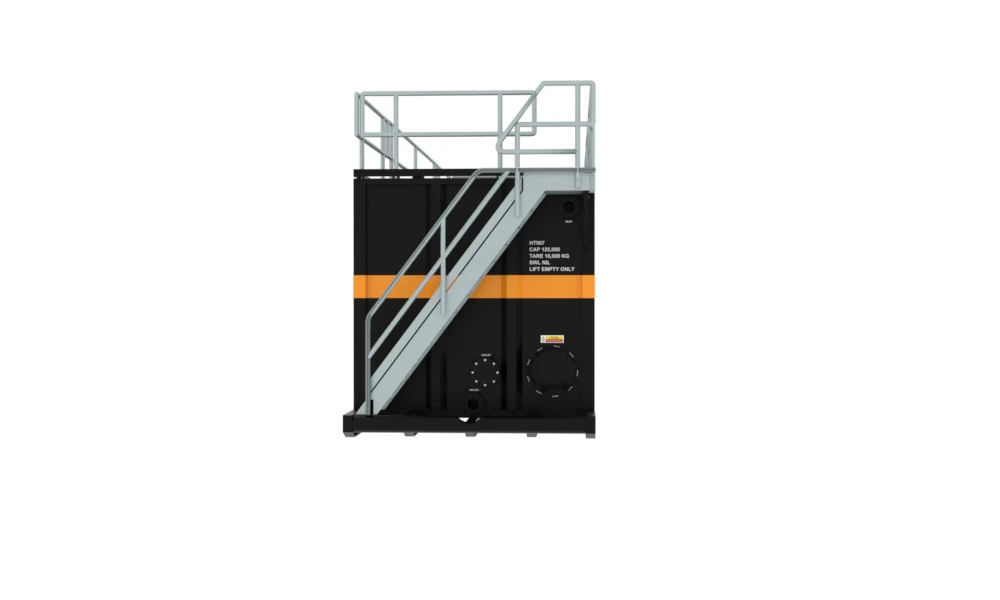

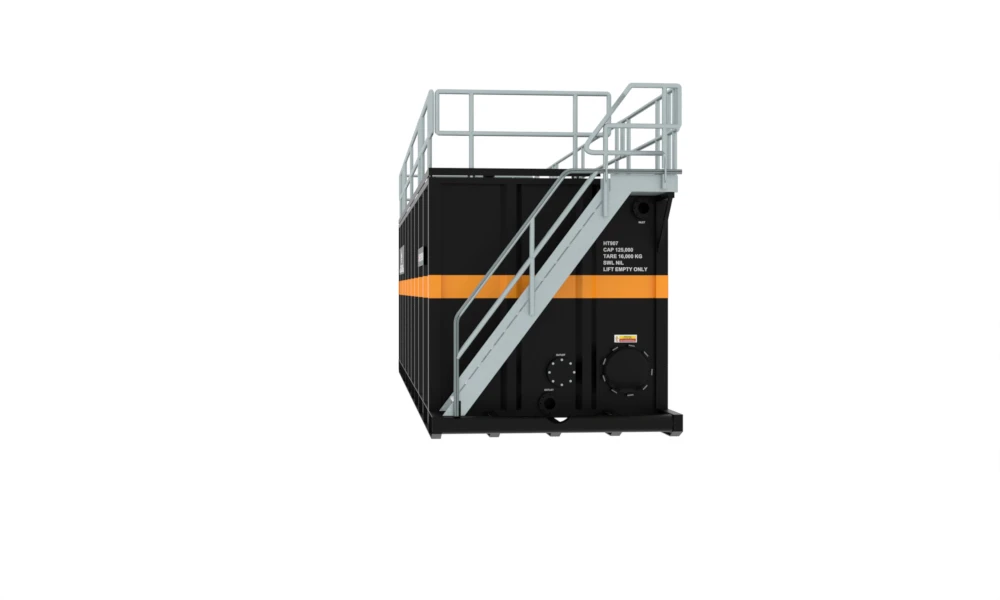

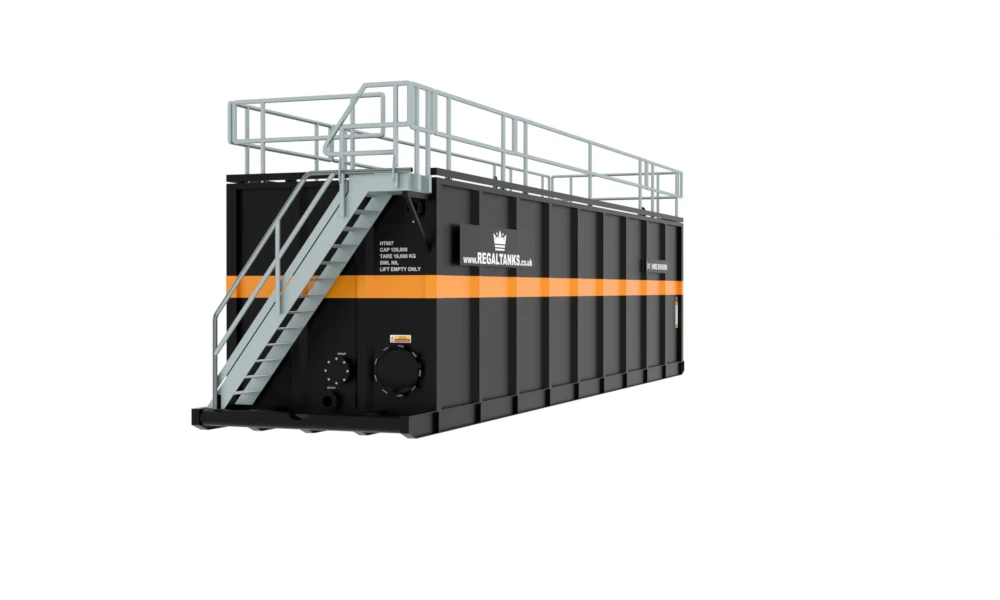

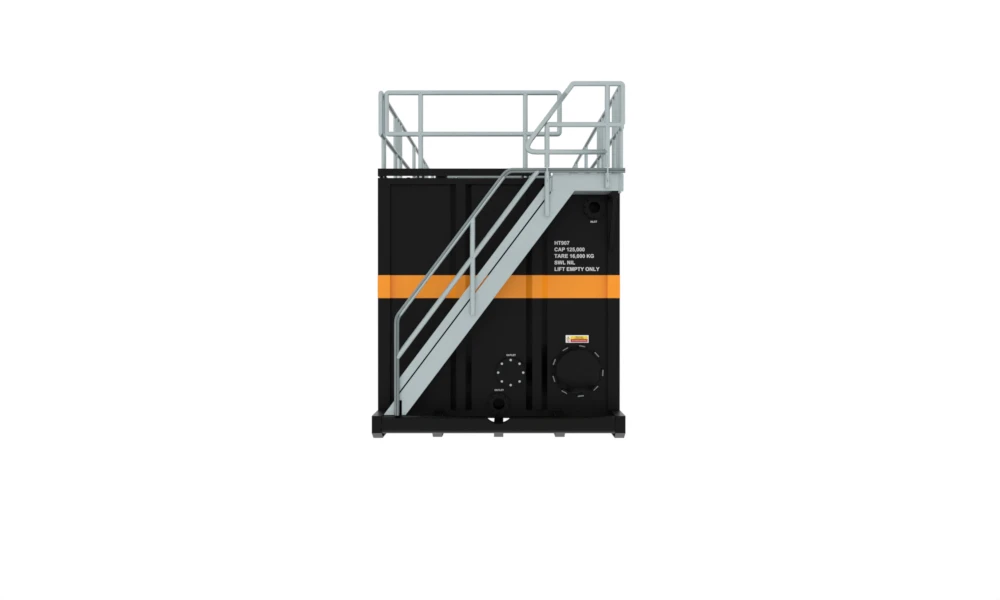

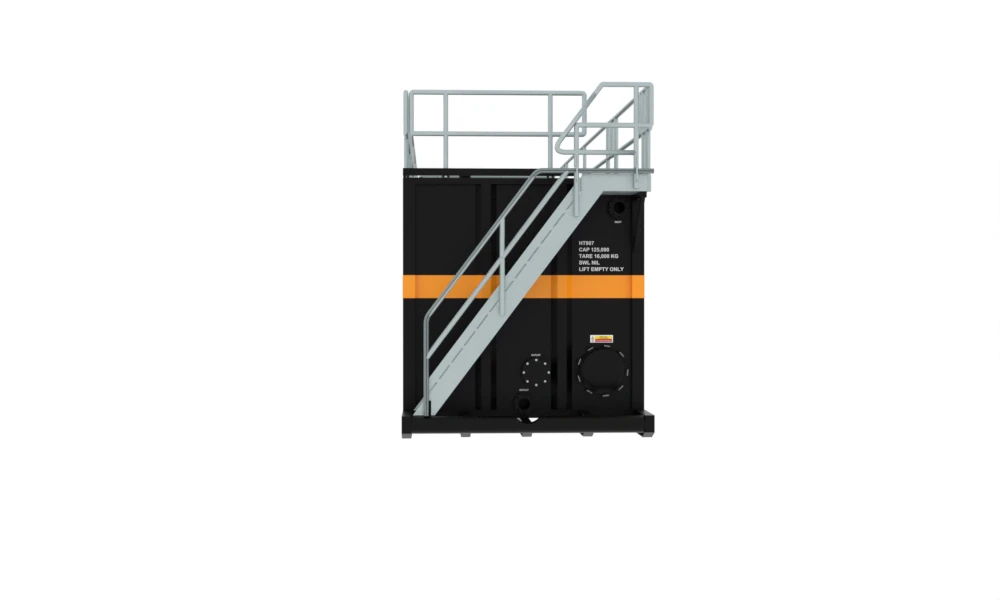

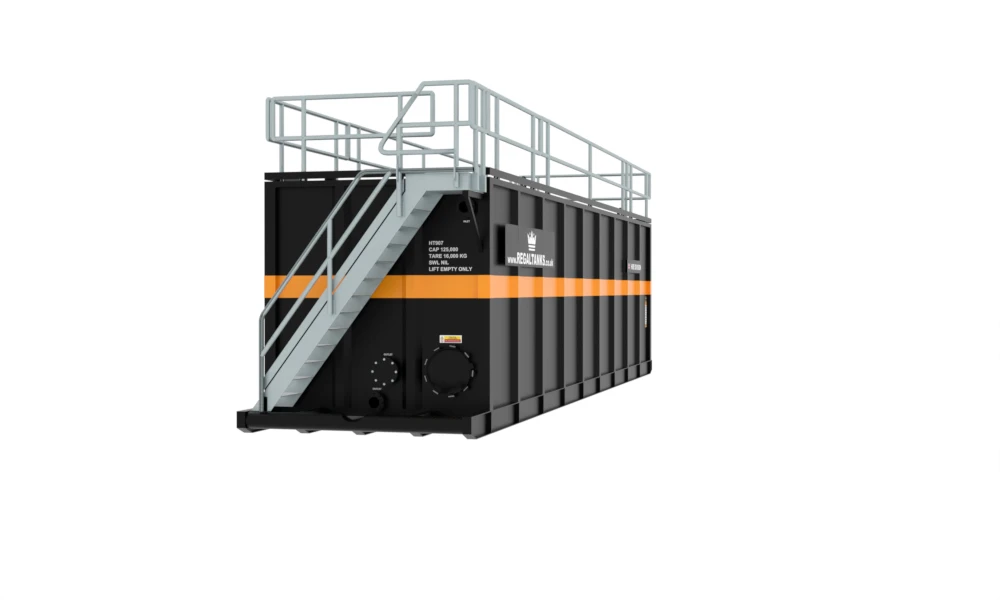

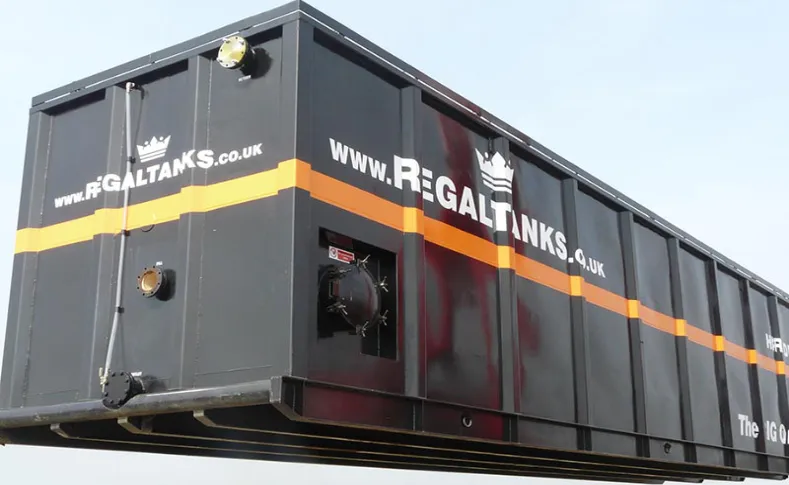

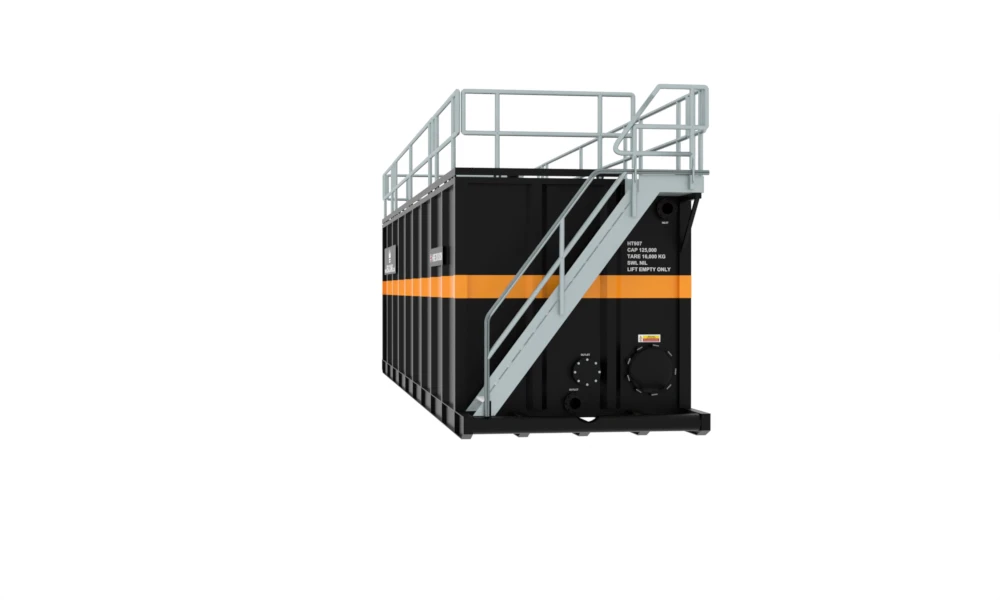

Front
  • 1 no. 600 mm quick release manway
  • 1 no. 6" 150# ANSI flanged inlet/outlet
  • 1" visual sight tube with stop valve

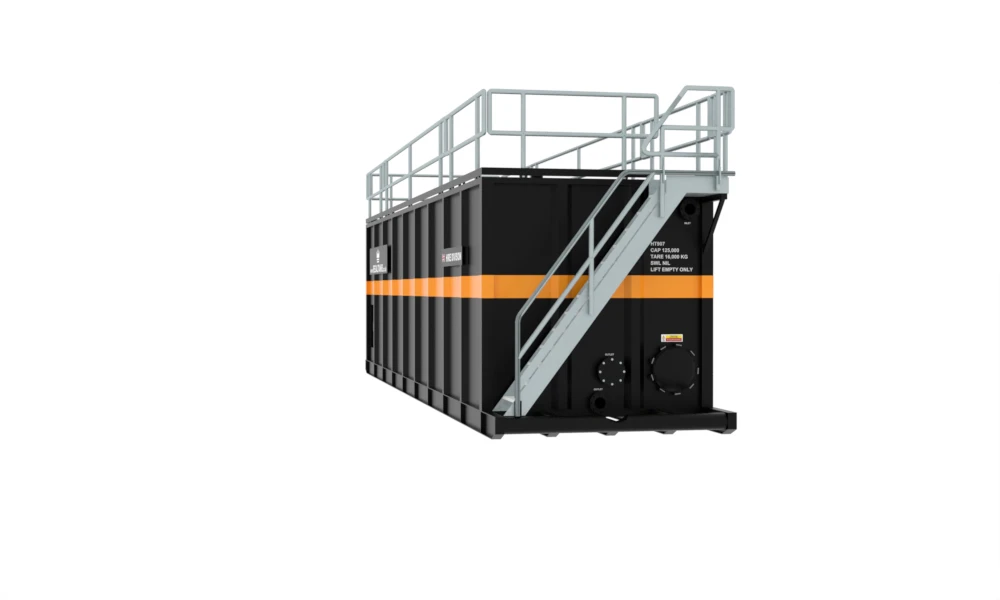

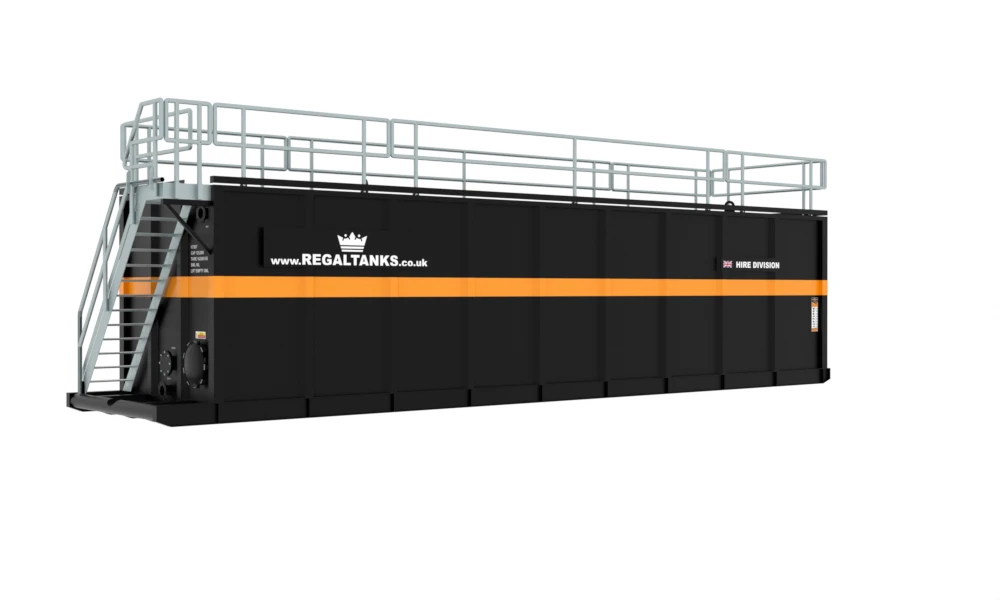

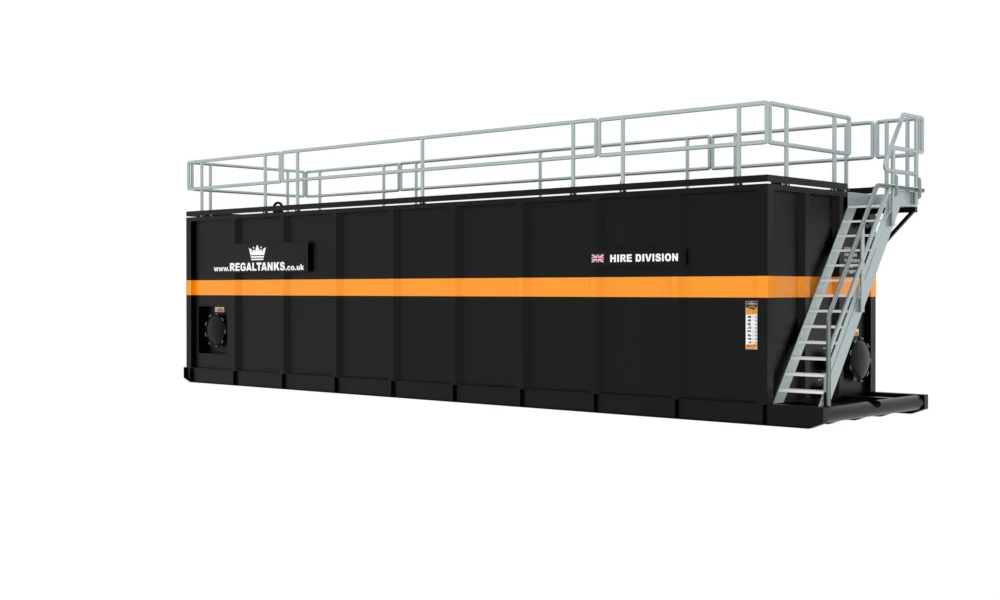

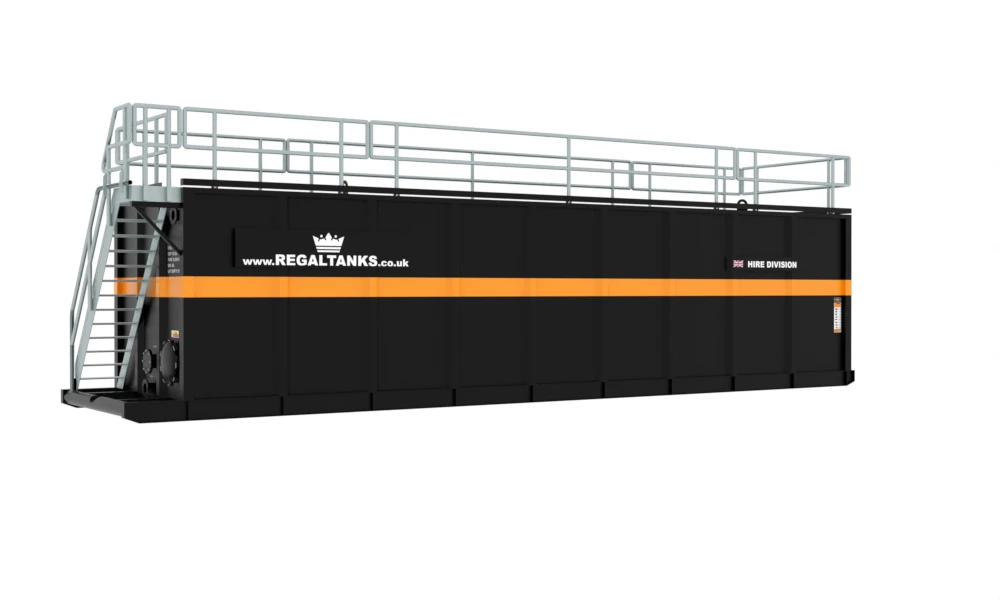

  • Stairs and access platform

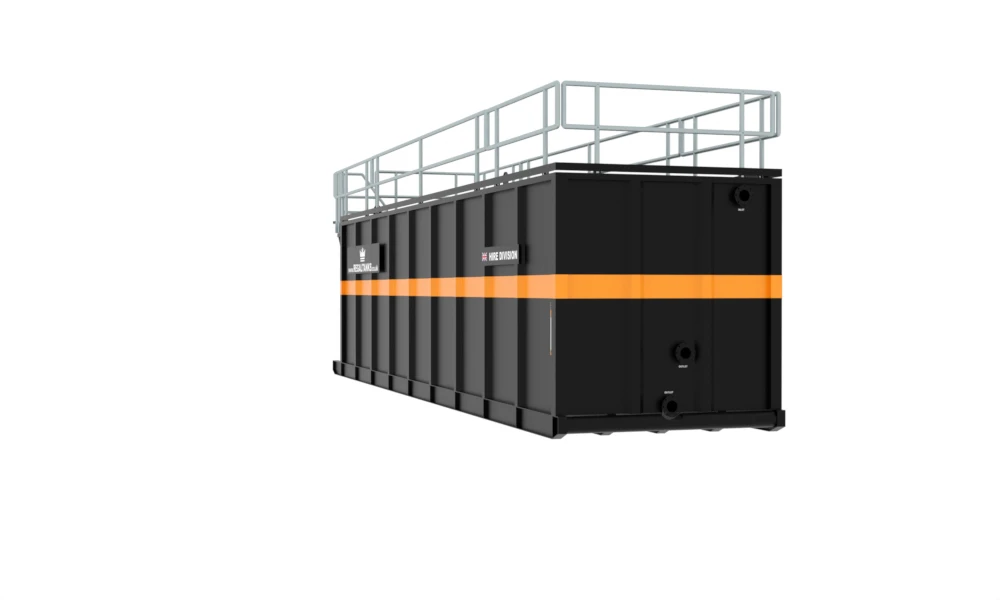

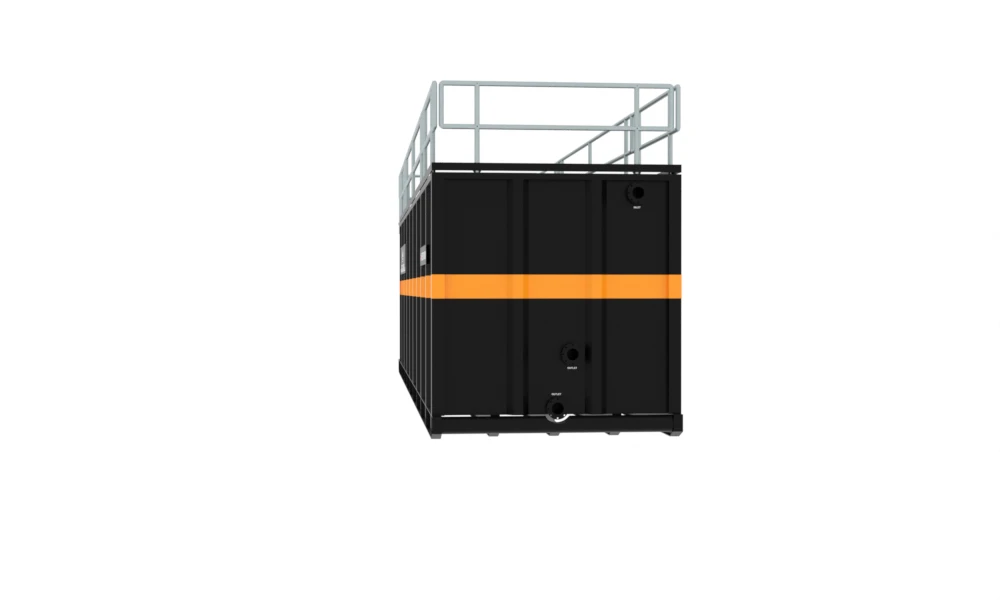

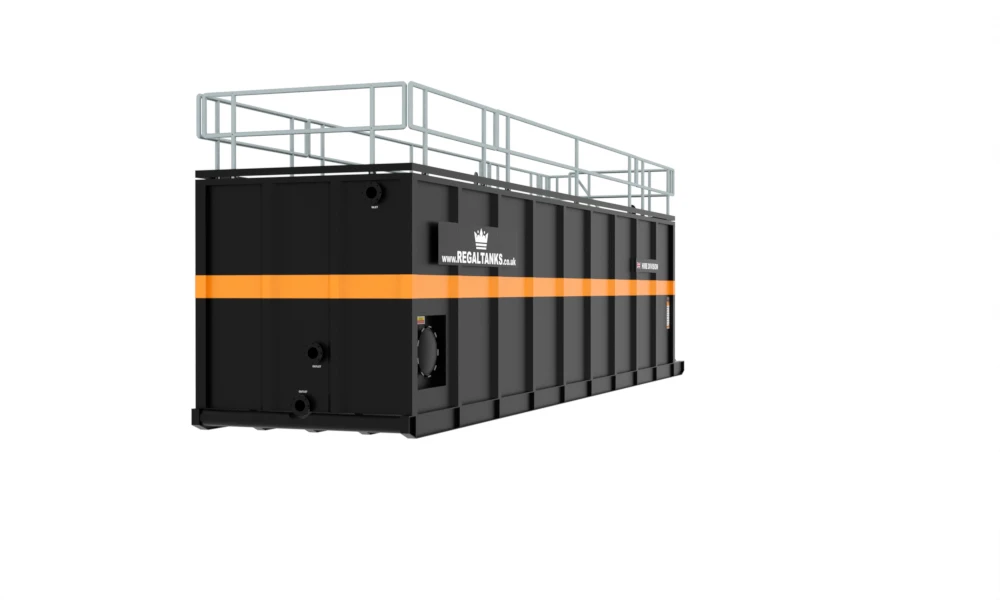

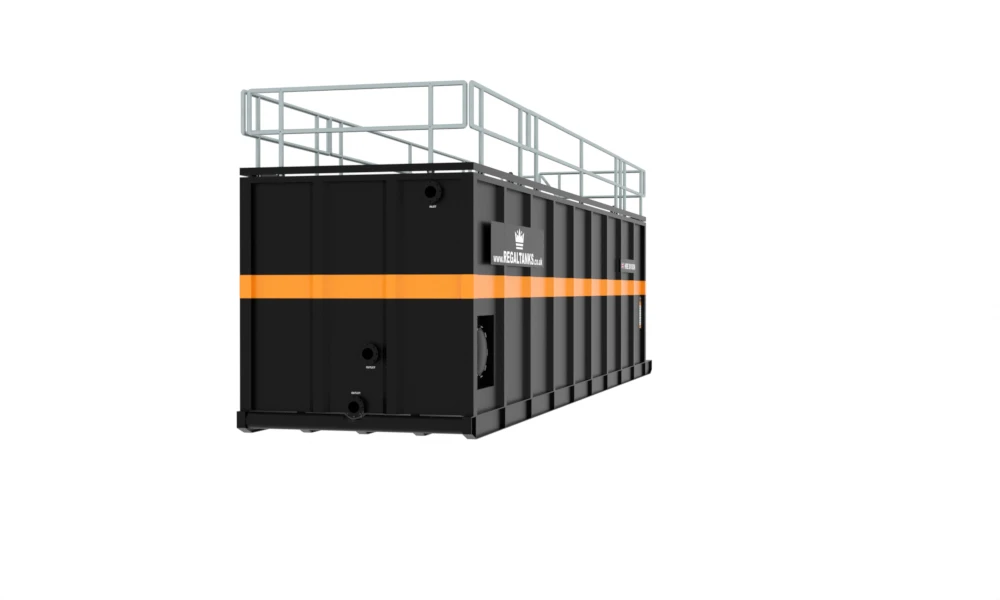

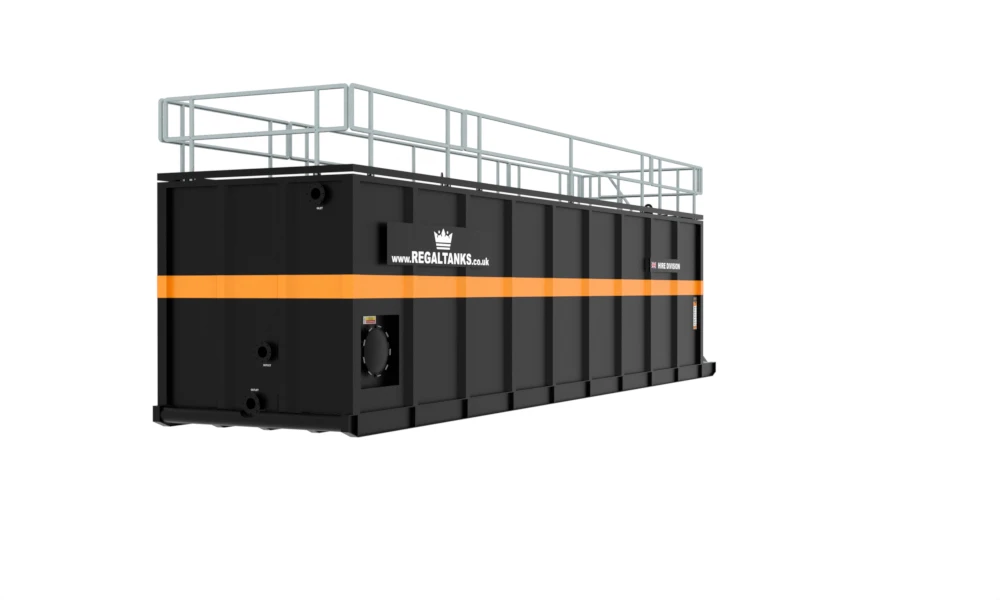

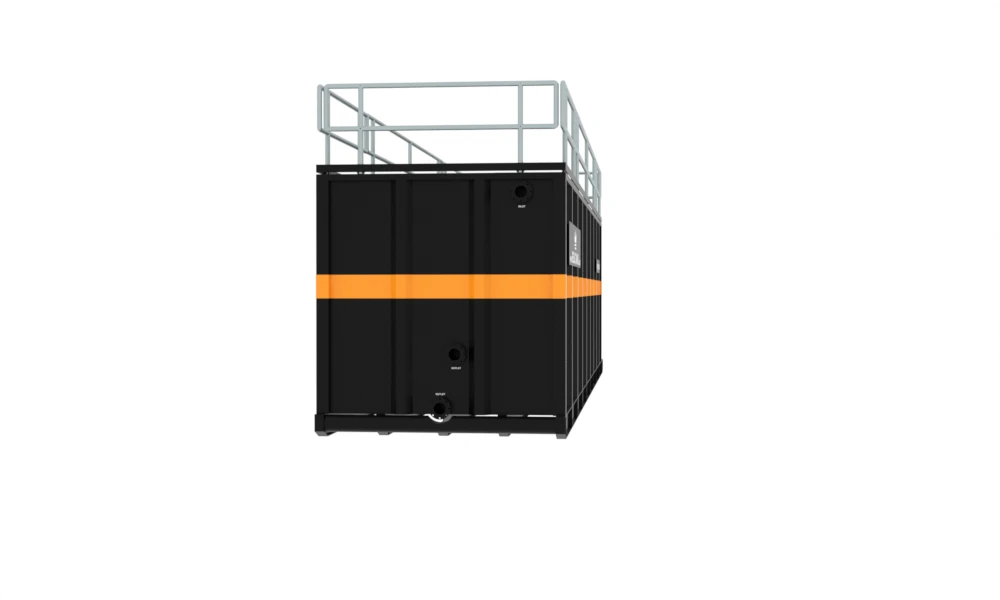

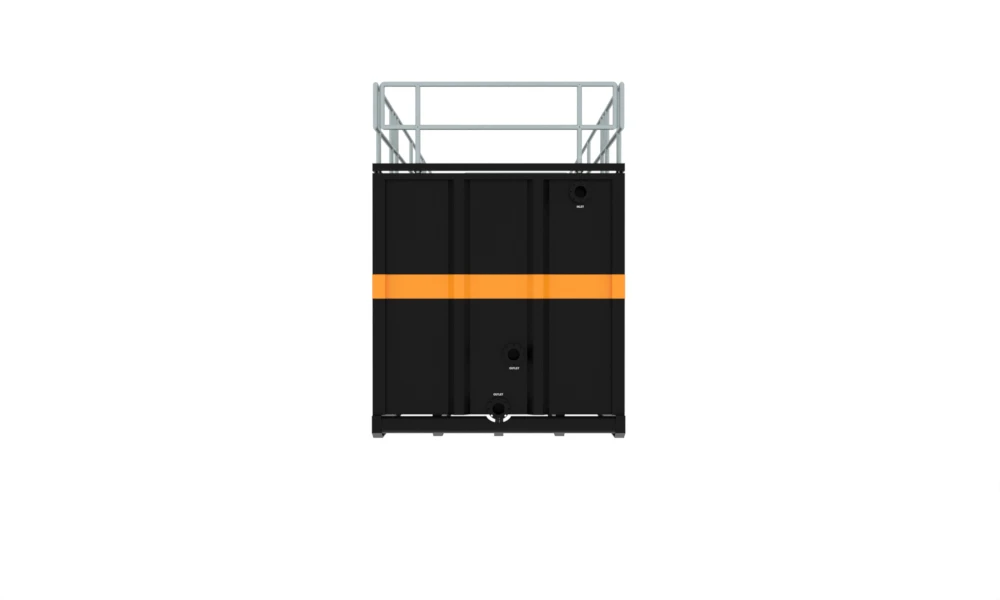

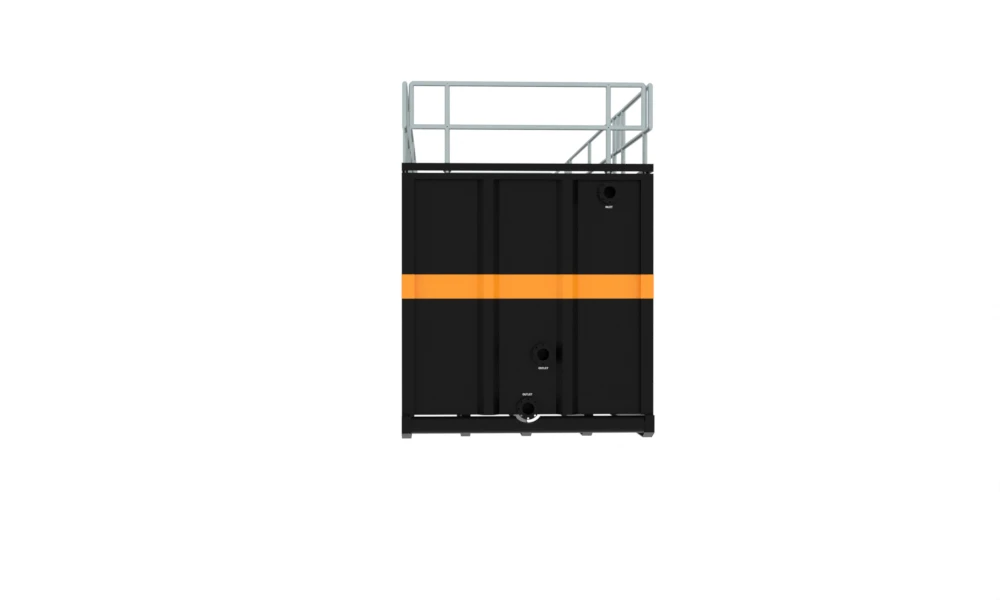

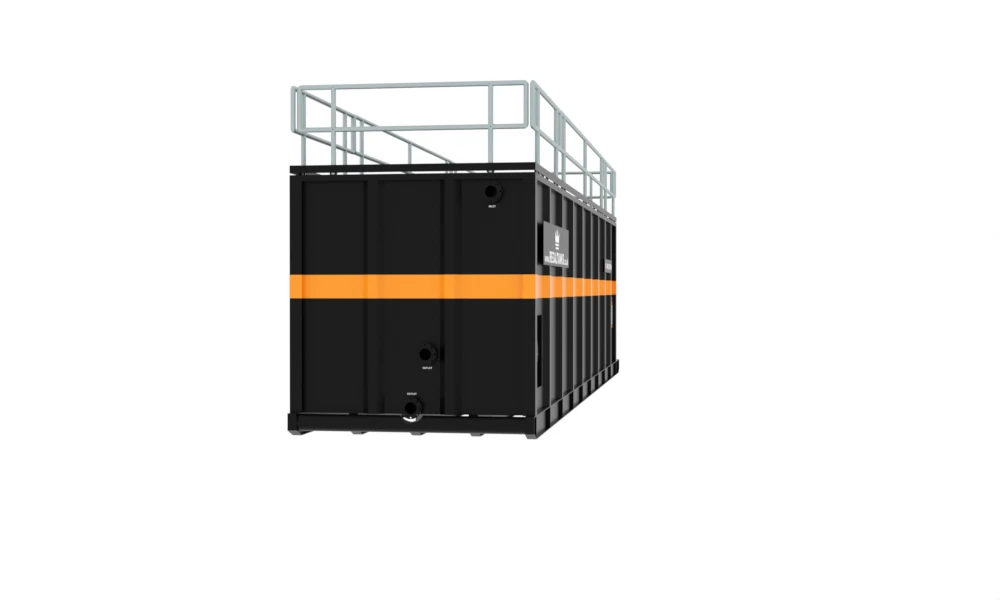

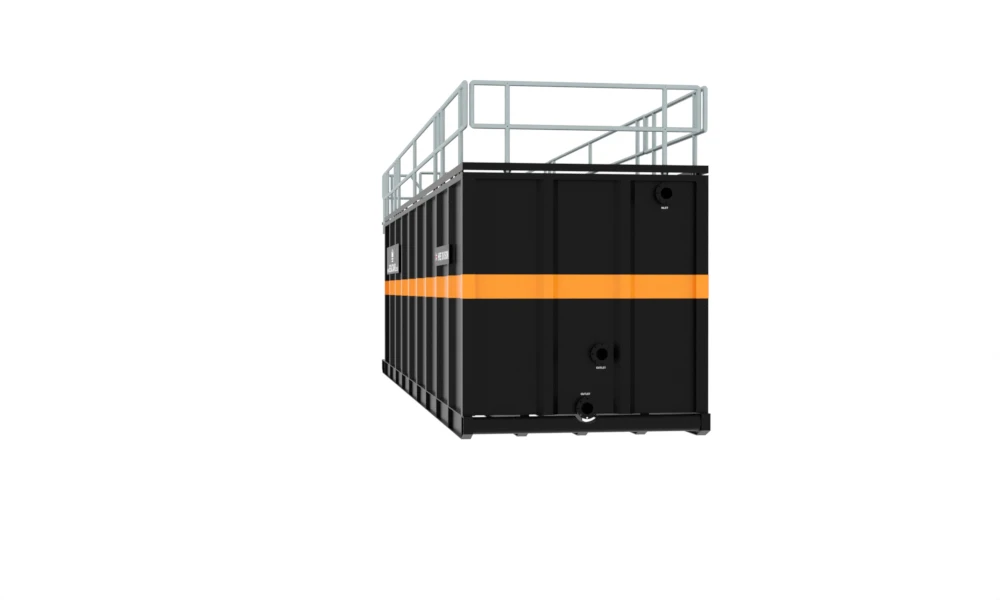

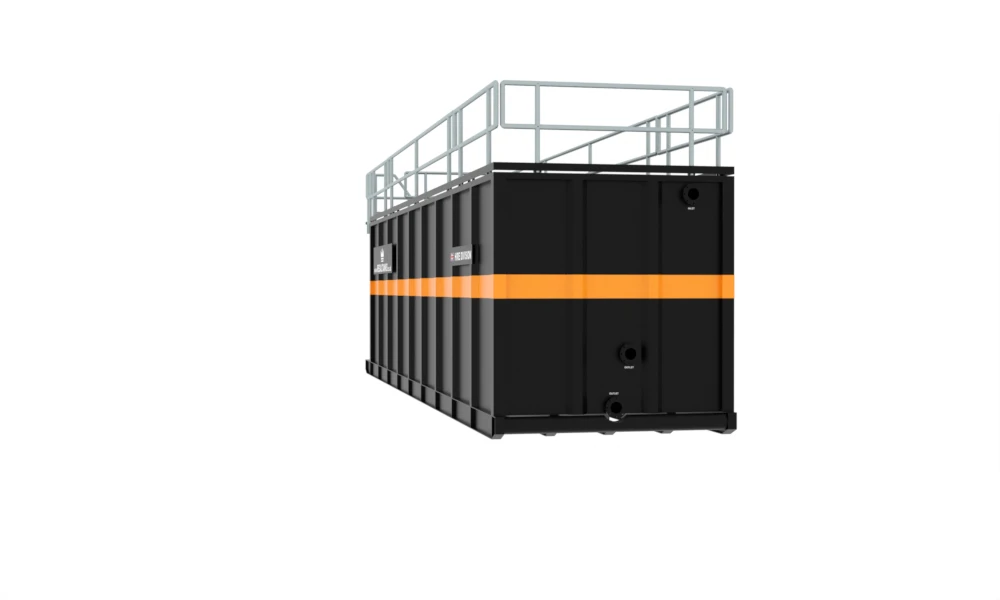

Rear
  • 1" visual sight tube with stop valve
  • 3 no. 6" 150# ANSI flanged inlet/outlet

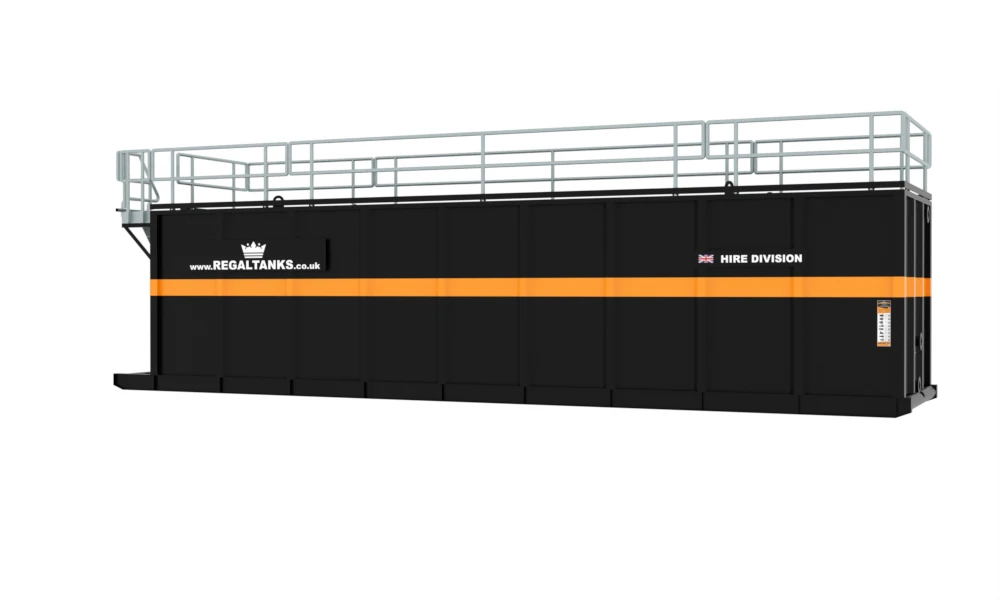

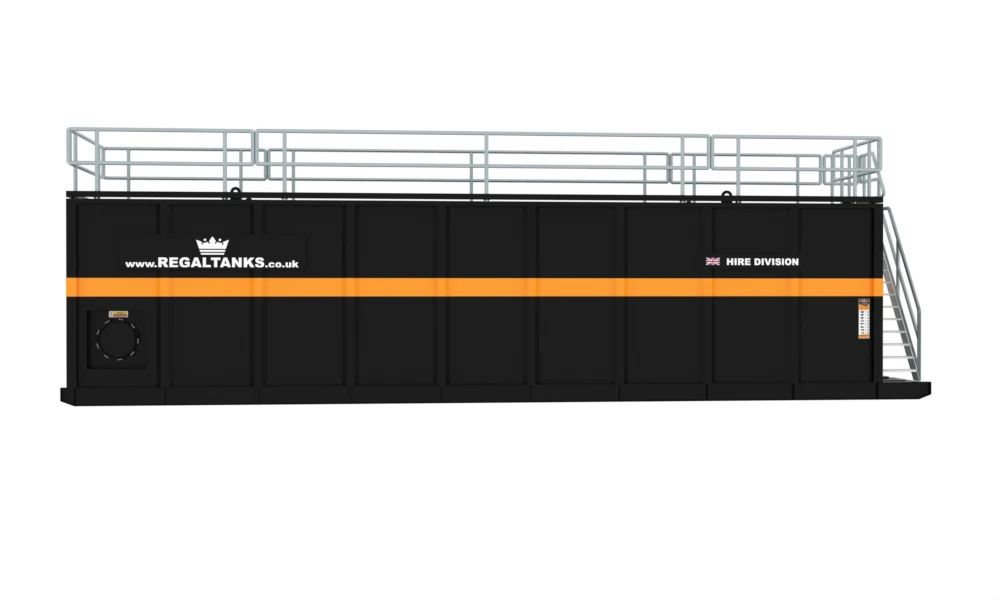

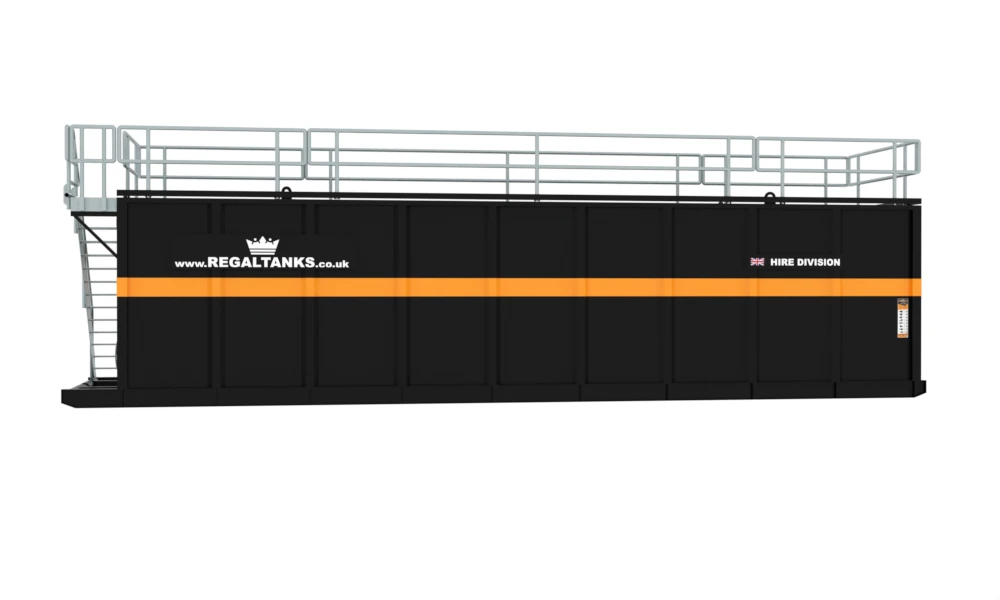

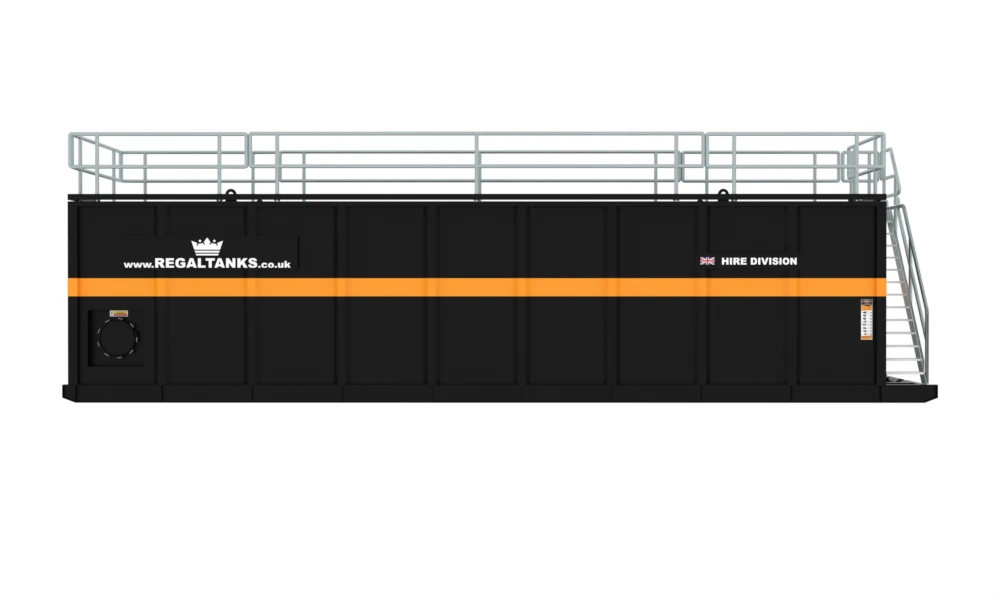

Side

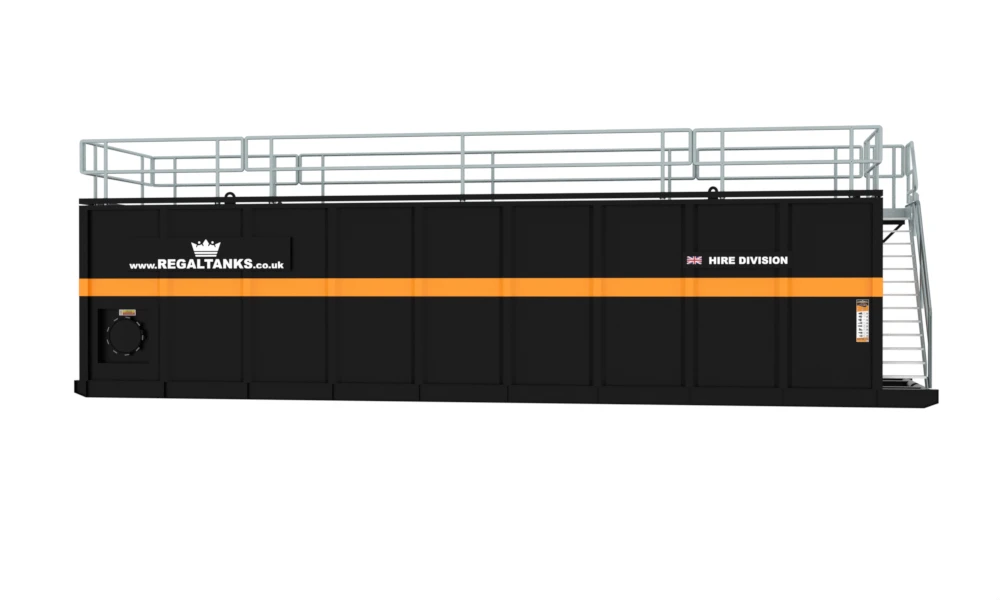

  • 1 no. 600 mm quick release manway
Top
  • 1 no. inspection hatch
  • 1 no. 6" 150# ANSI flanged inlet/outlet
Lifting
  • 4 Leg wire rope sling complete with ring assembly
  • All lifting points and equipment tested to double proof load + 25%
  • 3rd Party certified to LOLER 98
